Sanitaire S657a Owner's Manual

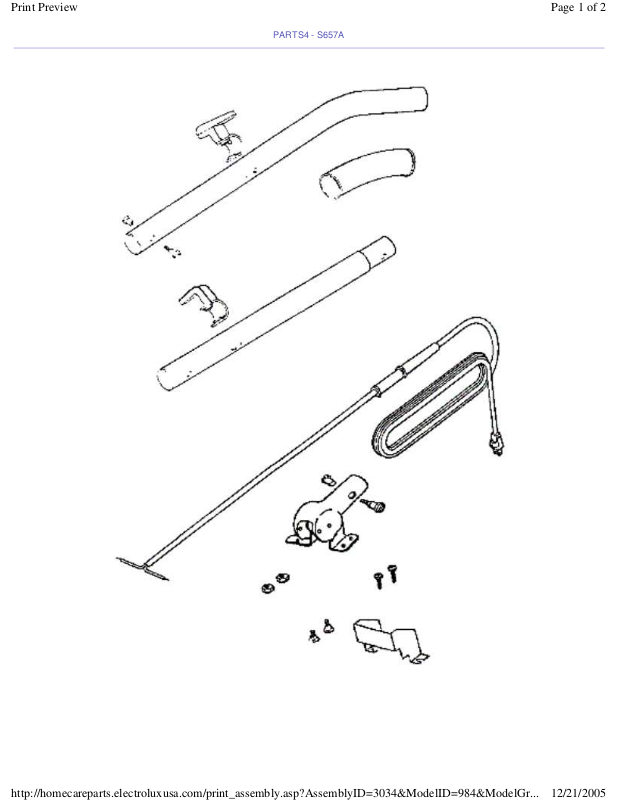

PARTS4 - S657A

Page

1

of 2Print Preview

Ref # Part Description Comments Qty

Page

2

of 2Print Preview

1 12637-8 TUBE - HANDLE (LOWER)
2 13521-2 RETAINER - CORD (LOWER)
3 25329-20 HANDLE ASSEMBLY (UPPER)
4 27382-4 CORD & POLARIZED PLUG ASS
5 35293-8 GRIP - HANDLE
6 36097-3 SLEEVE
7 36439 SHIELD - HANDLE SOCKET
8 36965-2 CORD RETAINER ASSY-BLACK

9 38183-1 HANDLE SOCKET ASSEMBLY
10 53145 BOLT PACKAGE (10)
11 53198-1 HANDLE SCREW ASSY PACKAGE
12 53213-5 NUTS - PACKAGE 10
13 53238-13 SCREW PACKAGE

PARTS1 - S657A

Page

1

of 2Print Preview
