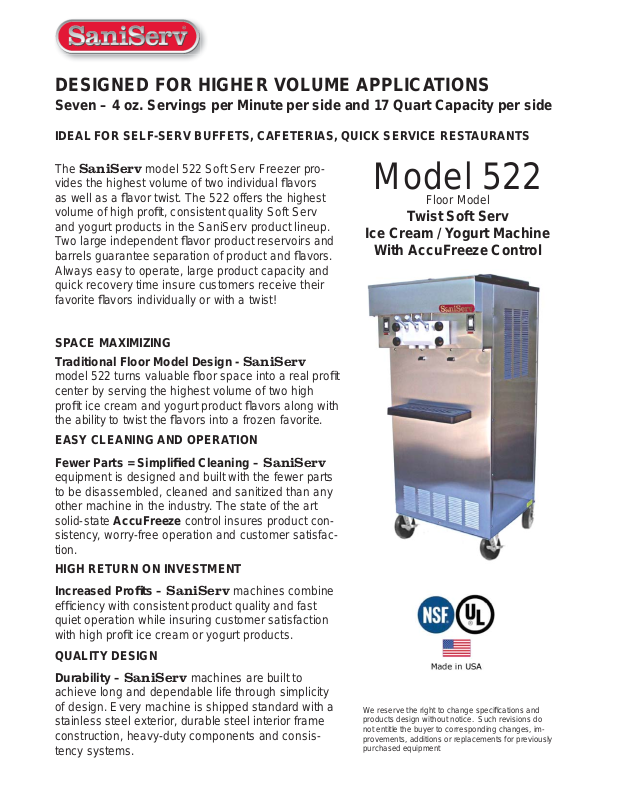

SaniServ 522 User Manual
DESIGNED FOR HIGHER VOLUME APPLICATIONS
Seven – 4 oz. Servings per Minute per side and 17 Quart Capacity per side
IDEAL FOR SELF-SERV BUFFETS, CAFETERIAS, QUICK SERVICE RESTAURANTS
The
SaniServ model 522 Soft Serv Freezer pro-
vides the highest volume of two individual fl avors
as well as a fl avor twist. The 522 offers the highest
volume of high profi t, consistent quality Soft Serv
and yogurt products in the SaniServ product lineup.
Two large independent fl avor product reservoirs and
barrels guarantee separation of product and fl avors.
Always easy to operate, large product capacity and
quick recovery time insure customers receive their
favorite fl avors individually or with a twist!
SPACE MAXIMIZING
Model 522
Floor Model
Twist Soft Serv
Ice Cream / Yogurt Machine
With AccuFreeze Control
Traditional Floor Model Design -
model 522 turns valuable fl oor space into a real profi t
center by serving the highest volume of two high
profi t ice cream and yogurt product fl avors along with
the ability to twist the fl avors into a frozen favorite.
EASY CLEANING AND OPERATION
Fewer Parts = Simplifi ed Cleaning –
equipment is designed and built with the fewer parts
to be disassembled, cleaned and sanitized than any
other machine in the industry. The state of the art
solid-state AccuFreeze control insures product consistency, worry-free operation and customer satisfaction.
HIGH RETURN ON INVESTMENT
Increased Profi ts –
effi ciency with consistent product quality and fast
quiet operation while insuring customer satisfaction
with high profi t ice cream or yogurt products.
SaniServ machines combine
SaniServ
SaniServ
QUALITY DESIGN
Durability –
achieve long and dependable life through simplicity
of design. Every machine is shipped standard with a
stainless steel exterior, durable steel interior frame
construction, heavy-duty components and consistency systems.
SaniServ machines are built to
We reserve the right to change specifi cations and
products design without notice. Such revisions do
not entitle the buyer to corresponding changes, improvements, additions or replacements for previously
purchased equipment
MODEL 522
Floor Model Twist Soft Serv / Yogurt Freezer
Minimum Wall Clearance
Both Sides and Back 6 inches (152 mm)
ELECTRICAL WIDTH HEIGHT DEPTH WEIGHT VOLUME
VOLTS Hz Ph. Amps INCHES (MM) INCHES (MM) INCHES (MM) LBS. (Kg) CU FT. (cu. m.)
208-230 60 1 30*
208-230 60 3 20*
Shipping Specifi cations
* Two separate circuits required.
Specifi cations:
Cooling System:
Air or Water
Dasher and Compressor Motors:
(2) 1 HP Dashers
(2) 2 HP Compressor
Refrigerant Type:
R404A
Listings:
UL, cUL, NSF
Features:
Evaporator and Mix Reservoir
Capacity:
17 Quarts (16.15 liters) per side
Dasher:
Heavy-Duty Stainless Steel with low
friction scraper blades.
Controls:
AccuFreeze solid-state control
for accurate product consistency.
Solid State Audio/Visual Mix Out
System with Compressor Lockout
26 (660) 59.5 (1511) 30 (762) 603 (274)
36 (914) 65 (1650) 40 (1016) 634 (288) 54.8 (1.53)
Warranty:
Parts 1 year
Compressor 5 years
Evaporator 5 years
Options:
Tune Up Kit
Parts Tray
Syrup Rail
Water Cooled - 3/4” Garden Hose Fitting
Wash Out Kit - 3/8” Flare Fitting
Export Voltage
