Sangean Electronics 027 User Manual

WR-50

Operating instruction

Mode d’emploi

Instruccions de manejo

GB
F
E

3A81aL0S1002A

IMPORTANT SAFETY INSTRUCTIONS

For United States:

Cautions to the user

The changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.

RF exposure statements
IMPORTANT NOTE:

To comply with the FCC RF exposure compliance requirements, the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20cm (8 inches) from all persons and
must not be co-located or operating in conjunction with any other
antenna or transmitter. No change to the antenna or the device is
permitted. Any change to the antenna or the device could result in
the device exceeding the RF exposure requirements and void user’s
authority to operate the device.

Note:

This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

VERY IMPORTANT PLEASE READ

Sangean suggest that you keep your AC Adapter at least 12 inches
away from the radio while listening to the AM Band.
Your Sangean Radio is powered by an AC adapter which is a “switching”
or “switch-mode” type. The DOE (Department Of Energy) has a Federal
mandate; requiring all manufactures to use this type of power supply.
This newer power saving technology has the unfortunate side effect of
causing interference to the AM radio band.
Therefore, we recommend that customers keep at least a 1 foot distance
between the AC adapter and the radio. This interference will not affect
the FM Band. If you have any questions please contact customer
service at [phone], [phone] or [e-mail] If
an AC adapter isn’t included in this model and if you wish to purchase
an AC Adapter separately, please refer to the specifications for

the

AC Adapter stated on the final page of the manual, or please
contact Sangean for the correct AC Adapter and specications. To
learn more about the DOE mandate please visit:
http://www1.eere.energy.gov/buildings/appliance_standards/
product.

aspx/productid/23

1

Controls

1. LCD display

2. Speaker output indicator

3. Preset 1

4. Preset 2

5. Preset 3/Rewind button

6. Preset 4/Play/Pause button

7. Bluetooth pairing indicator

8. Preset 5/Fast-forward button

9. Source button

10. Remote control sensor

11. Speaker

12. Volume control/Tone control

13. Dimmer button

14. Alarm 1 button

15. Alarm 2 button

16. Menu button

17. Info button

18. Tuning control/Select button/
Bluetooth pairing button

19. Standby button/Sleep timer button

20. Telescopic antenna

21. External Speaker socket

22. Auxiliary input socket

23. Subwoofer Line out socket

24. Headphone socket

25. DC IN socket

26. External AM antenna terminal (USA version only)

27. NFC detection area

GB

2

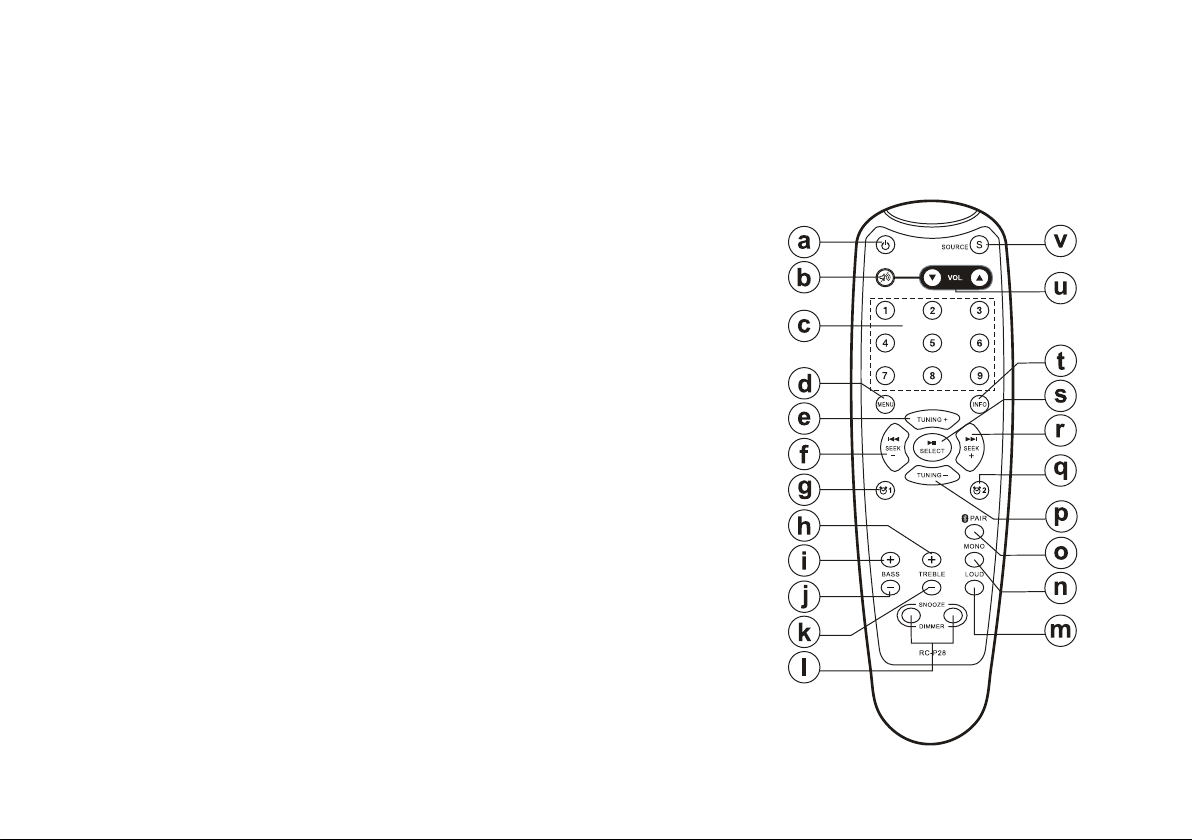

Controls (remote control)

a. Standby button (Main Power)
b. Mute button
c. Preset button
d. Menu button
e. Tuning up button
f. Seek down button/Rewind button
g. Alarm 1 button
h. Treble up button
i. Bass up button
j. Bass down button
k. Treble down button
l. Snooze button/Dimmer button
m. Loudness button
n. Mono/Stereo button
o. Bluetooth pairing button
p. Tuning down button
q. Alarm 2 button
r. Seek up button/Fast-forward button
s. Select button/Play/Pause button
t. Info button
u. Volume button
v. Source button
Note: For the sake of clarity, the instructions for the use of the controls throughout this instruction
manual show the buttons on the radio. The buttons on the remote control can be used if you
prefer.
Note: The operations described below for the face of the radio are the same as the operations
for the remote control.

1. Rotate the Tuning control knob on the face of the radio is the same as pressing the Tuning Up
or Down buttons on the remote control.

2. Pressing the Tuning Knob on the face of the radio is the same as pressing and releasing the
Select button on the remote control.

3. Rotating the Volume Knob on the face of the radio is the same as pressing the Volume Up or
Down buttons on the remote control.

3

LCD display Icons

A. Bluetooth pairing indicator
B. RBDS indicator
C. Sleep/Snooze indicator
D. BUZZER Alarm 1
E. Radio Alarm 1
F. BUZZER Alarm 2
G. Radio Alarm 2
H. Stereo indicator
I. MENU indicator
J. RBDS clock time
K. Frequency/Time display
L. Signal level indicator

GB

4

Using the radio for the fi

rst time

Operating your radio – FM/AM auto-tune

1. Place your radio on a fl

2. Insert the adaptor plug into the DC socket located on the rear of

your radio. Plug the adaptor into a standard AC outlet. If no time is
displayed, the screen will show “--: - - -- ”.

3. Fully extend the FM telescopic antenna located on the rear of your

radio.

4. Press and release the Standby button to turn on your radio. It may

be necessary to relocate your radio to a position giving better
reception and carry out a scan to fi
later sections.

IMPORTANT:

The AC adaptor is used as the means of connecting the radio to
your power supply. The AC Adapter used for the radio must remain
accessible during normal use. In order to disconnect the radio from
the power completely. The AC Adapter should be removed from the
main power completely in case of severe lightning or storm.

at surface.

nd stations as described in

Antenna setup for AM reception

The radio comes with a built-in AM Ferrite antenna which should be
enough for normal listening.
To improve the AM reception, first try to rotate the unit 90 degrees,
if this doesn't help you may connect an external AM antenna (not
supplied) to the AM external antenna terminal on the back of your radio.

5

1. Fully extend the FM telescopic antenna located on the rear of your
radio.

2. Press and release the Standby button to switch on your radio.

3. Press the Source button repeatedly to select the desired frequency
band.

4. If this is the first time searching for an FM/AM station, press and
release the Tuning control knob, the radio will search from low
frequency to high frequency and stop automatically when it fi
station of suffi

5. For scanning stations backwards quickly, rotate the Tuning control
knob in an anticlockwise direction rst, and then press and release
it. Your radio will scan down the FM/AM frequency band from the
currently displayed frequency and will stop scanning when it finds
a signal of sufficient strength. To scan up in frequency, rotate the
Tuning control knob in a clockwise direction. The displayed frequency
will increase. Then press and release the Tuning control knob to
carry out auto-tune. Your radio will scan up the FM/AM frequency
band from the currently displayed frequency and will stop scanning
when it nds a station of sufcient strength.

6. After a few seconds the display will update. The display will show the
frequency of the signal found. If the signal is strong enough and there
is RBDS data present then the radio may display the station name.

7. To fi

nd other stations press the Tuning control knob as before.
When the end of the frequency band is reached, your radio will
recommence tuning from the opposite end of the frequency band.

8. Adjust the Volume to the required setting.

9. To switch off your radio, press and release the Standby button. The
display will show the “OFF” symbol.

cient strength.

nds a

FM / AM step setting

Note:

If you nd that the FM reception is poor, try repositioning the antenna.
If you nd that an FM broadcast has a lot of background hiss, this may
often be reduced by setting the radio into Mono reception mode for the
current FM station. Please refer to the later section“Stereo (AUTO)/
Mono setting - FM”.

Manual tuning – FM/AM

1. Fully extend the FM antenna located on the rear of your radio.

2. Press and release the Standby button to switch on your radio.

3. Press the Source button repeatedly to select the desired frequency
band.

4. Rotate the Tuning control knob to tune to a station. The frequency
will change in steps of 50 kHz/100 kHz in FM or 9 kHz/10 kHz in AM.
If the radio is tuned to a station of suffi
RBDS information present, then the display may change to show the
station name.

5. When the frequency band end is reached, the radio will
recommence tuning from the opposite frequency band end.

6. Set the Volume to the desired setting.

7. To switch off your radio press and release the Standby button.

cient signal strength with

1. Press and hold the Source button until a beep sounds when your
radio is in standby mode. The “MENU” indicator will appear and ash
on the upper right corner of the screen. Rotate the Tuning control
knob until FM xkHZ or AM xkHZ appears on the display, and press
the Select button to enter FM/AM step setting. The digit “x” will ash
on the display.

2. Rotate the Tuning control knob to select 50 kHz/100 kHz for FM
radio, and 9 kHz/10 kHz for AM radio. Then press the Select button
to conrm the setting.

Note:

The tuning steps for North America are FM: 100 kHz and AM: 10 kHz
The rest of the world is FM: 50 kHz and AM: 9 kHz

Time display options

1. Press and hold the Source button until a beep sounds when your
radio is in standby mode. Select “DISP TIME” option, all display
options except the text display will revert to the clock display after
about 10 seconds.

2. To return to display option, rotate the Tuning control knob to select
“DISP TIME”, press the Select button , the “TIME” will ash, rotate
the Tuning control knob to select “DISP FREQ” to conrm the setting.

GB

6

Display options – FM

Stereo (AUTO)/Mono setting – FM

Your radio has a range of display options for FM mode:
The Radio Broadcast Data System (RBDS) is a system in which
inaudible digital information is transmitted in addition to the normal FM
radio program. RBDS offers several useful features. The following are
available on your radio.

1. Press and release the Info button to cycle through the various
options.

a. Frequency Displays the frequency of the station being

listened to.

b. Station name Displays the name of the station being listened

to.

c. Program type Displays type of station being listened to e.g.

Pop, Classic, News etc.

d. Radio text Displays radio text message such as, new item

etc.

e. Year/Day Displays the current year and day of the week

according to the date setting of your radio.

f . Month/Date Displays the current month and date according

to the date setting of your radio.

g.Time Displays the current time according to the clock

setting of your radio.

Note: If no RBDS information is available, the radio will be unable to
display the station name, scrolling text and program type information.

Your radio will play stereo FM broadcasts in stereo provided that
the received signal is of adequate strength. However, as a stereo
signal becomes weaker the audio signal will become poorer. It may
be preferable to force the radio to play the station in mono in order to
reduce the level of background hiss.

1. Press and release the Standby button to switch on your radio.

2. Tune to the required FM radio station as previously described.

3. Press and release the Menu button to enter the menu setting. The
“MENU” indicator will also appear and ash on the upper right corner
of the screen when the radio is in the Menu mode.

4. Rotate the Tuning control knob until FM AUTO/MONO setting shows
on the display. If the setting is “FM AUTO”, press the Select button,
the “AUTO” will ash. Rotate the Tuning control knob to switch to “FM
MONO” mode to reduce the hiss. Press and release the Select button to
conrm the setting.

5. To return to Auto (Stereo) mode press and release the Menu button
to alter the setting. Rotate the Tuning control knob until “FM MONO”
shows on the display. Press and release the Select button, the
“MONO” will ash. Rotate the Tuning control knob until “FM AUTO”
appears on the display. Press and release the Select button to
conrm the setting.

7

FM/AM Bandwidth narrowing

Presetting stations – FM/AM

In order to obtain better reception of weaker FM/AM stations, your
radio has a function to narrow the FM/AM bandwidth to reduce high
frequency noise.

1. Select the FM band or AM band by pressing the Source button.

2. Press and release the Menu button, then rotate the Tuning control
knob until “FM WIDTH” or “AM WIDTH” shows on the display. Press
and release the Select button, the “WIDTH” will ash and then rotate
the Tuning control knob until “NARROW” appears and ashes on the
display .Press and release the Select button to conrm the setting.

3. To return to width, press and release the Menu button, then rotate the
Tuning control knob until “FM NARROW” or “AM NARROW” shows
on the display. Press and release the Select button, the “NARROW”
will flash and then rotate the Tuning control knob until “WIDTH”
appears and flashes on the display. Press and release the Select
button to conrm the setting.

Note: Sangean suggests activating the “NARROW” when listening to
talk Radio programs. This may improve sound quality. Please note that
activation of the “NARROW” may cause Stereo invalid and produce
mono sound.

You may store your preferred FM and AM radio stations to the preset
station memories. The procedure for setting presets and using them
to tune stations is the same for FM and AM modes, and is described
below. Please note that 9 memory presets for each band can be
accessed via remote control.

1. Press and release the standby button to switch on your radio.

2. Tune to the required station as previously described.

3. Press and hold the required Preset button, the corresponding “Px”
will appear and ash. Continue holding down this button until radio
beeps once. The station will be stored under the chosen preset
number. Repeat this procedure for the remaining presets.

Note: Stations stored in preset memories may be overwritten by
following the above procedure.

Recalling a preset station- FM/AM

1. Press and release the standby button to switch on your radio.

2. Select the required frequency band by pressing the Source button.

3. Momentarily press and release the required Preset button, your radio
will tune to the station in preset memory.

Note: The display will show ‘Empty Px’ if no station has been stored to
that preset.

GB

8

Listening music via Bluetooth streaming

You need to pair your Bluetooth device with your WR-50 before you can
auto-link to play/stream Bluetooth music through your WR-50. Paring
creates a ‘bond’ so two devices can recognize each other.

Pairing and playing your Bluetooth device for the rst time

1. Press the Source button to select Bluetooth (BT) function. The “BT
READY” will show on the display. The Bluetooth pairing icon and
“READY” symbol on the panel will flash and the Bluetooth pairing
indicator will turn blue. The indicator ashes blue indicating the radio
is discoverable.

2. Activate Bluetooth on your device according to the device’s user
manual to link to the radio. Locate the Bluetooth device list and
select the device named ‘WR-50’ (With some Smartphone’s that are
equipped with earlier versions than BT2.1 Bluetooth device, you may
need to input the pass code “0000”)

3. Once connected, there will be a confirmation tone sound and the
Bluetooth indicator will remain in solid blue. The display will be
changed to show “BLUETOOTH” and the Bluetooth pairing icon will
remain illuminated. You can simply select and play any music from
your source device. The volume control can be adjusted from your
source device, or directly from the radio.

4. Use the controls on your Bluetooth-enabled device or on the radio to
play/pause and navigate tracks.

Note:

1) If 2 Bluetooth devices are pairing for the rst time, both must search
for your radio, it will show its availability on both devices. However,
if one device links with this unit rst, then the other Bluetooth device
won’t nd it on the list.

2) If you take your source device out of range, the connection will be
temporarily disconnected to your radio. Your radio will automatically
reconnect if the source device is brought back in range. Be aware
that during the period of disconnection, no other Bluetooth device
can pair or link with your radio.

3) If ‘WR-50’ shows in your Bluetooth device list but your device cannot
connect with it, please delete the item from your list and pair the
device with the radio again following the steps described previously.

4) The effective operation range between the system and the paired
device is approximately 10 meters (30 feet). Any obstacle between
the system and the device can reduce the operational range.

5) Bluetooth/NFC connectivity performance may vary depending on
the connected Bluetooth devices. Please refer to the Bluetooth
capabilities of your device before connecting to your radio. All
features may not be supported on some paired Bluetooth devices.

6) With some mobile phones, making/receiving calls, text messages,
e-mails or any other activities unrelated to audio streaming may
mute the Bluetooth audio streaming or even temporarily disconnect
from your device. Such behavior is a function of the connected
device and does not indicate a fault with your WR-50.

9

Playing audio les in Bluetooth mode

When you have successfully connected your radio with the chosen
Bluetooth device you can start to play your music using the controls on
your connected Bluetooth device.

1. Once playing has started adjust the volume to the required setting
using the Volume control on your radio or on your enabled Bluetooth
device.

2. Use the controls on your device to play/pause and navigate tracks.
Alternatively, press and release the Play/Pause ( ), Fast-forward

button ( ) , Rewind button ( ) on the radio.

3. Press and hold the Fast-forward or Rewind button to move through
the current track. Release the button when the desired point is
reached.

Note:

Not all player applications or devices may respond to all of these
controls.

Pair with your Bluetooth device before

If your Bluetooth device already paired with WR-50 previously, the unit
will memorize your Bluetooth device and can support to reconnect
previous paired 2 sets of Bluetooth devices automatically.
The WR-50 can memorize up to 2 sets of Bluetooth device, when
the memory exceeds this amount, the earliest paired device will be
overwritten from the radio.

Disconnecting your Bluetooth device

Press and hold the Bluetooth pairing button for 2-3 seconds to
disconnect with your Bluetooth device. There will be a conrmation tone
sound and the display will change to show “BT PAIR”. The Bluetooth
pairing icon and “PAIR” symbol will ash on the display. The Bluetooth
indicator ashes in blue indicating the radio is discoverable again for
pairing.

GB

10

Pairing and playing your device via NFC

Your radio is equipped with wireless NFC (Near Field Communication) feature, allowing NFC

-enabled devices to pair and play your music with your WR-50. For non-NFC devices, please

refer to the above sections for standard Bluetooth pairing.

1. Turn on the NFC feature on your device.

2. Touch the NFC area of your playing device directly against the NFC tag marked on the top
of your WR-50. The radio will automatically be switched on and connect your NFC-enabled
device. If you’re pairing the radio for the first time, some NFC-enabled device will ask for
permission to link with the radio. Once paired with a device, ‘Connecting WR-50…’ or a similar
message is shown on your NFC-enabled device. The Bluetooth indicator will light in solid blue.
(Important: Please make sure the screen of your playing device is on and unlocked to allow
NFC to work.)

Note:

1. NFC connectivity performance may vary depending on the connected Bluetooth devices.
Please refer to the Bluetooth capabilities of your device before connecting to your radio. All
features may not be supported on some Bluetooth/NFC enabled devices.

2. The location of the NFC detection area is not the same on all devices. When connecting
with other Bluetooth devices via NFC, refer to the User guide of the other device for more
information.

3. Some metallic cases or covers for mobile phones may reduce the sensitivity of NFC. Make
sure you remove it, before activating the NFC.

Disconnecting your NFC-enabled device

To disconnect your device, simply touch directly against the radio’s tag again on the top panel.
The Bluetooth indicator on the front panel ashes blue to show the radio is discoverable mode.

11

Clock and Alarms

Auto clock time adjustment by RBDS-CT

You can enable auto clock time adjustment by RBDS (Radio Broadcast Data System) CT
function. Clock time can be automatically adjusted by FM RBDS station.

1. You can access the menu setting when the radio is in power on or standby mode.

2. Press and release the Menu button, rotate the Tuning control knob until “RBDS CT” and a

clock symbol appear on the display. Press the Select button to conrm the setting.

3. Select a FM radio station which provides RBDS CT service, the RBDS indicator and RBDS

clock time icon will appear on the display. The clock will be aligned in 5 minutes once the CT
service is available.

4. Press and release the Info button to check if the clock screen has the correct time.

5. When the action is completed, the RBDS clock time icon will appear on the LCD display

indicating the radio time is RBDS clock time.

Note:

1) If the clock time was not auto adjusted within 24 hours, the CT icon will disappear.

2) If clock time from local RBDS station is not correct, you should consider disabling the RBDS-

CT function.

3) If you wish to cancel the RBDS-CT function, press and release the Menu button and rotate

the Tuning control knob to select “RBDS CT”. Press the Tuning control knob, the “RBDS CT”
will ash on the display. Rotate the Tuning control knob to select “MANUAL” and press the
Tuning control knob to conrm the setting. Please refer to the later section “Setting the clock
time manually” and “Setting the date manually” to set the clock time and date.

4) Please note that at times the RBDS signal may broadcast the wrong time, this is the fault of

the radio station and not your radio.

GB

12

Setting the clock format

Setting the clock time manually

The clock display used in standby mode and on the playing mode
screens can be set to 12 or 24 hour format. The selected format is then
also used when setting the alarms.

1. When the radio is in power on or standby mode, press and release
the Menu button to access the menu for the current mode.

2. Rotate the Tuning control knob until “CLOCK xx” appears on the
display, then press and release the Select button to enter the setting
and the setting of time format begins to ash.

3. Rotate the Tuning control knob to select either 12 or 24 hour
format. Press and release the Select button to conrm your choice of
clock format.

If the 12 hour clock format is chosen, the radio will then use the 12

hour clock for the setting of alarms, and will display a 12 hour clock
with an AM or PM indicator when in standby mode.

Setting the date format

1. When the radio is in power on or standby mode, press and release
the Menu button to access the menu for the current mode.

2. If this is the rst time you’re setting the date format, rotate the Tuning
control knob until “JAN--1” shows on the display. Press and release
the Select button to enter the date format setting.

3. Rotate the Tuning control knob to select your desired date format,
and then press the Select button to conrm the setting.

1. When the radio is in power on or standby mode, press and release
the Menu button to access the menu for the current mode.

2. Rotate the Tuning control knob until “CLOCK SET” appears on the
display, then press and release the Select button to enter the setting.

3. The hour setting on the display will begin ashing. Rotate the Tuning
control knob to select the desired hour, and press the Select button
to conrm the setting. After completion of the hour setting the minutes
digits will then ash, follow the above setting steps to set the minutes.

Setting the date manually

1. When the radio is in power on or standby mode, press and release
the Menu button to access the menu for the current mode.

2. Rotate the Tuning control knob until “DATE SET” appears on the
display, press and release the Select button to enter the setting.

3. The year setting on the display will begin ashing. Rotate the Tuning
control knob to select the desired year, and press the Select button
to conrm the setting. After completion of the year setting the month
will ash, follow the above setting steps to set the desired month, the
date will then ash, follow the above setting steps to set the desired
date.

13

Setting the alarm clock

Your radio has two separate alarms which can be set to wake you to
either the radio or a buzzer alarm. In the event of a power interruption
your radio has built in memory that will retain your alarm settings.
Ensure that the time is set correctly before setting the alarms.

1. Press the Alarm 1 or Alarm 2 button, the Alarm 1 icon or Alarm 2
icon and “ALARM OFF” symbol will show on the display. Continue
holding down the Alarm 1 or Alarm 2 button until a beep sounds to

enter the alarm setting. The Alarm 1 icon or Alarm 2 icon will
ash on the display.

2. The hour setting of alarm (1 or 2) will also begin to ash. Rotate the
Tuning control knob to select the required alarm hour, and press and
release the Select button to conrm the setting. After completion of
the hour setting the minutes digits will then ash, follow the above
setting steps to set the minutes. If the radio has been set to the 12
hour clock format, there will also be an option here for setting AM or
PM for the alarm time.

3. Then the display will show the frequency options for the alarm.

The alarm options are as below:
ONCE- the alarm will sound once
DAILY- the alarm will sound everyday
WEEKDAY- the alarm will sound only on weekdays
WEEKEND- the alarm will sound only at weekends
Rotate the Tuning control knob to choose the alarm options and then

press and release the Select button to conrm the setting.

4. Then the alarm types (BUZZER/FM TUNER/AM TUNER) will appear
and ash on the display. Rotate the Tuning control knob to choose
the desired alarm type then press and release the Select button to
conrm the setting. To select “BUZZER”, the BUZZER Alarm (1 or 2)
icon will appear and ash and “BUZR VOLx” will also appear on the
display. Rotate the Tuning control knob to choose the volume level
and press the Select button to confirm the setting. To select “FM
TUNER” or “AM TUNER”, the Radio Alarm (1 or 2) icon will appear
and ash and “FM TUNER” or “AM TUNER” will also appear on the
display. Rotate the Tuning control knob to select the desired station
and press the Select button to conrm the setting. Then rotate the
Tuning control knob to select volume level and press the Select
button to conrm the setting.

GB

14

When the alarm sounds

Sleep function

To cancel a sounding alarm, press the standby button.
When the buzzer alarm activates, the alarm will start softly and
gradually increase in level. It will sound for 1 minute and silence for
1 minute in repetition for 60 minutes unless cancelled. The radio will
sound non-stop at the selected time for up to 60 minutes for other alarm
types.

Snooze function

1. When the alarm sounds, press any button other than the standby
button will silence the alarm for 5 minutes. The symbol for snooze will
appear and ash on the display. The Alarm icon will also ash on the
display.

2. To adjust the silence time for the snooze timer, press and release the
Menu button to enter the menu setting.

3. Rotate the Tuning control knob until “SNOOZE X” appears on the
display, then press and release the Select button to enter the setting.
The digit “X” will ash, rotate the Tuning control knob to adjust the
silence time from 5, 10, 15 and 20 minutes for the snooze timer.
Press and release the Select button to conrm the setting.

4. To cancel the snooze timer while the alarm is suspended, press and
release the standby button.

Disabling / cancelling alarms

To disable an active alarm before the alarm sounds, press and hold the
corresponding alarm button until there is a beep sound to cancel the
alarm. The BUZZER or Radio alarm icons will disappear.

15

Your radio can be set to turn off automatically after a preset time has
elapsed. The sleep timer setting can be adjusted between 15,30, 45,
60, 90 and 120 minutes. Ensure your radio is switched off.

1. To set the desired sleep time, press and hold the standby button to
enter the Sleep timer setting. ‘SLEEP XX’ will show on the display.

2. Keep pressing the standby button and the Sleep timer options will
start switching on the display. Stop until the required Sleep timer
setting appears on the display. The setting will be saved and the LCD
will return to normal display.

3. Your radio will switch off automatically after the preset sleep timer
has elapsed. The sleep timer icon will show on the display indicating
an active Sleep timer.

4. To cancel the sleep timer function before the preset time has
elapsed, simply press and release the standby button to turn the unit
off manually.

Loudness function

The loudness effect will be more audible when the radio is in lower
volume level to get compensation on lower frequencies.

1. Press and release the Menu button to access the menu for the
current mode.

2. Rotate the Tuning control knob to select “LOUD ON” option. The
loudness function is applied.

3. To turn off the loudness function, press and release the Tuning
control knob when the display shows “LOUD ON”. The “ON” will
ash, rotate the Tuning control knob to select “OFF” and press the
Select button to conrm the setting.

Treble and Bass function

The sound on your radio can be adjusted to suit your personal taste. You may set the treble and
bass levels to your own preferences.

1. Press and release the standby button to switch on the radio.

2. Press and release the Volume control knob to enter the setup menu.

3. “TREBLE x” is displayed on the screen. The digit “x” will ash. Rotate the Tuning control knob
to adjust the treble level (between-5 and +5). The sound will change as you adjust the level.
Press the Select button to conrm the setting.

4. The display will then switch to “BASS x” adjustment mode and the digit “x” will ash. Rotate
the Tuning control knob until the desired level (between -5 and +5) is displayed. The sound will
change as you adjust the level. Press the Select button to conrm the setting.

Mute function

Press the Mute button on the remote control of your radio, it will mute the output from the
loudspeakers.

1. Press the Mute button to mute the sound output. The speaker volume symbol on the display
will disappear.

2. Press the Mute button again or one of the Volume buttons to un-mute the sound output.

GB

16

Display backlight dimmer

System reset

In order to adapt the intensity of the display to suit the ambient room
lighting, press the Dimmer button on the panel of your radio to select
your desired dimmer setting.

Software version

The software display cannot be altered and is just for your reference.

1. When the radio is in power on or standby mode, press and release
the Menu button to access the menu for the current mode.

2. Rotate the Tuning control knob until “VER Pxx” appears on the
display to view the software version of your radio.

3. Press and release the Menu button to exit the software version
display.

If your radio fails to operate correctly, or some digits on the display are
missing or incomplete carry out the following procedure.

1. When the radio is in power on or standby mode, press and release
the Menu button to access the menu for the current mode.

2. Rotate the Tuning control knob until “FACTORY” appears on the
display. Press and release the Select button, the “RESET NO” will
appear on the display and “NO” will ash. Rotate the Tuning control
knob to select “NO” or “YES”. If you do not wish to carry out a system
reset, select “No” and then press the Select button. The display will
revert back to the previous display.

3. To select “YES”, press and release the Select button. A full reset
will be performed. The station presets will be erased. Alarms will be
cancelled and sleep timer settings will be set to their default values.
All the icons will show on the display and the radio will turn off
automatically .In case of malfunction due to electrostatic discharge,
reset the product (reconnection of the power source may be required)
to resume normal operation.

4. You may also elect to unplug your radio for at least 12 hours to reset
your radio.

17

Headphone socket

A 3.5mm Headphone socket located on the rear of your radio is provided for use with headphones.
Inserting headphones will automatically mute the internal loudspeaker. Please be aware that the
sensitivity of headphones can vary widely. We therefore recommend setting the volume to a low
level before connecting headphones to the radio.

Note:

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Subwoofer Line out socket (3.5mm Jack)

A 3.5mm Subwoofer Line Out socket located on the rear of your radio is provided for connecting
the audio signal to an external amplier or powered subwoofer. Inserting an audio cable into this
socket will not mute the internal loudspeaker. Set the volume control on the radio to minimum if
desired.

GB

18
