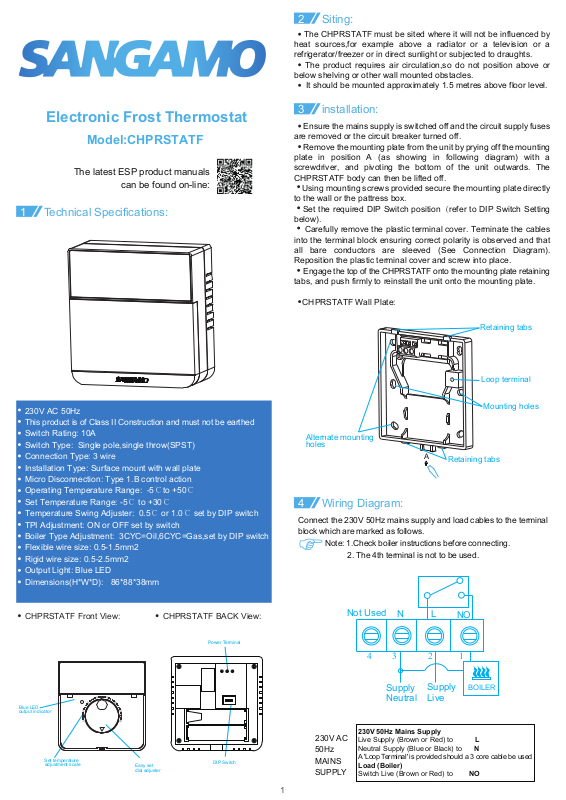

Electronic Frost Thermostat
Model:CHPRSTATF
The latest ESP product manuals
can be found on-line:
Technical Specifications:1
2
Siting:
The CHPRSTATF must be sited where it will not be influenced by
heat sources,for example above a radiator or a television or a
refrigerator/freezer or in direct sunlight or subjected to draughts.
The product requires air circulation,so do not position above or
below shelving or other wall mounted obstacles.
It should be mounted approximately 1.5 metres above floor level.
installation:
3
Ensure the mains supply is switched off and the circuit supply fuses
are removed or the circuit breaker turned off.
Remove the mounting plate from the unit by prying off the mounting
plate in position A (as showing in following diagram) with a
screwdriver, and pivoting the bottom of the unit outwards. The
CHPRSTATF body can then be lifted off.
Using mounting screws provided secure the mounting plate directly
to the wall or the pattress box.
Set the required DIP Switch position（refer to DIP Switch Setting
below).
Carefully remove the plastic terminal cover. Terminate the cables
into the terminal block ensuring correct polarity is observed and that
all bare conductors are sleeved (See Connection Diagram).
Reposition the plastic terminal cover and screw into place.
Engage the top of the CHPRSTATF onto the mounting plate retaining
tabs, and push firmly to reinstall the unit onto the mounting plate.
230V AC 50Hz
This product is of Class II Construction and must not be earthed
Switch Rating: 10A
Switch Type: Single pole,single throw(SPST)
Connection Type: 3 wire
Installation Type: Surface mount with wall plate
Micro Disconnection: Type 1.B control action
Operating Temperature Range: -5℃to +50℃
Set Temperature Range: -5℃ to +30℃
Temperature Swing Adjuster: 0.5℃ or 1.0℃ set by DIP switch
TPI Adjustment: ON or OFF set by switch
Boiler Type Adjustment: 3CYC=Oil,6CYC=Gas,set by DIP switch
Flexible wire size: 0.5-1.5mm2
Rigid wire size: 0.5-2.5mm2
Output Light: Blue LED
Dimensions(H*W*D): 86*88*38mm
CHPRSTATF Wall Plate:
Retaining tabs
Loop terminal
Mounting holes
Alternate mounting
holes
A
Retaining tabs
4
Wiring Diagram:
Connect the 230V 50Hz mains supply and load cables to the terminal
block which are marked as follows.
Note: 1.Check boiler instructions before connecting.
2. The 4th terminal is not to be used.
CHPRSTATF Front View: CHPRSTATF BACK View:
Power Terminal
Blue LED
output indicator
Set temperature
adjustment scale
Easy set
dial adjuster
DIP Switch
Not Used
4
N
3
Supply
Neutral
230V AC
50Hz
MAINS
SUPPLY
1
230V 50Hz Mains Supply
Live Supply (Brown or Red) to L
Neutral Supply (Blue or Black) to N
A 'Loop Terminal' is provided should a 3 core cable be used
Load (Boiler)
Switch Live (Brown or Red) to NO
L
Supply
Live
NO
12
BOILER
Page 2
DIP Switch Settings:4
The temperature swing can be adjusted between 0.5°C and 1.0°C by
selecting the desired DIP switch position found on the rear of the
unit(0.5°C as default ). We suggest using 0.5°C position unless the
boiler turns ON and OFF too rapidly.
The TPI (Time Proportional & Integral) can also be selected ON or
OFF using the DIP switches on the rear of the unit(TPI on as default).
We suggest setting this to the ON position. As the room temperature
approaches the set temperature, the thermostat will intermittently turn
the heating ON and OFF, to help prevent temperature over-shoot.When
TPI is on, the default proportional band is 3°C. If change the thermostat
from one room to another room, users need to set the DIP switch to OFF
position first and supply power to the thermostat, and then cut off power
to the thermostat and reset to ON position again, so that the thermostat
can relearn your room characteristics for best TPI performance.
The boiler type can be set to either 3CYC (Oil) or 6CYC (Gas),
using the DIP switches on the rear of the unit(6CYC as default).
5
Operation Guide:
Restore mains to the unit after making sure to check all system
wiring is complete, and after you have selected the desired DIP
switch settings.
Use the dial adjuster to set the desired temperature.
The Blue LED output indicator is lit when the room temperature is
below the desired value, indicating that the thermostat is calling for
heat from the boiler.
Once the room reached the desired temperature the LED turns
OFF and the CHPRSTATF ceases to call for heat from the boiler.
Date Issued
Issue No Description
J20 A30-CHPRSTATF-01-2 Rev.1
Health & Safety
Health & Safety
This unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring
Regulations.
Regulations.
Isolate mains supply before commencing installation. Please read all installation instructions before
proceeding.
proceeding.
Example circuit diagrams for typical installations are shown. These diagrams are schematic and should
be used as a guide only. Please ensure that all installations comply with the current IEE regulations. For
reasons of space and clarity not every system has been included and the diagrams have been simplified,
for instance some Earth connections have been omitted. Other control components shown in the
diagrams i.e. Valves, Room Stats etc. are general representations only. However, the wiring detail can
be applied to the corresponding models of most manufacturers.
Your product is not user serviceable. Do not dismantle this product.
Due to our policy of continuous product improvement and development, the specifications in this guide
may be subject to change without prior notice.
may be subject to change without prior notice.
2
Unit 7, Target Park, Shawbank Road,
Elite Security Products
Lakeside, Redditch, B98 8YN
Tel: 01527 515150
Fax: 01527 515143
Email: info@espuk.com
Web: www.espuk.com
