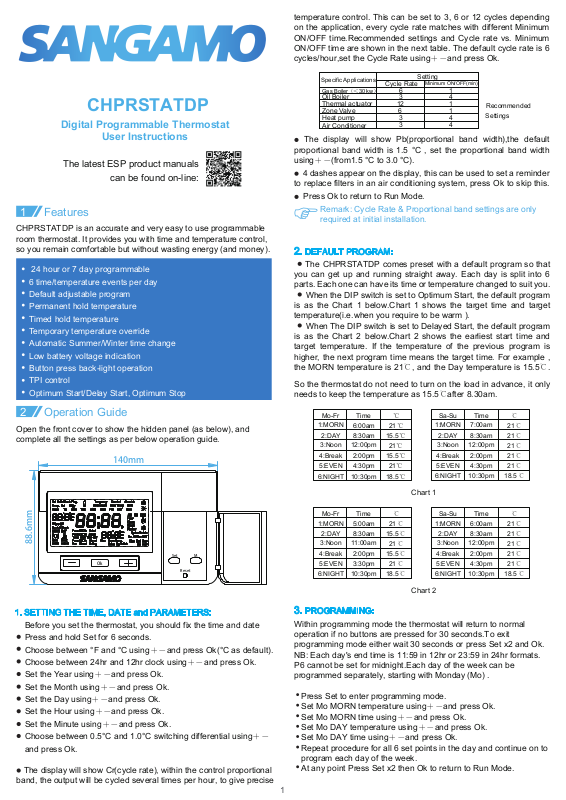

SANGAMO CHPRSTATDP User guide

temperature control. This can be set to 3, 6 or 12 cycles depending
on the application, every cycle rate matches with different Minimum
ON/OFF time.Recommended settings and Cycle rate vs. Minimum
ON/OFF time are shown in the next table. The default cycle rate is 6
cycles/hour,set the Cycle Rate using＋－and press Ok.

CHPRSTATDP

Digital Programmable Thermostat

User Instructions

The latest ESP product manuals

can be found on-line:

Features1

CHPRSTATDP is an accurate and very easy to use programmable
room thermostat. It provides you with time and temperature control,
so you remain comfortable but without wasting energy (and money).

24 hour or 7 day programmable

6 time/temperature events per day

Default adjustable program

Permanent hold temperature

Timed hold temperature

Temporary temperature override

Automatic Summer/Winter time change

Low battery voltage indication

Button press back-light operation

TPI control

Optimum Start/Delay Start, Optimum Stop

Specific Applications

Gas Boiler（＜30 kw）

Oil Boiler
Thermal actuator
Zone Valve
Heat pump

Air Conditioner

Cycle Rate

Setting

Minimum

ON/OFF(min)

6
3

12

6
3
3

1
4
1
1
4
4

Recommended

Settings

The display will show Pb(proportional band width),the default
proportional band width is 1.5 °C , set the proportional band width
using＋－(from1.5 °C to 3.0 °C).

4 dashes appear on the display, this can be used to set a reminder
to replace filters in an air conditioning system, press Ok to skip this.

Press Ok to return to Run Mode.

Remark: Cycle Rate & Proportional band settings are only
required at initial installation.



2. DEFAULT PROGRAM:

The CHPRSTATDP comes preset with a default program so that
you can get up and running straight away. Each day is split into 6
parts. Each one can have its time or temperature changed to suit you.
When the DIP switch is set to Optimum Start, the default program
is as the Chart 1 below.Chart 1 shows the target time and target
temperature(i.e.when you require to be warm ).
When The DIP switch is set to Delayed Start, the default program
is as the Chart 2 below.Chart 2 shows the earliest start time and
target temperature. If the temperature of the previous program is
higher, the next program time means the target time. For example ,
the MORN temperature is 21℃, and the Day temperature is 15.5℃.

So the thermostat do not need to turn on the load in advance, it only
needs to keep the temperature as 15.5℃after 8.30am.

Operation Guide

2

Open the front cover to show the hidden panel (as below), and
complete all the settings as per below operation guide.

140mm

88.6mm

Set

Ok

M

Reset

1. SETTING THE TIME, DATE and PARAMETERS:

Before you set the thermostat, you should fix the time and date

Press and hold Set for 6 seconds.
Choose between °F and °C using＋－and press Ok(°C as default).
Choose between 24hr and 12hr clock using＋－and press Ok.
Set the Year using＋－and press Ok.
Set the Month using＋－and press Ok.
Set the Day using＋－and press Ok.
Set the Hour using＋－and press Ok.
Set the Minute using＋－and press Ok.
Choose between 0.5°C and 1.0°C switching differential using＋－

and press Ok.

The display will show Cr(cycle rate), within the control proportional

band, the output will be cycled several times per hour, to give precise

Mo-Fr Time

1:MORN

2:DAY

3:Noon

4:Break

5:EVEN

6:NIGHT

Mo-Fr Time

1:MORN

2:DAY

3:Noon

4:Break

5:EVEN

6:NIGHT

6:00am

8:30am

12:00pm

2:00pm

4:30pm

10:30pm

5:00am
8:30am

11:00am

2:00pm

3:30pm

10:30pm

℃

21℃

15.5 ℃
21℃

15.5 ℃
21℃

18.5 ℃

℃

21℃

15.5 ℃
21℃

15.5 ℃
21℃

18.5 ℃

Chart 1

Chart 2

Sa-Su Time

1:MORN

2:DAY

3:Noon

4:Break

5:EVEN

6:NIGHT

Sa-Su Time

1:MORN

2:DAY

3:Noon

4:Break

5:EVEN

6:NIGHT

7:00am

8:30am

12:00pm

2:00pm

4:30pm

10:30pm

6:00am
8:30am

12:00pm

2:00pm

4:30pm

10:30pm

℃

21℃
21℃
21℃
21℃
21℃

18.5 ℃

℃

21℃
21℃
21℃

21℃
21℃

18.5 ℃

3. PROGRAMMING:

Within programming mode the thermostat will return to normal
operation if no buttons are pressed for 30 seconds.To exit
programming mode either wait 30 seconds or press Set x2 and Ok.
NB: Each day's end time is 11:59 in 12hr or 23:59 in 24hr formats.
P6 cannot be set for midnight.Each day of the week can be
programmed separately, starting with Monday (Mo) .

Press Set to enter programming mode.
Set Mo MORN temperature using＋－and press Ok.
Set Mo MORN time using＋－and press Ok.
Set Mo DAY temperature using＋－and press Ok.
Set Mo DAY time using＋－and press Ok.
Repeat procedure for all 6 set points in the day and continue on to
program each day of the week.
At any point Press Set x2 then Ok to return to Run Mode.

1

4. COPY/PASTE DAY:

To speed up the programming sequence you can copy one day into
another, or several other days.

Press Set x2 to enter copy mode.
Choose the 'Copy' day using＋and press Ok.
Choose the 'Paste' day using＋and press Ok.
Repeat step as required for further 'Paste' days.
At any point Press Ok x2 to return to Run Mode.

5. CHANGE THE TEMPERATURE:

To manually change the temperature temporarily you simply press
the raise or lower buttons to the desired level, if left alone this will
stay set until the next programmed change at which point it returns
back to the original schedule.
Choose desired temperature using＋－and press Ok.
To cancel setting early and return to normal operation press Ok.

8. HOLIDAY MODE:

Hold the temperature at a desired set point until a specific date.
Press M x3 to enter holiday mode then select temperature using＋－
and press Ok.
Select the Month and Year using＋－and press Ok.
Select the Day using＋－and press Ok.
Hold Temp Until, Temp. Set & Hours are displayed.
To cancel setting and return to normal operation press Ok.

9. RESET UNIT:

To erase all current settings and return to it’s factory default settings
& programs.
Press and hold Ok and－for 6 seconds.
When Reset is displayed push in the Reset button.
All segments on the display are shown to confirm reset has taken
place.

6. CHANGE THE TEMPERATURE FOR A SET NUMBER OF HOURS:

You can also set the thermostat to hold at the temperature you want
for a defined number of hours.

Press M to enter override mode then select temperature using＋－
and press Ok.
Select number of hoursusing＋－(max 23 hours) and press Ok.
Comfort Override, Temp. Set & Hours, with the hours remaining,are
shown on the display.
To cancel setting and return to normal operation press Ok.

7. HOLD TEMPERATURE PERMANENTLY:

Hold the thermostat at a desired temperature until manually
cancelled by you.
Press M x2 to enter permanent override mode then select tem­perature using＋－ and press Ok.
Permanent Hold and Temp. Set are displayed.To cancel setting
and return to normal operation press Ok.

Date Issued

Issue No Description

J20 A30-CHPRSTATDP-01-2 Rev.1

Health & Safety

Health & Safety

This unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring

Regulations.

Regulations.
Isolate mains supply before commencing installation. Please read all installation instructions before

proceeding.

proceeding.
Example circuit diagrams for typical installations are shown. These diagrams are schematic and should
be used as a guide only. Please ensure that all installations comply with the current IEE regulations. For
reasons of space and clarity not every system has been included and the diagrams have been simplified,
for instance some Earth connections have been omitted. Other control components shown in the
diagrams i.e. Valves, Room Stats etc. are general representations only. However, the wiring detail can
be applied to the corresponding models of most manufacturers.
Your product is not user serviceable. Do not dismantle this product.
Due to our policy of continuous product improvement and development, the specifications in this guide

may be subject to change without prior notice.

may be subject to change without prior notice.
