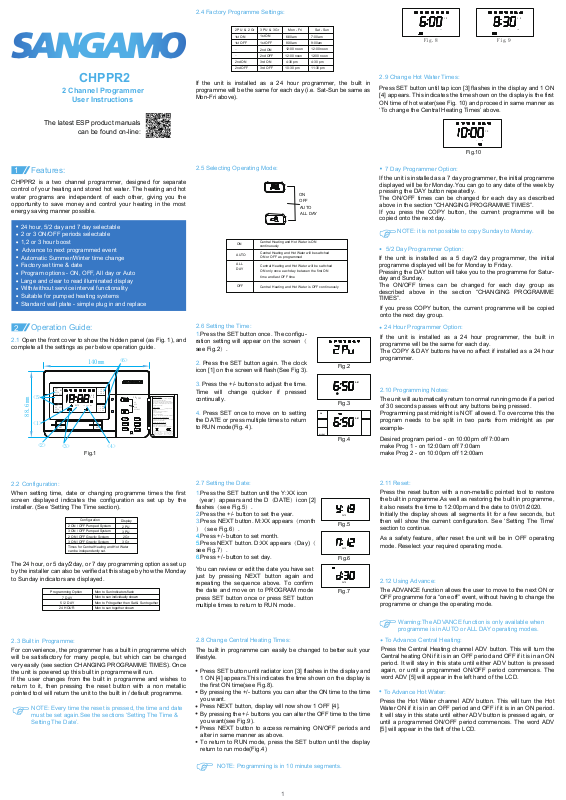

SANGAMO CHPPR2 User guide

2.4 Factory Programme Settings:

A M

A M

CHPPR2

2 Channel Prog

User Instructions

The latest ESP product manuals

can be found on-line:

Features:1

CHPPR2 is a two channel programmer, designed for separate
control of your heating and stored hot water. The heating and hot
water programs are independent of each other, giving you the
opportunity to save money and control your heating in the most
energy saving manner possible.

24 hour, 5/2 day and 7 day selectable
2 or 3 ON/OFF periods selectable
1,2 or 3 hour boost
Advance to next programmed event
Automatic Summer/Winter time change
Factory set time & date
Program options - ON, OFF, All day or Auto
Large and clear to read illuminated display
With/without service interval functionality
Suitable for pumped heating systems
Standard wall plate - simple plug in and replace

Operation Guide:

2

2.1

Open the front cover to show the hidden panel (as Fig. 1), and

complete all the settings as per below operation guide.

140mm

ADV
ON OFF
AUTO

<5>

88.6mm

<1>

<2>

ALL DAY

ADV
ON OFF
AUTO
ALL DAY

+HR

ADV

<3>

A M
P M

ON OFF

DATE

2 31

+HR

ADV

Fig.1

+ 1 H R
+ 2 H R
+ 3 H R

+ 1 H R
+ 2 H R

+ 3 H R

<4>

rammer

<6>

H

C

P

P

ON
OFF
AUTO
ALL DAY

COPY

+

DAY

-

SET

NEXT

RESET

R

n

ratio

Con

figu

uct

prod

Pr

SE

in

w

tur

T

ess

sho

n to

r) T

ime

talle

Date

(S

ur i

et b

y yo

ns

y

la

rma

nne

l No

l disp

ach

or e

cha

Pr

ogr

ime

s f

am t

ram

prog

( P

to

+

to

NE

XT

ress

scr

ate

/-

or

ust,

adj

oll d

m

CO

da

to

PY

ys &

cop

y

tim

DA

to

es,

Y

rog

ra

oll p

scr

e

xt d

ay )

pr

ms

into

n

ogra

MO

DE

SE

TTI

NG

g m

ode

for

ope

ratin

a

Pr

Mo

bu

de

tton

to

ct

ess

sele

ch

ann

el

et p

rogr

to

ams

the s

AU

TO

per

- O

ate

s

ly O

N

ON

- C

on

tinu

ou

u

sly

OFF

OF

F -

Co

o

ntinu

O

FF

N a

nce

st O

n fir

st

nd la

bet

wee

AL

L D

AY

n o

- O

Y M

TO

OD

L DA

/ AL

ES)

AD

VA

NC

E (

AU

n

nel

tem

pora

or

rily

ON

OFF

AD

to

a

V

sw

itch

a ch

Pr

ess

gra

e

mm

e tim

un

e n

til th

pro

ext

)

N M

ODE

IN O

OT

US

ING

+H

R

( N

Ho

urs.

Pr

to

+H

R

,2 o

r 3

ess

sel

ect1

e

e tim

l bo

or th

ost f

W

il

hen

F - w

OF

rog

urr

ram

nd c

exte

ent p

by ti

me

W

ON

- w

hen

ill

ri

ty

Pr

uc

od

ts

E

:

cu

li

50

Se

0

51

te

27

15

51

T

n

el

ho

e

ep

k,

T

t

ge

ar

r

Pa

，

U

2

t 7

1

ni

1 5

43

7 5

F

15

:

0

ax

,

R

d,

es

L

ak

ide

a

u

S

om

wb

fo

ha

k.c

nk

@

esp

E

:

m

ail

in

N

h

98

8Y

, B

d

ed

itc

R

w

k

pu

.es

m

.co

e

W

b:

ww

S

TING

CU

RR

EN

ET

T S

2

2 PU & 2 Gr

1st ON

1st OFF

-

-

2nd ON

2nd OFF

3 PU & 3Gr

1st ON

1st OFF

2nd ON

2nd OFF

3rd ON

3rd OFF

Mon - Fri

6:00am

8:30am

12:00 noon

12:00 noon

4:30 pm

10:30 pm

Sat - Sun

7:00am

9:00am

12:00 noon

12:00 noon

4:30 pm

11:30 pm

If the unit is installed as a 24 hour programmer, the built in
programme will be the same for each day (i.e. Sat-Sun be same as
Mon-Fri above).

2.5 Selecting Operating Mode:

ON
OFF

AUTO
ALL DAY

ON

AUTO

ALL

DAY

OFF

Central Heating and Hot Water is ON
continuously

Central Heating and Hot Water will be switched
ON or OFF as programmed

Central Heating and Hot Water will be switched

ON only once each day between the first ON

time and last OFF time

Central Heating and Hot Water is OFF continuously

2.6 Setting the Time:

1.Press the SET button once. The configu-

ration setting will appear on the screen（
see Fig.2）.

2. Press the SET button again. The clock

icon [1] on the screen will flash(See Fig 3).

3. Press the +/- buttons to adjust the time.

Fig.2

A M

Time will change quicker if pressed
continually.

4. Press SET once to move on to setting

the DATE or press multiple times to return

Fig.3

ON

A M

to RUN mode(Fig. 4).

ALL DAY

Fig.4

1

ON

1

OFF

Fig.8 Fig.9

2.9 Change Hot Water Times:

Press SET button until tap icon [3] flashes in the display and 1 ON
[4] appears. This indicates the time shown on the display is the first
ON time of hot water(see Fig. 10) and proceed in same manner as
‘To change the Central Heating Times’ above.

P M

ON1

Fig.10

7 Day Programmer Option:

If the unit is installed as a 7 day programmer, the initial programme
displayed will be for Monday.You can go to any date of the week by
pressing the DAY button repeatedly.
The ON/OFF times can be changed for each day as described
above in the section “CHANGING PROGRAMME TIMES”.
If you press the COPY button, the current programme will be
copied onto the next day.

NOTE: it is not possible to copy Sunday to Monday.



5/2 Day Programmer Option:

If the unit is installed as a 5 day/2 day programmer, the initial
programme displayed will be for Monday to Friday.
Pressing the DAY button will take you to the programme for Satur­day and Sunday.
The ON/OFF times can be changed for each day group as
described above in the section “CHANGING PROGRAMME
TIMES”.

If you press COPY button, the current programme will be copied
onto the next day group.

24 Hour Programmer Option:

If the unit is installed as a 24 hour programmer, the built in
programme will be the same for each day.
The COPY & DAY buttons have no affect if installed as a 24 hour
programmer.

2.10 Programming Notes:

The unit will automatically return to normal running mode if a period
of 30 seconds passes without any buttons being pressed.
Programming past midnight is NOT allowed. To overcome this the
program needs to be split in two parts from midnight as per
example-

Desired program period - on 10:00pm off 7:00am
make Prog 1 - on 12:00am off 7:00am
make Prog 2 - on 10:00pm off 12:00am

2.2 Configuration:

When setting time, date or changing programme times the first
screen displayed indicates the configuration as set up by the
installer. (See ‘Setting The Time section).

Configuration

2 ON / OFF Pumped System

3 ON / OFF Pumped System

2 ON / OFF Gravity System

3 ON / OFF Gravity System

Times for Central Heating and Hot Water
can be independently set.

Display

2 PU

3 PU
2 Gr

3 Gr

The 24 hour, or 5 day/2day, or 7 day programming option as set up
by the installer can also be verified at this stage by how the Monday
to Sunday indicators are displayed.

Programming Option

7 DAY

5 / 2 DAY

24 HOUR

Mon to Sun lndicators flash
Mon to sun individually shown

Mon to Fri together then Sat & Sun together

Mon to sun together shown

2.3 Built in Programme:

For convenience, the programmer has a built in programme which
will be satisfactory for many people, but which can be changed
very easily (see section CHANGING PROGRAMME TIMES). Once
the unit is powered up this built in programme will run.
If the user changes from the built in programme and wishes to
return to it, then pressing the reset button with a non metallic
pointed tool will return the unit to the built in / default programme.

NOTE: Every time the reset is pressed, the time and date
must be set again.See the sections ‘Setting The Time &



Setting The Date’.

2.7 Setting the Date:

1.Press the SET button until the Y:XX icon

（year）appears and the D（DATE）icon [2]
flashes（see Fig.5）.

2.Press the +/- button to set the year.

3.Press NEXT button. M:XX appears（month

）（see Fig.6）.

DATE

Fig.5

4.Press +/- button to set month.

5.Press NEXT button. D:XX appears（Day)（

see Fig.7）.

6.Press +/- button to set day.

DATE

Fig.6

You can review or edit the date you have set
just by pressing NEXT button again and
repeating the sequence above. To confirm
the date and move on to PROGRAM mode

DATE

Fig.7

press SET button once or press SET button
multiple times to return to RUN mode.

2.8 Change Central Heating Times:

The built in programme can easily be changed to better suit your
lifestyle.

Press SET button until radiator icon [3] flashes in the display and
1 ON [4] appears.This indicates the time shown on the display is
the first ON time(see Fig.8).
By pressing the +/- buttons you can alter the ON time to the time
you want.
Press NEXT button, display will now show 1 OFF [4].
By pressing the +/- buttons you can alter the OFF time to the time
you want(see Fig.9).
Press NEXT button to access remaining ON/OFF periods and
alter in same manner as above.
To return to RUN mode, press the SET button until the display
return to run mode(Fig.4)

2.11 Reset:

Press the reset button with a non-metallic pointed tool to restore
the built in programme.As well as restoring the built in programme,
it also resets the time to 12:00pm and the date to 01/01/2020.
Initially the display shows all segments lit for a few seconds, but
then will show the current configuration. See ‘Setting The Time’
section to continue.

As a safety feature, after reset the unit will be in OFF operating
mode. Reselect your required operating mode.

2.12 Using Advance:

The ADVANCE function allows the user to move to the next ON or
OFF programme for a “one off” event, without having to change the
programme or change the operating mode.

Warning:The ADVANCE function is only available when
programme is in AUTO or ALL DAY operating modes.



To Advance Central Heating:

Press the Central Heating channel ADV button. This will turn the
Central heating ON if it is in an OFF period and OFF if it is in an ON
period. It will stay in this state until either ADV button is pressed
again, or until a programmed ON/OFF period commences. The
word ADV [5] will appear in the left hand of the LCD.

To Advance Hot Water:

Press the Hot Water channel ADV button. This will turn the Hot
Water ON if it is in an OFF period and OFF if it is in an ON period.
It will stay in this state until either ADV button is pressed again, or
until a programmed ON/OFF period commences. The word ADV
[5] will appear in the tleft of the LCD.



NOTE: Programming is in 10 minute segments.

1

2.13 Using +HR Boost:

For +Hr Central Heating:

Press the Central Heating channel +HR button to make the desired
selection with one,two or three hours extra heating [6] and cancel
options offered.

Warning: The +HOUR function is only available when
programme is in AUTO,ALL DAY or OFF operating



modes.

If the Central heating operating mode is OFF, then it will switch on
for the extra hours selected. If the Central heating mode is AUTO
or ALL DAY, then during an OFF period,it will switch on for the
extra hours selected. If during an ON period, then it will temporarily
extend that programme by the number of hours selected.

For +Hr Hot Water:

Press the Hot Water channel +HR button to make the desired selec­tion with one, two or three hours extra heating [6] and cancel options
offered.

Warning: The +HOUR function is only available when
programme is in AUTO,ALL DAY or OFF operating modes.



If the Hot Water operating mode is OFF, then it will switch on for
the extra hours selected.

If the Hot Water mode is AUTO or ALL DAY, then during an OFF
period, it will switch on for the extra hours selected. If during an ON
period, then it will temporarily extend that programme by the
number of hours selected.

OFF

Fig.11

2.15 Power Interruption :

In the event of a mains supply failure, the screen will go blank, but
the programmer continues to keep the time and retain your stored
programme.

When power is restored, if there has been no change to the rear

DIP switch, the programmer returns to its expected operating
condition.

If the configuration setting on the rear DIP switch has been altered
during the power interruption, the screen will initially show the new
configuration. And the appropriate factory default programme (see
BUILT IN PROGRAMME section) will be installed.

Press SET button to return to RUN mode.

2.16 Service Interval Function Setting:

If you are a tenant, under The Gas Safety (Installation & Use)
Regulations 1998, your private landlord, local authority or hous­ing association must carry out a 12 monthly gas safety check to
make sure gas fittings and appliances are safe to use.

If set by the installer, 28 days prior to the boiler service due date, a
rotating visual warning message SEr, dUE, dXX will remind you
that a service is due (XX shows the number of days remaining in
the warning period).

P M

Fig.12

A visual warning message 15, rUn, SEr, dUE indicates the
installer has set the programmer for a Partial Shutdown and your
heating/hot water will operate for a random15 minute portion of
each programmed hour only Therefore, to ensure your comfort
level is maintained, it is important to respond to any requests for a
gas safety check/boiler service appointment and to keep to the
appointment. Contact details for the installer/landlord may be
shown on a Service Contact label affixed to the product. The
installer will cancel or reset the Service Interval Timer as part of the
safety check/ boiler service.

Date Issued

J20 A30-CHPPR2-01-2 Rev.1

Issue No Description

NOTE: If the programmer is in the OFF mode and then +HR



button is pressed (+1 HR, +2 HR, or + 3 HR) and the
resulting time of the boost overlaps a START / ON time in
the AUTO mode programme memory,then the boost will
disengage. If this happens simply press +HR button again
and then it will temporarily extend that programme by the
number of hours selected.

2.14 Holiday Mode:

The Holiday function allows the user to turn all channels to the OFF
operating mode, for a settable amount of days from 01-99 days.
During this function, a suitcase icon will be displayed(see Fig 11).

The number of days will decrease at midnight each day.
The +HR boost override can be used during a holiday period.

1. Press & Hold DAY button for 4 seconds to enter the holiday

function , d:01 flashes(see Fig. 12).

2. Press +/- button to set the holiday days.

3. Press DAY button to activate.

4. Press & Hold DAY button for 4 seconds to cancel a holiday

period.

Warning: The Holiday function is only available in AUTO,



ALL DAY or ON operating modes.

The display backlight will also flash on and off from 7 days prior to
the boiler service due date. During this warning period, the
programmer will continue to operate normally and you have full
access to all its features.

If the boiler is not serviced within the 28 days then the programmer
will operate only according to one of two settings (selected by the
installer on installation). All buttons will be disabled. The display
backlight will continue to flash.

A visual warning message OFF, SEr, dUE indicates the installer
has set the programmer for a Total Shutdown and your heating/hot
water will no longer operate.

Health & Safety

Health & Safety

This unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring

Regulations.

Regulations.
Isolate mains supply before commencing installation. Please read all installation instructions before

proceeding.

proceeding.
Example circuit diagrams for typical installations are shown. These diagrams are schematic and should
be used as a guide only. Please ensure that all installations comply with the current IEE regulations. For
reasons of space and clarity not every system has been included and the diagrams have been simplified,
for instance some Earth connections have been omitted. Other control components shown in the
diagrams i.e. Valves, Room Stats etc. are general representations only. However, the wiring detail can
be applied to the corresponding models of most manufacturers.
Your product is not user serviceable. Do not dismantle this product.
Due to our policy of continuous product improvement and development, the specifications in this guide

may be subject to change without prior notice.

may be subject to change without prior notice.
