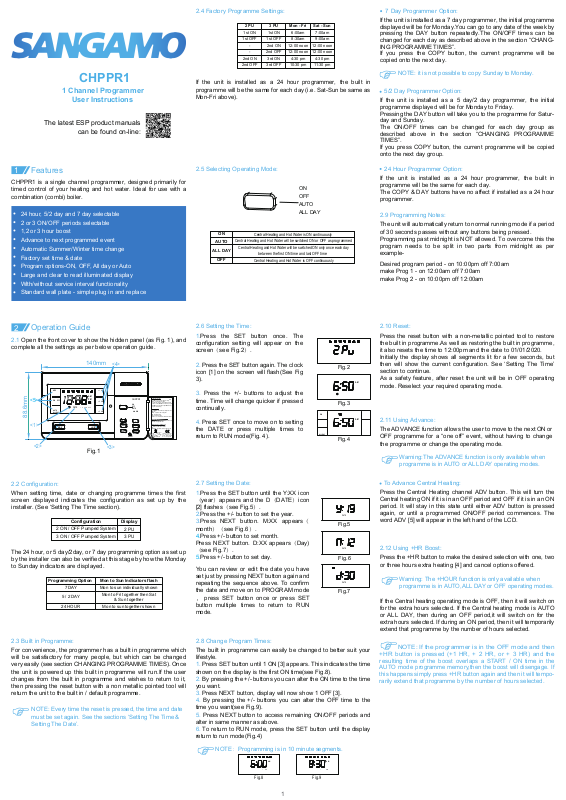

CHPPR1
1 Channel Prog
User Instructions
The latest ESP product manuals
can be found on-line:
rammer
2.4 Factory Programme Settings:
2 PU
1st ON
1st OFF
-
-
2nd ON
2nd OFF
3 PU
1st ON
1st OFF
2nd ON
2nd OFF
3rd ON
3rd OFF
Mon - Fri Sat - Sun
6:00am
8:30am
12:00 noon
12:00 noon
4:30 pm
10:30 pm
7:00am
9:00am
12:00 noon
12:00 noon
4:30 pm
11:30 pm
If the unit is installed as a 24 hour programmer, the built in
programme will be the same for each day (i.e. Sat-Sun be same as
Mon-Fri above).
7 Day Programmer Option:
If the unit is installed as a 7 day programmer, the initial programme
displayed will be for Monday.You can go to any date of the week by
pressing the DAY button repeatedly.The ON/OFF times can be
changed for each day as described above in the section “CHANGING PROGRAMME TIMES”.
If you press the COPY button, the current programme will be
copied onto the next day.
NOTE: it is not possible to copy Sunday to Monday.
5/2 Day Programmer Option:
If the unit is installed as a 5 day/2 day programmer, the initial
programme displayed will be for Monday to Friday.
Pressing the DAY button will take you to the programme for Saturday and Sunday.
The ON/OFF times can be changed for each day group as
described above in the section “CHANGING PROGRAMME
TIMES”.
If you press COPY button, the current programme will be copied
onto the next day group.
Features
1
CHPPR1 is a single channel programmer, designed primarily for
timed control of your heating and hot water. Ideal for use with a
combination (combi) boiler.
24 hour, 5/2 day and 7 day selectable
2 or 3 ON/OFF periods selectable
1,2 or 3 hour boost
Advance to next programmed event
Automatic Summer/Winter time change
Factory set time & date
Program options-ON, OFF, All day or Auto
Large and clear to read illuminated display
With/without service interval functionality
Standard wall plate - simple plug in and replace
Operation Guide
2
2.1 Open the front cover to show the hidden panel (as Fig. 1), and
complete all the settings as per below operation guide.
<5>
88.6mm
<1>
<2>
ADV
ON
AUTO
ALL DAY
140mm
A M
OFF
ADV
P M
ON OFF
2 31
DATE
Fig.1
<4>
+ 1 H R
CURRENT SETTINGS
+ 2 H R
+ 3 H R
+HR
CHPPR1
ON
OFF
AUTO
ALL DAY
COPY
+
DAY
-
SET
NEXT
RESET
in turn to show product Configuration
Press SET
(Set by your installer) Time Date
Program times for each channel Normal display
( Press +/- to adjust,NEXT to scroll date or program
to scroll program days & COPY to copy
times,DAY
programs into next day )
MODE SETTING
Press Mode button to select operating mode for a
channel
AUTO - Operate to the set programs
ON - Continuously ON
OFF - Continuously OFF
ALL DAY - On once between first ON and last OFF
ADVANCE ( AUTO / ALL DAY MODES)
ADV to switch a channel ON or OFF temporarily
Press
until the next programme time
USING +HR ( NOT IN ON MODE)
Press +HR to select1,2 or 3 Hours.
When OFF - will boost for the time
When ON - will extend current program by time
Elite Security Products
Telephone: 01527 51 51 50
Unit 7，Target Park,
Fax: 01527 51 51 43
Shawbank Rd, Lakeside,
Email: info@espuk.com
Redditch, B98 8YN
Web: www.espuk.com
<3>
2.5 Selecting Operating Mode:
ON
OFF
AUTO
ALL DAY
ON
AUTO
ALL DAY
OFF
Central Heating and Hot Water is ON continuously
Central Heating and Hot Water will be switched ON or OFF as programmed
Central Heating and Hot Water will be switched ON only once each day
between the first ON time and last OFF time
Central Heating and Hot Water is OFF continuously
2.6 Setting the Time:
1.Press the SET button once. The
configuration setting will appear on the
screen（see Fig.2）.
2. Press the SET button again. The clock
icon [1] on the screen will flash(See Fig
3).
3. Press the +/- buttons to adjust the
time. Time will change quicker if pressed
continually.
4. Press SET once to move on to setting
the DATE or press multiple times to
return to RUN mode(Fig. 4).
ON
ALL DAY
Fig.2
Fig.3
Fig.4
24 Hour Programmer Option:
If the unit is installed as a 24 hour programmer, the built in
programme will be the same for each day.
The COPY & DAY buttons have no affect if installed as a 24 hour
programmer.
2.9 Programming Notes:
The unit will automatically return to normal running mode if a period
of 30 seconds passes without any buttons being pressed.
Programming past midnight is NOT allowed. To overcome this the
program needs to be split in two parts from midnight as per
example-
Desired program period - on 10:00pm off 7:00am
make Prog 1 - on 12:00am off 7:00am
make Prog 2 - on 10:00pm off 12:00am
2.10 Reset:
Press the reset button with a non-metallic pointed tool to restore
the built in programme.As well as restoring the built in programme,
it also resets the time to 12:00pm and the date to 01/01/2020.
Initially the display shows all segments lit for a few seconds, but
then will show the current configuration. See ‘Setting The Time’
section to continue.
A M
A M
As a safety feature, after reset the unit will be in OFF operating
mode. Reselect your required operating mode.
2.11 Using Advance:
The ADVANCE function allows the user to move to the next ON or
OFF programme for a “one off” event, without having to change
the programme or change the operating mode.
Warning:The ADVANCE function is only available when
programme is in AUTO or ALL DAY operating modes.
2.2 Configuration:
When setting time, date or changing programme times the first
screen displayed indicates the configuration as set up by the
installer. (See ‘Setting The Time section).
Configuration
2 ON / OFF Pumped System
3 ON / OFF Pumped System
Display
2 PU
3 PU
The 24 hour, or 5 day/2day, or 7 day programming option as set up
by the installer can also be verified at this stage by how the Monday
to Sunday indicators are displayed.
Programming Option
7 DAY
5 / 2 DAY
24 HOUR
Mon to Sun lndicators flash
Mon to sun individually shown
Mon to Fri together then Sat
& Sun together
Mon to sun together shown
2.3 Built in Programme:
For convenience, the programmer has a built in programme which
will be satisfactory for many people, but which can be changed
very easily (see section CHANGING PROGRAMME TIMES). Once
the unit is powered up this built in programme will run.If the user
changes from the built in programme and wishes to return to it,
then pressing the reset button with a non metallic pointed tool will
return the unit to the built in / default programme.
NOTE: Every time the reset is pressed, the time and date
must be set again. See the sections ‘Setting The Time &
Setting The Date’.
2.7 Setting the Date:
1.Press the SET button until the Y:XX icon
（year）appears and the D（DATE）icon
[2] flashes（see Fig.5）.
2.Press the +/- button to set the year.
3.Press NEXT button. M:XX appears（
month）（see Fig.6）.
DATE
Fig.5
4.Press +/- button to set month.
Press NEXT button. D:XX appears（Day)
（see Fig.7）.
5.Press +/- button to set day.
DATE
Fig.6
You can review or edit the date you have
set just by pressing NEXT button again and
repeating the sequence above. To confirm
the date and move on to PROGRAM mode
DATE
Fig.7
， press SET button once or press SET
button multiple times to return to RUN
mode.
2.8 Change Program Times:
The built in programme can easily be changed to better suit your
lifestyle.
1. Press SET button until 1 ON [3] appears. This indicates the time
shown on the display is the first ON time(see Fig.8).
2. By pressing the +/- buttons you can alter the ON time to the time
you want.
3. Press NEXT button, display will now show 1 OFF [3].
4. By pressing the +/- buttons you can alter the OFF time to the
time you want(see Fig.9).
5. Press NEXT button to access remaining ON/OFF periods and
alter in same manner as above.
6. To return to RUN mode, press the SET button until the display
return to run mode(Fig.4)
To Advance Central Heating:
Press the Central Heating channel ADV button. This will turn the
Central heating ON if it is in an OFF period and OFF if it is in an ON
period. It will stay in this state until either ADV button is pressed
again, or until a programmed ON/OFF period commences. The
word ADV [5] will appear in the left hand of the LCD.
2.12 Using +HR Boost:
Press the +HR button to make the desired selection with one, two
or three hours extra heating [4] and cancel options offered.
Warning: The +HOUR function is only available when
programme is in AUTO,ALL DAY or OFF operating modes.
If the Central heating operating mode is OFF, then it will switch on
for the extra hours selected. If the Central heating mode is AUTO
or ALL DAY, then during an OFF period,it will switch on for the
extra hours selected. If during an ON period, then it will temporarily
extend that programme by the number of hours selected.
NOTE: If the programmer is in the OFF mode and then
+HR
button is pressed (+1 HR, + 2 HR, or + 3 HR) and the
resulting
AUTO mode
this
time of the boost overlaps a START / ON time in the
programme memory,then the boost will disengage. If
happens simply press +HR button again and then it will tempo-
rarily extend that programme by the number of hours selected.
NOTE：Programming is in 10 minute segments.
A M
ON
1
Fig.8 Fig.9
1
A M
OFF
1
Page 2
2.13 Holiday Mode:
The Holiday function allows the user to turn all channels to the
OFF operating mode, for a settable amount of days from
01-99 days. During this function, a suitcase icon will be
displayed(see Fig 10).
OFF
P M
Fig.10
Warning: The Holiday function is only available in AUTO, ALL
DAY or ON operating modes.
The number of days will decrease at midnight each day.
The +HR boost override can be used during a holiday period.
1. Press & Hold DAY button for 4 seconds to enter the holiday
function , d:01 flashes(see Fig. 11).
2. Press +/- button to set the holiday days.
3. Press DAY button to activate.
4. Press & Hold DAY button for 4 seconds to cancel a holiday
period.
When power is restored, if there has been no change to the rear
DIP switch, the programmer returns to its expected operating
condition.
If the configuration setting on the rear DIP switch has been altered
during the power interruption, the screen will initially show the
new configuration. And the appropriate factory default programme
(see BUILT IN PROGRAMME section) will be installed.Press SET
button to return to RUN mode.
2.15 Service Interval Function Setting:
If you are a tenant, under The Gas Safety (Installation & Use)
Regulations 1998, your private landlord, local authority or housing
association must carry out a 12 monthly gas safety check to make
sure gas fittings and appliances are safe to use.
If set by the installer, 28 days prior to the boiler service due date, a
rotating visual warning message SEr, dUE, dXX will remind you
that a service is due (XX shows the number of days remaining in
the warning period).
A visual warning message 15, rUn, SEr, dUE indicates the
installer has set the programmer for a Partial Shutdown and your
heating/hot
water will operate for a random15 minute portion of each
programmed hour only Therefore, to ensure your comfort level is
maintained, it is important to respond to any requests for a gas
safety check/boiler service appointment and to keep to the appointment. Contact details for the installer/landlord may be shown on a
Service Contact label affixed to the product. The installer will
cancel or
reset the Service Interval Timer as part of the safety
check/ boiler service.
Date Issued
Issue No Description
J20 A30-CHPPR1-01-2 Rev.1
Fig.11
2.14 Power Interruption :
In the event of a mains supply failure, the screen will go blank, but
the programmer continues to keep the time and retain your stored
programme.
The display backlight will also flash on and off from 7 days prior to
the boiler service due date. During this warning period, the
programmer will continue to operate normally and you have full
access to all its features.
If the boiler is not serviced within the 28 days then the programmer
will operate only according to one of two settings (selected by the
installer on installation). All buttons will be disabled. The display
backlight will continue to flash.
A visual warning message OFF, SEr, dUE indicates the installer
has set the programmer for a Total Shutdown and your heating/hot
water will no longer operate.
Health & Safety
Health & Safety
This unit must be installed by a suitably qualified person in accordance with the latest IEE Wiring
Regulations.
Regulations.
Isolate mains supply before commencing installation. Please read all installation instructions before
proceeding.
proceeding.
Example circuit diagrams for typical installations are shown. These diagrams are schematic and should
be used as a guide only. Please ensure that all installations comply with the current IEE regulations. For
reasons of space and clarity not every system has been included and the diagrams have been simplified,
for instance some Earth connections have been omitted. Other control components shown in the
diagrams i.e. Valves, Room Stats etc. are general representations only. However, the wiring detail can
be applied to the corresponding models of most manufacturers.
Your product is not user serviceable. Do not dismantle this product.
Due to our policy of continuous product improvement and development, the specifications in this guide
may be subject to change without prior notice.
may be subject to change without prior notice.
Unit 7, Target Park, Shawbank Road,
Elite Security Products
Lakeside, Redditch, B98 8YN
Tel: 01527 515150
Fax: 01527 515143
Email: info@espuk.com
Web: www.espuk.com
2
Loading...
