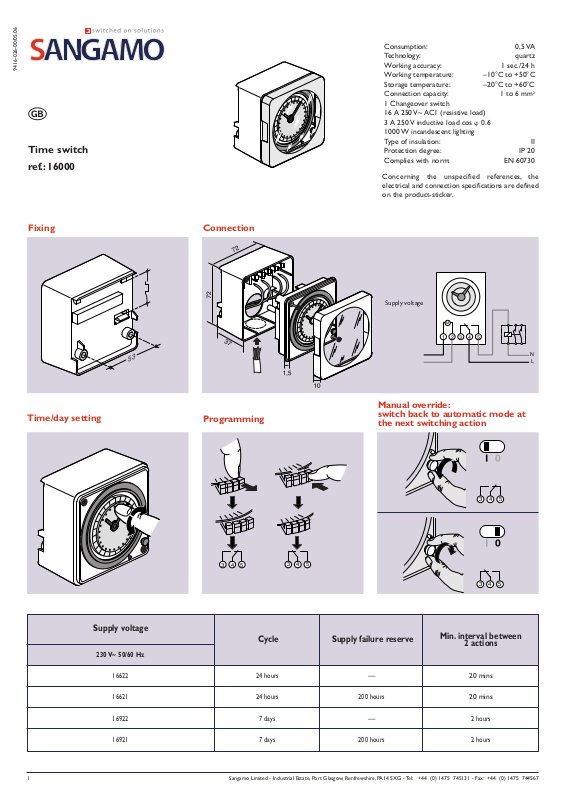

Sangamo 16921, 16622, 16621, 16922 Installation Instructions

Min. interval between

2 actions

Programming

Manual override:
switch back to automatic mode at
the next switching action

345
345

Fixing

Connection

Time/day setting

Supply voltage

9416-026-00/05.06



Time switch

ref.: 16000

Consumption: 0,5 VA
Technology: quartz
Working accuracy: 1 sec./24 h
Working temperature: –10°C to +50°C
Storage temperature: –20°C to +60°C
Connection capacity: 1 to 6 mm

2

1 Changeover switch
16 A 250 V~ AC1 (resistive load)
3 A 250 V inductive load cos  0.6

1000 W incandescent lighting
Type of insulation: II
Protection degree: IP 20
Complies with norm: EN 60730

Concerning the unspecified references, the
electrical and connection specifications are defined
on the product-sticker.

Sangamo Limited - Industrial Estate, Port Glasgow, Renfrewshire, PA14 5XG - Tel: [phone] - Fax: [phone]

Supply voltage

Cycle Supply failure reserve

230 V~ 50/60 Hz

16622

16621

16922

16921

24 hours

24 hours

7 days

7 days

— 20 mins

200 hours

20 mins

—

2 hours

200 hours 2 hours

53

M

34521

N
L

345

345
