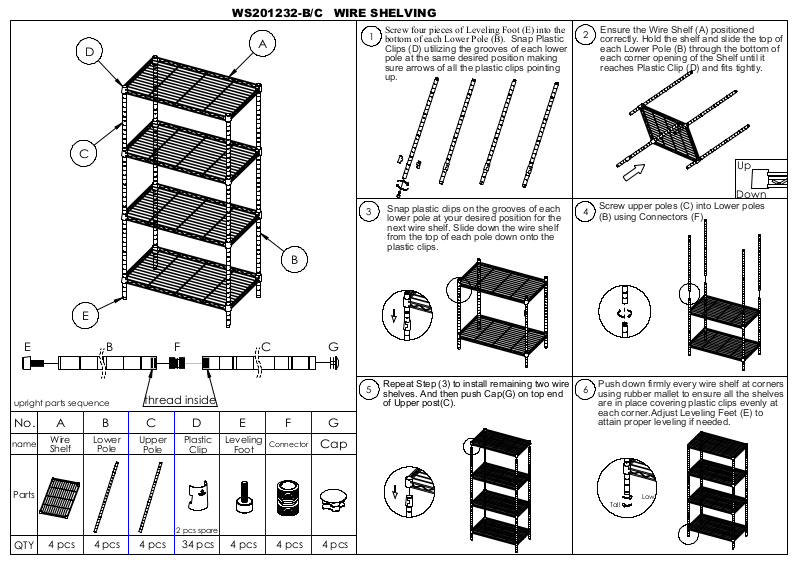

WS201232-B/C
WIRE SHELVING
D
A
Screw four pieces of Leveling Foot (E) into the
1
bottom of each Lower Pole (B).
Clips (D) utilizing the grooves of each lower
pole at the same desired position making
sure arrows of all the plastic clips pointing
up.
Snap Plastic
Ensure the Wire Shelf (A) positioned
2
correctly. Hold the shelf and slide the top of
each Lower Pole (B) through the bottom of
each corner opening of the Shelf until it
reaches Plastic Clip (D) and fits tightly.
Up
Down
Snap plastic clips on the grooves of each
3
lower pole at your desired position for the
next wire shelf. Slide down the wire shelf
from the top of each pole down onto the
plastic clips.
Screw upper poles (C) into Lower poles
4
(B)
using Connectors (F).
B
E
E
upright parts sequence
No.
name
Parts
QTY
A
Wire
Shelf
4 pcs
Lower
B
B
Pole
F
thread inside
C
Upper
Pole
4 pcs4 pcs
D
Plastic
Clip
2 pcs spare
34 pcs
E
Leveling
Foot
C
F
Connector
G
G
Cap
4 pcs4 pcs4 pcs
Repeat Step (3) to install remaining two wire
5 6
shelves. And then push Cap(G) on top end
of Upper post(C).
Push down firmly every wire shelf at corners
using rubber mallet to ensure all the shelves
are in place covering plastic clips evenly at
each corner.Adjust Leveling Feet (E) to
attain proper leveling if needed.
Low
Tall
