Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
2 / 23
R&D / Automotive Electronics
1. INTRODUCTION
This document is the technical specification of the remote keyless entry (RKE) System for the car
consisting of S&T (S&T Daewoo Co.,. LTD) receiver (RX), S&T transmitter (TX) and Horn.
The purpose of the S&T RKE system is to provide the remote control function and the anti-theft
function in which it is installed and to prevent it from being driven by unauthorized users. The
verification of the user authorization is done by using a remote control operation with the
security code.
The diagnosis of the RKE is realized by the ALDL-function modes. They are realized by the
ALDL test equipment. To avoid manipulation of the usage of the test equipment, especially the
use of the key coding procedure has to be protected against unauthorized use.
1.1 REMOTE KEYLESS ENTRY FUNCTION
remote keyless entry occur the follow function.
a. Remote door lock / unlock
b. Remote trunk Release
c. Vehicle locator
d. Onstar function
1.2 ANTI-THEFT FUNCTION
anti theft alarm system occurs the follow function.
a. Burglar alarm
b. Display the ATAS status using security indicator.
c. Safety lock
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
3 / 23
R&D / Automotive Electronics
2. SYSTEM DESCRIPTION
The RKE system consist of
• Maximum 5 of in-key type transmitter(TX)
• A security led for displaying the RKE state
• A horn for the alarm state
• Receiver control unit with
- power supply
- microprocessor
- EEPROM
- drivers for the external status led
- drivers for the external horn, flashing bulb and door lock relay unit
- drivers for the external trunk open actuator
- serial data link for communication with the test equipment
- ignition signal input circuit
- theft detection input circuit(door open, hood open, trunk open)
- key cylinder unlock input circuit
- RF signal receiver
- RF signal receiving antenna
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
4 / 23
R&D / Automotive Electronics
B+
15A
BATTERY
A25
IGN1
HOOD OPEN SW
DRIVER PART
DRIVER KEY CYLINDER U NLOCK SW
PASSENGER PART
PASSENGER KEY CYLINDER UNLOCK SW
DOOR OPEN
OTHER
DOOR OPEN(RR)
DOOR OPEN(RL)
15A
DOOR LOCK MONI T ORING
TRUNK KEY CYLINDER UNL OCK
IGNITION
HOOD OPEN SW
DOOR OPEN SW
TRUNK OPEN SW
A15
RK
RK
A07
A09
A12
Door Loc k/Unlock
••Door Lock/Unlock
• Door Lock/Unlock
A08
Trunk Unlock
••Trunk Unlock
• Trunk Unlock
Anti Theft
••Anti Theft
• Anti Theft
Diagnostic Via K--
••Diagnostic Via K
• Diagnostic Via K-line
star via IPC
••OnOn--star via IPC
• On-star via IPC
A20
A05
A04
960
960
RK 960
T255
T255
T255
NA_NB
NA_NB
NA_NB
line
line
RIGHT FLASHING BULB
A13
LEFT FLASHING BULB
A26
SECURITY INDICA TOR
A19
DOOR LOCK
A10
DOOR UNLOCK
A11
HORN
A01
TRUNK RELEASE
A14
DOOR
LOCK
RELAY
RELAY
B+
FL RL FR RR
M
M M M
B+
B+
TRUNK LID
OPEN SW
IPC
KEY REMINDER
ONSTAR TX&RX
GND
A18
A22
A02
RF ANT E N NA
SERIAL DATA LINK
A17 ISO-K Line
M
[Figure 1. SYSTEM BLOCK DIAGRAM]
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
5 / 23
R&D / Automotive Electronics
3. RKE FUNCTION
3.1 DOOR LOCK / UNLOCK USING TRANSMITTER
3.1.1 TRANSMITTER LOCK / UNLOCK/PANIC
This system function by using two buttons of the valid Tx is shown at Table 1. Now we define
the “VALID Tx” as the ID code (Fixed code + Crypto code) of the Tx is memorized by the
Control Unit.
Status Button Function
A Unset "UNLOCK" All door unlock, Hazard lamp blink twice, Disarming Mode
B Set "LOCK" All door lock, Hazard lamp blink once, Arming Mode
C Set/unset “PANIC” Horn and Hazard lamp blink 28sec
[Table 1. System Function by Using Two Buttons of the Valid Tx]
When the ignition is off, the key reminder is off and all doors(door / hood / trunk) are closed,
door lock by the Tx lock button. The Rx status goes to the arming mode in the condition of the
arming mode. For the information of the remote door lock, the hazard lamp blinks once for
0.5sec and the horn operates once 0.03sec.
When remote door lock is operated and not in the condition of the arming mode, hazard lamp
does not blink and horn does not operation because of not changing Rx status.
When the ignition is off and the key reminder is off, the Rx drives the door actuator in order to
unlock all doors by the Tx unlock button. The Rx status goes to the disarming mode. For the
information of the remote door unlock, the hazard lamp blinks twice, the period is 1sec and the
duty ratio is 0.5sec. But if there was the burglar alarm, the hazard lamp blinking period is 2s
(0.5sec On and 1.5sec Off).
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
6 / 23
R&D / Automotive Electronics
When the ignition is off and the key reminder is off, the Rx drives panic function by the Tx
panic button. But it does not change the Rx status. For the information of the remote panic,
the hazard lamp blinks 28sec, the period is 0.5sec and duty ratio is 0.25sec, the horn operates
28sec, the period is 1sec and the duty ratio is 0.5sec
3.1.2 TRANSMITTER UNLOCK/LOCK/ TRUNK
This system function by using two buttons of the valid Tx is shown at Table 2. Now we define
the “VALID Tx” as the ID code (Fixed code + Crypto code) of the Tx is memorized by the
Control Unit.
Status Button Function
A Unset "UNLOCK" All door unlock, Hazard lamp blink twice, Disarming Mode
B Set "LOCK" All door lock, Hazard lamp blink once, Arming Mode
C set / unset "TRUNK" Operating trunk solenoid
[Table 2. System Function by Using Two Buttons of the Valid Tx]
When the ignition is off, the key reminder is off and all doors(door / hood / trunk) are closed,
door lock by the Tx lock button. The Rx status goes to the arming mode in the condition of the
arming mode. For the information of the remote door lock, the hazard lamp blinks once for
0.5sec and the horn operates once 0.03sec.
When remote door lock is operated and not in the condition of the arming mode, hazard lamp
does not blink and horn does not operation because of not changing Rx status.
When the ignition is off and the key reminder is off, the Rx drives the door actuator in order to
unlock all doors by the Tx unlock button. The Rx status goes to the disarming mode. For the
information of the remote door unlock, the hazard lamp blinks twice, the period is 1sec and the
duty ratio is 0.5sec. But if there was the burglar alarm, the hazard lamp blinking period is 2s
(0.5sec On and 1.5sec Off).
When the trunk function by the Tx trunk button operates, trunk solenoid is actuated for 500ms.
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
7 / 23
R&D / Automotive Electronics
For the information of the remote trunk open. But it does not change the Rx status.

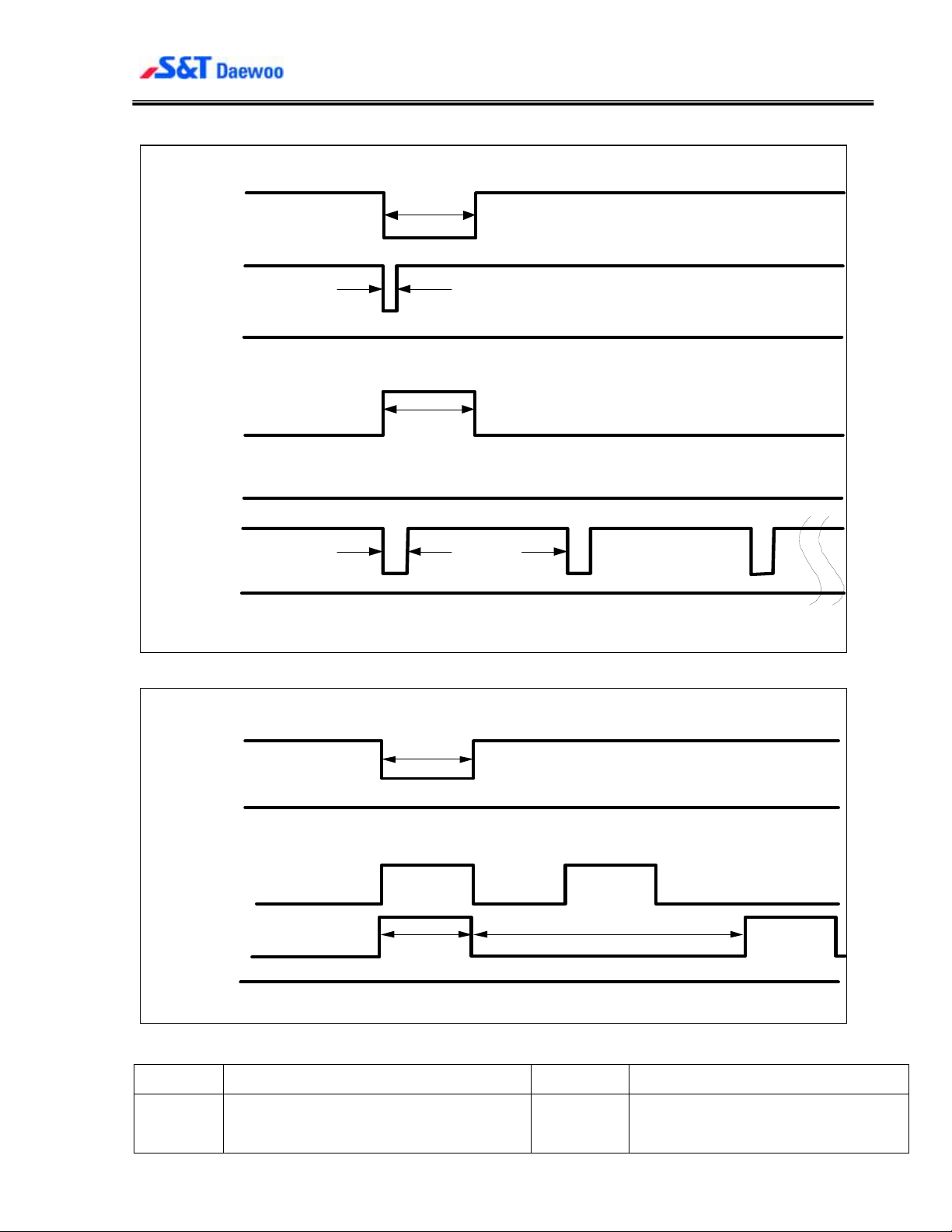

LOCK OUT
500ms
Horn
1. No T he f t
30ms
2. Any Theft or Key Cylinder On
Flashing Bulb
1. No T he f t
500ms
2. Any Theft or Key Cylinder On
Security LED
1. No T he f t
130ms
870ms
2. Any Theft or Key Cylinder On
UNLOCK OUT
Horn
Flashing Bulb
1. Norm a l
2. A fte r T h e ft
Security LED
500ms
500ms
1500ms
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
8 / 23
R&D / Automotive Electronics
ARMING REARMING ARMING
TRUNK KEY
TRUNK OPEN
TX TRUNK
OPEN
TRUNK
RELEASE
TRUNK OPEN
30sec
500mse
c
ARMING REARMING ARMING
30sec
500msec
500msec

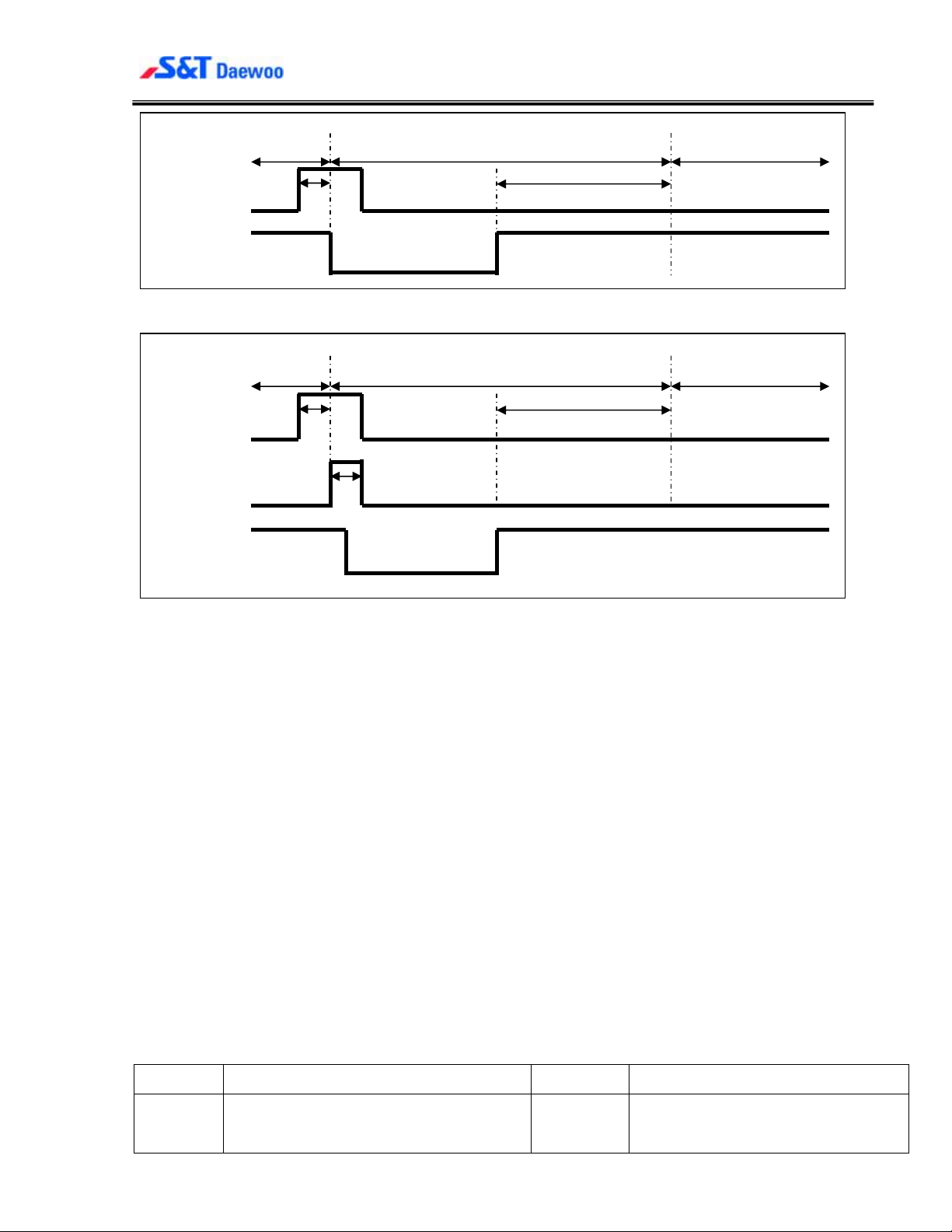

[Figure 2. FUNCTION FLOW]
3.2 BURGLAR ALARM
At the arming mode, if below signal input is recognized by the Rx, the burglar alarm (audible
alarm (horn) and visible alarm(hazard Lamp) ) is during 28 seconds operated and 5 seconds
paused. The alarm activating count is the option by customer.
① When the door open switch input is turned to low(GND) (at the moment of opening the door)
② When the hood open switch input is turned to low(OPEN) (at the moment of opening the
hood)
③ When the trunk open switch input is turned to low(GND) (at the moment of opening the
trunk)
④ When the ignition switch input is turned to high(BAT) (at the moment of IGN on)
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Rev. No.
A0
Date 24 . July. 2007 Page
9 / 23
R&D / Automotive Electronics
If the above theft detection input is received at the arming mode, the type of theft is memorized at
the Rx EEPROM. But the alarm duration is not prolonged even if theft detection signal is
recognized during the alarm mode. That is, the Rx ignores the theft detection input until the
alarm is finished.
During the alarm is activated, if the “lock” , “unlock”, “trunk”, “panic” function code is received,
the Rx performs the function according to be received code and the burglar alarm (audible alarm
and visible alarm) is deactivated. If the “trunk” and “panic” function code is received, the Rx
does not perform the function and the burglar alarm is deactivated. And if the tamper switch
(passenger unlock disarming / driver unlock disarming / trunk unlock disarming) is ON, the Rx
stops the burglar alarm and goes to the disarming mode.
Theft
Detection
250ms
FLA SH ING
BULB
HORN
250ms
28sec
500ms
5sec
[Figure 3. Timing Chart for Burglar Alarm]
3.3 DISARMING BY KEY CYLINDER
If the tamper switch (passenger unlock disarming / driver unlock disarming / trunk unlock
disarming) is ON, the Rx stops the burglar alarm and goes to the disarming mode.
3.4 SAFETY LOCK(AUTO DOOR LOCK AFTER 30SEC)
At the arming mode, if the door / trunk / hood open and the ignition on is not occurred during 30
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
10 / 23
R&D / Automotive Electronics
seconds after all door is unlocked by the Tx unlock button or the Tx door button, then all door is
locked again and the Rx also goes to the arming mode. At the case of the safety lock, even
though the Rx goes to the arming mode, the EEPROM data of the Rx about alarm is not changed.
If the remote door unlock is actuated again during the waiting time (30 seconds), the safety lock
process is restarted.
3.5 SECURITY INDICATOR
If the Rx status enters to the arming mode, the security indicator is blinking period 1sec (0.13sec
ON 0.87sec OFF).
Security Indicator RKE & ATAS Status
Blinking(f=1Hz) Duty cycle 1:7(ON/OFF) Arming, Trunk Rearming State
OFF Disarming Status
[Table 3. Security Indicator Operating timing Chart]
3.6 DIAGNOSTIC
Communication between the ECU and the diagnostic tester takes place in accordance with
ISO9141-2, with line K only but without line L. Line K is a bidirectional data line used to convey
request messages from the diagnostic tester to the ECU and response messages from the ECU to
the diagnostic tester. Additional DIAGNOSTIC function refers to the document
SPECIFICATION #DPE-AE-RK509603S Keyless Entry System Diagnostic Specification.
3.7 ACTIVE RANGE
Active functions of the receiver shall be operable when the Tx is with in the specified range of
the vehicle, as follows:
FUNCTION RANGE
All functions
≥20m : Ignition OFF
≥ 6m : Ignition ON
[Table 4. Active Range]
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
11 / 23
R&D / Automotive Electronics
Active range requirements shall be met with the receiver mounted in the vehicle in its production
intent mounting location and orientation. Range requirements are specified for open, flat, paved
terrain, with fair weather (no rain or snow), temperatures between 0°C and 80°C, and fob height
between 0.5 and 1.5 meters above the ground surface. Range shall be measured from the center
of the vehicle, and is independent of fob orientation.
'remote function' and 'ignition ON' range shall be determined with the engine running, and all
applicable vehicle functions (radio, rear defog, alarm, etc) in operation.
3.8 IPC SIGNAL CONTROL(ONSTAR FUNCTION)
When RKE receive specified signal time from IPC, It executes functions such as LOCK,
UNLOCK, Alert. Specified signal time is as follows.
■ Signal Time for function
Function Signal Time IPC RKE
1) LOCK 20ms Transmit Receive
2) UNLOCK 30ms Transmit Receive
3) Alert Audible & Visible(5min.) 40ms Transmit Receive
4) Alert Stop 50ms Transmit Receive
Alert function is performed during 5min. (Bulb 250ms ON / 250ms OFF, Horn : 500ms ON /
500ms OFF) by receiving Alert Audible & Visible signal and Alert function is stopped by
receiving Alert Stop signal.
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
12 / 23
R&D / Automotive Electronics
4. SYSTEM CONFIGRATION
4.1 RECEIVER
4.1.1 FUNCTION
The control unit is operating the section “3. RKE FUNCTION”
4.1.2 ELECTRIC SPEC
ITEM DISCRIPTION
operating voltage 8V ~ 16V(Test Voltage : 12.6V)
standby current MAX 5mA
sensitivity -100dBm(Min)
operating frequency 315MHz + 5KHz
operating temperature
-40 ℃ ~ 85℃
Antenna type Internal Herical antenna
PCB thickness 16mm
PCB material FR - 4
[Table 5. Electric specification for Receiver]
4.1.3 METHOD OF CODING TRANSMITTER
The receiver is able to save 5EA transmitter security key (fixed code + hopping code)
Method for Tx coding (save the transmitter)
a. connect diagnostic connector and ALDL diagnostic device(SCAN-100 for GMDAT)
b. ALDL diagnostic device selects the coding mode
c. It is pressing the transmitter button 2 or 3 times.
d. confirm the message for coding ok of ALDL diagnostic device.
e. disconnect diagnostic connector and ALDL diagnostic device
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
13 / 23
R&D / Automotive Electronics
4.2 TRANSMITTER
4.2.1 ELECTRIC SPEC
ITEM DISCRIPTION
operating voltage 2.5V ~ 3.2V
standby current MAX 1uA
operating current MAX 10mA
output power 10mW
modulation FSK
operating frequency 315MHz + 5KHz
operating temperature
Antenna type PCB Pattern ANTENNA
PCB thickness 8mm
PCB material FR-4
[Table 6. Electric specification for Transmitter]
4.2.2 DATA FORMATION
-10℃ ~ +60℃
[Figure 4. Data Code Formation]
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
14 / 23
R&D / Automotive Electronics
unit : us
Number
ALL
Symbol Characteristic
of TE
Min. Type Max
TE Basic pulse element 1 260 400 660
TBP PQM bit pulse width 3 780 1200 1980
TP Preamble duration 23 6.0 9.2 15.2
TH Header duration 10 2.6 4.0 6.6
THOP Hopping Code duration 96 25.0 38.4 63.4
TFIX Fixed Code duration 102 26.5 40.8 67.3
TG Guard Time 39 10.1 15.6 25.7
Total Transmit Time 270 70.2 108.0 178.2
PWM data rate 1282 833 505
[Table 7. Data Bit Timing Table]
4.2.3 TRANSMITTER FUNCTION
The transmitter trans the high frequency signal using the PWM (Pulse Width Modulation)
method. The synchronization information, fixed information and switch information will be
encrypted to form the hopping code. The encrypted or hopping code portion of the transmission
will change every time a button is pressed, even if the same button is pushed again. Keeping a
button pressed for a long time will result in the same code word being transmitted until the button
is released or time-out occurs. If in the transmit process, it is detected that a new button is
pressed, the current code word will be aborted. A new code word will be transmitted and the
time-out counter will reset. If all the buttons are released, the minimum code words will be
completed.
4.2.4 BATTERY
Battery removal shall be able to be performed without specialized tools. Average time to replace
a battery shall be less than 5 minutes. No damage to the transmitter shall result if the batteries
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
15 / 23
R&D / Automotive Electronics
are installed backwards. Battery replacement shall not require the customer to handle any loose
components (i.e. circuit boards, battery clips, etc.).
Battery life shall exceed 2 years at 25°C based on usage specified in section 3.1.1, with
transmission time corresponding to 1 second duration button press activations.
4.2.5 LED
During the normal transmission the led operating is ON. The transmitter button continuously ON,
during about 3.2sec blinking(25ms ON, 500ms OFF) consecutively, after LED becomes OFF
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
16 / 23
R&D / Automotive Electronics
5. SYSTEM INPUT/OUTPUT CIRCUITS
5.1.1 SERIAL DATA LINK(NO. A17)
It is the line for communicate receiver and diagnostic device. It defines RKE diagnostic protocol
regulation(#DPE-AE-RK509603S)
5.1.2 ELECTRIC OUTPUT
5.1.2.1 HAZARD LAMP (LEFT : A26, RIGHT : A13)
- Type : Normal open Relay(TWIN,JJM2W-12V-2A)
- Output Level : Battery voltage to GND
- Max. switching current : 2 x 60 A
- Max. continuous current : 2 x 10 A @ +23℃
- Fault Diagnostic Request : No
- State During Reset : Off
- Short Circuit Protection Request : No
- Over Current Protection Request : No
- RIGHT LOAD : 21W x 2EA, 5W x 1EA
- LEFT LOAD : 21W x 2EA, 5W x 1EA
5.1.2.2 SECURITY INDICATOR(A19)
- Type : Low Side Drive
- Output Level : 1V to GND
- Max. Output Current : 100mA
- Min./Max. Duty Cycle : 0 / 100 %
- Fault Diagnostic Request : No
- State During Reset : Off
- Short Circuit Protection Request : No
- Over Current Protection Request : Yes
5.1.2.3 DOOR LOCK(A10)
- Type : Low Side Drive
- Max. Low Output Level : 1V to GND
- Max. Output Current : 500mA
- Fault Diagnostic Request : No
- State During Reset : Off
- Short Circuit Protection Request : Yes
- Over Current Protection Request : Yes
5.1.2.4 DOOR UNLOCK(A11)
- Type : Low Side Drive
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
17 / 23
R&D / Automotive Electronics
- Max. Low Output Level : 1V to GND
- Max. Output Current : 500mA
- Fault Diagnostic Request : No
- State During Reset : Off
- Short Circuit Protection Request : Yes
- Over Current Protection Request : Yes
5.1.2.5 2 STEP UNLOCK (A16, PROVISION)
- Type : Low Side Drive
- Max. Low Output Level : 1V to GND
- Max. Output Current : 500mA
- Fault Diagnostic Request : No
- State During Reset : Off
- Short Circuit Protection Request : Yes
- Over Current Protection Req’d : Yes
5.1.2.6 HORN(A1)
- Type : Low Side Drive
- Max. Low Output Level : 1V to GND
- Max. Output Current : 500mA
- Fault Diagnostic Request : No
- State During Reset : Off
- Short Circuit Protection Request : No
- Over Current Protection Request : No
5.1.2.7 TRUNK RELEASE(A14)
- Type : Normal Open Relay
- Output Level : Battery Voltage to GND
- Max. Switching Current : 60 A
- Max. Continuous current : 10 A @ +23℃
- Fault Diagnostic Request : No
- State During Reset : Off
- Short Circuit Protection Request : No
- Over Current Protection Request : No
5.1.3 ELECTRIC INPUT
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
18 / 23
R&D / Automotive Electronics
5.1.3.1 TRUNK KEY CYLINDER UNLOCK SWITCH INPUT(A4)
■ Switch character
- Type : Normally Open Switch to Ground
- Function : Switch Closed – Unlock switch is ON
Switch Open – Unlock switch is OFF
- Open Resistance : >50kΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND Offset Margin : ±1V
5.1.3.2 DRIVER KEY CYLINDER LOCK SWITCH INPUT(A6, PROVISION)
■ Switch character
- Type : Normally Open Switch to Ground
- Function : Switch Closed – Lock switch is ON
Switch Open – Lock switch is OFF
- Open Resistance : >50kΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND Offset Margin : ±1V
5.1.3.3 PASSENGER KEY CYLINDER UNLOCK SWITCH INPUT(A22)
■ Switch character
- Type : Normally Open Switch to Ground
- Function : Switch Closed – Unlock switch is ON
Switch Open – Unlock switch is OFF
- Open Resistance : >50kΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND Offset Margin : ±1V
5.1.3.4 HOOD OPEN SWITCH INPUT(A7)
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
19 / 23
R&D / Automotive Electronics
■ Switch character
- Type : Normally Close Switch to Battery
- Function : Switch Closed – HOOD Open
Switch Open – HOOD Close
- Open Resistance : >2MKΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND. Offset Margin : ±1V
5.1.3.5 TRUNK OPEN SWITCH INPUT(A5)
■ Switch character
- Type : Normally Open Switch to Ground
- Function : Switch Closed – TRUNK Open
Switch Open – TRUNK Close
- Open Resistance : >50KΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND. Offset Margin : ±1V
5.1.3.6 DOOR OPEN SWITCH INPUT (A8)
■ Switch character
- Type : Normally Open Switch to Ground
- Function : Switch Closed – DOOR Open
Switch Open – DOOR Close
- Open Resistance : >50KΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND. Offset Margin : ±1V
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
20 / 23
R&D / Automotive Electronics
5.1.3.7 IGNITION SWITCH INPUT (A15)
■ Switch character
- Type : Normally Open Switch to Battery
- Function : Switch Closed – IGNITION is ON
Switch Open – IGNITION is OFF
- Open Resistance : >2MΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND. Offset Margin : ±1V
5.1.3.8 KEY REMINDER SWITCH INPUT (A18)
■ Switch Character
- Type : Normally Open Switch to Ground
- Function : Switch Closed – Key Reminder is ON
Switch Open – Key Reminder is OFF
- Open Resistance : >2MΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND. Offset Margin : ±1V
5.1.3.9 DOOR LOCK MONITORING SWITCH INPUT (A9)
■ Switch character
- Type : Normally Open Switch to Ground
- Function : Switch Closed – Lock switch is ON
Switch Open – Lock switch is OFF
- Open Resistance : >50kΩ
- Closed Resistance : <50Ω
- Open to Close Time : ≤ 5msec
- Close to Open Time : ≤ 5msec
- Noise & GND Offset Margin : ±1V
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
21 / 23
R&D / Automotive Electronics
6. HORN
6.1.1 ELECTRIC SPECIFICATION
Make FIAMM
Frequency 415±20Hz(High)
Rated voltage 12V
Power consumption Max 3.5A(@12V)
Pressure of sound 110±5dB(@13V,2m)
Operation voltage range 10~14.5V
6.1.2 MECHANICAL CHARACTERISTICS
No. Item Test Condition Evaluation standard
Stripped wires of lead wires are immersed in rosin for 5
1 solder ability
soldering heat
2
resistance
seconds and then immersed in solder bath of +230±5℃
for 3±0.5 seconds.
Stripped wires are immersed up to 1.5mm from
insulation in solder bath of +300±5℃ for 3±0.5 seconds
or +260±5℃ for 10±1 seconds, and then sounder shall
be measured after being placed in natural condition for 4
hours.
90% min. stripped wires shall
be wet with solder.(except the
edge of terminal)
no interference in operation
lead wire pull
3
4 vibration
strength
The pull force shall be applied to lead wire
: horizontal 3.0N
vertical 2.0N
The test shall last 4 hours and be performed in 3 primary
axis with a RMS G level=3.2G from 10 to 2000Hz..
no damage and cutting off.
operation shall be checked at
the end of each axis test.
Maintain the tolerance of ±4dB
6.1.3 Environment Test
No. Item Test Condition Evaluation standard
Placed at -40 ℃ for 8 hours and removed to at
1 frost
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
+38℃ ,95%RH.Device testing will be done when an
uniform frost coating is observed on the device
Rev. No.
Being placed for 2 hours at
+25℃, buzzer shall be
measured. The value of
A0
22 / 23
R&D / Automotive Electronics
thermal shock
2
3
4
storage
temperature.
and humidity
cycle test

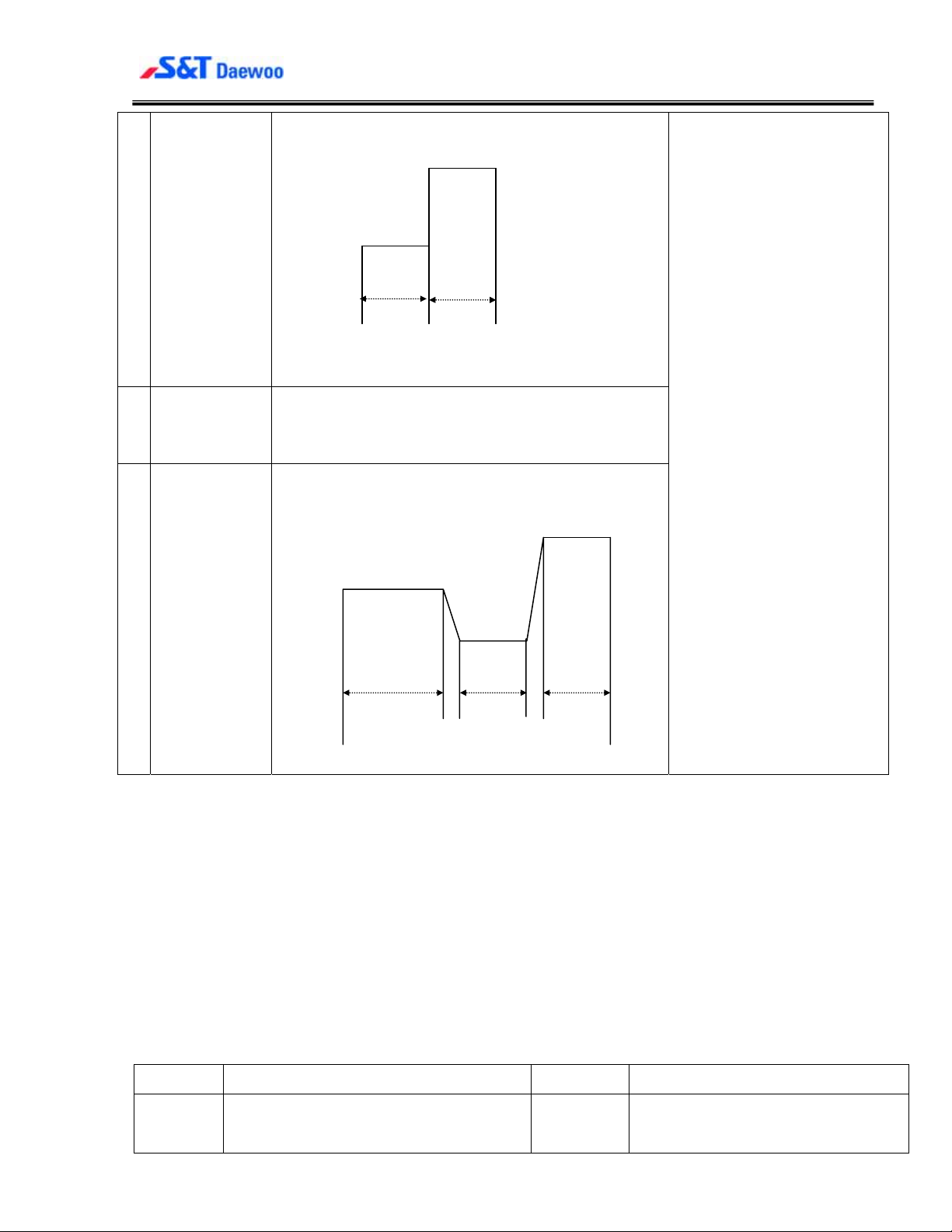

The part shall be subjected to 5 thermal cycles. One
cycle shall be consisted of :
+110℃
-40℃
1 hr 1hr
Using 2 shuttle chambers with a 2 minutes minimum
transition.
The part shall be subjected the uninterrupted storage
schedule as below;
-40℃:70hours
+110℃:118hours
The part shall be subjected to 5 cycles. One cycle shall
be consisted of::
+100℃
+37℃,98%RH
-40℃
12hrs 6hrs 6hrs
Perform a functional check of each unit every 12 hours
current consumption should be
in ±20% compared with initial
ones .The SPL(min.):100dB.
The tone should be normal
FCC__Compliance Statement
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES
Operating is subject to the following two conditions; (1) this device may not cause harmful interference, and (2) this device m ust accept ant
interference received, including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to
operate the equipment.
Title Remote Keyless Entry System Specification Spec. No. DPE-AE-RK019912S
Written by
Date 24 . July. 2007 Page
Rev. No.
A0
23 / 23
Loading...
