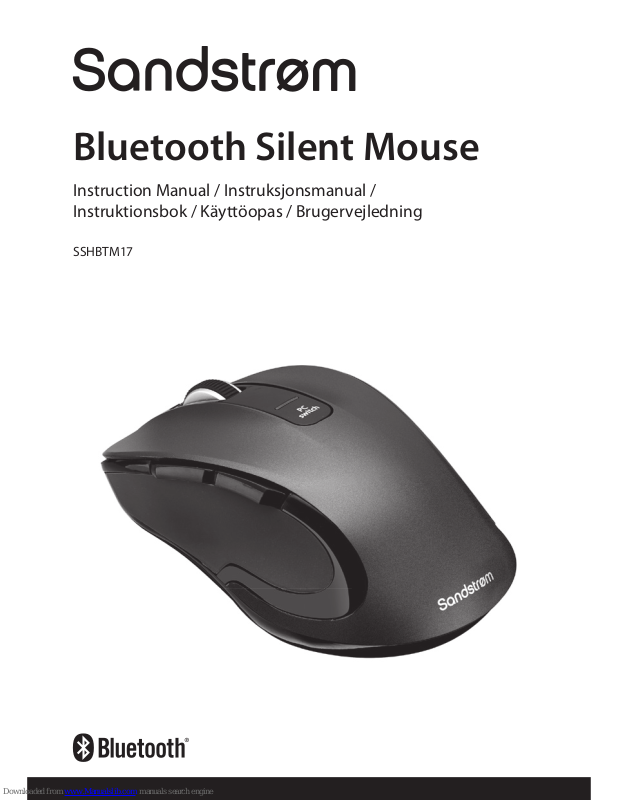

Bluetooth Silent Mouse
Instruction Manual / Instruksjonsmanual /
Instruktionsbok / Käyttöopas / Brugervejledning
SSHBTM17
Contents
Safety Warnings ............................................................... 4
Unpacking ........................................................................ 5
Product Overview ............................................................ 6
Top View ............................................................................................ 6
Bottom View .................................................................................... 6
System Requirements .....................................................7
Installing the Batteries .................................................... 7
Switching on/o ..............................................................8
Switch User ....................................................................... 8
Pairing the Mouse ............................................................9
Hints and Tips...................................................................9
Specications ................................................................. 10
4
Safety Warnings
Wireless Devices:
• Before boarding any aircraft or packing a wireless
device in luggage that will be checked in, remove the
batteries from the wireless device.
• Wireless devices can transmit radio frequency (RF)
energy, whenever batteries are installed and the
wireless device is turned on (If it has an On/O switch).
Battery-Powered Devices:
• Improper use of batteries may result in battery uid
leakage, overheating, or explosion.
• Released battery uid is corrosive and may be toxic.
It can cause skin and eye burns, and is harmful if
swallowed.
To Reduce the Risk of Injury:
• Keep batteries out of the reach of children.
• Do not heat, open, puncture, mutilate, or dispose of
batteries in re.
• Do not mix new and old batteries or batteries of
dierent types.
• Do not allow metal objects to touch the battery
terminals on the device; they can become hot and
cause burns.
5
Thank you for purchasing your new
product.
We recommend that you spend some time
reading this instruction manual in order that you
fully understand all the operational features it
oers. You will also nd some hints and tips to
help you resolve any issues.
Read all the safety instructions carefully before
use and keep this instruction manual for future
reference.
Unpacking
Remove all items from the packaging. Retain the
packaging. If you dispose of it please do so according
to local regulations.
The following items are included:
• Main Unit
• AAA Size Battery x 2
• Instruction Manual
6
Product Overview
Top View
Right Button
Left Button
Scroll Wheel
Battery
Compartment
Bottom View
LED Indicator
ON/OFF Switch
Connect Button
Forward / Backward Button
Bluetooth
Button
7
Installing the Batteries
When battery is low, the LED
indicator will ash.
1. Lift the battery cover up.
2. Insert 2 x AAA battery.
3. Close the battery cover.
System Requirements
Operating Systems: Microsoft® Windows® 7 / 8 / 10
MAC® OS X or later
Android 4.0 or later
Please ensure the batteries’ polarities (+ / –)
match the battery compartment’s polarities.
8
Switching on/o
1. Slide ON/OFF to ON. The Power indicator will light
up for few seconds.
• If the mouse is already paired with a Bluetooth
device before, it will automatically connect with
the last paired device when both are in pairing
mode.
2. To switch o, slide ON/OFF to OFF.
Switch User
The mouse can pair to 3 devices at a time. After pairing,
you may press the Bluetooth button to switch
between the paired devices.
Press Bluetooth
button to switch between the paired
devices 1/2/3, and the Power indicator will ash once,
twice and 3 times respectively.
9
Pairing the Mouse
You must have a Bluetooth-enabled device to work
with this mouse.
1. Switch the mouse on.
2. Press the Bluetooth
button button to select User
1/2/3.
3. Press the Connect button, the LED indicator light
will ash. The mouse is now in pairing mode.
4. Activate the Bluetooth feature on your Bluetooth
device and start searching. Then select “SSHBTM17”.
If you are asked to type in a code, type in “0000”. The
Pairing indicator light will turn o.
5. Your mouse is now paired with your device.
Hints and Tips
Mouse not working:
• Check that the power switch is in the on position.
• Check battery installation. Replace battery if needed.
• If the mouse is moving erratically, change the
working surface which the mouse is operating on.
10
Specications
Model SSHBTM17
Bluetooth Interface Bluetooth® 3.0
Operating Range 6m (8m in open space)
Resolution 1200 dpi
Frequency Band(s) 2402 – 2480 MHz
Max. Radio Frequency
Power Transmitted
-3 dBm
Dimension (L x W x H) 110 x 66 x 40 mm
Net Weight 75 g
Features and specications are subject to change
without prior notice.
11
For general information about this appliance and
handy hints and tips, please visit
www.knowhow.com/knowledgebank or call
0344 561 1234.
Visit Partmaster.co.uk today for the easiest way to
buy electrical spares and accessories. With over 1
million spares and accessories available we can
deliver direct to your door the very next day. Visit www.partmaster.co.uk or
call 0344 800 3456 (UK customers only). Calls charged at National Rate.
The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household waste.
Instead, it is your responsibility to dispose of your waste equipment
by handing it over to a designated collection point for the recycling
of waste electrical and electronic equipment. The separate
collection and recycling of your waste equipment at the time of disposal will
help conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment.
For more information about where you can drop o your waste for recycling,
please contact your local authority, or where you purchased your product.
Notes for battery disposal
The batteries used with this product contain chemicals that are
harmful to the environment.
To preserve our environment, dispose of used batteries according
to your local laws or regulations. Do not dispose of batteries with normal
household waste.
For more information, please contact the local authority or your retailer where
you purchased the product.
The Bluetooth® word mark and logos are registered trademarks owned by
the BluetoothSIG, Inc. and any use of such marks by DSG Retail Limited is
under license. Other trademarks and trade names are those of their respective
owner.
Windows is a registered trademark of Microsoft Corporation in the United
States and other countries.
All trademarks are the property of their respective owners and all rights are
acknowledged.
IB-SSHBTM17-170620V2
