Instruction Manual
Built in Ceramic Hob
SCEHOBB13 / SCEHOBW13
SCEHOBB13/W13_IBv1.indd 1 23/05/2013 09:52
2
Contents
Safety Warnings ...............................................................................................4
Unpacking .........................................................................................................6
Product overview ............................................................................................. 7
Top View .............................................................................................................................. 7
Control Panel ...................................................................................................................... 7
Before using your new ceramic hob .............................................................8
Choosing the right cookware .........................................................................8
Using the touch controls ................................................................................ 9
Covering the controls .......................................................................................................9
Using your ceramic hob .................................................................................. 9
Switching on and off..........................................................................................................9
Selecting a cooking zone ............................................................................................... 10
Setting the power level................................................................................................... 10
Warming setting ............................................................................................................... 10
Automatic shut off ............................................................................................................11
Switching a cooking zone off ...........................................................................................11
Expanding cooking zones 2 and 3 ..................................................................................11
Pausing cooking (Stop/Go) ..............................................................................................12
Power boost function .......................................................................................................12
Timer function .................................................................................................13
Alarm function ..................................................................................................................13
Setting a cooking zone timer ........................................................................................ 14
Adjusting or cancelling a cooking zone timer .............................................................16
Setting the child lock .....................................................................................16
Switching off the child lock .............................................................................................16
Cleaning and maintenance ............................................................................17

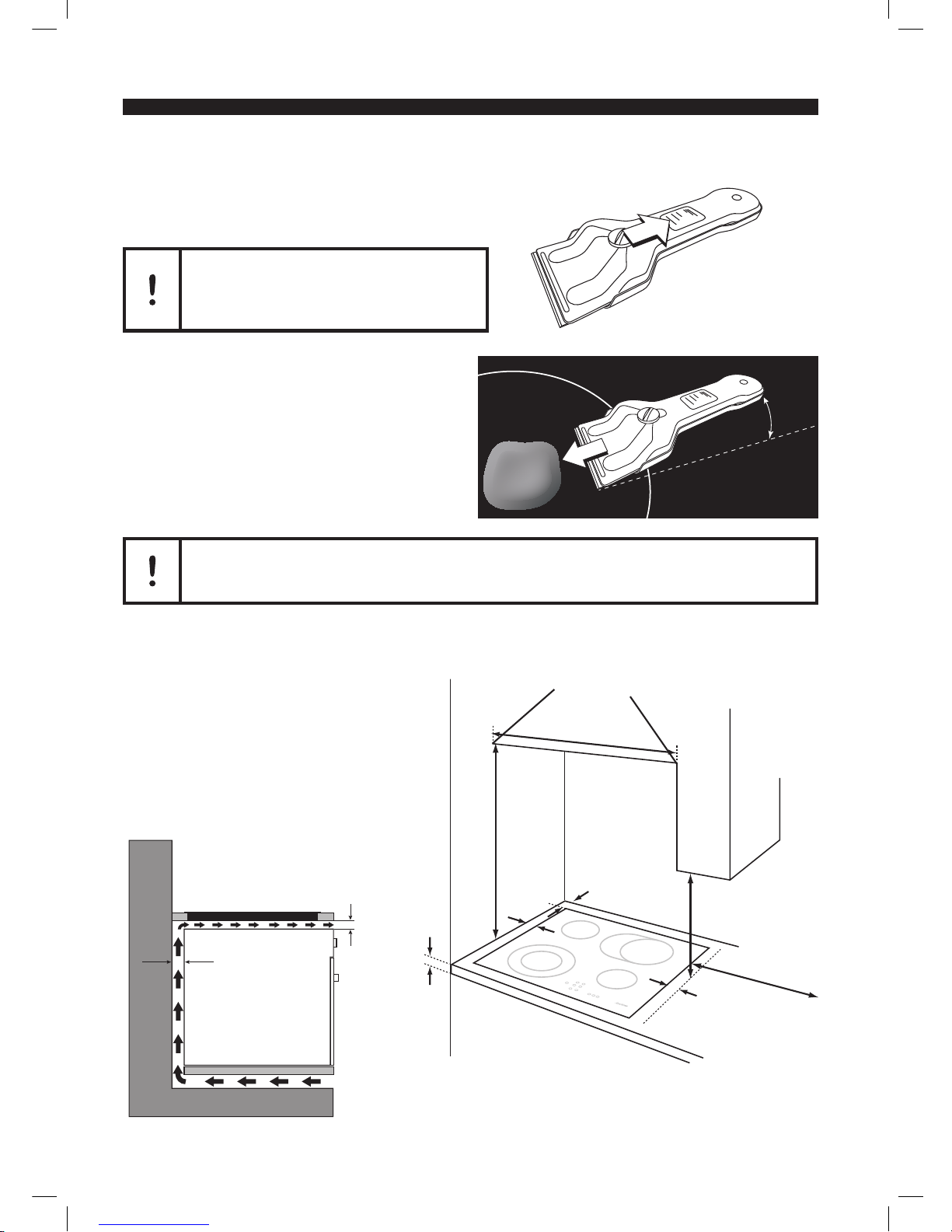

Using the scraper ............................................................................................................ 18
SCEHOBB13/W13_IBv1.indd 2 23/05/2013 09:52
3
Installing the hob ............................................................................................18
Fitting the foam gasket ...................................................................................................19
Attaching the fixing clips ................................................................................................19
Fitting the hob into the work surface ......................................................................... 20
Wiring the hob .................................................................................................21
Opening the terminal box .............................................................................................. 22
Fitting the link ................................................................................................................. 22
Connection diagram ....................................................................................................... 23
Technical specification ................................................................................. 23
SCEHOBB13/W13_IBv1.indd 3 23/05/2013 09:52
4
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• It is recommended that this appliance is installed by a qualified
electrical engineer. The manufacturer is not responsible for any
damage caused by incorrect installation.
• Check whether there is any damage to the appliance after you have
unpacked it. If any damage is found, do not use the appliance and
contact the store where you purchased it.
• This appliance is for Domestic Use only.
• For disconnection from the mains supply you must have a switch with
a contact separation of at least 3.0 mm in all poles and rated 32 Amp
that provides full disconnection, this must be incorporated in the fixed
wiring in accordance with the local wiring rules.
• If your mains cable gets damaged, it should be replaced by an
authorized service agent or qualified electrician in order to avoid
danger or electric shock.
• Only operate your appliance in a dry atmosphere.
• Keep the electrical cables of your other appliances away from hot
areas; do not let them touch the appliance.
• Ensure that the appliance is switched off at the mains supply switch
and allowed it to completely cool down before cleaning or performing
any maintenance to avoid the possibility of an electric shock.
• Use of your appliance creates moisture in the room in which it is placed,
make sure that your kitchen is well ventilated. Maintain the natural
ventilation ducts properly.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory and mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible
for their safety.
SCEHOBB13/W13_IBv1.indd 4 23/05/2013 09:52
5
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
• The appliance and its accessible parts become hot during use. Young
children should be kept away.
• During use the appliance becomes hot. Care should be taken to avoid
touching the cooking zones.
• Unattended cooking on a hob with fat or oil can be dangerous and may
result in fire. NEVER try to extinguish a fire with water, but switch off
the appliance and then cover the flame e.g. with a lid or a fire blanket.
• Danger of fire: Do not store items on the cooking surfaces.
• Do not use harsh abrasives cleaners to clean the glass since they can
scratch the surface.
• Glass ceramic hobs should not be used as a worktop. Sharp objects may
cause scratches.
• Before starting to use your appliance, keep curtains, tulle, paper
or flammable materials away from your appliance. Do not keep
combustible or flammable things in or on the appliance.
• This appliance is for cooking purposes only. It must not be used for
other purposes, for example room heating.
• Do not use steam cleaners for cleaning the appliance.
• If the hob surface is cracked, switch off the appliance to avoid
possibility of electric shock.
• Take care when handling parts with glass, knocks, chips, heavy handling
and dropping could cause the glass to shatter.
• The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
• Any objects such as knives, folks, spoons and lids should not be placed
on the hob surface since they can get hot/melt.
SCEHOBB13/W13_IBv1.indd 5 23/05/2013 09:52
6
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Thank you
Thank you for purchasing your new Sandstrøm Built In Ceramic Hob. Like all Sandstrøm
products our hobs take inspiration from traditional Scandinavian values of quality and
functionality, combined with modern innovations and a flair for simply looking good.
These operating instructions will help you use it properly and safely.
You must spend some time reading this manual in order that you fully understand all the
operational features it offers. Read all the safety instructions carefully before use and
keep this manual for future reference.
Fixing Clips x4 Fixing Screws x4
Sealing Tape
Scraper
Ceramic Hob
If items are missing or damaged, please
contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
SCEHOBB13/W13_IBv1.indd 6 23/05/2013 09:52
7

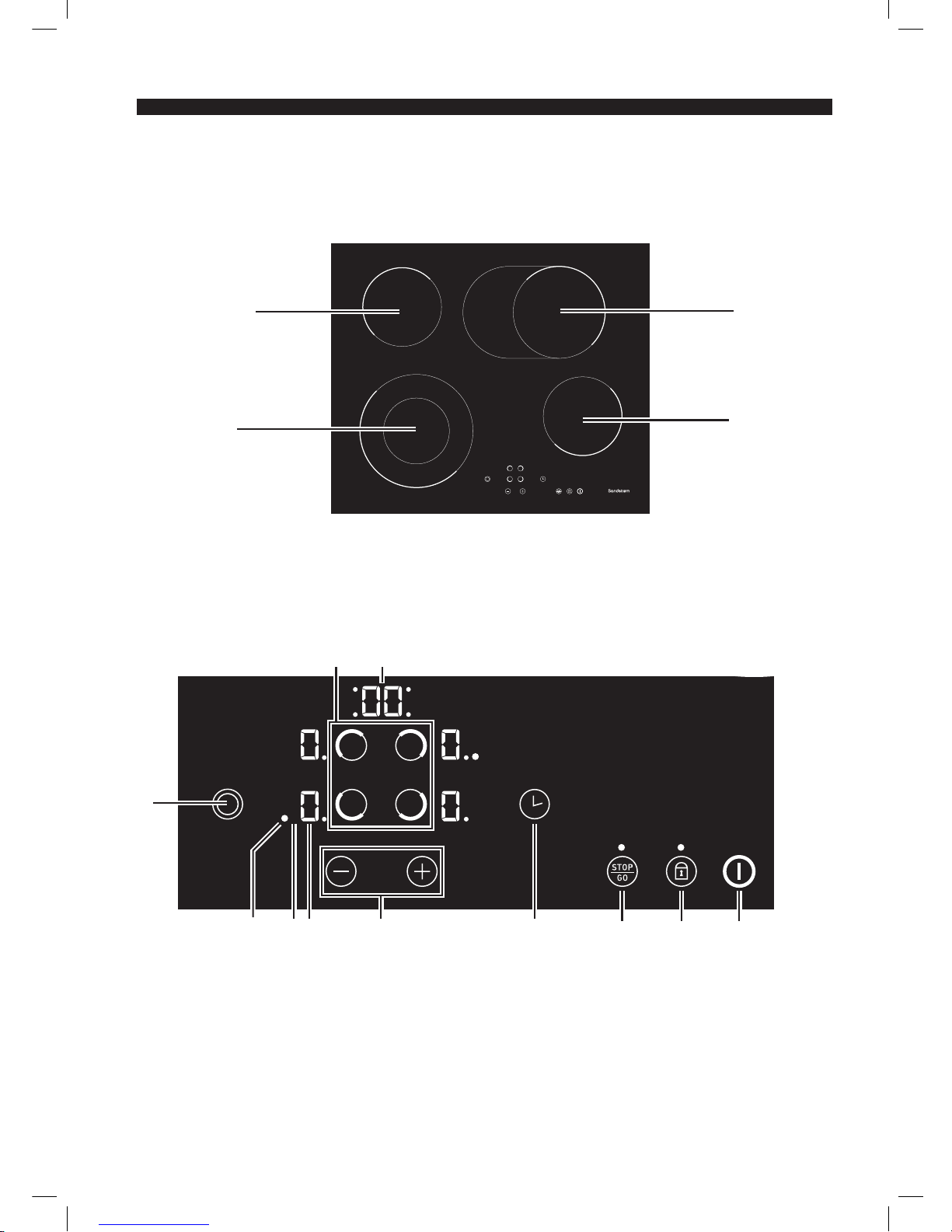

Product overview
Top View
Control Panel
1. 15cm diameter zone
2. 17.5cm diameter zone expandable
to 27x17.5cm
3. 12.5cm diameter zone (small)
expandable to 21.5cm diameter zone (large)
4. 15cm diameter zone
1. Zone 2 and 3 expansion control
2. Cooking zone controls
3. Timer control
4. Expanded zone indicator
5. Zone active indicator
6. Power level indicator
7. Power level controls
8. Timer control
9. Stop/Go control
10. Child lock control
11. Power control
1
2
3
4
1
2 3
764 5 8
9 10 11
SCEHOBB13/W13_IBv1.indd 7 23/05/2013 09:52
8
Before using your new ceramic hob
• Remove all protective film that may be still on your ceramic hob.
• Clean the glass ceramic surface with a damp cloth. Do not use aggressive detergents such as
abrasive cleaners that can scratch the surface, abrasive dishwashing sponges, or stain removers.

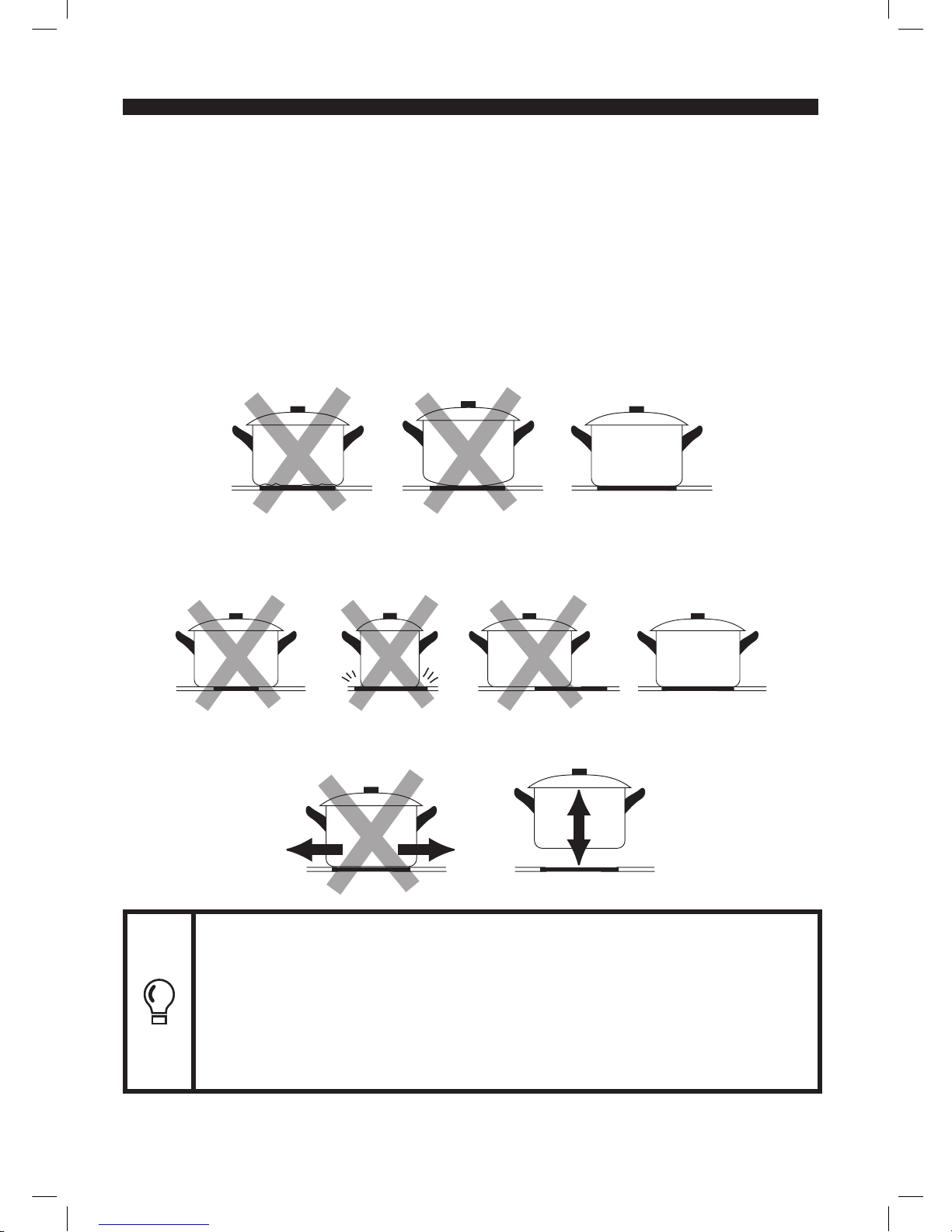

Choosing the right cookware
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the
cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.
• Occasionally the heated areas may be seen switching on and off when higher heat
settings are used. This is due to a safety device, which prevents the glass from
overheating. Some switching on and off when cooking at high temperatures, e.g. deep
fat frying is quite normal, causes no damage to the hob and little delay in cooking times.
Excessive switching may however be caused by the use of an unsuitable saucepan
or a saucepan which is smaller than the heated area. If excessive switching occurs,
discontinue the use of the saucepan.
• To improve performance, and reduce energy, always use pans with close fitting lids.
SCEHOBB13/W13_IBv1.indd 8 23/05/2013 09:52
9
Using the touch controls
• The controls respond to touch, so you don’t need to
apply any pressure.
• Use the ball of your finger.
• You will hear an audible tone each time a touch
is registered.
• Make sure the controls are always clean and dry,
and that there is no object (e.g. a utensil or a cloth)
covering them. Even a thin film of water may make
the controls difficult to operate.
Covering the controls
If you accidentally cover the controls or the
control panel is very dirty the hob will beep
and the display will flash 4 ‘Fs’. The hob will
then beep every 30 seconds until whatever
if covering the controls is removed.
Using your ceramic hob
Switching on and off
1. Touch the control. The hob will
switch on and the power levels and
timer digits be displayed and active
indicators will flash.
• If no controls are touched, the hob
will switch off after 10 seconds.
2. Touch the control again to switch
the hob off. If a cooking zone is still
hot the letter ‘H’ will be displayed
to show its still very hot then it
will change to ‘h’ when its hot but
cooling.
• The ‘H’ symbols may flash in the display the first time your hob is connected and switched
on. This is because the hob has been heat tested at the factory, then switched off while still
hot. This may also happen if you are using the hob and you have a power cut. This is not a
fault. The ‘H’s’ will disappear from the display when you start using the hob.
• Do NOT to touch the cooking zones when the hob is switched on or when a ‘H or h’
is displayed.
SCEHOBB13/W13_IBv1.indd 9 23/05/2013 09:52
10
Selecting a cooking zone
Your ceramic hob has 4 cooking zones,
2 of which can be expanded to make
the cooking zone larger for larger pans/
cooking pots, fish kettles or
griddle plates.
• Touch the desired cooking zone
control to select the cooking zone.
The zone active indicator will flash
for 7 seconds to show that the
zone is ready for you to select a
power level.

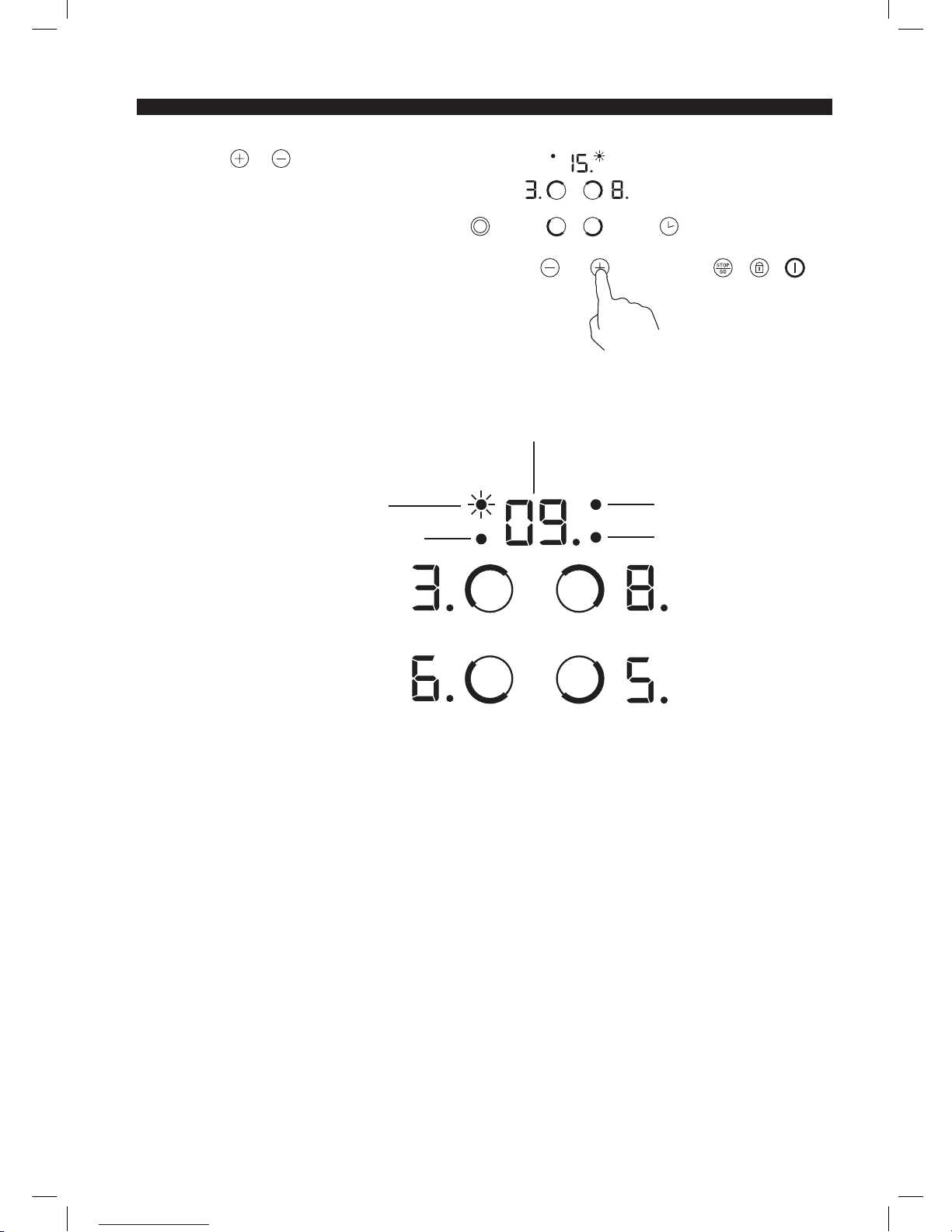

Setting the power level
Each cooking zone has 9 power levels
and a warming setting.
1. Select a cooking zone and while the
zone indicator light is flashing touch
the or controls to select a
temperature setting.
2. When the zone indicator light stops
flashing the hob with heat up to your
desired setting.
If you want to adjust the temperature setting at any point you will first have to select the cooking zone,
adjustments can only be made when the zone indicator light is flashing. It will flash for 7 seconds.
Warming setting
1. Select the cooking zone by touching
the cooking zone control.
2. While the zone indicator light is
flashing touch the control to
select power level 1. Then touch the
control twice until ‘u’ appears in
the display.
SCEHOBB13/W13_IBv1.indd 10 23/05/2013 09:52
11
Automatic shut off
For improved safety your hob is designed to shut off after a pre set maximum time for each power
level. Even though the hob will automatically switch off, this will not prevent food from over cooking and
burning. This is to prevent the hob accidentally being left on. Each power level has a specific operating
time (see table below). The cut off time is measured from the last power level adjustment made per
cooking zone.
Power Level u 1 2 3 4 5 6 7 8 9
Maximum operating time (hours) 6 6 6 5 5 4 1.5 1.5 1.5 1.5
Switching a cooking zone off
1. First select the cooking zone that you
want to switch off by touching the
cooking zone selector control.
2. While the zone indicator light is
flashing repeatedly touch the
control until the setting reaches ‘0’.
or
Touch and hold the or controls
at the same time and the power level
will automatically select ‘0’.
Expanding cooking zones 2 and 3
You can expand cooking zones 2 and 3
so you can use larger cooking pot/pans,
fish kettles or griddle plates.
1. Select zone 2 or 3.
2. Select your desired power level.
3. While the zone indicator light is
flashing touch the control. The
cooking zone will now be expanded
and set to the same power level as
you set above.
Zone 3
Zone 2
SCEHOBB13/W13_IBv1.indd 11 23/05/2013 09:52
12
Pausing cooking (Stop/Go)
The Stop/Go feature lets you temporarily
pause cooking on all 4 zones. This is
ideal if you get interrupted and need to
walk away from your hob.
• Touch the control to pause
cooking on all zones. The letters
‘S, t, O, P’ will flash in the display and
the Stop/Go indicator light will
switch on.
• Press the control again to
switch the function off. The Stop/
Go indicator light will switch off and
the cooking zones will return to the
power levels you previously set
them to.
If the Stop/Go feature is not switched off
in 10 minutes from activation the hob will
automatically switch off.
Power boost function
The power boost function sets a cooking zone to full power for a set time (this varies depending on the
power level you have selected) then reduces the power level to your desired level. This is useful if you
want a pan to come to the boil quickly then simmer.
1. Select a cooking zone.
2. Touch the or controls and set
the power level to 9. Then touch the
control, the display will show an
alternating ‘A’ and ‘9’.
Power level A1 A2 A3 A4 A5 A6 A7 A8
Power boost time 1m 3m 4m 45s 6m 30s 8m 30s 2m 30s 3m 30s 4m 30s
3. Touch the control within 7
seconds to set the power level to
your desired level. The power boost
feature can be set at any power level
(1-8). The display will flash with the
power level set and then an ‘A’.
If you adjust the power level at any time
the power boost function will deactivate.
SCEHOBB13/W13_IBv1.indd 12 23/05/2013 09:52
13
3. Touch the or controls to select
the amount of time to count down.
The 4 cooking zone power levels will
be displayed for a few seconds then
the hob will beep and the timer with
start to count down.
When the timer reaches ‘00’ the alarm
will sound. You can touch any button
to switch it off or it will automatically
switch off in around 1.5 - 2 minutes.
Timer function
Your hob has two types of timer function. A timer function that can be used as an alarm and a cooking
zone timer. The cooking zone timer enables you to set a cooking time for each cooking zone.
Alarm function
The maximum alarm time is 99 minutes.
1. Switch the hob on by touching the
control.
2. Touch the and ‘00’ will be
displayed.
SCEHOBB13/W13_IBv1.indd 13 23/05/2013 09:52
14
Setting a cooking zone timer
Each cooking zone can be set to switch off at different time e.g. zone 1 set to switch off in 10 mins, zone
2 in 15 mins, zone 3 in 12 mins and zone 4 in 25 mins.
1. Select a cooking zone and set the
power level you wish to cook at.
2. Touch the control twice - the first
touch is alarm mode, the second is to
set the timer for your chosen cooking
zone. The indicator lights next to the
time display will flash. If you have
cooking zone 1 selected then the top
left indicator light will be flashing.
3. Touch the or controls to select
the amount of time to count down for
that cooking zone. If you only want
to set one timer wait for the hob the
beep and it’s now set. The indicator
light will flash and the time will start
to count down.
4. To set a timer on another zone select
a cooking zone and set the power
level you wish to cook at. Touch the
control again until the indicator
light flashes, showing the new zone.
SCEHOBB13/W13_IBv1.indd 14 23/05/2013 09:52
15
5. Touch the or controls to select
the amount of time to count down
for that cooking zone. Wait a few
seconds and the timers will start.
The timer display will always show the time of the first timer to finish and its indicator light will be
flashing. When the first timer finishes the cooking zone will switch off and an alarm will sound. Then the
next timer to finish will be displayed. This process will repeat until all timers are finished and all cooking
zones are switched off.
When the alarm sounds to tell you a zone has switched off you can touch any control to switch off the
sound, or if you leave it, the alarm sound will automatically switch off in approximately 2 minutes.
Zone 1, flashing indicator light shows
this zone will switch off next
Time remaining until the
next zone switches off
Zone 2
Zone 3 Zone 4
SCEHOBB13/W13_IBv1.indd 15 23/05/2013 09:52
16

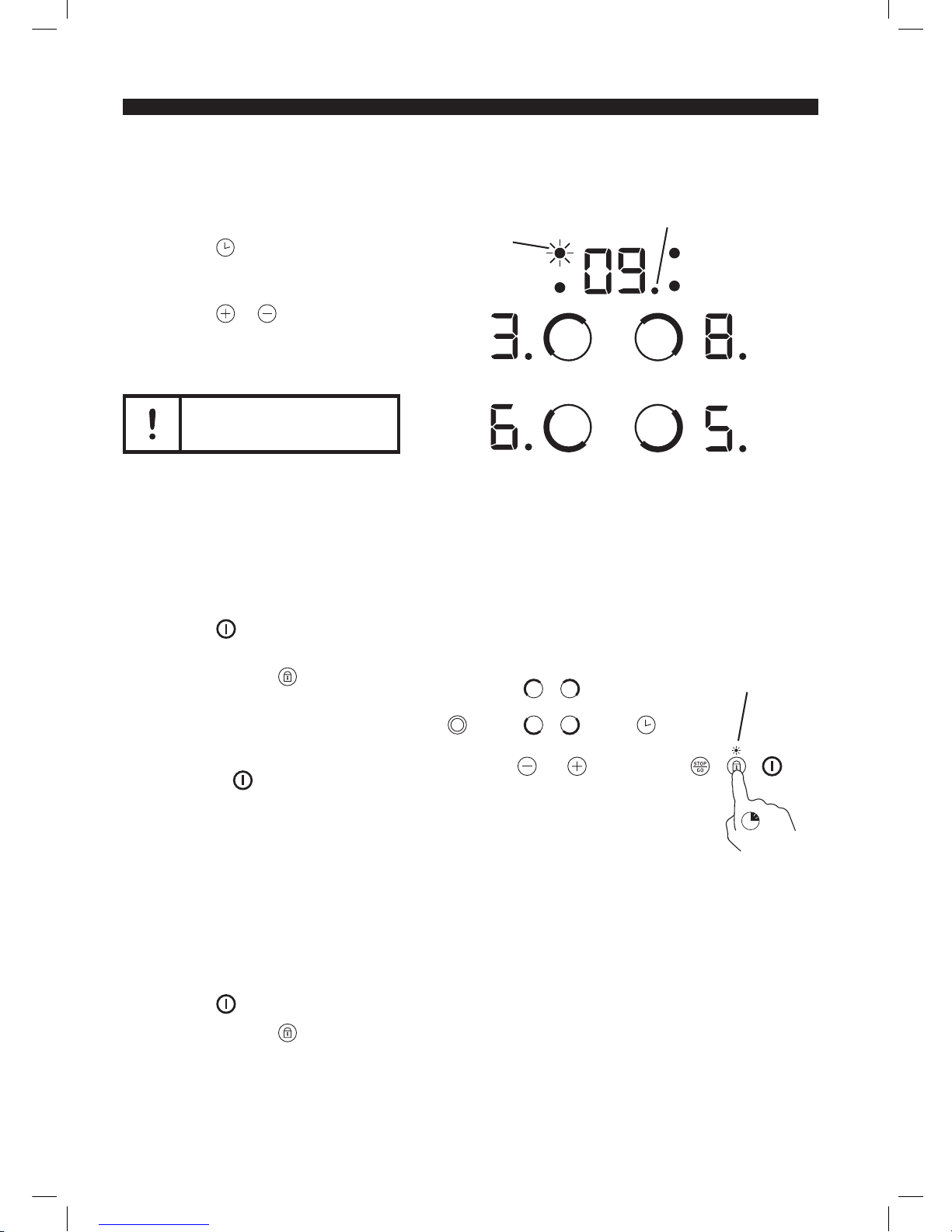

Adjusting or cancelling a cooking zone timer
If a timer has been set it can easily be
adjusted or cancelled.
1. Touch the repeatedly until the
indicator light flashes next to the
zone you want to adjust/cancel.
2. Touch the or controls to adjust
the time or set the timer to ‘00’ to
cancel the timer.
The cooking zone will not
switch off if you cancel a timer.
Shows the
active timer
zone
This shows that the time
is active and ready to
adjust or cancel
Setting the child lock
Setting the child lock will stop any of the controls from working so a child can’t operate the hob or if
you leave anything on the controls it won’t switch on.
1. Touch the control to switch the
hob on.
2. Touch and hold the control for 3
seconds. The hob will beep and the
lock indicator light will flash on and
off.
None of the controls will now work.
If you touch the control the lock
indicator light will briefly flash to show
the child lock is active. You can set the
child lock while a cooking zone is in use.
If the child lock is set the hob can only
be switched off. Then all of the controls
will be locked.
Switching off the child lock
1. Touch the control to switch the hob on.
2. Touch and hold the control for 3 seconds. The hob will beep and the lock indicator light will flash
on and off. You will now be able to use all the controls again.
1-2-3
Child lock
indicator light
SCEHOBB13/W13_IBv1.indd 16 23/05/2013 09:52
17
Cleaning and maintenance
Before attempting any cleaning make sure the hob is switched off and has cooled down.
What? How? Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the
glass)
1. Switch the power to the ceramic
hob off.
2. Apply a ceramic hob cleaner while
the glass is still warm (but not
hot!)
3. Rinse and wipe dry with a clean
cloth or paper towel.
• When the power to the ceramic
hob is switched off, there will be
no ‘hot surface’ indication but the
cooking zone may still be hot!
Take extreme care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive
cleaning agents may scratch the
glass. Always read the label to
check if your cleaner or scourer is
suitable.
• Never leave cleaning residue on
the ceramic hob: the glass may
become stained.
Boilovers, melts, and
hot sugary spills on
the glass
Remove these immediately with the
supplied scraper a fish slice, palette
knife or razor blade scraper suitable
for ceramic glass ceramic hobs, but
beware of hot cooking zone surfaces:
1. Switch the power to the ceramic
hob off.
2. Hold the blade or utensil at a 30°
angle and scrape the soiling or
spill to a cool area of the
ceramic hob.
3. Clean the soiling or spill up with a
dish cloth or paper towel.
4. Follow steps 2 to 3 for ‘Everyday
soiling on glass’ above.
• Remove stains left by melts and
sugary food or spillovers as soon
as possible. If left to cool on the
glass, they may be difficult to
remove or even permanently
damage the glass surface.
• Cut hazard: when the safety cover
is retracted, the blade in a scraper
is razor-sharp. Use with extreme
care and always store safely and
out of reach of children.
Spillovers on the
touch controls
1. Switch the power to the ceramic
hob off.
2. Soak up the spill.
3. Wipe the touch control area with
a clean damp sponge or cloth.
4. Wipe the area completely dry with
a paper towel.
• The ceramic hob may make an
available tone or turn itself off,
and the touch controls may not
function while there is liquid on
them. Make sure you wipe the
touch control area dry before
turning the ceramic hob back on.
SCEHOBB13/W13_IBv1.indd 17 23/05/2013 09:52
18
Using the scraper
1. Slide the protective cover back to
reveal the blade.
• The blade is very sharp be careful when
handling and using the scraper.
• Keep the scraper out of the reach
of children.
2. Place the scraper blade flat against
the hob surface. Hold the scraper at
an angle of around 30˚and slide it
against the hob to remove spills.
Take care when scraping over the
hob markings.
3. Wipe clean with a damp cloth.
30°
• Do NOT use the scraper at 90˚to the hob as this could damage the hob surface.
• Always keep the blade flat on the surface of the hob, do NOT use the corners of the blade
it will scratch the hob surface.
Installing the hob
Measurements shown in the diagram are
minimum distances.
If the hob is going to be installed on
the top of a built in oven without forced
air cooling the proper air vents must
be installed to guarantee adequate
ventilation.
600 mm
30 mm
40 mm
40 mm
40 mm
450 mm
Curtains 2000 mm
650 mm
20 mm
6 mm
Min cross
section area
of vent
1200mm
Oven without
forced air cooling
ventilation
2
SCEHOBB13/W13_IBv1.indd 18 23/05/2013 09:52
19
Fitting the foam gasket
1. Turn the hob over and lay it flat so the underneath is facing up. You may wish to lay it on something
soft like a towel so not to scratch the hob surface.
2. Cut 4 lengths of the gasket to fit neatly around the hob. Peel the back off the gasket and stick it to
the hob as shown. Make sure you do NOT overlap the ends of the gasket.
✘
✔
Attaching the fixing clips
1. Attach the 4 fixing clips with the 4 screws provided.
SCEHOBB13/W13_IBv1.indd 19 23/05/2013 09:52
20
Fitting the hob into the work surface
1. The hob can be installed into a work surface of a depth between 30-50mm. Cut a hole in the work
surface 560mm(w) x 490mm(D) and slot the hob into the hole. Make sure you have fitted the fixing
clips and gasket.
510mm
560mm
490mm
600mm
600mm
55mm
✘
60mm
✔
✘
2. It you are not fitting the hob
above and oven, you must
leave a 60mm space below
the hob.
• Do NOT install a drawer
directly under the hob.
SCEHOBB13/W13_IBv1.indd 20 23/05/2013 09:52
21
Wiring the hob
• If the mains cable is damaged and needs to be replaced, this should be done by a qualified
person using the proper tools, so as to avoid any accidents.
• The ceramic hob must be connected directly to the mains supply, an omnipolar circuit
breaker must be installed with a minimum gap of 3mm between the contacts.
• The installer must ensure that the correct electrical connection has been made and that it
complies with safety regulations.
• The mains cable must not be bent or compressed.
• The mains cable must be checked regularly and only replaced by a qualified person.
• Before proceeding with the electrical connection, verify that the current carrying capacity of the
system and the socket is adequate for the maximum power rating of the hob.
• Electrical installation of the residence and the electrical current plug in use must be earthed and
conform with safety regulations.
• If there is no dedicated hob circuit and fused switch, they must be installed by a qualified
electrician before the hob is connected.
• Fused switch must be easily accessible once the hob has been installed.
• Do not use adaptors, multiple sockets and/or extension leads.
• A circuit breaker with a contact opening of at least 3mm, rated 32A and delayed functioning
type must be installed inside the supply circuit.
• For the vitroceramic hob, the cable must have these minimum specifications. Type
H05VV-F or H05RR-F 4X1.5mm2 for 3 phase or 3X4mm2 for single phase. You will find the
connection diagram shown on the bottom of your appliance and in this instruction book (for
single phase connection).
• Make sure the cable is routed away from hot parts of the hob.
• An incorrect connection might damage your appliance. The guarantee will not cover such
damages.
• All repairs must be carried out by an authorised service personal or a qualified electrician.
• Make sure your hob is disconnected from the mains supply before any maintenance.
• Cooking hobs are not provided with a supply cord.
SCEHOBB13/W13_IBv1.indd 21 23/05/2013 09:52
22
Fitting the link
The link is stored in the bottom
left corner of the terminal box. Fit
the link into positions 2 and 3 as
shown opposite.
Opening the terminal box
Insert a small flat head screwdriver
into the 2 slots (1 and 2) on the top
of the terminal box. Gently lever the
screwdriver towards the centre of the
terminal box to release the lid.
1
2
SCEHOBB13/W13_IBv1.indd 22 23/05/2013 09:52
23
Connection diagram
Use a 3 x 4mm2 cable for wiring the hob.
1. Connect the live (brown) wire to the terminal
marked 2 or 3.
2. Connect the earth (yellow and green) wire to the
terminal marked . Make sure the earth wire is
longer than the live and neutral wires.
3. Connect the neutral (blue) wire to the terminal
marked 4.
4. Un-screw the cable clamp and place the cable
under the clamp and then screw the clamp closed.
• Do NOT over tighten the screws
5. Close the terminal box, make sure it clips closed.
Technical specification
Model No. SCEHOBB13/SCEHOBW13
Dimensions (w x d x h) (mm) 600 x 510 x 48
Voltage (V) 220 – 240 ~
Frequency (Hz) 50
Max Power Consumption (W) 7000
Standby Power Consumption (W) < 0.5
Features and specifications are subject to change without notice.
SCEHOBB13/W13_IBv1.indd 23 23/05/2013 09:52
IB-SCEHOBB13_W13-130523V1
DSG Retail Limited (Registered in England No. 504877), Maylands Avenue,
Hemel Hempstead, Hertfordshire HP2 7TG. UK
This symbol on the product or in the instructions means that your electrical and electronic
equipment should be disposed at the end of its life separately from your household waste.
There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased
the product.
Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over
1 million spares and accessories available we can deliver direct to your door the very next day.
Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only)
Calls charged at National Rate.
For general information about this appliance
and handy hints and tips, please visit
www.knowhow.com/knowledgebank or call 0844 5611234.
SCEHOBB13/W13_IBv1.indd 24 23/05/2013 09:52
Loading...
