Sandstrom S47S13 Instruction Manual

Instruction Manual
Brushed Metal
Soundbar
S47S13
Safety Warnings ....................................................................................................................4
Unpacking .............................................................................................................................6
Product Overview .................................................................................................................7
Front View .......................................................................................................................................................7
Top View ..........................................................................................................................................................7
Rear View .........................................................................................................................................................8
Right Side View..............................................................................................................................................8
Remote Control .....................................................................................................................9
Remove the Plastic Strip from the Remote Control .........................................................10
Battery Replacement for the Remote Control ..................................................................10
Remote Control Operation Range .....................................................................................11
Connections ........................................................................................................................12
Using the OPTICAL Connection ........................................................................................................... 12
Using the AUX Connection .................................................................................................................... 12
Using the MP3 Link Connection .......................................................................................................... 13
Connecting to the Mains Supply ......................................................................................................... 13
General Operation ..............................................................................................................14
Powering ON/OFF / STANDBY...............................................................................................................14
Selecting Modes ........................................................................................................................................ 14
Adjusting the Volume .............................................................................................................................. 14
Turning the Bass ON/OFF ....................................................................................................................... 14
LINE IN Operation ...............................................................................................................15
Bluetooth® Operation ........................................................................................................16
NFC (Near Field Communication) Operation ....................................................................16
Maintenance .......................................................................................................................17
Hints and Tips .....................................................................................................................17
Specications ......................................................................................................................18
Safety Warnings
• Read all the instructions carefully before using the unit and keep them for future reference.
• Retain the manual. If you pass the unit onto a third party make sure to include this manual.
• Check that the voltage marked on the rating label matches your mains voltage.
Damage
• Please inspect the unit for damage after unpacking.
• Do not continue to operate the unit if you are in any doubt about it working normally, or if it is damaged in any way - switch o, withdraw the mains adapter and consult your dealer.
Location of Unit
• The unit must be placed on a at stable surface and not subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall o or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• This unit is designed for indoor use only.
Temperature
• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas / electric res.
• Avoid exposure to direct sunlight and other sources of heat.
Naked Flames
• Never place any type of candle or naked ame on the top of or near the unit.
Moisture
• To reduce the risk of re, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects lled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it o at the mains immediately. Withdraw the mains plug and consult your dealer.
Ventilation
• To prevent the risk of electric shock or re hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• A minimum distance of 5cm around the unit should be maintained to allow for sucient ventilation.
• Do not install or place this unit in a bookcase, built-in cabinet or in another conned space. Ensure the unit is well ventilated.
Safety
• Always disconnect the unit from the mains supply before connecting / disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
• In the interests of safety and to avoid unnecessary energy consumption, never leave the unit switched on while unattended for long periods of time, e.g. overnight, while on holiday or while out of the house. Switch it o and disconnect the mains plug from the mains socket.
Mains Cable
• Make sure the unit or unit stand is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualied persons in order to avoid a hazard.
Interference
• Do not place the unit on or near appliances which may cause electromagnetic interference. If you do, it may adversely aect the working of the unit, and cause a distorted sound.
Earphones
• Listening to loud sounds for prolonged periods of time may permanently damage your hearing.
• Before putting on earphones, turn the volume down then put the earphones on and slowly increase the volume until you reach a comfortable listening level.
4
Batteries
• Batteries used in the unit are easily swallowed by young children and this is dangerous.
• Keep loose batteries away from young children and make sure that the battery holder tray is secure in the unit. Seek medical advice if you believe a cell has been swallowed.
• Please dispose of batteries correctly by following the guidance in this manual.
• Do not expose the battery to direct sunlight or sources of excessive heat.
Supervision
• Children should be supervised to ensure that they do not play with the unit.
• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sucient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.
Service
• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualied personnel.
• Do not open any xed covers as this may expose dangerous voltages.
Maintenance
• Ensure to unplug the unit from the power supply before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit’s surface.
• Do not use liquids to clean the unit.
5
Unpacking
Thank you for purchasing your new Sandstrøm Brushed Metal Soundbar.
We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it oers. You will also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
OPTICALAUX BLUETOOTHMP3STANDBY
Main Unit
SOURCE
VOL+
VOL–
PAIR BASS
MUTE
Remote Control
3.5mm to 3.5mm Stereo Audio Cable
Mains Cable
3.5mm Stereo to Phono (RCA) Audio Adapter
If items are missing, or damaged please contact Partmaster (UK only). Tel: 0844 800 3456 for assistance.
6
Instruction Manual
Product Overview

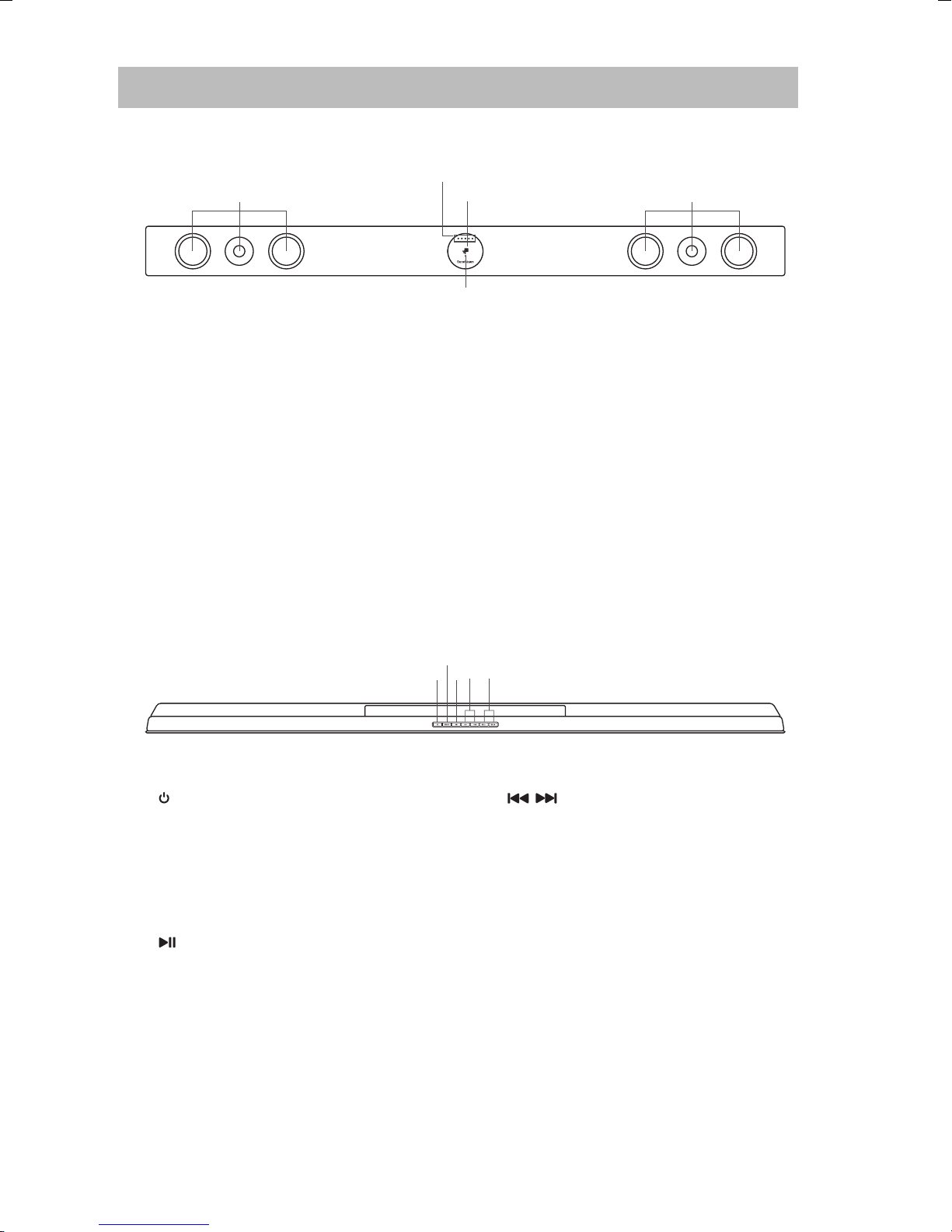

Front View
1 1
2
3
OPTICALAUX BLUETOOTHMP3STANDBY
4
1. Speakers
2. LED Indicators
• Standby indicator lights up red when the unit is in STANDBY mode.
• AUX/OPTICAL/MP3 indicator lights up green when the unit is in AUX/ OPTICAL/MP3 mode respectively.
• Bluetooth indicator lights up blue when the unit is in Bluetooth mode.
Top View
1. Button Switches the unit between ON and STANDBY modes.
2. SOURCE Button Switches between AUX, MP3, OPTICAL and Bluetooth modes.
3.
Button
Plays/pauses/resumes playback.
3. Remote Control Sensor Receives signal from the remote control.
4. NFC ( Near Field Communication)
Sensor
Pairs with Bluetooth device.
2
1
3 54
4.
Buttons
• Skip backwards to the beginning of
the track or to the previous track in Bluetooth mode.
• Skip forwards to the next track in
Bluetooth mode.
5. VOL +/– Buttons Adjust the volume.
7
Rear View
1. AUX Socket Connects to an external audio device.
2. OPTICAL Socket Connects to an external audio device.
Right Side View
AUX
OPTICAL
~
AC
1 2 3
3. AC~ Socket Connects the mains cable to the mains socket.
1. MP3 LINK Socket Connects to an external audio device.
MP3 LINK
1
8
Remote Control
1. Button Switches the unit between ON and STANDBY modes.
2. VOL + Button Increases the volume.
3.
4.
5. VOL – Button
6. PAIR Button
7. SOURCE Button
Button
Plays/pauses/resumes playback.
Button Skip backwards to the beginning of the track or to the previous track in Bluetooth mode.
Decreases the volume.
Pairs with Bluetooth device.
Selects between AUX, MP3, OPTICAL and Bluetooth modes.
1
2 3
4
5
6
PAIR BASS
VOL+
VOL–
SOURCE
MUTE
7
8
9
10
8.
Button Skip forwards to the next track in Bluetooth mode.
9. BASS Button Turns the bass On or O.
10. MUTE Button Silences the unit or restores the sound.
9
Remove the Plastic Strip from the Remote Control
Remove the plastic strip from the battery if the battery is being used for the rst time. It is located at the bottom rear of the remote control.
Battery Replacement for the Remote Control
The remote control requires a CR2025, 3V Lithium battery.
1. Slide and hold the battery release tab in the direction of the arrow.
2. Pull out the battery holder and remove the old battery.
3. Replace with a new battery.
4. Insert the battery holder back into the remote control.
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause re, personal injury or damage to property.
• Install the battery correctly in the battery compartment. Normally the battery’s positive polarity (+) will face up.
• Use only the battery type indicated in this manual.
• Do not dispose of the used battery as domestic waste. Dispose of it in accordance with local
regulations.
• Small button cell batteries such as the one used in the remote control are easily swallowed by young children and this is dangerous. Keep loose button cells away from young children and make sure that the battery is secure in the remote control. Seek medical advice if you believe a battery cell has been swallowed.
10
Handling the Remote Control
• Take care of your ngernails when you slide and pull the battery release tab.
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion
or battery leakage may occur and result in physical injury, and/or property damage, and/or re.
• When the battery is exhausted, the remote control will not function.

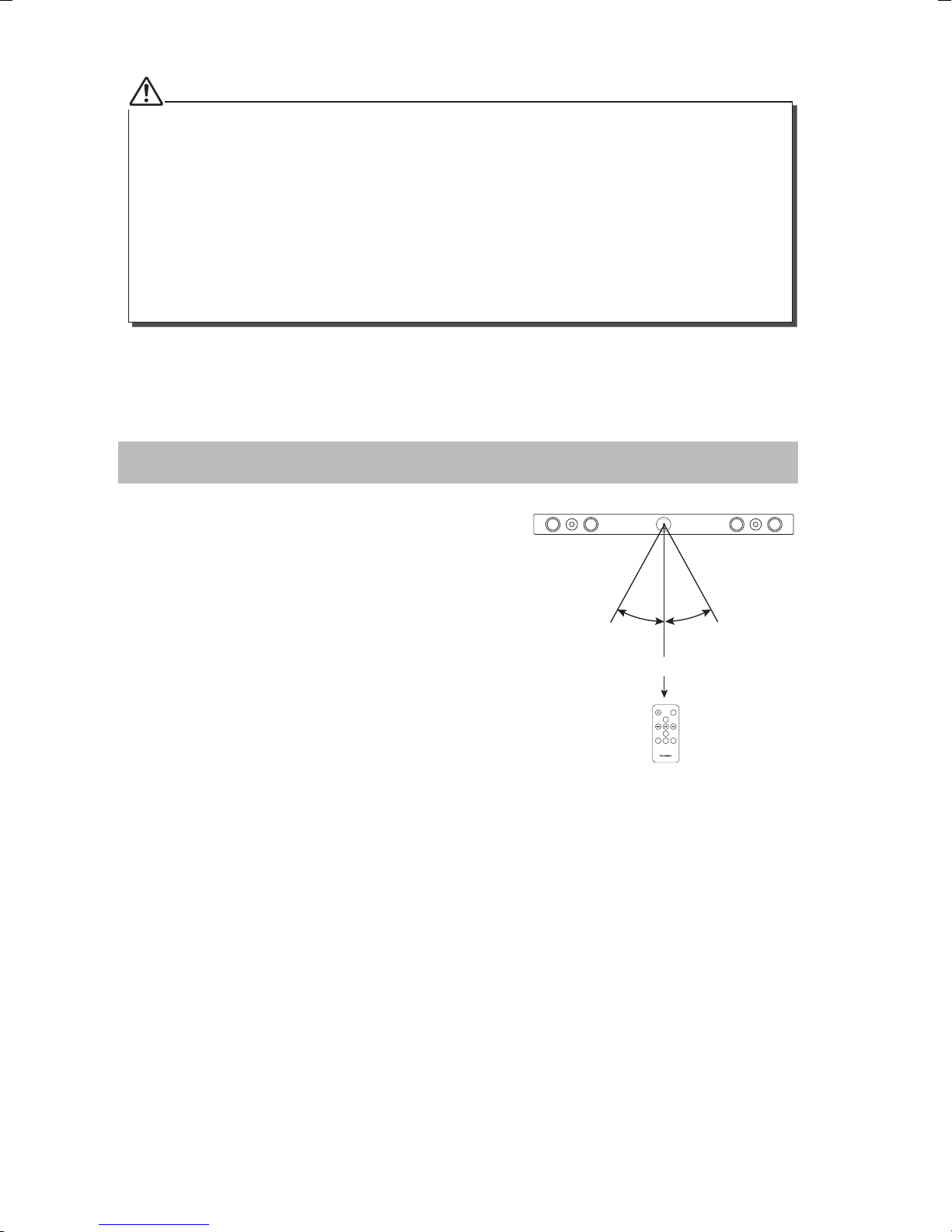

Remote Control Operation Range
• The remote control sensor on the front unit is sensitive to the remote control’s commands up to a maximum of 6 metres away and within a maximum of 60° arc.
• Please note that the operating distance may vary depending on the brightness of the room.
OPTICALAUX BLUETOOTHMP3STANDBY
30° 30°
Max. 6 m
SOURCE
VOL+
VOL–
PAIR BA SS
MUTE
11
Connections
Using the OPTICAL Connection
Use an optical cable (not included) to connect the TV’s OPTICAL OUT socket to the soundbar’s OPTICAL (input) socket.
Rear of the Unit
AUX
OPTICAL
~
AC
OPTICAL cable
(not included)
TV
Using the AUX Connection
Use a 3.5mm stereo to phono (RCA) audio adapter to connect the TV’s audio output sockets to the soundbar’s AUX (input) socket.
Rear of the Unit
AUX
OPTICAL
~
AC
3.5mm stereo to phono (RCA) audio adapter
(included)
TV
Use a 3.5mm to 3.5mm stereo audio cable to connect the TV’s headphone socket to the soundbar’s AUX (input) socket.
Rear of the Unit
AUX
OPTICAL
3.5mm to 3.5mm stereo audio cable
(included)
~
AC
TV
12
Using the MP3 Link Connection
Use a 3.5mm to 3.5mm stereo audio cable to connect the mobile device’s headphone socket to the soundbar’s MP3 LINK (3.5mm stereo audio input) socket.
Right side of the Unit
3.5mm to 3.5mm stereo
MP3 LINK
audio cable
(included)
MP3 player
Connecting to the Mains Supply
• This unit is designed to operate with the provided mains cable.
• Connecting the unit to any other power source may cause damage to the unit. Unwind
the mains cable to its full length. Connect the mains plug to a mains socket. Make sure the mains plug is fully inserted into the mains socket. The unit is now connected and ready to use.
• To switch the unit o completely, remove the mains plug from the mains socket.
Ensure all connections are connected before connecting to the mains power socket.
AUX
~
AC
OPTICAL
13
General Operation
Powering ON/OFF / STANDBY
When you rst connect the unit to the mains socket, the unit will be in STANDBY mode and the Standby Indicator will be red.
• Press
• Press
• Disconnect the mains plug from the mains socket if you want to switch the unit o
completely.
to switch the unit on.
to switch the unit back to standby mode. The Standby Indicator will light up red.
Selecting Modes
Press SOURCE repeatedly to select AUX, OPTICAL, MP3 or Bluetooth mode.
• The AUX/OPTICAL/MP3 Indicator will light up green if related mode is selected.
• The Bluetooth indicator will light up blue if in Bluetooth mode.
• If the input volume is too low or muted (or if the unit is idle) for over 15 minutes, the unit will
automatically switch to Standby mode.
• The unit will automatically switch on when audio input is detected in AUX or MP3 mode.
• Please unplug to turn the unit o completely to save energy when not in use.
Adjusting the Volume
• Press VOL +/– to adjust the volume.
• If you wish to turn the sound o, press MUTE on the remote control. Press MUTE again
or press VOL + to resume normal listening.
Turning the Bass ON/OFF
Press BASS on the remote control repeatedly to turn the bass on or o.
14
LINE IN Operation
There are AUX and OPTICAL (input) sockets located at the rear of the unit. The audio sound signals from other sources can be connected to the unit through these sockets.
1. Connect to another audio device using the AUX (input) socket via a 3.5mm stereo to phono (RCA) audio adapter (included) or using the OPTICAL (input) socket via an optical cable (not included).
2. While in the ON mode, press SOURCE to select AUX or OPTICAL mode.
3. Press VOL +/– to adjust the volume to your desired level.
4. In AUX or OPTICAL mode, operate your audio device directly for playback features.
Additional MP3 Link (3.5mm stereo audio input) socket is located at the left side of the unit. It is designed for mobile devices.
1. Connect to another audio device using the MP3 LINK (3.5mm stereo audio input) socket via a
3.5mm to 3.5mm stereo audio cable (included).
2. Press SOURCE to select MP3 mode.
3. Press VOL +/– to adjust the volume to your desired level.
4. In MP3 mode, operate your audio device directly for playback features.
15

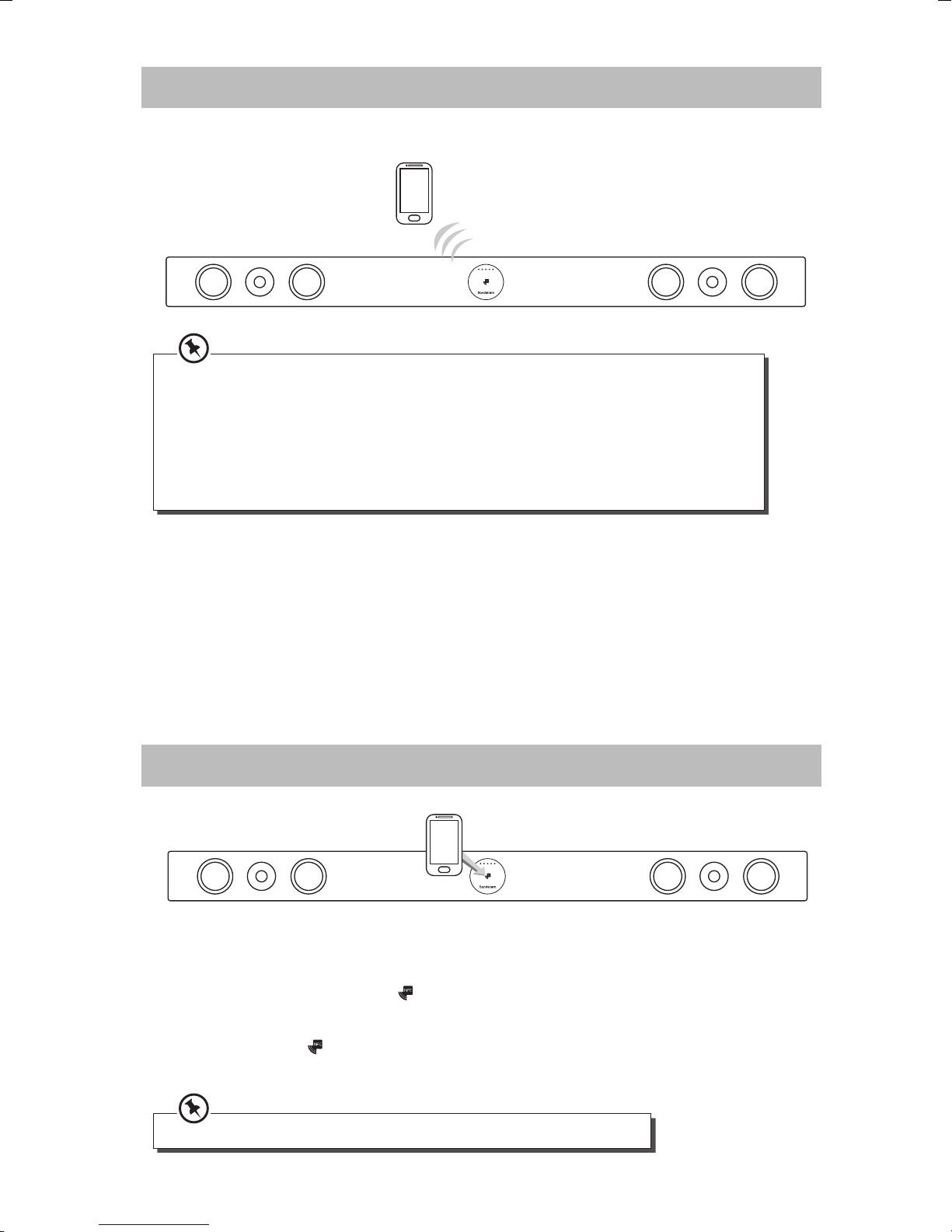

Bluetooth® Operation
You can listen to tracks from a media device if it is connected to the unit via Bluetooth.
OPTICALAUX BLUETOOTHMP3STANDBY
• The operational range between the unit and the device is approximately 10 metres (without any object between the Bluetooth device and the unit).
• Before connecting a Bluetooth device to the unit, ensure you know the device’s capabilities.
• Compatibility with all Bluetooth devices is not guaranteed.
• Obstacles between the device and the unit can reduce operational range.
• If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter
pairing mode automatically.
To connect your device to the unit via Bluetooth, follow the steps below:
1. Press SOURCE to select Bluetooth mode. Bluetooth indicator will ash until it pairs.
2. Activate your Bluetooth device and select the search mode.
3. “S47S13” will appear on your Bluttooth device.
4. Select “S47S13” and enter “0000” for password if necessary.
5. On successful pairing, the unit will beep and the blue LED will light up solidly.
NFC (Near Field Communication) Operation
OPTICALAUX BLUETOOTHMP3STANDBY
Pair your NFC-enabled mobile device directly with this unit by just a single tap.
1. Activate NFC on your mobile device.
2. Tap the mobile device on the
icon of the unit until a beep is heard.
3. Operate your mobile device directly for playback features.
4. Tap again on the
5. Disable NFC from your mobile device if needed.
This function only works with mobile devices that support NFC technology.
16
icon of the unit to disconnect.
Maintenance
Cleaning the Unit
Ensure the unit is fully unplugged from the mains socket before cleaning.
• To clean the unit, wipe the case with a slightly moist, lint-free cloth.
• Do not use any cleaning uids containing alcohol, ammonia or abrasives.
• Do not spray aerosol at or near the unit.
Hints and Tips
If a problem occurs, it may often be due to something very minor. The following table contains various tips:
Problem Solution
No power Ensure the mains cable is connected securely at both ends.
The remote control does not function
The unit does not respond when pressing any buttons
I cannot nd “S47S13” on my Bluetooth device.
Some NFC-enabled mobile devices cannot pair directly with the unit via NFC.
• Use the remote control near the unit.
• Point the remote control at the remote control sensor on the
unit.
• Replace the battery in the remote control with a new one.
• Remove any obstacles between the remote control and the
unit.
• The unit may freeze up during use. Switch the unit o and then on again at the mains socket to reset the unit.
• Ensure the Bluetooth function is activated on your Bluetooth device.
• Re-pair the unit with your Bluetooth device.
Please try either one of the solutions below:
• Download and install NFC reader apps into your NFC-enabled mobile device. Please refer to your mobile device’s guidebook for more details.
• Pair with the unit via Bluetooth rst, then tap again on the icon.
• Simply pair with the unit via Bluetooth.
If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again.
17
Specifications
Model S47S13
Terminals AUX Socket x 1, MP3 LINK Socket x 1,
OPTICAL Socket x 1, AC Socket x 1
Power Supply AC 220–240V ~50/60 Hz
Power Consumption 25W
Standby Power Consumption < 0.5W
Speaker Output Power 30W x 2
Net Weight 2.0kg
Dimensions 1068mm (W) x 51.5mm (D) x 83mm (H)
Features and specications are subject to change without prior notice.
18
For general information about this appliance
and handy hints and tips, please visit
www.knowhow.com/knowledgebank or call 0844 5611234.
Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.
This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you purchased the product.
Notes for battery disposal
The batteries used with this product contain chemicals that are harmful to the environment. To preserve our environment, dispose of used batteries according to your local laws or regulations. Do not
dispose of batteries with normal household waste.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth® SIG, Inc. and any use of such marks by DSG Retail Limited is as an Aliate under the License held by DSG International Sourcing Ltd. Other trademarks and trade names are those of their respective owners and all rights are acknowledged.
All trademarks are the property of their respective owners and all rights are acknowledged.
Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK
DSG Retail Ltd. (co. no. 504877)
IB-S47S13-130527V2
Loading...
