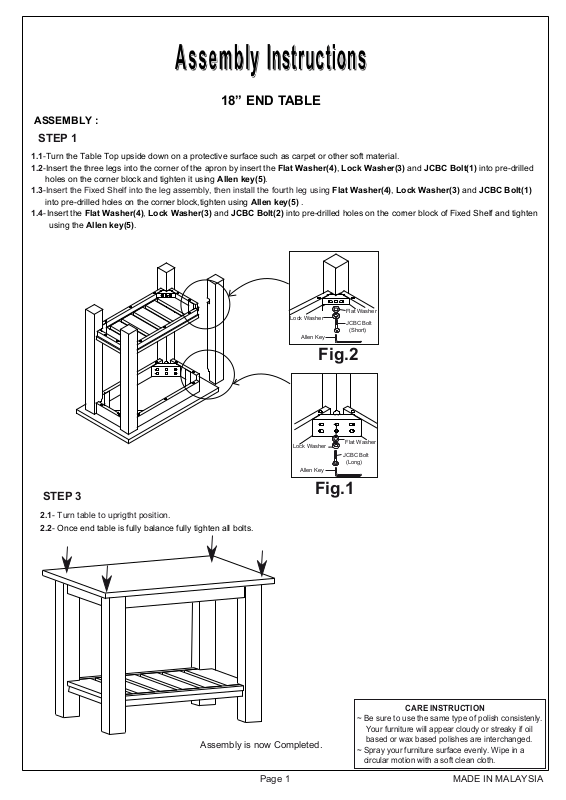

18” END TABLE
ASSEMBLY :
STEP 1
1.1-Turn the Table Top upside down on a protective surface such as carpet or other soft material.
1.2-Insert the three legs into the corner of the apron by insert the Flat Washer(4), Lock Washer(3) and JCBC Bolt(1) into pre-drilled
holes on the corner block and tighten it using Allen key(5).
1.3-Insert the Fixed Shelf into the leg assembly, then install the fourth leg using Flat Washer(4), Lock Washer(3) and JCBC Bolt(1)
into pre-drilled holes on the corner block,tighten using Allen key(5) .
Insert the Flat Washer(4), Lock Washer(3) and JCBC Bolt(2) into pre-drilled holes on the corner block of Fixed Shelf and tighten
1.4-
using the Allen key(5).
STEP 3
2.1- Turn table to uprigtht position.
2.2- Once end table is fully balance fully tighten all bolts.
Lock Washer
Allen Key
Lock Washer
Allen Key
Fig.1
Flat Washer
JCBC Bolt
(Short)
Fig.2
Flat Washer
JCBC Bolt
(Long)
Assembly is now Completed.
Page 1
CARE INSTRUCTION
~ Be sure to use the same type of polish consistenly.
Your furniture will appear cloudy or streaky if oil
based or wax based polishes are interchanged.
~ Spray your furniture surface evenly. Wipe in a
circular motion with a soft clean cloth.
MADE IN MALAYSIA
