Page 1

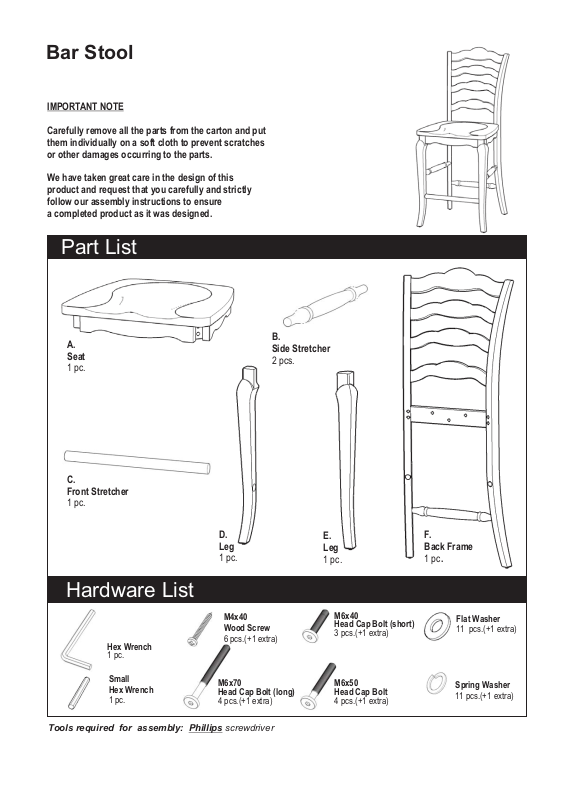

Bar Stool
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure
a completed product as it was designed.

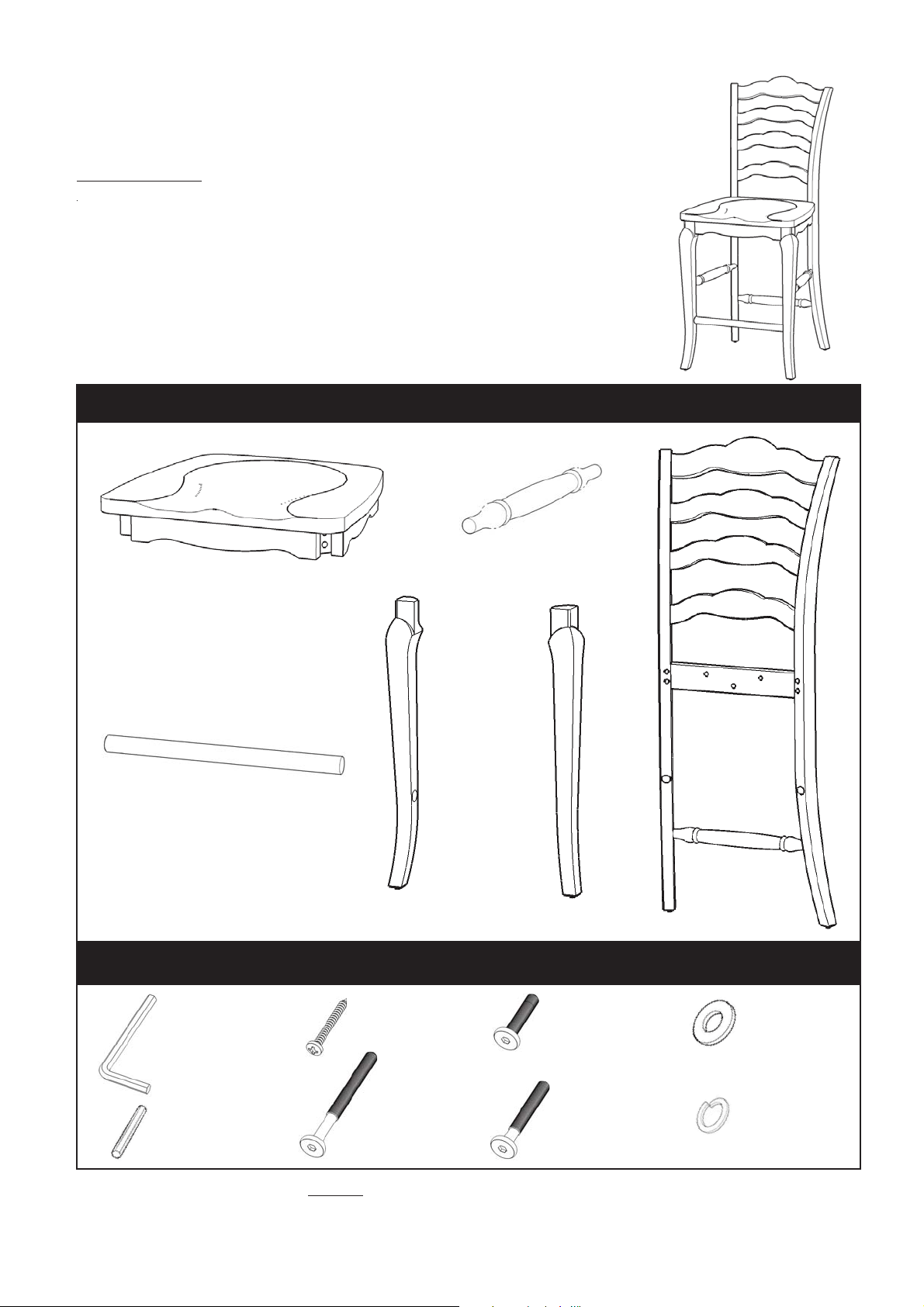

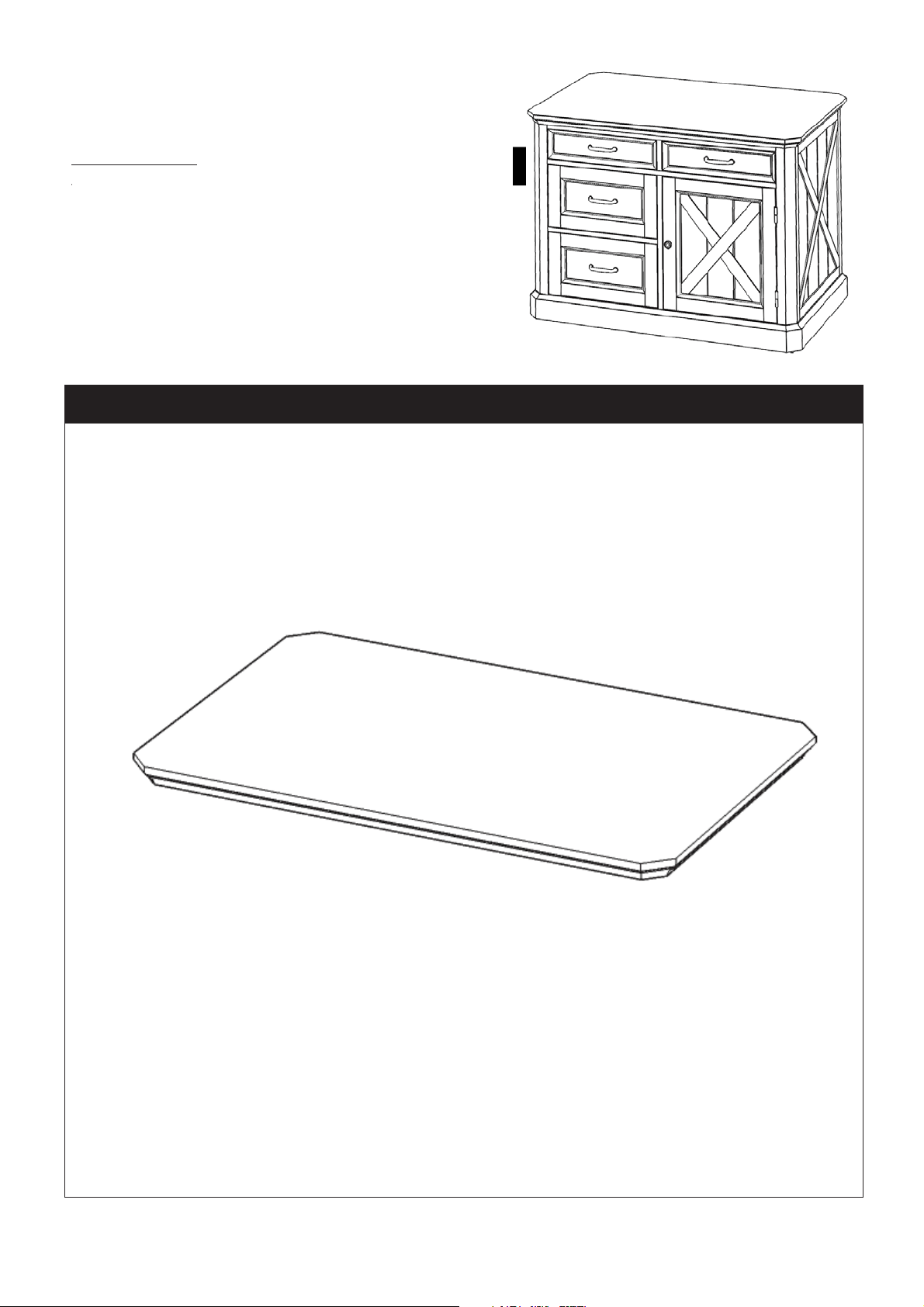

Part List
A.
Seat
1 pc.
C.
Front Stretcher
1 pc.
Hardware List
D.
Leg
1 pc.
B.
Side Stretcher
2 pcs.
E.
Leg
1 pc.
F.
Back Frame
.1 pc
M4x40
Wood Screw
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly: Phillips screwdriver
6 pcs.(+1 extra)
M6x70
Head Cap Bolt (long)
4 pcs.(+1 extra)
M6x40
Head Cap Bolt (short)
3 pcs.(+1 extra)
M6x50
Head Cap Bolt
4 pcs.(+1 extra)
Flat Washer
11 pcs.(+1 extra)
Spring Washer
11 pcs.(+1 extra)
Page 2
Assembly Instructions 2/2
IMPORTANT
* Do not tighten up all the screws until each part is properly assembled.
* You should keep the Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
Wood Screw
E
Head Cap Bolt
Spring Washer
Flat Washer
Figure 1

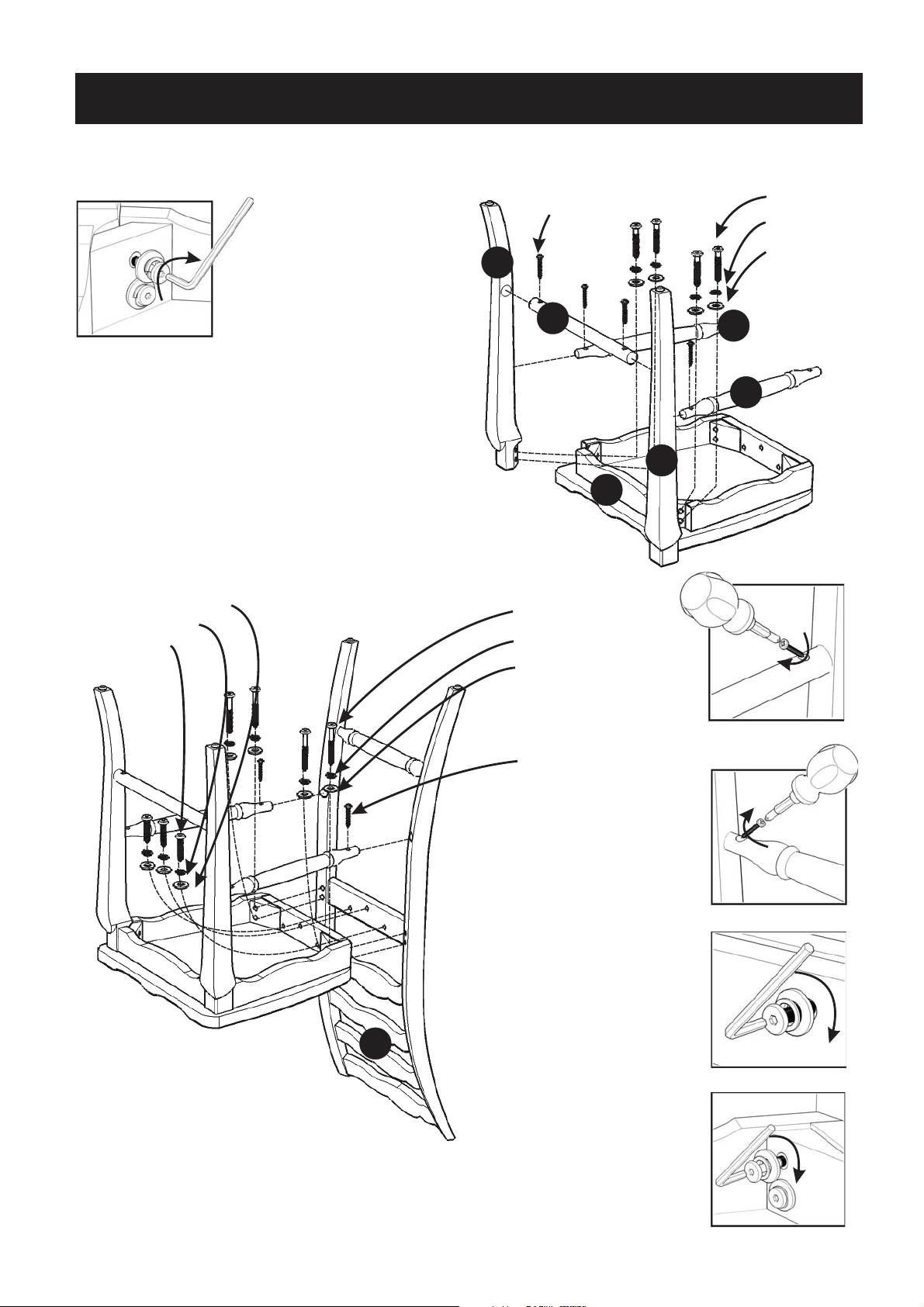

STEP 1
Attach Leg (D) and (E) to Seat (A) with Flat Washers,
Spring Washers and Head Cap Bolts. Tighten Head
Cap Bolts only half way. (see Figure 1)
Attach Front Stretcher (C) to the unit with Wood
Screws. (see Figure 2)
Attach Side Stretchers (B) to Leg (D) and (E)Side with Wood
Screws. (see Figure 3)
Flat Washer
Spring Washer
Head Cap Bolt
(short)
Spring Washer
C
A
Head Cap Bolt (long)
Flat Washer
Wood Screw
B
B
D
Figure 2
F
STEP 2
Attach Back Frame (F) to the unit with Flat Washers, Spring Washers,
Head Cap Bolts (short), Head Cap Bolts (long) and Wood Screws.
(See Figure 4), (See Figure 5)
Tighten up all Head Cap Bolts.
Figure 3
Figure 4
Figure 5
Page 3

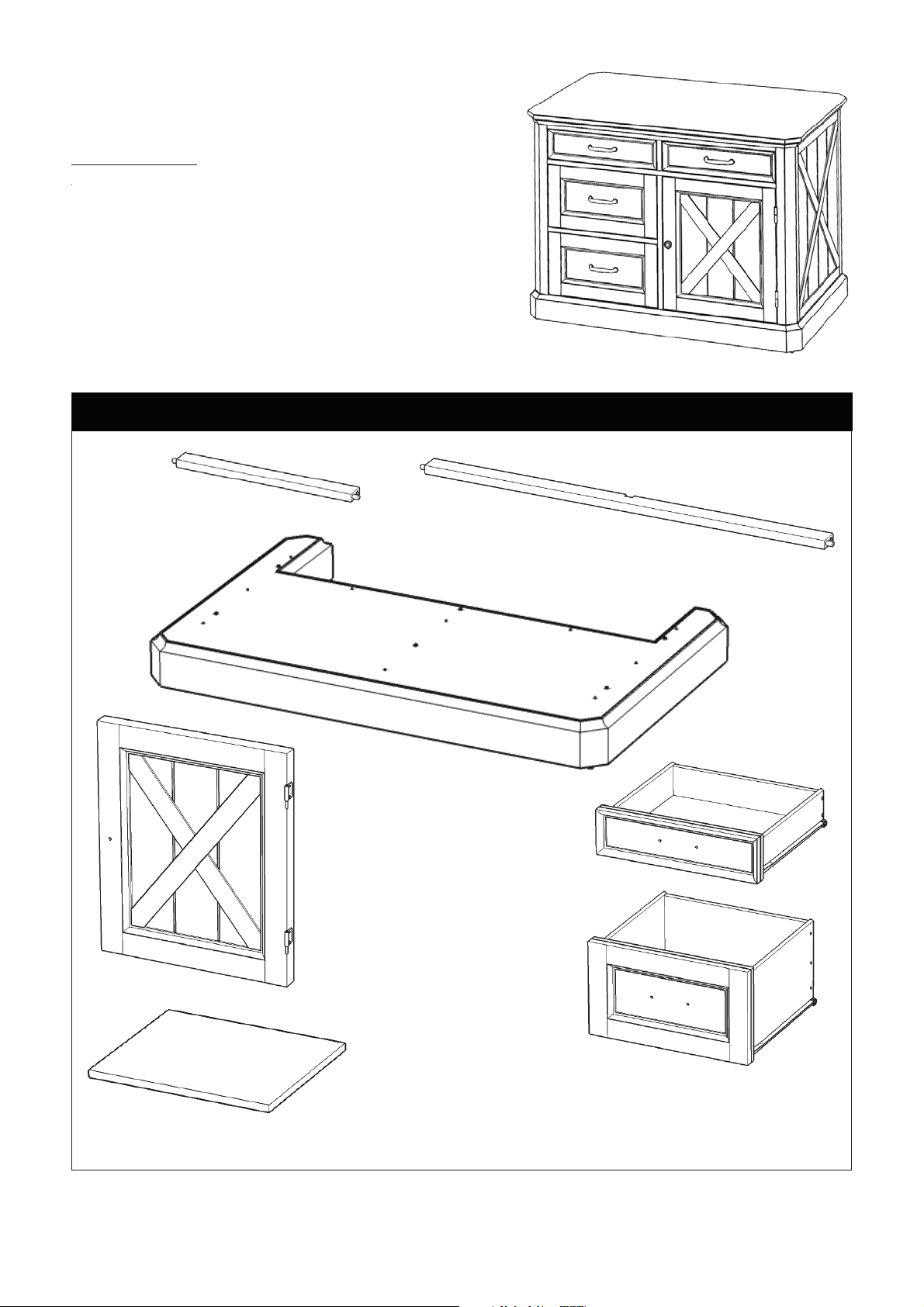

Kitchen Island
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
For assembly see instructions in carton 88 5523 942
Page 4
Kitchen Island
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
G.
Front Rail
1 pc.
I.
Base
1 pc.
H.
Front Rail
1 pc.
L.
J.
Door
1 pc.
K.
Shelf
2 pcs.
Drawer
2 pcs.
M.
Drawer
2 pcs.
(Knock-Down Construction, please refer to
the last page (5),(6) of instructions for steps to
complete drawer assembly)
For assembly see instructions in carton 88 5523 942
Page 5
Kitchen Island
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

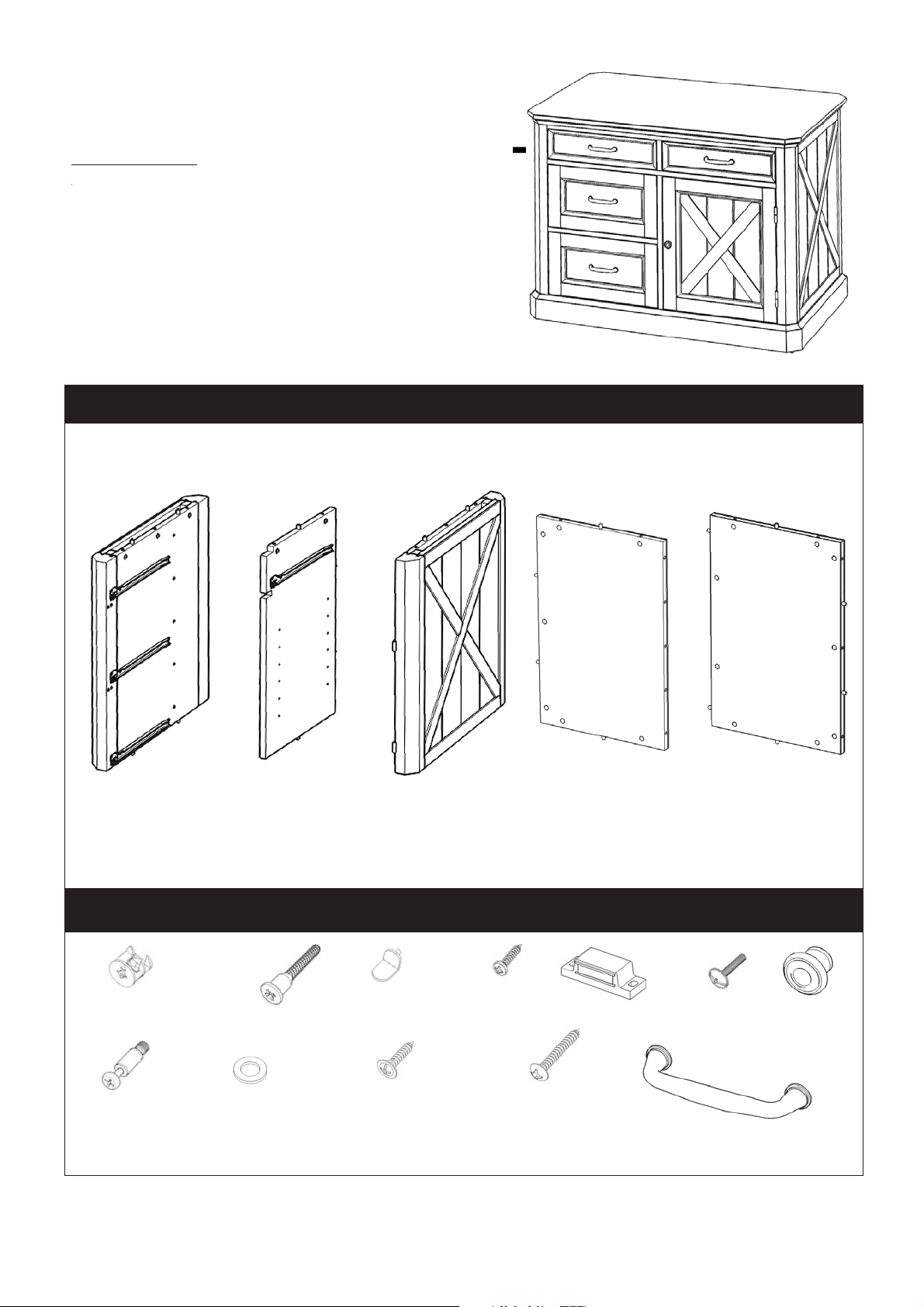

Part List
E.
Back Panel
1 pc.
B.
Side Panel
1 pc.
C.
Middle Panel
1 pc.
D.
Side Panel
1 pc.
Hardware List
M3x15
Wood Screw
for Magnet
2 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
for Drawer Side
40 pcs. (+1 extra)
Magnet
1 pc.
Cam Lock
28 pcs.(+6 extra)
Cam Lock Screw
28 pcs.(+2 extra)
M6x35
Long Screw
for Base
8 pcs. (+1 extra)
Flat Washer
8 pcs. (+1 extra)
Adjustable Pin
8 pcs. (+1 extra)
M3.5x16
Wood Screw (short)
for Drawer Bottom
16 pcs. (+1 extra)
For assembly see instructions in carton 88 5523 941, 88 5523 943
Tools required for assembly: Phillips screwdriver, Level
M4x28
Machine Screw
9 pcs.
F.
Back Panel
1 pc.
Knob
1 pc.
Handle
4 pcs.
Page 6
Assembly Instructions 2/6
IMPORTANT
* Do not tighten up all the screws until each part is properly assembled.
* Use a soft cloth between these parts and the floor.
* After assembly, item must be level to work properly. Use the included adjustable levelers to level.
Cam Lock Screw

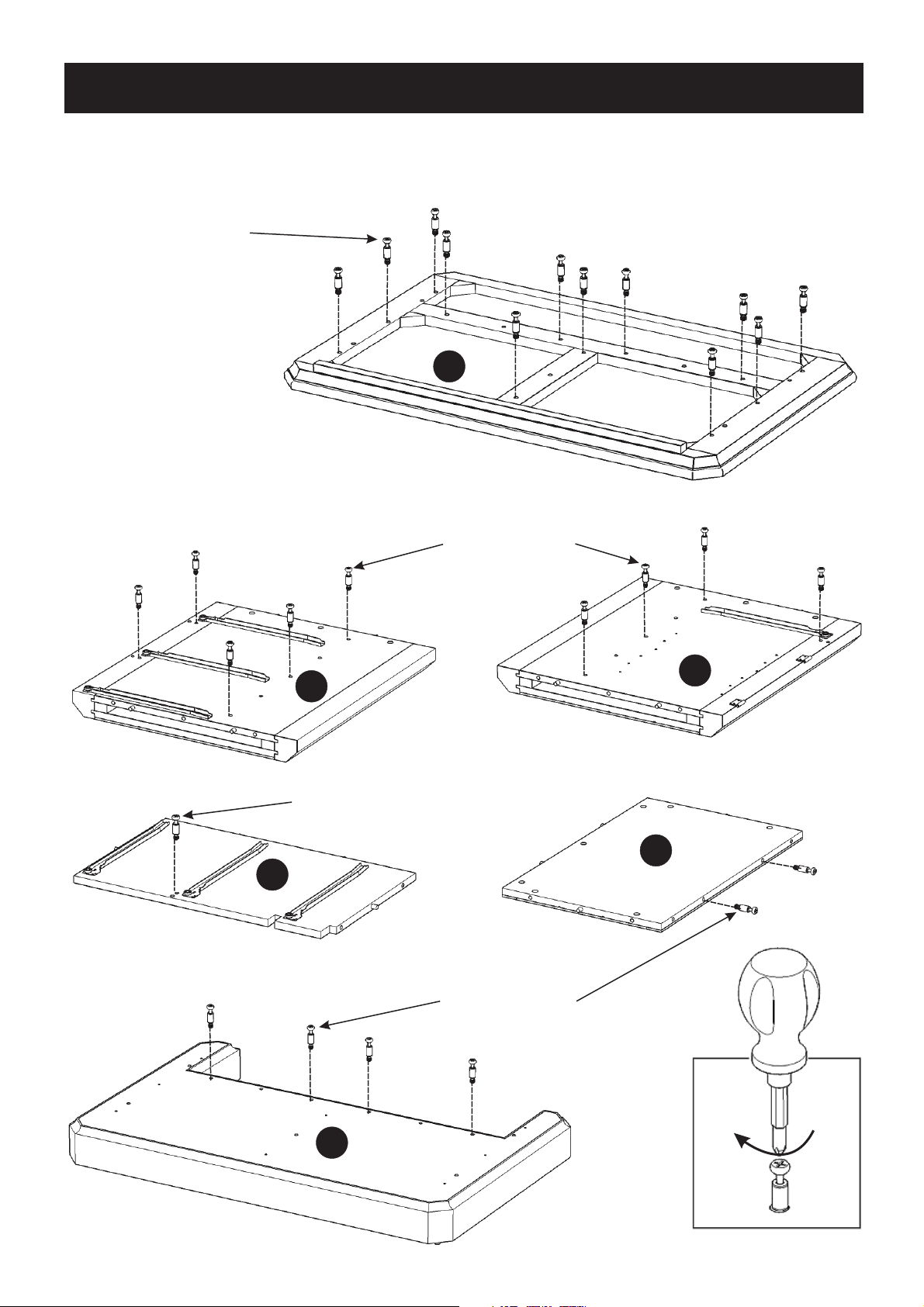

STEP 1
Put Cam Lock Screws into
the pre-drilled holes of Top (A),
Side Panels (B), (D), Middle Panel (C),
Back Panel (E) and Base (I) and tighten.
(see Figure 1)
B
Cam Lock Screw
A
Cam Lock Screw
D
C
E
Cam Lock Screw
I
Figure 1
Page 7
F
Cam Lock
E
Assembly Instructions 3/6

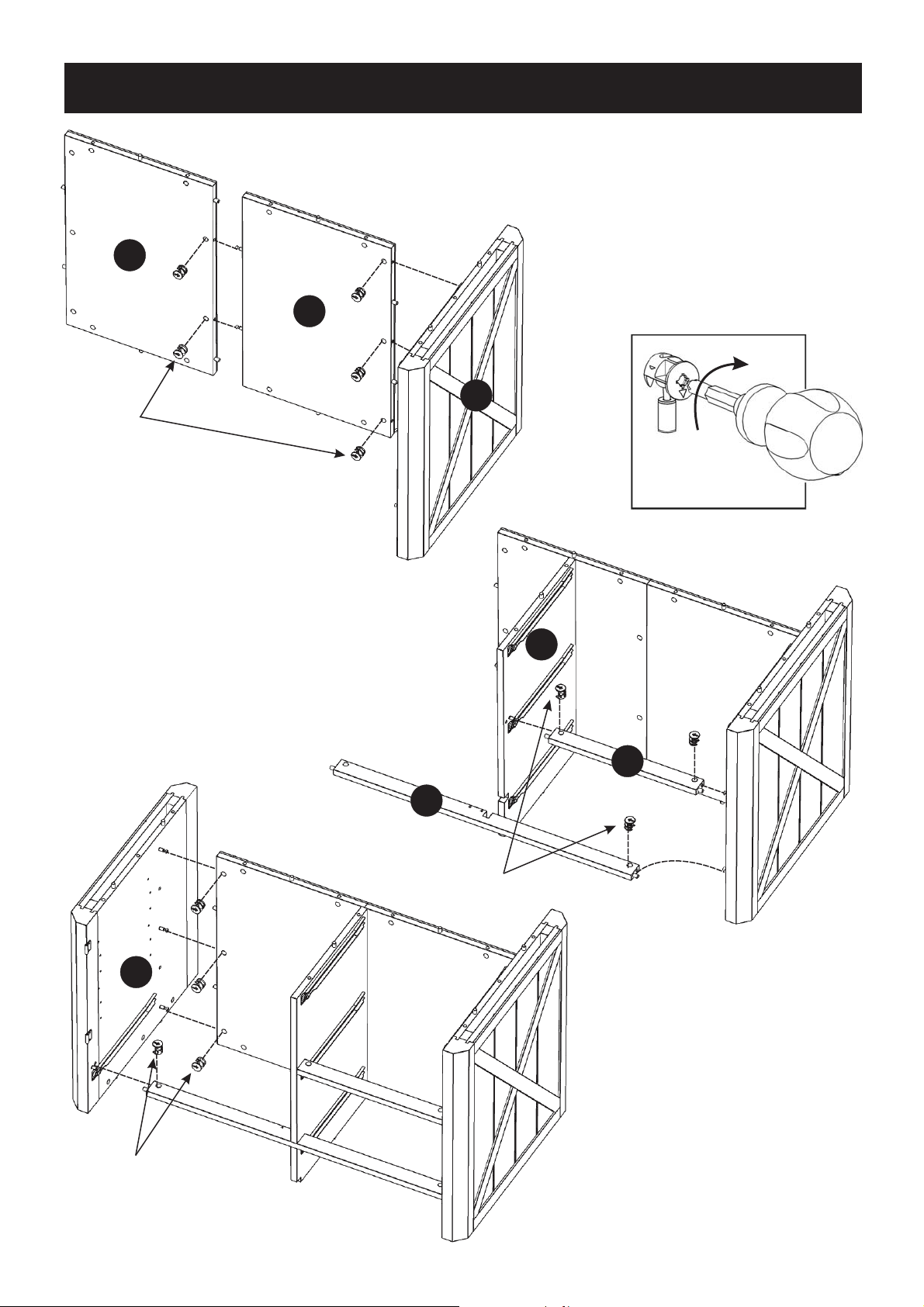

STEP 2
Attach Back Panel (E) to
Panel (B) with Cam Locks.Side
(see Figure 2)
Attach Back Panel (F) to unit with
Cam Locks.
B
Figure 2
STEP 3
Attach Front Rails (H) and (G)
to Middle Panel (C).
Attach unit from Step 2 to unit from
Step 3 with Cam Locks.
D
C
G
H
Cam Lock
Cam Lock
STEP 4
Attach Side Panel (D) to unit
with Cam Locks.
Page 8

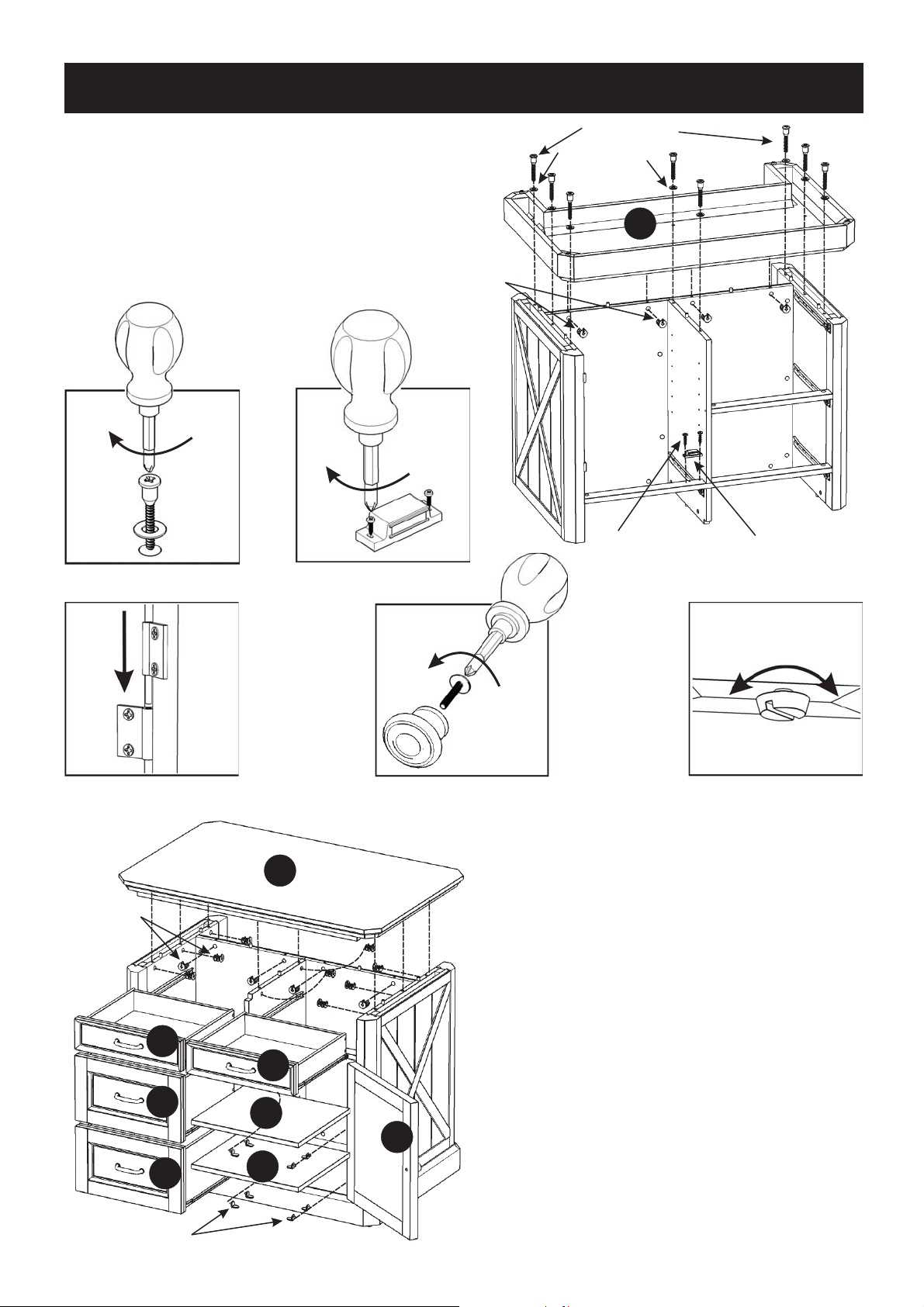

STEP 5
Attach Base (I) to unit with Washers, Long Screws
and Cam Locks. (see Figure 3)
Attach Magnet to unit with Wood
Screws for Magnet. (see Figure 4)
Cam Lock
Assembly Instructions 4/6
Long Screw
Flat Washer
I
Figure 3
Figure 5
Cam Lock
Figure 4
A
Figure 6
Wood Screw
for Magnet
Figure 7
Magnet
STEP 6
Turn the unit upright position, attach Top (A)
to unit with Cam Locks.
Slide Drawers (L) and (M) into position.
Insert Adjustable Pins into side panel and
middle panel at desired level, then place
Shelves (K) into position.
L
M
M
Adjustable Pin
K
K
L
Attach Door (J) by sliding the door lift hinges
into the side panels lift hinges. (see Figure 5)
Assemble Knob to Door (J) with Machine
J
Screws. (see Figure 6)
To level the unit, adjust the adjustable
levelers on the bottom of unit. (see Figure 7)
Note: Unit must be level to work properly.
Page 9

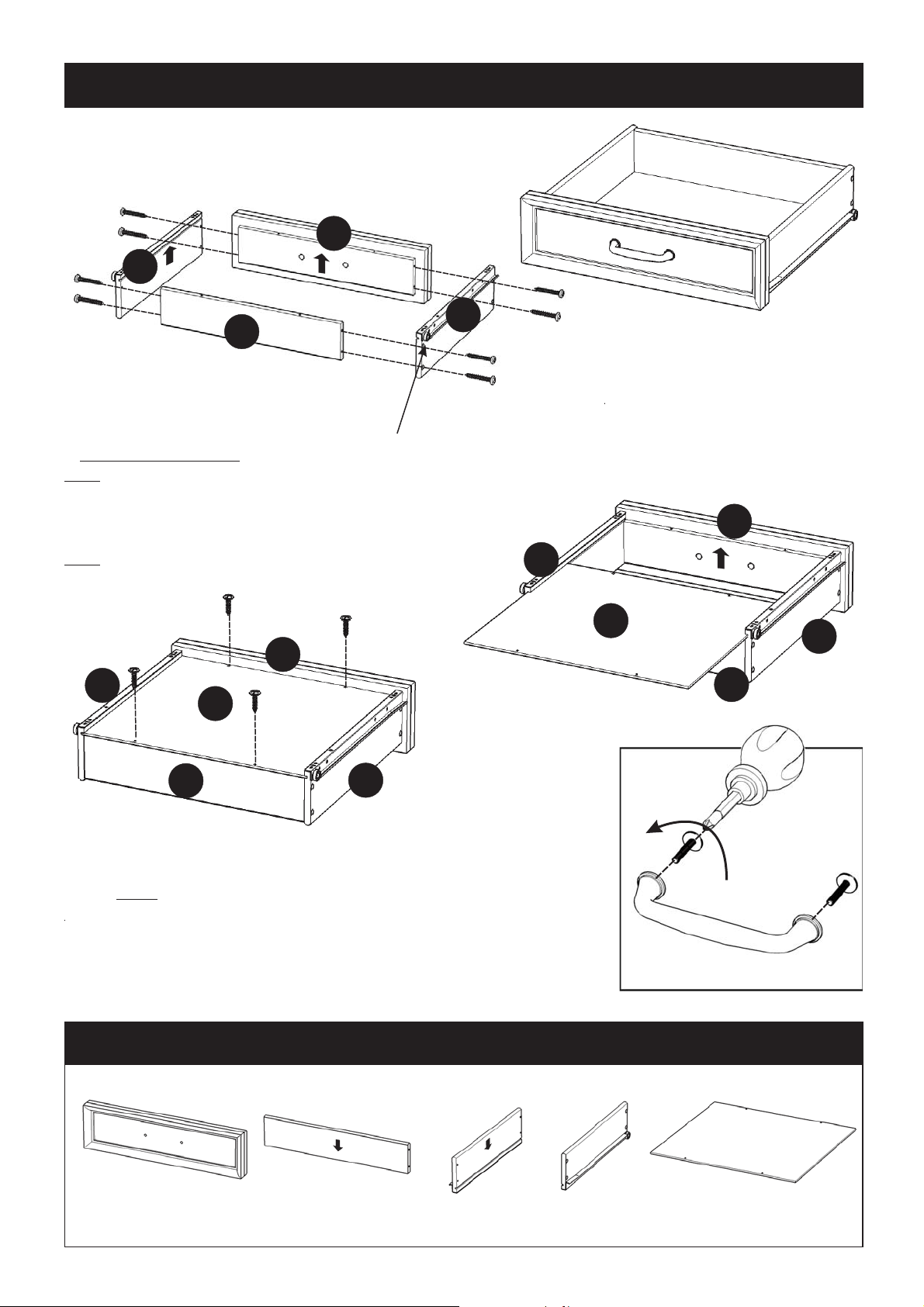

Drawer L
L3
L2
STEP1
Attach L1 to L3 and L4, using
a andPhillips screwdriver
wood screws (4X),long
tighten halfway.
L1
MAKE SURE ROLLER
IS ON THE BACK
Assembly Instructions 5/6
L4
(Figure 1)
STEP 2
Slide L5 into the grooves in L3
and L4. Be sure to push L5 all
the way forward so it meets L1.
(See Figure 2)
Attach L2 to L3 and L4 using
wood screws (4X),long
tighten halfway. (See Figure 1)
L1
L3
L5
L2
(Figure 3)
STEP 3
Insert wood screws (4X)short
into the pre-drilled holes in L5,
tighten screws. (See Figure 3)
L4
L1
(Figure 2)
L3
L5
L4
L2
(Figure 4)
STEP 4
Attach Handle
with machine screws.
(See Figure 4)
Part List
L1.
Drawer Front
2 pcs.
L2.
Drawer Back
2 pcs.
Tighten all screws used in drawer assembly.
L3.
Drawer Side
2 pcs.
L4.
Drawer Side
2 pcs.
L5.
Drawer Bottom
2 pcs.
Page 10

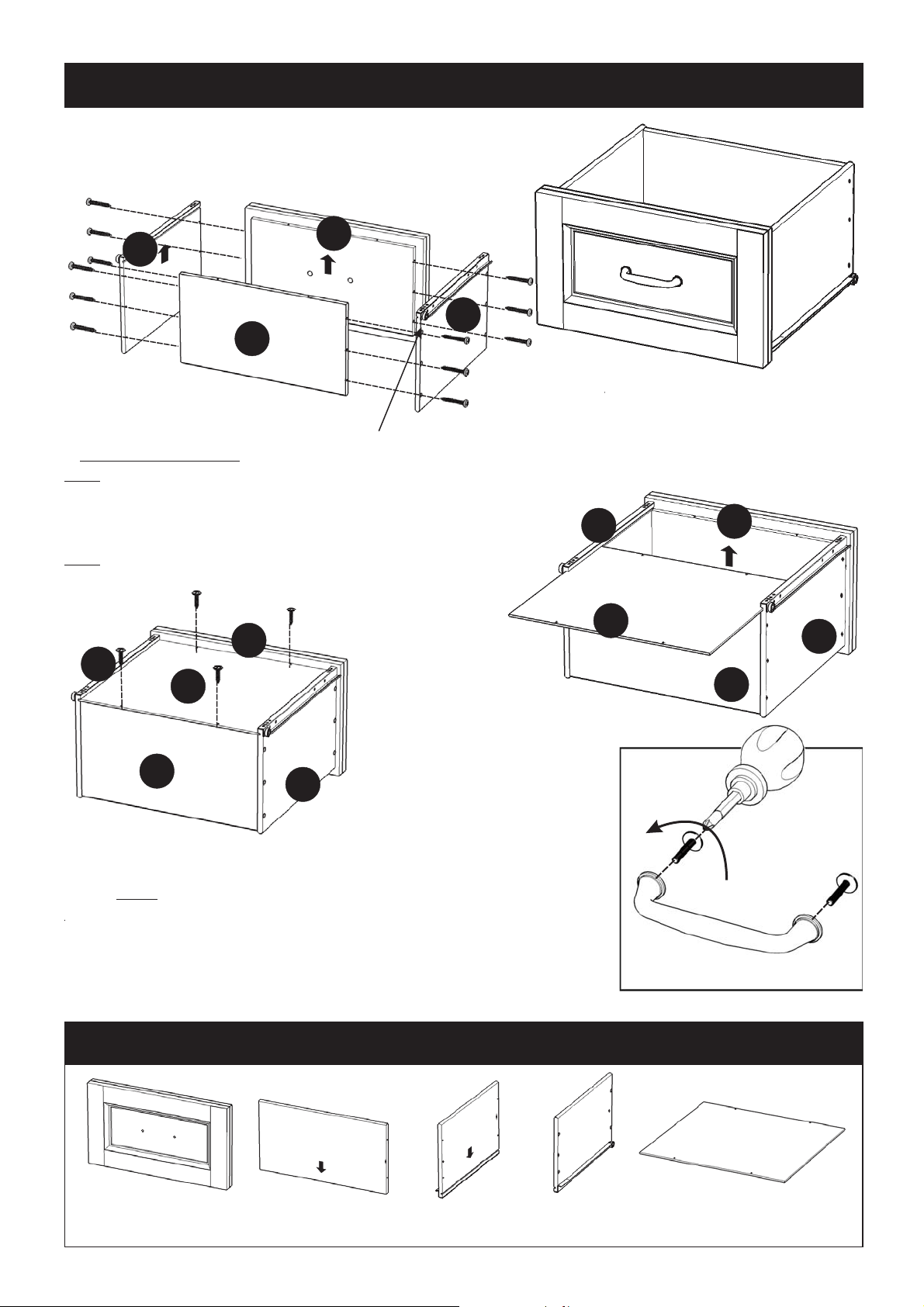

Drawer M
M3
M2
STEP1
Attach M1 to M3 and M4, using
a andPhillips screwdriver
wood screws (6X),long
tighten halfway.
M1
MAKE SURE ROLLER
IS ON THE BACK
Assembly Instructions 6/6
M4
(Figure 1)
STEP 2
Slide M5 into the grooves in M3
and M4. Be sure to push M5 all
the way forward so it meets M1.
(See Figure 2)
Attach M2 to M3 and M4 using
wood screws (6X),long
tighten halfway. (See Figure 1)
M1
M3
M5
M2
M4
(Figure 3)
STEP 3
Insert wood screws (4X)short
into the pre-drilled holes in M5,
tighten screws. (See Figure 3)
(Figure 2)
(Figure 4)
STEP 4
Attach Handle
with machine screws.
(See Figure 4)
M3
M5
M1
M4
M2
Part List
M1.
Drawer Front
2 pcs.
M2.
Drawer Back
2 pcs.
Tighten all screws used in drawer assembly.
M3.
Drawer Side
2 pcs.
M4.
Drawer Side
2 pcs.
M5.
Drawer Bottom
2 pcs.
