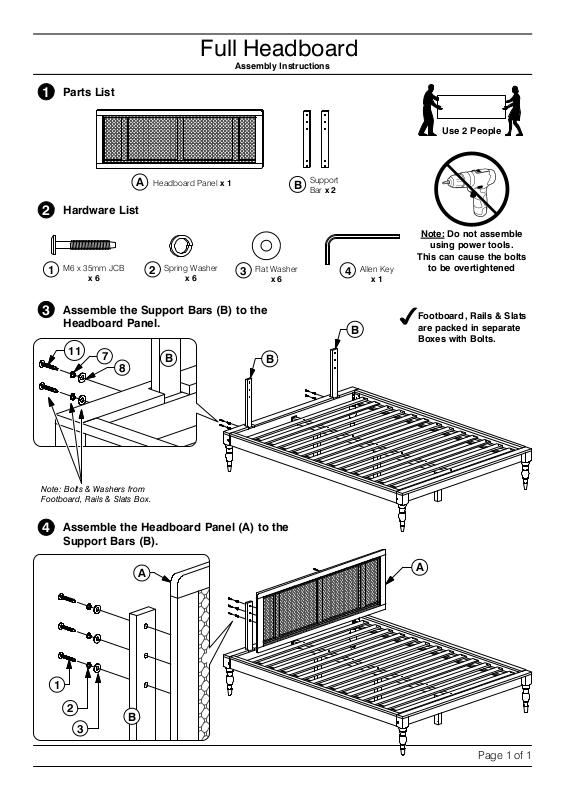

Page 1
Assembly Instructions
Page 1 of 1
Parts List
1
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Use 2 People
M6 x 35mm JCB
x 6
Flat Washer
x 6
1
3
Spring Washer
x 6
2
Allen Key
x 1
4
Hardware List
2
Assemble the Support Bars (B) to the
Headboard Panel.
3
B
B
Assemble the Headboard Panel (A) to the
Support Bars (B).
4
Footboard, Rails & Slats
are packed in separate
Boxes with Bolts.
3
2
1
B
A
B
11
7
8
Note: Bolts & Washers from
Footboard, Rails & Slats Box.
A
Headboard Panel x 1
Support
Bar x 2
B
A
Full Headboard
Page 2
Page 1 of 6
Assembled View
1
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Use 2 People
Parts List
2
A
Headboard Panel x 1
B
Footboard Panel x 1
Extra
Holes
Hardware List
3
C
Side Rail x 2
D
Long Support x 1
H
Set of Bed Slats x 1
1
M6 x 100mm JCB
x 3
2
M6 x 50mm JCB
x 16
3
M6 x 40mm JCB
x 22
4
M6 x 20mm JCB
x 8
5
M6 x 15mm JCB
x 4
6
M8 x 50mm JCB
x 8
7
Barrel Nut
x 3
8
Spring Washer
x 28
9
Flat Washer
x 28
10
Wood Screw
(M4 x 32mm) x 12
11
M4 Allen Key
x 1
12
M5 Allen Key
x 1
13
Center Rail
Bracket x 2
14
Adjustable
Foot x 3
Support
Leg x 3
E
Post
x 4
F G
Support
Panel x 4
Full Bed
Assembly Instructions
Page 3
13
5
B
Page 2 of 6
Fix the Adjustable foot to the
bottom of the Support Leg (F).
4
Full Bed
6
G
E
F
14
5
Fit the Post (E) to the Support Panel (G).
A
13
5
Extra Holes
Extra Holes
Fit the Center Rail Bracket to the
Headboard Panel (A).
6
Short Tab of
Metal Bracket (13)
5
Fit the Center Rail Bracket
to the Footboard Panel (B).
7
Assembly Instructions
Page 4
Bolt the Post & Support Panel (E & G)
to the Side Rail (C).
8
G
2
8
9
E
2
8
9
C
G
E
9
Assemble the Side Rail (C) to the
Headboard & Footboard Panel (A & B).
Page 3 of 6
4
8
9
A/B
C
C
A
C
B
Full Bed
Assembly Instructions
Page 5
2
8
9
G
C
E
A/B
Page 4 of 6
A
B
C
G
C
10
13
D
B
C
A
5
13
D
A/B
Bolt the Support Panel (G) to the
Headboard & Footboard Panel (A & B).
Bolt the Long Support (D) to the Center Rail
Brackets (13) on the Headboard &
Footboard Panel (A & B).
11
Full Bed
Assembly Instructions
Page 6
Page 5 of 6
Fit the first 3 Slats and assemble the
Support Leg (F) to the Bed Slat (H).
Bolt & screw the Bed Slats (H)
to the Side Rail (C) &
Long Support (D).
12
3
1
F
7
H
C
C
D
10
3
10
3
1
F
7
H
C
C
D
10
3
10
10
3
10
Fit the other Slats out and assemble the
Support Leg (F) to the Bed Slat (H). Bolt &
screw the Bed Slats (H) to the Side Rail (C) &
Long Support (D).
13
Full Bed
Assembly Instructions
Page 7
3
1
F
7
H
C
D
10
3
10
10
3
10
Page 6 of 6
Fit the other Slats out and assemble the
Support Leg (F) to the Bed Slat (H).
Bolt & screw the Bed Slats (H)
to the Side Rail (C) &
Long Support (D).
14
Bolt & screw the remaining
Bed Slats (H) to the Side Rail (C).
15
3
H
C
3
10
10
3
Full Bed
Assembly Instructions
