Sand & Stable W005805540 Installation & Assembly

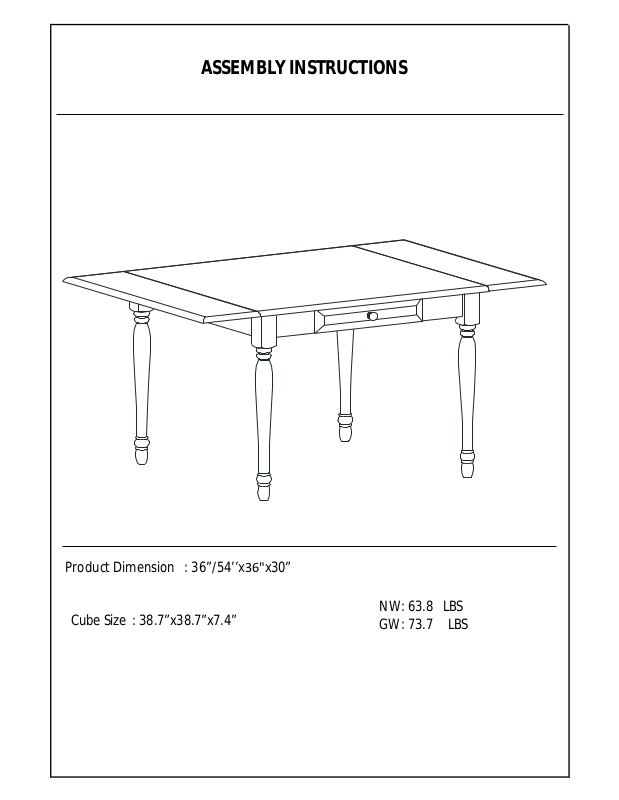

A

SSEMBLY INSTRUCTIONS

Product Dimension : 36”/54’’x36"x30”

be Size : 38.7”x38.7”x7.4”

Cu

N

W: 63.8 LBS

GW: 73.7 LBS

BEFORE ASSEMBLY

PART LIST

Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability.
Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with the part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please contact us.
IMPORTANT NOTE:

- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.

- Remove all wrapping material, including staples & packing straps before you start to assemble.

- DO NOT tighten all screws and bolts until completely assembled.

- Keep all hardware parts out of reach of children.

When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please
make sure you have the following parts:

NO Description Qty Sketch NO Description Qty Sketch

Center Piece

T1

Top

1 T2 Drop Leaves 2

B Leg 4

HARDWARE LIST

When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please
make sure you have all of the following hardware:

NO Description Qty Sketch NO Description Qty Sketch

1

3

5

Flat Washer

( Φ8.5xΦ19mm)

Bolt

(M8x70)

Screw

(M4x15)

8 2

8 4

18 6

Lock washer

( Φ8.5xΦ13mm)

Allen key
(M4mm)

Drop leaf

Support

8

1

4

Stopper

7

Screw

(M3.5x20)

8

STEP 1

Attach drop leaf support stoppers (6) to the drop leaves (T2). use the screw driver to tighten the screws
(7) as shown below

7

6

T2

STEP 2

STEP

3

Attach two drop leaves (T2) to the center piece top (T1). Use the screw driver to tighten the screws (5). as
shown below.

Attach the four legs (B) to the center piece top with Bolts (1) and washers (2), (3). Tighten with Allen Key
(4).
