Assembly Instructions
COUNTER TABLE SET W/2 CHAIRS
Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly,and follow the assembly steps to assemble
your newly purchased product correctly and efficently.

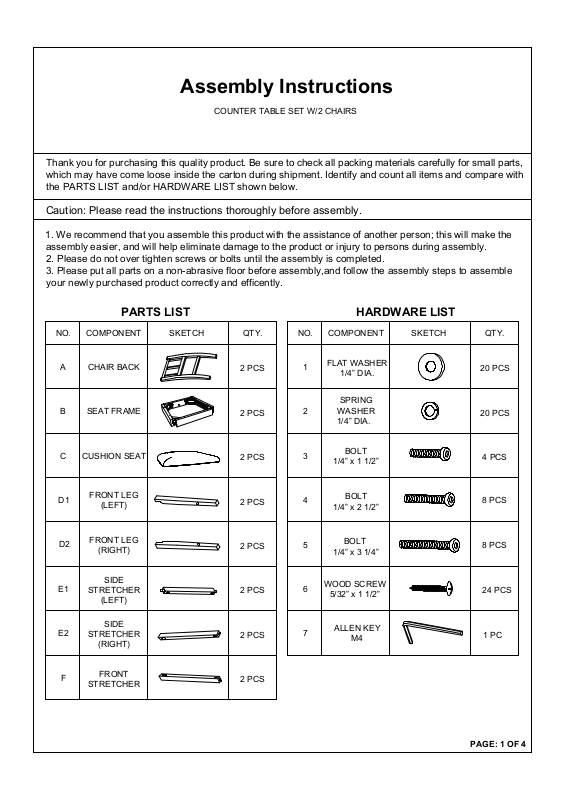

PARTS LIST HARDWARE LIST
NO.ACOMPONENT
CHAIR BACK
B SEAT FRAME
C CUSHION SEAT
D1
D2
E1
FRONT LEG
(LEFT)
FRONT LEG
(RIGHT)
SIDE
STRETCHER
(LEFT)
SKETCH QTY.
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
2 PCS
NO.1COMPONENT
FLAT WASHER
1/4” DIA.
SPRING
2
3
4
5
6
WASHER
1/4” DIA.
BOLT
1/4” x 1 1/2”
BOLT
1/4” x 2 1/2”
BOLT
1/4” x 3 1/4”
WOOD SCREW
5/32” x 1 1/2”
SKETCH QTY.
20 PCS
20 PCS
4 PCS
8 PCS
8 PCS
24 PCS
E2
F
SIDE
STRETCHER
(RIGHT)
FRONT
STRETCHER
2 PCS
2 PCS
7
ALLEN KEY
M4
1 PC
PAGE: 1 OF 4
Page 2
Assembly Instructions
COUNTER TABLE SET W/2 CHAIRS
To assemble the chairs, please follow the following steps and repeat for each chair:
STEP 1
Lay the chair back on soft clean surface and install
the seat frame.
B
7
5
2
1
A
7
3
2
1
STEP 3
Install front stretcher into the holes of the front legs
then attached to the seat frame.
STEP 2
Insert side stretchers with wood screws.
B
E (Right)
A
6
6
E (Left)
STEP 4
Place the assembled seat frame on the cushion seat
and attach with wood screws.
D1 (Left)
A
4
2
1
B
E1 (Left)
7
D2 (Right)
F
6
E1 (Right)
6
6
6
6
PAGE: 2 OF 4
Page 3
Assembly Instructions
COUNTER TABLE SET W/2 CHAIRS
PARTS LIST HARDWARE LIST
NO.ACOMPONENT
TABLE TOP
B BOX PANEL
C1
C2
D1
FRONT LEG
LEFT
FRONT LEG
RIGHT
BACK LEG
LEFT
SKETCH QTY.
1 PC
1 PC
1 PC
1 PC
1 PC
NO.1COMPONENT
FLAT WASHER
5/16” DIA.
SPRING
2
3
4
5
WASHER
5/16” DIA.
LONG BOLT
1/4” x 63 MM
SHORT BOLT
1/4” x 35 MM
ALLEN KEY
4 MM
SKETCH QTY.
8 PCS
8 PCS
8 PCS
6 PCS
1 PC
D2
E
F
BACK LEG
RIGHT
CENTER
STRETCHER
OUTER
STRETCHER
1 PC
1 PC
1 PC
WOOD SCREW
6
4 x 38 MM
4 PCS
PAGE: 3 OF 4
Page 4
Assembly Instructions
COUNTER TABLE SET W/2 CHAIRS
To assemble the table, please follow the following steps:
STEP 1 STEP 2
2
1
8X
(Left)
A
C2
(Right)
D2
(Right)
C1
5
(Left)
3
D1
STEP 3 STEP 4
C2
4
(Right)
6X
5
B
A
C1
(Left)
2X
2X
6
F
D1
D2
(Right)
(Left)
F
B
6
E
PAGE: 4 OF 4
