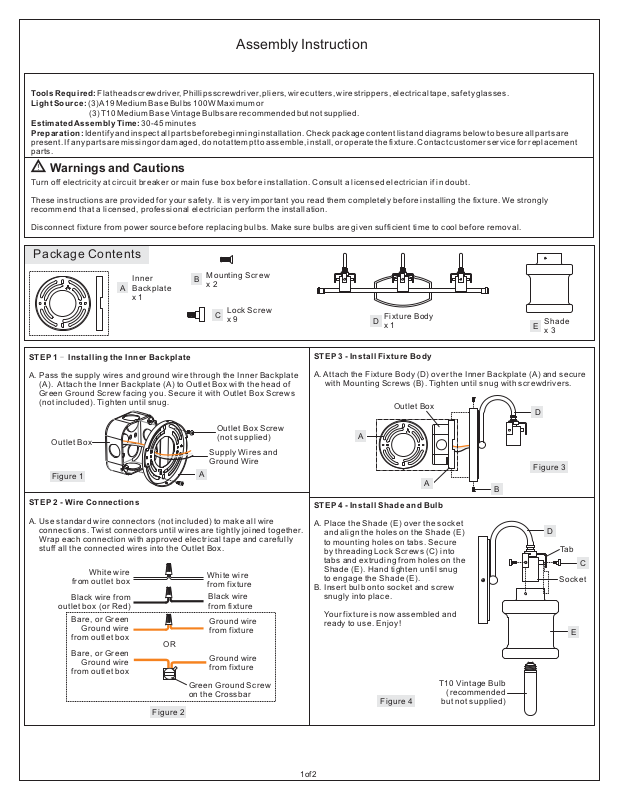

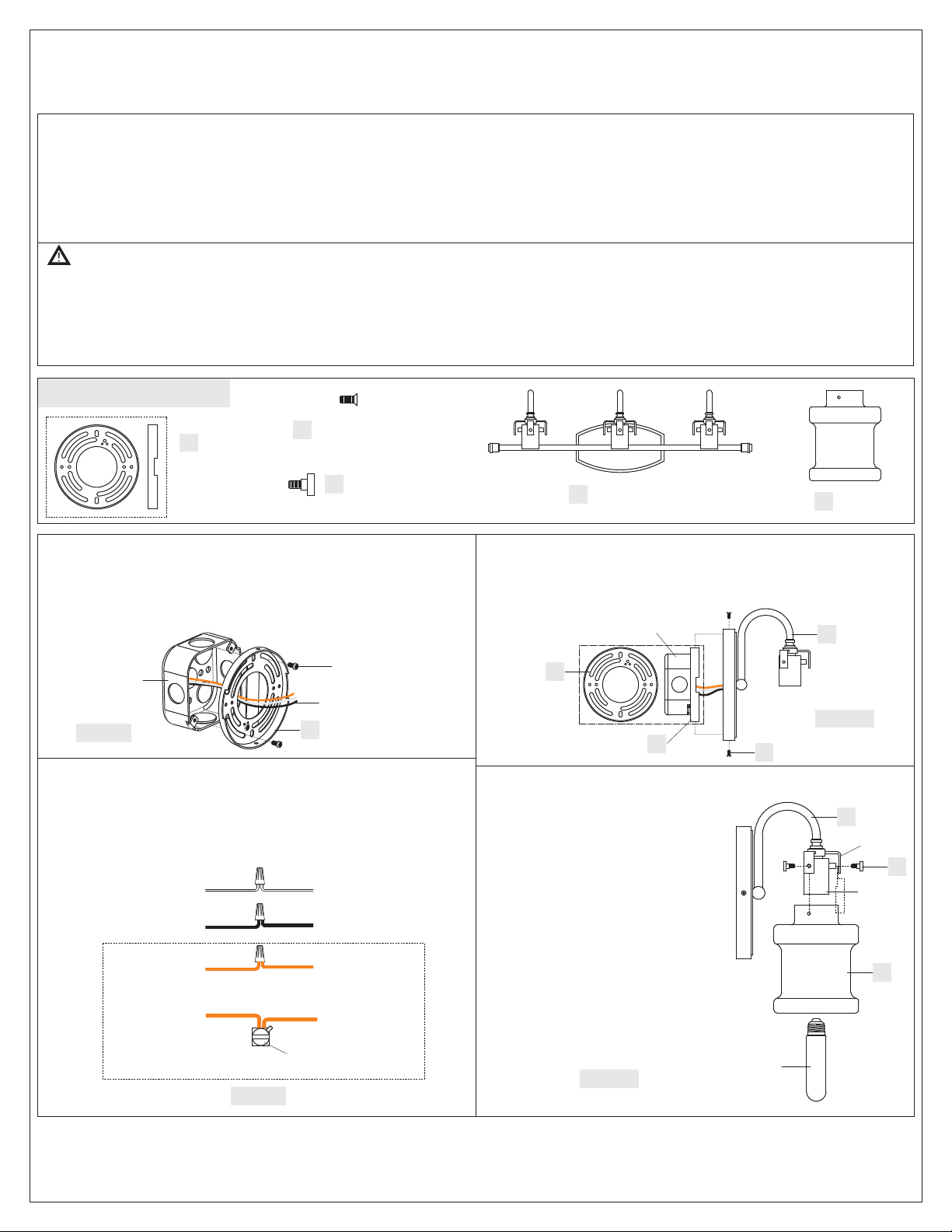

Assembly Instruction
ToolsRequired: Flathead screwdriver, Phillips screwdriver,pliers, wire cutters, wire strippers,electrical tape,safety glasses.
LightSource:
EstimatedAssembly Time:
Preparation:
present.If any parts are missingor damaged,do notattempt toassemble, install,or operatethe fixture.Contact customerservice forreplacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents
(3)A19 MediumBase Bulbs100W Maximumor
(3)T10Medium Base Vintage Bulbs are recommendedbut notsupplied.
30-45minutes
Identifyand inspect all parts beforebeginning installation.Check packagecontent listand diagramsbelow tobe sureall partsare
Inner
Backplate
A
x1
STEP 1 Installing the Inner Backplate-
A. Pass the supply wires and ground wire through the Inner Backplate
(A). Attach the Inner Backplate (A) to Outlet Box with the head of
Green Ground Screw facing you. Secure it with Outlet Box Screws
(not included). Tighten until snug.
Outlet Box
Figure 1
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from outlet box
Black wire from
outlet box (or Red)
Bare, or Green
Ground wire
from outlet box
Bare, or Green
Ground wire
from outlet box
OR
Figure 2
Mounting Screw
B
x2
Lock Screw
C
x9
Outlet Box Screw
(not supplied)
Supply Wires and
Ground Wire
A
White wire
from fixture
Black wire
from fixture
Ground wire
from fixture
Ground wire
from fixture
Green Ground Screw
on the Crossbar
Fixture Body
D
x1
STEP 3 - Install Fixture Body
A. Attach the Fixture Body (D) over the Inner Backplate (A) and secure
with Mounting Screws (B). Tighten until snug with screwdrivers.
Outlet Box
A
A
STEP 4 - Install Shade and Bulb
A. Place the Shade (E) over the socket
and align the holes on the Shade (E)
to mounting holes on tabs. Secure
by threading Lock Screws (C) into
tabs and extruding from holes on the
Shade (E). Hand tighten until snug
to engage the Shade (E).
B. Insert bulb onto socket and screw
snugly into place.
Your fixture is now assembled and
ready to use. Enjoy!
T10 Vintage Bulb
Figure 4
(recommended
but not supplied)
B
Shade
E
x3
D
Figure 3
D
Tab
Socket
E
C
1of2
FINISH: BRUSHED NICKEL
7.25”
5.25”
4.5”
24”
8”
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
9.75”
6.5”
5” Dia.
2of2
