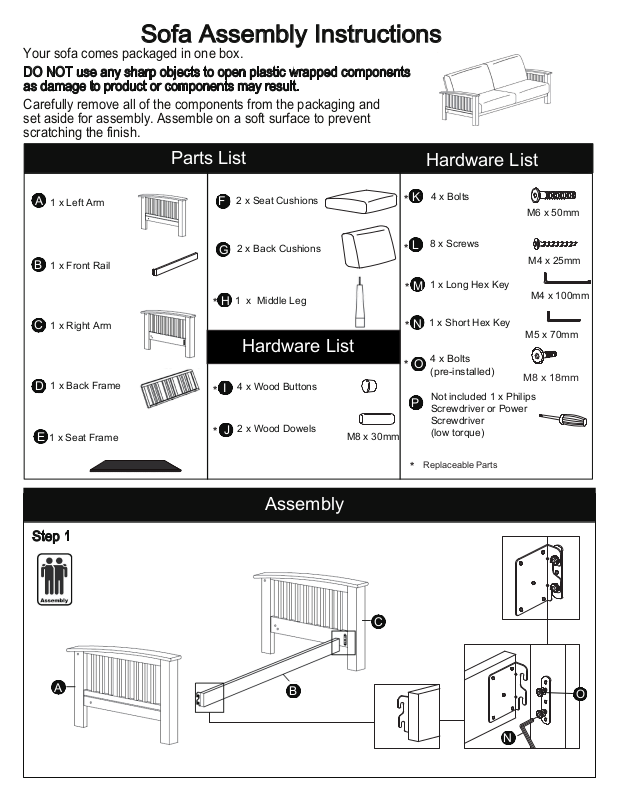

Your sofa comes packaged in one box.
DO NOT use any sharp objects to open plastic wrapped components
as damage to product or components may result.
Carefully remove all of the components from the packaging and
set aside for assembly. Assemble on a soft surface to prevent
scratching the finish.
Sofa Assembly Instructions
A
1 x Left Arm
1 x Front Rail
B
1 x Right Arm
C
1 x Back Frame
D
1 x Seat Frame
E
Parts List
2 x Seat Cushions
F
2 x Back Cushions
G
1 x Middle Leg
H
*
4 x Wood Buttons
I
*
2 x Wood Dowels
J
*
Hardware List
M8 x 30mm
Hardware List
4 x Bolts
K
*
8 x Screws
L
*
1 x Long Hex Key
M
*
1 x Short Hex Key
N
*
4 x Bolts
*
O
(pre-installed)
Not included 1 x Philips
P
Screwdriver or Power
Screwdriver
(low torque)
M6 x 50mm
M4 x 25mm
M4 x 100mm
M5 x 70mm
M8 x 18mm
Step 1
G
A
G
Assembly
H
H
B
I
C
I
Replaceable Parts
*
N
E
E
O
I
Page 2
Assembly
Step 2
M
J
J
D
K
K
Step 3
Note: No pre-drilled
holes in the seat
Step 4 Step 5
E
L
D
L
I
P
G
H
Step 6
Your style may differ from images. Care for your furniture by
periodically tightening all bolts using the included hex key.
About your furniture piece:
.
Softening of foam is natural and will happen over time with use.
.
Fabric will fade or discolor in direct sunlight. Minimize exposure to
direct sunlight to extend the life of your furniture.
.
Wood grain, knots, streaks, and color variation occur naturally
in wood and are not considered defects.
I
I
CAUTION:
before use. Failure to do so may result in
personal injury.
Tighten all components securely
F
