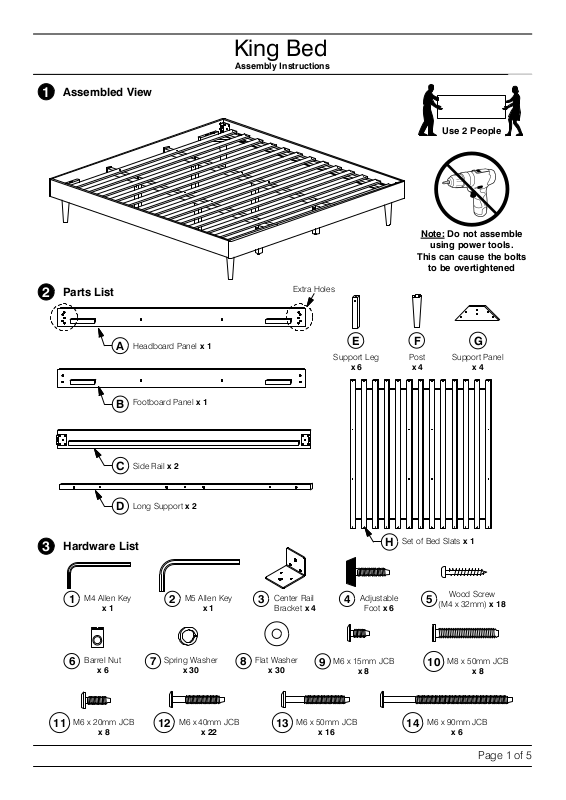

Assembly Instructions
Page 1 of 5
Assembled View
1
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Use 2 People
Hardware List
3
Headboard Panel x 1
C
Side Rail x 2
D
Long Support x 2
E
Support Leg
x 6
F
Post
x 4
G
Support Panel
x 4
H
Set of Bed Slats x 1
A
Footboard Panel x 1
B
Parts List
2
Extra Holes
14
M6 x 90mm JCB
x 6
12
M6 x 40mm JCB
x 22
11
M6 x 20mm JCB
x 8
9
M6 x 15mm JCB
x 8
6
Barrel Nut
x 6
7
Spring Washer
x 30
8
Flat Washer
x 30
5
Wood Screw
(M4 x 32mm) x 18
1
M4 Allen Key
x 1
3
Center Rail
Bracket x 4
4
Adjustable
Foot x 6
13
M6 x 50mm JCB
x 16
M8 x 50mm JCB
x 8
10
2
M5 Allen Key
x 1
King Bed
Page 2
Page 2 of 5
4
Assembled the Support Leg (E)
to the Long Support (D).
Assembly Instructions
5
Fit the Post (F) to the Support Panel (G).
10
F
G
D
14
14
14
6
6
6
4
4
4
E
E
E
Note: Extra holes
on top
King Bed
Page 3
Page 3 of 5
Fit the Center Rail Bracket to the
Headboard Panel (A).
6
A
3
9
Extra
Holes
Short Tab of
Metal Bracket (3)
9
B
3
9
Assembly Instructions
Fit the Center Rail Bracket to the
Footboard Panel (B).
7
8
Bolt the assembled Support Panel (G)
to the Side Rail (C).
C
13
7
8
G
13
7
8
F
G
F
King Bed
Page 4
Page 4 of 5
A
C
B
C
Assemble the Side Rail (C) to the
Headboard and Footboard Panel (A & B).
9
Bolt the assembled Support Panel (G) to the
Headboard and Footboard Panel (A & B).
10
King Bed
Assembly Instructions
11
7
8
A
C
13
7
8
A
G
C
F
A
B
C
G
C
Page 5
Page 5 of 5
3
D
B
C
A
9
3
D
12
5
12
5
12
5
12
12
H
C
12
12
5
12
12
Bolt the Long Support (D) to the Center Rail
Brackets (3) on the Headboard and
Footboard Panel (A & B).
Bolt & screw the Bed Slats (H) to the Side Rail (C).
12
11
King Bed
Assembly Instructions
Page 6
Assembly Instructions
Page 1 of 2
Parts List
1
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Use 2 People
Hardware List
2
A
Headboard Panel x 1
D
Support
Bar x 2
B
Headboard
Side Panel
(Left hand) x 1
C
Headboard
Side Panel
(Right hand) x 1
M6 x 35mm JCB
x 4
2
M6 x 60mm JCB
x 4
1
Barrel Nut
x 4
3
Wood Dowel
(M10 x 40mm) x 4
4
Spring Washer
x 4
5
Flat Washer
x 4
6
M4 Allen Key
x 1
7
Fit the Headboard Side Panel (B & C)
to the Headboard Panel (A).
3
2
C
1
1
4
1
B
4
A
3
3
3
1
4
3
Back
King Headboard
Page 7
D
12
7
8
6
5
2
A
D
King Headboard
Assembly Instructions
Page 2 of 2
Assemble the Support Bars (D) to the Headboard Panel.
4
D
D
Footboard
Footboard, Rails & Slats
are packed in separate
Boxes with Bolts.
Assemble the Headboard Panel (A)
to the Support Bars (D).
5
4
D
A
C
B
Footboard
Note: Bolts & Washers
from Footboard ,
Rails & Slats Box.
