SEATING 4PC
SEATING 4PC ASSEMBLY INSTRUCTION
Page 2
PARTS LIST
Part QuantityDescription
PARTS
Left arm 3A
Right arm 3B
Chair backrest 2C
Chair seat base 2D
Table leg 2E
Table side panel 1F
Glass table top 1G
Chair side panel 2L
Chair cushion 2M
Pillow 4O
Bench backrest 1Q
Bench seat base 1S
Bench side panel 1U
Bench cushion 1Z
HARDWARE
Bolt M6x70 mm 121
Bolt M6x25 mm 382
Washer Ø6x14x1 mm 503
Bolt M6x55 mm 164
Plastic leg 48x48x65 mm 165
Allen key 4x60 mm 36
Page 3
A
B
C
D
x3
E
x2
M
x2
U
x1
x3
F
x1
O
x4
Z
x1
x2
G
x1
Q
x1
1
x12
x2
L
x2
S
x1
2
M6x70 mm M6x25 mm
x38
3
x50
Ø6 x 14 mm
4
x16
M6x55 mm
5
x16
6
Alenkey 4 x 60
x3
Page 4

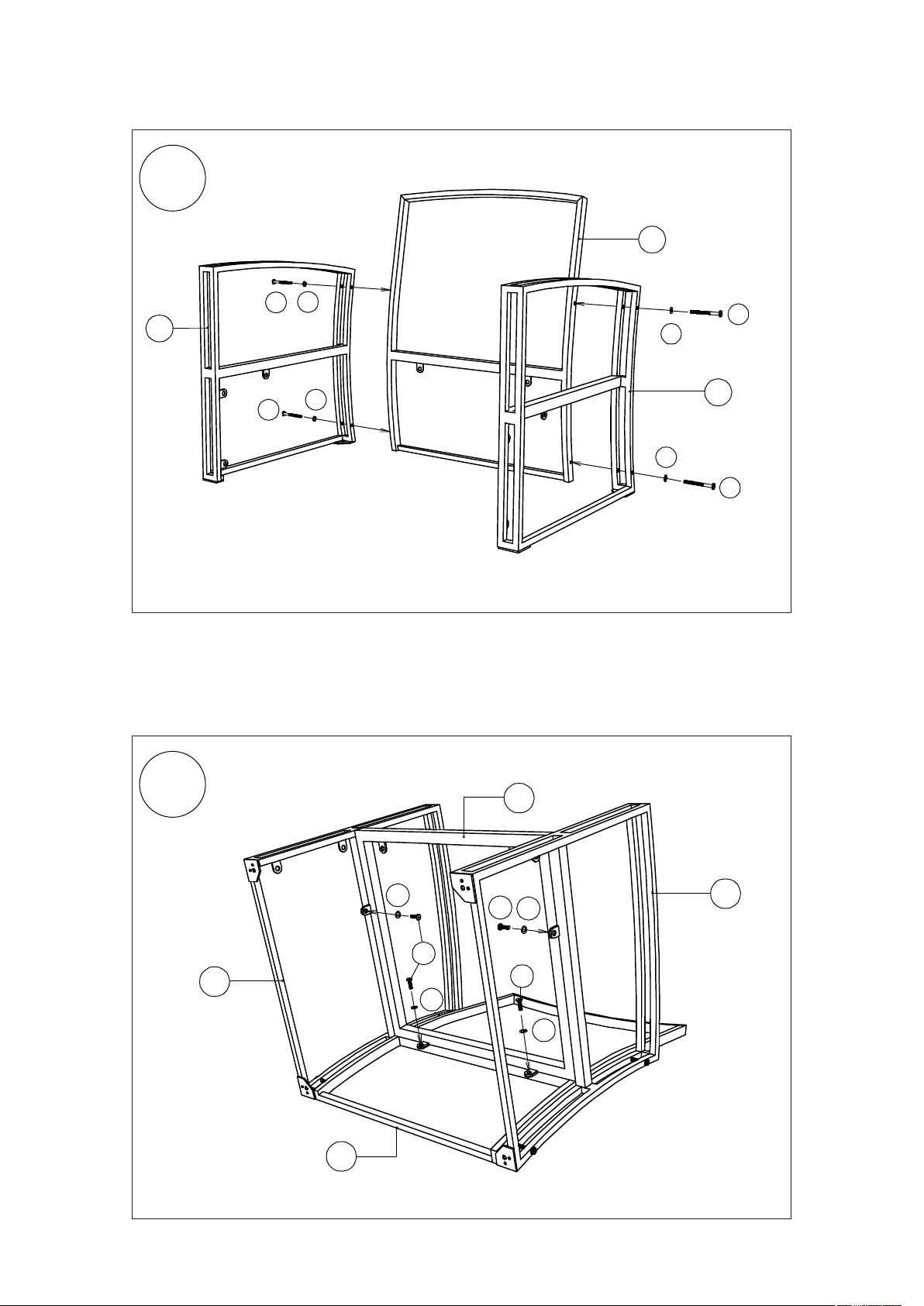

1. Locate each Left arm (A) and Right arm (B) to the Chair backrest (C) by the pre-drilled threads.
Use Allen Key (6) to fasten Bolts (1) with Washers (3).
Each arm should have 2 bolts fastened. Only fixed bolts 50% (Photo 1).
1
C
3
1
B
3
1
1
3
3
A
1
x2
2. Locate Chair seat base (D) to the Chair backrest (C) and Left arm (A), Right arm( B) by the
pre-drilled threads.
Use Allen Key (6) to fasten Bolts (2) with Washers (3).
Should have 4 bolts fastened. Only fixed bolts 50% (Photo 2).
2
D
3
2
B
3
C
2
3
2
3
A
x2
Page 5
3. Locate Chair side panel (L) to Left arm (A) and Right arm (B), by the pre-drilled threads.
Use Allen Key (6) to fasten Bolts (2) with Washers (3). Should have 4 bolts fastened.
Only fixed bolts 50% (Photo 3).
3
C
B
A
3
3
L
D
3
2
3
x2
4 Locate Chair side panel (L) to Chair seat base (D), by the pre-drilled threads..
Use Allen Key (6) to fasten Bolts (2) with Washers (3). Should have 2 bolts fastened.
Only fixed bolts 50% (Photo 4).
C
4
B
A
3
2
D
3
2
L
x2
Page 6

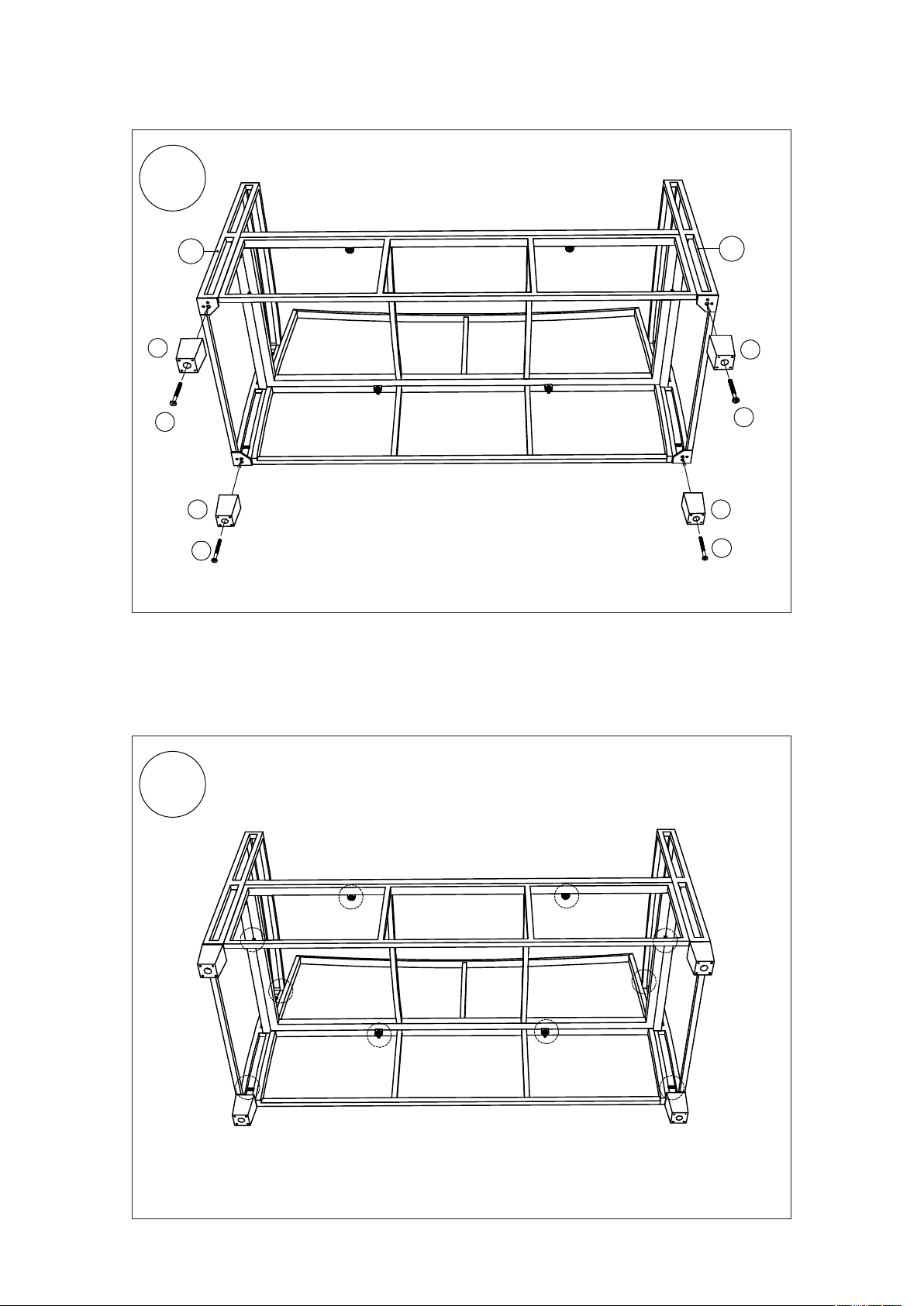

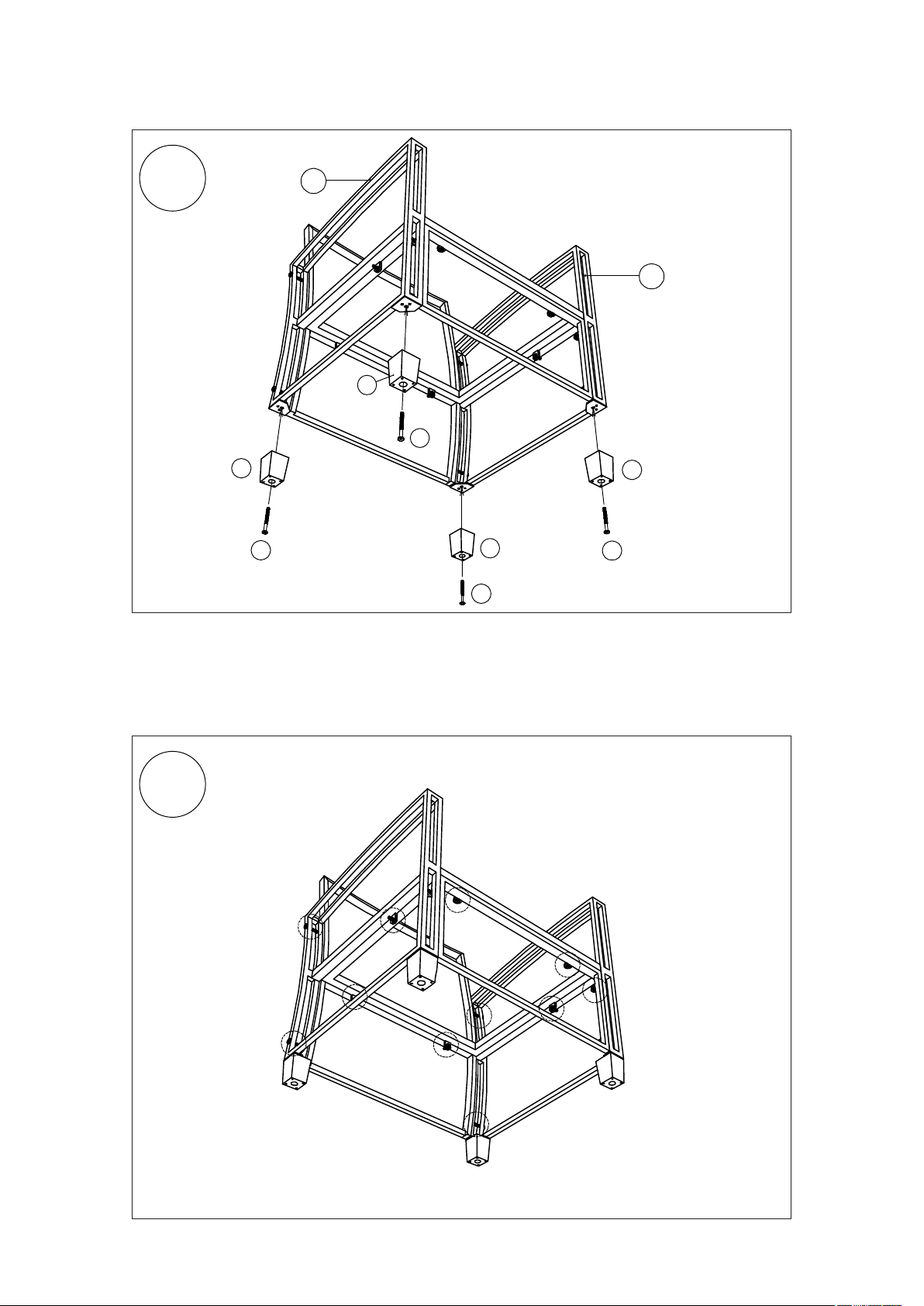

5. Use Allen Key (6) to fasten Bolts (4) with Plastic leg (5). Should have 4 bolts fastened.
Fixed bolts 100% (Photo 5).
5
B
A
5
4
5
4
5
5
4
x2
4
6. Fixed all bolts 100% (Photo 6).
6
x2
Page 7

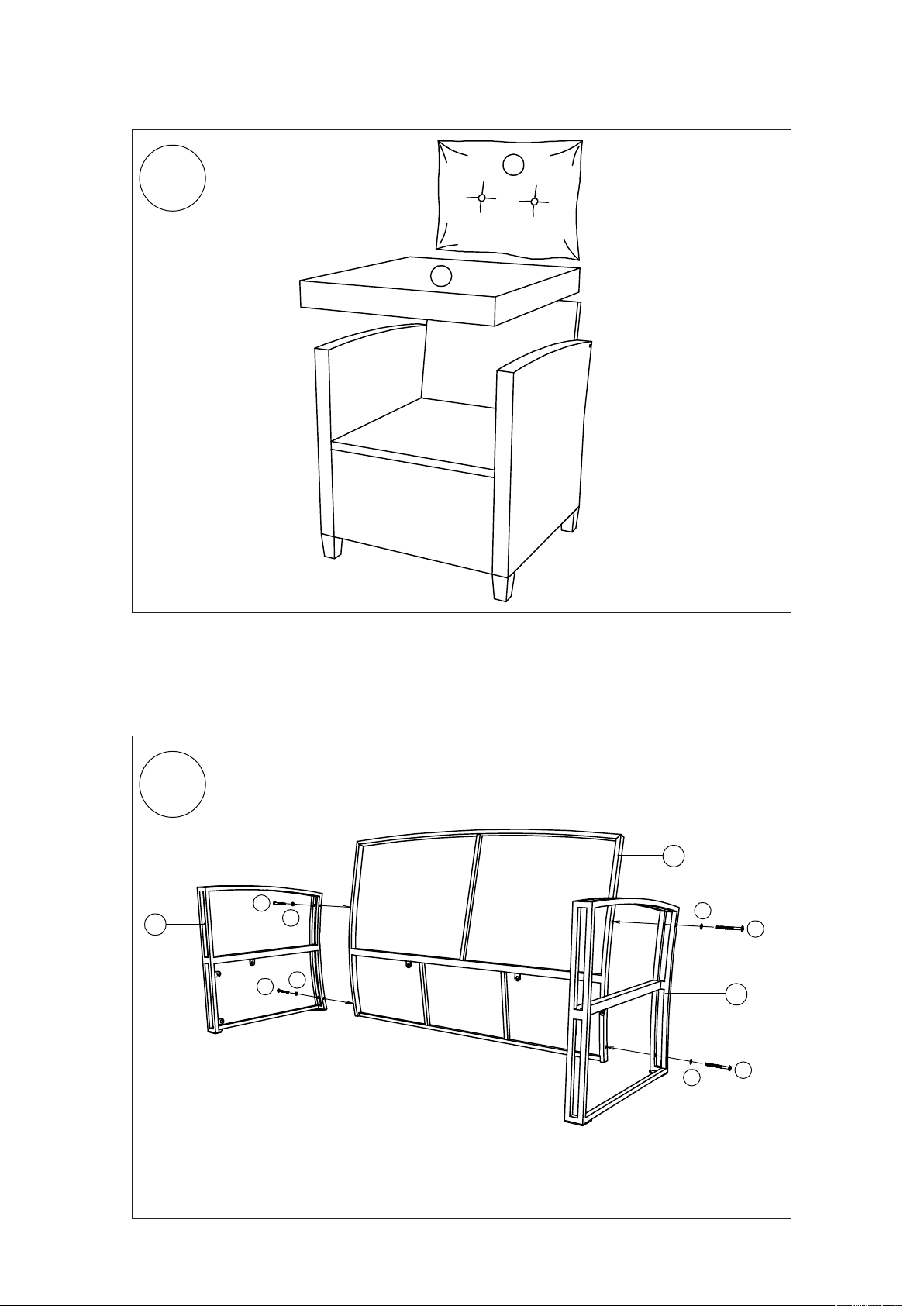

7. Place Chair cushion (M) on the top chair first, and then place Pillow (O) above it (Photo 7).
O
7
M
x2
8 Locate each Left arm (A) and Right arm (B) to the Bench backrest (Q) by the pre-drilled threads..
Use Allen Key (6) to fasten Bolts (1) with Washers (3). Each arm should have 2 bolts fastened.
Only fixed bolts 50% (Photo 8).
8
Q
1
B
3
3
1
3
1
A
3
1
Page 8
9 Locate Bench seat base (S) to the Bench backrest (Q) and Left arm (A), Right arm (B).
by the pre-drilled threads.
Use Allen Key (6) to fasten Bolts (2) with Washers (3). Should have 4 bolts fastened.
Only fixed bolts 50% (Photo 9).
9
S
2
3
B
10 Locate Bench side panel (U) to Left arm (A), Right arm (B) and Bench seat base (S).
by the pre-drilled threads.
Use Allen Key (6) to fasten Bolts (2) with Washers (3). Should have 6 bolts fastened.
Only fixed bolts 50% (Photo 10).
2
3
Q
2
2
3
3
A
10
A
Q
S
2
3
3
2
3
2
U
2
3
3
2
3
2
B
Page 9
11 Use Allen Key (6) to fasten Bolts (4) with Plastic leg (5). Should have 4 bolts fastened..
Fixed bolts 100% (Photo 11).
11
12 Fixed all bolts 100% (Photo 12)..
B
5
4
5 5
4
A
5
4
4
12
Page 10

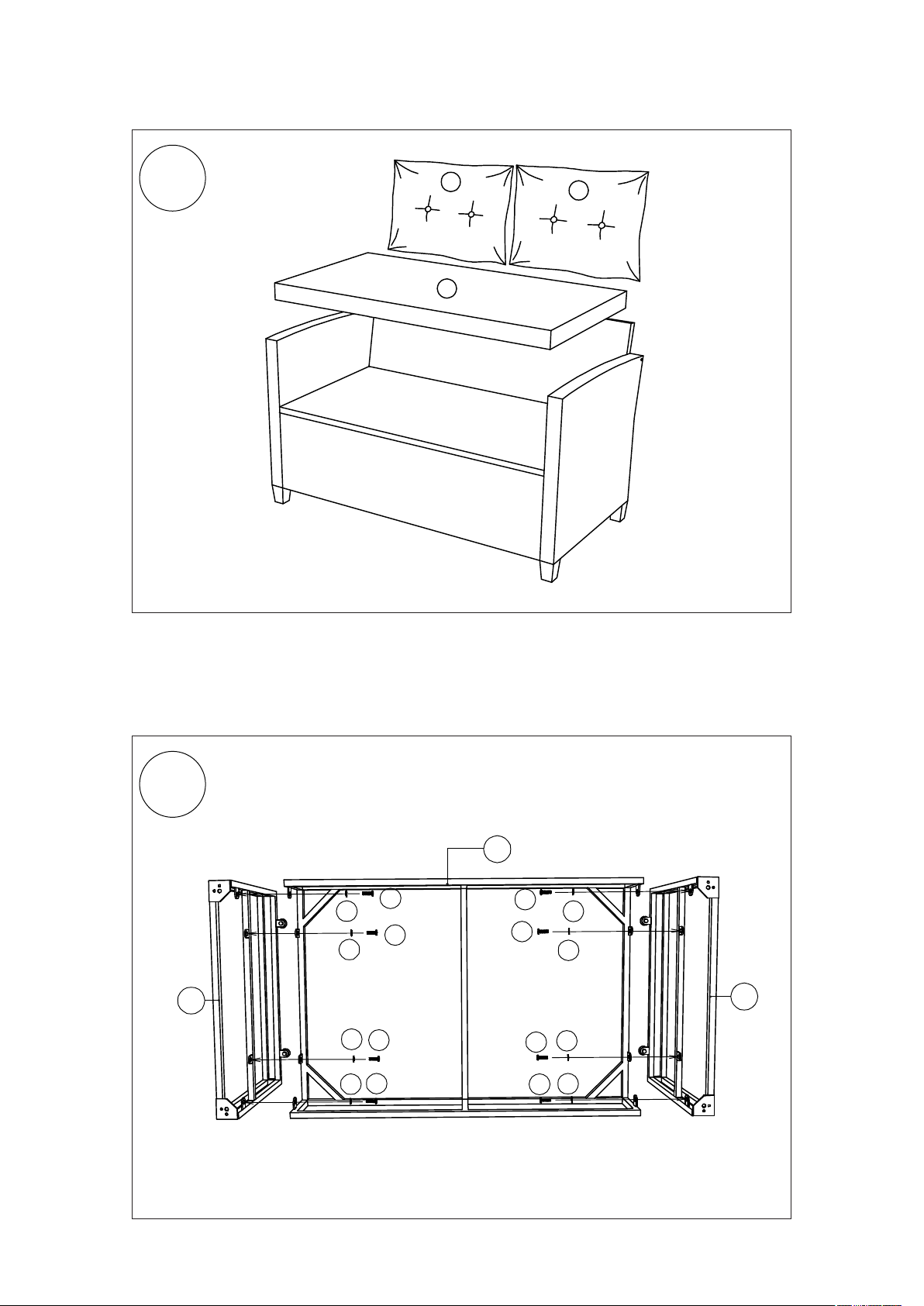

13 Place Bench cushion (Z) on the top bench first, and then place 2 Pillow (O) above it (Photo 13)..
13
O
Z
O

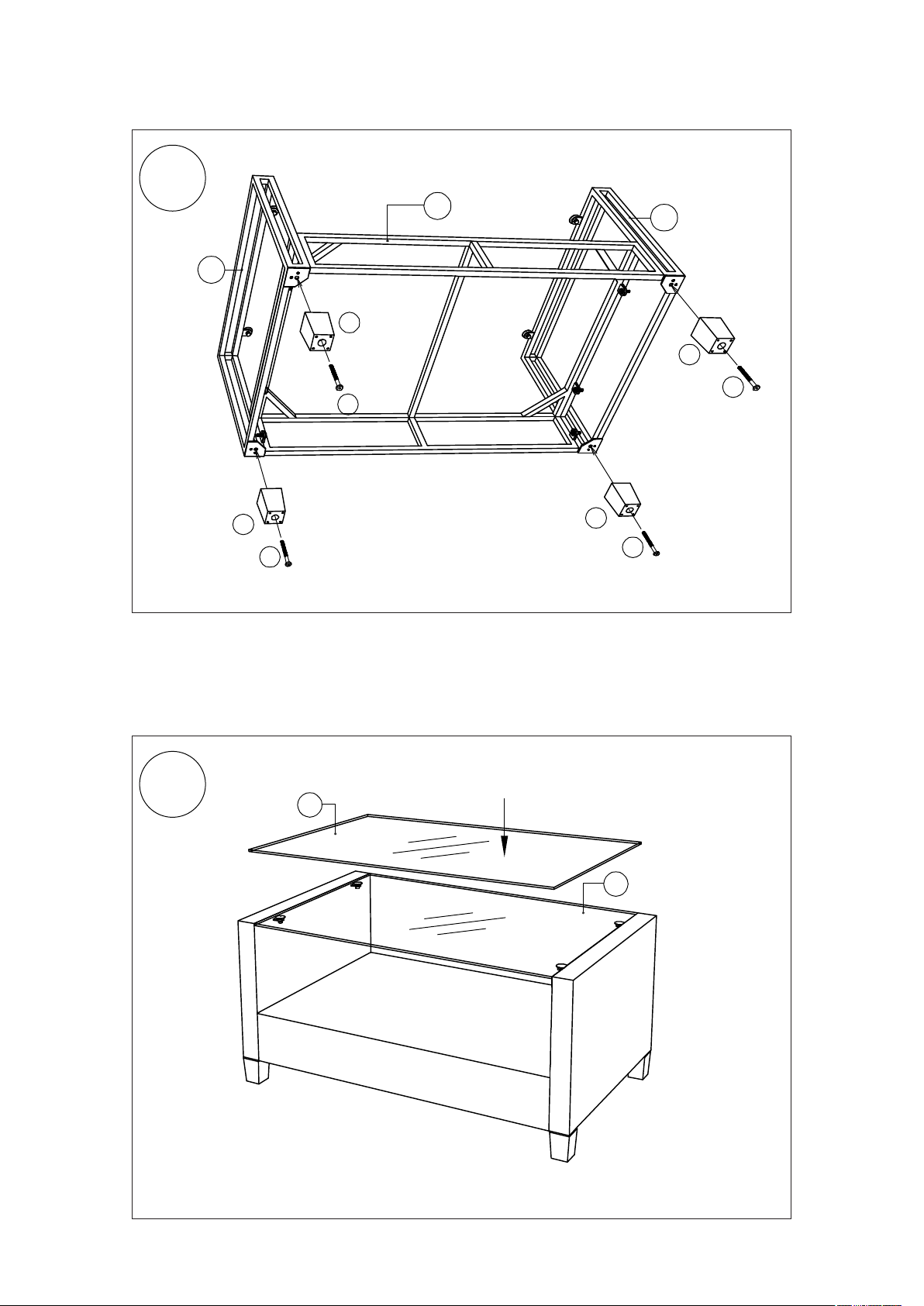

14 Locate Table leg (E) to the Table side panel (F) by the pre-drilled threads..
Use Allen Key (6) to fasten Bolts (2) with Washers (3). Each table foot should have 4 bolts fastened.
Only fixed bolts 50% (Photo 14).
14
F
2
3
2
3
E
3
2
2
3
2
2
3
3
E
3
2
3
2
Page 11
15 Use Allen Key (6) to fasten Bolts (4) with Plastic leg (5). Each table leg should have 2 bolts fastened..
Fixed bolts 100% (Photo 15).
15
F
E
5
4
5
4
5
E
5
4
4
16 Place Glass on the top table (Photo 16)..
16
G
G
Till now you have finished the whole assembly and enjoy your furniture!
