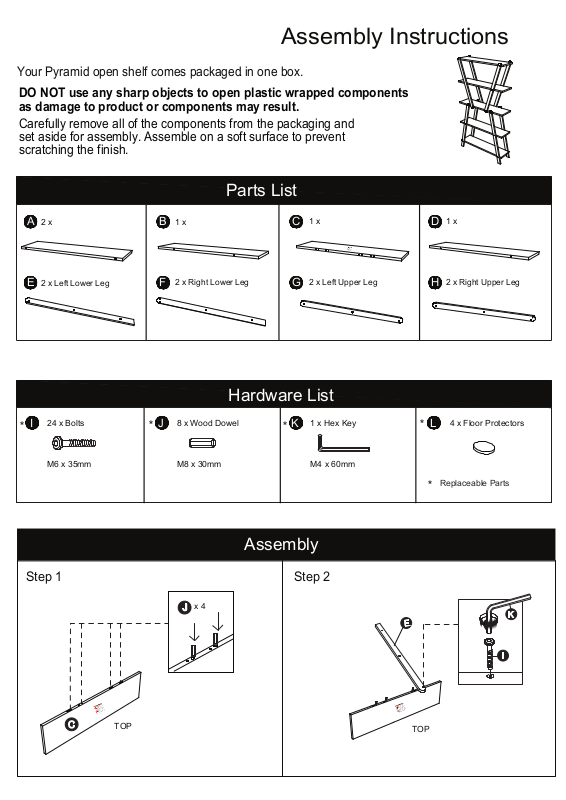

Assembly Instructions
Your Pyramid open shelf comes packaged in one box..
DO NOT use any sharp objects to open plastic wrapped components
as damage to product or components may result.
Carefully remove all of the components from the packaging and
set aside for assembly. Assemble on a soft surface to prevent
scratching the finish.
Parts List
2 x
A
2 x Left Lower Leg
E
24 x Bolts
I
*
M6 x 35mm
1 x
B
2 x Right Lower Leg
F
8 x Wood Dowel
J
*
M8 x 30mm
1 x
C
2 x Left Upper Leg
G
Hardware List
1 x Hex Key
K
*
M4 x 60mm
1 x
D
2 x Right Upper Leg
H
4 x Floor Protectors
L
*
Replaceable Parts
*
Assembly
Step 1 Step 2
x 4
J
C
TOP
E
K
I
TOP
Page 2
Assembly
Step 3 Step 4
K
I
x 2
D
A
Step 5 Step 6
x 4
J
K
I
x 3
F
K
I
x 6
C
Step 7 Step 8
K
I
G
F
E
K
I
B
Page 3
Assembly
Step 9
Step 11
K
I
4
A
H
Step 10
H
K
I
x 3
L
Step 12
It is highly recommended to use coasters or
mats beneath hot pans, plates, and glassware
to protect the surfaces and finish of your
furniture.
G
K
I
x 6
WARNING Serious or fatal crushing injuries can
occur from furniture tip-over. To prevent this
furniture from tipping over, it must be permanently
fixed to the wall using the wall attachment fittings
included in the packaging.
Your style may differ from images. Care for your furniture by periodically
tightening all bolts using the included hex key.
About your furniture piece:
.
Wood grain, knots, streaks, and color variation occur naturally in wood
and are not considered defects.
CAUTION: Tighten all components securely
before use. Failure to do so may result in
personal injury.
