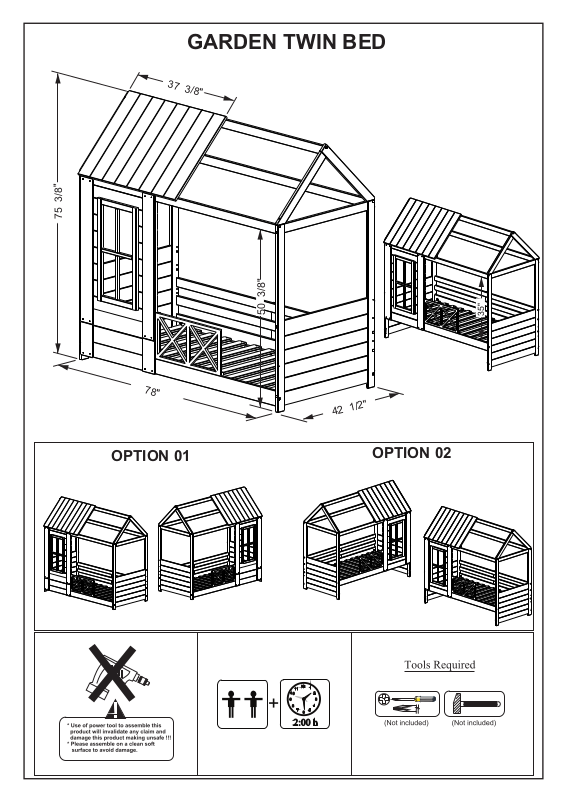

75 3/8"

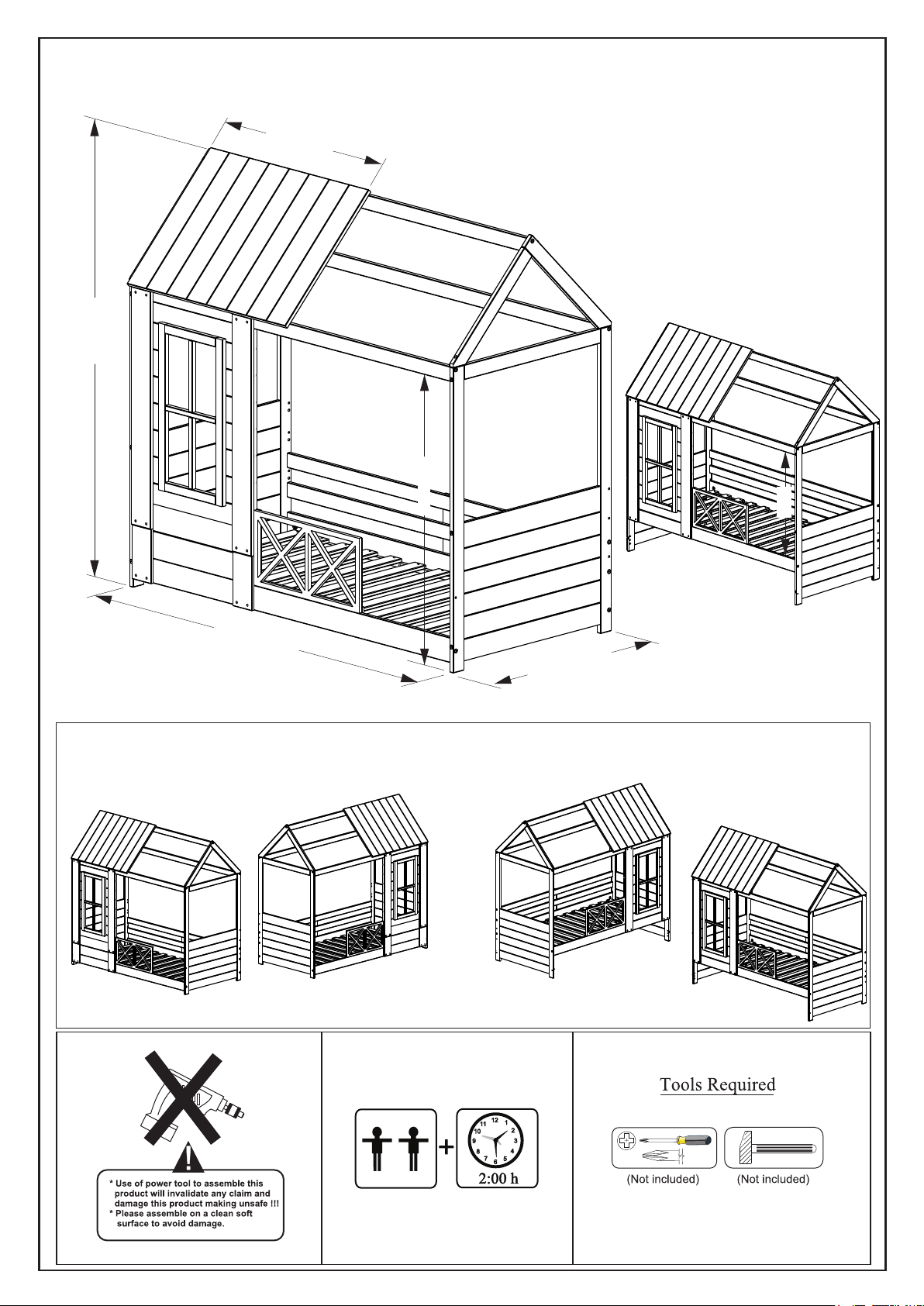

GARDEN TWIN BED
37 3/8"
78"
OPTION 01
50 3/8"
35"
42 1/2"
OPTION 02
Page 2
ASSEMBLY INSTRUCTIONS
Thank you for purchasing this quality product.
Be sure to check all packing materials carefully
for small parts which may have come loose inside the carton during shipment.
identify and count all parts and hardware.
Compare with the parts list to be sure all parts
are present.
“TO ALLOW FOR TOLERANCE DURING ASSEMBLY,
Separate,
DO NOT FIRMLY TIGHTEN BOLTS & SCREWS UNTIL COMPLETELY ASSEMBLED”
SIZE OF MATTRESS AND FOUNDATION
Use only Twin or Full Mattress with the following specifications on upper & lower bunks
Twin Mattress :37 1/2” - 39 1/4” Wide x 74”-75” long
The total thickness of Mattress and Foudation shoud not exceed 8" inches.
Do not use mattress without proper safe foundation.
SAFETY WARNINGS!
1-Follow the information on the warning label appearing on the upper bunk end structure and on the carton. Do
not remove warning label from bed.
2-Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood
of entrapment or falls.
3-Surface of mattress must be at least 5 inches below the upper edge of guardrails.
4-Do not allow children under 6 years of age to use the upper bunk.
5-Prohibit more than one person on upper bunk.
6-Periodically check and ensure that the guardrail, ladder and other components are in their proper posi-
tion, free from damage, and that all connectors are tight.
7-Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8-Always use the ladder for entering and leaving the upper bunk.
9-Do not use substitute parts. Contact distributor or dealer for replacement parts.
10-Use of a night light may provide added safety precaution for a child using the upper bunk.
11-If the bunk bed will be placed next to a wall, the guardrail that runs the full length of the bed should
be placed against the wall to prevent entrapment between the bed and the wall.
12-Always use guardrails on both long sides of the upper bunk.
13-The use of water or sleep flotation mattresses is prohibited.
14-Keep these instructions for future reference.
STRANGULATION HAZARD
Never attach or hang items to any part of the bunk bed that are not designed for use with
the bed. For example, but not limited to hooks, belts or jump ropes.
..Warning - On Beds with finials that can be configured as Bunk beds!
Effective on Bunk Beds manufactured on or after March 10th, 2008, finials cannot be used.
The finials provided with certain beds, which are part of the design of the bed, are to be
used only in one of the lower configuration - that is as a Twin, Full, Queen or King
configuration.
These finials are never to be used in the upper structure in a Bunk Bed configuration.
In
I
s
s
t
t
r
r
u
u
ct
c
tio
i
o
n
n
s
s
Using the finials in the upper structure of a Bunk Bed will create a strangulation hazard.
Never use finials in the upper structure of a Bunk Bed.
A flat Mushrrom Cap made to conform to the requirement is provided to take place of
finials in the upper structure in Bunk bed configurations.
IMPORTANT: PLEASE READ INSTRUCTIONS BEFORE STARTING THE ASSEMBLY
Page 3

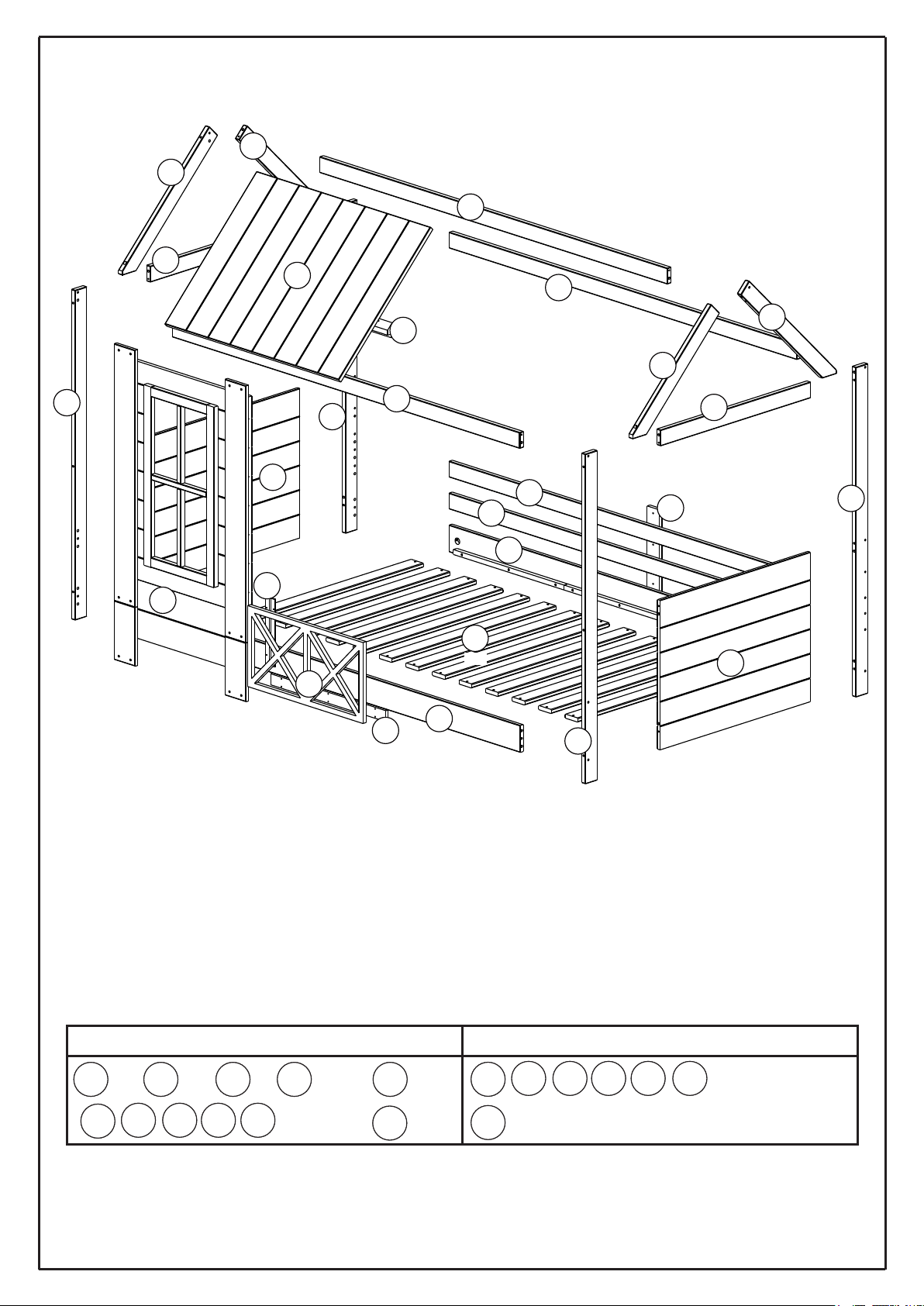

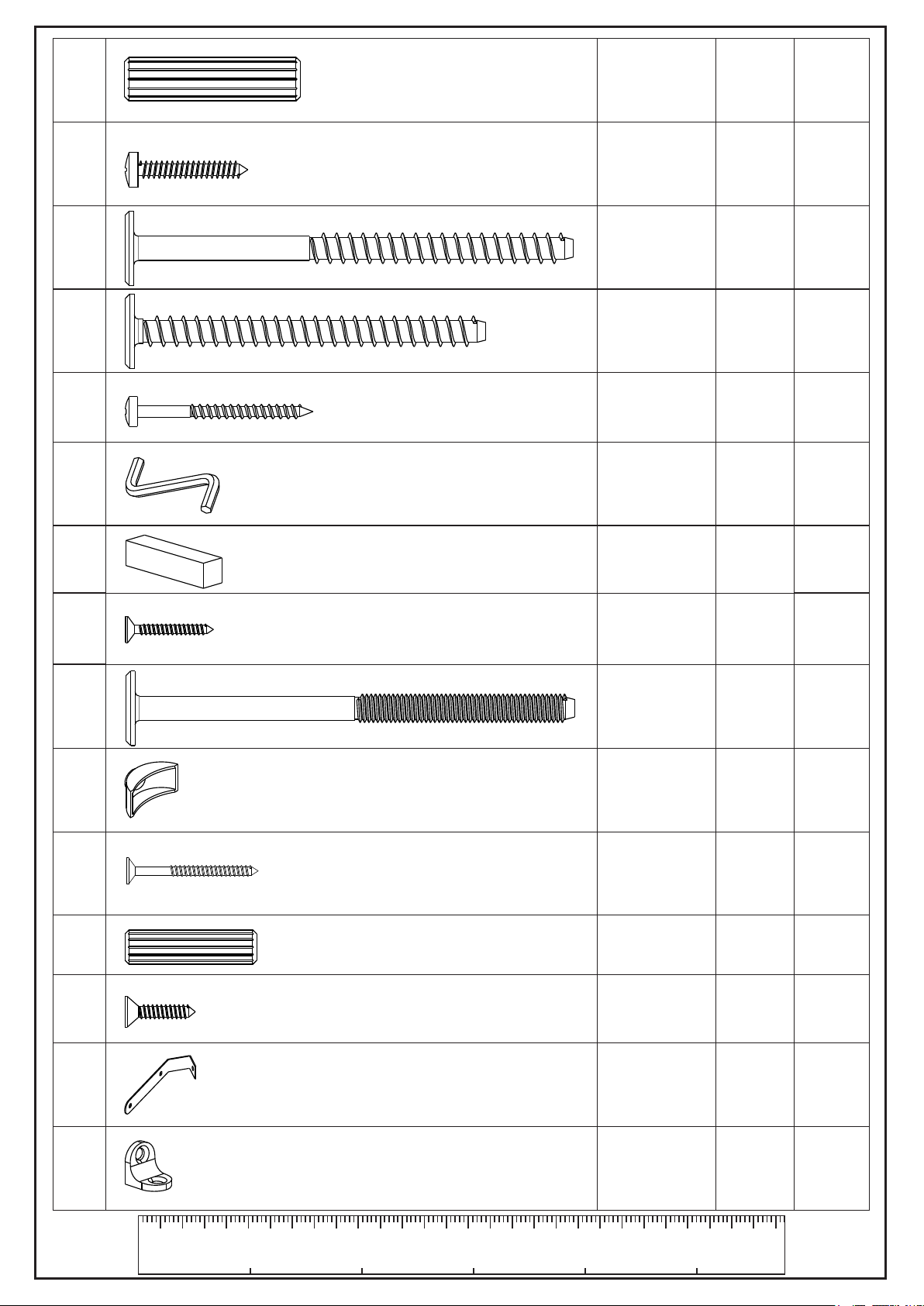

PART LIST
PART LIST
109
110
107
101
105
108
100
116
112
114
102
113
107
111
13x
107
106
107
107
110
117
109
105
104
100
106
117
18
BOX 1/2
BOX 1/2
2x2x
109
0201
101
102
04040404040404
103
2x
110 105
08 08
104
2x
115
107
15
111
08
5x
13x
106
108
18
100
18
113
2x
103
115
BOX 2/2
116
112 114
04 04
Environmental Responsibility
Environmental Responsibility
All wood used in our products comes from reforestation planted areas,
All wood used in our products comes from reforestation planted areas,
without use of native forest.
without use of native forest.
Page 4
A
B
C
D
Wooden dowel
Cavilha
Taquete
Screw
Parafuso PH CP
Tornillo
Structural screw
Parafuso estrutural
Tornillo estructural
Structural screw
Parafuso estrutural
Tornillo estructural
ø10x40
ø4x25
ø7x100
ø7x80
24
08
14
10
E
F
G
H
I
J
Screw
Parafuso PH CP
Tornillo
Allen key
Chave allen
Liave allen
Spacer
Espaçador Estrado
Separador
Flat head screw
Parafuso PH CC
Tornillo
Structural screw
Parafuso estrutural
Tornillo estructural
Elliptical nut
Porca Meia-Lua
Tuerca elliptical
ø4x50
74,6
ø4x20
ø1/4x100
04
01
02
16
04
04
K
L
M
N
O
1
2 3 4 5 6 7 8 9 10 1311 1412
1 2 3 4 5
Flat head screw
Parafuso PH CC
Tornillo
Wooden dowel
Cavilha
Taquete
Flat head screw
Parafuso PH CC
Tornillo
Hook
Gancho
Gancho
Corner
Cantoneira
Corner
ø4x30
ø8x30
ø3,5x16
29
12
10
02
02
Page 5

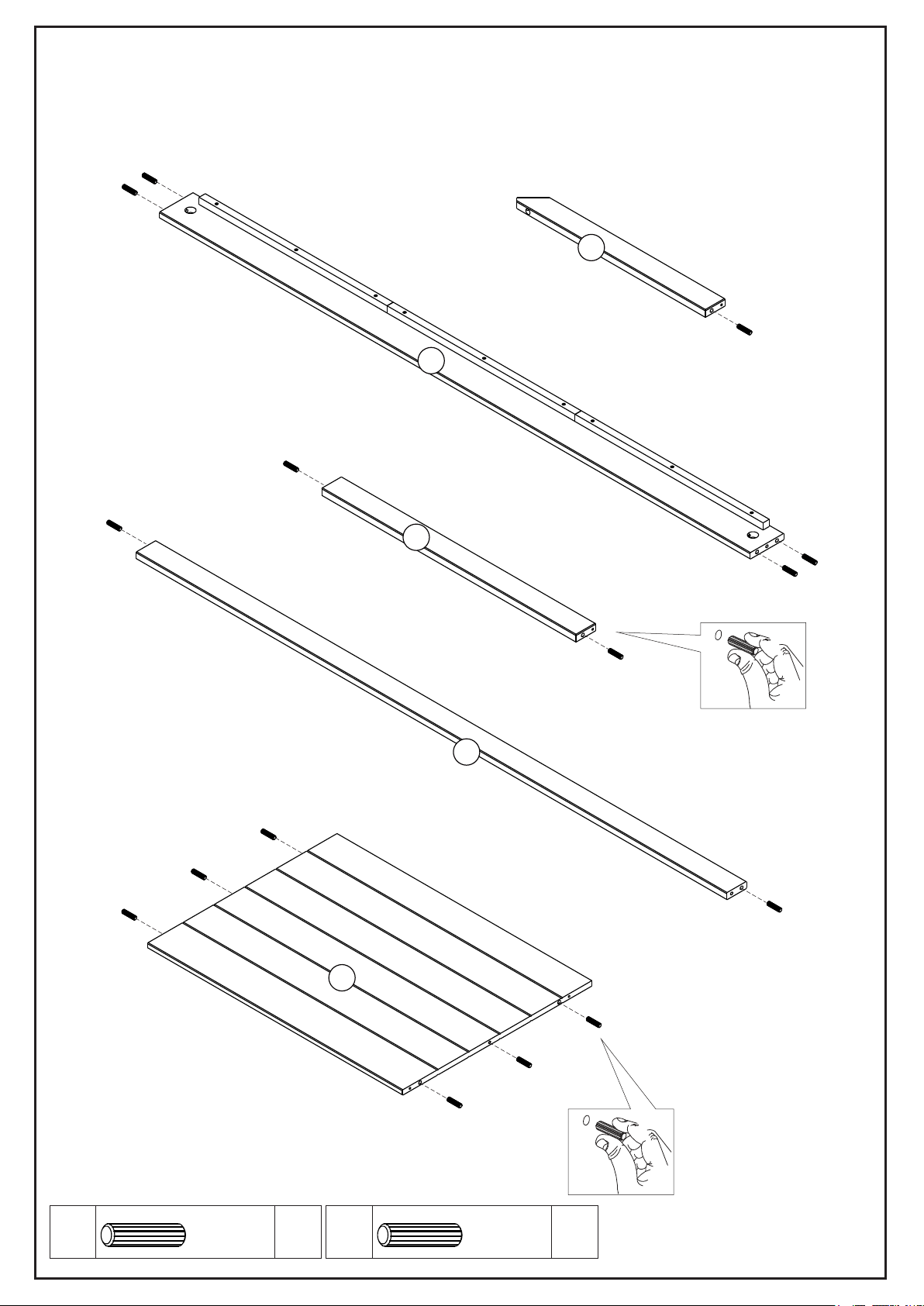

01
A
A
2x
110
A
106
A
A
2x
105
L
L
107
2x
5x
A
A
A
A
L
100
2x
L
L
A L24 12
ø10x40 ø8x30
A
L
L
Page 6

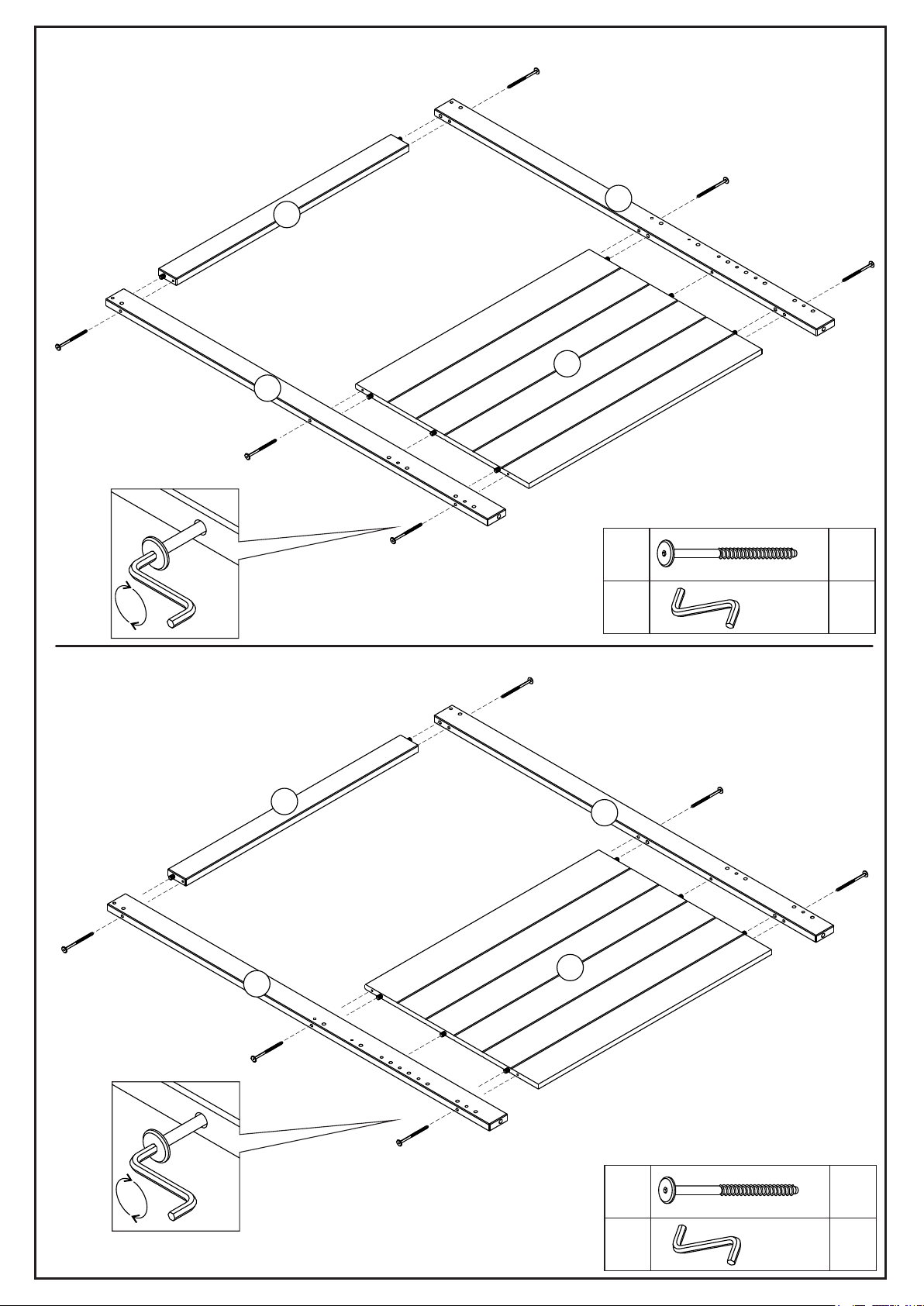

02
C
C
102
105
C
C
03
C
100
101
C
C
F
C
105
103
C
F
C
ø7x100
06
01
C
C
C
100
104
C
C
F
C
ø7x100
F
06
01
Page 7

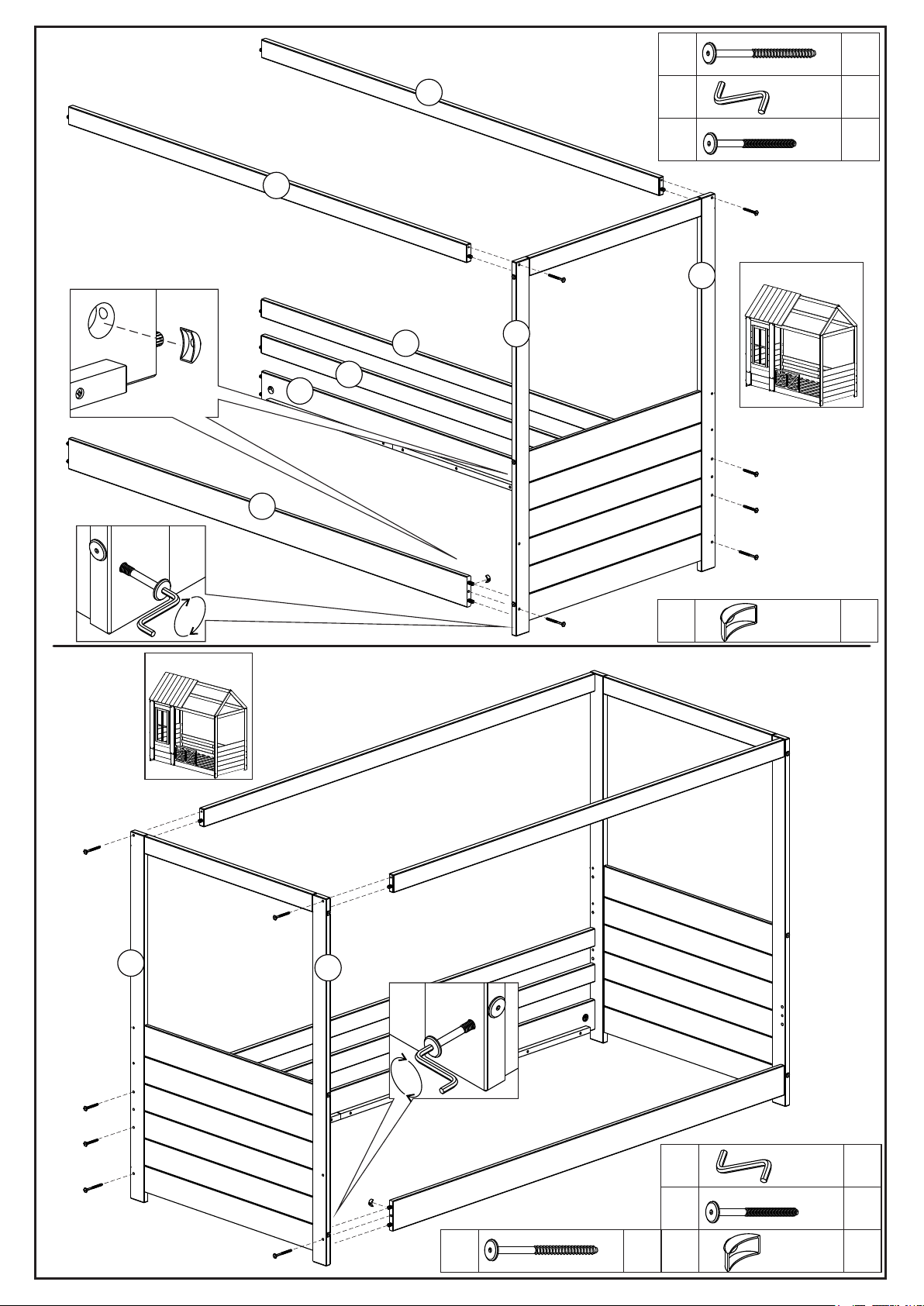

04
107
D
F
ø7x80
04
01
I
107
D
107
J
106
106
I
107
103
J
104
Option 01
ø1/4x100
D
D
D
I
02
05
D
Option 01
102
F
D
101
I
I
J
02
D
D
F
F
I
I
J
D
ø7x80
04
I
J
ø1/4x100
01
02
02
Page 8

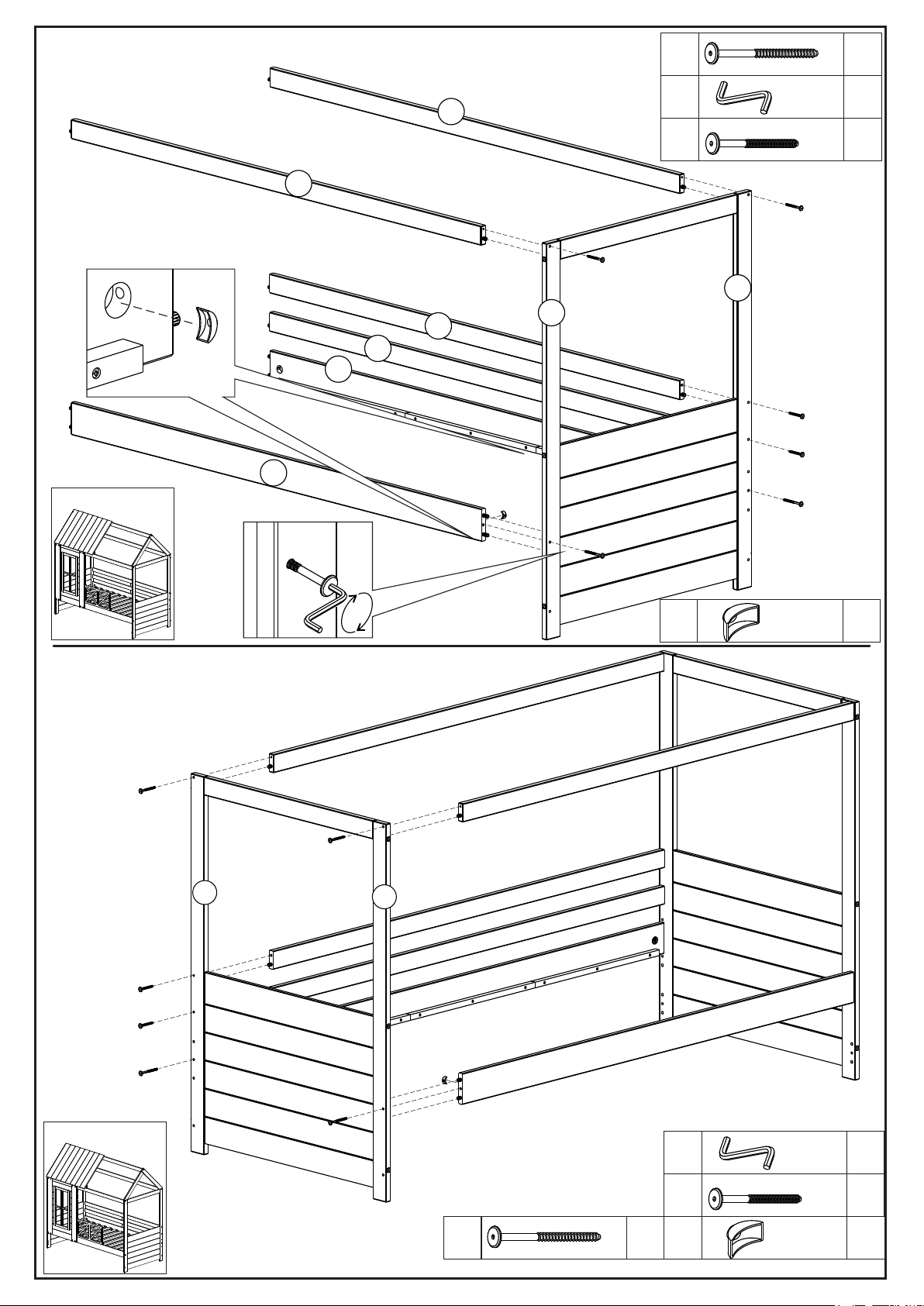

04.1
107
D
F
ø7x80
04
01
Option 02
I
107
D
104
107
J
106
107
106
I
103
J
I
ø1/4x100
02
D
D
D
I
05.1
D
D
D
I
102
D
F
101
J
J 02
Option 02
I
D
ø7x80
F
I
04
J 02
ø1/4x100
01
02
Page 9

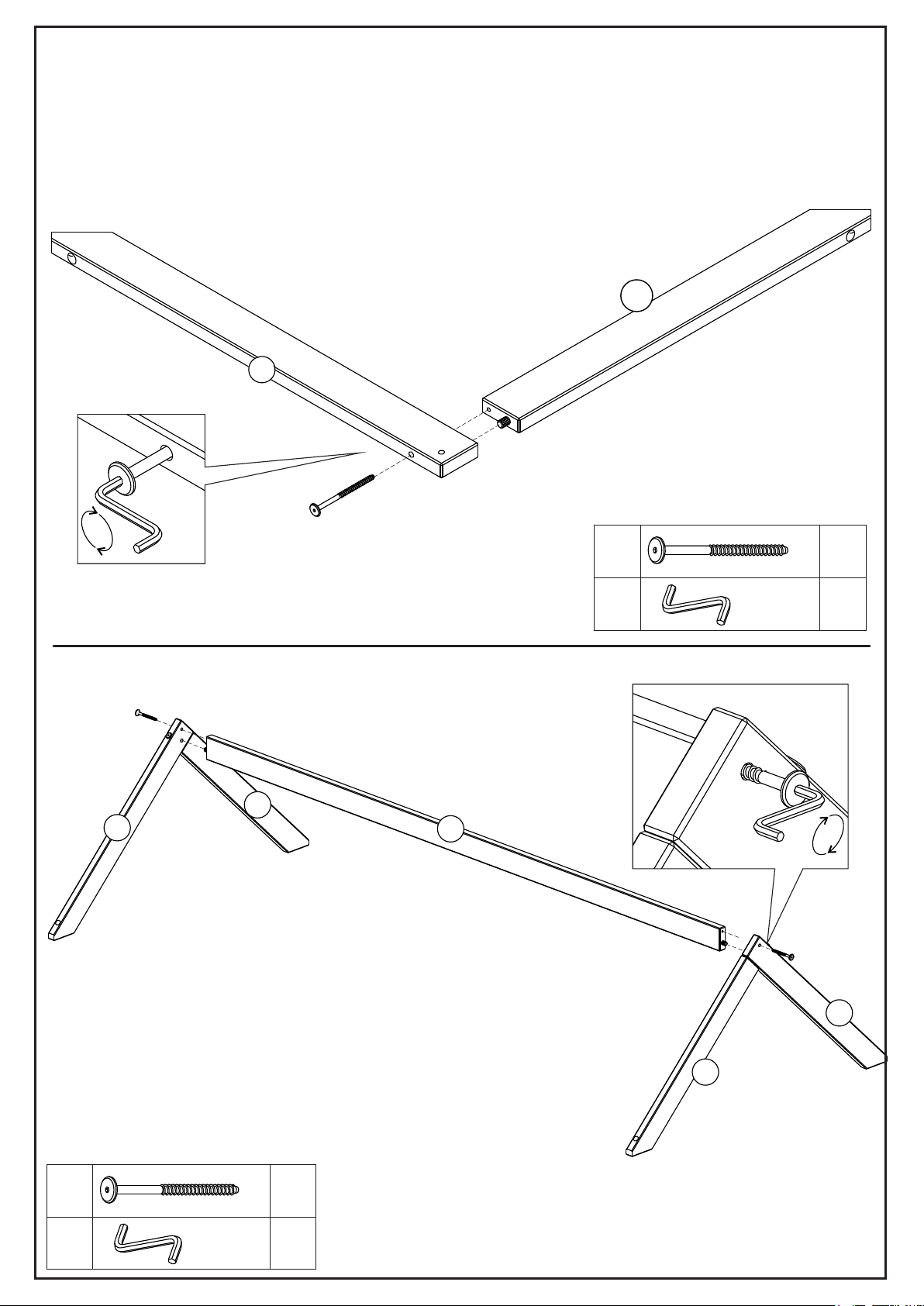

06
07
D
C
C
F
110
ø7x100
02
01
2x
109
F
C
D
109
110
ø7x80
D
107
F
D
109
110
02
F
01
Page 10

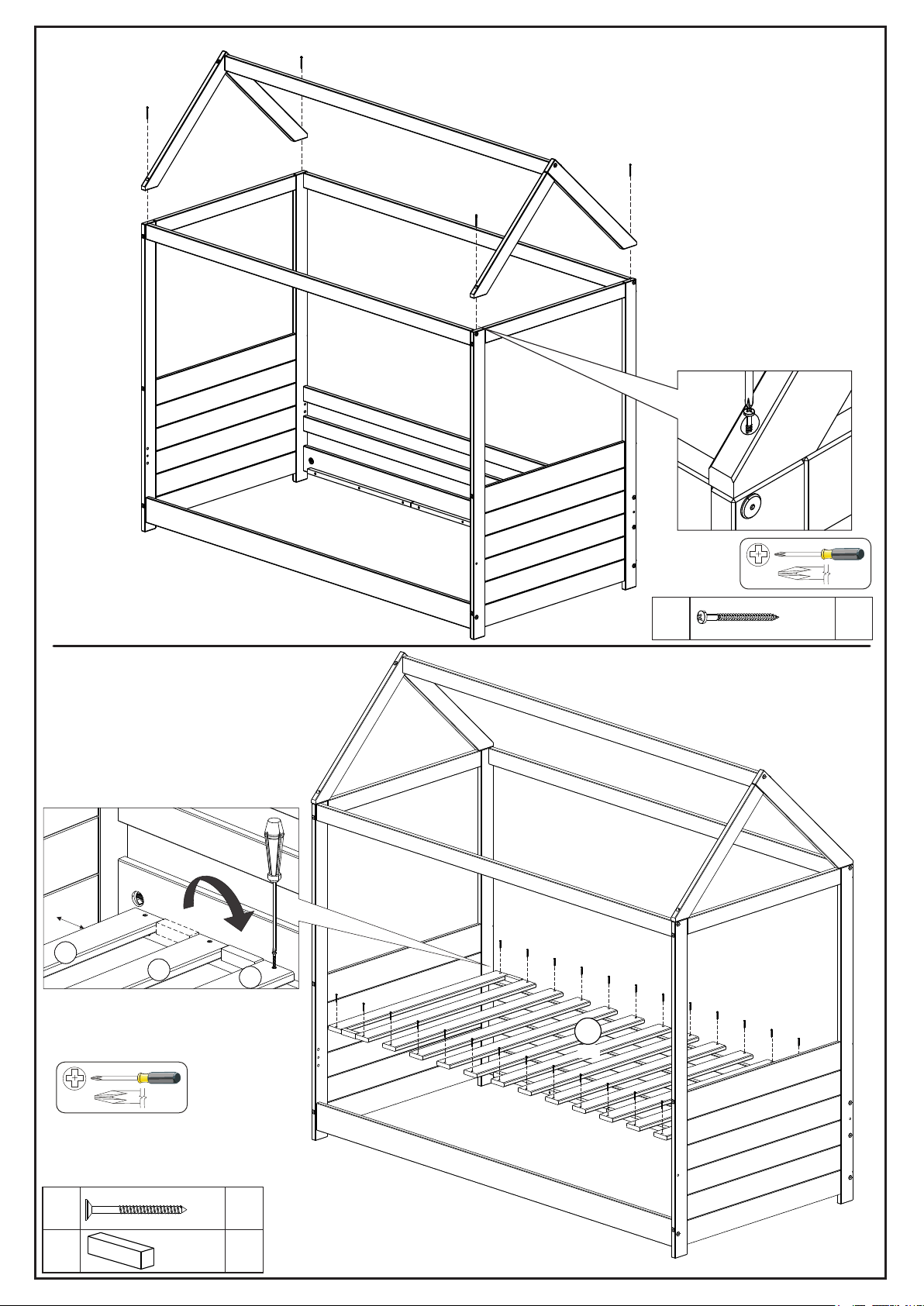

E
08
E
E
E
E
09
2 1/2"
111
111
E 04
G
G
K
111
K
G
K
K
K
K
K
K
K
K
G
K
K
K
K
K
K
111
13x
K
K
K
K
K
K
K
K
K
K
K
K
ø4x50
K
K
G
ø4x30
26
02
Page 11

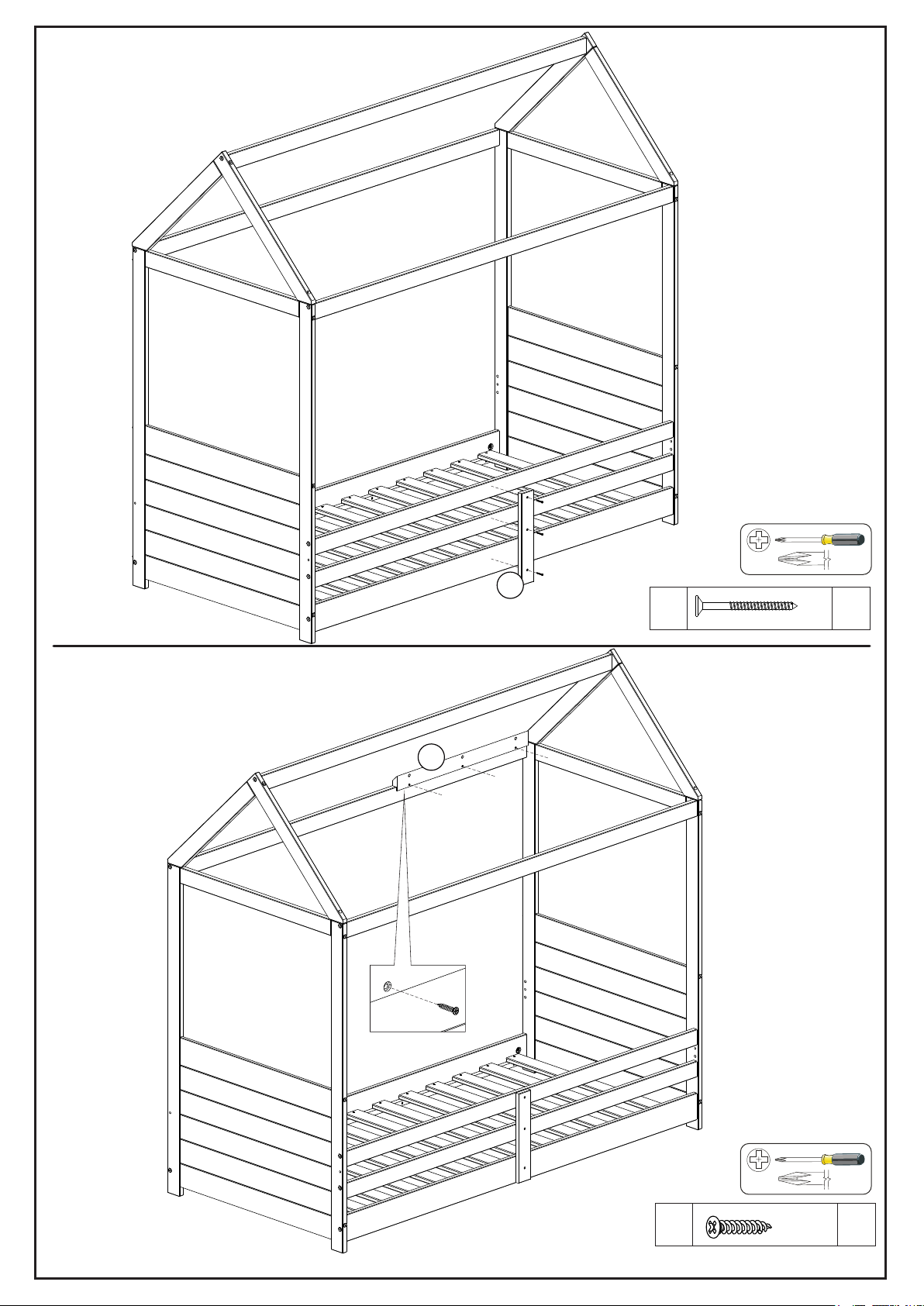

10
K
K
11
113
H
H
117
H
K
H
K
ø4x30
03
H
ø4x20
03
Page 12

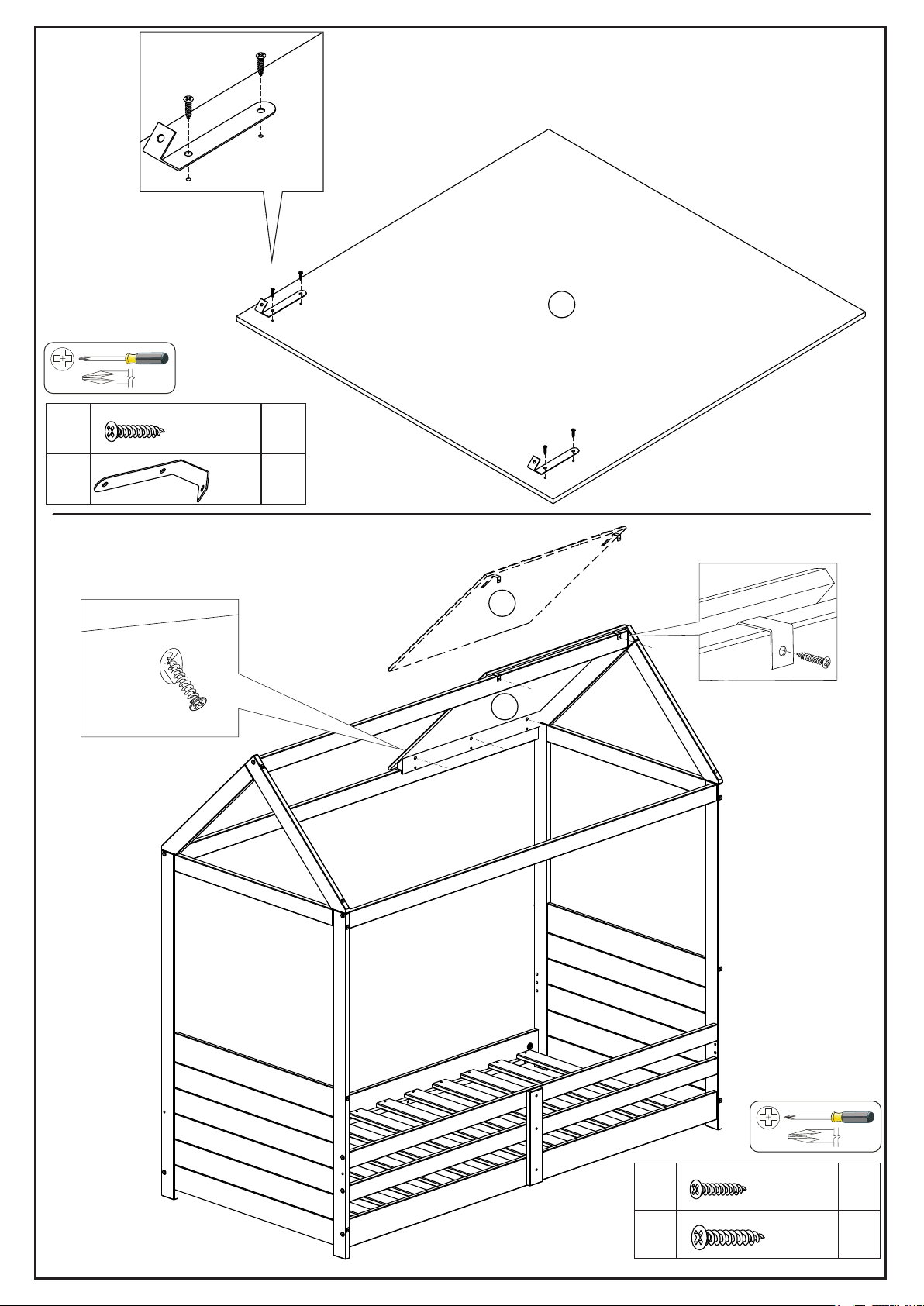

M
12
M
N
N
M
ø3.5x16
M
04
02
M
112
N
M
M
N
13
H
H
112
112
H
M
H
M
M
M 02
H 03
ø3.5x16
ø4x20
Page 13

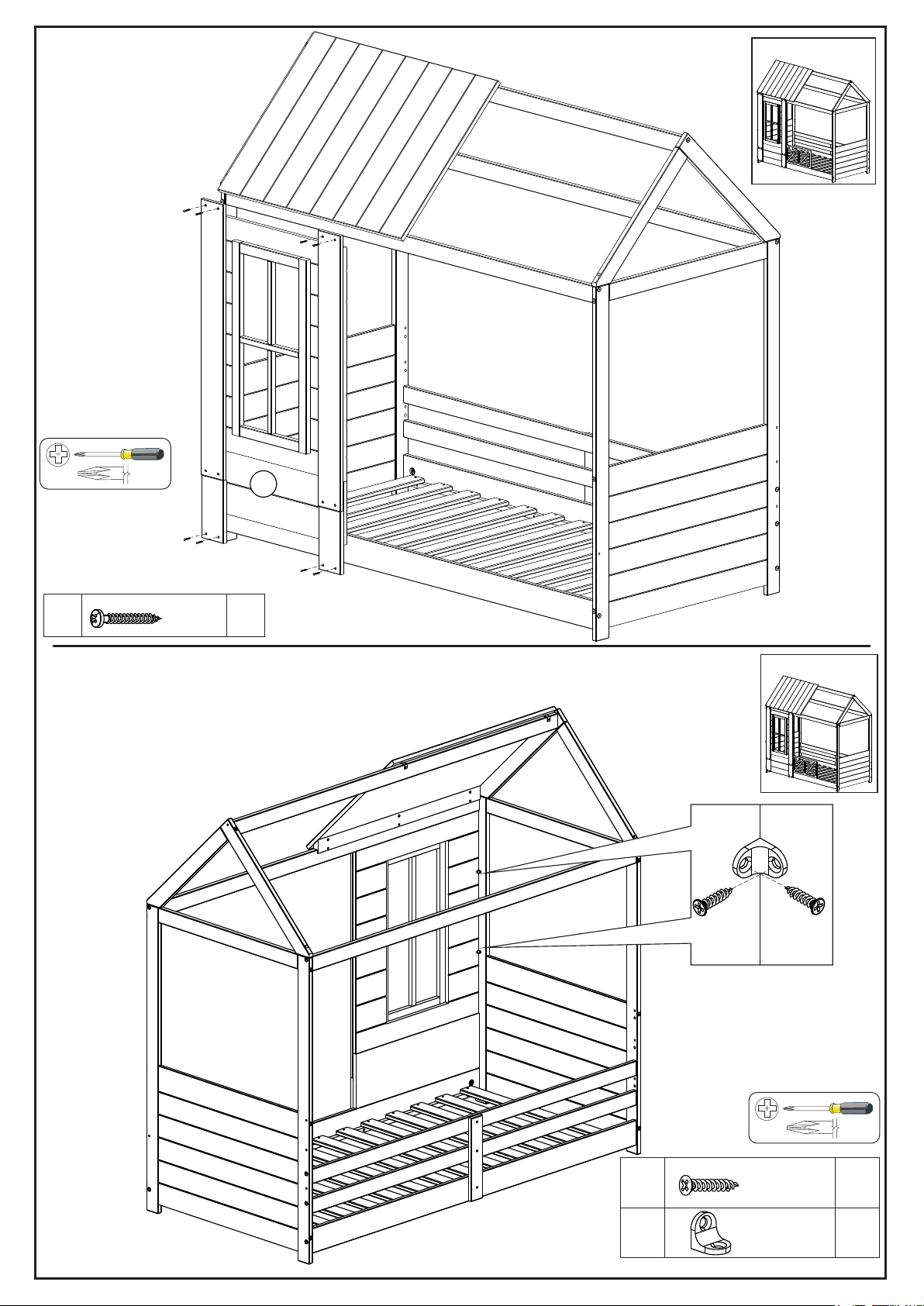

14
Option 01
B
B
B
B
108
B
B
B 08
ø4x25
15
B
B
M
Option 01
O
M
M
O
ø3.5x16
04
02
Page 14

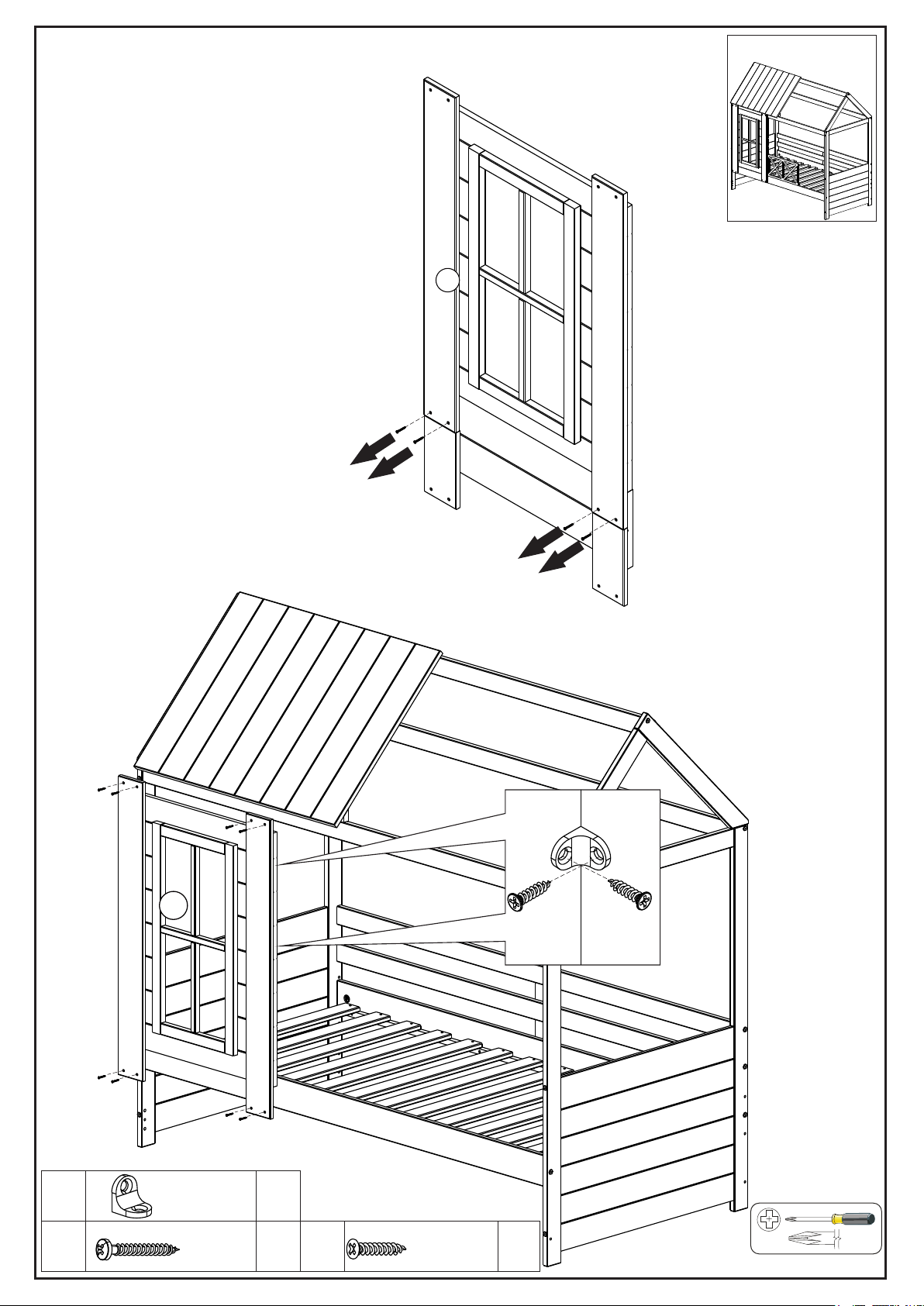

15.1
Option 02
108
B
B
B
B
108
B
B
B
B
O 02
M
O
M
B 08
ø4x25
M 04
ø3.5x16
Page 15

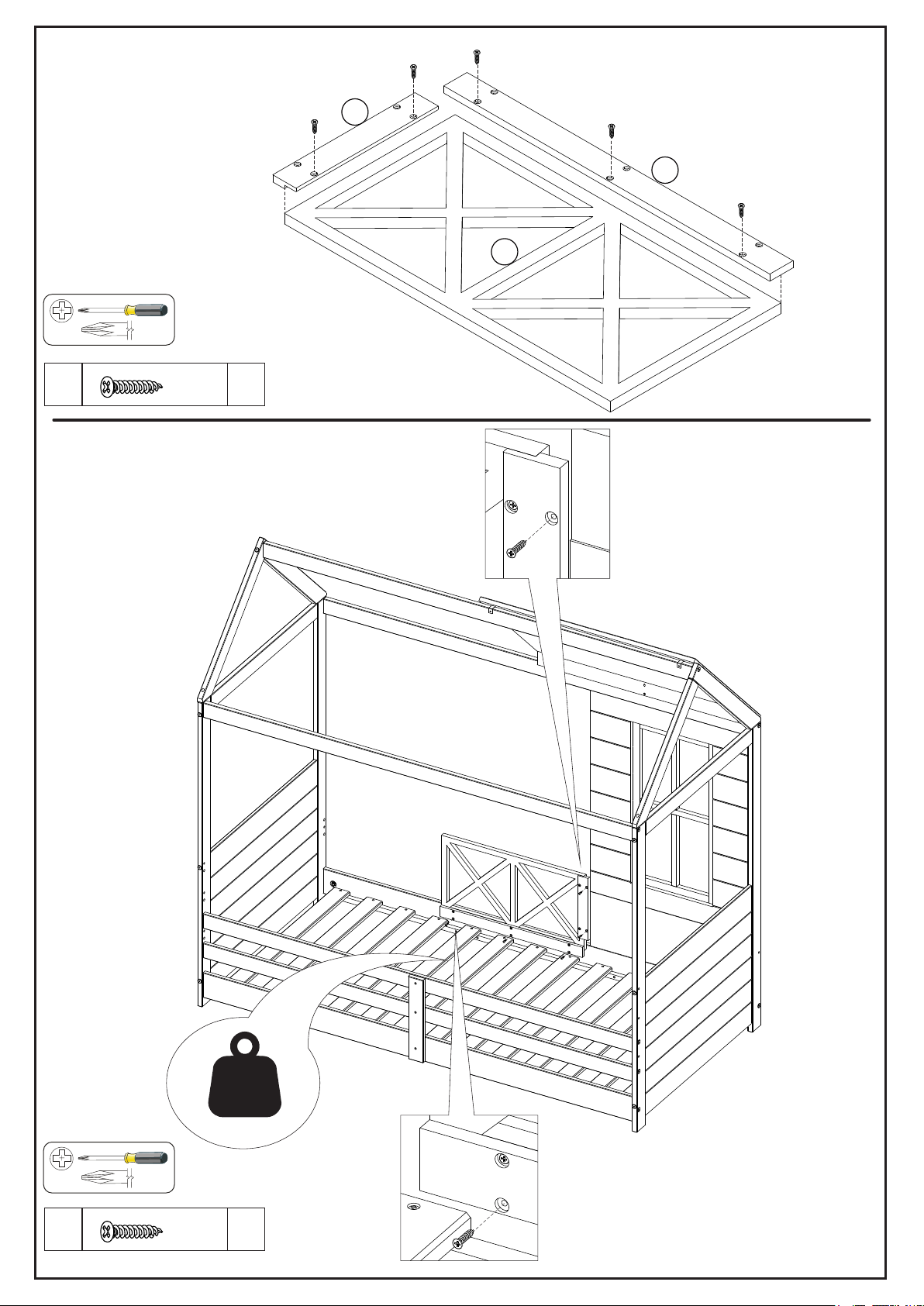

16
H
116
H
H
H
115
H
114
H
17
ø4x20
05
H
H
max
200 lbs
05
ø4x20
!
H
H
H
H
H
H
