ASSEMBLY INSTRUCTIONS
Read this instruction carefully. See hardwre and Furniture part list for guidance.
Be sure all parts are complate, before you assemble. Pace all wooden prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS: 1. Do not FULLY- TIGHTEN the nut or bolt until all nut and bolt is ready assembled.
2. Do not OVER - TIGHTEN the nut or bolt avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE: THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.

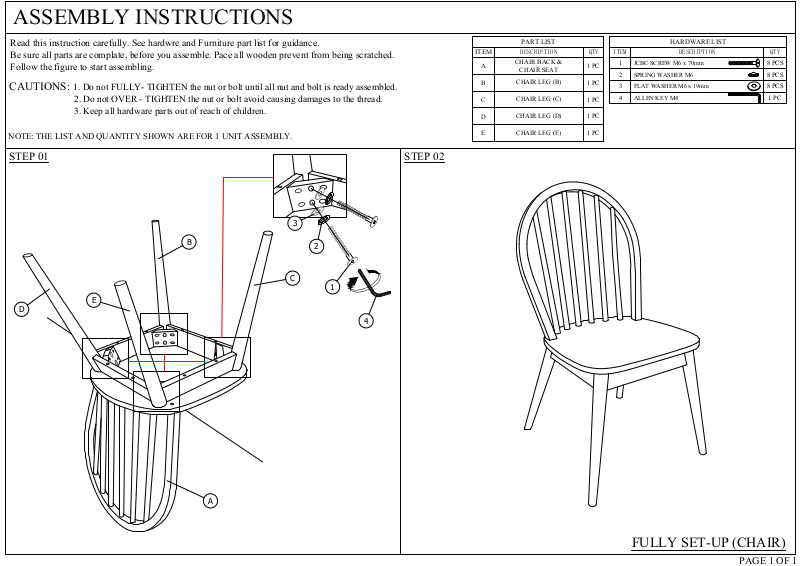

STEP 01 STEP 02
3
B
E
D
2
C
1
4
PART LIST
ITEM DESCRIPTION
A
B
C
D
E
CHAIR BACK &
CHAIR SEAT
CHAIR LEG (B)
CHAIR LEG (C)
CHAIR LEG (D)
CHAIR LEG (E)
QTY
ITEM DESCRIPTION
1 PC
1 PC
1 PC
1 PC
1 PC
1 JCBC SCREW M6 x 70mm 8 PCS
SPRING WASHER M6
2
FLAT WASHER M6 x 19mm
3
ALLEN KEY M4
4
HARDWARE LIST
QTY
8 PCS
8 PCS
1 PC
A
FULLY SET-UP (CHAIR)
PAGE 1 OF 1
