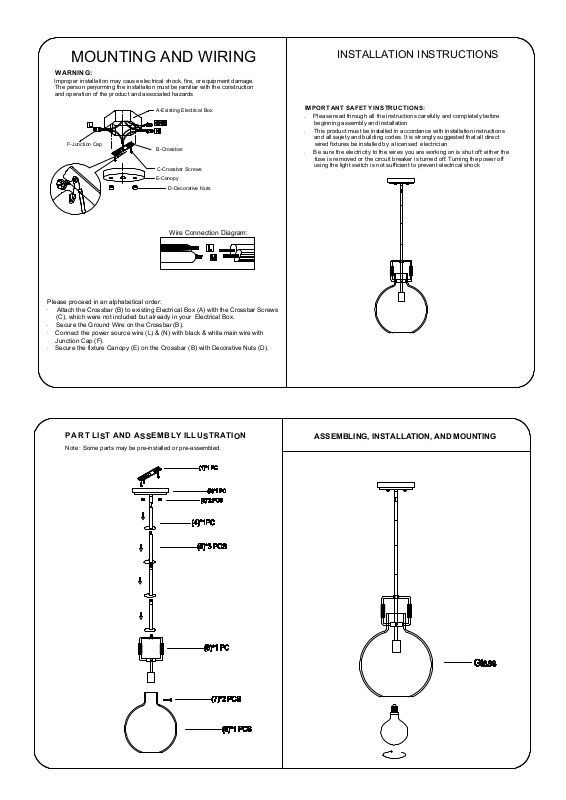

MOUNTING AND WIRING
WARNING:
Improper installation may cause electrical shock,fire, or equipment damage.
The person performing the installation must befamiliar with the construction
and operation ofthe product and associated hazards
INSTALLATION INSTRUCTIONS
A-Existing Electrical Box
F-Junction Cap
B-Crossbar
C-Crossbar Screws
E-Canopy
D-Decorative Nuts
Wire Connection Diagram:
Please proceed in an alphabetical order:
.
Attach the Crossbar (B) to existing Electrical Box (A) with the Crossbar Screws
(C), which were not included but already in your Electrical Box.
.
Secure the Ground Wire on the Crossbar (B).
.
Connect the power source wire (L) & (N) with black & white main wire with
Junction Cap (F).
.
Secure the fixture Canopy (E) on the Crossbar (B) with Decorative Nuts (D).
IMPOR TAN TSAFE T Y INSTRUCTIONS:
.
Please read through all the instructions carefully and completely before
beginning assembly and installation
.
This product must be installed in accordance with installation instructions
and all safety and building codes. It is strongly suggested that all direct
wiredfixtures be installed by a licensed electrician
.
Be sure the electricity to the wires you are working on is shut off; either the
use is removed or the circuit breaker is turned off. Turning the power o
f
using the light switch is not sufficient to prevent electrical shock
ff
P A RT L IST AND ASSEM BL Y ILLUSTR ATION
Note :Some parts may be pre-installed or pre-assembled.
ASSEMBLING, INSTALLATION, AND MOUNTING
