P.1
Assembly Instructions
P.2
Acacia Wood
Beautiful Natural Wood
We build our quality outdoor furniture using Acacia, an exotic hardwood that is both
durable and attractive. Natural color variations of chocolate, golden and coffee tones
and swirling, complex grain patterns give it an interesting and dynamic appearance.
With age and exposure to sunlight and other outdoor elements, natural Acacia can
develop some non-structural cracking or color fading. With loving treatment, our
Acacia furniture products can outlast the harshest of elements for years to come.
Outdoor Furniture Care / Cleaning Guidelines
I. Acacia Wood Products - To maintain the vibrant natural colors and complex grain
patterns of acacia wood, regular oil treatment is required. We recommend applying
teak oil at the beginning and end of each patio season. Teak oil is often available at
your local hardware store.
- With age and exposure to sunlight and other outdoor elements, natural Acacia can
develop some non-structural cracking or color fading.
- If your Acacia furniture is kept near a pool, chlorine from splashing can damage and
fade the color of your items. Rinse with a hose and towel dry to prevent chlorine
damage.
- Extended sun (UV) and moisture contact are the main causes of damage and
discoloration. We recommend covering acacia products when not in use.
- Storage should be in cool and dry conditions.
II. All Weather /Metal Products - To keep these products clean and looking sharp, we
recommend washing these products as needed with warm, soapy water and wipe down
with a clean, dry cloth.
- Extended sun and moisture contact are the main causes of damage and
discoloration. We recommend covering patio products when not in use.
- Storage should be in cool and dry conditions.
III. Cushions - To clean our comfortable cushions, we recommend pulling the cover off of
the cushion and washing on the gentle cycle in your washing machine. It is also
recommended that the cushion covers are air dried.
- Extended sun (UV) and moisture contact are the main causes of damage and
discoloration. We recommend covering patio products when not in use.
- Storage should be in cool and dry conditions.
Parts List
P.3
3
4
5
2
6
1
7
8
P.4
Hardware List
A
B
M6x80mm 10
4mm Hex Key 2
Bolt
pcs
pcs
Philips head screwdriver required for assembly
(not included)
The hardware quantities listed above are required for proper assembly.
Some extra hardware may also have been included.
P.5
Step 1
Using bolt (A) attach part (1) to parts (3,6,7,8) with hex key (B ) ,attach part (4) to part (1) as per
diagram .
Note: Do not fully tighten all the bolts .
6
A
3
4
A
B
1
A
A
A
7
8
P.6
Step 2
Using bolt (A) attach part (2) to parts (3,6,7,8) with hex key (B ) ,attach part (4) to part (2) as per
diagram .
Note : Fully tighten all the bolts .
8
7
6
A
A
A
3
4
2
A
A
B

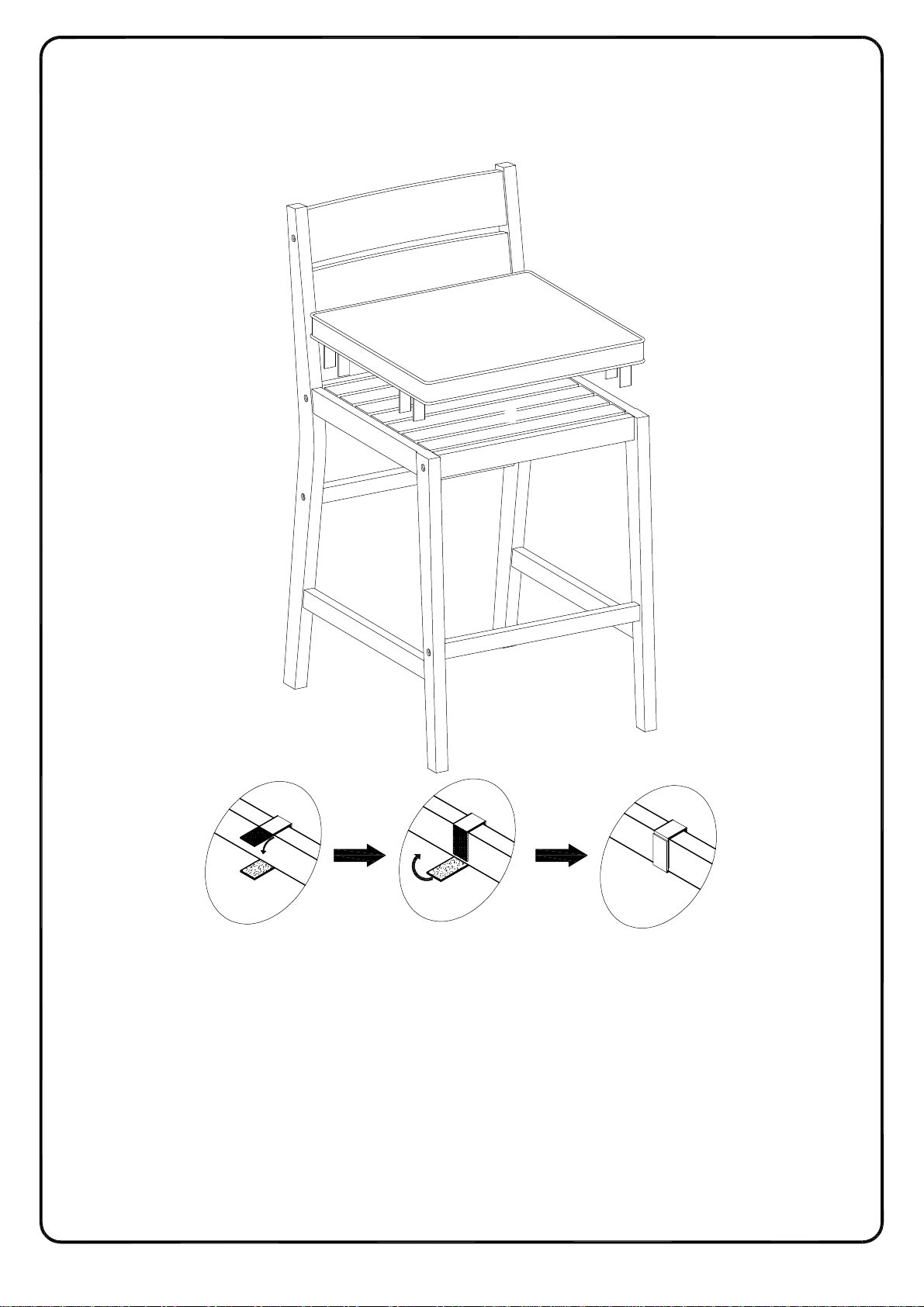

Step 3
P.7
Place part (5) as per diagram , then tighten the Velcro to part (6) as per diagram.
5
6
6
6
6
Step 4
P.8
Final Assembly
