Sand & Stable W002673786 Assembly Instructions

Pantry
IMPORTANT NOTE
Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occurring to the parts.
We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.

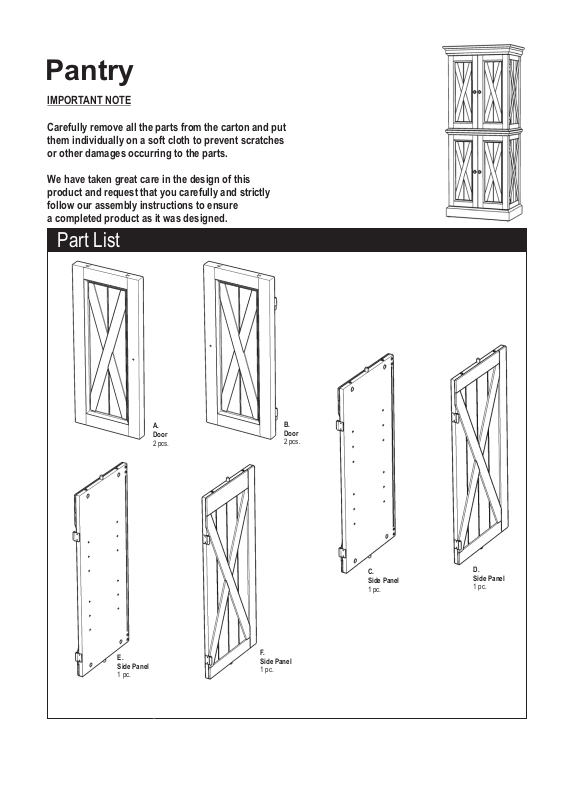

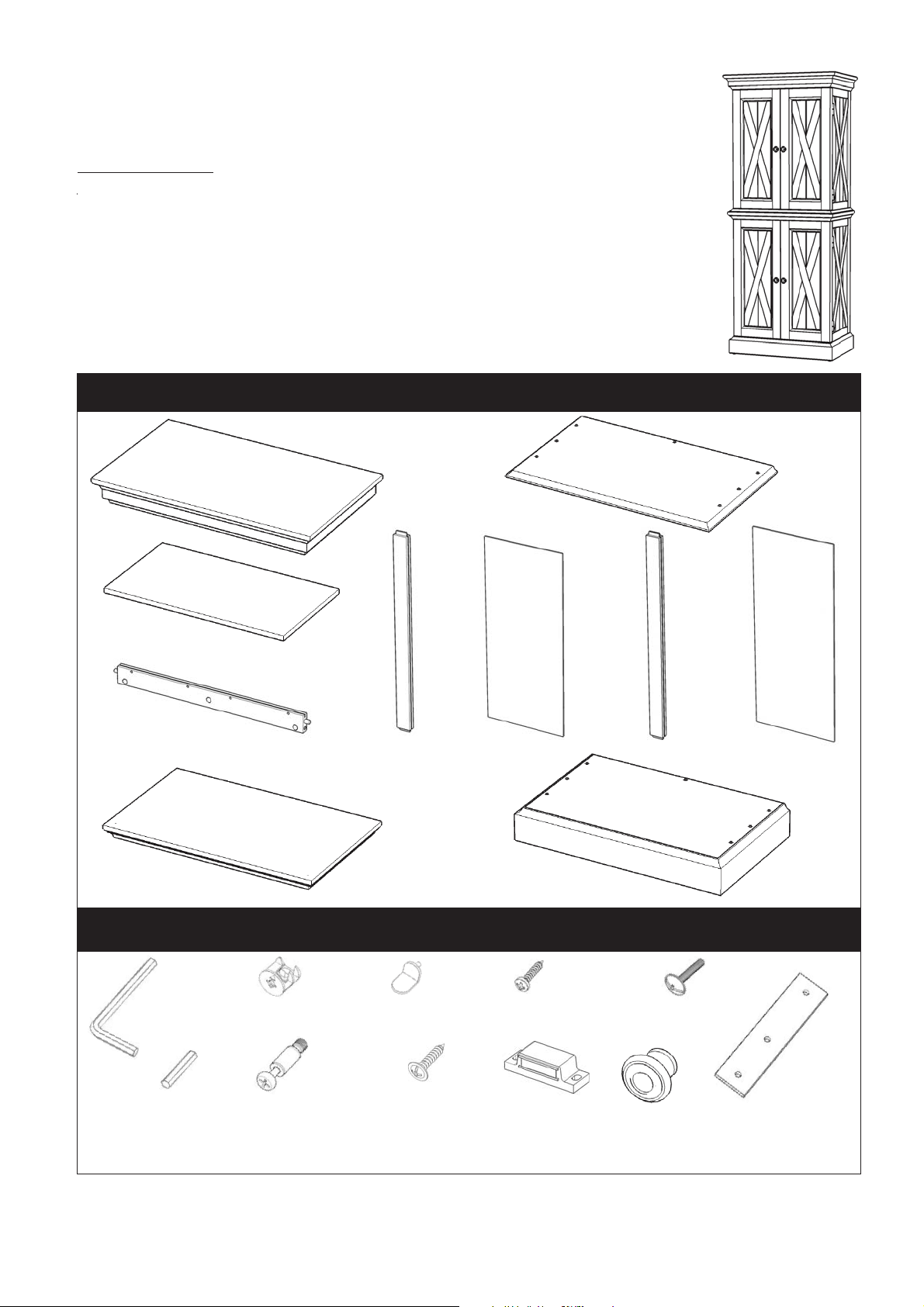

Part List

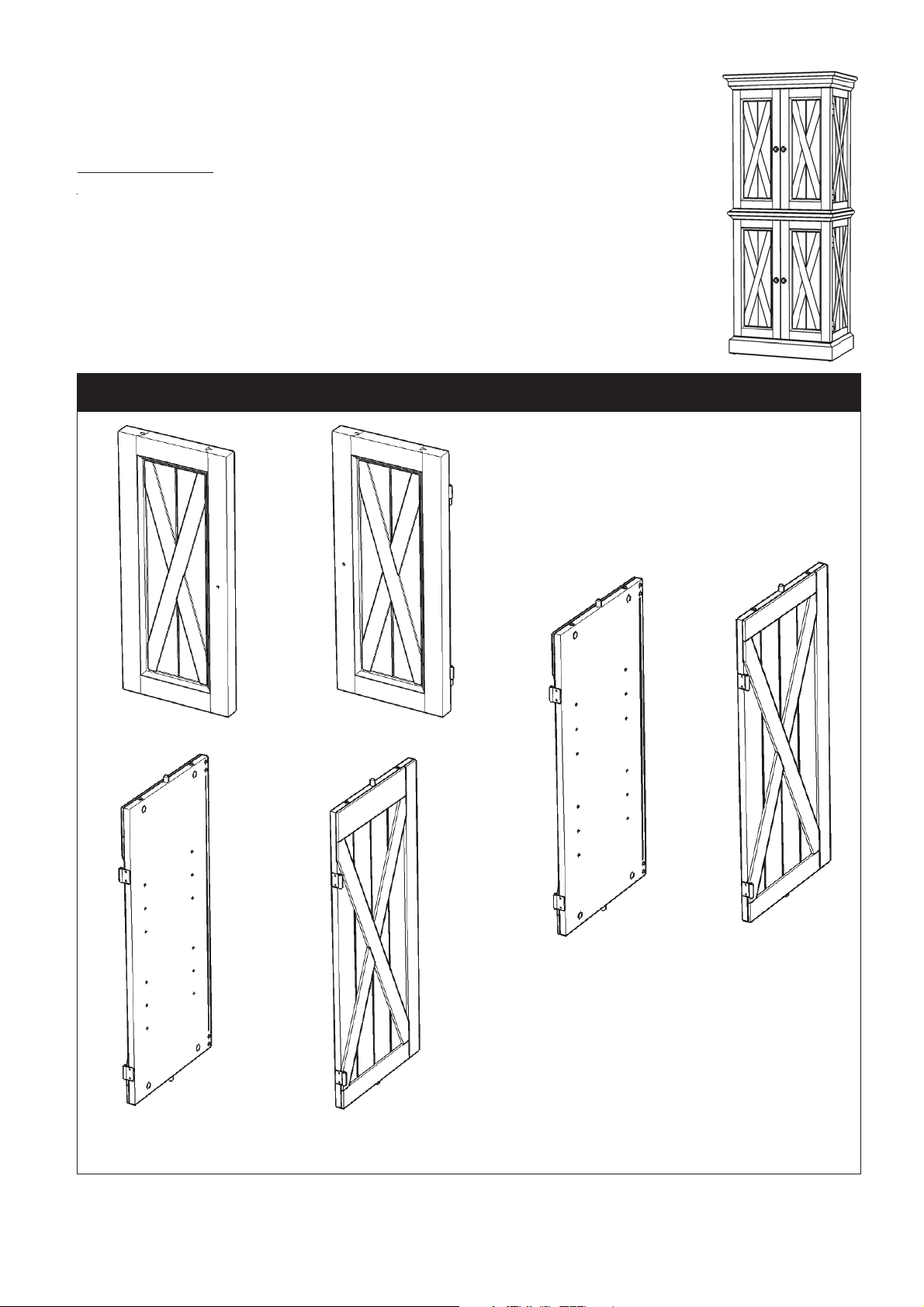

E. Side Panel
1 pc.
A. Door
2 pcs.
B. Door
2 pcs.
F. Side Panel
1 pc.
C. Side Panel
1 pc.
D. Side Panel
1 pc.
For assembly see instructions in carton 88 5523 692
Pantry
IMPORTANT NOTE
Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occurring to the parts.
We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
Part List
I. Shelf
4 pcs.
J. Back Stretcher
4 pcs.
G. Top
1 pc.
K. Back Piece
1 pc.
O. Top
1 pc.
L. Back Panel
2 pcs.
M. Back Piece
1 pc.
H. Bottom
1 pc.
N. Back Panel
2 pcs.
P. Bottom
1 pc.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Cam Lock
28 pcs.(+6 extra)
Cam Lock Screw
28 pcs.(+2 extra)
Adjustable Pin
16 pcs. (+1 extra)
M3.5x16 Wood Screw
20 pcs. (+1 extra)
M3x15 Wood Screw for Magnet
8 pcs. (+1 extra)
Magnet
2 pcs.
M4x45 Machine Screw
4 pcs.
Also need the following from carton 88 5523 691
Tools required for assembly : Phillips screwdriver, Drill, 3/8” Drill Bit, Level
Knob
4 pcs.
Steel Plate Connector
2 pcs.
Assembly Instructions 2/6
IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench in a safe place as you may need to tighten up the Cam Locks in the future. * Use a soft cloth between these parts and the floor. * After assembly, item must be level to work properly. Use the included adjustable levelers to level.
Cam Lock Screw
C
D
Cam Lock Screw
H
P
STEP 1

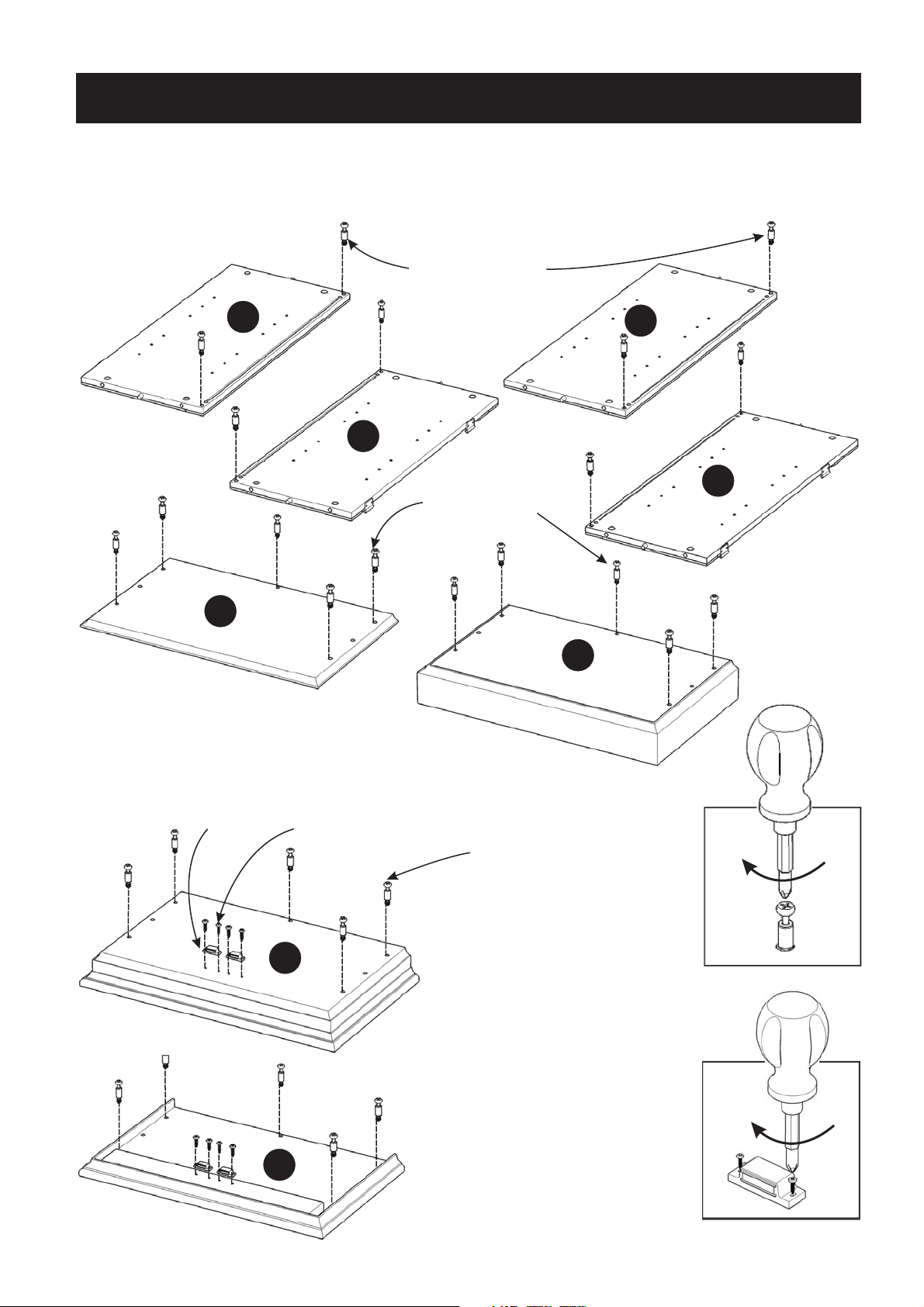

Put Cam Lock Screws into the pre-drilled holes of Side Panels (C), (D), (E), (F) and Bottoms (H), (P) and tighten. (see Figure 1)
E
F
Magnet
Wood Screw for Magnet
G
O
Cam Lock Screw
STEP 2
Put Cam Lock Screws into the pre-drilled holes of Tops (G), (O) and tighten.
Attach Magnets to Tops (G) and (O) with Wood Screws for Magnet. (see Figure 2)
Figure 1
Figure 2
Assembly Instructions 3/6
C
Cam Lock
L
H
J
K
STEP 3

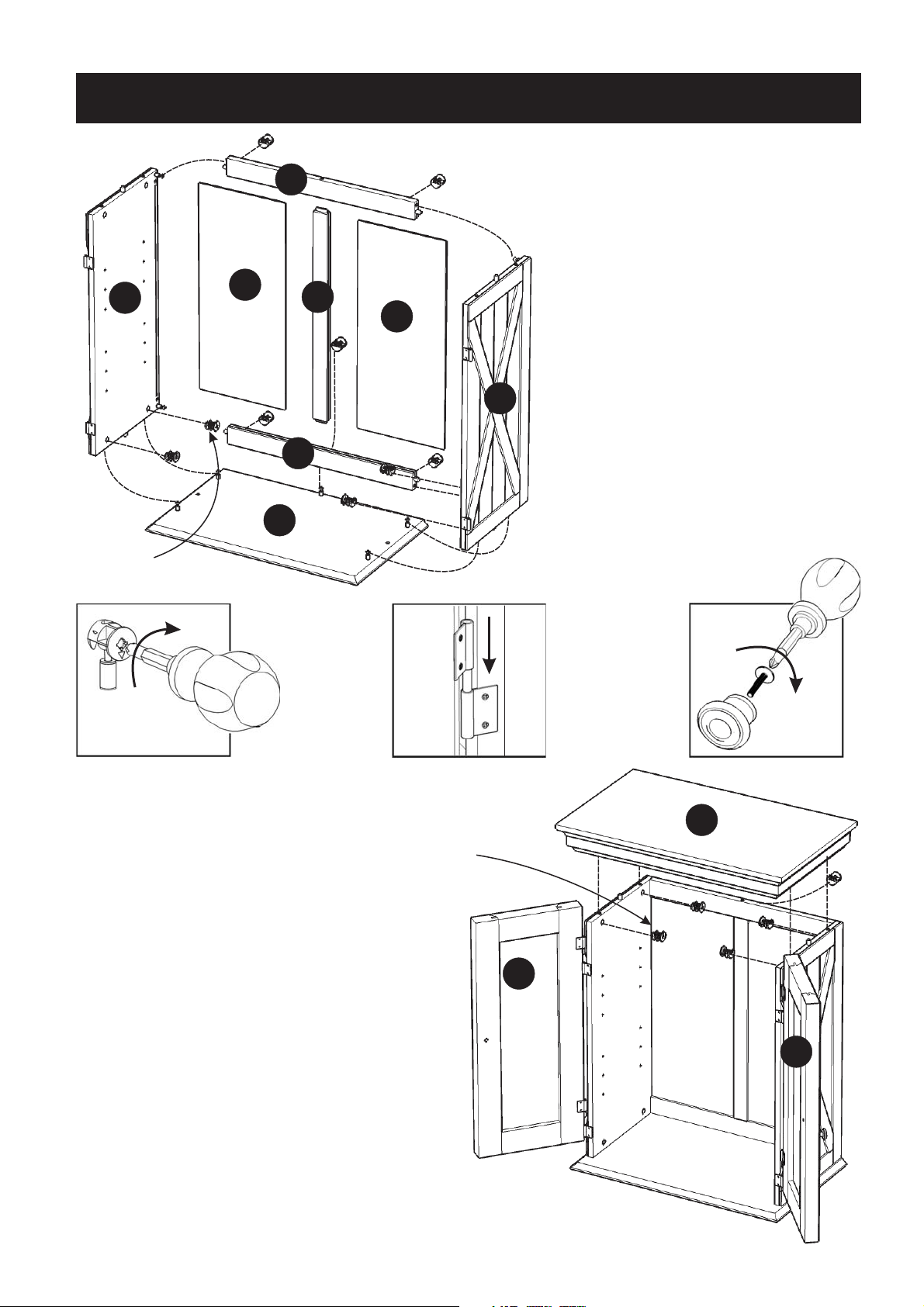

Attach Back Piece (K) to Back Stretchers (J).
Slide Back Panels (L) into position.
L
Attach Side Panels (C) and (D) to unit with Cam Locks. (See Figure 3)
D
Attach the unit to Bottom (H) with Cam Locks.
J
Figure 3
Cam Lock
STEP 4
Attach Doors (A) and (B) to unit by sliding the door lift hinges into the side panel lift hinges. (see Figure 4)
Attach Top (G) to unit with Cam Locks.
Assemble Knobs to Doors (A) and (B) with Machine Screws. (see Figure 5)
Figure 4
A
Figure 5
G
B
Assembly Instructions 4/6
STEP 5

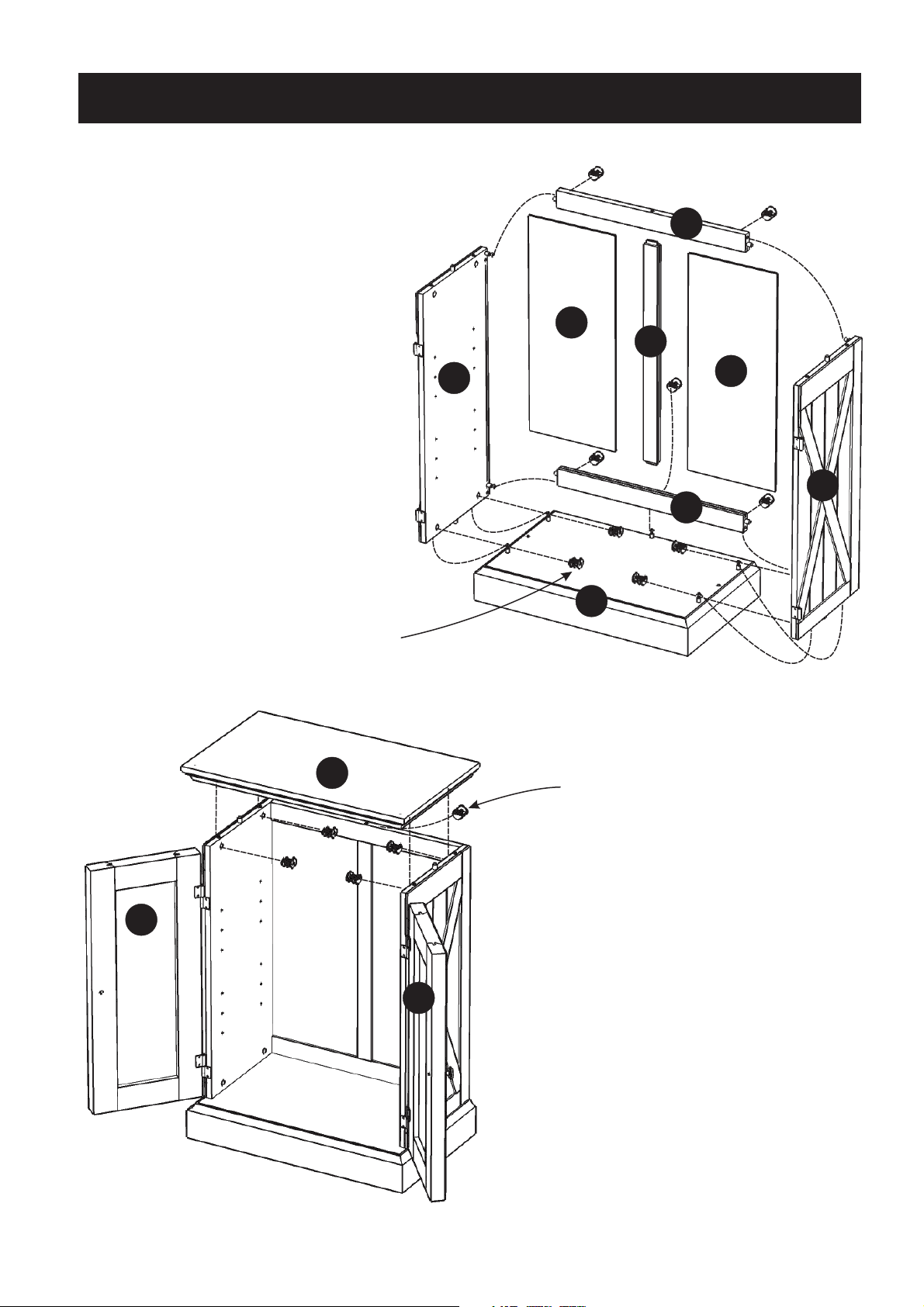

Attach Back Piece (M) to Back Stretchers (J).
Slide Back Panels (N) into position.
Attach Side Panels (E) and (F) to unit with Cam Locks.
Attach the unit to Bottom (P) with Cam Locks.
Cam Lock
E
J
N
M
N
F
J
P
A
O
B
Cam Lock
STEP 6
Attach Doors (A) and (B) to unit by sliding the door lift hinges into the side panel lift hinges.
Attach Top (O) to unit with Cam Locks.
Assemble Knobs to Doors (A) and (B) with Machine Screws.
Assembly Instructions 5/6
STEP 7

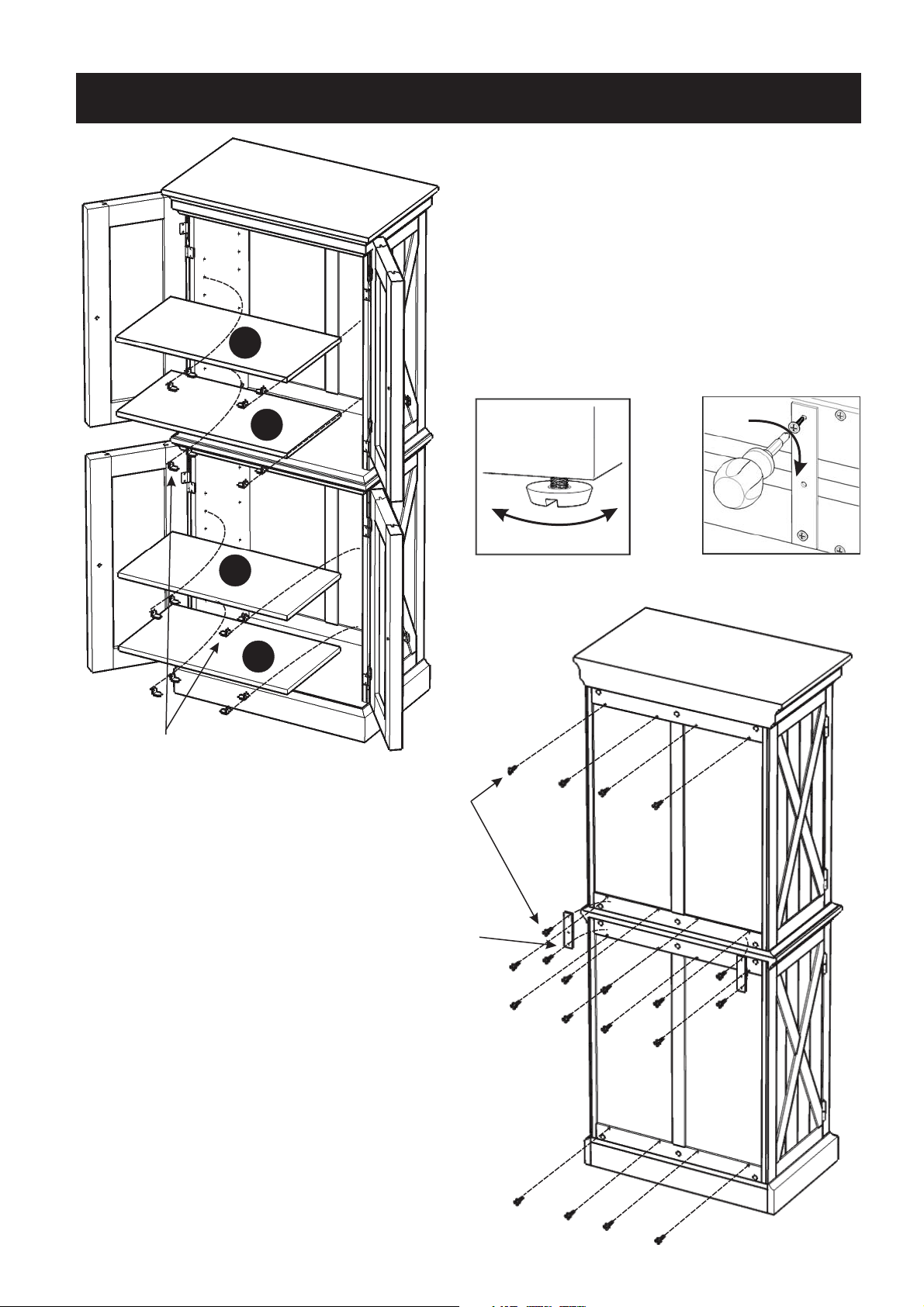

Place the top unit onto the base unit.
Insert the Adjustable Pins into the side panels at the desired level.
Adjustable Pin
I
Place Shelves (I) into position.
I
I
Figure 6
Figure 7
I
Wood Screw
Steel Plate Connector
STEP 8
To level the unit, adjust the adjustable levelers on the bottom of unit. (see Figure 6)
Insert Wood Screws from the back of the unit and tighten.
Note: Unit must be level before tightening these screws.
Attach Steel Plate Connectors with Wood Screws. (see Figure 7)
Assembly Instructions 6/6
Attention!

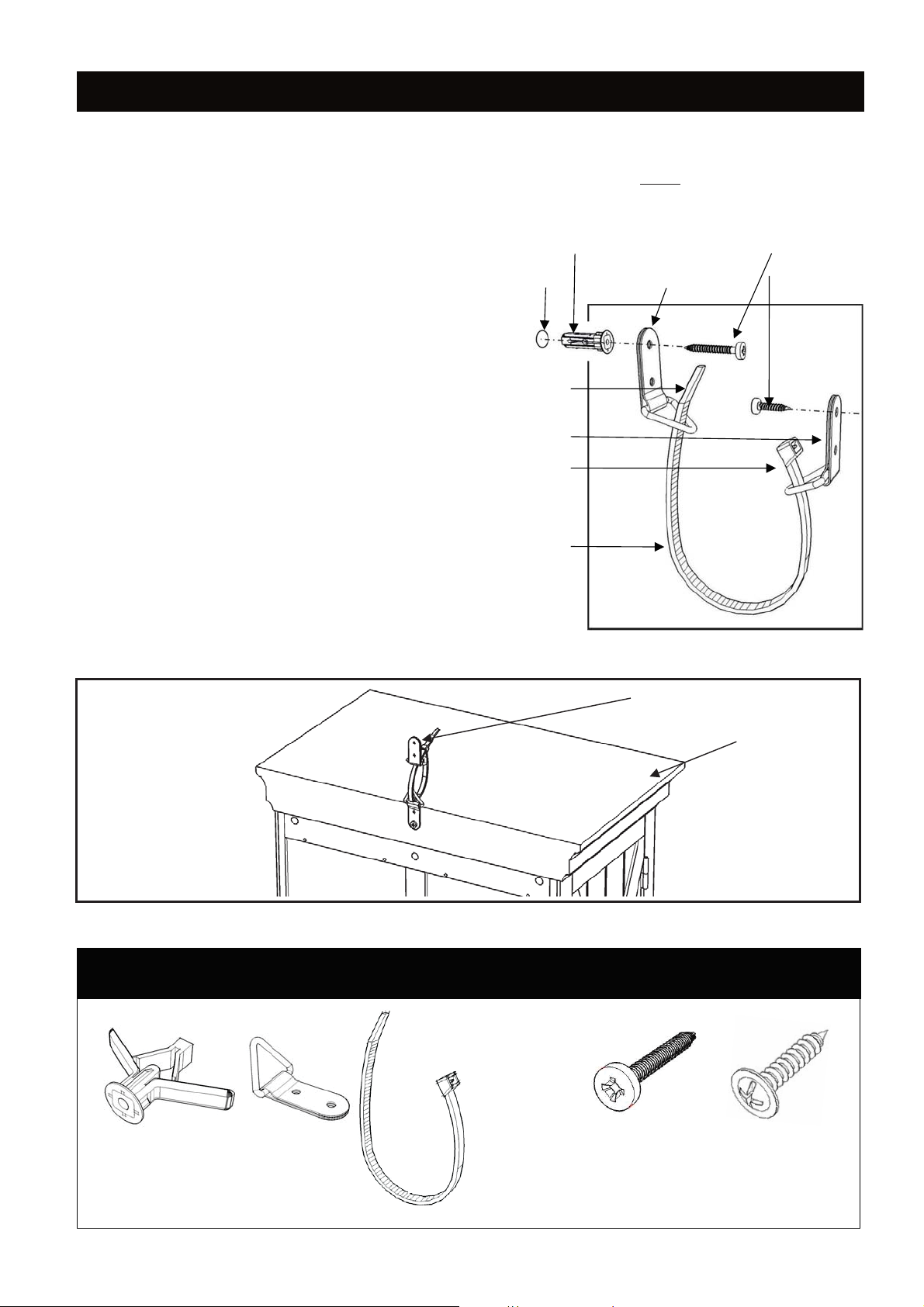

To help reduce the risk of the unit tipping over, the Tipover Restraint be installed followingmust these instructions exactly!
Place unit at desired location.
Drill a hole in wall3/8” at the appropriate location.
Insert Anchor into the wall hole and attach Bracket with Wall Screw.
Attach Bracket at pre-drilled hole at top of unit with Wood Screw.
Use Tipover Restraint to secure Bracket on unit to Bracket on wall. (see Figure X)
Put tie end of Tipover Restraint into loop end of Tipover Restraint and pull until tight.
Anchor in wall
3/8” wall hole
tie end
Bracket at top of unit
loop end
Tipover
Restraint
Bracket on wall
Wall Screw
Wood Screw
Figure X
Hardware List
Anchor
1 pc.(+1 extra)
Bracket
2 pcs.(+1 extra)
Tipover Restraint
1 pc.(+1 extra)
Drill 3/8” hole in wall
Top of unit
M3.5x40 Wall Screw
1 pc.(+1 extra)
M3.5x16 Wood Screw
1 pc.(+1 extra)
