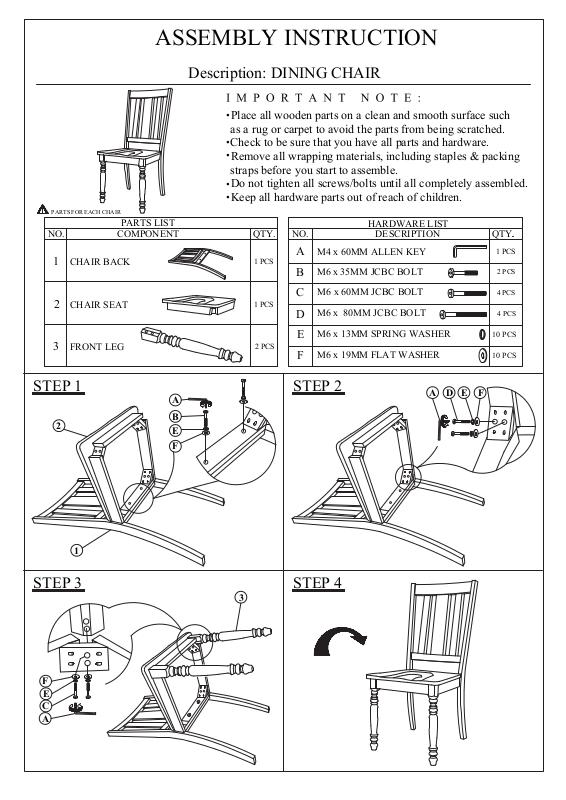

ASSEMBLY INSTRUCTION
PARTS FOR EACH CHAIR
NO.
CHAIR BACK
1
&+$,5 SEAT
2
FRONT LEG
3
PARTS LIST
COMPONENT
Description: DINING CHAIR
.
Place all wooden parts on a clean and smooth surface such
as a rug or carpet to avoid the parts from being scratched.
.
Check to be sure that you have all parts and hardware.
.
Remove all wrapping materials, including staples & packing
straps before you start to assemble.
.
Do not tighten all screws/bolts until all completely assembled.
.
Keep all hardware parts out of reach of children.
HARDWARE LIST
QTY.
1 PCS
1 PCS
2 PCS
NO.
A
M4 x 60MM ALLEN KEY
M6 x 35MM JCBC BOLT
B
M6 x 60MM JCBC BOLT
C
M6 x 80MM JCBC BOLT
D
M6 x 13MM SPRING WASHER
E
M6 x 19MM FLAT WASHER
F
DESCRIPTION
QTY
1 PCS
2 PCS
4 PCS
4 PCS
10 PCS
10 PCS
STEP 1 STEP 2
$
%
(
)
STEP 3 STEP 4
$ ' ( )
)
(
&
$
