Sand & Stable W001079891 Installation & Assembly

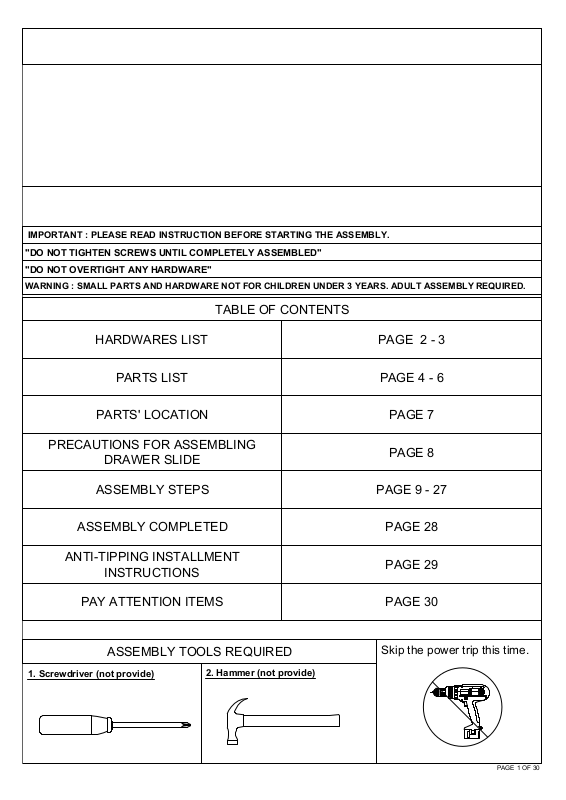

IMPORTANT : PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY.

"DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED"

PAGE 1 OF 30

"DO NOT OVERTIGHT ANY HARDWARE"

WARNING : SMALL PARTS AND HARDWARE NOT FOR CHILDREN UNDER 3 YEARS. ADULT ASSEMBLY REQUIRED.

TABLE OF CONTENTS

HARDWARES LIST

PARTS LIST

PARTS' LOCATION

PRECAUTIONS FOR ASSEMBLING

DRAWER SLIDE

ASSEMBLY STEPS

ASSEMBLY COMPLETED

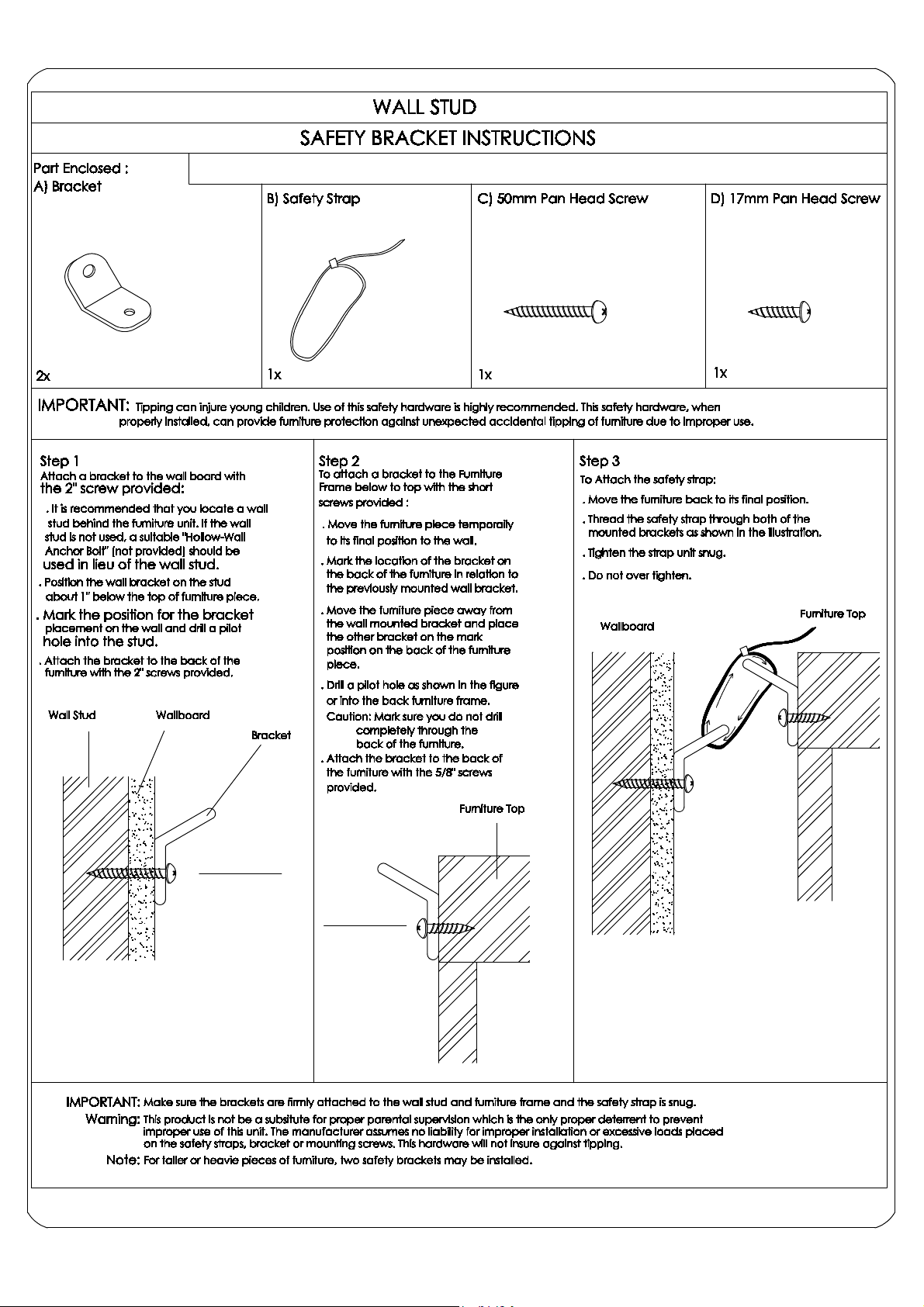

ANTI-TIPPING INSTALLMENT

INSTRUCTIONS

PAY ATTENTION ITEMS

PAGE 2 - 3

PAGE 4 - 6

PAGE 7

PAGE 8

PAGE 9 - 27

PAGE 28

PAGE 29

PAGE 30

ASSEMBLY TOOLS REQUIRED

1. Screwdriver (not provide)

Skip the power trip this time.

2. Hammer (not provide)

DR ASSEMBLY INSTRUCTION

ITEM

A

B

C

D

E

F

G

I

L

M

DESCRIPTION

MINIFIX CAM LOCK

MINIFIX CAM BOLT

WOOD DOWEL (M8 x 25MM)

WOOD DOWEL (M6 x 25MM)

JCBC SCREW M6 x 35MM

SPRING WASHER M6 x 13MM

FLAT WASHER M6 x 19MM

TRUSS M-SCREW (20MM)

6/8" NAIL

HANDLE

QTY

76 PCS

38 PCS

48 PCS

4 PCS

12 PCS

24 PCS

6 PCS

DRAWING

HARDWARES LIST

PAGE 2 OF 30

MORE HARDWARES DETAIL IN NEXT PAGE...

DR ASSEMBLY INSTRUCTION

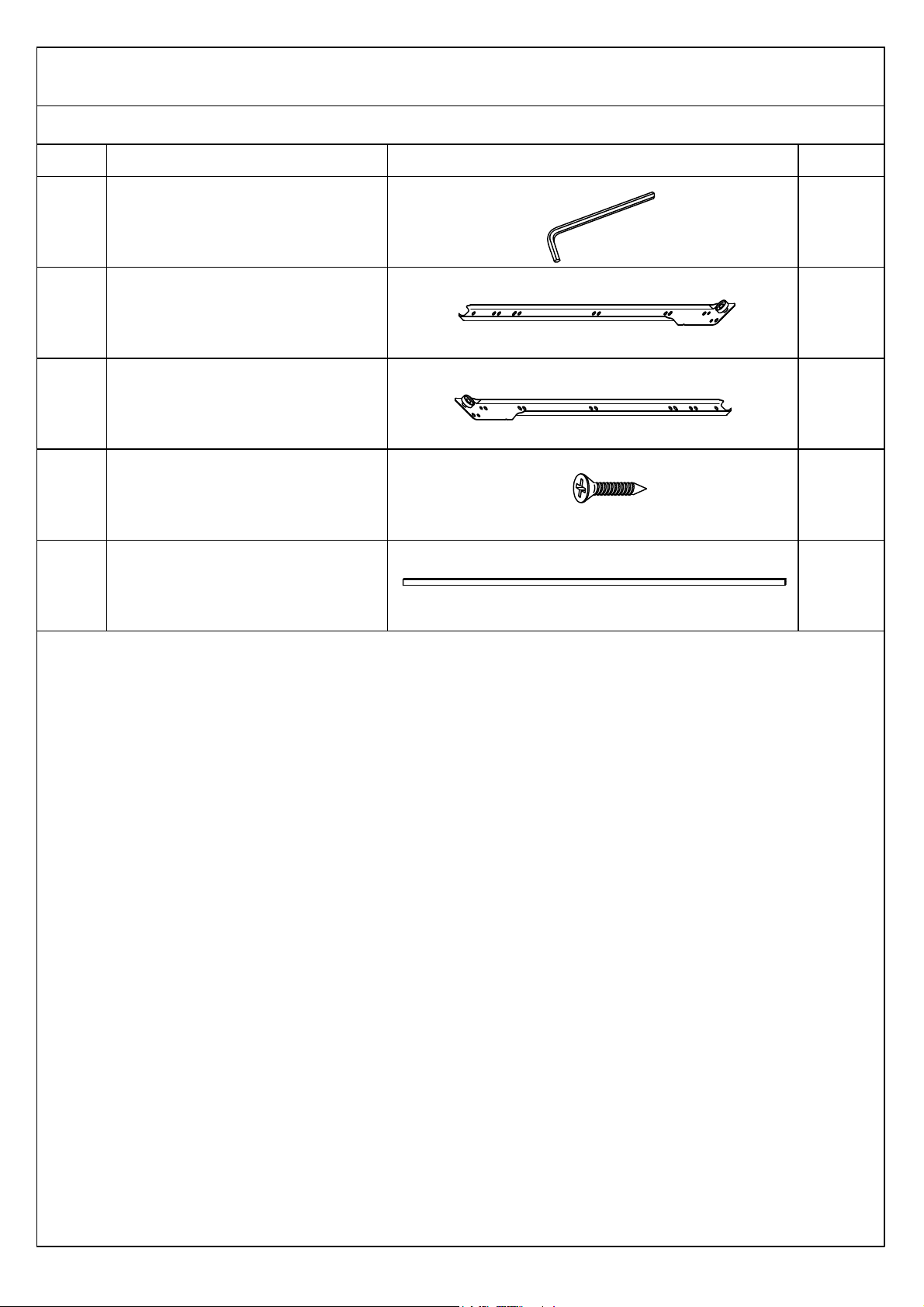

HARDWARES LIST

ITEM

N

O

P

Q

R

DESCRIPTION

M4 ALLEN KEY (65MM)

LEFT DRAWER SLIDE

RIGHT DRAWER SLIDE

CSK SCREW M3 x 10mm

PLASTIC STRIP (H SHAPE)

QTY

1 PC

6 PCS

48 PCS

1 PC

DRAWING

PAGE 3 OF 30

DR ASSEMBLY INSTRUCTION

PAGE 4 OF 30

MORE PARTS DETAIL IN NEXT PAGE...

ITEM

D1

D5

D23

D11A

D11B

D12

D13

D6

D7

DESCRIPTION

TOP PANEL

FRONT CENTRE SUPPORT RAIL

BOTTOM PANEL

UPPER BACK PANEL

LOWER BACK PANEL

LEFT DRAWER HEAD

RIGHT DRAWER HEAD

BACK TOP SUPPORT RAIL (L)

BACK TOP SUPPORT RAIL (R)

QTY

1 PC

4 PCS

1 PC

3 PCS

1 PC

DRAWING

PARTS LIST (BOX 1)

DR ASSEMBLY INSTRUCTION

PAGE 5 OF 30

ITEM

D2

D3

D4

D14

DESCRIPTION

LEFT PANEL

RIGHT PANEL

CENTRE PANEL

DRAWER BACK PANEL

QTY

1 PC

6 PCS

DRAWING

PARTS LIST (BOX 2)

ITEM

D8

D9

D16

DESCRIPTION

BACK CENTRE SUPPORT RAIL (L)

BACK CENTRE SUPPORT RAIL (R)

TOP FRAME

QTY

1 PC

DRAWING

PARTS LIST (BOX 1)

MORE PARTS DETAIL IN NEXT PAGE...

ITEM

D15

D24

17

18

19

20

21

DESCRIPTION

DRAWER BOTTOM PANEL

CENTRE SUPPORT LEG

LEG (i)

LEG (ii)

DRAWER LEFT PANEL

DRAWER RIGHT PANEL

DRAWER BOTTOM SUPPORT RAIL

QTY

6 PCS

1 PC

2 PCS

6 PCS

DRAWING

PARTS LIST (BOX 2)

DR ASSEMBLY INSTRUCTION

PAGE 6 OF 30

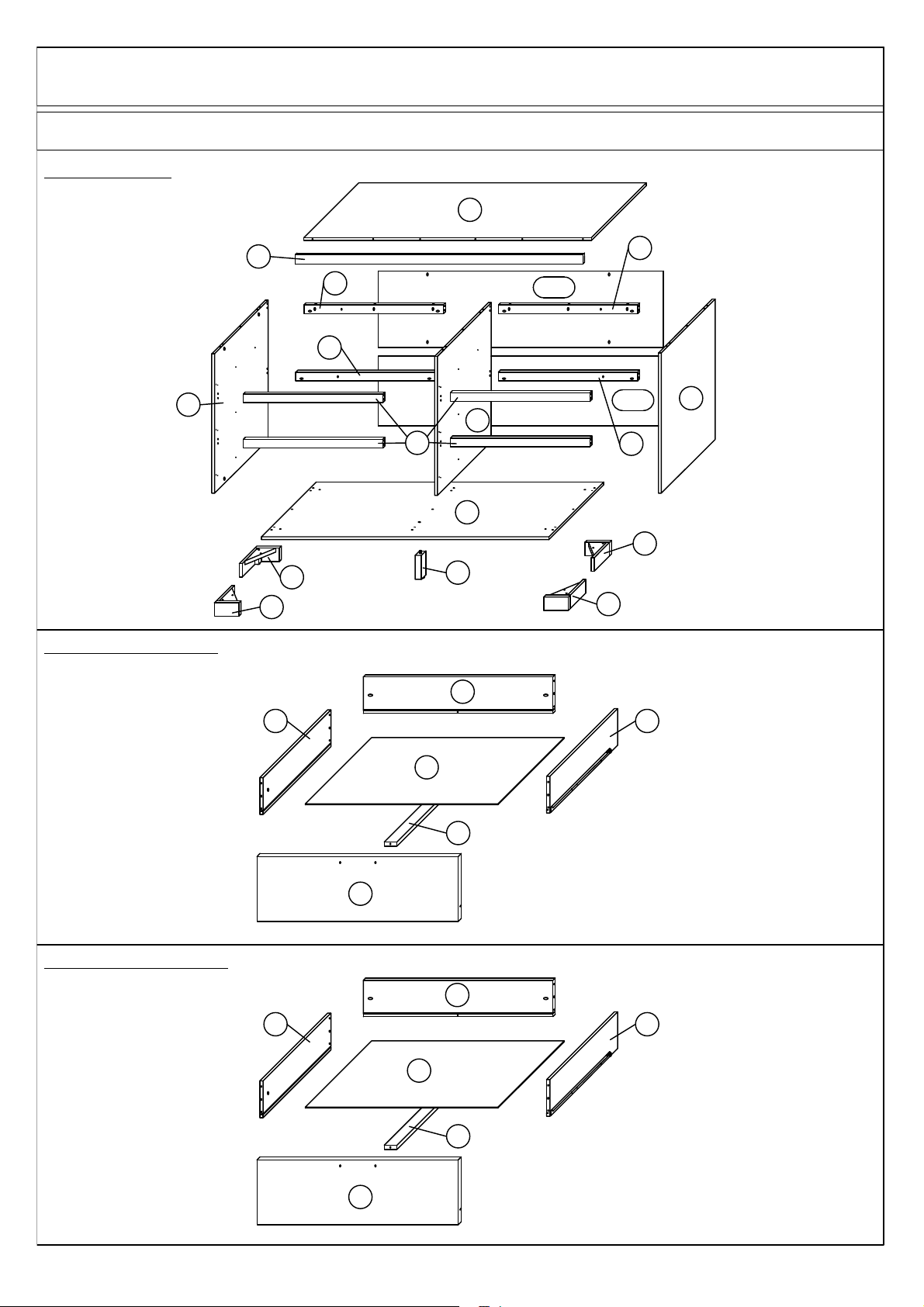

PARTS ' LOCATION

DRESSER x 1 PC

LEFT DRAWER x 3 PCS

PAGE 7 OF 30

D1

D3

17

18

D12

D14

D15

21

D5

D6

D7

D8

D9

D11A

D2

D4

19

20

RIGHT DRAWER x 3 PCS

D13

D14

D15

21

19 20

D24

D23

D11B

D16

FOR ITEM (O) and (P) - STEP 1 to 4

Align the hole then insert screw and tight this hole first.

Adjust the drawer slide to match the pre-drill hole, then tighten it by screw.

DR ASSEMBLY INSTRUCTION

PAGE 8 OF 30

PRECAUTIONS FOR ASSEMBLING DRAWER SLIDE

STEP 1

PAGE 9 OF 30

ASSEMBLY STEPS

Arrow need to face up side.

Arrow need to face down.

C

B

A

D2

Assembled become like this

Fix 3 pieces (O) to the (D2) by using 12 pieces (Q). Then insert 4 pieces (A),(B) and 3 pieces (C) as shown.

D2

Q

O

Q

O

D2

Q

O

D2

Attention : Follow the instructions in previous page to assembly (O).

STEP 2

PAGE 10 OF 30

Assembled become like this

Arrow need to face up side.

Arrow need to face down.

C

B

A

D3

Fix 3 pieces (P) to the (D3) by using 12 pieces (Q). Then insert 4 pieces (A),(B) and 3 pieces (C) as shown.

D3

Q

P

Q

P

D3

Q

P

D3

Attention : Follow the instructions in page 8 to assembly (P).

STEP 3

PAGE 11 OF 30

B

C

D4

R

180 °

Fix the remaining 3 pieces (O) to the right side of (D4) by using 12 pieces (Q). Then insert 3 pieces (C) and 4 pieces (B)

as shown.

D4

Q

O

Q

O

D4

Q

O

D4

Attention : Follow the instructions in page 8 to assembly (O).

R

B

A

Arrow need to face up side.

L

D4

Arrow need to face down.

STEP 4

PAGE 12 OF 30

Assembled become like this

L

R

P

Q

D4

Fix the remaining 3 pieces (P) to the left side of (D4) by using 12 pieces (Q). Then insert 4 pieces (A),(B) as shown.

Q

P

Attention : Follow the instructions in page 8 to assembly (P).

D4

L

D4

STEP 5

STEP 6

D5

C

Arrow need to face outside.

Assembled become like this

A

PAGE 13 OF 30

Assembled become like this

C

Arrow need to face up side.

Arrow need to face outside.

A

D6

Insert 2 pieces (A) and 2 pieces (C) to (D5) as shown.This step needs to be done four times.

Insert 5 pieces (A) and 2 pieces (C) to (D6) as shown.

PAGE 14 OF 30

STEP 7

Assembled become like this

C

Arrow need to face up side.

Arrow need to face outside.

A

D7

D8

C

Arrow need to face outside.

Assembled become like this

A

STEP 8

Insert 5 pieces (A) and 2 pieces (C) to (D7) as shown.

Insert 2 pieces (A) and 2 pieces (C) to (D8) as shown.

STEP 10

PAGE 15 OF 30

STEP 9

Assembled become like this

D9

C

Arrow need to face outside.

A

B

C

D23

Assembled become like this

Insert 2 pieces (A) and 2 pieces (C) to (D9) as shown.

Insert 6 pieces (B) and 9 pieces (C) to the (D23) as shown.

STEP 11

PAGE 16 OF 30

STEP 12

D1

Arrow need to face up side.

B

A

B

D16

Insert 6 pieces (A) and 12 pieces (B) to the (D1) as shown.

Insert 6 pieces (B) to the (D16) as shown.

STEP 14

PAGE 17 OF 30

STEP 13

D5

D6

D8

D6

D5

D2

Combine 2 pieces (D5),(D6) and the (D8) to the (D2) then tighten the 4 pieces (A)-(pre insert in step 5,6 and 8) as shown.

D16

D1

D16

Combine the (D1) and (D16) then tighten the 6 pieces (A)-(pre insert in previous step) as shown.

STEP 15

STEP 16

PAGE 18 OF 30

D4

R

D6

D8

D5

D6

D8

D4

D5

D7

D9

D5

D7

D9

Combine the (D4) to the (D5),(D6) and (D8) then tighten the another 4 pieces (A)-(pre insert in step 5,6 and 8) as shown.

Combine the remaining 2 pieces (D5),(D7) and the (D9) to the (D4) then tighten the 4 pieces (A)-(pre insert in step 5,7 and 9) as shown.

INSIDE VIEW

STEP 17

STEP 18

PAGE 19 OF 30

The side which closer to the hole needs to face front.

D4

D2

D3

INSIDE VIEW

D23

D4

D2

D3

D7

D9

D5

D3

D5

D7

D9

D8

Combine the (D3) to the (D5),(D7) and (D9) then tighten the another 4 pieces (A)-(pre insert in step 5,7 and 9) as shown.

Combine the (D23) to the (D2),(D3) and (D4) then tighten the 6 pieces (A)-(pre insert in step 1,2 and 4) as shown.

INSIDE VIEW

STEP 19

STEP 20

PAGE 20 OF 30

D23

N

E

F

G

C

D24

90 °

18

17

D24

D23

C

D23

Insert the 4 pieces (C),(E),(F) and (G) to combine the (17) and (18) to the (D23) , then turn (D24) clockwise to combine it to the (D23) as shown.

Combine the (D1) to the frame then tighten the remaining 12 pieces (A)-(pre insert in step 1,2,4,6 and 7) as shown.

INSIDE VIEW

D3

D1

D2

D4

D3

D2

D4

D6

D7

D6

D7

STEP 21

PAGE 21 OF 30

STEP 22

R

L

D23

D2

R

Put the (D11A) and (D11B) to the gap of (R) as shown.Direction of the side with colored paper must be the same.

This side closer to the hole needs to face inside

Insert the 24 pieces (L) to fix the (D11A) and (D11B) as shown. Colored paper face to outside.

To prevent blocking (D2) and (D3), make sure the (R) at the middle of (D11A) and (D11B) , do not over left or right.

D1

(D11A) put on upper side

D11A

D11B

D11A

D11B

D11A

D11B

STEP 23

PAGE 22 OF 30

STEP 24

Assembled become like this

B

D12

Assembled become like this

B

D13

Insert 3 pieces (B) to the (D12) as shown.This step needs to be done three times.

Insert 3 pieces (B) to the (D13) as shown.This step needs to be done three times.

PAGE 23 OF 30

STEP 25

STEP 26

B

D

A

Arrow need to face front.

Assembled become like this

D

A

Arrow need to face front.

B

19

20

Assembled become like this

Insert 1 piece (A),(B) and 2 pieces (D) to (19) as shown.This step needs to be done six times.

Insert 1 piece (A),(B) and 2 pieces (D) to (20) as shown.This step needs to be done six times.

PAGE 24 OF 30

STEP 27

STEP 28

Assembled become like this

A

D

D14

Arrow need to face outside.

Insert 2 pieces (A) , 1 piece (B) and 4 pieces (D) to (D14) as shown.This step needs to be done six times.

Insert 2 pieces (A) to (21) as shown. This step needs to be done six times.

21

Arrow need to face outside.

A

B

PAGE 25 OF 30

STEP 29

STEP 30

Combine (19) and (20) to (D14) then tighten the 2 pieces (A)-(pre-insert in step 27) as shown. This step needs to be done six times.

Put the (D15) into the gap of (19),(20) and (D14) as shown.This step needs to be done six times.

D14

20

19

20

D14

D15

PAGE 26 OF 30

STEP 31

STEP 32 Combine the (D12) and (D13) to the drawer frame. Then tighten the 3 pieces (A)-(pre-insert in step 25,26 and 28) as

shown.This step needs to be done six times.

Combine the (21) to the (D14) then tighten the 1 piece (A)-(pre-insert in step 28) as shown.This step needs to be done six times.

D14

21

19

20

90 °

D15

20

21

INSIDE VIEW

19

D15

D13

D12

&

D3

D1

D12 D13

Align the position then push the 6 pieces drawer to inside exactly by your hand as shown.

PAGE 27 OF 30

STEP 33

STEP 34

D12

20

19

M

I

D13

&

Insert 2 pieces (I) fix the (M) as shown.This step needs to be done six times.

PAGE 28 OF 30

STEP 35

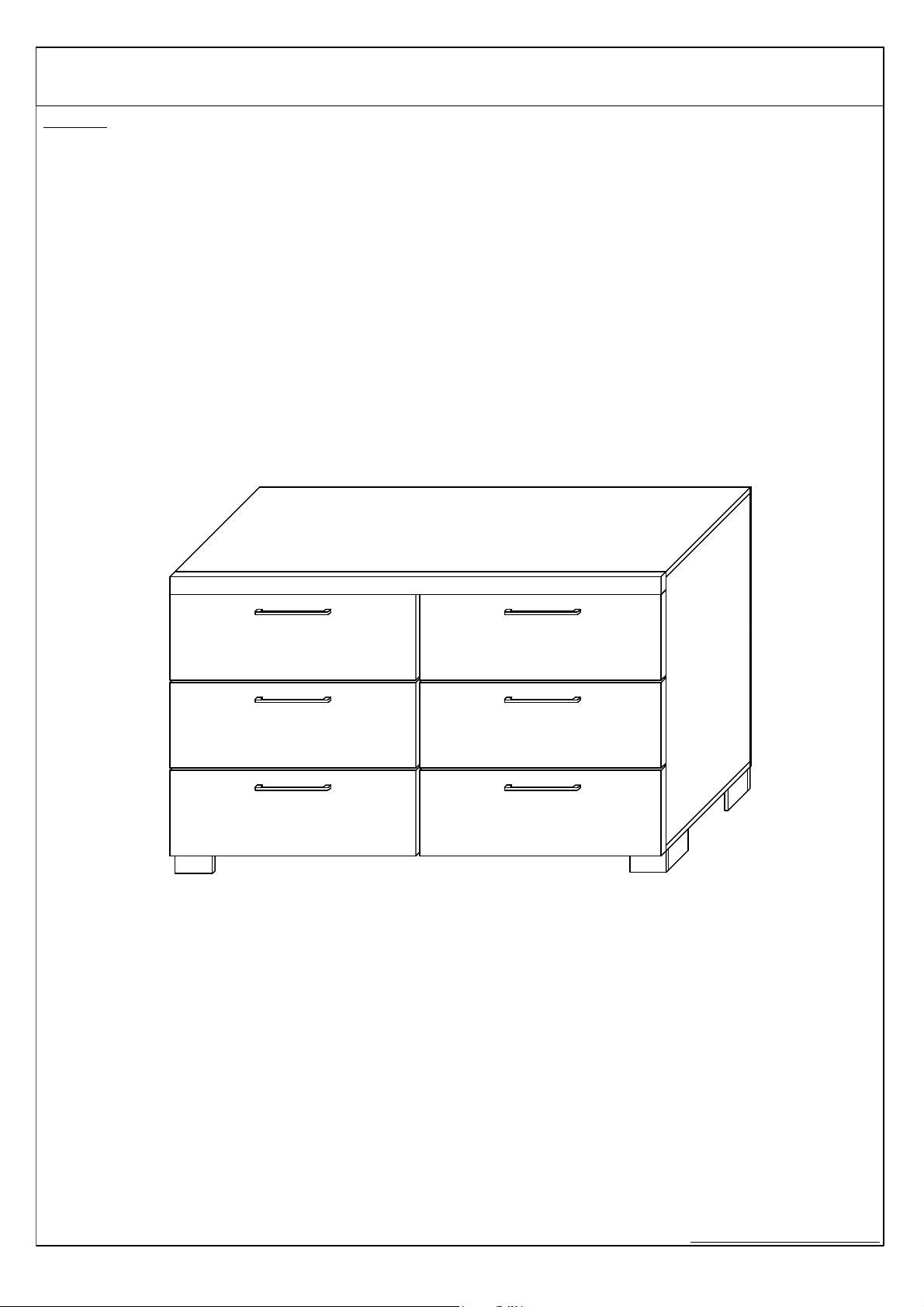

ASSEMBLY COMPLETED

PAGE 29 OF 30

Place the drawer which sticked a warning label in the top as shown.

PAGE 30 OF 30

This sticker was sticked at one of the DRAWER LEFT PANEL(19).

STICKER
