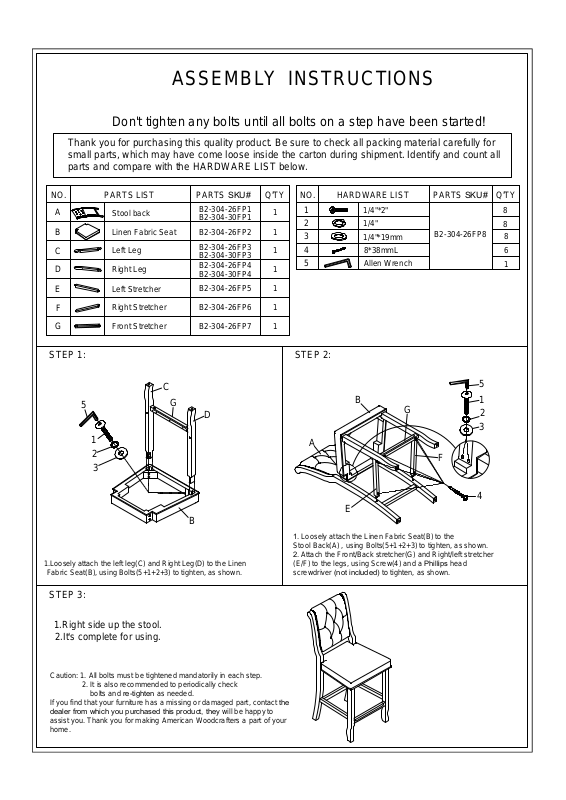

ASSEMBLY INSTRUCTIONS
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts, which may have come loose inside the carton during shipment. Identify and count all
parts and compare with the HARDWARE LIST below.
Don't tighten any bolts until all bolts on a step have been started!
STEP 1:
PARTS LIST
HARDWARE LIST
NO.
A
NO.
Q'TY
1
B
C
D
E
F
Q'TY
8
8
8
2
3
1/4"
4
1/4"*19mm
5
1
8*38mmL
6
1
Allen Wrench
1/4"*2"
STEP 2:
STEP 3:
G
Stool back
Linen Fabric Seat
Left Leg
Right Leg
Left Stretcher
Right Stretcher
Front Stretcher
1
1
1
1
1
1
5
1
2
3
4
5
1
2
3
1.Right side up the stool.
2.It's complete for using.
1.Loosely attach the left leg(C) and Right Leg(D) to the Linen
Fabric Seat(B), using Bolts(5+1+2+3) to tighten, as shown.
A
B
C
D
B
E
F
G
G
PARTS SKU#
B2-304-26FP1
B2-304-30FP1
B2-304-26FP2
B2-304-26FP3
B2-304-30FP3
B2-304-26FP4
B2-304-30FP4
B2-304-26FP5
B2-304-26FP6
B2-304-26FP7
PARTS SKU#
B2-304-26FP8
Caution: 1. All bolts must be tightened mandatorily in each step.
If you find that your furniture has a missing or damaged part, contact the
dealer from which you purchased this product, they will be happy to
assist you. Thank you for making American Woodcrafters a part of your
home.
2. It is also recommended to periodically check
bolts and re-tighten as needed.
1. Loosely attach the Linen Fabric Seat(B) to the
Stool Back(A) , using Bolts(5+1+2+3) to tighten, as shown.
2. Attach the Front/Back stretcher(G) and Right/left stretcher
(E/F) to the legs, using Screw(4) and a Phillips head
screwdriver (not included) to tighten, as shown.
