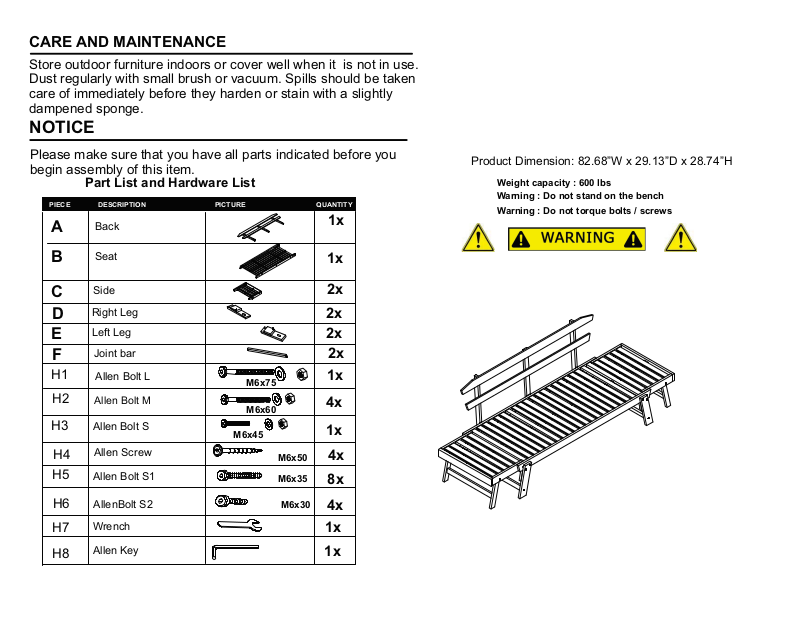

Page 1
CARE AND MAINTENANCE
Store outdoor furniture indoors or cover well when it is not in use.
Dust regularly with small brush or vacuum. Spills should be taken
care of immediately before they harden or stain with a slightly
dampened sponge.
NOTICE
Please make sure that you have all parts indicated before you
begin assembly of this item.
Part List and Hardware List
PIECE DESCRIPTION PICTURE QUANTITY
A
B
C
D
E
F
H1
H2
H3
Back
Seat
Side
Right Leg
Left Leg
Joint bar
Allen Bolt L
Allen Bolt M
Allen Bolt S
M6x75
M6x60
M6x45
1x
1x
2x
2x
2x
2x
1x
4x
1x
Product Dimension: 82.68”W x 29.13”D x 28.74”H
Weight capacity : 600 lbs
Warning : Do not stand on the bench
Warning : Do not torque bolts / screws
H4
H5
H6
H7
H8
Allen Screw
Allen Bolt S1
AllenBolt S2
Wrench
Allen Key
M6x50
M6x35
M6x30
4x
8x
4x
1x
1x
Page 2
PREPARATION
Before beginning the assembly of the product, make sure all parts are present.
Compare the parts with the package contents list and hardware contents list.
If any parts are missing or damaged, do not attempt to assemble the product.
Tool required for assembly (included): Allen Key and Wrench.
1
H6
C
!
C
!
H6
H6
H6
C
B
B
H6
C
H6
Step 1: attach the side (C) to the seat (B) both side as shown on
the picture. Then use the Allen Bolt (H6) to tighten all sides
by using the Allen Key (H8). Make sure the Allen bolt S2 (H6)
come inside the hole of the side back (C) as shown on the picture.
2
H4
D
F
H4
H5
D
H5
D
E
C
E
H5
H4
H5
B
E
C
Step 2: attach the Right Leg (D) and Left Leg (E) to the Joint bar (F) as
shown on the picture.Use the Allen Screw (H4) to attach it together and
tighten by the Allen Key (H8). Then put these legs to the seat (B), using
the Allen Bolt S1 (H5) and tighten all by using the Allen Key (H8) as
as shown on the picture.
H5
H5 x 2
H8
Page 3
3
C
4
A
B
H2 x2
C
H2 x2
H8
H2x2
Step 3: attach the back (A) to the seat (B) as shown on the picture.
Then use the Allen Bolt L (H1) and the Allen Bolt S (H3) in the
middle , positons left and right use Allen bolt M ( H2) and tighten by
the Allen Key (H8) and the Wrench (H7) as shown on the picture.
Make sure put correct positions to use the Allen Bolt (H1) ,the Allen
Bolt S (H3) and the Allen Bolt M( H2) as shown on the picture.
H3
H1
H1
H3
H8
H7
H7
C
C
Step 4: Lift up the Side (C) as shown the picture and put down to lock
the side on the seat (B) then can use this lounger same as this bench.
