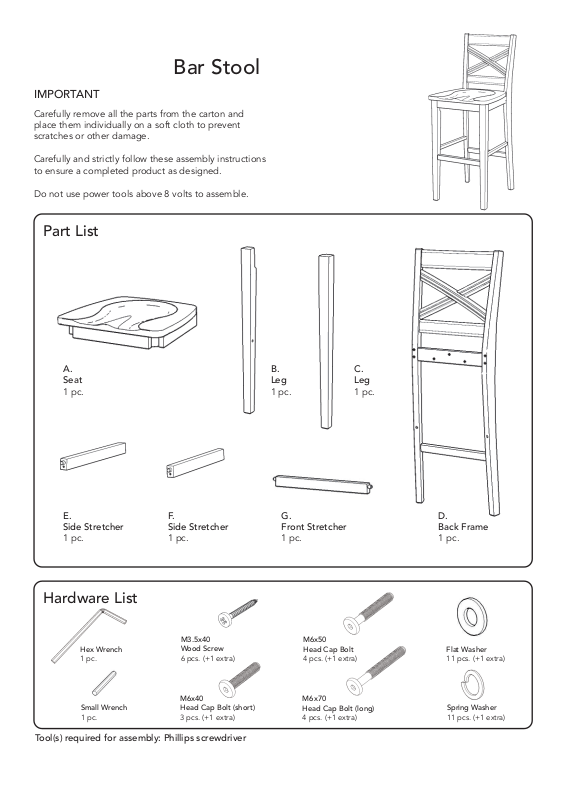

Bar Stool
IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Seat
1 pc.
E.
Side Stretcher
1 pc.
Hardware List
Hex Wrench
1 pc.
F.
Side Stretcher
1 pc.
M3.5x40
Wood Screw
6 pcs. (+1 extra)
B.
Leg
1 pc.
G.
Front Stretcher
1 pc.
M6x50
Head Cap Bolt
4 pcs. (+1 extra)
C.
Leg
1 pc.
D.
Back Frame
1 pc.
Flat Washer
11 pcs. (+1 extra)
Small Wrench
1 pc.
M6x40
Head Cap Bolt (short)
3 pcs. (+1 extra)
Tool(s) required for assembly: Phillips screwdriver
M6x70
Head Cap Bolt (long)
4 pcs. (+1 extra)
Spring Washer
11 pcs. (+1 extra)
Assembly Instructions 2/3
IMPORTANT
Use a soft cloth between these parts and the floor.
Do not use power tools above 8 volts to assemble.
Do not tighten all the bolts until each part is properly assembled.
Keep Hex Wrench in a safe place as the bolts may need to be tightened in the future.
B
Wood Screw
G
Arrow label
at front
C
Flat Washer
Spring Washer
Head Cap Bolt
F
E
A
STEP 1
Attach Legs (B) and (C) to Seat (A) with Flat Washers, Spring Washers and Head Cap Bolts,
tightening bolts only halfway.
(See Figure 1)
Attach Front Stretcher (G) to unit with Wood Screws.
(See Figure 2)
Orientate Side Stretchers (E) and (F) so Arrow labels are at front of unit, then attach
Side Stretcher (E) to Leg (B) and Side Stretcher (F) to Leg (C) with Wood Screws.
(See Figure 3)
Figure 1
Figure 2 Figure 3
Assembly Instructions 3/3
Wood Screw
Flat Washer
Spring Washer
Head Cap Bolt (short)
Flat Washer
D
Spring Washer
Head Cap Bolt (long)
STEP 2
Attach Back Frame (D) to unit with Flat Washers, Spring Washers, Head Cap Bolts (short),
Head Cap Bolts (long) and Wood Screws, tightening bolts only halfway.
(See Figures 4 and 5)
Tighten all Head Cap Bolts used in Steps 1 and 2.
Figure 4 Figure 5
