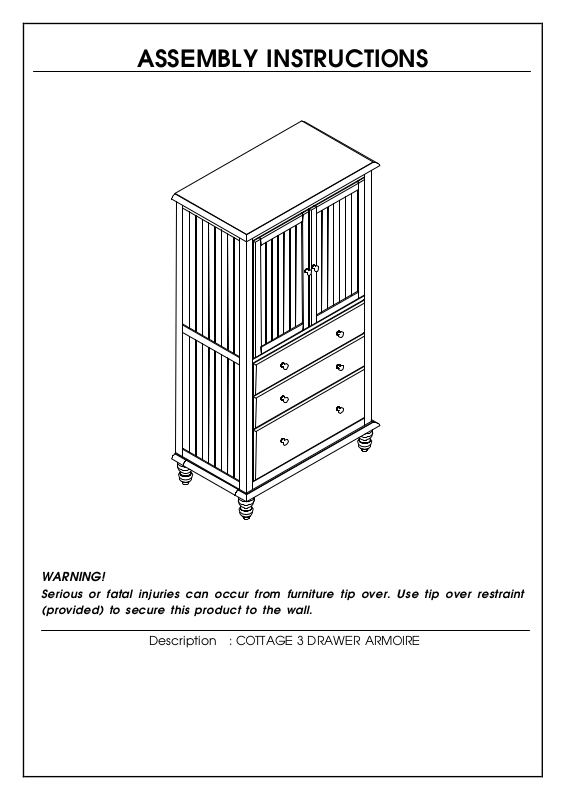

Page 1
ASSEMBLY INSTRUCTIONS
WARNING!
Serious or fatal injuries can occur from furniture tip over. Use tip over restraint
(provided) to secure this product to the wall.
Description : COTTAGE 3 DRAWER ARMOIRE
Page 2
Thank you for purchasing this quality product. This product has been designed for easy assembly and
BEFORE ASSEMBLY
ASSEMBLY TOOLS REQUIRED
NOT INCLUDED
constructed for durability. All parts were checked prior to packaging to insure quality. Prior to
beginning assembly, however, make sure all parts and hardware are included and free of obvious
defect. If a part is missing or defective, please contact the store where purchased. If hardware is
missing, or you need help with assembly, please call toll free 888-944-8396.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the
parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
WARNING:
Long exposure to rubber or soft plastic may cause a chemical reaction and damage the finish
of your product. Protect the surface of the product with cloth if you are using any product
with rubber feet or base.
- 2 -
Page 3
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
NO
Description
Qty
Sketch
A
3 DRAWER ARMOIRE
1
B
LEG
4
C
SHELF
2
please make sure you have the following parts:
- 3 -
Page 4
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
1
Wooden Knob
(35 x 35mm)
8 5 Bracket
8
METAL KNOB
(32 x 28mm)
GOES WITH FINISHED
ITEM ONLY.
8
6
Short Pan head screw
(M4 x 15mm)
2
2
Medium Pan head screw
*Wooden knob:(M4x25mm)
8
7
Long Pan head screw
(M4 x 50mm)
2
Medium Pan head screw
*Metal knob: (M4x22mm)
8 8 Steel Tip Bracket
4
3
Allen key
(M4 x 30mm x 110mm)
1 9 Flat Nylon Tie
2
4
Screw
(M3.5 x 15mm)
8
please make sure you have all of the following hardware:
NOTE: WARNING LABEL (INCLUDED)
- 4 -
Page 5

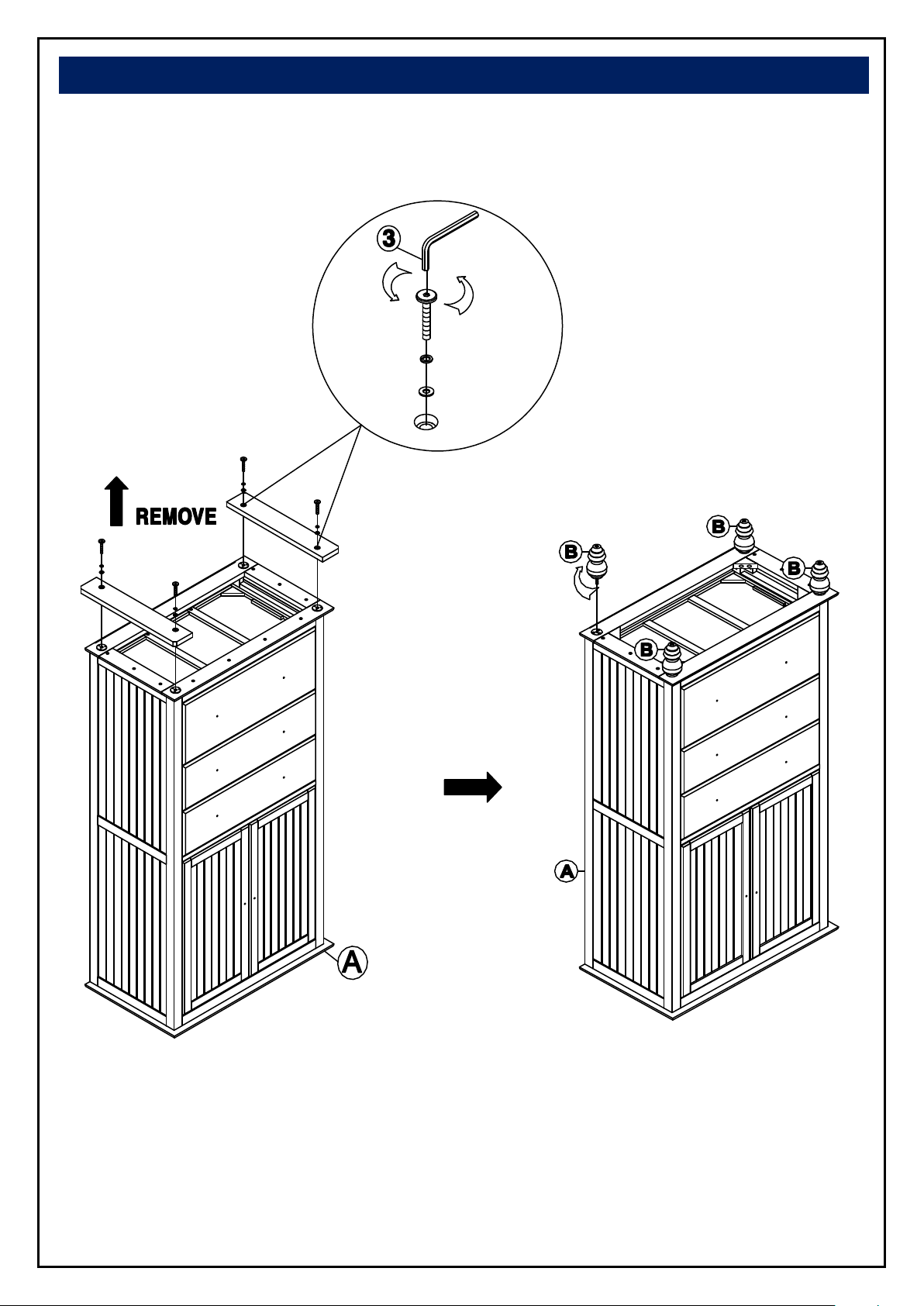

STEP 1
Use the Allen key (3) to loosen the bolts and washers, and then remove two pieces of wood
from bottom of the armoire (A), as shown below.
Attach legs (B) by screwing them into the armoire (A), as shown below.
- 5 -
Page 6
STEP 2
Attach brackets (5) to the unit as shown below. Place shelves (C) on the brackets and attach with
STEP 3
screws (4). Tighten with a screwdriver.
Attach knobs (1) to front of drawers and doors with pan head screws (2), as shown below. Tighten with
a screwdriver.
- 6 -
Page 7
STEP 4
Attach brackets (8) to the back of the unit with screws (6) through the smaller holes in the brackets as
shown below.
Important!
Properly attach the other brackets (8) to the wall in an area of drywall or plaster with a wood stud:
Mark the attachment point(s) with a pencil at the appropriate height positioned over the wood stud(s)
in the wall.
Place the unit into position so both mounting brackets are vertically in line.
Adjust the levelers to the appropriate height to level the unit.
Properly attach the other brackets (8) to the wall stud with screws (7) through the smaller holes as
shown below.
Lace the end of flat nylon ties (9) through the larger holes in each mounting bracket. Bring both ends
together and slide the flat ends through the locking ends and draw it through until all slack is removed.
Confirm that the strap is securely laced and locked.
- 7 -
