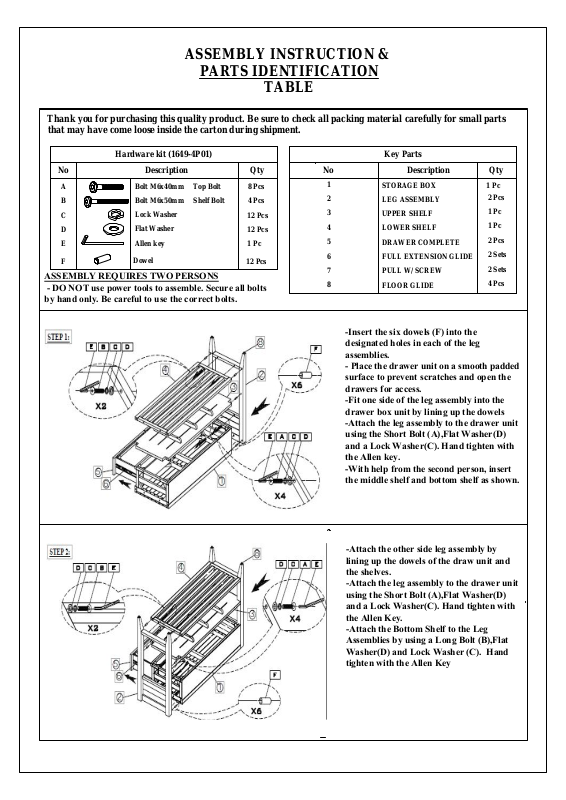

ASSEMBLY INSTRUCTION &
PARTS IDENTI
FICATION
TABLE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts
that may have come loose inside the carton during shipment.
Hardware kit (1649-4P01)
No QtyDescription
A
B
C
D
E
F
Bolt M6x40mm Top Bolt
Bolt M6x50mm Shelf Bolt
Lock Washer
Flat Washer
Allen key
Dowel
8 Pcs
4 Pcs
12 Pcs
12 Pcs
1 Pc
12 Pcs
ASSEMBLY REQUIRES TWO PERSONS
- DO NOT use power tools to assemble. Secure all bolts
by hand only. Be careful to use the correct bolts.
No
1
2
3
4
5
6
7
8
-Insert the six dowels (F) into the
designated holes in each of the leg
assemblies.
- Place the drawer unit on a smooth padded
surface to prevent scratches and open the
drawers for access.
-Fit one side of the leg assembly into the
drawer box unit by lining up the dowels
-Attach the leg assembly to the drawer unit
using the Short Bolt (A),Flat Washer(D)
and a Lock Washer(C). Hand tighten with
the Allen key.
-With help from the second person, insert
the middle shelf and bottom shelf as shown.
Key Parts
STORAGE BOX
LEG ASSEMBLY
UPPER SHELF
LOWER SHELF
DRAWER COMPLETE
FULL EXTENSION GLIDE
PULL W/ SCREW
FLOOR GLIDE
QtyDescription
1 Pc
2 Pcs
1 Pc
1 Pc
2 Pcs
2 Sets
2 Sets
4 Pcs
-Attach the other side leg assembly by
lining up the dowels of the draw unit and
the shelves.
Attach the leg assembly to the drawer unit
using the Short Bolt (A),Flat Washer(D)
and a Lock Washer(C). Hand tighten with
the Allen Key.
-Attach the Bottom Shelf to the Leg
Assemblies by using a Long Bolt (B),Flat
Washer(D) and Lock Washer (C). Hand
tighten with the Allen Key
Page 2
ASSEMBLY INSTRUCTION &
PARTS
IDENTIFICATION
TABLE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts
that may have come loose inside the carton during shipment.
Hardware kit (1649-4P01)
No QtyDescription
A
B
C
D
E
F
Bolt M6x40mm Top Bolt
Bolt M6x50mm Shelf Bolt
Lock Washer
Flat Washer
Allen key
Dowel
STEP 3:
8 Pcs
4 Pcs
12 Pcs
12 Pcs
1 Pc
12 Pcs
No QtyDescription
1
2
3
4
5
6 FULL EXTENSION GLIDE
7
8 FLOOR GLIDE
1
Key Parts
STORAGE BOX
LEG ASSEMBLY
UPPER SHELF
LOWER SHELF
DRAWER COMPLETE
PULL W/ SCREW
7
1 Pc
2 Pcs
1 Pc
1 Pc
2 Pcs
2 Sets
2 Sets
4 Pcs
STEP 4:
5
5
2
7
6
6
5
