WARNING:
This xture is intended for installation in
accordance with the National Electrical Code
(NEC) and all local code specications. If
you are not familiar with code requirements,
installation by a certied electrician is
recommended.
CAUTION: To prevent shock, only plug in lamp
after lamp assembly is complete.
WARNING: This portable lamp has a polarized
plug (one blade is wider than the other). As a
safety feature, this plug will t in a polarized
outlet only one way. If the plug does not t
fully in the outlet, reverse the plug. If it still
does not t, contact a qualied electrician.
Never use with an extension cord unless plug
can be fully inserted. Do not attempt to work
around this safety feature.
Before assembly, remove all parts and part
packages from box. If anything is missing,
please contact the retailer from which the
product was purchased.
ANY QUESTIONS CALL: 800-613-3261
M-F 8:00AM-6:00PM ET
ITEM#: D2594
32

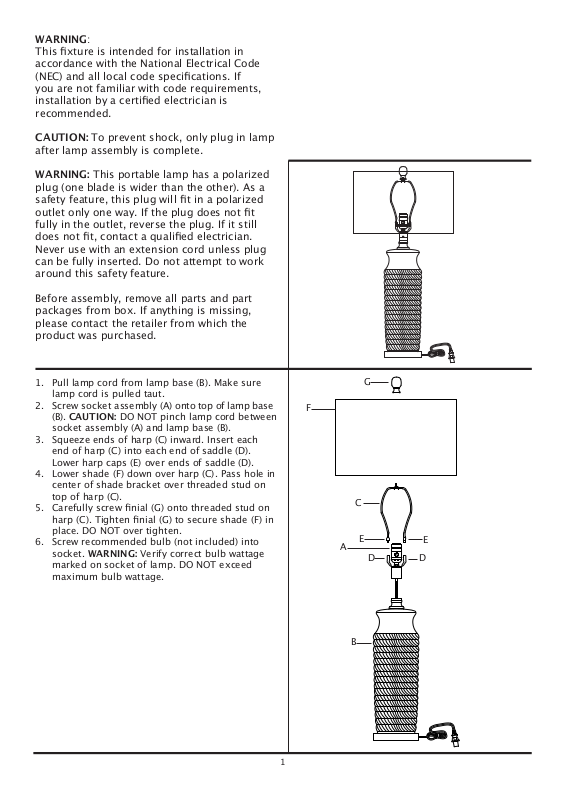

1. Pull lamp cord from lamp base (B). Make sure
lamp cord is pulled taut.
2. Screw socket assembly (A) onto top of lamp base
(B). CAUTION: DO NOT pinch lamp cord between
socket assembly (A) and lamp base (B).
3. Squeeze ends of harp (C) inward. Insert each
end of harp (C) into each end of saddle (D).
Lower harp caps (E) over ends of saddle (D).
4. Lower shade (F) down over harp (C). Pass hole in
center of shade bracket over threaded stud on
top of harp (C).
5. Carefully screw nial (G) onto threaded stud on
harp (C). Tighten nial (G) to secure shade (F) in
place. DO NOT over tighten.
6. Screw recommended bulb (not included) into
socket. WARNING: Verify correct bulb wattage
marked on socket of lamp. DO NOT exceed
maximum bulb wattage.
G
F
C
E
A
D
B
E
D
1
