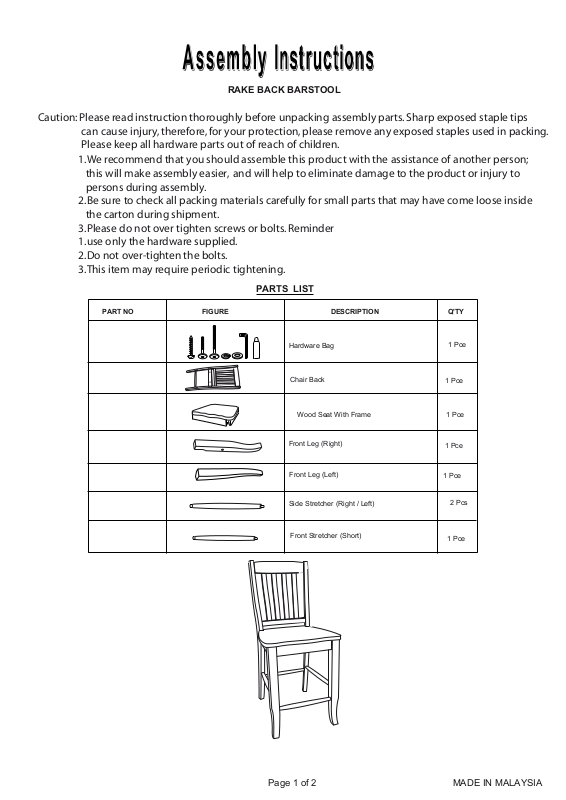

RAKE BACK BARSTOOL
Caution: Please read instruction thoroughly before unpacking assembly parts. Sharp exposed staple tips
can cause injury, therefore, for your protection, please remove any exposed staples used in packing.
Please keep all hardware parts out of reach of children.
1.We recommend that you should assemble this product with the assistance of another person;
this will make assembly easier, and will help to eliminate damage to the product or injury to
persons during assembly.
2.Be sure to check all packing materials carefully for small parts that may have come loose inside
the carton during shipment.
3.Please do not over tighten screws or bolts. Reminder
1.use only the hardware supplied.
2.Do not over-tighten the bolts.
3.This item may require periodic tightening.
PARTS LIST
PART NO
FIGURE
DESCRIPTION
Hardware Bag
Chair Back
Wood Seat With Frame
Front Leg (Right)
Front Leg (Left)
Side Stretcher (Right / Left)
Front Stretcher (Short)
Q'TY
1 Pce
1 Pce
1 Pce
1 Pce
1 Pce
2 Pcs
1 Pce
Page 1 of 2
MADE IN MALAYSIA
HARDWARE PARTS :
RAKE BACK BARSTOOL
8x1.1/4"
Pan Head
Screw
6 pcs
M6x40mm
JCBC Bolt
2 pcs
M6x70mm
JCBC Bolt
8 pcs
M6x13mm
Lock Washer
10 pcs
M6.5x16.5mm
Flat Washer
10 pcs
Allen Key
1 pce
Glue
1 pce
ASSEMBLY:
1. Attach the Wood Seat with Frame to the Chair Back using the provided hardware as shown in Fig 1.
2.Attach side Stretcher (Left/Right) to Chair back using the provided hardware as shown in Fig 2.2.
Attach Front Stretcher to front legs using the provided hardware as shown in Fig.2.
Attach Front legs (Left/RIght) to Wood Seat with Frame using the provided hardware as shown in Fig2.1.
STEP 1
(Fig 1)
Box
System
Assembly
(Fig.1.1)
Allen Key
JCBC Bolt (70 mm)
Lock Washer
Flat Washer
(Fig.1.2)
Allen Key
JCBC Bolt (40 mm)
Lock Washer
Flat Washer
Chair Back
STEP 2
Apply Glue and insert stretcher
with screw holes facing down.
(Fig 2)
Left & Right
Side Stretcher
Front
Stretcher
Left Leg
Flat Washer
Lock Washer
JCBC Bolt (70 mm)
Allen Key
(Fig.2.1)
Right Leg
Apply Glue
Dowel
STEP 3
Turn the chair upright. Check its balance and tighten all screws and bolts to complete the assembly.
IMPORTANT NOTE :
~ Please keep all hardware out of the reach of
children.
CARE INSTRUCTION
~ Be sure to use the same type of polish consistently.
Your furniture will appear cloudy or streaky if oil
based or wax based polishes are interchanged.
~ Spray your furniture surface evenly. Wipe in a
circular motion with a soft clean cloth.
(FIG.2.2)
Pan Head Screw
Page 2 of 2
MADE IN MALAYSIA
