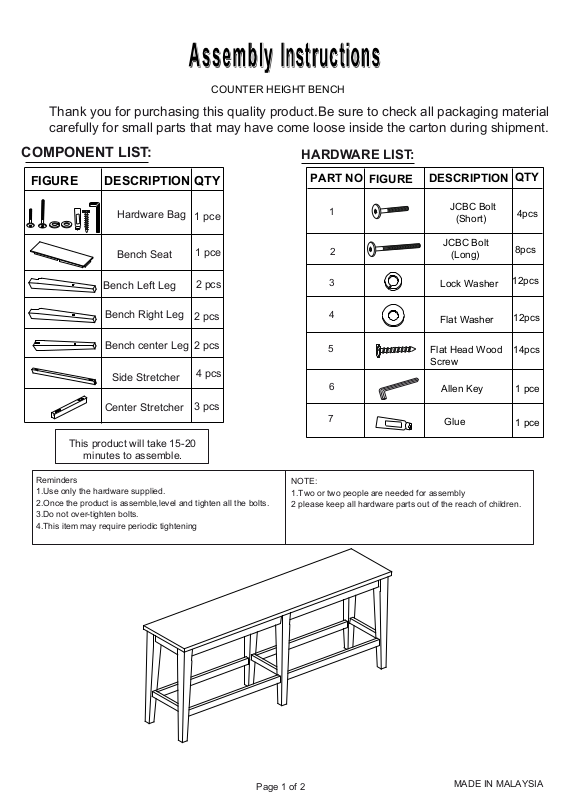

COUNTER HEIGHT BENCH
FIGURE
DESCRIPTION
QTY
Hardware Bag
Bench Seat
Bench Left Leg
Bench center Leg
Bench Right Leg
Side Stretcher
Center Stretcher
1 pce
1 pce
2 pcs
2 pcs
2 pcs
4 pcs
3 pcs
Thank you for purchasing this quality product.Be sure to check all packaging material
carefully for small parts that may have come loose inside the carton during shipment.
COMPONENT LIST:
HARDWARE LIST:
PART NO
1
2
3
4
5
6
7
FIGURE
DESCRIPTION
JCBC Bolt
(Short)
JCBC Bolt
(Long)
Lock Washer
Flat Washer
Flat Head Wood
Screw
Allen Key
Glue
QTY
4pcs
8pcs
12pcs
12pcs
14pcs
1 pce
1 pce
This product will take 15-20
minutes to assemble.
Reminders
1.Use only the hardware supplied.
2.Once the product is assemble,level and tighten all the bolts.
3.Do not over-tighten bolts.
4.This item may require periodic tightening
NOTE:
1.Two or two people are needed for assembly
2 please keep all hardware parts out of the reach of children.
Page 1 of 2
MADE IN MALAYSIA
COUNTER HEIGHT BENCH
ASSEMBLY :
STEP 1
Turn the Bench Seat upside down on a soft protective surface such as carpet.
1.1-Attach Center Stretcher to middle of legs by using the provided hardware as shown in Fig.1.1
1.2-Attach Center legs to the middle of Bench Seat using the provided hardware as shown in Fig.1.2
1.3-Secure the center stretcher and center legs using the provided hardware as shown in Fig.1.3
Fig1.2
Fig1.3
Flat Head Wood Screw
Lock Washer
Allen Key
Flat Washer
JCBC Bolt
(Short)
Glue
Bench Center Leg
Fig1.1
STEP 2
2.1- Attach side and center Stretcher to the Left and Right legs by using the provided glue as shown on Fig.2.1
2.2- Attach Left and Right legs to the Bench Top using the provided hardware as shown on Fig.2.2
2.3- Secure the stretchers and legs by using the Pan Head Screw as shown on Fig.2.3
Bench Right Leg
Fig2.2
Flat Washer
Allen Key
Lock Washer
JCBC Bolt
(Long)
Bench Left Leg
Fig2.1
Bench Left Leg
Fig2.3
Flat Head Wood Screw
Bench Right Leg
STEP 3
3.1- Turn bench to upright position.
3.2- Once bench is fully balance fully tighten all bolts.
Assembly is now Completed.
Glue
Page 2 of 2
CARE INSTRUCTION
~ Be sure to use the same type of polish consistenly.
Your furniture will appear cloudy or streaky if oil
based or wax based polishes are interchanged.
~ Spray your furniture surface evenly. Wipe in a
circular motion with a soft clean cloth.
MADE IN MALAYSIA
