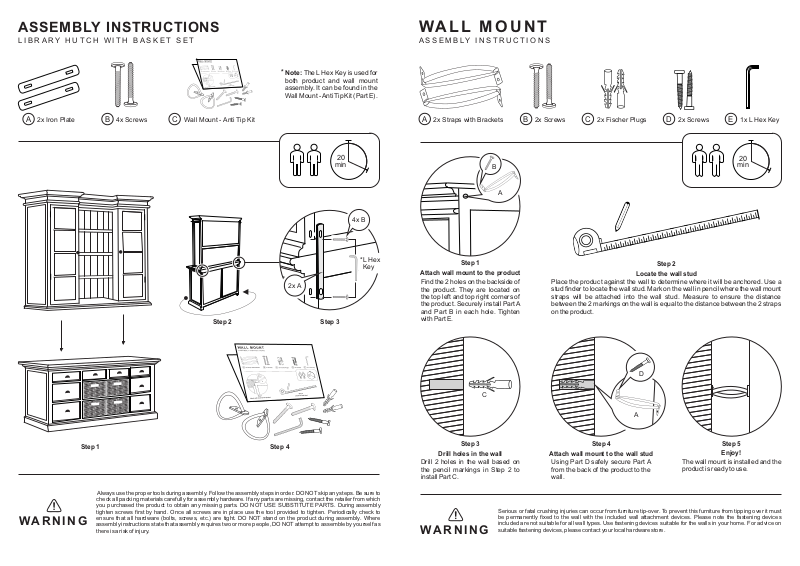

L I B R A R Y H U T C H W I T H B A S K E T S E T
A
2x Iron Plate
B
4x Screws
C
Wall Mount - Anti Tip Kit
*
Note: The L Hex Key is used for
both product and wall mount
assembly. It can be found in the
Wall Mount - Anti Tip Kit (Part E).
WA L L M O U N TASSEMBLY INSTRUCTIONS
A S S E M B L Y I N S T R U C T I O N S
A
2x Straps with Brackets
B
2x Screws
C
2x Fischer Plugs
D
2x Screws
1x L Hex Key
E
2x A
Step 2 Step 3
20
min
4x B
*L Hex
Key*
B
A
Attach wall mount to the product
Find the 2 holes on the backside of
the product. They are located on
the top left and top right corners of
the product. Securely install Part A
and Part B in each hole. Tighten
with Part E.
Step 1
C
20
min
Step 2
Place the product against the wall to determine where it will be anchored. Use a
stud finder to locate the wall stud. Mark on the wall in pencil where the wall mount
straps will be attached into the wall stud. Measure to ensure the distance
between the 2 markings on the wall is equal to the distance between the 2 straps
on the product.
Locate the wall stud
D
A
WA R N I N G
Step 1
Always use the proper tools during assembly. Follow the assembly steps in order. DO NOT skip any steps. Be sure to
check all packing materials carefully for assembly hardware. If any parts are missing, contact the retailer from which
you purchased the product to obtain any missing parts. DO NOT USE SUBSTITUTE PARTS. During assembly
tighten screws first by hand. Once all screws are in place use the tool provided to tighten. Periodically check to
ensure that all hardware (bolts, screws, etc.) are tight. DO NOT stand on the product during assembly. Where
assembly instructions state that assembly requires two or more people, DO NOT attempt to assemble by yourself as
there is a risk of injury.
Step 4
Step 3
Drill holes in the wall
Drill 2 holes in the wall based on
the pencil markings in Step 2 to
install Part C.
Serious or fatal crushing injuries can occur from furniture tip-over. To prevent this furniture from tipping over it must
be permanently fixed to the wall with the included wall attachment devices. Please note the fastening devices
included are not suitable for all wall types. Use fastening devices suitable for the walls in your home. For advice on
WA R NI N G
suitable fastening devices, please contact your local hardware store.
Attach wall mount to the wall stud
Using Part D safely secure Part A
from the back of the product to the
wall.
Step 4
Step 5
The wall mount is installed and the
product is ready to use.
Enjoy!
