PLEASE READ AND SAVE FOR FUTURE REFERENCE.
20
19
15
16
18
21
22
17
1
4
8
9
5
14
12
3
11
13
13
13
14
14
7
10
6
2
23
CAUTION
1. Turn off the main power at the circuit breaker before installing the fixture in order to prevent possible shock.
2. All electrical connections must be in accordance with local and National Electrical Code (N.E.C.) standards. If
you are unfamiliar with proper electrical wiring connections, obtain the services of a qualified electrician.
GENERAL
Remove all parts and hardware from the box and make sure that none are missing by referencing the illustrations
provided.
Bulbs Required (not included): 3 Medium Base 100 Watt Max. (for 3-light Chandelier)
5 Medium Base 100 Watt Max. (for 5-light Chandelier)

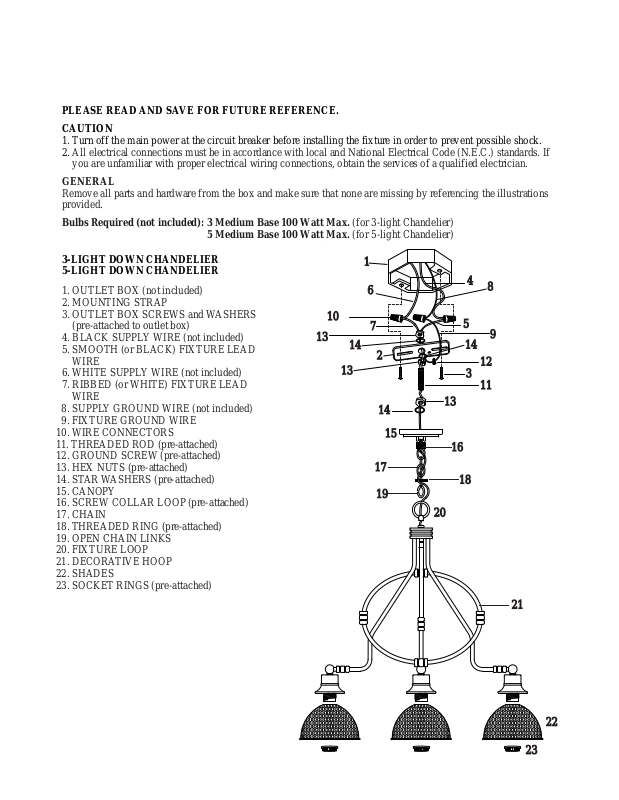

3-LIGHT DOWN CHANDELIER
5-LIGHT DOWN CHANDELIER
1. OUTLET BOX (not included)
2. MOUNTING STRAP
3. OUTLET BOX SCREWS and WASHERS
(pre-attached to outlet box)
4. BLACK SUPPLY WIRE (not included)
5. SMOOTH (or BLACK) FIXTURE LEAD
WIRE
6. WHITE SUPPLY WIRE (not included)
7. RIBBED (or WHITE) FIXTURE LEAD
WIRE
8. SUPPLY GROUND WIRE (not included)
9. FIXTURE GROUND WIRE
10. WIRE CONNECTORS
11. THREADED ROD (pre-attached)
12. GROUND SCREW (pre-attached)
13. HEX NUTS (pre-attached)
14. STAR WASHERS (pre-attached)
15. CANOPY
16. SCREW COLLAR LOOP (pre-attached)
17. CHAIN
18. THREADED RING (pre-attached)
19. OPEN CHAIN LINKS
20. FIXTURE LOOP
21. DECORATIVE HOOP
22. SHADES
23. SOCKET RINGS (pre-attached)
LIMITED WARRANTY
We (hereinafter known as “the Distributor”) warrant all of our Products to be free from defects in material and workmanship,
subject to certain conditions and exclusions, for the period of one (1) year from the date the Product was shipped to the original
end use purchaser.
The Distributor will, at its discretion, repair, replace or make appropriate adjustment where inspection discloses any defects
occurring in normal usage within the applicable time period above, subject to the following conditions and exclusions.
The following costs, expenses and damages are not covered by the provisions of this limited warranty: (1.) labor costs including,
but not limited to, costs associated with the removal and reinstallation of Product; (2.) shipping and freight expenses required to
return Product to the Distributor.
The warranty only applies to the original end use purchaser and original installation of Products. This warranty is not
transferable. The provisions of this warranty do not apply to products that are used in commercial applications; that are used for
purposes for which they are not designed or intended; which have been subjected to alteration, accidental damage, abuse, misuse,
negligence or accident; which have been improperly stored, installed, maintained or operated; which have been used in violation
of written instructions provided by the Distributor; which have been subjected to improper temperature, humidity or other
environmental conditions; or which, based on examination by the Distributor, do not disclose to the satisfaction of the Distributor
non-conformance to the warranty. Additionally, this warranty DOES NOT COVER scratches, abrasions, or deterioration due to
the use of paints, solvents, chemicals or abrasive cleaning techniques.
The above warranty also does not apply if:
• The original bill of sale, delivery date, or product number cannot be verified.
• The parts claimed to be defective are not returned for inspection if so requested by the
Distributor.
• The product is not in the possession of the original end use purchaser at the time warranty claim
is made.
To obtain Warranty Service, please contact us through your Lighting Dealer or Lighting Contractor
Finish Warranty Exclusions:
• Finishes for fixtures installed outdoors are subject to change due to prolonged exposure to
sunlight, pollutants and other environmental conditions. Any claim for fading, discoloration or
“patina” of a finish on an outdoor fixture is not applicable to the above warranty. See the
“Care & Cleaning" instructions below for proper care and maintenance of your fixture.
• The environment within ten miles of a sea coast can be extremely corrosive. Even with the
appropriate maintenance, products installed in this environment will typically deteriorate more
than products installed in a less severe environment. Some corrosion and/or deterioration is
considered "normal wear" in this environment. Any claim for finish failures or for corrosion of
other components due to coastal environment conditions is not applicable to the above warranty.
The Distributor does not authorize any person to create for it any obligation or liability in connection with its Products. The
maximum liability is limited to the original purchase price of the product. No action arising out of any claimed breach of this
warranty by the Distributor may be brought by the original end use purchaser more than one (1) year after the cause of action has
arisen.
IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. THE DISTRIBUTOR AND/OR SELLER
DISCLAIMS ANY LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not
allow limitations on incidental or consequential damages or how long an implied warranty lasts, so that the above limitations may
not fully apply to you. Refer to your local laws for your specific rights under this warranty.
CARE & CLEANING: Initial care for finishes requires periodic cleaning with a soft cloth, dampened with water. A mild
non-abrasive soap may be used along with a soft cloth and water if the fixture is very dirty. Particular care should be taken to
avoid abrasive materials and strong cleaning agents as they will quickly destroy the protective coatings and subject the finish to
oxidation and discoloration.
