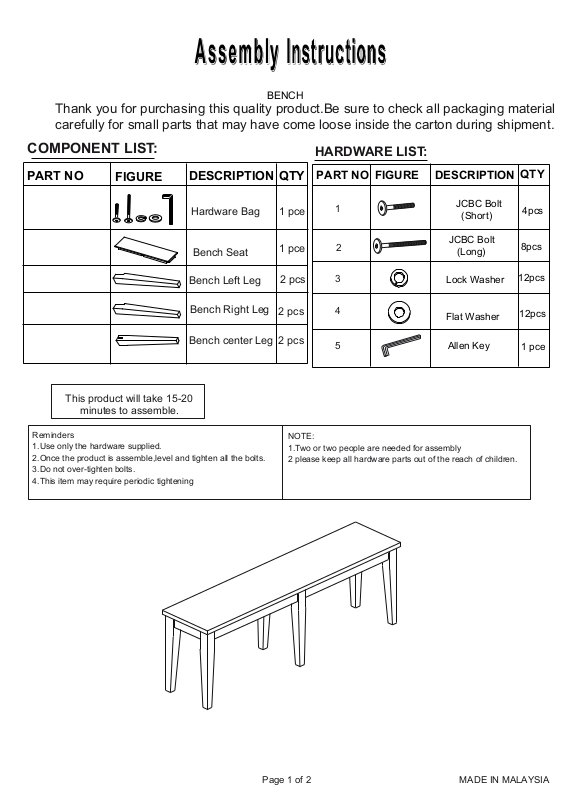

BENCH
Thank you for purchasing this quality product.Be sure to check all packaging material
carefully for small parts that may have come loose inside the carton during shipment.
COMPONENT LIST:
PART NO
This product will take 15-20
minutes to assemble.
FIGURE
DESCRIPTION
Hardware Bag
Bench Seat
Bench Left Leg
Bench Right Leg
Bench center Leg
QTY
1 pce
1 pce
2 pcs
2 pcs
2 pcs
HARDWARE LIST:
PART NO
1
2
3
4
5
FIGURE
DESCRIPTION
JCBC Bolt
(Short)
JCBC Bolt
(Long)
Lock Washer
Flat Washer
Allen Key
QTY
4pcs
8pcs
12pcs
12pcs
1 pce
Reminders
1.Use only the hardware supplied.
2.Once the product is assemble,level and tighten all the bolts.
3.Do not over-tighten bolts.
4.This item may require periodic tightening
NOTE:
1.Two or two people are needed for assembly
2 please keep all hardware parts out of the reach of children.
Page 1 of 2
MADE IN MALAYSIA
BENCH
ASSEMBLY :
STEP 1
1.1- Turn the Bench Seat upside down on a soft protective surface such as carpet.
1.2- Attach 4 Bench legs to the Bench seat using the provided hardware as shown in Fig.1.
Fig.1
Lock Washer
Allen Key
STEP 2
2.1- Attach 2 Center legs to the middle of Bench seat using the provided hardware as shown in Fig.2.
Fig.2
Flat Washer
JCBC Bolt
(Long)
Lock Washer
Allen Key
Flat Washer
JCBC Bolt
(Short)
STEP 3
3.1- Turn bench to upright position.
3.2- Once bench is fully balance fully tighten all bolts.
Assembly is now Completed.
Fig.3
CARE INSTRUCTION
~ Be sure to use the same type of polish consistenly.
Your furniture will appear cloudy or streaky if oil
based or wax based polishes are interchanged.
~ Spray your furniture surface evenly. Wipe in a
circular motion with a soft clean cloth.
Page 2 of 2
MADE IN MALAYSIA
