SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I
ExpressCard® Adapter
(PCI-e interface)
User Manual
Version 1.0
For SDDR-300
Technical Support
Worldwide: www.sandisk.com/support
Table of Contents
Overview ........................................................................................................................ 4
Features ....................................................................................................................... 4
Minimum system requirements ........................................................................................ 4
Specifications ................................................................................................................ 4
Driver Installation .......................................................................................................... 5
Installing driver for Microsoft® Windows® .......................................................................... 5
Installing driver for Mac OS® ........................................................................................... 8
Using your SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard® adapter ...... 12
Transferring data to a memory card from a PC ................................................................ 12
Transferring data to a memory card from a Mac .............................................................. 12
Removing the card ....................................................................................................... 12
Uninstalling the SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard® adapter
driver ........................................................................................................................... 13
Uninstalling the driver for Microsoft® Windows® ............................................................... 13
Uninstalling the driver for Mac OS® ................................................................................ 14
3
STOP! IMPORTANT INFORMATION
READ THE FOLLOWING CAREFULLY BEFORE USING THE SANDISK READER/ADAPTER.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Driver Download
Please go to http://kb.sandisk.com/app/answers/detail/a_id/5780 to download and update the
latest drivers.
Safety Instructions
Keep the SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard® adapter away from
direct sunlight, moisture and temperature extremes. Do NOT bend, flex or drop your SanDisk
Extreme Pro SDHC/SDXC UHS-I ExpressCard Adapter. The user is responsible for complying
with all environmental, safety and other usage specifications outlined in this User Manual.
Technical Support
If you have questions about the use or features of your SanDisk Extreme Pro SDHC/SDXC
UHS-I ExpressCard adapter as well as other SanDisk products, please visit our Knowledgebase
at http://kb.sandisk.com.
1 Year Limited* Warranty
SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter is covered by this warranty for
one (1) year from the date of purchase, subject to the applicable warranty terms and
conditions, as defined in www.sandisk.com/wug.
* 1 year warranty in regions not recognizing limited
Disposal Instructions
Do not dispose of the SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter with
unsorted waste. Improper disposal may be harmful to the environment and human health.
Please refer to your local waste authority for information on return and collection systems in
your area.
User Instructions
4
Overview
Thank you for choosing the SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard®
adapter. This adapter is an extremely fast reader for transferring data between high-speed
SD™, SDHC™, or SDXC™ memory cards and Notebook/Desktop computers with an
ExpressCard slot. This adapter can also be used with non high-speed standard memory cards.
Unlike most of the memory card readers and adapters commonly available in the market, this
SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard Adapter is operated under the PCIExpress interface. When this adapter is paired with the SanDisk Extreme Pro SDHC UHS-I
memory card, the data transfer speed can reach up to 45MB/s*.
With the following features, this adapter is the perfect solution for users with a high-speed
SanDisk Extreme Pro SDHC UHS-I memory card and looking for maximum capability, efficiency
and data throughput:
Features
Suitable for computers/laptops equipped with ExpressCard
Supports SD™, SDHC™ and SDXC™, UHS-I cards (according to SD Spec. Rev. 3.0)
Provides high speed for SanDisk Extreme Pro SDHC UHS-I memory cards, data transfer
speed (read / write) up to 45MB/s*
Reliable and rugged stainless steel cover
Power supply from ExpressCard socket with no external power required
Power saving mode to reduce power consumption
Support future new card specifications through driver upgrade
®
34 or ExpressCard® 54 slot
Minimum system requirements
Mac OS
Windows
®
10.4.11 or above
®
XP, Windows Vista®, Windows® 7
Specifications
Link interface：High Speed PCIe Spec. Rev. 1.0a (Data transfer rate up to 2.5Gbps)
Memory card standard compliant: SD 3.0 specification (which includes SDXC & UHS-I)
Dimensions: 75 x 34 x 5 mm (L x W x H)
Weight: 16 g
Operating Systems supported：Windows XP / Windows Vista / Windows 7, Mac OS 10.4.11
or above
Operating power：+3.3 VDC (+/-5% wide range power supply)
Environment support
- Operating @ 0℃ to 55℃ (Temp.); 0 ~ 50% (RH)
- Storage @ -20℃ to 55℃ (Temp.); 0 ~ 90% (RH)
*
Based on SanDisk internal testing; performance may be lower depending upon host device. 1 megabyte (MB) = 1
million bytes.
Overview
5
Driver Installation
Installing driver for Microsoft® Windows®
This section describes the procedures for installing the driver downloaded for this adapter for
use under Windows® XP, Windows Vista® and Windows® 7 operating systems.
STEP 1 – Download the driver
1. Click http://kb.sandisk.com/app/answers/detail/a_id/5780 and download the PC driver.
2. Save and extract the *.zip file on your PC desktop.
STEP 2 – Install the driver
1. Plug the adapter into the ExpressCard
2. Insert an SD™ card into the SanDisk Extreme
adapter.
3. From your PC desktop, open the Windows folder.
4. Double-click on setup.exe.
5. Click Install.
®
slot.
®
Pro™ SDHC/SDXC UHS-I ExpressCard®
6. Read the End User License Agreement. Click the checkbox to select I accept the terms
in the license agreement, then and click Install.
Driver Installation
6
The Installation Progress Bar will appear.
Driver Installation
7
7. Click Install.
8. Click Finish.
Driver Installation
8
Installing driver for Mac OS
This section describes the procedures for installing the driver for this adapter for use under
Mac OS® 10.4.11, 10.5x, and above operating systems.
STEP 1 – Download the driver
1. Click http://kb.sandisk.com/app/answers/detail/a_id/5780 and download the Mac driver.
2. Save the driver on your computer desktop.
STEP 2 – Install the driver
1. Insert an SD™ card into the SanDisk Extreme
adapter.
2. Carefully plug the adapter into the ExpressCard slot on your computer.
3. Double-click on the Mac folder.
4. Double-click on SanDisk_Driver.mpkg.
5. Click Continue.
®
®
Pro™ SDHC™/SDXC™ UHS-I ExpressCard®
Driver Installation
9
6. Read the End User License Agreement, and then click Continue to proceed.
7. Click Agree.
Driver Installation
10

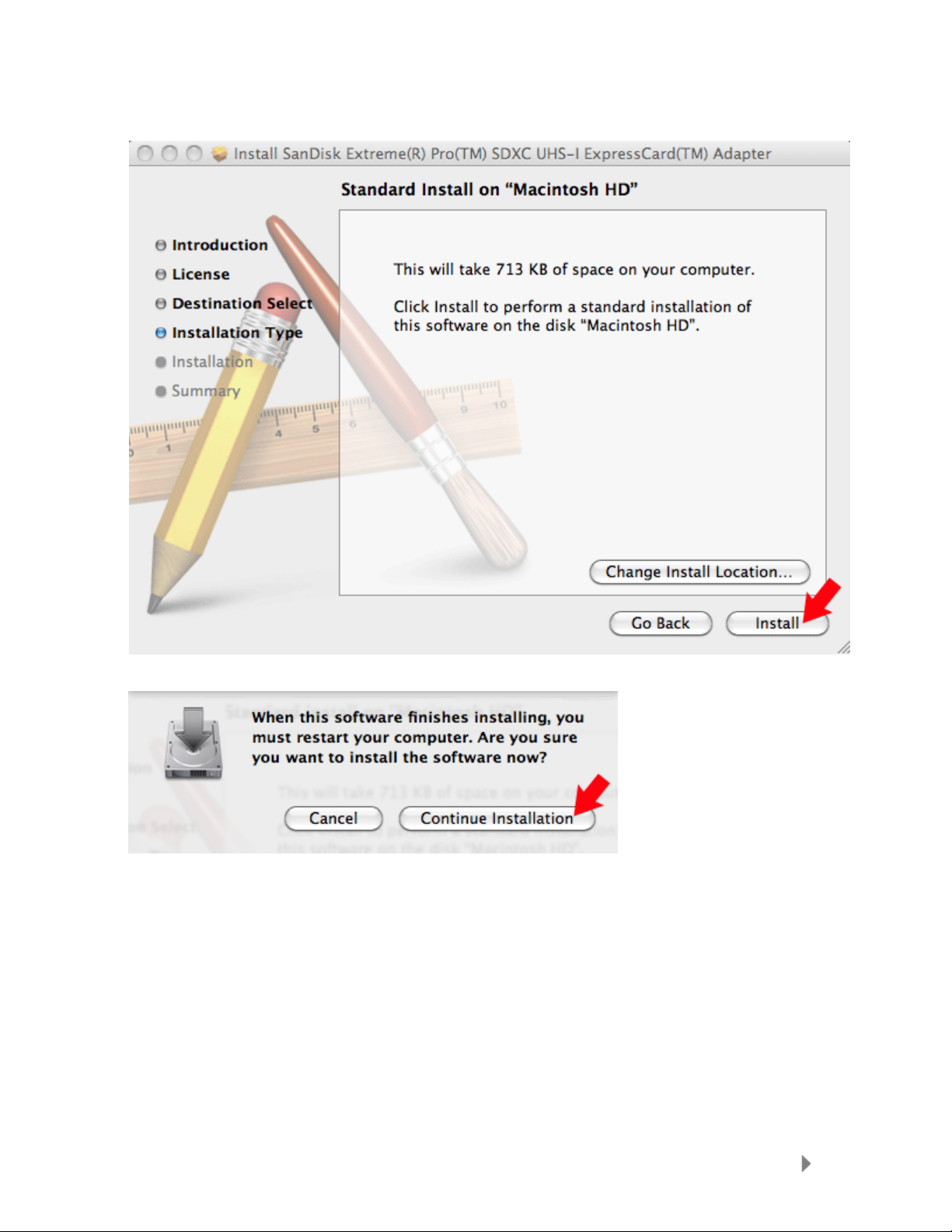

8. Click Install.
9. Click Continue Installation to begin the installation.
Driver Installation
11
10. Click Restart after the installation is complete.
Driver Installation
12
Using your SanDisk Extreme® Pro™
SDHC™/SDXC™ UHS-I ExpressCard®
adapter
First-time Use
The SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter requires the installation of
the driver downloaded from http://kb.sandisk.com/app/answers/detail/a_id/5780. Refer to
the Driver Installation section for instructions on installing the driver prior to use of the
adapter.
Transferring data to a memory card from a PC
1. Insert an SD™ card into the SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter.
2. Plug the adapter into an ExpressCard slot.
3. Double-click on My Computer.
4. Locate the files or folders you want to transfer to the memory card.
NOTE: You can select multiple files by holding down the Ctrl while left click on the desired files.
Or you can select all files by holding down Ctrl and press A.
5. On the keyboard, hold down the Ctrl key and press C.
6. Navigate to the desired folder in the Removable Disk associated with the SanDisk
Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter.
7. Hold down the Ctrl key and press V.
Transferring data to a memory card from a Mac
1. Insert an SD card into the SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter.
2. Plug the adapter into an ExpressCard slot.
3. Double-click on the drive associated with the SanDisk Extreme Pro SDHC/SDXC UHS-I
ExpressCard adapter.
4. Select the files or folders you want to copy to the drive by clicking on them.
To select multiple files or folders, hold down the APPLE key while you click and select the files
or folders you wish to save.
5. Drag and drop the selected files or folders to the flash drive icon.
NOTE: Do NOT immediately remove your SD card from the ExpressCard slot. Drag the
drive icon to the Trash Can to safely remove it from the Mac. The Trash Can will change to
the Eject Icon.
Removing the card
To remove the card on a PC or on a Macintosh:
1. Ensure no data is being transferred.
2. Remove the card from the SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter or
remove the ExpressCard adapter from the computer.
Using your SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard
®
Adapter
13
Uninstalling the SanDisk Extreme® Pro™
SDHC™/SDXC™ UHS-I ExpressCard®
adapter driver
NOTE: Ensure that the SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard adapter with a
SD card inserted is plugged into the ExpressCard slot.
Uninstalling the driver for Microsoft® Windows®
1. On the PC’s desktop, click Start > Settings > Control Panel.
2. Double-click Programs and Features.

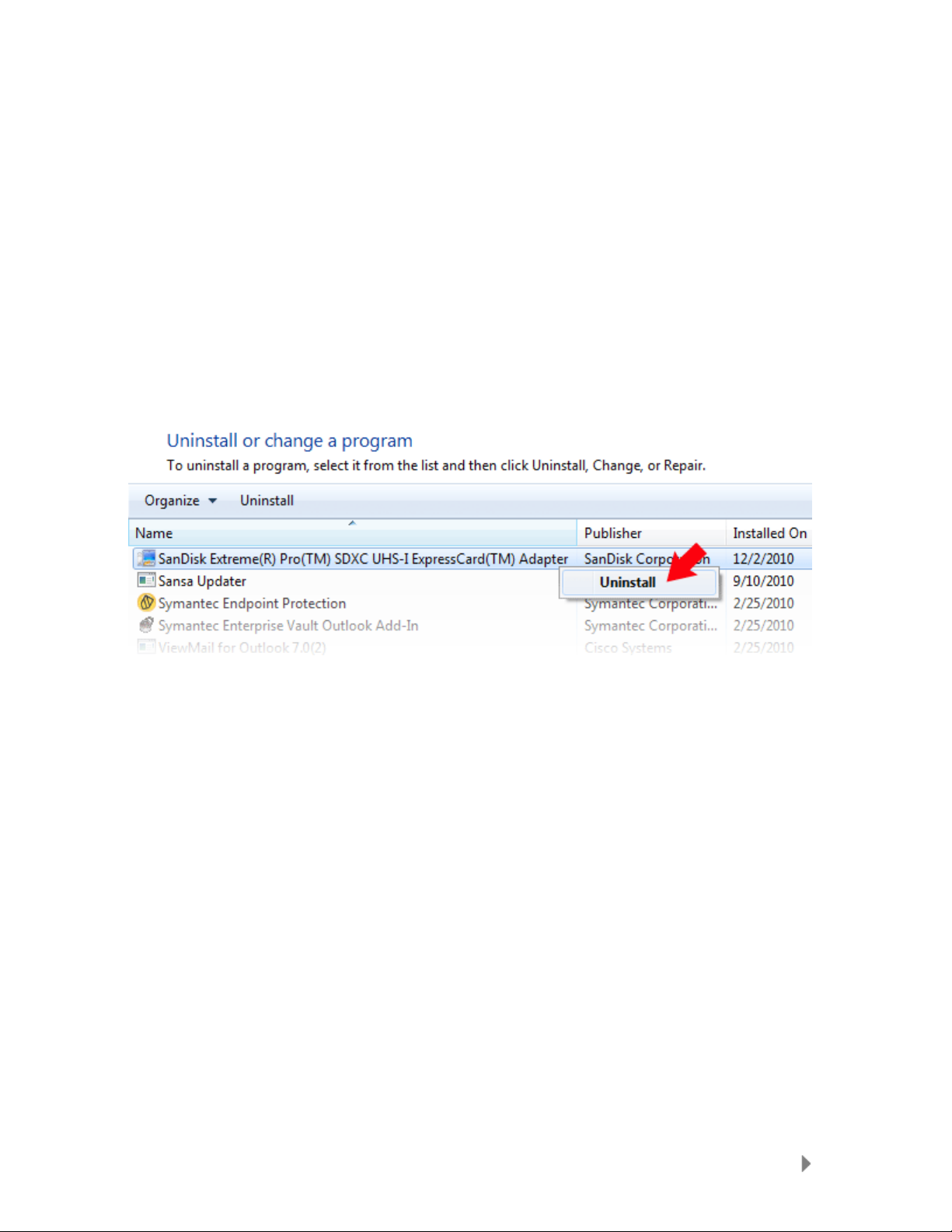

3. Right-click on SanDisk Extreme Pro SDHC/SDXC UHS-I ExpressCard Adapter and
select Uninstall (or Remove).
4. Click Remove.
Uninstalling the SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard
®
adapter driver
14
Uninstalling the driver for Mac OS
1. Double-click on the Mac folder.
2. Double-click on SanDisk_Driver_Remover.
3. Click OK to confirm.
®
4. Click OK, and then reboot your computer.
Uninstalling the SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard
®
adapter driver
15
SanDisk, the SanDisk logo and SanDisk Extreme are trademarks of SanDisk Corporation,
registered in the United States and other countries. SanDisk Extreme Pro is a trademark of
SanDisk Corporation. SD, SDHC and SDXC are trademarks of SD-3C, LLC. ExpressCard is a
trademark of PCMCIA. Other brand names mentioned herein are for identification purposes
only and may be trademarks of their respective holder(s).
©2011 SanDisk Corporation. All rights reserved.
Uninstalling the SanDisk Extreme® Pro™ SDHC™/SDXC™ UHS-I ExpressCard
®
adapter driver
