CHAPTER 1 Introduction

1.1 General Description

SanDisk CompactFlash® Memory Card products provide high capacity solid-state flash memory that electrically complies with the Personal Computer Memory Card International Association ATA (PC Card ATA) standard. (In Japan, the applicable standards group is JEIDA.) The CompactFlash Memory Card Series also supports a True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot, and with a Ty pe II PCMCIA adapter can be used in any system that has a PCMCIA Type II or Type III socket.

CompactFlash Memory cards use SanDisk Flash memory, which was designed by SanDisk specifically for use in mass storage applications. In addition to the mass storage-specific flash memory chips, CompactFlash Memory cards include an on-card intelligent controller that provides a high level interface to the host computer. This interface allows a host computer to issue commands to the memory card to read or write blocks of memory. The host addresses the card in 512 byte sectors. Each sector is protected by a powerful Erro r Correcting Code (ECC).

The on-card intelligent controller in the CompactFlash Memory Card manages interface protocols, data storage and retrieval as well as ECC, defect handling and diagnostics, power management and clock control. Once the card has been configured by the host, it appears to the host as a standard ATA (IDE) disk drive. Additional ATA commands have been provided to enhance system performance.

The host system can support as many cards as there are CompactFlash and PCMCIA Type II or III card slots. The original form factor CompactFlash Memory cards require a PCMCIA Type II Adapter to be used in a PCMCIA Type II or Type III socket.

Figure 1-1 SanDisk CompactFlash Card Block Diagram

SanDisk CompactFlash

Data In/Out

Control

Flash

Memory

Host

Interface

SanDisk

Single Chip

Controller

Introduction SanDisk CompactFlash Card OEM Product Manual

1.2 Features

SanDisk CompactFlash Memory cards provide the following system features:

• Up to 16 GB of mass storage data

• PC Card ATA protocol compatible

• True IDE Mode compatible

• Very low CMOS power

• Very high performance

• Very rugged

• Low weight

• Noiseless

• Low Profile

• +5 Volts or +3.3 Volts operation

• Automatic error correction and retry capabilities

• Supports power down commands and sleep modes

• Non-volatile storage (no battery required)

• MTBF >1,000,000 hours

• Minimum 10,000 insertions

1.3 Scope

This document describes the key features and specifications of CompactFlash Memory cards, as well as the information required to interface this product to a host system. Retail CompactFlash specifications are not covered in this manual.

1.4 CompactFlash Standard

SanDisk CompactFlash Memory cards are fully compatible with the CompactFlash Specification published by the CompactFlash Association. Contact the CompactFlash

Association for more information.

CompactFlash Association P.O. Box 51537 Palo Alto, CA 94303 USA Phone: 415-843-1220 Fax: 415-493-1871 www.compactflash.org

SanDisk CompactFlash Card OEM Product Manual Introduction

1.5 PCMCIA Standard

SanDisk CompactFlash Memory cards are fully electrically compatible with the PCMCIA specifications listed below:

• PCMCIA PC Card Standard, 7.0, February 1999

• PCMCIA PC Card ATA Specification, 7.0, February 1999

These specifications may be obtained from:

PCMCIA 2635 N. First Street, Suite 209 San Jose, CA 95131 USA Phone: 408-433-2273 Fax: 408-433-9558

1.6 Related Documentation

ATA operation is governed by the ATA-4 specification published by ANSI. For more information, refer to the American National Standard X3.221: AT Attachment for Interface for Disk Drives document.

Documentation can be ordered from IHS by calling 1-800-854-7179 or accessing their Web site: http://global.ihs.com.

1.7 Functional Description

CompactFlash Memory cards contain a high level, intelligent subsystem as shown in the block diagram, Figure 1-1. This intelligent (microprocessor) subsystem provides many capabilities not found in other types of memory cards. These capabilities include the following:

• Standard ATA register and command set (same as found on most magnetic disk drives).

• Host independence from details of erasing and programming flash memory.

• Sophisticated system for managing defects (analogous to systems found in magn etic disk

drives).

• Sophisticated system for error recovery including a powerful error correction code (ECC).

• Power management for low power operation.

• Implementation of dynamic and static wear-leveling to extend card’s life.

Introduction SanDisk CompactFlash Card OEM Product Manual

1.7.1 Technology Independence

The 512-byte sector size of the CompactFlash Memory Card is the same as that in an IDE magnetic disk drive. T o write or read a sector (or multiple sectors), the host computer software simply issues a Read or Write command to the card. This command contains the address and the number of sectors to write/read. The host software then waits for the command to complete.

The host software does not get involved in the details of how the flash memory is erased, programmed or read. This is extremely important as flash devices are expected to get more and more complex in the future. Because the CompactFlash Memory Card Series uses an intelligent on-board controller, the host system software will not require changing as new flash memory evolves. In other words, systems that support CompactFlash Memory cards now, will be able to access future SanDisk cards built with new flash technology without having to update or change host software.

1.7.2 Defect and Error Management

CompactFlash Memory cards contain a sophisticated defect and error management system. This system is analogous to the systems found in magnetic disk drives and in many cases offers enhancements. If necessary, the cards will rewrite data from a defective sector to a good sector. This is completely transparent to the host and does not consume any user data space.

The CompactFlash Memory Card soft error rate specification is much better than the magnetic disk drive specification. In the extremely rare case a read error does occur, CompactFlash Memory cards have innovative algorithms to recover the data by using hardware on-the-fly Error Detection Code/Error Correction Code (EDC/ECC), based on a BCH algorithm.

These defect and error management systems, coupled with the solid state construction, give SanDisk CompactFlash cards unparalleled reliability

1.7.3 Wear Leveling

Wear Leveling is an intrinsic part of the erase pooling functionality of SanDisk CompactFlash using NAND memory. The CF WEAR LEVEL command is supported as a NOP operation to maintain backward compatibility with existing software utilities. Advanced featu res of dynamic and static wear-leveling, and automatic block management are used to ensure high data reliability and maximize flash life expectancy.

1.7.4 Using Erase Sector and Write Commands

SanDisk CompactFlash Memory cards support the CF ERASE SECTOR and WRITE WITHOUT ERASE commands. In some applications, write operations may be faster if the addresses being written are first erased with the ERASE SECTOR command. WRITE WITHOUT ERASE behaves as a normal write command and no performance gain results from its use.

SanDisk CompactFlash Card OEM Product Manual Introduction

1.7.5 Automatic Sleep Mode

A unique feature of the SanDisk CompactFlash Memory Card is automatic entrance and exit from sleep mode. Upon completion of a command, the card will enter sleep mode to conserve power if no further commands are received within 5 msec. The host does not have to take any action for this to occur. In most systems, the CompactFlash Memory Card is in sleep mode except when the host is accessing it, thus conserving power. The delay from command completion to entering sleep mode is adjustable.

When the host is ready to access the card and is in sleep mode, any command issued to it will cause the card to exit sleep and respond. The host does not have to follow the ATA protocol of issuing a reset first. It may do this if desired, but it is not needed. By not issuing the reset, performance is improved through the reduction of overhead but this must be done only for the SanDisk products as other ATA products may not support this feature.

1.7.6 Dynamic Adjustment of Performance vs. Power Consumption

This feature is no longer supported. This command will be treated as a NOP (No Operation) to guarantee backward compatibility.

1.7.7 Power Supply Requirements

This is a dual voltage product, which means it will operate at a voltage range of 3.30 volts ± 5% or 5.00 volts ± 10%. Per the PCMCIA specification Section 2.1.1, the host system must apply 0 volts in order to change a voltage range. This same procedure of providing 0 volts to the card is required if the host system applies an input voltage outside the desired voltage by more than 15%. This means less than 4.25 volts for the 5.00-volt range and less than 2.75 volts for the 3.30 volt range.

Introduction SanDisk CompactFlash Card OEM Product Manual

–This page intentionally left blank–

CHAPTER 2 Product Specifications

For all the following specifications, values are defined at ambient temperature and nominal supply voltage unless otherwise stated.

2.1 System Environmental Specifications

T able 2-1 contains environmental specifications which include temperature, humidity , acoustic noise, vibration, shock and altitude.

Table 2-1 Environmental Specifications

CompactFlash CompactFlash Extreme III

Temperature

Humidity

Acoustic Noise At 1 meter: 0 dB 0 dB

Vibration

Shock

Altitude (relative to sea level)

Operating:

Non-operating:

Operating:

Non-operating:

Operating:

Non-operating:

Operating:

Non-operating:

Operating:

Non-operating:

15 G peak to peak maximum 15 G peak to peak maximum

° C to 70° C

0

° C to 85° C

-25

8% to 95% non-condensing 8% to 95% non-condensing

2,000 G maximum 2,000 G maximum

80,000 ft. maximum 80,000 ft. maximum

-25

° C to 85° C

-25

° C to 85° C

8% to 95% non-condensing 8% to 95% non-condensing

15 G peak to peak maximum 15 G peak to peak maximum

2,000 G maximum

2,000 G maximum 80,000 ft. maximum 80,000 ft. maximum

2.2 System Power Requirements

All values quoted in T able 2-2 are typical at 25° C and nominal supply voltage unless otherwise stated.

Product Specifications SanDisk CompactFlash Card OEM Product Manual

Sleep mode currently is specified under the condition that all card inputs are static CMOS levels and in a "Not Busy" operating state.

Table 2-2 Power Requirements

DC Input Voltage (Vcc)

100 mV max. ripple (p-p) 3.3V +/- 5% 5V +/- 10%

a

Memory Subsystem

CompactFlash Memory Card Sleep

Up to 512 MB 300

1.0 GB 600 µ 800 µ

Over 1.0 GB 1 mA 1.2 mA Read 50 mA 55 mA Write 65 mA 70 mA Read/Write Peak 100 mA 100 mA

a

CompactFlash Extreme III Memory Card Sleep

Up to 512 MB

512 MB to 1.5 GB

Over 1.5 GB Read 75 mA 100 mA Write 75 mA 100 mA Read/Write Peak 100 mA 100 mA

µ 500 µ

µ

300 600 µ

1 mA

500 µ 800 µ

1.2 mA

a. Maximum average value.

SanDisk CompactFlash Card OEM Product Manual Product Specifications

2.3 System Performance

All performance timings assume the CompactFlash Memory Card Series controller is in the default (i.e., fastest) mode.

Table 2-3 Performance

CompactFlash Memory Card

Start-up Times

Sleep to Write Sleep to Read Reset to Ready

Active to Sleep Delay

Data Transfer Rate To/From Flash

Data Transfer Rate To/From Host

Controller Overhead

Command to DRQ 50 ms maximum

2.5 ms maximum 20 ms maximum 50 ms typical; 400 ms maximum Programmable

20.0 MB/sec burst

16.0 MB/sec burst

CompactFlash Extreme III Memory Card

Start-up Times

Sleep to Write Sleep to Read Reset to Ready

Data Transfer Rate To/From Flash

Data Transfer Rate To/From Host

Maximum Performance

Sequential Read 20.0 MB/sec Sequential Write 20.0 MB/sec

NOTE: The Sleep to Write and Sleep to Read times are the times it takes the

2.5 ms maximum 20 ms maximum 50 ms typical; 400 ms maximum

20.0 MB/sec burst

25.0 MB/sec burst

CompactFlash Memory Card to exit sleep mode when any command is issued by the host to when the card is reading or writing. CompactFlash Memory cards do not require a reset to exit sleep mode.

Product Specifications SanDisk CompactFlash Card OEM Product Manual

2.4 System Reliability

Table 2-4 Reliability

MTBF (@ 25 C)

Preventative Maintenance

Data Reliability

>1,000,000 hours

None

<1 non-recoverable error in 10 <1 erroneous correction in 1020 bits read

14

bits read

2.5 Physical Specifications

Refer to T able 2-5 and see Figure 2-1 for CompactFlash Memory Card physical specifications and dimensions.

Table 2-5 CompactFlash Physical Dimensions

Weight

Length

Width

Thickness

11.4 g (.40 oz) typical, 14.2 g (.50 oz) maximum

36.40 ± 0.15 mm (1.433 ± .006 in)

42.80 ± 0.10 mm (1.685 ± .004 in)

3.3 mm ± 0.10 mm (.130 ± .004 in) (Excluding Lip)

SanDisk CompactFlash Card OEM Product Manual Product Specifications

Figure 2-1 CompactFlash Memory Card Dimensions

Product Specifications SanDisk CompactFlash Card OEM Product Manual

–This page intentionally left blank–

CHAPTER 3 Interface Description

3.1 Physical Description

The host connects to SanDisk CompactFlash Memory cards using a standard 50-pin connector consisting of two rows of 25 female contacts each on 50 mil (1.27 mm) centers.

3.1.1 Pin Assignments and Types

The signal/pin assignments are listed in Table 3-1. Low active signals have a "-" prefix. Pin types are Input, Output or Input/Output. Sections 3.3.1 and 3.3.2 define the DC characteristics for all input and output type structures..

Table 3-1 PC Card Memory Mode Pin Assignments

Pin No.

1 GND – Ground 26 -CD1 O Ground 2 D03 I/O I1Z,OZ3 27 D11 I/O I1Z,OZ3 3 D04 I/O I1Z,OZ3 28 D12 I/O I1Z,OZ3 4 D05 I/O I1Z,OZ3 29 D13 I/O I1Z,OZ3 5 D06 I/O I1Z,OZ3 30 D14 I/O I1Z,OZ3 6 D07 I/O I1Z,OZ3 31 D15 I/O I1Z,OZ3 7 -CE1 I I3U 32 -CE2 I I3U 8 A10 I I1Z 33 -VS1 O Ground

9 -OE I I3U 34 -IORD I I3U 10 A09 I I1Z 35 -IOW R I I3U 11 A08 I I1Z 36 -WE I I3U 12 A07 I I1Z 37 RDY/BSY O OT1 13 VCC – Power 38 VCC – Power 14 A06 I I1Z 39 -CSEL I I2Z 15 A05 I I1Z 40 -VS2 O OPEN 16 A04 I I1Z 41 RESET I I2Z 17 A03 I I1Z 42 -WAIT O OT1 18 A02 I I1Z 43 -INPACK O OT1 19 A01 I I1Z 44 -REG I I3U 20 A00 I I1Z 45 BVD2 I/O I1U,OT1 21 D00 I/O I1Z,OZ3 46 BVD1 I/O I1U,OT1 22 D01 I/O I1Z,OZ3 47 D08 I/O I1Z,OZ3 23 D02 I/O I1Z,OZ3 48 D09 I/O I1Z,OZ3 24 WP O OT3 49 D10 I/O I1Z,OZ3 25 -CD2 O Ground 50 GND – Ground

Signal

Name Pin Type I/O Ty pe Pin No.

Signal

Name Pin Type I/O Type

Interface Description SanDisk CompactFlash Card OEM Product Manual

PC Card I/O Pin Assignments are contained in Table 3-2.

Table 3-2 PC Card I/O Mode Pin Assignments

Pin No.

1 GND – Ground 26 -CD1 O Ground 2 D03 I/O I1Z,OZ3 27 D11 I/O I1Z,OZ3 3 D04 I/O I1Z,OZ3 28 D12 I/O I1Z,OZ3 4 D05 I/O I1Z,OZ3 29 D13 I/O I1Z,OZ3 5 D06 I/O I1Z,OZ3 30 D14 I/O I1Z,OZ3 6 D07 I/O I1Z,OZ3 31 D15 I/O I1Z,OZ3 7 -CE1 I I3U 32 -CE2 I I3U 8 A10 I I1Z 33 -VS1 O Ground

9 -OE I I3U 34 -IORD I I3U 10 A09 I I1Z 35 -IOWR I I3U 11 A08 I I1Z 36 -WE I I3U 12 A07 I I1Z 37 -IREQ O OT1 13 VCC – Power 38 VCC – Power 14 A06 I I1Z 39 -CSEL I I2Z 15 A05 I I1Z 40 -VS2 O OPEN 16 A04 I I1Z 41 RESET I I2Z 17 A03 I I1Z 42 -WAIT O OT1 18 A02 I I1Z 43 -INPACK O OT1 19 A01 I I1Z 44 -REG I I3U 20 A00 I I1Z 45 -SPKR I/O I1U,OT1 21 D00 I/O I1Z,OZ3 46 -STSCHG I/O I1U,OT1 22 D01 I/O I1Z,OZ3 47 D08 I/O I1Z,OZ3 23 D02 I/O I1Z,OZ3 48 D09 I/O I1Z,OZ3 24 -IOIS16 O OT3 49 D10 I/O I1Z,OZ3 25 -CD2 O Ground 50 GND – Ground

Signal

Name Pin Type I/O Type Pin No.

Signal

Name Pin Type I/O Type

True IDE Mode Pin Assigments are contained in Table 3-3.

Table 3-3 True IDE Mode Pin Assignments

No.

1 GND – Ground 26 -CD1 O Ground 2 D03 I/O I1Z,OZ3 27 D11 I/O I1Z,OZ3 3 D04 I/O I1Z,OZ3 28 D12 I/O I1Z,OZ3 4 D05 I/O I1Z,OZ3 29 D13 I/O I1Z,OZ3 5 D06 I/O I1Z,OZ3 30 D14 I/O I1Z,OZ3 6 D07 I/O I1Z,OZ3 31 D15 I/O I1Z,OZ3 7 -CS0 I I3Z 32 -CS1 I I3Z 8 A10 I I1Z 33 -VS1 O Ground

Signal

Name Pin Type I/O Type Pin No.

Signal

Name Pin Type I/O Type

SanDisk CompactFlash Card OEM Product Manual Interface Description

Table 3-3 True IDE Mode Pin Assignments

Pin No.

9 -ATA SEL I I3U 34 -IORD I I3Z 10 A09 I I1Z 35 -IOWR I I3Z 11 A08 I I1Z 36 -WE I I3U 12 A07 I I1Z 37 INTRQ O OZ1 13 VCC – Power 38 VCC – Power 14 A06 I I1Z 39 -CSEL I I2U 15 A05 I I1Z 40 -VS2 O OPEN 16 A04 I I1Z 41 RESET I I2Z 17 A03 I I1Z 42 IORDY O OT1 18 A02 I I1Z 43 -DMARQ O OZ1 19 A01 I I1Z 44 -DMACK I I3U 20 A00 I I1Z 45 -DASP I/O I1U,ON1 21 D00 I/O I1Z,OZ3 46 -PDIAG I/O I1U,ON1 22 D01 I/O I1Z,OZ3 47 D08 I/O I1Z,OZ3 23 D02 I/O I1Z,OZ3 48 D09 I/O I1Z,OZ3 24 -IOCS16 O ON3 49 D10 I/O I1Z,OZ3 25 -CD2 O Ground 50 GND – Ground

Signal

Name Pin Type I/O Type Pin No.

3.2 Electrical Description

Signal

Name Pin Type I/O Type

The CompactFlash Memory Card Series is optimized for operation with hosts, which support the PCMCIA I/O interface standard conforming to the PC Card ATA specification. However, the card may also be configured to operate in systems that support only the memory interface standard. The CompactFlash card configuration is controlled using the standard PCMCIA configuration registers starting at address 200h in the Attribute Memory space of the card.

Table 3-4 describes the I/O signals. Signals whose source is the host are designated as inputs while signals that the card sources are outputs. SanDisk CompactFlash Memory Card logic levels conform to those specified in Section 3.3 of the PCMCIA Release 2.1 Specification.

NOTE: The sleep-to-write and sleep-to-read times are the time it takes the

card to exit sleep mode when any command is issued by the host to when the card is reading or writing. CompactFlash Memory cards do not require a reset to exit sleep mode.

Interface Description SanDisk CompactFlash Card OEM Product Manual

The SanDisk CompactFlash Memory Card signals are described in Table 3-4.

Table 3-4 Signal Description

Signal Name Dir. Pin Description

A10-A0

(PC Card Memory Mode) (PC Card I/O Mode)

A2-A0

(True IDE Mode)

A10-A3

(True IDE Mode)

BVD1

(PC Card Memory Mode)

-STSCHG

(PC Card I/O Mode)

-PDIAG

(True IDE Mode)

BVD2

(PC Card Memory Mode)

-SPKR

(PC Card I/O Mode)

-DASP

(True IDE Mode)

-CD1, -CD2

(PC Card Memory Mode) (PC Card I/O Mode (True IDE Mode)

-CE1, -CE2

(PC Card Memory Mode) (PC Card I/O Mode)

-CS0, -CS1

(True IDE Mode)

-CSEL

(PC Card Memory Mode) (PC Card I/O Mode)

)

I

8, 10, 11, 12, 14,

15, 16, 17, 18, 19,

20

I

I/O 46 This signal is asserted high as the BVD1 signal

I/O 45 This output line is always driven to a high state

O 26, 25 These Card Detect pins are connected to

I 7, 32 The Card Enable input signals are used both to

I 39 This signal is not used for PC Card Memory

18, 19, 20

These address lines, along with the -REG signal, are used to select the following: I/O port address registers within the card, memorymapped port address registers within the card, a byte in the card's information structure and its configuration control and status registers.

In True IDE Mode only A[2:0] is used to select one of eight registers in the Task File.

In True IDE Mode these remaining address lines should be grounded by the host.

since a battery is not used with this product. The Status Changed signal is asserted low to

alert the host to changes in the RDY/-BSY and Write Protect states, while the I/O interface is configured. Its use is controlled by the Card Config. and Status Register.

In the True IDE Mode, this input/output is the Pass Diagnostic signal in the master/slave handshake protocol.

in Memory Mode since a battery is not required for this product.

This output line is always driven to a high state in I/O Mode since this product does not support the audio function.

In the True IDE Mode, this input/output is the Disk Active/Slave Present signal in the master/ slave handshake protocol.

ground on the card. They are used by the host to determine if the card is fully inserted into its socket.

select the card and to indicate to the card whether a byte or a word operation is being performed. -CE2 always accesses the odd byte of the word. -CE1 accesses the even byte or the Odd byte of the word depending on A0 and -CE2. A multiplexing scheme based on A0, -CE1, -CE2 allows 8 bit hosts to access all data on D0-D7.

In True IDE Mode, -CS0 is the chip select for the Task File registers while -CS1 is used to select the Alternate Status Register and the Device Control Register.

Mode or PC Card I/O Mode.

SanDisk CompactFlash Card OEM Product Manual Interface Description

Table 3-4 Signal Description

Signal Name Dir. Pin Description

-CSEL

(True IDE Mode)

D15-D00

(PC Card Memory Mode) (PC Card I/O Mode)

D15-D00

(True IDE Mode)

GND

(PC Card Memory Mode) (PC Card I/O Mode (True IDE Mode)

-INPACK

(PC Card Memory Mode)

-INPACK

(PC Card I/O Mode)

-DMARQ

(True IDE Mode)

-IORD

(PC Card Memory Mode)

)

I/O 31, 30, 29, 28, 27,

49, 48, 47, 6, 5, 4,

3, 2, 23, 22, 21

-- 1, 50 Ground.

O 43 This signal is not used in this mode.

I 34 This signal is not used in this mode.

This internally pulled up signal is used to configure this device as a master or slave when configured in the True IDE Mode. When this pin is grounded, this device is configured as a master. When the pin is open, this device is configured as a slave.

These lines carry the data, commands and status information between the host and the controller. D00 is the LSB of the Even Byte of the word. D08 is the LSB of the Odd Byte of the word.

In True IDE Mode, all Task File operations occur in byte mode on the low order bus D00D07 while all data transfers are 16 bits using D00-D15.

The Input Acknowledge signal is asserted by the card when it is selected and responding to an I/O read cycle at the address that is on the address bus. This signal is used by the host to control the enable of any input data buffers between the card and the CPU.

This signal is used for DMA data transfers between host and device and is asserted by the device when it is ready to transfer data to or from the host. The direction of data transfer is controlled by DIOR- and DIOW-. This signal is used in a handshake manner with DMACK(i.e., the device waits until the host asserts DMACK- before negating DMARQ, and reasserting DMARQ if there is more data to transfer).

-IORD

(PC Card I/O Mode) (True IDE Mode)

-IOWR

(PC Card Memory Mode)

I 35 This signal is not used in this mode.

This is an I/O read strobe generated by the host. This signal gates I/O data onto the bus from the card when the card is configured to use the I/O interface.

Interface Description SanDisk CompactFlash Card OEM Product Manual

Table 3-4 Signal Description

Signal Name Dir. Pin Description

-IOWR

(PC Card I/O Mode) (True IDE Mode)

-OE

(PC Card Memory Mode)

-OE

(PC Card I/O Mode)

-ATA SEL

(True IDE Mode)

RDY/-BSY

(PC Card Memory Mode)

-IREQ

(PC Card I/O Mode)

INTRQ

(True IDE Mode)

-REG

(PC Card Memory Mode)

-REG

(PC Card I/O Mode)

I 9 This is an output enable strobe generated by

O 37 In Memory Mode, this signal is set high when

I 44 This Attribute Memory Select signal is used

The I/O write strobe pulse is used to clock I/O data on the Card Data bus into the card controller registers when the card is configured to use the I/O interface.

The clocking will occur on the negative to positive edge of the signal (trailing edge).

the host interface. It is used to read data from the card in Memory Mode and to read the CIS and configuration registers.

In PC Card I/O Mode, this signal is used to read the CIS and configuration registers.

To enable True IDE Mode this input should be grounded by the host.

the card is ready to accept a new data transfer operation and held low when the card is busy. The host memory card socket must provide a pull-up resistor.

At power up and at reset, the RDY/-BSY signal is held low (busy) until the card has completed its power up or reset function. No access of any type should be made to the card during this time. The RDY/-BSY signal is held high (disabled from being busy) whenever the following condition is true: The card has been powered up with +RESET continuously disconnected or asserted.

I/O Operation–After the card has been configured for I/O operation, this signal is used as an interrupt request. This line is strobed low to generate a pulse mode interrupt or held low for a level mode interrupt.

In True IDE Mode, this signal is the active high Interrupt Request to the host.

during memory cycles to distinguish between Common Memory and Register (Attribute) Memory accesses: High for common memory, and low for attribute memory.

The signal must also be active (low) during I/O cycles when the I/O address is on the bus.

SanDisk CompactFlash Card OEM Product Manual Interface Description

Table 3-4 Signal Description

Signal Name Dir. Pin Description

-DMACK

(True IDE Mode)

RESET

(PC Card Memory Mode) (PC Card I/O Mode)

-RESET

(True IDE Mode)

V

CC

(PC Card Memory Mode) (PC Card I/O Mode (True IDE Mode)

)

-VS1

-VS2

(PC Card Memory Mode) (PC Card I/O Mode (True IDE Mode)

)

-WAIT

(PC Card Memory Mode)

-WAIT

(PC Card I/O Mode)

IORDY

(True IDE Mode)

-WE

(PC Card Memory Mode)

-WE

(PC Card I/O Mode)

-WE

(True IDE Mode)

WP

(PC Card Memory Mode)

I 41 When the pin is high, this signal resets the

-- 13, 38 +5V, +3.3V power.

O 33, 40 Voltage Sense Signals. -VS1 is grounded so

O 42 SanDisk CompactFlash Memory cards do not

I 36 This is a signal driven by the host and used for

O 24 Memory Mode–The CompactFlash Card does

This signal is used by the host in response to DMARQ to initiate DMA transfers.

NOTE: This signal may be negated by the host to suspend the DMS transfer in process. For Multiword DMA transfers, the device may negate DMARQ with the t

specified time once

L

the DMACK- is asserted and reasserted again at a later time to resume DMA operation. Alternatively, if the device is able to continue the data transfer, the device may leave DMARQ asserted and wait for the host to reassert DMACK-.

card. The card is reset only at power-up if this pin is left high or open from power-up. The card is also reset when the Soft Reset bit in the Card Configuration Option Register is set.

In the True IDE Mode this input pin is the active low hardware reset from the host.

that the CompactFlash Card CIS can be read at

3.3 volts and VS2 is open and reserved by PCMCIA for a secondary voltage.

assert the -WAIT signal. SanDisk CompactFlash Memory cards do not

assert the -WAIT signal. SanDisk CompactFlash Memory cards, except

when in UDMA modes, do not assert an IORDY signal.

strobing memory write data to the registers of the card when it is configured in the Memory Interface Mode. It is also used for writing the configuration registers.

In PC Card I/O Mode, this signal is used for writing the configuration registers.

In True IDE Mode this input signal is not used and should be connected to VCC by the host.

not have a write-protect switch. This signal is held low after the completion of the reset initialization sequence.

Interface Description SanDisk CompactFlash Card OEM Product Manual

Table 3-4 Signal Description

Signal Name Dir. Pin Description

-IOIS16

(PC Card I/O Mode)

-IOCS16

(True IDE Mode)

I/O Operation–When the card is configured for I/O Operation, pin 24 is used for the -I/O Selected is 16 Bit Port (-IOIS16) function. A low signal indicates that a 16-bit or odd-byte only operation can be performed at the addressed port.

This output signal is asserted low when this device is expecting a word data transfer cycle.

3.3 Electrical Specification

All D.C. Characteristics for the CompactFlash Memory Card Series are defined as follows:

T ypical conditions unless otherwise stated:

= 5V +/- 10%

V

CC

= 3.3V +/- 5%

V

CC

Ta = 0 °C to 60 °C

Absolute Maximum conditions:

= -0.3V min. to 6.5V max.

V

CC

V* = 0.5V min. to V *Voltage on any pin except V

+ 0.5V max.

CC

with respect to GND.

CC

3.3.1 Input Leakage Control and Input Characteristics

In Table 3-5, “x” refers to the characteristics described in Table 3-6. For example–"I1U" indicates a pull-up resistor with a Type 1 input characteristic.

Table 3-5 Input Leakage Control

Type Parameter Symbol Conditions MIN MAX Unit

lxZ Input Leakage Current IL Vih=VCC/Vil=GND -1 1 uA IxU Pull Up Resistor RPU1 VCC=5.0V 50k 500k Ohm IxD Pull Down Resistor RPD1 VCC=5.0V 50k 500k Ohm

NOTE: The minimum pull-up resistor leakage current meets the PCMCIA

specification of 10k ohms but is intentionally higher in the CompactFlash Memory Card Series product to reduce power use.

SanDisk CompactFlash Card OEM Product Manual Interface Description

T able 3-6 defines the input characteristics of the parameters in Table 3-5.

Table 3-6 Input Characteristics

Min. Typ. Max. Min. Typ. Max.

Type Parameter Symbol VCC = 3.3V VCC = 5.0V Unit

1 Input Voltage Vih 2.4 4.0 V

CMOS Vil 0.6 0.8

2 Input Voltage Vih 1.5 2.0 V

CMOS Vil 0.6 0.8

3 Input Voltage Vth 1.8 2.8 V

CMOS Vtl 1.0 2.0

Schmitt Trigger

3.3.2 Output Drive Type and Characteristics

In Table 3-7 "x" refers to the characteristics desc ribed in Table 3-8. For example–"OT3" refers to Totempole output with a Type 3 output drive characteristic.

Table 3-7 Output Drive Type

Type Output Type Valid Conditions

OTx Totempole loh & lol OZx Tri-state N-P Channel loh & lol OPx P-Channel Only loh only ONx N-Channel Only loh Only

Table 3-8 Output Drive Characteristics

Type Parameter Symbol Conditions Min. Typ. Max. Unit

1 Output Voltage Voh loh= -4 mA V

Vol lol= 4 mA Gnd

2 Output Voltage Voh loh= -8 mA V

Vol lol= 8 mA Gnd

3 Output Voltage Voh loh= -8 mA V

Vol lol= 8 mA -0.8V Gnd

X Tri-State

Leakage Current

loz Vol = Gnd

Voh = V

CC

-0.8V

+0.4V

CC

-0.8V

+0.4V

CC

+0.4V

-10 10 uA

V

Interface Description SanDisk CompactFlash Card OEM Product Manual

3.3.3 Power Up/Power Down Timing

The timing specification in Table 3-9 was defined to permit peripheral cards to perform powerup initialization.

Table 3-9 Power Up/Power Down Timing

Item

Value

Symbol Condition

CE Signal Level

a

CE Setup Time 20 ms T CE Setup Time T CE Recover T i me

V

Rising Time

CC

Falling Time

V

CC

b

Reset Width T

a. V

b. The tpr and t

means Absolute Maximum Voltage for Input in the period of 0V <VCC <2.0V, Vi (CE) is only

iMAX

.

pf

0V~V

the waveform is not "linear waveform," its rising and falling time must be met by this specification.

Vi (CE) 0V <V

2.0V <V

SU (VCC)

(RESET) 20 ms

SU

T

REC (VCC)

t

pr

pf

(RESET) 10 µs

W

(Hi-z Reset) 1 ms

T

h

T

(Hi-z Reset) 0 ms

S

10%-->90% of (V 90% of (V

<2.0V 0 V

CC

CC <VIH

<V

IH <VCC

--- ---

--- --+ 5%) 0.1 300 ms

CC

+ 5%)-->10% 3.0 300 ms t

CC

--- ---

are defined as "linear waveform" in the period of 10% to 90% or vice-versa. Even if

Min. Max. Unit

<V

- 0.1 V

CC

V

IH

V

0.001 ms

Figure 3-1 Power Up/Power Down Timing for Systems supporting RESET

t

tSU(VCC)

pr

iMAX iMAX iMAX

V

VCC Min.

V

Hi-z

tSU(Reset)

tW(Reset)

IH

V

IH

Hi-z

tW(Reset)

V

-CE1, -CE2

tSU(Reset)

2V

th (Hi-z Reset)

CC

Reset

VCC Min.

t

rec

-CE1, -CE2

t

pf

2V

ts (Hi-z Reset)

SanDisk CompactFlash Card OEM Product Manual Interface Description

Figure 3-2 Power Up/Power Down Timing for Systems not supporting RESET

t

pr

V

CC

VCC Min.

V

IH

2V

Always Hi-z from system

RESET

V

CC

-CE1, -CE2

3.3.4 Common Memory Read Timing

Table 3-10 contains common memory read timing specifications for all types of memory.

NOTE: All timings measured at the CompactFlash Memory Card. Skews and

delays from the system driver/receiver to the card must be accounted for by the system.

tSU(VCC)

Supplied by pull-up resistor

on card (if present)

t

pf

VCC Min.

t

rec

2V

-CE1, -CE2

V

IH

Table 3-10 Common Memory Read Timing Specification

100 ns

Speed Version Item Symbol

Read Cycle Time t Address Access Time

a

Card Enable Access Time t Output Enable Access Time t Output Disable Time from -OE t Output Disable Time from -CE t Output Enable Time from -CE t Output Enable Time from -OE t

Data Va lid from Add Change

a

Address Setup Time t

c

ta (A)

(CE)

a

(OE)

a dis dis en en

tv (A)

su

(R)

(OE) (CE) (CE) (OE)

(A)

IEEE Symbol

t

AVAV

t

AVQV

t

ELQV

t

GLQV

t

GHQZ

t

EHQZ

t

ELQNZ

t

GLQNZ

t

AXQX

t

AVGL

Min. Max.

100

---

--5 5 0

10

--100 100

50 50 50

---

Interface Description SanDisk CompactFlash Card OEM Product Manual

Table 3-10 Common Memory Read Timing Specification

100 ns

Speed Version Item Symbol IEEE Symbol

Address Hold Time th (A) 15t Card Enable Setup Time t Card Enable Hold Time t

(CE) 0t

su

(CE) 15t

h

a. The -REG signal timing is identical to address signal timing

3.3.5 Common and Attribute Memory Write Timing

The write timing specifications for Common and Attribute memory are the same.

All timings measured at the CompactFlash Memory Card. Skews and delays from the system driver/receiver to the card must be accounted for by the system

NOTE: SanDisk CompactFlash Memory cards do not assert the -WAIT

signal.

Table 3-11 Common and Attribute Memory Write Timing Specification

Speed Version Symbol IEEE Symbol

Write Cycle Time t Write Pulse Width t

Address Setup Time Address Setup Time for -WE

a

Card Enable Setup Time for -WE t Data Setup Time form -WE t Data Hold Time t Write Recover Time t Output Disable Time from -WE Output Disable Time from -OE t Output Enable Time from -WE t Output Enable Time from -OE t Output Enable Setup from -WE t Output Enable Hold from -WE Card Enable Setup Time t Card Enable Hold Time t

a. The -REG signal timing is identical to address signal timing.

(W) 100 t

c

(WE) 60t

w

t

(A) 10t

su

t

(A-WEH) 70t

su

(CE-WEH) 70t

su

(D-WEH) 40t

su

(D) 15t

h

(WE) 15t

rec

(WE) t

t

dis

(OE) 50 t

dis

(WE) 5t

en

(OE) 5t

en

(OE-WE) 10t

su

(OE-WE) 10

t

h

(CE) 0t

su

(CE) 15t

h

GHAX

ELGL

GHEH

AVAV

WLWH

AVWL

AVWH

ELWH DVWH WMDX WMAX WLQZ GHQZ

WHQNZ

GLQNZ

GHWL

t

WHGL

ELWL GHEH

Min. Max.

---

100 ns

Min. Max.

---

50

---

SanDisk CompactFlash Card OEM Product Manual Interface Description

3.3.6 Attribute Memory Read Timing Specification

Table 3-12 contains common memory write timing specifications for all types of memory.

NOTE: SanDisk CompactFlash Memory cards do not assert the -WAIT

signal.

Table 3-12 Attribute Memory Read Timing Specification

300 ns

Speed Version Item Symbol IEEE Symbol

Read Cycle Time Address Access Time

a

Card Enable Access Time Output Enable Access Time t Output Disable Time from -OE t Output Enable Time from -OE t

Data Va lid from Add Change

a

Address Setup Time t Address Hold Time Card Enable Setup Time t Card Enable Hold Time t

a. The -REG signal timing is identical to address signal timing

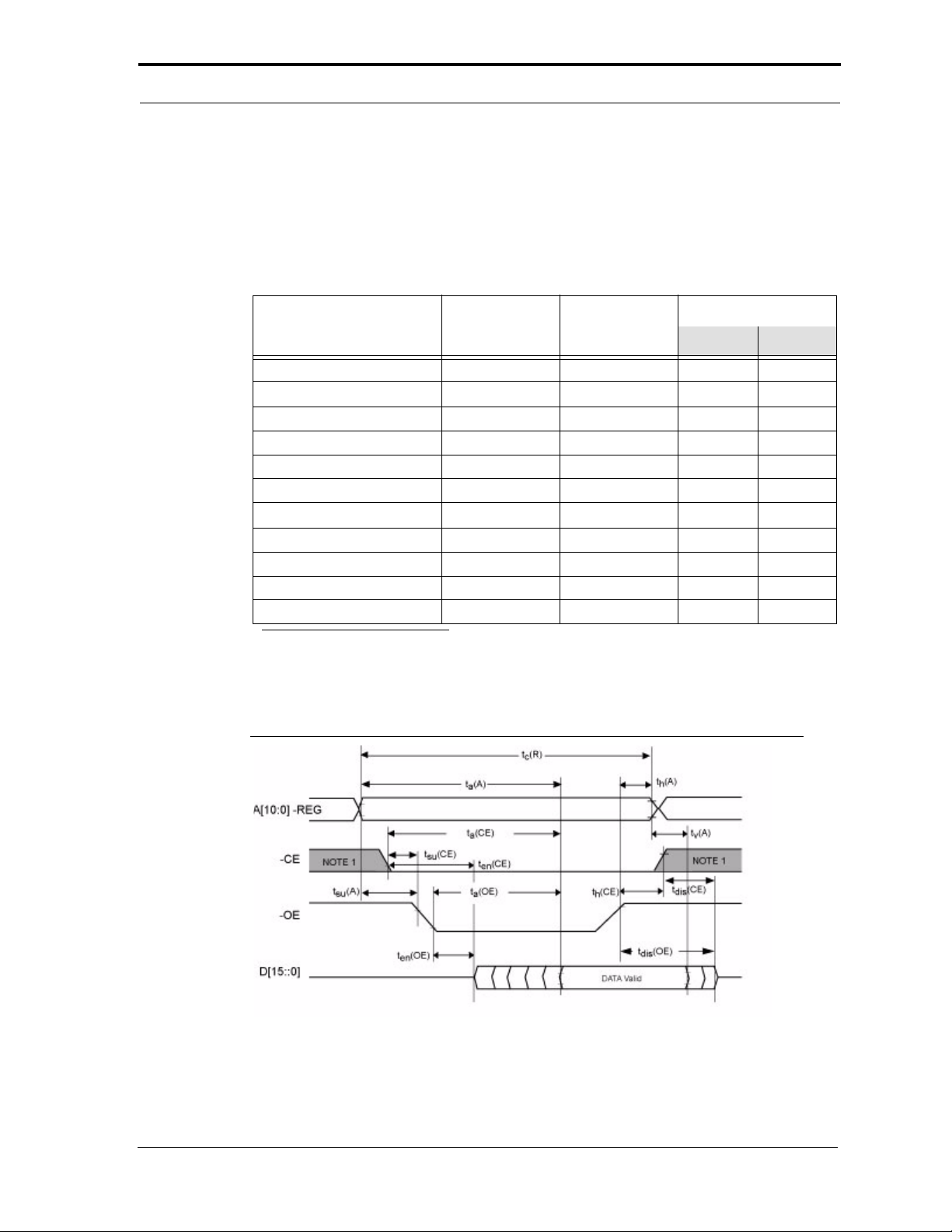

3.3.7 Memory Timing Diagrams

Figure 3-3 Common and Attribute Memory Read Timing Diagram

Min. Max.

(R) 300

t

c

t

(A) 300t

a

(CE) 300

t

a

(OE) 150t

a

(OE) 100t

dis

(OE) 5t

en

tv (A) 0t

(A) 30t

su

(A) 20

t

h

(CE) 0t

su

(CE) 20t

h

t

AVAV

AVQV

t

ELQV GLQV GHQZ

GLQNZ

AXQX

AVGL

t

GHAX

ELGL GHEH

---

NOTE 1: Shaded areas may be high or low.

Interface Description SanDisk CompactFlash Card OEM Product Manual

Figure 3-4 Common and Attribute Memory Write Timing Diagram

NOTE 1: Shaded areas may be high or low. NOTE 2: When the data I/O pins are in the output state, no signals shall be applied to

the data pins (D[15::0]) by the host system

NOTE 3: May be high or low for write timing, but restrictions on -OE from previous

figures apply.

NOTE 4: SanDisk CompactFlash Memory Cards do not assert the -WAIT signal.

SanDisk CompactFlash Card OEM Product Manual Interface Description

3.3.8 I/O Read (Input) Timing Specification

Figure 3-5 I/O Read Timing Diagram

NOTE 1: All timings are measured at the CompactFlash Memory Card. NOTE 2: Skews and delays from the host system driver/receiver to the card must be

accounted for by the system design.

NOTE 3: D[15::0] signifies data provided by the card to the host system.

Table 3-13 contains the read input timing specifications.

NOTE: SanDisk CompactFlash Memory cards do ont assert a -WAIT signal.

Table 3-13 I/O Read (Input) Timing Specification

Item

Data Delay after -IORD t Data Hold following -IORD t

-IORD Width T ime t Address Setup before -IORD t Address Hold following -IORD t

-CE Setup before -IORD t

-CE Hold following -IORD t

-REG Setup before -IORD t

-REG Hold following -IORD t

-INPACK Delay falling from -IORD t

-INPACK Delay rising from -IORD tdrINPACK(IORD) tl

Symbol

(IORD) tl

d

(IORD) tl

h

(IORD) tl

w

A(IORD) t

su

A(IORD) tl

h

CE(IORD) t

su

CE(IORD) tl

h

REG(IORD) t

su

REG(IORD) tl

h

INPACK(IORD) tl

df

IEEE Symbol Min. (ns) Max. (ns)

GLQV GHQX GLIGH AVIGL GHAX ELIGL GHEH

RGLIGL

GHRGH

GLIAL

GHIAH

--- 100 0 ---

165 ---

70 --20 ---

5 ---

20 ---

5 --0 --0

---

45 45

a

Interface Description SanDisk CompactFlash Card OEM Product Manual

Table 3-13 I/O Read (Input) Timing Specification

Item

-IOIS16 Delay falling from Address t

-IOIS16 Delay rising from Address tdrIOIS16(ADR) t a. The maximum load on -INPACK and -IOIS16 is 1 LSTTL with 50 pF total load.

Symbol

IOIS16(ADR) t

df

IEEE Symbol Min. (ns) Max. (ns)

AVISL

AVISH

---

35 35

a

3.3.9 I/O Write (Output) Timing Specification

Figure 3-6 I/O Write Timing Diagram

NOTE 1: All timings are measured at the CompactFlash Memory Card. NOTE 2: Skews and delays from the host system driver/receiver to the

CompactFlash Memory Card must be accounted for by the system design.

NOTE 3: D[15::0] signifies data provided by the host system to the CompactFlash

Memory Card.

SanDisk CompactFlash Card OEM Product Manual Interface Description

Ta ble 3-14 contains the specification information related to the I/O Write Timin g Diagram.

Table 3-14 I/O Write Timing Specification

Item

Data Setup before -IOWR t Data Hold following -IOWR t

-IOWR Width Time t Address Setup before -IOWR t Address Hold following -IOWR t

-CE Setup before -IOWR t

-CE Hold following -IOWR t

-REG Setup before -IOWR t

-REG Hold following -IOWR t

-IOIS16 Delay falling from Address t

-IOIS16 Delay rising from -IORD t

-IOIS16 Delay falling from Address t

-IOIS16 Delay rising from Address t a. The maximum load on -IOIS16 is 1 LSTTL with 50 pF total load.

Symbol

(IOWR) t

su

(IOWR) t

h

(IOWR) tl

w

A(IOWR) t

su

A(IOWR) tl

h

CE(IOWR) t

su

CE(IOWR) tl

h

REG(IOWR) t

su

REG(IOWR) tl

h

IOIS16(ADR) t

df

-IOIS16(ADR) t

dr

IOIS16(ADR) t

df

IOIS16(ADR) t

dr

IEEE Symbol Min. (ns) Max. (ns)

DVIWL

WHDX

WLIWH

AVIWL

WHAX ELIWL WHEH

RGLIWL

WHRGH

AVISL

AVISH AVISL AVISH

60 --30 ---

165 ---

70 --20 ---

5 ---

20 ---

5 --0 ---

---

35

a

--- 35

3.3.10 True IDE Mode

The following sections provide valuable information for the True IDE mode.

De-skewing. The host will provide cable de-skewing for all signals originating from the device. The device will provide cable de-skewing for all signals originating at the host.

All timing values and diagrams are shown and measured at the connector of the selected device.

Transfer Timing. The minimum cycle time supported by devices in PIO Mode 3, 4 and Multiword DMA Mode 1, 2 respectively will always be greater than or equal to the minimum cycle time defined by the associated mode (e.g., a device supporting PIO Mode 4 timing will not report a value less than 120 ns. The minimum cycle time defined for PIO mode 4 timings).

• Register Transfers

Figure 3-7 defines the relationships between the interface signals for register transfers. For PIO Modes 3 and above, the minimum value of t

IDENTIFY DEVICE parameter list. Table 3-15 defines the minimum value that will be placed in Word 68.

In Figure 3-7, all signals shown with the asserted condition facing the top of the page. The negated condition is shown toward the bottom of the page relative to the asserted condition.

NOTE: SanDisk CompactFlash Memory cards do not assert an -IORDY

signal.

is specified by Word 68 in the

0

Interface Description SanDisk CompactFlash Card OEM Product Manual

Figure 3-7 Register Transfer to/from Device

NOTE 1: Device address consists of signals -CS0, -CS1 and -DA(2:0). NOTE 2: Data consists of DD(7:0).

Table 3-15 Register Transfer to/from Device

PIO Timing Parameters

a

t

0

t

1

a

t

2

a

t

2i

t

3

t

4

t

5

t

6

b

t

6z

t

9

Cycle time (min.) 120 Address valid to IORD-/IOWR- setup (min.) 25

IORD-/IOWR- pulse width 8-bit (min.) 70 IORD-/IOWR- recovery time (min.) 25 IOWR- data setup (min.) 20

IOWR- data hold (min.) 10 IORD- data setup (min.) 20 IORD- data hold (min.) 5 IORD- data tri-state (max.) 30

IORD-/IOWR- to address valid hold (min.) 10

a. t0 is the minimum total cycle time, t2 is the minimum command active time, and t2i is the minimum

command recovery time or command inactive time. The actual cycle time equals the sum of the actual command active time and the actual command inactive time. The three timing requirements

, t2, and t2i shall be met. The minimum total cycle time requirements are greater than the sum of

of t

0

and t2i. This means a host implementation may lengthen either or both t2 or t

t

2

equal to or greater than the value reported in the devices IDENTIFY DEVICE data. A device implementation shall support any legal host implementation.

b. This parameter specifies the time from the negation edge of /IORD to the time that the data bus is

no longer driven by the device (tri-state).

Mode 4 (ns)

to ensure that t0 is

2i

SanDisk CompactFlash Card OEM Product Manual Interface Description

• PIO Data Transfers

Figure 3-8 defines the relationships between the interface signals for PIO data transfers. For PIO Modes 3 and above, the minimum value of t

IDENTIFY DEVICE parameter list. Table 3-16 defines the minimum value that will be placed in Word 68.

Figure 3-8 PIO Data Transfer to/from Device

is specified by Word 68 in the

0

NOTE 1: Device address consists of signals -CS0, -CS1 and -DA(2:0). NOTE 2: Data consists of DD(15:0).

Interface Description SanDisk CompactFlash Card OEM Product Manual

The PIO data transfer parameters are defined in Table 3-16.

NOTE: SanDisk CompactFlash Memory cards do not assert an -IORDY

signal.

Table 3-16 PIO Data Transfer to/from Device

Mode 0

PIO Timing Parameters

a

Cycle time (min.) 600 383 240 180 120

t

0

t

Address valid to IORD-/IOWR- setup

1

(min.)

a

IORD-/IOWR- pulse width 16-bit (min.) 165 125 100 80 70

t

2

t

IORD-/IOWR- recovery time (min.) --- --- --- 70 25

2ia

t

IOWR- data setup (min.) 60 45 30 30 20

3

t

IOWR- data hold (min.) 30 20 15 10 10

4

t

IORD- data setup (min.) 50 35 20 20 20

5

t

IORD- data hold (min.) 5 5 5 5 5

6

b

IORD- data tri-state (max.) 30 30 30 30 30

t

6z

t

IORD-/IOWR- to address valid hold

9

(ns)

70 50 30 30 25

20 15 10 10 10

Mode 1

(ns)

Mode 2

(ns)

Mode 3

(ns)

Mode 4

(ns)

(min.)

a. t0 is the minimum total cycle time, t2 is the minimum command active time, and t2i is the minimum

command recovery time or command inactive time. The actual cycle time equals the sum of the actual command active time and the actual command inactive time. The three timing requirements of

, t2, and t2i shall be met. The minimum total cycle time requirements are greater than the sum of t

t

0

. This means a host implementation may lengthen either or both t2 or t2i to ensure that t0 is

and t

2i

equal to or greater than the value reported in the devices IDENTIFY DEVICE data. A device implementation shall support any legal host implementation.

b. This parameter specifies the time from the negation edge of /IORD to the time that the data bus is no

longer driven by the device (tri-state).

2

3.4 Card Configuration

SanDisk CompactFlash Memory cards are identified by appropriate information in the Card Information Structure (CIS). The configuration registers are used to coordinate the I/O spaces and the interrupt level of cards that are located in the system.

SanDisk CompactFlash Card OEM Product Manual Interface Description

In addition, these registers provide a method for accessing status information about the card that may be used to arbitrate between multiple interrupt sources on the same interrupt level or to replace status information that appears on dedicated pins in memory cards that have alternate use in I/O cards.

Table 3-17 Registers and Memory Space Decoding

-CE2 1 -CE1 1 -REG X -OE X -WE X A10 X A9

X 0 0 0 1 X 1 XX X X X 0 Configuration Registers

1 0 1 0 1 X X XX X X X X Common Memory Read

0 1 1 0 1 X X XX X X X X Common Memory Read

0 0 1 0 1 X X XX X X X 0 Common Memory Read

X 0 0 1 0 X 1 XX X X X 0 Configuration Registers

1 0 1 1 0 X X XX X X X X Common Memory Write (8-

0 1 1 1 0 X X XX X X X X Common Memory Write (8-

0 0 1 1 0 X X XX X X X 0 Common Memory Write

X 0 0 0 1 0 0 XX X X X 0 Card Info Structure Read

1 0 0 1 0 0 0 XX X X X 0 Invalid Access (CIS Write) 1 0 0 0 1 X X XX X X X 1 Invalid Access (Odd

1 0 0 1 0 X X XX X X X 1 Invalid Access (Odd

0 1 0 0 1 X X XX X X X X Invalid Access (Odd

0 1 0 1 0 X X XX X X X X Invalid Access (Odd

A8-

A3 X A2 X A1 X A0

A4

X

XX

X

Selected Space

Standby

Read

(8-bit D7-D0)

(8-bit D15-D8)

(16-bit D15-D0)

Write

bit D7-D0)

bit D15-D8)

(16-bit D15-D0)

Attribute Read)

Attribute Write)

Attribute Read)

Attribute Write)

NOTE: The location of the card configuration registers should always be

read from the CIS since these locations may vary in future products. No writes should be performed to the card attribute memory except to the card configuration register addresses. All other attribute memory locations are reserved.

Interface Description SanDisk CompactFlash Card OEM Product Manual

Decoding for the configuration registers is defined in Table 3-18.

Table 3-18 Configuration Registers Decoding

-CE2 X -CE1 0 -REG 0 -OE 0 -WE 1 A10 0 A9

X 0 0 1 0 0 1 00 0 0 0 0 Configuration Option Write X 0 0 0 1 0 1 00 0 0 1 0 Card Status Read X 0 0 1 0 0 1 00 0 0 1 0 Card Status Write X 0 0 0 1 0 1 00 0 1 0 0 Pin Replacement Read X 0 0 1 0 0 1 00 0 1 0 0 Pin Replacement Write X 0 0 0 1 0 1 00 0 1 1 0 Socket and Copy Read X 0 0 1 0 0 1 00 0 1 1 0 Socket and Copy Write

3.4.1 Attribute Memory Functio n

Attribute Memory is a space where a CompactFlash Memory Card identification and configuration information is stored, and is limited to 8-bit wide accesses only at even addresses. The card configuration registers are also located there.

For the Attribute Memory Read function, signals -REG and -OE must be active and -WE inactive during the cycle. As in the Main Memory Read functions, the signals -CE1 and -CE2 control the even-byte and odd-byte address, but only the even-byte data is valid during the Attribute Memory access. Refer to Table 3-19 for signal states and bus validity for the Attribute Memory function.

NOTE: The -CE signal or both the -OE and -WE signal must be de-asserted

between consecutive cycle operaitons.

A8-

A3 0 A2 0 A1 0 A0

A4

1

00

0

Selected Register

Configuration Option Read

Table 3-19 Attribute Memory Function

Function Mode -REG -CE2 -CE1 A9 A0 -OE -WE D15-D8 D7-D0

Standby X H H X X X X High Z High Z Read Byte Access CIS ROM

(8 bits) Write Byte Access CIS (8 bits)

(Invalid) Read Byte Access

Configuration (8 bits) Write Byte Access

Configuration (8 bits) Read Word Access CIS

(16 bits) Write Word Access CIS

(16 bits) (Invalid) Read Word Access

Configuration (16 bits) Write Word Access

Configuration (16 bits)

L H L L L L H High Z Even

Byte

L H L L L H L Don’t

Care

L H L H L L H High Z Even

L H L H L H L Don’t

Care

L L L L X L H Not Valid Even

L L L L X H L Don’t

Care

L L L H X L H Not Valid Even

L L L H X H L Don’t

Care

Even Byte

Byte Even

Byte

Byte Even

Byte

Byte Even

Byte

SanDisk CompactFlash Card OEM Product Manual Interface Description

3.4.2 Configuration Option Register (Address 200h in Attribute Memory)

The Configuration Option Register is used to configure the card’s interface, address decoding and interrupt and to issue a soft reset to the CompactFlash Memory Card.

Operation D7 D6 D5 D4 D3 D2 D1 D0

R/W SRESET LevIREQ Conf5 Conf4 Conf3 Conf2 Conf1 Conf0

Bit

D7

D6

D5-D0

Name

SRESET

LevIREQ

Conf 5–Conf0

Description

Setting this bit to one (1), waiting the minimum reset width time and returning to zero (0) places the card in the Reset state. Setting this bit to "1" is equivalent to assertion of the +RESET signal except that the SRESET bit is not cleared. Returning this bit to "0" leaves the card in the same unconfigured, Reset state as following power-up and hardware reset. This bit is set to "0" by power-up and hardware reset. Using the PCMCIA Soft Reset is considered a hard Reset by the ATA Commands. Contrast with Soft Reset in the Device Control Register.

This bit is set to "1" when Level Mode Interrupt is selected, and"0" when Pulse Mode is selected. Set to "0" by Reset.

Configuration Index. Set to "0" by reset. It's used to select operation mode of the card as shown below. NOTE: Conf5 and Conf4 are reserved and must be written as "0".

Table 3-20 Card Configurations

Conf5 Conf4 Conf3 Conf2 Conf1 Conf0 Disk Card Mode

0 0 0 0 0 0 Memory Mapped 0 0 0 0 0 1 I/O Mapped; any 16-byte system

0 0 0 0 1 0 I/O Mapped; 1F0-1F7/3F6-3F7 0 0 0 0 1 1 I/O Mapped; 170-177/376-377

decoded boundary

3.4.3 Card Configuration and Status Register (Address 202h in Attribute Memory)

The Card Configuration and Status Register contain information about the card's condition.

Operation D7 D6 D5 D4 D3 D2 D1 D0

Read Changed SigChg IOis8 0 0 PwrDwn Int 0 Write 0 SigChg IOis8 0 0 PwrDwn 0 0

Interface Description SanDisk CompactFlash Card OEM Product Manual

Card Configuration and Status Register (con’t)

Bit Name Description

D7 Changed Indicates that one or both of the Pin Replacement Register CRdy, or

D6 SigChg This bit is set and reset by the host to enable and disable a state-change

D5 IOis8 The host sets this bit to a one "1" if the card is to be configured in an 8-bit

D2 PwrDwn This bit indicates whether the host requests the card to be in the power

D1 Int This bit represents the internal state of the interrupt request. This value is

CWProt bits are set to "1". When the Changed bit is set, -STSCHG Pin 46 is held low if the SigChg bit is a "1" and the card is configured for the I/O interface.

"signal" from the Status Register, the Changed bit control pin 46 the Changed Status signal. If no state change signal is desired, this bit should be set to zero "0" and pin 46 (-STSCHG) signal will be held high while the card is configured for I/O

I/O mode. The card is always configured for both 8- and 16-bit I/O, so this bit is ignored.

saving or active mode. When the bit is "1", the card enters a power down mode. When "0", the host is requesting the card to enter the active mode. The PCMCIA Rdy/-Bsy value becomes BUSY when this bit is changed. Rdy/-Bsy will not become Ready until the power state requested has been entered. The card automatically powers down when it is idle and powers back up when it receives a command

available whether or not I/O interface has been configured. This signal remains true until the condition that caused the interrupt request has been serviced. If interrupts are disabled by the -IEN bit in the Device Control Register, this bit is a "0".

3.4.4 Pin Replacement Register (Address 204h in Attribute Memory)

The Pin Replacement Register information is described below.

Operation D7 D6 D5 D4 D3 D2 D1 D0

Read 0 0 CRdy/-Bsy CWProt 1 1 RRdy/-Bsy RWProt Write 0 0 CRdy/-Bsy CWProt 0 0 MRdy/-Bsy MWProt

Bit Name Description

D5 CRdy/-Bsy This bit is set to "1" when the bit RRdy/-Bsy changes state. This bit can also

be written by the host.

D4 CWProt This bit is set to "1" when the RWprot changes state. This bit may also be

written by the host.

D1 RRdy/-Bsy This bit is used to determine the internal state of the Rdy/-Bsy signal. This

bit may be used to determine the state of the Ready/-Busy as this pin has been reallocated for use as Interrupt Request on an I/O card. When written, this bit acts as a mask for writing the corresponding bit CRdy/-Bsy.

MRdy/-Bsy This bit acts as a mask for writing the corresponding bit CRdy/-Bsy.

D0 RWProt This bit is always "0" because the card does not have a write-protect

switch. When written, this bit acts as a mask for writing the corresponding bit CWProt.

MWProt This bit when written acts as a mask for writing the corresponding bit

CWProt.

SanDisk CompactFlash Card OEM Product Manual Interface Description

Pin replacement changed bit/mask values are contained in Table 3-21.

Table 3-21 Pin Replacement Changed Bit/Mask Bit Values

Written by Host

Initial Value of

(C) Status

0 X 0 0 Unchanged 1 X 0 1 Unchanged X 0 1 0 Cleared by host X 1 1 1 Set by host

“C” Bit “M” Bit

Final “C” Bit Comments

3.4.5 Socket and Copy Register (Address 206h in Attribute Memory)

This register contains additional configuration information. This register is always written by the system before writing the card's Configuration Index Register.

Operation D7 D6 D5 D4 D3 D2 D1 D0

Read Reserved 0 0 Drive# 0 0 0 0

Write 0 0 0 Drive# (0) X X X X

Bit

D7

D4

D3-D0

(write)

Name

Reserved

Drive#

X

This bit is reserved for future standardization. This bit must be set to "0" by the software when the register is written.

This bit indicates the drive number of the card if twin card configuration is supported.

The socket number is ignored by the card.

3.5 I/O Transfer Function

The following sections provide valuable information for the I/O Transfer function.

3.5.1 Common Memory Function

The Common Memory transfer to or from SanDisk CompactFlash memory cards can be either 8 or 16 bits. The card permits both 8- and 16-bit accesses to all of its Common Memory addresses.

Table 3-22 Common Memory Function

Function Code -REG -CE2 -CE1 A0 -OE -WE D15-D8 D7-D0

Standby X H H X X X High Z High Z Byte Read Access H H L L L H High Z Even Byte

(8 bits) Byte Write Access H H L L H L Don’t Care Even Byte

(8 bits)

H H L H L H High Z Odd Byte

H H L H H L Don’t Care Odd Byte

Description

Interface Description SanDisk CompactFlash Card OEM Product Manual

Table 3-22 Common Memory Function

Function Code -REG -CE2 -CE1 A0 -OE -WE D15-D8 D7-D0

Word Read Access (16 bits)

Word Write Access (16 bits)

Odd Byte Read Only (8 bits)

Odd Byte Write Only (8 bits)

H L L X L H Odd Byte Even Byte

H L L X H L Odd Byte Even Byte

H L H X L H Odd Byte High Z

H L H X H L Odd Byte Don’t Care

3.6 True IDE Mode I/O Transfer Function

This section contains valuable information on the True IDE Mode I/O Transfer function.

3.6.1 True IDE Mode I/O Function

SanDisk CompactFlash Memory cards can be configured in a True IDE Mode of operation. Cards are configured in this mode only when the -OE input signal is grounded by the host when power is applied to the cards. In this True IDE Mode, the PCMCIA protocol and configuration are disabled and only I/O operations to the Task File and Data Register are allowed. In this mode, no Memory or Attribute registers are accessible to the host. CompactFlash cards permit 8-bit data accesses if the user issues a Set Feature Command to put the device in 8-bit Mode.

NOTE: Removing and reinserting the card while the host comp uter's power

is on will reconfigure it to PC Card ATA mode from the original True IDE Mode. To configure the card in True IDE Mode, the 50-pin socket must be power cycled with the card inserted and -OE (output enable) grounded by the host.

Table 3-23 defines the function of the operations for the True IDE Mode.

Table 3-23 IDE Mode I/O Function

Function Code -CE2 -CE1 A0 -IORD -IOWR D15-D8 D7-D0

Invalid Mode L L X X X High Z High Z Standby Mode H H X X X High Z High Z Task File Write H L 1.7h H L Don’t care Data In Task File Read H L 1-7h L H High Z Data Out Data Register Write H L 0 H L Odd Byte in Even Byte In Data Register Read H L 0 L H Odd Byte Out Even Byte Out Control Register Write L H 6h H L Don’t Care Control In Alt Status Read L H 6h L H High Z Status Out

CHAPTER 4 ATA Register Set and Protocol

SanDisk CompactFlash Memory cards can be configured as a high performance I/O device through the following ways:

• Standard PC-AT disk I/O address spaces 1F0h-1F7h, 3F6h-3F7h (primary); 170h-177h,

376h-377h (secondary) with IRQ 14 (or other available IRQ).

• Any system decoded 16-byte I/O block using any available IRQ.

• Memory space.

The communication to or from the card is done using the Task File registers, which provide all the necessary registers for control and status information. The PCMCIA interface connects peripherals to the host using four register mapping methods. Table 4-1 is a detailed description of these methods.

Table 4-1 Standard I/O Configurations

Config Index I/O or Memory Address Drive Description

0 Memory 0-F, 400-7FF 0 Memory Mapped 1 I/O XX0-XXF 0 I/O Mapped 16 Contiguous

2 I/O 1F0-1F7, 3F6-3F7 0 Primary I/O Mapped Drive 0 2 I/O 1F0-1F7, 3F6-3F7 1 Primary I/O Mapped Drive 1 3 I/O 170-177, 376-377 0 Secondary I/O Mapped Drive 0 3 I/O 170-177, 376-377 1 Secondary I/O Mapped Drive 1

Registers

4.1 I/O Primary and Secondary Address Configurations

Table 3-2 contains configurations for primary and secondary I/O decoding.

Table 4-2 Primary and Secondary I/O Decoding

-REG A9-A4 A3 A2 A1 A0 -IORD=0 -IOWR=0

0 1F(17) 0 0 0 0 0 1F(17) 0 0 0 1 0 1F(17) 0 0 1 0 Sector Count Sector Count

0 1F(17) 0 0 1 1 Sector No. Sector No. 0 1F(17) 0 1 0 0 Cylinder Low Cylinder Low 0 1F(17) 0 1 0 1 Cylinder High Cylinder High 0 1F(17) 0 1 1 0 Select Card/Head Select Card/Head 0 1F(17) 0 1 1 1 Status Command 0 3F(37) 0 1 1 0 Alt Status Device Control 0 3F(37) 0 1 1 1 Drive Address Reserved

Even RD Data Error Register

a,b

a

Even WR Data Features

a,b

a

ATA Register Set and Protocol SanDisk CompactFlash Card OEM Product Manual

a. Register 0 is accessed with -CE1 low and -CE2 low (and A0 = Do not care) as a word register on the

combined Odd Data Bus and Even Data Bus (D15-D0). This register may also be accessed by a pair of byte accesses to the offset 0 with -CE1 low and -CE2 high. Note that the address space of this word register overlaps the address space of the Error and Feature byte-wide registers that lie at offset 1. When accessed twice as byte register with CE1 low, the first byte to be accessed is the even byte of the word and the second byte accessed is the odd byte of the equivalent word access.

b. A byte access to register 0 with CE1 high and CE2 low accesses the error (read) or feature (write)

register.

4.2 Contiguous I/O Mapped Addressing

When the system decodes a contiguous block of I/O registers to select a CompactFlash Memory Card, the registers are accessed in the block of I/O space decoded by the system as follows:

Table 4-3 Contiguous I/O Decoding

-REG A3 A2 A1 A0 Offset -IORD=0 -IOWR=0

0 0 0 0 0 0 0 0 0 0 1 1

Even RD Data Error Register

a

b

Even WR Data

Features 0 0 0 1 0 2 Sector Count Sector Count 0 0 0 1 1 3 Sector No. Sector No. 0 0 1 0 0 4 Cylinder Low Cylinder Low 0 0 1 0 1 5 Cylinder High Cylinder High 0 0 1 1 0 6 Select Card/Head Select Card/Head 0 0 1 1 1 7 Status Command 0 1 0 0 0 8

0 1 0 0 1 9 0 1 1 0 1 D

Dup Even RD Data Dup Odd RD Data Dup Error

b

Dup Even WR Data

b

Dup Odd WR Data

Dup Features 0 1 1 1 0 E Alt Status Device Ctl 0 1 1 1 1 F Drive Address Reserved

a. Register 0 is accessed with -CE1 low and -CE2 low (and A0 = Do not care) as a word register on the

combined Odd Data Bus and Even Data Bus (D15-D0). This register may also be accessed by a pair of byte accesses to the offset 0 with -CE1 low and -CE2 high. Note that the address space of this word register overlaps the address space of the Error and Feature byte-wide registers that lie at offset 1. When accessed twice as byte register with CE1 low, the first byte to be accessed is the even byte of the word and the second byte accessed is the odd byte of the equivalent word access. A byte access to register 0 with CE1 high and CE2 low accesses the error (read) or feature (write) register.

b. Registers at offset 8, 9 and D are non-overlapping duplicates of the registers at offset 0 and 1.

Register 8 is equivalent to register 0, while register 9 accesses the odd byte. Therefore, if the registers are byte accessed in the order 9 then 8 the data will be transferred odd byte then even byte.

Repeated byte accesses to register 8 or 0 will access consecutive (even than odd) bytes from the data buffer. Repeated word accesses to register 8, 9 or 0 will access consecutive words from the data buffer. Repeated byte accesses to register 9 are not supported. However, repeated alternating byte accesses to registers 8 then 9 will access consecutive (even then odd) bytes from the data buffer. Byte accesses to register 9 access only the odd byte of the data.

a

b

SanDisk CompactFlash Card OEM Product Manual ATA Register Set and Protocol

4.3 Memory Mapped Addressing

When CompactFlash Memory Card registers are accessed via memory references, they appear in the common memory space window: 0-2K bytes as shown in Table 4-4.

Table 4-4 Memory Mapped Decoding

-REG A10

1 0 X 0 0 0 0 0 1 0 X 0 0 0 1 1

A9-

A4 A3 A2 A1 A0 Offset -OE=0 -WE=0

Even RD Data Error Register

a

b

Even WR Data

b

Features

a

1 0 X 0 0 1 0 2 Sector Count Sector Count 1 0 X 0 0 1 1 3 Sector No. Sector No. 1 0 X 0 1 0 0 4 Cylinder Low Cylinder Low 1 0 X 0 1 0 1 5 Cylinder High Cylinder High 1 0 X 0 1 1 0 6 Select Card/Head Select Card/Head 1 0 X 0 1 1 1 7 Status Command 1 0 X 1 0 0 0 8

1 0 X 1 0 0 1 9 1 0 X 1 1 0 1 D

Dup Even RD Datab Dup Even WR Data Dup Odd RD Data Dup Error

b

Dup Odd WR Data

b

Dup Features

b

1 0 X 1 1 1 0 E Alt Status Device Ctl 1 0 X 1 1 1 1 F Drive Address Reserved 1 1 X X X X 0 8

1 1 X X X X 1 9

Even RD Data Odd RD Data

c

Even WR Data Even RD Data

c

a. Register 0 is accessed with -CE1 low and -CE2 low (and A0 = Do not care) as a word register on the

combined Odd Data Bus and Even Data Bus (D15-D0). This register may also be accessed by a pair of byte accesses to the offset 0 with -CE1 low and -CE2 high. Note that the address space of this word register overlaps the address space of the Error and Feature byte-wide registers that lie at offset 1. When accessed twice as byte register with CE1 low, the first byte to be accessed is the even byte of the word and the second byte accessed is the odd byte of the equivalent word access. A byte access to register 0 with CE1 high and CE2 low accesses the error (read) or feature (write) register.

b. Registers at offset 8, 9 and D are non-overlapping duplicates of the registers at offset 0 and 1.

Register 8 is equivalent to register 0, while register 9 accesses the odd byte. Therefore, if the registers are byte accessed in the order 9 then 8 the data will be transferred odd byte then even byte.

Repeated byte accesses to register 8 or 0 will access consecutive (even than odd) bytes from the data buffer. Repeated word accesses to register 8, 9 or 0 will access consecutive words from the data buffer. Repeated byte accesses to register 9 are not supported. However, repeated alternating byte accesses to registers 8 then 9 will access consecutive (even then odd) bytes from the data buffer. Byte accesses to register 9 access only the odd byte of the data.

c. Accesses to even addresses between 400h and 7FFh access register 8. Accesses to odd addresses

between 400h and 7FFh access register 9. This 1 KByte memory window to the data register is provided so that hosts can perform memory to memory block moves to the data register when the register lies in memory space. Some hosts, such as the X86 processors, must increment both the source and destination addresses when executing the memory to memory block move instruction. Some PCMCIA socket adapters also have auto incrementing address logic embedded within them. This address window allows these hosts and adapters to function efficiently.

Note that this entire window accesses the Data Register FIFO and does not allow random access to the data buffer within the card.

b

ATA Register Set and Protocol SanDisk CompactFlash Card OEM Product Manual

4.4 T rue IDE Mode Addressing

When a CompactFlash Memory Card is configured in the True IDE Mode the I/O decoding is as listed in Table 4-5.

Table 4-5 True IDE Mode I/O Decoding

-CE2 -CE1 A2 A1 A0 -IORD=0 -IOWR=0

1 0 0 0 0 Even RD Data Even WR Data 1 0 0 0 1 Error Register Features 1 0 0 1 0 Sector Count Sector Count 1 0 0 1 1 Sector No. Sector No. 1 0 1 0 0 Cylinder Low Cylinder Low 1 0 1 0 1 Cylinder High Cylinder High 1 0 1 1 0 Select Card/Head Select Card/Head 1 0 1 1 1 Status Command 0 1 1 1 0 Alt Status Device Control 0 1 1 1 1 Drive Address Reserved

4.5 ATA Registers

In accordance with the PCMCIA specification: each of the registers below which is located at an odd offset address may be accessed at its normal address and also the corresponding even address (normal address -1) using data bus lines (D15-D8) when -CE1 is high and -CE2 is low unless -IOIS16 is high (not asserted) and an I/O cycle is being performed.

4.5.1 Data Register (Address–1F0[170]; Offset 0, 8, 9)

The Data Register is a 16-bit register, and it is used to transfer data blocks between the CompactFlash Memory Card data buffer and the host. This register overlaps the Error Register. The information in Table 3-6 describes the combinations of data register access and is provided to assist in understanding the overlapped Data Register and Error/Feature Register rather than attempt to define general PCMCIA word and byte access modes and operations. Refer to the PCMCIA PC Card Standard Release 2.0 for definitions of the Card Accessing modes for I/O and memory cycles.

NOTE: Because of the overlapped registers, access to the 1F1, 171 or offset 1

are not defined for word (-CE2 = 0 and -CE1 = 0) operations. SanDisk products treat these accesses as accesses to the Word Data Register. The duplicated registers at offsets 8, 9 and Dh have no restrictions on the operations that can be performed by the socket.

Table 4-6 Data Register

Data Register CE2- CE1- A0 Offset Data Bus

Word Data Register 0 0 X 0,8,9 D15-D0 Even Data Register 1 0 0 0,8 D7-D0 Odd Data Register 1 0 1 9 D7-D0 Odd Data Register 0 1 X 8,9 D15-D0 Error/Feature Register 1 0 1 1,Dh D7-D0

SanDisk CompactFlash Card OEM Product Manual ATA Register Set and Protocol

Table 4-6 Data Register

Data Register CE2- CE1- A0 Offset Data Bus

Error/Feature Register 0 1 X 1 D15-D0 Error/Feature Register 0 0 X Dh D15-D0

4.5.2 Error Register (Address–1F1[171]; Offset 1, 0Dh Read Only)

This register contains additional information about the source of an error when an error is indicated in bit 0 of the Status Register. The bits are defined as follows:

D7 D6 D5 D4 D3 D2 D1 D0

BBK UNC 0 IDNF 0 ABRT 0 AMNF

This register is also accessed on data bits D15-D8 during a write operation to offset 0 with CE2 low and -CE1 high.

Bit Name Description

D7 BBK Set when a bad block is detected. D6 UNC Set when an uncorrectable error is encountered. D5 0 Bit set to 0. D4 IDNF The requested sector ID is in error or cannot be found. D3 0 Bit set to 0. D2 ABRT Set if the command has been aborted because of a card status condition:

(Not Ready, Write Fault, etc.) or when an invalid command has been

issued. D1 0 Bit set to 0. D0 AMNF Set in case of a general error.

4.5.3 Feature Register (Address–1F1[171]; Offset 1, 0Dh Write Only)

This register provides information about CompactFlash Memory Card features the host can utilize. This register is also accessed on data bits D15-D8 during a write operation to Offset 0 with CE2 low and -CE1 high.

4.5.4 Sector Count Register (Address–1F2[172]; Offset 2)

This register contains the number of sectors of data requested to be transferred on a read or write operation between the host and the card. If the value in this register is zero, a count of 256 sectors is specified. If the command was successful, this register is “0” at command completion. If not successfully completed, the register contains the number of sectors that need to be transferred in order to complete the request.

4.5.5 Sector Number (LBA 7-0) Register (Address–1F3[173]; Offset 3)

This register contains the starting sector number or bits 7-0 of the Logical Block Address (LBA) for any CompactFlash Memory Card data access for the subsequent command.

ATA Register Set and Protocol SanDisk CompactFlash Card OEM Product Manual

4.5.6 Cylinder Low (LBA 15-8) Register (Address–1F4[174]; Offset 4)

This register contains the low order 8 bits of the starting cylinder address or bits 15-8 of the Logical Block Address.

4.5.7 Cylinder High (LBA 23-16) Register (Address–1F5[175]; Offset 5)

This register contains the high order bits of the starting cylinder address or bits 23-16 of the Logical Block Address.

4.5.8 Drive/Head (LBA 27-24) Register (Address–1F6[176]; Offset 6)

The Drive/Head Register is used to select the drive and head. It is also used to select LBA addressing instead of cylinder/head/sector addressing. The bits are defined as follows:

D7 D6 D5 D4 D3 D2 D1 D0

1 LBA 1 DRV HS3 HS2 HS1 HS0

Bit Name Description

D7 1 Bit set to 1. D6 LBA LBA is a flag to select either Cylinder/Head/Sector (CHS) or Logical Block

Address Mode (LBA). When LBA=0, Cylinder/Head/Sector mode is selected. When LBA=1, Logical Block Address is selected. In Logical Block Mode, the Logical Block Address is interpreted as follows:

LBA07-LBA00: Sector Number Register D7-D0. LBA15-LBA08: Cylinder Low Register D7-D0. LBA23-LBA16: Cylinder High Register D7-D0.

LBA27-LBA24: Drive/Head Register bits HS3-HS0. D5 1 Bit set to 1. D4 DRV This bit will have the following meaning. DRV is the drive number. When

DRV=0, drive (card) 0 is selected When DRV=1, drive (card) 1 is selected.

The CompactFlash Card is set to be Card 0 or 1 using the copy field of the

PCMCIA Socket & Copy configuration register. D3 HS3 When operating in the Cylinder , Head, Sector mode, this is bit 3 of the

head number. It is Bit 27 in the Logical Block Address mode. D2 HS2 When operating in the Cylinder , Head, Sector mode, this is bit 2 of the

head number. It is Bit 26 in the Logical Block Address mode. D1 HS1 When operating in the Cylinder , Head, Sector mode, this is bit 1 of the

head number. It is Bit 25 in the Logical Block Address mode. D0 HS0 When operating in the Cylinder , Head, Sector mode, this is bit 0 of the

head number. It is Bit 24 in the Logical Block Address mode.

SanDisk CompactFlash Card OEM Product Manual ATA Register Set and Protocol

4.5.9 Status & Alternate Status Registers (Address–1F7[177]&3F6[376]; Offsets 7 & Eh)

These registers return the card status when read by the host. Reading the Status Register clears a pending interrupt while reading the Auxiliary Status Register does not. The meaning of the status bits are described as follows:

D7 D6 D5 D4 D3 D2 D1 D0

BUSY RDY DWF DSC DRQ CORR 0 ERR

Bit Name Description

D7 BUSY Set when the CompactFlash Card has access to the command buffer and

registers and the host is locked out from accessing the command register and buffer. No other bits in this register are valid when this bit is set to a 1.

D6 RDY RDY indicates whether the device is capable of performing card operations.

D5 DWF If set, indicates a write fault has occurred. D4 DSC Set when the card is ready. D3 DRQ Set when the card requires that information be transferred either to or from

D2 CORR Set when a correctable data error has been encountered and the data has

D1 0 Always set to 0. D0 ERR Set when the previous command has ended in some type of error. The bits

This bit is cleared at power-up and remains cleared until card is ready to accept a command.

the host through the Data Register.

been corrected. This condition does not terminate a multi-sector read operation.

in the Error Register contain additional information describing the error.

4.5.10 Device Control Register (Address–3F6[376]; Offset Eh)

This register is used to control the CompactFlash Memory Card interrupt request and to issue an ATA soft reset to the card. The bits are defined as follows:

D7 D6 D5 D4 D3 D2 D1 D0

X X X X 1 SW Rst -IEn 0

ATA Register Set and Protocol SanDisk CompactFlash Card OEM Product Manual

Device Control Register (con’t)

Bit Name Description

D7 X Don’t care. D6 X Don’t care. D5 X Don’t care. D4 X Don’t care. D3 1 Bit ignored by the card. D2 SW Rst Set to 1 in order to force the card to perform an AT Disk controller Soft

Reset operation. This does not change the PCMCIA Card Configuration registers as a hardware reset does. The card remains in Reset until this bit is reset to “0”.

D1 -IEn Interrupt Enable bit enables interrupts when the bit is 0. When the bit is 1,

interrupts from the card are disabled. This bit also controls the Int bit in the Configuration and Status Register. This bit is set to 0 at power on and reset.

D0 ERR Bit ignored by the card.

4.5.11 Card (Drive) Address Register (Address–3F7[377]; Offset Fh)

This register is provided for compatibility with the AT disk drive interface. It is recommended that this register not be mapped into the host's I/O space because of potential conflicts on Bit 7. The bits are defined as follows:

D7 D6 D5 D4 D3 D2 D1 D0

X -WTG -HS3 -HS2 -HS1 -HS0 -nDS1 -nDS0

SanDisk CompactFlash Card OEM Product Manual ATA Register Set and Protocol

Card (Drive) Address Register (con’t)

Bit Name Description

D7 X This bit is unknown.

Implementation Note: Conflicts may occur on the host data bus when this bit is provided by a

Floppy Disk Controller operating at the same addresses as the CompactFlash Memory Card. Following are some possible solutions to this problem for the PCMCIA implementation:

1. Locate the CompactFlash Memory Card at a non-conflicting address, i.e., Secondary address (377) or in an independently decoded Address Space when a Floppy Disk Controller is located at primary addresses.

2. Do not install a Floppy and a CompactFlash Memory Card in the system at the same time

3. Implement a socket adapter that can be programmed to (conditionally) tri-state D7 of I/0 address 3F7/377 when a CompactFlash Memory Card is installed and conversely to tri-state D6-D0 of I/O address 3F7/377 when a floppy controller is installed

4. Do not use the card's Drive Address Register. This may be accomplished by either a) If possible, program the host adapter to enable only I/O addresses 1F0-1F7, 3F6 (or 170-177, 176) to the card or

b) if provided use an additional primary/secondary configuration in the card that does not respond to accesses to I/O locations 3F7 and 377. With either of these implementations, the host software must not attempt to use

information in the Drive Address Register. D6 -WTG This bit is 0 when a write operation is in progress, otherwise, it is 1. D5 -HS3 This bit is the negation of bit 3 in the Drive/Head Register. D4 -HS2 This bit is the negation of bit 2 in the Drive/Head Register. D3 -HS1 This bit is the negation of bit 1 in the Drive/Head Register. D2 -HS0 This bit is the negation of bit 0 in the Drive/Head Register. D1 -nDS1 This bit is 0 when drive 1 is active and selected. D0 -nDS0 This bit is 0 when the drive 0 is active and selected.

ATA Register Set and Protocol SanDisk CompactFlash Card OEM Product Manual

–This page intentionally left blank–

CHAPTER 5 ATA Command Description

This section defines the software requirements and the format of commands the host sends to CompactFlash Memory cards. Commands are issued to the card by loading the required registers in the command block with the supplied parameters, and then writing the command code to the Command Register. The manner in which a command is accepted varies. There are three classes (see Table 5-1) of command acceptance, all dependent on the host not issuing commands unless the card is not busy . (The BUSY bit in the status and alternate status registers is 0.)

• Upon receipt of a Class 1 command, the card sets the BUSY bit within 400 nsec.

• Upon receipt of a Class 2 command, the card sets the BUSY bit within 400 nsec, sets up the

sector buffer for a write operation, sets DRQ within 700 µsec, and clears the BUSY bit within 400 nsec of setting DRQ.

• Upon receipt of a Class 3 command, the card sets the BUSY bit within 400 nsec, sets up the

sector buffer for a write operation, sets DRQ within 20 msec (assuming no re-assignments), and clears the BUSY bit within 400 nsec of setting DRQ.

5.1 ATA Command Set

Table 5-1 summarizes the ATA command set with the paragraphs that follow describing the individual commands and the task file for each.

Table 5-1 Primary and Secondary I/O Decoding

Class Command Code FR SC SN CY DH LBA

1 Check Power Mode E5h or 98h - - - - D 1 Execute Drive Diagnostic 90h - - - - D 1

Erase Sector(s) 2 Format Track 50h - Y - Y Y Y 1 Identify Device ECh - - - - D 1 Idle E3h or 97h - Y - - D 1 Idle Immediate E1h or 95h - - - - D 1 Initialize Drive Parameters 91h - Y - - Y 1 Read Buffer E4h - - - - D 1 Read DMA C8 or C9 - Y Y Y Y Y 1 Read Multiple C4h - Y Y Y Y Y 1 Read Long Sector 22h or 23h - - Y Y Y Y 1 Read Sector(s) 20h or 21h - Y Y Y Y Y 1 Read Verify Sector(s) 40h or 41h - Y Y Y Y Y 1 Recalibrate 1Xh - - - - D 1

Request Sense 1 Seek 7Xh - - Y Y Y Y 1 Set Features EFh Y - - - D -

a

b

C0h -Y Y Y Y Y

03h - - - - D -

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

Table 5-1 Primary and Secondary I/O Decoding

Class Command Code FR SC SN CY DH LBA

1 Set Multiple Mode C6h - Y - - D 1 Set Sleep Mode E6h or 99h - - - - D 1 Stand By E2h or 96h - - - - D 1 Stand By Immediate E0h or 94h - - - - D 1

Translate Sector

1

Wear Level 2 Write Buffer E8h - - - - D 2 Write DMA CA or CB - Y Y Y Y Y 2 Write Long Sector 32h or 33h - - Y Y Y Y 3 Write Multiple C5h - Y Y Y Y Y 3

Write Multiple w/o Erase 2 Write Sector(s) 30h or 31h - Y Y Y Y Y 2

Write Sector(s) w/o Erase 2 Write Verify 3Ch - Y Y Y Y Y

b

a

87h - Y Y Y Y Y F5h - - - - Y -

CDh -Y Y Y Y Y

38h - Y Y Y Y Y

a. These commands are not standard PC Card ATA commands and these features are no longer sup-

ported with the introduction of 256 Mbit Flash Technology. If one of these commands is issued, the sectors will be erased but there will be no net gain in write performance when using the Write Without Erase command.

b. These commands are not standard PC Card ATA commands but provide additional functionality.

ABBREVIATION KEY FR Features Register SC Sector Count Register SN Sector Number Register CY Cylinder Registers DH Card/Drive/Head Register LBA Logical Block Address Mode Supported Y The register contains a valid parameter for this command. For the Drive/Head Register, both the

CompactFlash Card and head parameters are used

D The register contains a valid parameter for this command. For the Drive/Head Register, only the

CompactFlash Card parameter is valid and not the head parameter

5.1.1 Check Power Mode–98H, E5H

This command checks the power mode. If the CompactFlash Card is in, going to, or recovering from the sleep mode, it sets BSY, sets

the Sector Count Register to 00h, clears BSY and generates an interrupt.

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

If the card is in Idle mode, it sets BSY, sets the Sector Count Register to FFh, clears BSY and generates an interrupt.

Table 5-2 Check Power Mode

Bit 7 6 5 4 3 2 1 0

Command (7) E5H or 98H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

5.1.2 Execute Drive Diagnostic–90H

This command performs the internal diagnostic tests implemented by the CompactFlash cards.

Table 5-3 Execute Drive Diagnostic

Bit 7 6 5 4 3 2 1 0

Command (7) 90H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

The Diagnostic codes shown in Table 5-4 are returned in the Error Register at the end of the command.

Table 5-4 Diagnostic Codes

Code Error Type

01h No error detected 02h Formatter device error 03h Sector buffer error 04h ECC circuitry error 05h Controlling microprocessor error 8Xh Slave failed (True IDE Mode)

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

5.1.3 Erase Sector(s)–C0H

This command is no longer recommended. There is essentially no net gain in the use of the Erase Sectors Command and/or the Write Without Erase Commands. This command is supported to guarantee backward compatibility.

Table 5-5 Erase Sectors

Bit 7 6 5 4 3 2 1 0

Command (7) C0H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Number (LBA 7-0)

Feature (1) X

5.1.4 Format Track –50H

This command writes the desired head and cylinder of the selected drive with an FFh pattern. To remain host backward compatible, the card expects a sector buffer of data from the host to follow the command with the same protocol as the Write Sector(s) command although the information in the buffer is not used by the card. If LBA=1 then the number of sectors to format is taken from the Sec Cnt register (0=256).

NOTE: The Format Track command in Table 5-6 is no longer recommended.

The command is supported to guarantee backward compatibility.

Table 5-6 Format Track

Bit 7 6 5 4 3 2 1 0

Command (7) 50H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) X (LBA 7-0)

Sec Cnt (2) Count (LBA mode only)

Feature (1) X

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

5.1.5 Identify Device–ECH

The Identify Drive command enables the host to receive parameter information from a CompactFlash Memory Card. This command has the same protocol as the Read Sector(s) command. The parameter words in the buffer have the arrangement and meanings defined in Table 5-8. All reserved bits or words are “0”.

Table 5-7 Identify Device

Bit 7 6 5 4 3 2 1 0

Command (7) ECH

C/D/H (6) X X X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

Table 5-8 is the definition for each field in the Identify Device Information.

Table 5-8 Identify Device Information

Word

Address Default Value Total Bytes Data Field Type Information

0 848Ah 2 General configuration bit-significant

information 1 XXXXh 2 Default number of cylinders 2 0000h 2 Reserved 3 XXXXh 2 Default number of heads 4 0000h 2 Number of unformatted bytes per track 5 0000h 2 Number of unformatted bytes per sector 6 XXXXh 2 Default number of sectors per track

7-8 XXXXh 4 Number of sectors per card (Word 7 = MSW,

Word 8 = LSW) 9 0000h 2 Reserved

10-19 aaaa 20 Serial number in ASCII (right justified)

20 0000h 2 Buffer type (dual ported) 21 0000h 2 Buffer size in 512 byte increments 22 0004h 2 Number of ECC bytes passed on Read/Write

23-26 aaa 8 Firmware revision in ASCII (Rev M.ms) set by

27-46 aaaa 40 Model number in ASCII (left justified) Big

47 000Xh 2 Maximum No. of Sectors on Read/Write Multiple

48 0000h 2 Double-word not supported 49

50 0000h 2 Reserved

0X00h

a

2 Capabilities: DMA Supported (bit 8), LBA

Long Commands

code Big Endian Byte Order in Word

Endian Byte Order in Word

command

supported (bit 9)

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

Table 5-8 Identify Device Information

Word

Address Default Value Total Bytes Data Field Type Information

51 0200h 2 PIO data transfer cycle timing mode 52 0000h 2 Single word DMA data transfer cycle timing

mode (not supported) 53 0003h 2 Field validity 54 XXXXh 2 Current number of cylinders 55 XXXXh 2 Current number of heads 56 XXXXh 2 Current sectors per track

57-58 XXXXh 4 Current capacity in sectors (LBAs)

(Word 57 = LSW, Wo rd 58 = MSW) 59 010Xh 2 Multiple sector setting is valid

60-61 XXXXh 4 Total number of sectors addressable in LBA

Mode 62 0000h 2 Single word DMA transfer (not supported) 63 0X07h 2 0-7: Multiword DMA modes supported

64 0003h 2 Advanced PIO modes supported 65 0078h

(IDE Mode only)

66 0078h

(IDE Mode only) 67 0078h 2 Minimum PIO transfer without flow control 68 0078h 2 Minimum PIO transfer with IORDY flow control

69-79 0000h 20 Reserved

80 00XXh 2 Major ATA version 81 0000h 2 Minor ATA version 82 00X0h 2 Features/command sets supported 83 4004h 2 Features/command sets supported 84 4000h 2 Features/command sets supported 85 0000h 2 Features/command sets enabled 86 0004h 2 Features/command sets enabled 87 4000h 2 Features/command sets enabled 88 0000h 2 Ultra DMA Mode supported and selected 89 XXXXh 2 Time required for security erase-unit

90 0000h 2 Time required for enhanced security erase-unit

91 XXXXh 2 Current advanced power management value

92-127 0000h 72 Reserved

128-159 0000h 64 Reserved vendor-unique bytes

160 0000h 2 Power requirement description 161 0000h 2 Reserved for assignment by the CFA 162 0000h 2 Key management schemes supported

2 Minimum multiword DMA transfer cycle time

2 Recommended multiword DMA transfer cycle

15-8: Multiword DMA mode active

per word in ns

time per word in ns

completion

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

Table 5-8 Identify Device Information

Word

Address Default Value Total Bytes Data Field Type Information

163 00XXh 2 CF Advanced True IDE Timing Mode

164 001Bh 2 CF Advanced PCMCIA I/O and Memory

165-175 0000h 22 Reserved for assignment by the CFA 176-255 0000h 140 Reserved

a. Multiword DMA is supported by SanDisk PCMCIA. For all unsupported cases, 0100H is reported in

word 49, and 0000H is reported in words 52, 63, and 65. CompactFlash products will support multiword.

Capability and Setting

Timing Mode Capability

Word 0: General Configuration. This field informs the host that this is a non-magnetic, hard sectored, removable storage device with a transfer rate greater than 10 Mb/sec and is not MFM encoded. CompactFlash products report 848AH in compliance with the CFA specification.

Word 1: Default Number of Cylinders. This field contains the number of translated cylinders in the default translation mode. This value will be the same as the number of cylinders.

Word 3: Default Number of Heads. This field contains the number of translated heads in the default translation mode.

Word 4: Number of Unformatted Bytes per Track. This field contains the number of unformatted bytes per translated track in the default translation mode.

Word 5: Number of Unformatted Bytes per Sector. This field contains the number of unformatted bytes per sector in the default translation mode.

Word 6: Default Number of Sectors per Track. This field contains the number of sectors per track in the default translation mode.

Words 7-8: Number of Sectors per Card. This field contains the number of sectors per CompactFlash Memory Card. This double word value is also the first invalid address in LBA translation mode.

Words 10-19: Memory Card Serial Number. The contents of this field are right justified and padded with spaces (20h).

Word 20: Buffer Type. This field defines the buffer capability with the 0002h meaning a dual ported multi-sector buffer capable of simultaneous data transfers to or from the host and the CompactFlash Memory Card.

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

Word 21: Buffer Size. This field defines the buffer capacity of 2 sectors or 1 kilobyte of SRAM.

Word 22: ECC Count. This field defines the number of ECC bytes used on each sector in the Read and Write Long commands.

Words 23-26: Firmware Revision. This field contains the revision of the firmware for this product.

Words 27-46: Model Number. This field contains the model number for this product and is left justified and padded with spaces (20h).

Word 47: Read/Write Multiple Sector Count. This field contains the maximum number of sectors that can be read or written per interrupt using the Read Multiple or Write Multiple commands.

Word 48: Double Word Support. This field indicates this product will not support double word transfers.

Word 49: Capabilities. This field indicates if this product supports DMA Data transfers and LBA mode. All SanDisk products support LBA mode.

Word 51: PIO Data Transfer Cycle Timing Mode. To determine the proper device timing category, compare the Cycle Time specified in Table 3-15 with the contents of this field with Table 3-14.

t

is the minimum total cycle time, t2 is the minimum command active time, and t2i is the

0

minimum command recovery time or command inactive time. The actual cycle time equals the sum of the actual command active time and the actual command inactive time. The three timing requirements of t

are greater than the sum of t both t

or t2i to ensure that t0 is equal to or greater than the value reported in the devices

2

, t2, and t

0

and t2i. This means a host implementation may lengthen either or

2

shall be met. The minimum total cycle time requirements

2i

IDENTIFY DEVICE data. A device implementation shall support any legal host implementation.

The IORD-data tri-state parameter specifies the time from the negation edge of /IORD to the time that the data bus is no longer driven by the device (tri-state).

NOTE: For backward compatibility with BIOS' written before Word 64 was

defined for advanced modes, a device reports in Word 51 the highest original PIO mode it can support (i.e., PIO mode 0, 1 or 2).

Word 52: Single Word DMA Data Transfer Cycle Timing Mode. This field states this product does not support any Single Word DMA data transfer mode.

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

Word 53: Translation Parameters Valid. Bit 0 of this field is set, indicating that words 54 to 58 are valid and reflect the current number of cylinders, heads and sectors. Bit 1 is also set, indicating values in words 64 through 70 are valid.

Words 54-56: Current Number of Cylinders, Heads, Sectors/Track. These fields contain the current number of user addressable cylinders, heads, and sectors/track in the current translation mode.

Words 57-58: Current Capacity . This field contains the product of the current cylinders x heads x sectors.

Word 59: Multiple Sector Setting . This field contains a validity flag in the odd byte and the current number of sectors that can be transferred per interrupt for R/W Multiple in the even byte. The odd byte is always 01H, which indicates that the even byte is always valid.

The even byte value depends on the value set by the Set Multiple command. The even byte of this word by default contains a 00H, which indicates that R/W Multiple commands are not valid. The only other value returned by the CompactFlash Memory Card in the even byte is a 01H value, which indicates that 1 sector per interrupt, can be transferred in R/W Multiple mode.

Words 60-61: Total Sectors Addressable in LBA Mode. This field contains the number of sectors addressable for the CompactFlash Card in LBA mode only.

Word 64: Advanced PIO Transfer Modes Supported. Bits 0 and 1 of this field are set to indicate support for PIO transfer modes 3 and 4, respectively.

Word 65: Minimum Multiword DMA Transfer Cycle Time per Word. Word 65 of the parameter information of the IDENTIFY DEVICE command is defined as the Minimum Multiword DMA Transfer Cycle Time Per Word. This field defines, in nanoseconds, the minimum cycle time that the device can support when performing Multiword DMA transfers on a per word basis.

Word 66: Recommended Multiword DMA Cycle Time. Word 66 of the parameter information of the IDENTIFY DEVICE command is defined as the Recommended Multiword DMA Transfer Cycle Time. This field defines, in nanoseconds, the minimum cycle time per word during a single sector host transfer while performing a multiple sector READ DMA or WRITE DMA commands over all locations on the media under minimal conditions. If a host runs at a faster cycle rate by operating at a cycle time of less that this value, the device may negate DMARQ for flow control. The rate at which DMARQ is negated could result in reduced throughput despite the faster cycled rate. Transfer at this rate does not ensure that flow control will not be used, but implies that higher performance may result.

Word 67: Minimum PIO Transfer Cycle Time Without Flow Contr ol. This field indicates in nanoseconds, the minimum cycle time that, if used by the host, the card guarantees data integrity during the cycle without utilization of flow control.

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

Word 68: Minimum PIO Transfer Cycle Time With Flow Control. This field indicates in nanoseconds, the minimum cycle time the card supports while performing data transfers using flow control.

Words 82-84: Features/Command Sets Supported. Words 82, 83, and 84 in dicate th e features and command sets supported. The value 0000h or FFFFh was placed in each of these words by CompactFlash cards prior to ATA-3 and will be interpreted by the host as meaning that features/command sets supported are not indicated. Bits 1 through 13 of Word 83, and bits 0 through 13 of Word 84 are reserved. Bit 14 of Word 83 and Word 84 will be set to "1," and bit 15 of Word 83 and Word 84 w ill be cleared to zero which indicates that the features and command sets supported words are valid. The values in these words should not be depended on by host implementers.

Table 5-9 Word 82 Description

Bit Setting Indication

0 0 SMART feature set not supported 1 1 Security Mode feature set supported 2 0 Removable Media feature set not supported 3 1 Power Management feature set supported 4 0 Packet Command feature set not supported 5 1 Write cache supported 6 1 Look-ahead supported 7 0 Release Interrupt not supported 8 0 Service Interrupt not supported

9 0 Device Reset command not supported 10 0 Host Protected Area feature set not supported 11 --- Obsolete 12 1 Write Buffer command supported by CF Card 13 1 Read Buffer command supported by CF Card 14 1 NOP command supported by CF Card 15 --- Obsolete

Table 5-10 Word 83 Description

Bit Setting Indication

0 0 Download Microcode command not supported by CF Card

1 0 Read DMA Queued and Write DMA Queued commands not supported by CF

Card 2 1 CFA feature set supported by CF Card 3 1 Advanced Power Management feature set supported by CF Card 4 0 Removable Media Status feature set not supported by CF Card

Words 85-87: Features/Command Sets Enabled. Words 85, 86, and 87 indicates features/ command sets enabled. The value 0000h or FFFFh was placed in each of these words by CompactFlash cards prior to ATA-4 and will be interpreted by the host as meaning that features/command sets enabled are not indicated. Bits 1 through 15 of word 86 are reserved.

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

Bits 0-13 of word 87 are reserved. Bit 14 of word 87 will be set to one and bit 15 of word 87 will be cleared to zero to provide indication that the features/command sets enabled words are valid. The values in these words should not be depended upon by host implementers.

Table 5-11 Word 85 Description

Bit Setting Indication

0 0 SMART feature set not enabled 1 1 Security Mode feature set enabled via the Security Set Password command 2 0 Removable Media feature set not supported 3 1 Power Management feature set supported 4 0 Packet Command feature set not enabled 5 1 Write cache enabled 6 1 Look-ahead enabled 7 0 Release Interrupt not enabled 8 0 Service Interrupt not enabled 9 0 Device Reset command not supported

10 0 Host Protected Area feature set not supported

11 --- Obsolete 12 1 Write Buffer command supported by CF Card 13 1 Read Buffer command supported by CF Card 14 1 NOP command supported by CF Card 15 --- Obsolete

Table 5-12 Word 86 Description

Bit Setting Indication

0 0 Download Microcode command not supported by CF Card 1 0 Read DMA Queued and Write DMA Queued commands not supported by CF

2 1 CFA feature set supported by CF Card 3 1 Advanced Power Management feature set by Set Features command 4 0 Removable Media Status feature set not supported by CF Card

Card

Word 163: CF Advanced True IDE Timing Mode Capabilities and Settings. This word describes the capabilities and current settings for CFA defined advanced timing modes using the True IDE interface.

There are four separate fields defined that describe support and selection of Advanced PIO timing modes and Advanced Multiword DMA timing modes. The older modes are reported in Word 63: Multiword DMA Transfer and and Word 64: Advanced PIO T ransfer Modes Supported.

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

• Bits 2-0: Advanced True IDE PIO Mode Support

Indicates the maximum True IDE PIO mode supported by the card.

Value Maximum PIO Mode Timing Supported

0 Specified in Word 64 1 PIO Mode 5 2 PIO Mode 6

3-7 Reserved

• Bits 5-3: Advanced True IDE Multiword DMA Mode Support

Indicates the maximum True IDE Multiword DMA mode supported by the card.

Value Maximum Multiword DMA Mode Timing Supported

0 Specified in Word 63 1 Multiword DMA Mode 3 2 Multiword DMA Mode 4

3-7 Reserved

• Bits 8-6: Advanced True IDE PIO Mode Selected

Indicates the current True IDE PIO mode selected on the card.

Value Current PIO Timing Mode Selected

0 Specified in Word 64 1 PIO Mode 5 2 PIO Mode 6

3-7 Reserved

• Bits 11-9: Advanced True IDE Multiword DMA Mode Selected

Indicates the current True IDE Multiword DMA Mode Selected on the card.

Value Current Multiword DMA Timing Mode Selected

0 Specified in Word 63 1 Multiword DMA Mode 3 2 Multiword DMA Mode 4

3-7 Reserved

• Bits 15-12: Reserved

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

Word 164: CF Advanced PCMCIA I/O and Memory Timing Mode Capabilities and Settings. This word describes the capabilities and current settings for CFA defined advanced

timing modes using the Memory and PCMCIA I/O interface.

• Bits 2-0: Maximum Advanced PCMCIA I/O Mode Support

Indicates the maximum I/O timing mode supported by the card.

Value Maximum PCMCIA I/O Timing Mode Supported

0 255 ns Cycle PCMCIA I/O Mode 1 120 ns Cycle PCMCIA I/O Mode 2 100 ns Cycle PCMCIA I/O Mode 3 80 ns Cycle PCMCIA I/O Mode

4-7 Reserved

• Bits 5-3: Maximum Memory Timing Mode Supported

Indicates the Maximum Memory timing mode supported by the card.

Value Maximum Memory Timing Mode Supported

0 250 ns Cycle Memory Mode 1 120 ns Cycle Memory Mode 2 100 ns Cycle Memory Mode 3 80 ns Cycle Memory Mode

4-7 Reserved

• Bits 15-6: Reserved

5.1.6 Idle–97H, E3H

This command causes the card to set BSY, enter the Idle (Read) mode, clear BSY and generate an interrupt. If the sector count is non-zero, it is interpreted as a tim er count with each count being 5 milliseconds and the automatic power down mode is enabled. If the sector count is zero, the automatic power down mode is disabled.

NOTE: This time base (5 msec) is different from the A TA specification.

Table 5-13 Idle

Bit 7 6 5 4 3 2 1 0

Command (7) E3H or 97H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) Timer Count (5 ms increments)

Feature (1) X

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

5.1.7 Idle Immediate–95H, E1H

This command causes the card to set BSY, enter the Idle (Read) mode, clear BSY and generate an interrupt.

Table 5-14 Idle Immediate

Bit 7 6 5 4 3 2 1 0

Command (7) E1H or 95H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

5.1.8 Initialize Drive Parameters–91H

This command enables the host to set the number of sectors per track and the number of heads per cylinder. Only the Sector Count and the Card/Drive/Head registers are used by this command.

NOTE: SanDisk recommends not using this command in any system because

DOS determines the offset to the Boot Record based on the number of heads and sectors per track. If a CompactFlash Memory Card is "Formatted" with one head and sector per track value, the same card will not operate correctly with DOS configured with another heads and sectors per track value.

Table 5-15 Initialize Drive Parameters

Bit 7 6 5 4 3 2 1 0

Command (7) 91H

C/D/H (6) X 0 X Drive Max. Head (no. of heads - 1)

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) Number of Sectors

Feature (1) X

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

5.1.9 Read Buffer–E4H

The Read Buffer command enables the host to read the current contents of the card's sector buffer. This command has the same protocol as the Read Sector(s) command.

Table 5-16 Read Buffer

Bit 7 6 5 4 3 2 1 0

Command (7) E4H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

5.1.10 Read DMA Command–C8H, C9H

The Read DMA command in Table 5-17 executes in a similar manner to the READ SECTOR(S) command except for the following:

• The host initializes the DMA channel prior to issuing the command.

• Data transfers are qualified by DMARQ and are performed by the DMA channel.

• The device issues only one interrupt per command to indicate that data transfer has termi-

nated and status is available.

During the DMA transfer phase of a Read DMA command, the device provides status of the BSY bit or the DRQ bit until the command is completed.

Table 5-17 Read DMA Command

Bit 7 6 5 4 3 2 1 0

Command (7) C8H or C9H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

5.1.11 Read Multiple–C4H

The Read Multiple command performs similarly to the Read Sectors command. Interrupts are not generated on every sector, but on the transfer of a block, which contains the number of sectors defined by a Set Multiple, command.

Table 5-18 Read Multiple

Bit 7 6 5 4 3 2 1 0

Command (7) C4H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

Command execution is identical to the Read Sectors operation except that the number of sectors defined by a Set Multiple command is transferred without intervening interrupts. DRQ qualification of the transfer is required only at the start of the data block, not on each sector.

The block count of sectors to be transferred without intervening interrupts is programmed by the Set Multiple Mode command, which must be executed prior to the Read Multiple command. When the Read Multiple command is issued, the Sector Count Register contains the number of sectors (not the number of blocks or the block count) requested. If the number of requested sectors is not evenly divisible by the block count, as many full blocks as possible are transferred, followed by a final, partial block transfer. The partial block transfer is for n sectors, where: n = (sector count)-module (block count).

If the Read Multiple command is attempted before the Set Multiple Mode command has been executed or when Read Multiple commands are disabled, the Read Multiple operation is rejected with an Aborted Command error. Disk errors encountered during Read Multiple commands are posted at the beginning of the block or partial block transfer, but DRQ is still set and the data transfer will take place as it normally would, including transfer of corrupted data, if any.

Interrupts are generated when DRQ is set at the beginning of each block or partial block. The error reporting is the same as that on a Read Sector(s) Command. This command reads from 1 to 256 sectors as specified in the Sector Count register. A sector count of 0 requests 256 sectors. The transfer begins at the sector specified in the Sector Number Register.

At command completion, the Command Block registers contain the cylinder, head and sector number of the last sector read.

If an error occurs, the read terminates at the sector where the error occurred. The Command Block registers contain the cylinder, head and sector number of the sector where the error occurred. The flawed data is pending in the sector buffer.

Subsequent blocks or partial blocks are transferred only if the error was a correctable data error. All other errors cause the command to stop after transfer of the block that contained the error.

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

5.1.12 Read Long Sector–22H, 23H

The Read Long command performs similarly to the Read Sector(s) command except that it returns 516 bytes of data instead of 512 bytes. During a Read Long command, the card does not check the ECC bytes to determine if there has been a data error. Only single sector read long operations are supported. The transfer consists of 512 bytes of data transferred in word mode followed by 4 bytes of random data transferred in byte mode. Random data is returned instead of ECC bytes because of the nature of the ECC system used. This command has the same protocol as the Read Sector(s) command.

Table 5-19 Read Long Sector

Bit 7 6 5 4 3 2 1 0

Command (7) 22H or 23H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) X

Feature (1) X

5.1.13 Read Sector(s)–20H, 21H

This command reads from 1 to 256 sectors as specified in the Sector Count Register. A sector count of 0 requests 256 sectors. The transfer begins at the sector specified in the Sector Number Register. When this command is issued and after each sector of data (except the last one) has been read by the host, the CompactFlash card sets BSY, puts the sector of data in the buffer, sets DRQ, clears BSY, and generates an interrupt. The host then reads the 512 bytes of data from the buffer.

At command completion, the Command Block registers contain the cylinder, head and sector number of the last sector read. If an error occurs, the read terminates at the sector where the error occurred. The Command Block registers contain the cylinder, head, and sector number of the sector where the error occurred. The flawed data is pending in the sector buffer.

Table 5-20 Read Sector(s)

Bit 7 6 5 4 3 2 1 0

Command (7) 20H or 21H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

5.1.14 Read Verify Sector(s)–40H, 41H

This command is identical to the Read Sectors command, except that DRQ is never set and no data is transferred to the host. When the command is accepted, the card sets BSY.

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

When the requested sectors have been verified, the card clears BSY and generates an interrupt. Upon command completion, the Command Block registers contain the cylinder, head, and sector number of the last sector verified.

If an error occurs, the verify terminates at the sector where the error occurs. The Command Block registers contain the cylinder, head and sector number of the sector where the error occurred. The Sector Count Register contains the number of sectors not yet verified.

Table 5-21 Read Verify Sector(s)

Bit 7 6 5 4 3 2 1 0

Command (7) 40H or 41H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

5.1.15 Recalibrate–1XH

This command is effectively a NOP command to the CompactFlash Memory Card and is provided for compatibility purposes. After this command is executed the Cyl High and Cyl Low as well as the Head number will be 0 and Sec Num will be 1 if LBA=0 and 0 if LBA=1 (i.e., the first block in LBA is 0 while CHS mode the sector number starts at 1).

Table 5-22 Recalibrate

Bit 7 6 5 4 3 2 1 0

Command (7) 1XH

C/D/H (6) 1 LBA 1 Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

5.1.16 Request Sense–03H

This command requests an extended error code after a command ends with an error.

Table 5-23 Request Sense

Bit 7 6 5 4 3 2 1 0

Command (7) 03H

C/D/H (6) 1 X 1 Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

Table 5-24 defines the valid extended error codes for the CompactFlash Memory Card Series product. The extended error code is returned to the host in the Error Register. This command must be the next command issued to the card following the command that returned an error.

Table 5-24 Extended Error Codes

Extended Error Code Description

00h No error detected 01h Self test OK (no error) 09h Miscellaneous error 20h Invalid command 21h Invalid address (requested head or sector invalid) 2Fh Address overflow (address too large)

35h, 36h Supply or generated voltage out of tolerance

11h Uncorrectable ECC error 18h Corrected ECC error

05h, 30-34h, 37h, 3Eh Self test or diagnostic failed

10h, 14h ID not found

3Ah Spare sectors exhausted 1Fh Data transfer error/aborted command

0Ch, 38h, 3Bh, 3Ch, 3Fh Corrupted media format

03h Write/erase failed

5.1.17 Seek–7XH

This command is effectively a NOP command to the card although it does perform a range check of cylinder and head or LBA address and returns an error if the address is out of range.

Table 5-25 Seek

Command (7) 7XH

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) X

Feature (1) X

Bit 7 6 5 4 3 2 1 0

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

5.1.18 Set Features–EFH

This command is used by the host to establish or select certain features.

Table 5-26 Set Features

Bit 7 6 5 4 3 2 1 0

Command (7) EFH

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) Config

Feature (1) Feature

T able 5-27 defines all features that are supported. The 9AH feature is unique to CompactFlash Memory cards and are not part of the ATA Specification.

Table 5-27 Features Supported

Feature Operation

01h Enable 8-bit data transfer 02h Enable Write Cache 03h Set Transfer Mode based on value and Sector Count register. 55h Disable Read Look Ahead 66h Disable Power on Reset (POR) establishment of defaults at Soft Reset 69h Accepted for backward compatibility with the SDP Series but has no

impact on the CF Memory Card. 81h Disable 8-bit data transfer 96h Accepted for backward compatibility with the SDP Series but has no

impact on the CF Memory Card 9Ah Accepted for backward compatibility with the SDP Series but has no

impact on the CF Memory Card

BBh 4 bytes of data apply on Read/Write Long commands

CCh Enable Power on Reset (POR) establishment of defaults at Soft Reset.

Features 01H and 81H are used to enable and clear 8-bit data transfer mode. If the 01H feature command is issued, all data transfers will occur on the low order D7-D0 data bus and the IOIS16 signal will not be asserted for data register accesses.

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

A host can choose the transfer mechanism by Set Transfer Mode and specifying a value in the Sector Count register. The upper 5 bits define the type of transfer and the low order 3 bits encode the mode value.

Mode Value

PIO Default Transfer Mode 00000 00d PIO Flow Control Transfer Mode x 00001 nnn Multiword DMA Mode x 00100 nnn Reserved 01000 nnn Reserved 10000 nnn Where “nnn” is a valid mode number in binary; “x” is the mode number in decimal for

the associated transfer type; and “d” is ignored.

Features 55H and BBH are the default features for CompactFlash cards; thus, the host does not have to issue this command with these features unless it is necessary for compatibility reasons.

The 9AH Feature is accepted for backward compatibility with the SDP Series but has no impact on the card. SanDisk does not recommend the use of this command in new designs.

Features 66H and CCH can be used to enable and disable whether the Power On Reset (POR) Defaults will be set when a soft reset occurs. The default setting is to revert to the POR defaults when a soft reset occurs. POR defaults the number of heads and sectors along with 16 bit data transfers and the read/write multiple block count.

5.1.19 Set Multiple Mode–C6H

This command enables the card to perform Read and Write Multiple operations and establishes the block count for these commands. The Sector Count Register is loaded with the number of sectors per block. The current version of the card supports only a block size of 1 sector per block. Future versions may support larger block sizes. Upon receipt of the command, the card sets BSY to 1 and checks the Sector Count Register.

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

If the Sector Count Register contains a valid value and the block count is supported, the value is loaded for all subsequent Read Multiple and Write Multiple commands and execution of those commands is enabled. If a block count is not supported, an Aborted Command error is posted, and Read Multiple and Write Multiple commands are disabled. If the Sector Count Register contains 0 when the command is issued, Read and Write Multiple commands are disabled. At power on, or after a hardware or (unless disabled by a Set Feature command) software reset, the default mode is Read and Write Multiple disabled.

Table 5-28 Set Multiple Mode

Bit 7 6 5 4 3 2 1 0

Command (7) C6H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) Sector Count

Feature (1) X

5.1.20 Set Sleep Mode–99H, E6H

This command causes the card to set BSY, enter the Sleep mode, clear BSY and generate an interrupt. Recovery from sleep mode is accomplished by simply issuing another command (a reset is permitted but not required). Sleep mode is also entered when internal timers expire so the host does not need to issue this command except when it wishes to enter Sleep mode immediately. The default value for the read to sleep timer is 5 milliseconds. This time base (5 msec) is different from the ATA Specification.

Table 5-29 Set Multiple Mode

Bit 7 6 5 4 3 2 1 0

Command (7) 99H or E6H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

5.1.21 Standby–96H, E2H

This command causes the card to set BSY, enter the Sleep mode (which corresponds to the ATA "Standby" Mode), clear BSY and return the interrupt immediately. Recovery from sleep mode is accomplished by simply issuing another command (reset is not required).

Table 5-30 Standby

Bit 7 6 5 4 3 2 1 0

Command (7) E2H or 96H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

5.1.22 Standby Immediate–94H, E0H

This command causes the card to set BSY, enter the Sleep mode (which corresponds to the ATA "Standby" Mode), clear BSY and return the interrupt immediately. Recovery from sleep mode is accomplished by simply issuing another command (reset is not required).

Table 5-31 Standby Immediate

Bit 7 6 5 4 3 2 1 0

Command (7) E0H or 94H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

5.1.23 Translate Sector–87H

When this command is issued, the controller responds with a 512-byte buffer of information on the desired cylinder, head and sector with the actual Logical Address.

Table 5-32 Translate Sector

Bit 7 6 5 4 3 2 1 0

Command (7) 87H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) X

Feature (1) X

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

Ta ble 5-33 represents the information in the buffer. This command is unique to SanDisk CompactFlash Memory cards.

Table 5-33 Translate Sector Information

Address Information

00 Head

01-02 Cylinder

03 Sector

04-07 LBA

08 Chip

09-0A Block

0B Page

0C-1FF Reserved

5.1.24 Wear Level–F5H

This command is effectively a NOP command and only implemented for backward compatibility with earlier SanDisk SDP series products. The Sector Count Register will always be returned with an 00H indicating W ear Level is not needed.

Table 5-34 Wear Level

Bit 7 6 5 4 3 2 1 0

Command (7) F5H

C/D/H (6) X X X Drive Flag

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) Completion Status

Feature (1) X

5.1.25 Write Buffer–E8H

The Write Buffer command enables the host to overwrite contents of the card's sector buffer with any data pattern desired. This command has the same protocol as the Write Sector(s) command and transfers 512 bytes.

Table 5-35 Write Buffer

Bit 7 6 5 4 3 2 1 0

Command (7) E8H

C/D/H (6) X Drive X

Cyl High (5) X

Cyl Low (4) X

Sec Num (3) X

Sec Cnt (2) X

Feature (1) X

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

5.1.26 Write DMA Command–CAH, CBH

The Write DMA command in Table 5 33 executes in a similar manner to WRITE SECTOR(S) except for the following:

• The host initialised the DMA channel prior to issuing the command.

• Data transfers are qualified by DMARQ and are performed by the DMA channel.

• The device issues only one interrupt per command to indicate that data transfer has termi-

nated and status is available.

During the execution of a Write DMA command, the device provides status of the BSY bit or the DRQ bit until the command is completed.

Table 5-36 Write DMA Command

Bit 7 6 5 4 3 2 1 0

Command (7) CAH or CBH

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

5.1.27 Write Long Sector–32H, 33H

This command is provided for compatibility purposes and is similar to the Write Sector(s) command except that it writes 516 bytes instead of 512 bytes. Only single sector Write Long operations are supported. The transfer consists of 512 bytes of data transferred in word mode followed by 4 bytes of ECC transferred in byte mode. Because of the unique nature of the solid-state CompactFlash Memory Card, the four bytes of ECC transferred by the host cannot be used by it. The card discards these four bytes and writes the sector with valid ECC fields. This command has the same protocol as the Write Sector(s) command.

Table 5-37 Write Long Sector

Bit 7 6 5 4 3 2 1 0

Command (7) 32H or 33H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) X

Feature (1) X

5.1.28 Write Multiple Command–C5H

This command is similar to the W rite Sectors command. The card sets BSY within 400 nsec of accepting the command. Interrupts are not presented on each sector but on the transfer of a block that contains the number of sectors defined by Set Multiple. Command execution is identical to the Write Sectors operation except that the number of sectors defined by the Set Multiple command is transferred without intervening interrupts.

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

DRQ qualification of the transfer is required only at the start of the data block, not on each sector. The block count of sectors to be transferred without intervening interrupts is programmed by the Set Multiple Mode command, which must be executed prior to the Write Multiple command.

Table 5-38 Write Multiple Command

Bit 7 6 5 4 3 2 1 0

Command (7) C5H

C/D/H (6) X LBA X Drive Head

Cyl High (5) Cylinder High

Cyl Low (4) Cylinder Low

Sec Num (3) Sector Number

Sec Cnt (2) Sector Count

Feature (1) X

When the Write Multiple command is issued, the Sector Count Register contains the number of sectors (not the number of blocks or the block count) requested. If the number of requested sectors is not evenly divisible by the sector/block, as many full blocks as possible are transferred, followed by a final, partial block transfer. The partial block transfer is for n sectors, where: n = remainder (sector count/block count).

If the Write Multiple command is attempted before the Set Multiple Mode command has been executed or when Write Multiple commands are disabled, the W rite Multiple operation will be rejected with an aborted command error.

Errors encountered during Write Multiple commands are posted after the attempted writes of the block or partial block transferred. The Write command ends with the sector in error , even if it is in the middle of a block. Subsequent blocks are not transferred in the event of an error. Interrupts are generated when DRQ is set at the beginning of each block or partial block.

The Command Block registers contain the cylinder, head and sector number of the sector where the error occurred and the Sector Count Register contains the residual number of sectors that need to be transferred for successful completion of the command e.g., each block has 4 sectors, a request for 8 sectors is issued and an error occurs on the third sector. The Sector Count Register contains 6 and the address is that of the third sector.

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

5.1.29 Write Multiple without Erase–CDH

SanDisk does not recommend the use of this command in new designs but it is supported as a normal Write Sectors command for backward compatibility reasons.

Table 5-39 Write Multiple w/out Erase

Bit 7 6 5 4 3 2 1 0

Command (7) CDH

C/D/H (6) X LBA X Drive Head

Cyl High (5) Cylinder High

Cyl Low (4) Cylinder Low

Sec Num (3) Sector Number

Sec Cnt (2) Sector Count

Feature (1) X

5.1.30 Write Sector(s)–30H, 31H

This command writes from 1 to 256 sectors as specified in the Sector Count Register. A sector count of zero requests 256 sectors. The transfer begins at the sector specified in the Sector Number Register. When this command is accepted, the card sets BSY, then sets DRQ and clears BSY, then waits for the host to fill the sector buffer with the data to be written. No interrupt is generated to start the first buffer fill operation. No data should be transferred by the host until BSY has been cleared by the host.

For multiple sectors, after the first sector of data is in the buffer , BSY will be set and DRQ will be cleared. After the next buffer is ready for data, BSY is cleared, DRQ is set and an interrupt is generated. When the final sector of data is transferred, BSY is set and DRQ is cleared. It will remain in this state until the command is completed at which time BSY is cleared and an interrupt is generated.

If an error occurs during a write of more than one sector, writing terminates at the sector where the error occurs. The Command Block registers contain the cylinder, head and sector number of the sector where the error occurred. The host may then read the command block to determine what error has occurred, and on which sector.

Table 5-40 Write Sector(s)

Bit 7 6 5 4 3 2 1 0

Command (7) 30H or 31H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

5.1.31 Write Sector(s) without Erase–38H

SanDisk does not recommend the use of this command in new designs but it is supported as a normal Write Sectors command for backward compatibility reasons.

Table 5-41 Write Sector(s) w/out Erase

Bit 7 6 5 4 3 2 1 0

Command (7) 38H

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

5.1.32 Write Verify Sector(s)–3CH

This command writes from 1 to 256 sectors as specified in the Sector Count Register. A sector count of zero requests 256 sectors. The transfer begins at the sector specified in the Sector Number Register. When this command is accepted, the card sets BSY, then sets DRQ and clears BSY, then waits for the host to fill the sector buffer with the data to be written. No interrupt is generated to start the first buffer fill operation. No data should be transferred by the host until BSY has been cleared by the host.

For multiple sectors, after the first sector of data is in the buffer , BSY will be set and DRQ will be cleared. After the next buffer is ready for data, BSY is cleared, DRQ is set and an interrupt is generated. When the final sector of data is transferred, BSY is set and DRQ is cleared. It will remain in this state until the command is completed at which time BSY is cleared and an interrupt is generated.

Table 5-42 Write Verify Sector(s)

Bit 7 6 5 4 3 2 1 0

Command (7) 3CH

C/D/H (6) 1 LBA 1 Drive Head (LBA 27-24)

Cyl High (5) Cylinder High (LBA 23-16)

Cyl Low (4) Cylinder Low (LBA 15-8)

Sec Num (3) Sector Number (LBA 7-0)

Sec Cnt (2) Sector Count

Feature (1) X

If an error occurs during a write of more than one sector, writing terminates at the sector where the error occurs. The Command Block registers contain the cylinder, head and sector number of the sector where the error occurred. The host may then read the command block to determine what error has occurred, and on which sector.

SanDisk CompactFlash Card OEM Product Manual ATA Command Description

5.2 Error Posting

Ta ble 5-43 summarizes the valid status and error value for all the ATA command set.

Table 5-43 Error and Status Register

Error Register Status Register

Command

Check Power Mode Execute Drive Diagnostic - - - - - V - V - V Erase Sector(s) V - V V V V V V - V Format Track - - V V V V V V - V Identify Device - - - V - V V V - V Idle - - - V - V V V - V Idle Immediate - - - V - V V V - V Initialize Drive Parameters - - - - - V - V - V Read Buffer - - - V - V V V - V

Read DMA Read Multiple V V V V V V V V V V Read Long Sector V -V V V V V V V - V Read Sector(s) V V V V V V V V V V Read Verify Sectors V V V V V V V V V V Recalibrate - - - V - V V V - V Request Sense - - - V - V - V - V Seek - - V V - V V V - V Set Features - - - V - V V V - V Set Multiple Mode - - - V - V V V - V Set Sleep Mode - - - V - V V V - V Standby - - - V - V V V - V Standby Immediate - - - V - V V V - V Translate Sector V - V V V V V V - V Wear Level V V V V V V V V - V Write Buffer - - - V - V V V - V Write DMA V - V V - V V - - V Write Long Sector V - V V V V V V - V Write Multiple V - V V V V V V - V Write Multiple w/o Erase V - V V V V V V - V Write Sector(s) V - V V V V V V - V Write Sector(s) w/o Erase V - V V V V V V - V Write Verify Sector(s) V - V V V V V V - V Invalid Command Code - - - V - V V V - V

b

BBK UNC IDNF ABRT AMNF DRDY DWF DSC CORR ERR

- - - V - V V V - V

V V V V V V V V V V

a

a. V = Valid on this command. b. CompactFlash products support multiword DMA.

ATA Command Description SanDisk CompactFlash Card OEM Product Manual

–This page intentionally left blank–

CHAPTER 6 CIS Description

This section describes the Card Information Structure (CIS) for SanDisk CompactFlash Memory cards.

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

000h 01h CISTPL_DEVICE Device Info Tuple Tuple Code 002h 04h Link is 4 bytes Link to

004h DFh Dev ID Type

Dh = I/O

006h 12h

79h

Extreme III

008h 01h # Address Unit – 1 = 1x Side Code = 2k units (One) 2 kB of Address

00Ah FFh List End Marker End of Devices End Marker 00Ch 1Ch CISTPL_DEVICE_OC Other Conditions

00Eh 04h Link is 4 Bytes Link to Next

010h 03h Reserved = 0 V

012h D9h Dev ID T ype

014h 01h # Address Unit – 1 = 1x Side Code = 2k units 2 kB of Address Space Device Size 016h FFh List End Marker End of Devices End Marker 018h 18h CISTPL_JEDEC_C JEDEC ID

01Ah 02h Link is 2 bytes Link Length 01Ch DFh PCMCIA JEDEC Manufacturer ’s ID First byte of JEDEC ID

01Eh 01h PCMCIA Code for PC Card-ATA No Vpp Required Second Byte of

020h 20h CISTPL_MANFID Manufacturer’s ID Tuple Tuple Code 022h 04h Link is 4 bytes Link Length 024h 45h Low Byte of PCMCIA Manufacturer’s Code SanDisk JEDEC

Speed Mantissa = 2h

X

Speed Mantissa = Fh

Dh = I/O

W

1

W

1

Speed

7h = Ext

Speed Exponent = 2h

Speed Exponent = 1h 80 ns if no wait Extended

CC

Speed = 1h I/O Device, WPS,

I/O Device, Wait State,

Extended Speed

120 ns if no wait

W

Conditions: 3V operation

A

is allowed and WAIT I T

Speed = 250 ns

Common Memory

for SanDisk PC Card

Manufacturer’s ID

Space

Info Tuple

is used

ATA 12V

JEDEC ID

CIS

Function

next tuple

Device ID,

WPS, Speed

Extended

Speed

Device Size

Tuple Code

Tuple

3 V Operation, Wait Function

Device ID,

WPS, Speed

Tuple Code

Byte 1,

JEDEC ID of

Device 1

(0-2K)

Byte 2,

JEDEC ID

Low Byte of

PCMCIA

Mfg ID

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

026h 00h High Byte of PCMCIA Manufacturer’s Code Code of 0 because other High Byte of

byte is JEDEC 1 byte PCMCIA

Manufacturer’s ID Mfg ID

028h 01h Low Byte of Product Code SanDisk Code for

SDP Series

02Ah 04h High Byte of Product Code SanDisk Code for

PC Card ATA

02Ch 15h CISTPL_VER_1 Level 1 Version/Product

Info

02Eh 17h Link to next tuple is

23 bytes

030h 04h TPPLV1_MAJOR PCMCIA 2.0/JEIDA 4.1 Major Version 032h 01h TPPLV1_MINOR PCMCIA 2.0/JEIDA 4.1 Minor Version 034h 53h ASCII Manufacturer String ‘S’ String 1 036h 61h

038h 6Eh ‘n’ 03Ah 44h ‘D’ 03Ch 69h ‘i’ 03Eh 73h ‘s’ 040h 6Bh ‘k’ 042h 00h End of Manufacturer String Null Terminator 044h 53h ASCII Product Name String ‘S’ Info String 2 046h 44h ‘D’ 048h 50h ‘P’ 04Ah 00h End of Product Name String Null Terminator 04Ch 35h ‘5’ Info String 3 04Eh 2Fh ‘/’ 050h 33h ‘3’ 052h 20h ‘ ‘ 054h 30h SanDisk Card CIS Revision Number ‘0’ 056h 2Eh ‘.’ 058h 36h ‘6’ 05Ah 00h End of CIS Revision Number Null Terminator 05Ch FFh End of List Marker FFh List Terminator No Info

05Eh 80h CISTPL_VEND_SPECIF_80 SanDisk Parameters

060h 03h (Field Bytes 3-4 taken as 0) Link Length is 3 Bytes Link to Next

‘a’

Tuple

a

CIS

Function

Low Byte

Product Code

High Byte

Product Code

Tuple Code

Link Length

String 4

Tuple Code

Tuple and

Length of Info

in this Tuple

SanDisk CompactFlash Card OEM Product Manual CIS Description

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

062h 14h W 12 NI PP P R I A R I R SP No Wear Level & NO

D Vpp N A

1

0

064h 08h R R R R E TPR TAR R8 R8: 8 bit ROM present

0 0 0 0 1 0 0 0 TAR: Temp Bsy on AT

066h 00h For specific

068h 21h CISTPL_FUNCID Function ID Tuple Tuple Code 06Ah 02h Link Length is 2 Bytes Link to

06Ch 04h

06Eh 01h R 0 R 0 R 0 R 0 R 0 R 0 R 0 P 1 Attempt installation

070h 22h CISTPL_FUNCE Function

072h 02h Link Length is 2 Bytes Link to

1

0

Function Type Code

0

1

W: No Wear Level 12: Vpp not used on

0

Write

NI: -INPACK connected PP: Programmable

Power PDNA: Pwr Down Not

Abort--Cmd RIA: RBsy, ATBsy con-

nected RIR: RBsy Inhibited at

Reset SP: No Security Present This definition applies

only to cards with Manufacturer's ID tuple

1st 3 bytes 45 00 01.

Reset TPR: Temp Bsy on

PCMCIA – Reset E: Erase Ahead Avail-

able R: Reserved, 0 for now This definition applies

only to cards with Manufacturer's ID tuple

1st 3 bytes 45 00 01.

Disk Function Function

at POST:

P: Install at POST R: Reserved (0)

Extension Tuple

Function

SanDisk Fields, 1 to 4 Bytes limited by link length

SanDisk Fields, 1 to 4 bytes limited by link length

platform use only

Next Tuple

Code

Tuple Code

Next Tuple

CIS

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

074h 01h

076h 01h 078h 22h CISTPL_FUNCE Function Extension tuple Tuple Code

07Ah 03h Tuple has 3 Info Bytes Link Length 07Ch 02h

07Eh 0Ch R 0 R 0 R 0 R 0 U 1 S

080h 0Fh R 0 I 0 E 0 N 0 P3 1 P2 1 P1 1 P0 1 All power-down modes

082h 1Ah CISTPL_CONF Configuration Tuple Tuple Code 084h 05h Link Length is 5 Bytes Link to

Disk Function Extension Tuple Type

Interface Type Code

Disk Function Extension Tuple Type

1

V 0

Extension Tuple Extension

describes the Interface Tuple Type

Protocol for Disk

PC Card–ATA Interface Extension Info

Basic PCMCIA-ATA Extension

Extension Tuple Tuple Type

Unique Manufacturer/ Serial Number combined string:

V = 0: No Vpp Required V = 1: Vpp on Modified

Media V = 2: Vpp on Any

Operation

V = 3: Vpp Continuous S: Silicon, else Rotating

Drive U: ID Drive Mfg/SN

Unique

and power commands are not needed to minimize power.

P0: Sleep Mode Supported

P1: Standby Mode Supported

P2: Idle Mode Supported

P3: Drive Auto Power Control

N: Some Config Excludes 3X7

E: Index Bit is Emulated I: Twin–-IOis16 Data

Reg Only

CIS

Function

for Disk

Basic ATA

Option

Parameters

Extended AT A Option Parameters

Next Tuple

SanDisk CompactFlash Card OEM Product Manual CIS Description

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

086h 01h RFS RMS RAS Size of Reserved Field

00 00 01

088h 07h TPCC_LAST Entry with Config Index

08Ah 00h TPCC_RADR (LSB) Configuration Registers 08Ch 02h TPCC_RADR (MSB)

08Eh 0Fh R 0 R 0 R 0 R 0 S 1 P

090h 1Bh CISTPL_CE Configuration

092h 0Bh Link to Next Tuple is 11 Link to

094h C0h I 1 D

1

Configuration Index

0

C 1 I 1 First (4) Configuration

1

is 0 Bytes Size of Register Mask

is 1 Byte Size of Config Base

Address is 2 Bytes RFS: Bytes in

Reserved Field RMS: Bytes in

Reg Mask–1 RAS: Bytes in

Base Addr–1

07h is final entry in table

located at 200h

in Reg. Space

Registers are present:

I: Configuration Index C: Configuration and

Status

P: Pin Replacement S: Socket and Copy R: Reserved for

future use

Entry Tuple

Bytes. Also limits size of Next Tuple

this tuple to 13 bytes.

Memory Mapped I/O Configuration

Configuration Index for this entry is 0. Interface Byte follows this byte.

Default Configuration, so is not dependent on previous Default Configuration.

D: Default Configuration I: Interface Byte follows

Function

Fields Byte

(TPCC_SZ)

Last Entry of

Config. Table

Location of

Registers

TPCC_RMSK

Tuple Code

TPCE_INDX

CIS

Size of

Config.

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

096h C0h W 1 R 1 P 0 B

0

098h A1h M MS IR IO T P V

1 1 0 0 0 1

09Ah 27h R DI PI AI SI HV LV NV Nominal Voltage follows:

0 0 1 0 0 1 1 1 NV: Nominal Voltage

09Ch 55h X

0

09Eh 4Dh X

0

0A0h 5Dh X

0

0A2h 75h X Mantissa Exponent Max. Average Current Max. Average

0 Eh = 8.0 5h = 10

0A4h 08h

0A6h 00h

Mantissa

Ah = 5.0

Mantissa

9h = 4.5

Mantissa

Bh = 5.5

Length in 256 Bytes Pages (LSB)

Length in 256 Bytes Pages (MSB)

Interface Type

Exponent

5h = 1V

Exponent

5h = 1V

Exponent

5h = 1V

Memory Only Interface(0), Bvd's and wProt not used, Ready/-Busy and Wait for memory cycles active.

B: Battery Volt Detects Used

P: Write Protect Used R: Ready/-Busy Used W: Wait Used for

Memory Cycles

only Power;

CC

No Timing, I/O, or IRQ; 2 Byte Memory

Space Length; Misc Entry Present.

P: Power Info type T: Timin Info present IO :I/O Port Info present IR: Interrupt Info present MS: Mem Space Info

type M: Misc Info Byte(s)

present

LV: Mimimum Voltage HB: Maximum Voltage SI: Static Current AI: Average Current PI: Peak Current DI: Power Down Current

VCC Nominal is 5 V VCC Nominal

V

Nominal is 4.5 V VCC Min.

CC

V

Nominal is 5.5 V VCC Max.

CC

over 10 ms is 80 mA Current

Length of Memory

Space is 2 kB

Start at 0 on card T PCE_MS

CIS

Function

TPCE_IF

TPCE_FS

Power

Parameters

for V

Value

TPCE_MS

Length LSB

Length MSB

CC

SanDisk CompactFlash Card OEM Product Manual CIS Description

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

0A8h 21h X 0 R 0 P 1 RO 0 A

0

0AAh 1Bh CISTPL_CE Configuration Entry

0ACh 06h Link to Next Tuple is 6 Link to

0AEh 00h I D Configuration Index Memory Mapped I/O TPCE_INDX

0 0 0

0B0h 01h M MS IR IO T P P: Power Info type TPCE_FS

0 0 0 0 0 1

0B2h 21h R DI PI AI SI H LV NV PI: Peak Current TPCE_PD

0 0 1 0 0 0 0 1 NV: Nominal Operation

0B4h B5h X

1

0B6h 1Eh X 1Eh +.30 Nominal

0

0B8h 4Dh X

0

0BAh 1Bh CISTPL_CE Configuration

0BCh 0Dh Link to Next Tuple is 13 Link to

Mantissa

6h = 3.0

Mantissa

9h = 4.5

T 1

Exponent

5h = 10

Exponent

5h = 10

Power-Down and Twin Card.

T: Twin Cards Allowed A: Audio Supported RO: Read Only Mode P: Power Down

Supported

R: Reserved X: More Miscellaneous

Fields Bytes

Tuple

Bytes. Also limits size of Next Tuple

this tuple to 8 bytes.

3.3V Configuration.

Supply Voltage

Nominal Operation

Supply Voltage = 3.0V

Max. Average Current

over 10 ms is 45 mA

Entry Tuple

Bytes. Also limits size of Next Tuple

this tuple to 15 bytes.

CIS

Function

TPCE_MI

Tuple Code

Nominal

Operation

Supply

Voltage

Operation

Supply

Voltage

Extension

Byte

Max. Average

Current

Tuple Code

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

0BEh C1h I 1 D

1

0C0h 41h W 0 R 1 P 0 B

0C2h 99h M MS IR IO T P V

1 0 1 1 0 1

0C4h 27h R DI PI AI SI HV LV NV Nominal Voltage Follows

0 0 1 0 0 1 1 1 NV: Nominal Voltage

0C6h 55h X Mantissa Exponent VCC Nominal is 5V VCC Nominal

0 Ah = 5.0 5h = 1V

Configuration Index

0

1

Interface Type

1

I/O Mapped Contiguous 16 Registers Configuration.

Configuration Index for this entry is 1. Interface Byte follows this byte.

Default Configuration, therefore is not dependent on previous Default Configuration.

D: Default Configuration

I: Interface Byte follows

I/O Interface(1), Bvd's and wProt not used; Ready/-Busy active but Wait not used for memory cycles.

B: Battery Volt Detects Used

P: Write Protect Used R: Ready/-Busy Used W: Wait Used for

Memory Cycles

Only Power

CC

Descriptors; No Timing; I/O and IRQ present; No Memory Space; Misc Entry Present

P: Power Info type T: Timing Info present IO :I/O Port Info present IR: Interrupt Info present MS: Memory Space Info

type M: Misc Info Byte(s)

present

LV: Mimimum Voltage HB: Maximum Voltage SI: Static Current AI: Average Current PI: Peak Current DI: Power Down Current

CIS

Function

TPCE_INDX

TPCE_IF

TPCE_FS

Power

Parameters

for V

Value

CC

SanDisk CompactFlash Card OEM Product Manual CIS Description

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

0C8h 4Dh X Mantissa Exponent VCC Nominal is 4.5V VCC Min.

0 9h = 4.5 5h = 1V

0CAh 5Dh X Mantissa Exponent V

0 Bh = 5.5 5h = 1V

0CCh 75h X Mantissa Exponent Max. Average Current Max. Average

0 Eh = 8.0 5h = 10

0CEh 64h R 0 S 1 E

1

0D0h F0h S 1 P 1 L 1 M 1 V 0 B

0D2h FFh 7 1 6 1 5 1 4 1 3 1 2

0D4h FFh F

E 1 D 1 C 1 B 1 A

1

IO AddeLines

4

I 0 N 0 IRQ Sharing Logic

0

1 1 0 1 IRQ Levels to be routed

1

9 1 8 1 Recommended routing

1

Nominal is 5.5V VCC Max.

CC

over 10 ms is 80 mA Current

Supports both 8 and 16 bit I/O hosts. 4 Address lines & no range so 16 registers and host must do all of the selection decoding.

IO AddrLines:#lines decoded.

E: 8-bit Only Hosts Supported

S: 16-bit Hosts Supported

R: Range follows

Active in Card Control & Status Register, Pulse and Level Mode Interrupts supported, Recommended IRQ's any of 0 through 15(F)

S: Share Logic Active P: Pulse Mode IRQ

Supported L: Level Mode IRQ

Supported M: Bit Mask of IRQs

Present

V: Vendor Unique IRQ B: Bus Error IRQ I: IO Check IRQ N: Non-Maskable IRQ

0 - 15 recommended.

to any "normal,

maskable" IRQ.

CIS

Function

Value

TPCE_IO

TPCE_IR

Mask

Extension

Byte 1

TPCE_IR

Mask

Extension

Byte 2

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

0D6h 21h X 0 R 0 P 1 RO 0 A

0

0D8h 1Bh CISTPL_CE Configuration

0DAh 06h Link to Next Tuple is 6 Link to

0DCh 01h I 0 D

0

0DEh 01h M MS IR IO T P P: Power Info type TPCE_FS

0 0 0 0 0 1

0E0h 21h R 0 DI 0 PI 1 AI 0 SI 0 HV 0 LV 0 NV 1 PI: Peak Current

0E2h B5h X Mantissa Exponent Nominal Operation Nominal

1 6h = 3.0 5h = 1

0E4h 1Eh X 1Eh +.30 Nominal

0

0E6h 4Dh X

0

0E8h 1Bh CISTPL_CE Configuration

0EAh 12h Link to Next Tuple is 18 Link to

0ECh C2h I 1 D

Mantissa

9h = 4.5

1

Configuration Index

1

Configuration Index

2

T 1

Exponent

5h = 10

Power-Down and Twin Card.

T: Twin Cards Allowed A: Audio Supported RO: Read Only Mode P: Power Down

Supported

R: Reserved X: More Misc Fields

Bytes

Entry Tuple

Bytes. Also limits size of Next Tuple

this tuple to 8 bytes.

I/O Mapped Contiguous

16

3.3V Configuration

NV: Nominal Operation Supply Voltage

Supply Voltage = 3.0V Operation

Max. Average Current

over 10 ms is 45 mA

Entry Tuple

Bytes. Also limits size of Next Tuple

this tuple to 20 bytes

AT Fixed Disk Primary

I/O Address

Configuration

Configuration Index for

this entry is 2. Interface

Byte follows this byte. Default Configuration

Function

TPCE_MI

Tuple Code

TPCE_INDX

Power

Parameters

for V

Supply

Voltage

Operation

Supply

Voltage

Extension

Max. Average

Current

Tuple Code

TPCE_INDX

CIS

CC

Byte

SanDisk CompactFlash Card OEM Product Manual CIS Description

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

0EEh 41h W 0 R 1 P 0 B

0

0F0h 99h M MS IR IO T P V

1 0 1 1 0 1

0F2h 27h R DI PI AI SI HV LV NV Nominal Voltage follows:

0 0 1 0 0 1 1 1 NV: Nominal Voltage

0F4h 55h X Mantissa Exponent VCC Nominal is 5V VCC Nominal

0 Ah = 5.0 5h = 1V

0F6h 4Dh X Mantissa Exponent V

0 9h = 4.5 5h = 1V

0F8h 5Dh X Mantissa Exponent V

0 Bh = 5.5 5h = 1V

0FAh 75h X Mantissa Exponent Max. Average Current Max. Average

0 9h = 4.5 5h = 10

Interface Type

1

I/O Interface(1), Bvd's and wProt not used; Ready/-Busy active but Wait not used for memory cycles.

B: Battery Volt Detects Used

P: Write Protect Used R: Ready/-Busy Used W: Wait Used for

Memory Cycles

Only Power

CC

Description; No Timing; I/O and IRQ present; No Memory Space; Misc Entry present.

P: Power Info type T: Timing Info present IO: I/O Port Info present IR: Interrupt Info present MS: Memory Space Info

type M: Misc Info Byte(s)

present

LV: Mimimum Voltage HB: Maximum Voltage SI: Static Current AI: Average Current PI: Peak Current DI: Power Down Current

Nominal is 4.5V VCC Min.

CC

Nominal is 5.5V VCC Max.

CC

over 10 ms is 80 mA Current

CIS

Function

TPCE_IF

TPCE_FS

Power

Parameters

for V

Value

CC

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

0FCH EAh R 1 S 1 E

1

0FEh 61h LS

1

100h F0h 1st I/O Base Address (lsb) First I/O Range Base 102h 01h 1st I/O Base Address (msb) 104h 07h 1st I/O Range Length - 1 8 Bytes Total ==>

106h F6h 2nd I/O Base Address (lsb) 2nd I/O Range Base 108h 03h 2nd I/O Base Address (msb) 10Ah 01h 2nd I/O Range Length - 1 2 Bytes Total ==>

AS

2

IO AddeLines

Ah = 10

N Ranges - 1

1

Supports both 8- and 16-bit I/O hosts. 10 Address Lines with range so card will respond only to indicated (1F0-1F7, 3F6-3F7) on A9 through A0 for I/O cycles. IO AddrLines:#lines decoded

E: 8-bit Only Hosts Supported

S: 16-bit Hosts Supported

R: Range follows Number of Ranges is 2;

Size of each address is 2 bytes; size of each length is 1 byte.

AS: Size of Addresses 0: No Address Present

1: 1Byte (8 bit)

Addresses

2: 2Byte (16 bit)

Addresses

3: 4Byte (32 bit)

Addresses LS: Size of length 0: No Lengths Present 1: 1Byte (8 bit) Lengths

2: 2Byte (16 bit)

Lengths

3: 4Byte (32 bit)

Lengths

is 1F0h

1F0-1F7h

is 3F6h

3F6-3F7h

CIS

Function

TPCE_IO

I/O Range

Format

Description

I/O Length–1

SanDisk CompactFlash Card OEM Product Manual CIS Description

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

10Ch EEh S 1 P 1 L 1 M

10Eh 21h X 0 R 0 P 1 RO 0 A

110h 1Bh CISTPL_CE Configuration

112h 06h Link to Next Tuple is 6 Link to

114h 02h I D Configuration Index A T Fixed Disk Primary TPCE_INDX

0 0 2

116h 01h M MS IR IO T P P: Power Info type TPCE_FS

0 0 0 0 0 1

118h 21h R 0 DI 0 PI 1 AI 0 SI

11AH B5h X Mantissa Exponent Nominal Operation Nominal

1 6h = 3.0 5h = 1

0

Recommend IRQ Level

Eh = 14

T 1

HV 0 LV 0 NV 1 PI: Peak Current

IRQ Sharing Logic Active in Card Control & Status Register, Pulse and Level Mode Interrupts supported, Recommended IRQ's any of 0 through 15(F)

S: Share Logic Active P: Pulse Mode IRQ

Supported L: Level Mode IRQ

Supported M: Bit Mask of IRQs

Present M=0 so bits 3-0 are

single level, binary encoded

Power-Down and Twin Card.

T: Twin Cards Allowed A: Audio Supported RO: Read Only Mode P: Power Down

Supported

R: Reserved X: More Misc Fields

Bytes

Bytes. Also limits size of Next Tuple

this tuple to 8 bytes.

I/O 3.3V Configuration

NV: Nominal Operation Supply Voltage

Supply Voltage = 3.0V Operation

Entry Tuple

CIS

Function

TPCE_IR

TPCE_MI

Tuple Code

Power

Parameters

for V

Supply

Voltage

CC

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

11Ch 1Eh X 1Eh +.30 Nominal

0

11Eh 4Dh X Mantissa Exponent Max. Average Current Max. Average

0 9h = 4.5 5h = 10

120h 1Bh CISTPL_CE Configuration

122h 12h Link to Next Tuple is 18 Link to

124h C3h I 1 D

1

126h 41h W 0 R 1 P 0 B

128h 99h M MS IR IO T P V

1 0 1 1 0 1

Configuration Index

0

3

Interface Type

1

over 10 ms is 45 mA Current

Entry Tuple

Bytes. Also limits size of Next Tuple

this tuple to 20 bytes.

AT Fixed Disk Secondary I/O Address Configur ation

Configuration Index for this entry is 3. Interface Byte follows this byte.

Default Configuration I/O Interface(1), Bvd's

and wProt not used; Ready/-Busy active but Wait not used for memory cycles.

B: Battery Volt Detects Used

P: Write Protect Used R: Ready/-Busy Used W: Wait Used for

Memory Cycles

-Only Power

CC

Descriptors; No Timing; I/O and IRQ present; No Memory Space; Misc Entry Present.

P: Power Info type T: Timing Info present IO: I/O Port Info present IR: Interrupt Info present MS: Memory Space Info

type M: Misc Info Byte(s)

present

CIS

Function

Operation

Supply

Voltage

Extension

Byte

Tuple Code

TPCE_INDX

TPCE_IF

TPCE_FS

SanDisk CompactFlash Card OEM Product Manual CIS Description

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

12Ah 27h R DI PI AI SI HV LV NV Nominal Voltage Follows

0 0 1 0 0 1 1 1 NV: Nominal Voltage

LV: Mimimum Voltage HB: Maximum Voltage SI: Static Current AI: Average Current PI: Peak Current DI: Power Down Current

12Ch 55h X Mantissa Exponent VCC Nominal is 5V VCC Nominal

0 Ah = 5.0 5h = 1V

12Eh 4Dh X Mantissa Exponent V

0 9h = 4.5 5h = 1V

130h 5Dh X Mantissa Exponent V

0 Bh = 5.5 5h = 1V

132h 75h X

0

134h EAh R 1 S 1 E

Mantissa

Eh = 1.0

1

Exponent

5h = 10

IO AddeLines

Ah = 10

Nominal is 4.5V VCC Min.

CC

Nominal is 5.5V VCC Max.

CC

Max. Average Current

over 10 ms is 80 mA

Supports both 8- and 16-bit I/O hosts. 10 Address Lines with Range so card will respond only to indicated (170-177, 376-

377) on A9 through A0 for I/O cycles. IO AddrLines:#lines decoded

E: 8-bit Only Hosts Supported

S: 16-bit Hosts Supported

R: Range follows

CIS

Function

Power

Parameters

for V

Value

Max. Average

Current

TPCE_IO

CC

CIS Description SanDisk CompactFlash Card OEM Product Manual

Table 6-1 Card Information Structure

Attribute

Offset Data 7 6 5 4 3 2 1 0 Content Description

136h 61h LS

1

138h 70h 1st I/O Base Address (LSB) First I/O Range Base 13Ah 01h 1st I/O Base Address (MSB) 13Ch 07h 1st I/O Range Length–1 8 Bytes Total ==>

13Eh 76h 2nd I/O Base Address (LSB) Second I/O Range 140h 03h 2nd I/O Base Address (MSB) 142h 01h 2nd I/O Range Length–1 2 Bytes T otal ==>

144h EEh S 1 P 1 L 1 M

AS

N Ranges–1

2

0

1

Recommend IRQ Level

Eh = 14

Number of Ranges is 2; Size of each address is 2 bytes; size of each length is 1 byte.

AS: Size of Addresses 0: No Address Present

1: 1Byte (8 bit)

Addresses

2: 2Byte (16 bit)

Addresses

3: 4Byte (32 bit)

Addresses LS: Size of length 0: No Lengths Present 1: 1Byte (8 bit) Lengths

2: 2Byte (16 bit)

Lengths

3: 4Byte (32 bit)

Lengths

is 170h

170-177h

Base is 376h

376-377h

IRQ Sharing Logic Active in Card Control & Status Register, Pulse and Level Mode Interrupts supported, Recommended IRQ's any of 0 through 15(F).

S: Share Logic Active P: Pulse Mode IRQ

Supported L: Level Mode IRQ

Supported M: Bit Mask of IRQs

Present M=0 therefore bits 3-0

are single level, binary encoded

CIS

Function

I/O Range

Format

Description

I/O Length–1

TPCE_IR

SanDisk CompactFlash Extreme III, 20-10-00038 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
