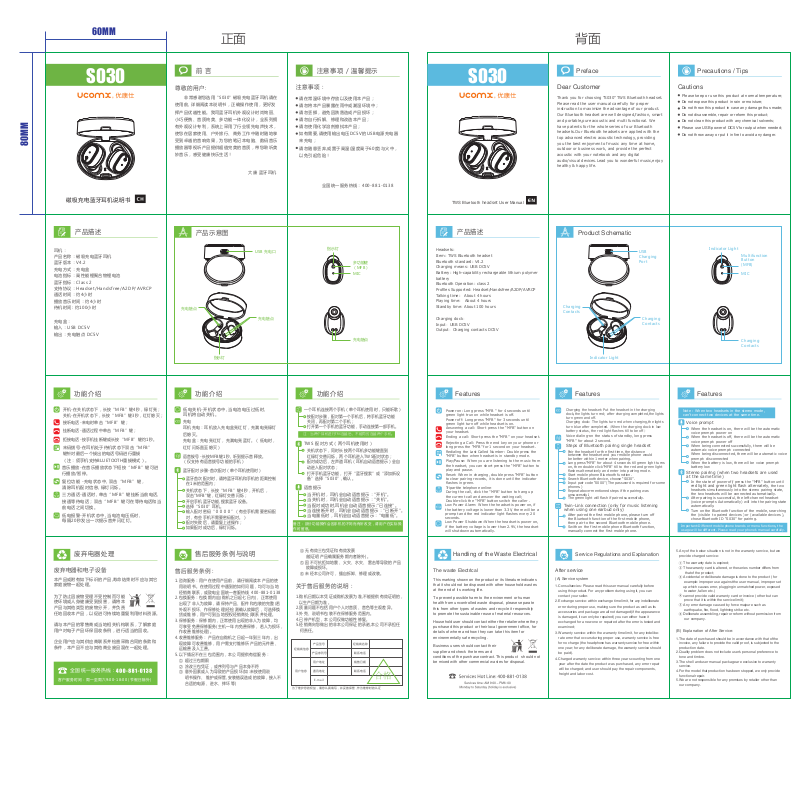

Sande Dacom Electronics S030 User Manual

60MM

正面 背面

80MM

S030

磁吸充电蓝牙耳机说明书

产品描述

耳机：
产品名称：磁吸充电蓝牙耳机
蓝牙版本：V4.2
充电方式：充电盒
电池指标：高性能锂聚合物锂电池
蓝牙指标：Class 2
支持协议：Headset/Handsfree/A2DP/AVRCP
通话时间：约4小时
播放音乐时间：约4小时
待机时间: 约100小时

充电盒：
输入：USB DC5V
输出：充电触点 DC5V

前 言

尊敬的用户:

非常感谢您选用
使用前, 详细阅读本说明书，正确操作使用，更好发
挥产品优越性能。我司蓝牙耳机外观设计时尚绚丽、
小巧便携、音质纯美、多功能一体化设计，全系列拥
有外观设计专利，系统上采用了行业领先电声技术，
使您在居家使用、户外旅行、商务工作中随时随地享
受到卓越的音响效果，为您的笔记本电脑、数码音乐
播放器等视听产品提供超值完美的音质，带您聆听美
妙音乐，感受健康快乐生活！

"S030"

磁吸充电蓝牙耳机请在

大康 蓝牙耳机

产品示意图

USB 充电口

充电触点

充电触点

指示灯

注意事项 / 温馨提示

注意事项：

请在常温环境中存放以及使用本产品；
请勿将本产品暴露在雨中或潮湿环境中；
请勿丢掷，避免因跌落造成产品损坏；
请勿自行拆解、修理和改造本产品；
请勿使用化学溶剂擦拭本产品；
如有需要,请使用输出电压DC5V的USB电源充电器
来充电；
请勿随意丢弃,或置于高温(温度高于60度)与火中，
以免引起危险！

全国统一服务热线：400-881-0138

指示灯

多功能键
（MFB）

MIC

充电触点

S030

TWS Bluetooth

产品描述

Headsets:
Item: TWS Bluetooth headset
Bluetooth standard: V4.2
Charging means: USB DC5V
Battery: High-capability rechargeable lithium polymer
battery
Bluetooth Operation: class 2
Profiles Supported: Headset/Handsfree/A2DP/AVRCP
Talking time: About 4 hours
Playing time: About 4 hours
Standby time: About 100 hours

Charging dock：
Input：USB DC5V
Output：Charging contacts DC5V

headset

User Manual

Preface

Dear Customer

Thank you for choosing "S030" TWS Bluetooth headset.
Please read the user manual carefully for proper
instruction to maximize the advantage of our product.
Our Bluetooth headset are well designed,fashion, smart
and portable,pure acoustic and multi functional. We
have patents for the whole series of our Bluetooth
headsets.Our Bluetooth headsets are applied with the
top advanced electro acoustic technology, providing
you the best enjoyment of music any time at home,
outdoor or business work, and provide the perfect
acoustic with your notebook and any digital
audio/visual devices.Lead you to wonderful music,enjoy
healthy & happy life.

Product Schematic

USB
Charging
Port

Charging
Contacts

Indicator Light

Charging
Contacts

Precautions / Tips

Cautions

Please keep or use this product at normal temperature;

Do not expose this product in rain or moisture;

Do not throw this product in case any damage thus made;

Do not disassemble, repair or reform this product;

Do not clean this product with any chemical solvents;

Please use USB power of DC5V for output when needed;

Do not throw away or put it in fire to avoid any danger.

Indicator Light

Multifunction
Button
(MFB)

MIC

Charging
Contacts

功能介绍 功能介绍 功能介绍

开机-在关机状态下，长按“MFB”键4秒，绿灯亮；
关机-在开机状态下，长按“MFB”键3秒，红灯熄灭；

接听电话-来电时单击“MFB”键；

挂断电话-通话过程中单击“MFB”键；

拒接电话-按手机挂断键或长按“MFB”键约1秒。

末码拨号-在耳机处于待机状态下双击“MFB”
键针对最后一个拔出的电话号码进行重拔

（注：须手机支持BLUETOOTH重拔模式）。
音乐播放-在音乐播放状态下短按“MFB”键可进
行播放/暂停。

复位功能 -充电状态中, 双击“MFB”键，

清除耳机配对信息, 绿灯闪烁。

三方通话-通话时, 单击“MFB”键挂断当前电话,

接通等待电话；双击“MFB”键可在等待电话和当

前电话之间切换。

低电报警-开机状态中, 当电池电压低时,

每隔20秒发出一次提示音并闪红灯。

废弃电器处理 售后服务条例与说明

废弃电器和电子设备

本产品或附有如下标识的产品,寿命结束时不应与其它
家庭废物一起处理。

为了防止因废物受理不受控制而可能
使环境或人身健康受到损害，请将本
产品与其他类型的废物分开，并负责
任地回收本产品，以促进可持续地重复利用材料资源。

请与本产品的零售商或当地相关机构联系，了解家庭
用户对电子产品环保回收条例，进行适当的回收。

企业用户应与其供应商联系并检查采购合同的条款和
条件，本产品不应与其他商业废品混在一起处理。

全国统一服务热线：

客户服务时间：周一至周六9:00-18:00 (节假日除外)

低电关机-开机状态中, 当电池电压过低时,
耳机将自动关机。

充电
耳机充电：耳机放入充电盒亮红灯，充满电亮绿灯
后熄灭。
充电盒：充电亮红灯，充满电亮蓝灯。（低电时，
红灯闪烁直至熄灭）

语音拔号-长按MFB键1秒, 听到提示音释放。
（仅支持有语音拨号功能的手机）

蓝牙配对步骤-首次配对（单个耳机使用时）

蓝牙首次配对时，请将蓝牙耳机和手机的距离控制
在1米的范围内；

关机状态下，
双击"MFB"键，红绿灯交替闪烁；
开启手机蓝牙功能, 搜索蓝牙设备。
选择“S030”耳机。
输入配对密码“００００”（有些手机需要密码配
对，有些手机不需要密码配对。）
配对失败后，请重复上述操作；
如果配对成功后，绿灯闪烁。

长按“MFB”键4秒，

开机后，

售后服务条例：

1.咨询服务：用户在使用产品前，请仔细阅读本产品的使
用说明书。在使用过程中遇到的如何问题，均可与当地
经销商联系，或致电全国统一客服热线 400-881-0138

2.包换服务：包换期内(自购机之日起七日内)，正常使用
出现了非人为故障，请保持产品、配件和包装的完整(若
外观不损坏、作保修处理)经检测确认故障后，可选择换
货或维修，用户可到当地授权经销商处)联系并处理。

3.保修服务：保修期内，正常使用出现的非人为故障，均
可享受免费保修服务(主机一年内免费保修，若人为损坏，
作收费维修处理)。

4.收费维修服务：产品在自购机之日起一年到三年内，出
现故障可收费维修，用户需支付维修所产品的元件费、
运输费及人工费。

5.以下情况不在三包范围内，本公司提供有偿服务：
① 超过三包期限
② 涂改三包凭证，或序列号与产品本身不符
③ 意外因素或人为导致的产品损坏(如:未按使用说
明书操作、维护或保管,安装错误造成的故障，接入不
合适的电源、进水、摔坏等)

备注：部分功能操作会因手机的不同而有所改变，请用户在实际操
作时留意

④ 无有效三包凭证和有效发票
(能证明产品确属服务期内者除外)。
⑤ 因不可抗拒如地震、火灾、水灾、雷击等导致的产品
故障或损坏。
⑥ 未经本公司许可，擅自拆卸、修理或改装。

关于售后服务的说明：

1.购机日期以本凭证或购机发票为准,不能提供有效证明的，
以生产日期为准。

2.质量问题不包括用户个人对音质、音色等主观差异。

3.外壳、说明书包装不在保修服务范围内。

4.已停产机型，本公司仅做功能性修复。

5.经销商向您做出的非本公司保证的承诺,本公司不承担任
何责任。

经销商信息

用户信息

为了维护您的权益，请您认真填写，并妥善保管，作为维修时的认证

一个耳机连接两个手机（单个耳机使用时，只能听歌）

按配对步骤，配对第一个手机后，将手机蓝牙功能
关闭，再配对第二个手机；
打开第一个手机的蓝牙功能，手动连接第一部手机。

注：当两个耳机进行TWS连接后，不能同时连接两个手机。

TWS 配对方式（两个耳机使用时）

关机状态下，同时长按两个耳机多功能键直到
红绿灯交替闪烁，两个耳机进入TWS配对状态；
配对成功后，左声道耳机（耳机自动语音提示）会自
动进入配对状态；
打开手机蓝牙功能，打开“蓝牙搜索”或“添加新设
备”选择“S030”, 确认。

语音提示

当开机时，耳机会自动语音提示："开机"。
当关机时，耳机会自动语音提示："关机"。
当配对成功时,耳机会自动语音提示:"已连接"。
当连接断开时，耳机会自动语音提示："已断开"。
当电量低时，耳机会自动语音提示："电量低"。

。

产品型号 经销商名称

产品序列号

通讯地址

E-mail

联系电话

销售日期用户地址

联系电话

Features Features Features

Power on: Long press "MFB " for 4 seconds until
green light trun on while headset is off.
Power off: Long press "MFB" for 3 seconds until
green light turn off while headset is on.
Answering a call: Short press the “MFB” button on
your headset.

Ending a call: Short press the “MFB” on your headset.

Rejecting a Call: Press the end key on your phone or
long press the “MFB” for 1 second on your headset.
Redialing the Last Called Number: Double press the
“MFB” button when headset is in standby mode.
Play/Pause: When you are listening to the music from
the headset, you can short press the “MFB” button to
play and pause.

Reset: When in charging, double press “MFB” button
to clear pairing records, it is done until the indicator
flashes in green.
Tripartite telephone online：
During the call, click the "MFB" button to hang up
the current call and answer the waiting call;
Double-click the "MFB" button switch the caller .
Low Power Alarm: When the headset is power on,if
the battery voltage is lower than 3.3V, there will be a
prompt and the red indicator light flashes every 20
seconds.
Low Power Shutdown:When the headset is power on,
if the battery voltage is lower than 2.9V, the headset
will shutdown automatically.

Handling of the Waste Electrical

The waste Electrical

This marking shown on the product or its literature indicates
that it should not be disposed with o ther household wastes
at the end of its working life.

To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separat e
this from other types of wastes and recycle it responsibly
to promote the sustainable reuse o f material resources.

Household user should contact either the retailer where they
purchased this product or their local government office, for
details of where and how they can take this it em for
environmentally safe recycling.

Business users should contact their
supplier and check the terms and
conditions of the purchase contract. This product should not
be mixed with other commercial wastes for disposal.

Charging the headset: Put the headset in the charging
dock,the lights turn red; after charging completed,the lights
turn green and off.
Charging dock: The lights turn red when charging,the lights
turn blue after completed. (When the charging dock in low
battery status, the red light flashes till to be off.）

Voice dialing-on the status of standby, long press
“MFB” for about 2 second.

Steps of Bluetooth pairing single headset

Pair the headset for the first time, the distance
between the headset and your mobile phone would
be better within 1 meter when pairing.
Long press"MFB" for about 4 seconds till green light turns
on, then double click"MFB" till to the red and green light
flashes alternatively and enter into pairing mode.
Start mobile phone Bluetooth function.
Search Bluetooth device, choose “S030”.
Input pair code “0000” (The password is required for some
phones.)
Repeat above-mentioned steps if the pairing was
unsuccessful.
The green light will flash if paired successfully.

Twin-Link connection (only for music listening
when using one earbud only)

After paired the first mobile phone, please turn off
the Bluetooth function of the first mobile phone,
then pair to the second Bluetooth mobile phone.
Swith on the first mobile phone Bluetooth function,
manually connect the first moble phone.

Service Regulations and Explanation

After service

(A) Service system

1.Consultancies: Please read this user manual carefully before
using this product. For any problem during using it, you can
contact your seller.

2.Exchange service: within exchange time limit, for any indeliberate
error during proper use, making sure the product as well as its
accessories and package are all not damaged (if the appearance
is damaged, it can only be repaired) you can either have it
exchanged for a new one or repaired after the error is tested and
examined;

3.Warranty service: within the warranty time limit, for any indelibe­ rate error that occurs during proper use, warranty service is free
for no charge (the headphone has warranty service for free within
one year; for any deliberate damage, the warranty service should
be

paid).

4.Charged warranty service: within three years counting from one
year after the date the product was purchased, any error repair
will be charged; and user should pay the repair components ,
freight and labor cost.

Note : When two headsets in the stereo mode,
can’t connect two devices at the same time.

Voice prompt

When the headset is on, there will be the automatic
voice prompt: power on
When the headset is off, there will be the automatic
voice prompt: power off
When being connected successfully, there will be
automaic voice prompt: connected
When being disconnected, there will be automatic voice
prompt: disconnected
When the battery is low, there wll be voice prompt:
battery low

Stereo pairing (when two headsets are used
at the same time)

In the state of power off, press the "MFB" button until

red light and green light flash alternately

headsets simultaneously into the stereo pairing state,
the two headsets will be connected automatically.
After pairing is successful, the left channel headset
(voice prompts Automatically) will into the pairing state
automatically.
Turn on the Bluetooth function of the mobile, searching
the (visible to paired devices ) or (available devices ),
chose Bluetooth ID “S030” for pairing.

Important:Different mobile phone brands or menu functions, the
usage will be different. Please read your phone's manual carefully.

5.Any of the below situation is not in the warranty service, but we
provide charged servic

The warranty date is expired;
The warranty card is altered, or the series number differs from

that of the product;

Accidental or deliberate damage is done to the product ( for

example: improper use against the user manual, improper set

up which causes error, plugging in unmatched power, exposed

to water, fallen etc.)

cannot provide valid warranty card or invoice ( other but can

prove that it is within the service limit);

Any error damage caused by force majeure such as

earthquake,fire, flood, lightning strike etc.

Deliberate assembling, repair or reform without permission from

our company.

(B) Explanation of After Service:

1.The date of purchased should be in accordance with that of the
invoice, any failure to provide the valid proof, is subjected to the
production date.

2.Quality problem does not include user’s personal preference to
tone and timbre.

3.The shell and user manual package are exclusive to warranty
service.

4.For the model that production has been stopped, we only provide
functional repair.

5.We are not responsible for any promises by retailer other than
our company.

e:

, the two

NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment. This device complies with Part

15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may

cause undesired operation.
