Samsung YP-P2JCW, YP-P2JAW, YP-P2JQB, YP-P2JQW User Manual
MP3 Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
YP-P2
YP-P2
features of your new MP3 Player
Good looking. Smart. Reliable. And lots of fun. Your new MP3 player is
all this and more. Its state-of-the-art technology delivers rich sound, and
vibrant pictures. You’ll love your new MP3 player, whether you’re exercising,
downloading your favorite tunes, watching videos, or even listening to FM
Radio.
Use it once, and you’ll wonder how you ever lived without it.
PUTTING THE “MULTI” IN MULTIMEDIA
We call it an MP3 player, but it’s much more
than that. It allows you to view pictures, text,
videos and listen to FM radio.
The built-in Bluetooth wireless technology
turns your MP3 player into your own
personal network.
TOUCH NAVIGATION!
You can tap on the touch screen to navigate
through the menus.
COLOR LCD SCREEN DESIGN
Vivid color and images are delivered on the
wide LCD screen.
WHERE FORM MEETS FUNCTION
Sure, it’s sleek and good-looking. But it’s
easy to hold and use, too.
EASY SEARCH!
You can search for fi les with the easy-to-
use File Brower, and also navigate through
menus while listening to music.
LONGER PLAY TIME AND SHORTER
DOWNLOADING!
A fully charged battery can play up to 35
hours of music and 5 hours of video.
Download times are shorter. Because of its
USB 2.0 capability, the player is much faster
than models with USB 1.1.
ACOUSTIC WONDER
Your new MP3 player has built-in DNSe™
(Digital Natural Sound engine), Samsung’s
unique sound technology created to deliver
richer, deeper sound for an unbelievable
listening experience.
safety information
What the icons and signs in this user manual mean :
WARNING
CAUTION
CAUTION
NOTE
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Means that death or serious personal injury is a risk.
Means that there is a potential risk for personal injury or
material damage.
To reduce the risk of fi re, explosion, electric shock, or
personal injury when using your MP3 Player, follow
these basic safety precautions:
Means hints or referential pages that may be helpful to
operate the player.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Call the service center for help.
safety information
This manual describes how to properly use your new mp3 player.
Read it carefully to avoid damaging the player and injuring yourself.
Pay particular attention to the following serious warnings:
PROTECT YOURSELF
Do not disassemble, repair, or modify this product on your own.
Do not get the product wet or drop it in water. If the product gets wet, do
not switch it on because you could get an electric shock. Instead, contact
CAUTION
a Samsung Customer Service Center near you.
Do not use the earphones while you are driving a bicycle, automobile or
CAUTION
motorcycle.
It can cause a serious accident, and furthermore, is prohibited by law in some
areas.
Using the earphones while walking or jogging on a road, in particular, on a
crosswalk can lead to a serious accident.
For your safety, make sure the earphone cable does not get in the way of
your arm or other surrounding objects while you are taking exercise or a
walk.
Do not place the product in damp, dusty, or sooty areas because these
environments could lead to fi re or electric shock.
WARNING
PROTECT YOURSELF
Using earphones or headphones for an extended time may cause serious
damage to your hearing.
WARNING
If you are exposed to sound louder than 85db for an extended time, you may
adversely affect your hearing. The louder the sound is, the more seriously damaged
your hearing may be (an ordinary conversation is between 50 to 60db and road
noise is approximately 80db). You are strongly advised to set the volume level to
medium (the medium level is usually less than 2/3 of the maximum).
If you feel a ringing in the ear(s), lower the volume or stop using the
earphones or headphones.
PROTECT YOUR MP3 PLAYER
Do not leave the player in temperatures above 95°F (35°C), such as a
sauna or a parked car.
Do not cause excessive impact on the player by dropping it.
Do not place heavy objects on top of the player.
Prevent any foreign particles or dust from entering into the product.
Do not place the product near magnetic objects.
Be sure to backup important data. Samsung is not responsible for data loss.
Use only accessories provided by or approved by Samsung.
Do not spray water on the product. Never clean the product with chemical
substances such as benzene or thinner, as it may cause fi re, electric
CAUTION
shock or deteriorate the surface.
Failure to follow these instructions may lead to physical injuries or damage to
the player.
CAUTION
When printing this user manual, we recommend that you print in color and
check “Fit to Page” in the print option for better viewing.
NOTE
contents
THE BASICS
9
9 What’s included
10 Your MP3 Player
12 Screen displays
16 Using the touch screen
20 Charging the battery
21 Caring for the battery
21 Turning the Power on & off
22 Playing a video fi le
22 Controlling the volume
23 Disabling the buttons
23
Browsing for fi les using “File Browser”
24 Changing the settings and
preferences
24 Menu Style Settings
27 Sound Settings
28 Display Settings
29 Language Settings
31 Time Settings
32 System Settings
34 Resetting the system
SAMSUNG MEDIA STUDIO
35
WATCHING A VIDEO
40
35 PC requirements
36 Installing Samsung Media Studio
37 Transferring fi les to the player with
Samsung Media Studio
40 Pausing
41 To move to a specifi c frame
42 To play the previous video fi le
42 To play the next video fi le
43 Using the video menu
contents
LISTENING TO MUSIC
47
47 Listening by category
49 Pausing
49 Playing from the beginning of the
current track
49 Playing the previous track
50 Playing the next track
50 Searching within a track
51 Creating a playlist using Samsung
Media Studio
51 Creating a playlist
52 Adding music fi les to a playlist you’ve
created
53 Transferring a playlist to your player
using Media Studio
54
Creating a playlist on your mp3 player
55 Playing a playlist
56 Deleting a fi le from the playlist
56 Deleting all fi les from the playlist
57 Using the music menu
VIEWING PICTURES
64
LISTENING TO FM RADIO
68
64 Viewing pictures
65 Using the picture menu
68 To use the mute function
69 To search for FM stations
70 Using the FM radio menu
contents
USING THE DATACAST
75
ENJOYING THE
PRIME PACK
78
75 Registering a channel
76 Creating a new channel group
76 Transferring a datacast from <Media
Studio>
77 Viewing Datacasts
78 Reading text
79 Using the text menu
82 Setting the alarm
85 Viewing the calendar
86 Viewing the world clock
USING BLUETOOTH
87
TROUBLESHOOTING
94
APPENDIX
97
87 What is bluetooth?
88 Using a bluetooth stereo headset
91 Using the bluetooth menu
92 Bluetooth settings
94 Troubleshooting
97 Menu tree
98 Product specifi cations
100 License
the basics
WHAT’S INCLUDED
Your new mp3 player comes with these accessories. If you’re missing any of these
items, contact Samsung Customer Service Center.
Player Earphones USB Cable
The accessories in your box may look slightly different than these.
Installation CD
Using the Easy Holder
Mount the player onto the easy holder in a fl at surface place. Doing this,
you can enjoy video without holding the player.
This is not a fi xed holder, so be careful not to shake it.
NOTE
Easy Holder
the basics _ 9
YOUR MP3 PLAYER
Power LED
The Power LED is lit in red while
the battery is being charged.
10 _ the basics
When done, it turns green.
Easy holder hook
Tying the easy holder strap
Touch screen
Up volume button
Press to increase the volume
Down volume button
Press to reduce the volume

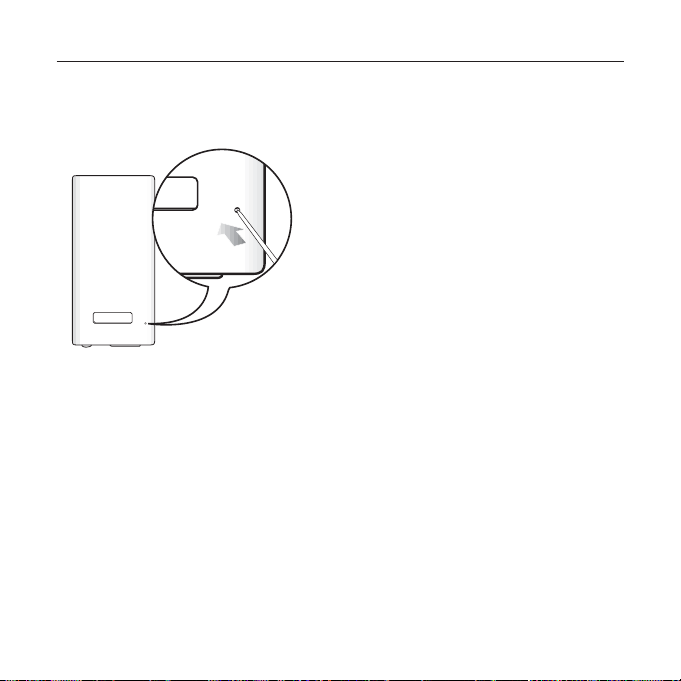

Reset hole
If a player
malfunction occurs,
press the reset hole
with a pointed object
to re-initialize the
system.
YOUR MP3 PLAYER (Continued)
Hold switch
Push in the direction of the arrow to lock
the button functions.
USB connection port
Power & Play/Pause button
Press for play/pause.
Press and briefl y hold for power on/off.
Earphone connection jack
Earphones
Labeled “L” for
the left earpiece
and “R” for the
right earpiece.
Also serves as an
antenna for FM
Radio in the MP3
player.
the basics _ 11
SCREEN DISPLAYS
Video
7
8
9
10
11
Video Track 1
1
2
3
4
5
6
1
2
3
4
5
6
NOTE
12 _ the basics
Bluetooth/Lock/Alarm
Indicator
Battery Status
Current Time
Current /Total Play Time
File Name
Play/Pause, Search
7
Indicator
8
Video Mode Indicator
9
Play Status Bar
10
Back Icon
11
Menu Icon
Play/Pause, Search Icon
The screen pictures are for illustration purposes only. The actual screen
may differ.
Information and icons on the current video playback will disappear shortly.
Tap on the screen if you want to display the video playback information and
icons again.
SCREEN DISPLAYS (Continued)
Music
1
2
10
11
12
13
14
15
16
17
Songs
Audio Track 1
1
3
2
3
1/52
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
Bluetooth/Lock/Alarm Indicator
Current Time
Battery Status
Current track playing /
Total number of tracks
Indicator
Music Play Screen
Play Status Bar
Current /Total Play Time
Play/Pause, Search Icon
DNSe Icon
Play/Pause, Search Indicator
Music Mode Indicator
Parent Menu Indicator
Music Title
DNSe Mode Indicator
Play Mode Indicator
Back Icon
Menu Icon
the basics _ 13
SCREEN DISPLAYS (Continued)
1
2
7
8
9
10
11
12
NOTE
Picture image 1
[Picture View Screen]
Information and icons in the current picture display will disappear shortly.
Tap on the screen if you want to display the picture information and icons
again.
The Previous/Next Image [
once. Tapping it again will display both picture information and icons.
1
2
3
3
8/17
4
4
5
6
5
7
8
9
6
10
11
12
, ] icon appears if you tap on the screen
Bluetooth/Lock/Alarm Indicator
Current Time
Battery Status
Current fi le /
Total number of fi les Indicator
Next Image Icon
Zoom Icon
Music Play Status
Picture Mode
Indicator
File Name
Previous Image Icon
Back Icon
Menu Icon
14 _ the basics
SCREEN DISPLAYS (Continued)
FM Radio
1
2
1
3
2
4
6
7
8
9
10
FM Radio
3
4
5
6
7
8
5
9
10
Bluetooth/Lock/Alarm Indicator
Current Time
Battery Status
Manual/Preset Indicator
Preset Number Icon
Radio Mode Indicator
Current Frequency(MHz) Indicator
Frequency location Indicator
Back Icon
Menu Icon
the basics _ 15
USING THE TOUCH SCREEN
Tap on touch screen with your fi ngertip.
Do not use force when touching the touch screen, as it may cause damage to the
NOTE
screen.
To avoid damage to the touch screen, do not use any object other than your fi ngers
to operate it.
Do not tap on the touch screen if your fi ngers are not clean.
Do not tap on the touch screen with gloves on.
The touch screen may not function if you use a fi ngernail or other instruments such
as a ballpoint pen.
16 _ the basics
USING THE TOUCH SCREEN (Continued)
You can tap on the screen in four directions – up, down, left and right, according
to the function.
ex) Play status bar for music
How To 1
Tap on and hold the play status bar on the
screen and move your fi nger to a desired
point before releasing it.
The player resumes playing at the point of release.
How To 2
Tap on a desired point in the play status bar.
the basics _ 17
USING THE TOUCH SCREEN (Continued)
ex) Zoomed image
How To 3
Tap on and hold the screen and slide your fi nger in the desired direction
before releasing it as in the fi gure below.
In zoom mode, move your fi nger in the desired direction.
The picture moves and appears in that direction.
Ä
18 _ the basics
USING THE TOUCH SCREEN (Continued)
ex) Play the previous/next video fi le
How To 4
Slide your fi nger to the left or right.
Left : Moves to the next fi le (depending on the the horizontal stroke setting. See
page 44).
Right : Moves to the previous fi le (depending on the the horizontal stroke setting.
See page 44).
Video Track 1
the basics _ 19
CHARGING THE BATTERY
Charge it before using the player for the fi rst time and when you haven’t used it
for a long time.
The battery for your mp3 player will fully charge in about 4 and a half hours,
although total charging time varies depending on your PC environment.
2
Power LED
1
1. Connect the other (larger) end of the USB cable to the USB Connection Port
on the bottom of the player.
2. Connect the USB cable to the USB port (
The Power LED is lit in red while the battery is being charged. When done, it turns
green.
) on your PC.
20 _ the basics
CARING FOR THE BATTERY
Your battery will last longer if you follow these simple guidelines for caring for
and storing it.
• Recharge and store the battery within the temperature range of 5°C~35°C
(40°F~95°F).
• Do not overcharge (longer than 12 hours).
Excessive charging or discharging may shorten the battery’s life.
• Battery life naturally shortens slowly over time.
If you are charging the player while it is connected to a laptop computer, make sure
the laptop’s battery is also fully charged or that the laptop is plugged into its power
NOTE
source.
The battery is not charged in the PC Standby mode or when the hardware is safely
removed.
TURNING THE POWER ON & OFF
Turning the Power on
Press and briefl y hold the
Power is turned on.
Turning the Power off
Press and briefl y hold the
Power is turned off.
Your mp3 player will be automatically turned off when none of
the buttons and icons have been pressed for a specifi c length
NOTE
of time in the pause mode. The factory setting for <Auto
Power Off> is 1 minute, but you can change this length of
time. See page 33 for more information.
For using <Cosmos> in the main menu, refer to page 25.
button.
button.
the basics _ 21
PLAYING A VIDEO FILE
Load video fi les onto your new mp3 player using Samsung Media Studio.
Learn more about Media Studio on page 37.
1. Tap the icon on the main menu screen.
The video list appears.
2. Select a video fi le to play and tap on it.
The selected video fi le starts to play horizontally.
Video Track 1
Tap the [
Press and briefl y hold the [
NOTE
] icon to move to the previous screen.
] icon to move to the main menu screen.
CONTROLLING THE VOLUME
You can adjust the volume while a fi le is stopped or in its playback.
How To 1
Press the , button.
The volume control bar appears.
The range of volume is set between 0 to 30.
Press the
volume or the
How To 2
Slide your fi nger up or down from the
middle right of the screen.
The volume control bar appears.
Sliding you fi nger upward will increase the volume and downward will decrease
it.
22 _ the basics
button to increase the
button to decrease it.
DISABLING THE BUTTONS
The hold function disables all the other buttons and icons on the mp3 player,
so that if you accidentally bump one-while working out, for example-your music
won’t be interrupted.
1. Push the switch in the direction of the
arrow.
Video Track 1
2. Push the switch in the opposite
direction of the arrow to release the hold
function.
BROWSING FOR FILES USING “File Browser”
Search easily for fi les using the “File Browser” function.
1. Tap the icon on the main menu screen.
The <File Browser> folder list containing “Video, Music, Playlists,
Pictures, Datacasts and Texts” appears.
2. Select a desired folder.
3. Tap on a selected folder to bring up the fi le list.
Tap the [ ] icon to move to the previous screen.
4. Select a desired fi le.
5. Tap on a selected fi le.
The fi le will start playing.
File Browser
Video
Music
Playlists
Pictures
Datacasts
Texts
1/6
the basics _ 23
CHANGING THE SETTINGS AND PREFERENCES
Your mp3 player comes with settings and preferences that were set up at the
factory, but you can change these pre-set values to truly customize your player.
Tap the [ ] icon to move to the previous screen.
Press and briefl y hold the [
NOTE
Menu Style Settings
You can change the menu design and font and delete the background
image of the main menu.
1.
Tap the icon on the main menu screen.
The <Settings> menu appears.
2.
Select <Menu Style> and tap on it.
The <Menu Style> menu appears.
3. Tap on a desired menu.
4. Set the options you prefer and tap <OK>.
Menu Style Setting Options
Menu Design : You can change the style of the main menu screen. Select from
<Cosmos>, <Matrix> and <My Skin>. See pages 25~26
Font : You can change the font type of the menu language. Select one from 3
font types. In some menu languages, <Font> will be disabled.
Reset My Skin : Initializes the background image of the touch screen to its
default image.
If the <Settings> screen is open and you don’t push any buttons for about
1 minute, the unsaved settings will be lost, and the player will return to the
NOTE
previous function.
24 _ the basics
] icon to move to the main menu screen.
Settings
Menu Style
Sound
Display
Language
Time
System
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Using the Cosmos Menu
How To 1
Position your fi nger on the touch screen and slide upward or downward.
Tap on the icon of the desired main menu.
<Cosmos> menu
How To 2
Position your fi nger on a blank space of the touch screen and circle
around softly.
Tap on the icon of the desired main menu.
the basics _ 25
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Using the Matrix Menu
Tap on the icon of the desired main menu.
<Matrix> menu
Using the My Skin Menu
Position your fi nger on the touch screen and scroll and release left
or right by moving your fi ngertip. Tap on the icon of the desired main
menu.
<My Skin> menu
26 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Sound Settings
You can set the master EQ, beep sound, volume limit.
1.
Tap the icon on the main menu screen.
The <Settings> menu appears.
2.
Select <Sound> and tap on it.
The <Sound> menu appears.
3. Tap on a desired menu.
4. Set the options you prefer and tap <OK>.
Sound Setting Options
Master EQ : You can optimize sound settings.
Tap the [
The frequencies that can be adjusted are <60Hz>, <150Hz>, <400Hz>,
<1.1KHz>, <3.5KHz>, <8KHz> and <14KHz>. Tap the [
selected frequency’s level and tap <OK>.
Beep Sound : Sets the beep sound for touch screen operations to on or off.
Select from <Off> and <On>.
Volume Limit : You can avoid hearing damage by setting the limit of the volume
when using the earphone. <On> will limit the maximum volume level to 15.
The maximum volume level when volume limit is set to <Off> is 30.
Even if you have selected <Off>, the volume will be set back to 15 to avoid
hearing damage when you turn the player back on.
NOTE
, ] icon to select the frequency you want to adjust.
You can not set the <Master EQ> while the player is connecting to the
Bluetooth stereo headset.
Settings
Menu Style
Sound
Display
Language
Time
System
,
] icon to adjust the
the basics _ 27
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Display Settings
Change the display off time and brightness of your screen.
1.
Tap the icon on the main menu screen.
The <Settings> menu appears.
2.
Select <Display> and tap on it.
The <Display> menu appears.
3. Tap on a desired menu.
4. Set the options you prefer and tap <OK>.
Display Setting Options
Display Off : If no buttons or icons are tapped within the time set shown below,
the touch screen will automatically be turned off. Select from <15sec>, <30sec>,
<1min>, <3min>, <5min> and <Always On>. Press any button to turn it back on.
Brightness : You can adjust the brightness of the screen. Select a level from
<0-10>, where 10 is the brightest.
Settings
Menu Style
Sound
Display
Language
Time
System
28 _ the basics
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Language Settings
The menus on your new mp3 player can be set to appear in any one of
multiple languages. You can change your preference language easily.
1.
Tap the icon on the main menu screen.
The <Settings> menu appears.
2.
Select <Language> and tap on it.
The <Language> menu appears.
3. Tap on a desired menu.
4. Set the options you prefer and tap <OK>.
Settings
Menu Style
Sound
Display
Language
Time
System
the basics _ 29
CHANGING THE SETTINGS AND PREFERENCES (Continued)
Language Setting Options
Menu : Set the menu language. Tap the [ a ,b ] icon to move to the previous/
next page.
Select from <English>, <한국어>, <Français>, <Deutsch>, <Italiano>, <日本語>,
<ㅔԧЁ᭛>, <㐕储Ё᭛>, <Español>, <Ɋɭɫɫɤɢɣ>, <Magyar>, <Nederlands>,
<Polski>, <Português>, <Svenska>, <ѳъѕ>, <ýeština>, <ƧnjnjLjǎNJNjƽ>,
<Türkçe>, <Norsk>, <Dansk>, <Suomi>, <Español (Sudamérica)>, <Português
(Brasil)>, <Indonesia>, <TiӃng ViӋt>, <Bulgarian>, <Română>, <ɍɤɪɚʀɧɫɶɤɚ>,
<Slovenšþina> or <Slovenský>.
Contents : Set the language in which the track information and Text will appear.
Tap the [
<Korean>, <French>, <German>, <Italian>, <Japanese>,
<Tranditional Chinese>
<Polish>, <Portuguese>, <Swedish>, <Thai>, <Finnish>, <Danish>,
<Norwegian>, <Farsi>, <Afrikaans>, <Basque>, <Catalan>, <Czech>,
<Estonian>, <Greek>, <Hrvatski>, <Icelandic>,
<Slovene>, <Turkish> or <Vietnamese>.
NOTE
,b ] icon to move to the previous/next page. Select from <English>,
a
, <Spanish>, <Russian>, <Hungarian>, <Dutch>,
<Rumanian>
The supported languages can be changed or added.
<Simplifi ed Chinese>
, <Slovak>,
,
30 _ the basics
Loading...
