Samsung YP-F1ZW-XAA User Manual

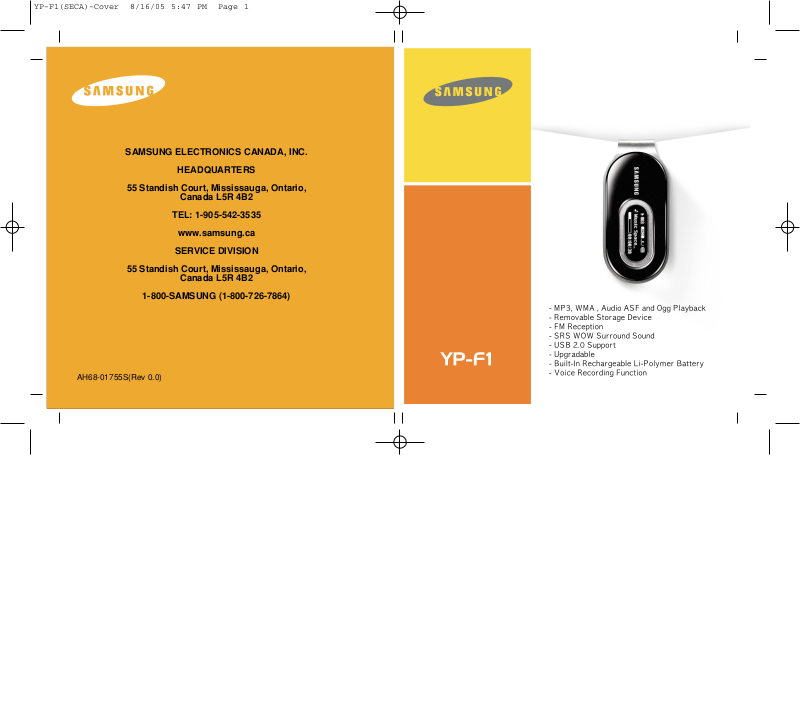

SAMSUNG ELECTRONICS CANADA, INC.
HEADQUARTERS
55 Standish Court, Mississauga, Ontario,
55 Standish Court, Mississauga, Ontario,
AH68-01755S(Rev 0.0)
Canada L5R 4B2
TEL: 1-905-542-3535
www.samsung.ca
SERVICE DIVISION
Canada L5R 4B2

ContentsContents

I Before You Begin
Safety Instructions ..............................................................................................................................................4
Features ..............................................................................................................................................................6
Components ........................................................................................................................................................8
Location of Controls ............................................................................................................................................9
Charging the Battery ........................................................................................................................................11
I Connection Procedures
Connecting the Player to Your PC ....................................................................................................................12
Manual Installation of the USB Driver ..............................................................................................................16
Using the Player as a Removable Disk ............................................................................................................19
● Formatting the Player on Your PC ................................................................................................................19
● Downloading/Uploading Files ........................................................................................................................20
● Disconnecting the USB Cable ......................................................................................................................21
Transferring music files using Windows Media ................................................................................................22
Installing Music Studio ....................................................................................................................................24
Using Music Studio ..........................................................................................................................................25
To View Help on Music Studio ........................................................................................................................29
I Basic Usage
Playing Music ....................................................................................................................................................30
Recording Voice ................................................................................................................................................31
Searching for Music/Voice Files ........................................................................................................................32
Listening to FM Radio ........................................................................................................................................33
Recording FM ....................................................................................................................................................35
2
I Additional Usage
Loop Repeating ................................................................................................................................................35
MENU Options ..................................................................................................................................................36
Using Navigation ..............................................................................................................................................37
Setting Playlist ..................................................................................................................................................40
Setting the Advanced Functions ........................................................................................................................41
Selecting the Play Mode ..................................................................................................................................42
Sound Settings ..................................................................................................................................................43
Display Settings ..............................................................................................................................................45
Language Settings ............................................................................................................................................47
FM Radio Settings ............................................................................................................................................48
Time Settings ....................................................................................................................................................49
Managing File ....................................................................................................................................................51
Setting the System ............................................................................................................................................52
To Upgrade Firmware ........................................................................................................................................54
I Appendix
MENU Table ......................................................................................................................................................56
I Customer Support
Troubleshooting..................................................................................................................................................57
Specifications ....................................................................................................................................................59
ENG
3

Safety InstructionsSafety Instructions

Read and understand all the instructions to avoid injury to yourself and damage to the equipment.
Do not expose to extreme temper­atures (above 95°F or below 23°F). Do not expose to moisture.
Do not subject the unit to severe impact, or place heavy objects on it.
Do not let any foreign matter spill into the device.
Be careful not to subject the player to excessive pressure when wearing it round your neck.
Do not expose to chemicals such as benzene and thinners.
Do not try to disassemble and repair the device yourself.
Do not expose to direct sunlight or heat sources.
Do not store in dusty areas.
✽
Please be aware that we claim no responsibility for damage from data loss due to breakdown, repair or other causes.
4
I Earphones
Follow Traffic Safety Instructions
● Do not use the earphones while driving an automobile or riding a bicycle. It’s not only dangerous, but also against the law.
● To avoid an accident, do not turn up the volume of the earphones too high while walking.
Protect Your Ears
● Do not turn up the volume too high. Doctors warn against prolonged exposure to high volume.
● Stop using the device or turn the volume down if you have ringing in your ears.
● Take care so that the earphone cable is not caught by your arm or other objects while walking or exercise.
I Ambient Operating Conditions
● Ambient temperature : 5°C ~ 35°C Humidity : 10 ~ 75%
I Environmental Information
● Follow local guidelines for waste disposal when discarding packages, batteries, and old electronic appliances.
● Your player is packaged with cardboard, polyethylene etc., and does not use any unnecessary materials.
5
ENG

FeaturesFeatures

MP3, WMA, Audio ASF and Ogg Playback
● The player supports playback of MP3, WMA, Audio ASF, and Ogg(Ogg Vorbis)
✻ OGG is a new audio compression format that is free, open and unpatented.
For more info, see www.vorbis.com
✻ ASF is a file format used in Windows Media player.
This player can also play back ASF audio.
Removable Storage Device
● You can easily copy and paste files to the player using Windows Explorer.
FM Reception
● Listening to an FM program is made easy with Auto Search and Frequency
Memory functions.
SRS WOW Surround Sound
● The 3D surround(SRS) feature adds spaciousness to the sound.
6
USB 2.0 Support
● Maximum data speed transfer of 18Mbps
Upgradable
● You can upgrade the built-in programs when available.
Please check the home page (www.samsung.com) for upgrades.
Built-In Rechargeable Li-Polymer Battery
● The built-in rechargeable lithium battery provides up to 10 hours of play time.
✻ Time may vary depending on usage pattern.
Voice Recording Function
● You can make high quality voice recordings.
7
ENG
Connecting the
Necklace

Location of ControlsComponents

I Replacing the Player Cover
● Open the groove on the cover with your fingertips, take off the cover and put on another
cover of your desired colour.
ENG
Player Cover
Player
Necklace
Model
Built-in memory
● The capacity of the useable built-in memory is less than indicated as the internal firmware uses part of the memory as well.
● The accessories' design is subject to change for the purpose of improvement, without notice.
8
YP-F1 V
256MB
Earphones
Installation CD
YP-F1 X
512MB
USB Cable
Necklace
User Manual
YP-F1 Z
1GB
nn
CCCCaaaauuuuttttiiiioooonn
✍
- Take care not to injure your fingertips when you open the cover with your fingertips.
I Resetting the Player
● Take off the Player Cover and press the RESET Hole using a pointed object such as a safety clip.
RESET Hole
9

Charging the batteryComponents

11
2
1 Volume Control
2 Menu/Navigation Button
3 USB Cable Connection Port, Earphone Port
7 3
4 Skip Track/Speed Search Button
5 Skip Track/Speed Search Button
6 Display
8
4
7 Microphone
9
6
5
8 (Long) Record Button,
9 Power On/Off/
I Display
Track Number
Play/Stop/Pause Indicator
Track Progress Indicator
ee
NNNNoooottttee
✍
- The screen pictures are for illustration purposes only. The actual screen may differ.
10
Equalizer, SRS Indicator
Play Mode
Remaining Battery Power Indicator
Playtime Indicator
(Brief) Loop Repeating Button
Play/Pause Button
Title (Track Title and Artist)
1 Connect the USB cable to the USB port on your computer.
2 Connect the other end of the USB cable to the USB Cable Connection Port on
top of the player.
✽
When recharging is complete, “Fully Charged” is shown in the display window.
✽
Battery recharge time in normal operation is approximately 2 hours and 30 minutes.
USB Cable
nn
CCCCaaaauuuuttttiiiioooonn
✍
- When using the rechargeable battery for the first time or after several months of non-use, fully charge it first.
- To avoid the risk of fire, do not charge longer than 12 hours.
- Overcharging will reduce the battery life.
- The rechargeable battery is a consumable item and its capacity will decrease gradually.
- To prolong the life of your battery, use the fully charged battery until it is completely discharged, and then fully charge it again before use. If you charge the battery and it is not completely drained, the battery operating time will decrease. In this case, fully cycle (fully charge and then fully discharge) the battery several times.
- If you connect the player through a USB hub, the connection may be unstable. Please connect the player to the computer directly.
11
ENG

Connecting the Player to Your PC

Make sure to install the USB driver from the Installation CD before connecting the player to your PC. If 'Add Hardware wizard' appears, click the [Cancel] button and install the USB driver.
▼ System Requirements.
The PC system must meet the following specifications:
● Pentium 200MHz or greater
● Windows 98 SE/ME/2000/XP
● 40MB of available hard disc space
● CD-ROM drive
(double speed or greater)
● USB port (2.0) supported
● Direct X 8.0 or above
I Installing Software
1 Insert the installation CD into the
CD-ROM drive. Select [Install Player USB Driver].
ee
NNNNoooottttee
✍
- Install the operating system in Administrator Account (main user) for Windows 2000 or XP. Otherwise, installation will not be completed.
- Windows ME, 2000 and XP can recognize the driver without installing the provided program. However, you must install the program in order to format the player and upgrade firmware.
- If the YP-F1 program has not been installed in Windows 98 SE, then it will not communicate with your removable disc. You must install the USB driver file first.
Connecting the Player to Your PC
2 Follow the instructions in the window to complete the installation.
ENG
When the software installation is complete, connect the player to the computer and use it as the following page shows.
Continued...
12
13
Connecting the Player to Your PC
I Connecting the player to PC with the USB cable
1 Connect the USB cable to the USB port on your computer.
2 Connect the other end of the USB cable to the USB Cable Connection Port on
top of the player.
● If you disconnect the USB cable from your PC while implementing a command or
initializing during USB driver installation, your Player may not function correctly.
3 The USB driver is installed with a message saying that it is searching for a new
device. You may not see the display screen during installation. Go to the Device Manager to check that installation has been successfully completed.
4 When the USB driver is successfully installed, "Samsung YP-F1 USB Device"
will appear in the [System Properties]➝ [Device Manager].
Connecting the Player to Your PC
How to check if USB driver is properly installed
How to check if USB driver is properly installed
Windows 98:
Control Panel ➝ System ➝ Device Manager ➝ Disk Drives ➝ Samsung YP-F1
Windows 2000/XP:
Start ➝ Settings ➝ Control Panel ➝ System ➝ Hardware ➝ Device Manager ➝ Disk Drives ➝ Samsung YP-F1 USB Device
ENG
USB Cable
14
5 When the USB driver is not installed automatically, refer to the next page.
15
If the USB driver has successfully installed, go to "Downloading/Uploading Files"(P20). If the USB driver is not automatically installed, follow the procedures below.
I If an error occurs during installation of the USB driver
1 Check the device manager.
Windows 98SE:
Control Panel
Windows 2000/XP :
Control Panel ➝System ➝Hardware Device Manager
➝
System ➝Device Manager
➝

Manual Installation of the USB DriverManual Installation of the USB Driver

4 After selecting the driver,
click [Update Driver].
5 Click [Next].
ENG
2 Check if there is a device listed with an exclamation point or a question mark
(displayed as unknown device or USB device).
3 Double click on the device listed with an exclamation point or a question mark.
ee
NNNNoooottttee
✍
- If the USB driver is not automatically installed in Windows 2000, download and install the latest service pack from Windowsupdate.microsoft.com
- The installation method may vary depending on the type of PC or operating system. Contact your PC dealer or service center for installation information.
- If errors occur continuously when you install the USB driver, reconnect the USB cable after rebooting your system.
16
6 Select [Search for a suitable driver
for my device] and then click [Next].
7 Click [Next] to finish.
17
I In Windows 98
Open the Add Hardware Wizard in the Control Panel. Follow the instructions in the window to complete the installation.
USB driver location [CD ROM]ÍUSB DriverÍDrivers
: You must reboot your computer to complete the installation.
ee
NNNNoooottttee
✍
- You cannot use it as a removable disc in Windows 98 if the YP-F1 program is not installed. Make sure to install the USB driver file first.

Using the Player as a Removable DiskManual Installation of the USB Driver

Before formatting can begin, you must connect your YP-F1 to your PC using the USB cable (see page 14).
I Formatting the Player on your PC
1 Select the removable disc icon
and click the right mouse button to select [Format].
nn
CCCCaaaauuuuttttiiiioooonn
✍
- By formatting, all previously preset menus will be reset, and any pre-existing song or data files will be erased.
- Care must be taken as formatted files can not be recovered.
2 Press the [Start] button.
● All saved files will be formatted.
● You can change the name of removable disc
by selecting [Volume label].
ENG
18
19
Loading...
+ 21 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
