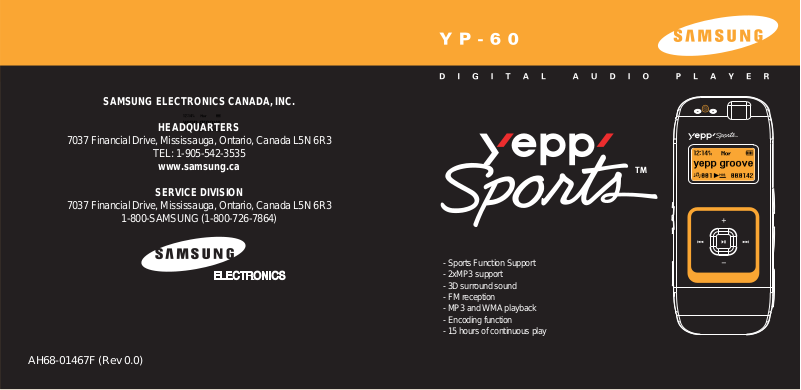

Samsung YP-60 User Manual

- Sports Function Support

- 2xMP3 support

- 3D surround sound

- FM reception

- MP3 and WMA playback

- Encoding function

- 15 hours of continuous play

AH68-01467F (Rev 0.0)

SAMSUNG ELECTRONICS CANADA, INC.

HEADQUARTERS

7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3

TEL: [phone]

www.samsung.ca

SERVICE DIVISION

7037 Financial Drive, Mississauga, Ontario, Canada L5N 6R3

1-800-SAMSUNG (1-800-726-7864)

3

Contents

2

Basic Usage

Playing Music and Turning Off the Device 40
Adjusting the Volume / Hold Function 41
Searching for Music/Voice Files 42
Encoding MP3s 43
Listening to FM Radio 44
Encoding From FM Radio 45

Additional Usage

Loop Repeating 46
MENU Mode 47
Chinging Modes 48
Setting the Advanced Functions 49
Playing Folders 50
Selecting the Play Mode 51
Selecting Sound Effects 52
Managing Files 52

● Deleting 54

● Formatting 54

TIME CONTROL 55

● WATCH TIME SET / POWER OFF TIME 55

● SLEEP TIME / BACKLIGHT 56

Setting the Environment 57

● DISPLAY 57

- INFORMATION / CONTRAST 57

● SOUND CONTROL 58

- WOW LEVEL 58

- ENCODE BIT RATE 59

- BEEP ON/OFF / DEFAULT VOLUME 59

● Setting Additional Regional Functions 60

- LANGUAGE / UNIT 60

Using Navigation 61
Setting FM 62
Using Sports Function 63

Appendix

MENU Table 68

Customer Support

Troubleshooting 70
Specifications 72
Safety Information 74
Warranty 76

Preparations

Safety Instructions 4
Battery Charger Safety 6
Cautions for Recharging 7
Features 8
Accessories 11
Location of Controls (yepp) 12

Connection to Computer

Connecting yepp to PC 14
Manual Installation of USB Driver 18
Using yepp Studio 24

● Downloading Files 24

● Creating 2xMP3 Files 26

● Downloading Albums 27

● Creating Folders 28

● Uploading Files 29

● Deleting Files 30

● Formatting 31

● To View Help on yepp Studio 32

Installing Fitness Manager 34
Using Fitness Manager 36

5

Safety Instructions

4

Earphones

Follow Traffic Safety Instructions

● Do not use the earphones while driving an automobile or riding a bicycle.

It’s not only dangerous, but also against the law.

● An accident may result if you turn up the volume of the earphones too high while walking

down the street, especially when crossing at intersections.

Protect your ears

● Do not turn the volume up too high.

Doctors warn against prolonged exposure to high volumes.

● Stop using the device or turn the volume down if you get ringing in your ears.

● Follow local guidelines for waste disposal when discarding packaging, batteries,

and old electronic appliances.

● yepp packaging uses cardboard, polyethylene etc., and does not use

any unnecessary materials.

● Ambient temperature : 5°C ~ 35°C (41°F ~ 95°F)

● Humidity : 10 ~ 75%

Read and understand all the instructions to avoid injury to yourself and damage to the equipment.

✽

Please be aware that we claim no responsibility for damage from data loss

due to breakdown, repair or other causes.

Do not expose to extreme
temperatures (above 95°F or below
23°F). Do not expose to moisture.

Do not apply excessive pressure
to the device.

Do not expose to chemicals such
as benzene and thinners.

Do not use the unit near any
appliance that generates a strong
magnetic field.

Do not expose to direct
sunlight or heat sources.

Do not store in dusty areas.

Do not place heavy objects on
top of the device.

Do not let any foreign matter
spill into the device.

Do not try to disassemble and
repair the device yourself.

Ambient operating conditions

Environmental Information

Cautions for Recharging

7

Battery Charger Safety

6

!

!

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

The uninsulated parts inside the charger can
cause electric shock.
For your safety, do not open the charger’s case.

Read this User Manual to prevent any problems that
may occur while using the charger.

WWWWaaaarrrrnnnniiiinnnngg

gg

● Use the charger away from water sources to avoid fire or electric shock.

CCCCaaaauuuuttttiiiioooonn

nn

● To avoid electric shock, Use the charger only with a power outlet that matches

the converter's plug.

● Make sure that the charger's plug is inserted all the way into the outlet.

A charger is provided with the YP-60.
Please be sure to only use the provided adapter.

Plug the charger into a wall outlet.

✽ When recharging is complete,

“FULLY CHARGED” is shown in the display window.

✽ Recharging continues to take place even when

the USB cable is connected.

CCCCaaaauuuuttttiiiioooonn

nn

● Do not charge longer than the specified charge time to avoid risk of fire.

● Do not plug several devices into the same outlet.

● Do not use a damaged internal rechargable battery or recharge adapter.

● When using the rechargeable battery for the first time or after several

months of non-use, fully charge it first.

● Do not charge the rechargeable battery for more than 6 hours.

● Overcharging or overdischarging will reduce battery life.

● You should check the recharging time and switch to a new internal rechargable battery

when the battery life becomes low.

● The rechargeable battery is a consumable item and its capacity will decrease gradually.

● To prolong the life of your battery, use the fully charged battery until it is completely

discharged, and then fully charge it again before use. If you charge a battery that is not
completely drained, the battery operating time will decrease. In this case, repeat the full
charge/discharge cycle several times.

● Do not let metallic objects, such as necklaces or coins, come into contact with the

terminals (metallic parts) of the charger and the built-in rechargeable battery.
A fire or electric shock may result.

● Be careful not to touch the recharge adapter with wet hands.

Sports Function Support

● Using the Consumed Calories, Heartrate and Stopwatch functions will help you

exercise much more efficiently and scientifically.

Encoding Function

● You can make an MP3 file from an external source using the ENC jack

on the main unit.

● You can also convert an FM radio program into an MP3 file in real time.

3D surround sound

● You will hear deep bass and 3D surround sound.

● is a trademark of SRS Labs, Inc.

WOW technology is incorporated under license from SRS labs, Inc.

MP3 & WMA Playback

● MP3 is an MPEG1 Layer3 audio format.

● WMA is a Microsoft Windows Media audio format.

8 9

11

FM Reception

● Listening to an FM program is made easy with Auto Search and Frequency

Memory functions.

Sound

● You can adjust the equalizer manually.

15-Hour Continuous Play

● Use a lithium polymer rechargable battery in order to play continuously for

up to 15 hours.

Player

Earphones

USB cable Charger

User manual

● The capacity of the useable built-in memory is less than indicated as the internal firmware

uses a part of the memory as well.

● Design of accessories is subject to change, for the purposes of improvement, without notice.

Model

Built-in memory

YP-60 H

128MB

YP-60 V

256MB

YP-60 X

512MB

YP-60 Z

1GB

Installation CD

Earphone

extension cable

Line In cable

Arm band Finger Clip

Accessories

10

Location of Controls (yepp)

1312

ENC/NAVI.

Button

Move to Track/
Speed Search Button

Volume Button

MENU/
Loop Repeating Button

Sports Function Button

Play/Stop/Pause
On/Off Button

Display

Hold Switch

Reset Hole

USB Cable
Connection Port

ENC Jack

Earphone JackHeart Rate Measurement Sensor

001

Track 1

Nor

07:32

NOR

A

M

00:01:30

Title (track & artist) indicator

Track Number indicator

Mode indicator

Play mode/Interval repeat indicator

Calorie Measurement Indicator

Equalizer, SRS indicator

Time indicator

Remaining Battery
Power indicator

Play/Stop/Pause indicator

Folder Play Indicator

Sleep Time indicator

Playtime indicator

Display

NNNNoooottttee

ee

● If the device won’t respond even after pressing the buttons, reboot it by pressing the Reset Hole with a pin.

15

Connecting the yepp to a PC

14

1

Insert the Installation CD into the CD-ROM drive.
The picture shown below appears.
Select [yepp Studio].

Before connecting yepp to PC, make sure to install
yepp Studio. If “Add New Hardware Wizard”appears,
press the [Cancel] button and install yepp Studio.

2

Choose the language you wish to use.

System
Requirements.

The PC system must meet the
following specifications:

● Pentium 133MHz or greater.

● Windows 98 SE/ME/2000/XP.

● 40MB of available hard disk space

● CD-ROM drive.

(double speed or greater)

● USB port (1.1) supported.

● VGA graphics.

● DirectX 8.0 or above.

Continued...

NNNNoooottttee

ee

● Windows ME, 2000 and XP can

recognize the driver without installing
the provided program. However,
you must install the program in order to
format the yepp and upgrade the firmware.

3

Click [Next] in the series of windows
that appear.

Installing software

1716

Connect a USB cable to the USB port on the computer.

Connect the opposite end of the USB cable to the USB cable
port on the right side of the yepp.

● If you disconnect the USB cable from your PC while

implementing a command or initializing during
USB driver installation, your PC may not function correctly.

5

Upon installation of the USB driver

"SAMSUNG YP-60" will appear in the

[Start]→[Settings] →[Control Panel]

→

[System Properties]→[Device Manager].

7

4

The USB driver is installed with a message saying that
it is searching for a new device. You may not see the
display screen during installation.
Go to the device manager to check that
installation has been successfully completed.

6

USB connect cable

How to check the USB driver

●

Windows 98/ME:

Control Panel →System →Device Manager

→

Disk drives →SAMSUNG YP-60

●

Windows 2000:

Control Panel →System →Hardware

→

Device Manager → Disk drives

→

SAMSUNG YP-60 USB Device

●

Windows XP:

Control Panel →System →Hardware

→

Device Manager → Disk drives

→

SAMSUNG YP-60 USB Device

When the USB driver is not installed automatically, refer to the next page.

8

Connecting the yepp to a PC with a USB cable

Connecting the yepp to a PC

19

Manual Installation of the USB Driver

18

Go to “Using yepp Studio” on page 24 if the USB driver is in place.

Follow these steps if the USB driver is not in place.

Check the device manager.

● Windows 98,ME:

Control Panel →System →Device Manager

● Windows 2000:

Control Panel →System →Hardware

→

Device Manager

● Windows XP:

Control Panel →System →Hardware

→

Device Manager

1

Check if there is a device listed with an
exclamation point or a question mark
(displayed as unknown device or USB device).

2

Double click on the device listed with an
exclamation point or a question mark.

3

After selecting the driver,
click on [Update Driver].

4

Select a compatible driver,
click on [Next] to finish.

5

When an error occurs during installation of the USB driver

2120

Select [Install from a list or specific location] and click the [Next] button.

1

Select [Search removable media]
or select [Include this location in
the search] and designate
[CDROM]\Drivers\win2k_winxp.
For example
E:\Driver\win2k_winxp.

2

Click the [Finish] button
when installation is complete.

3

● You must reboot your computer to complete the installation.

In Windows XP

Manual Installation of the USB Driver

2322

● You must reboot your computer to complete the installation. ● You must reboot your computer to complete the installation.

Select [Specify a location]
and then select

[CD-ROM]\Drivers\win2k_winxp.

Select [Specify a location]
and then select

[CD-ROM]\Drivers\win98_winme.

Click [Next] in the series of windows that appear. Click [Next] in the series of windows that appear.





In Windows 2000 In Windows 98

Manual Installation of the USB Driver
