Samsung R50, X50, X25, NP-X20C, NP-X50 User Manual

Notices

X20/X25/X50 1.3

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer.

The information within this manual is subject to change without notice. The manufacturer shall not be held liabl e for technical or editorial errors or omissions

contained in herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. Microsoft Windows is a registered trademark of the Microsoft Corporation. Product names mentioned herein are for identification purposes only, and may be

trademarks and/or registered trademarks of their respective companies.

Macrovision Statement

If your computer has a DVD drive and an analog TV Out port, the following paragraph applies:

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Notices i

Important Safety Information

Safety Instructions

Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Always follow these instructions to help guard against personal injury and damage to your system.

Setting Up your System

•

Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.

•

Do not use this product near water or a heat source such as a radiator.

•

Set up the system on a stable work surface.

•

The product should be operated only with the type of power source indicated on the rating label.

•

Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit.

•

If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.

•

Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.

•

Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.

•

If you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating.

ii Users Manual

Care During Use

•

Do not walk on the power cord or allow anything to rest on it.

•

Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system.

•

Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturer’s instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task

•

When the computer is turned off, a small amount of electrical current still flows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.

•

Unplug the system from the wall outlet and refer servicing to qualified personnel if:

– The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are

followed. – The system was dropped or the casing is damaged. – The system performance changes.

The Instruction On Safety Operation of NotePC

1. At installation and operation of devices it is necessary to carry out requirements of

the user's guide.

2. Devices can be used only with the equipment specified in the technical

specifications of the devices.

3. At operation of devices it is necessary to carry out the basic requirements

4. At occurrence of malfunctions in the device (a smell of burnt isolation, a smoke,

etc.), it is necessary to disconnect the equipment from the power supply and to not to inserted back before reparation.

5. Service and reparation of devices should be carried out by experts of the

manufacturer.

Technical director of the service center

Replacement Parts and Accessories

Use only replacement parts and accessories recommended by manufacturer.

Important Safety Information iii

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications

line cord.

Do not use this product in areas classified as hazardous. Such areas include

patient care areas of medical and dental facilities, oxygen rich environments,

Writtenby:DarylL. Osden

or industrial areas.

Battery Disposal

Do not put rechargeable batteries or products powered by non-removable

rechargeable batteries in the garbage.

Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer.

Follow all local regulations when disposing of old batteries.

Laser Safety

All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

Laser Safety Note:

Use of controls or adjustments or performance of procedures other than those

specified in this manual may result in hazardous radiation exposure. To

prevent exposure to laser beams, do not try to open the enclosure of a CD or

DVD drive.

Power Cord Requirements

The power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.

iv Users Manual

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.

General Requirements

The requirements listed below are applicable to all countries:

•

The length of the power cord set must be at least 6.00 feet (1.8m) and a maximum of 9.75 feet (3.0m).

•

All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.

•

The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.

•

The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C7 connector, for mating with appliance inlet on the computer.

Important Safety Information v

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The power output of the wireless device or devices that may be embedded in your notebook is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

vi Users Manual

Radio frequency wireless communication can interfere with equipment on

commercial aircraft. Current aviation regulations require wireless devices to be

turned off while traveling in an airplane. 802.11B (also known as wireless

Ethernet or Wifi) and Bluetooth communication devices are examples of

devices that provide wireless communication.

In environments where the risk of interference to other devices or services is

harmful or perceived as harmful, the option to use a wireless device may be

restricted or eliminated. Airports, Hospitals, and Oxygen or flammable gas

laden atmospheres are limited examples where use of wireless devices may

be restricted or eliminated. When in environments where you are uncertain of

the sanction to use wireless devices, ask the applicable authority for

authorization prior to use or turning on the wireless device.

Every country has different restrictions on the use of wireless devices. Since

your system is equipped with a wireless device, when traveling between

countries with your system, check with the local Radio Approval authorities

prior to any move or trip for any restrictions on the use of a wireless device in

the destination country.

If your system came equipped with an internal embedded wireless device, do

not operate the wireless device unless all covers and shields are in place and

the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any way.

Modification to a wireless device will void the authorization to use it. Please

contact manufacturer for service.

Only use drivers approved for the country in which the device will be used. See

the manufacturer System Restoration Kit, or contact manufacturer Technical

Support for additional information.

Regulatory Compliance Statements vii

United States of America

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or receiving. Do not hold any component containing the radio such that the antenna is very close or

touching any exposed parts of the body, especially the face or eyes, while transmitting. Do not operate the radio or attempt to transmit data unless the antenna is connected; if

not, the radio may be damaged.

Use in specific environments:

The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.

Antenna use:

In order to comply with FCC RF exposure limits, low gain integrated antennas should be located at a minimum distance of 20 cm (8 inches) or more from the body of all persons.

High-gain, wall-mount, or mast-mount antennas are designed to be professionally installed and should be located at a minimum distance of 30 cm (12 inches) or more from the body of all persons. Please contact your professional installer, VAR, or antenna manufacturer for proper installation requirements.

viii Users Manual

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless network device) near

unshielded

blasting caps or in an explosive environment unless the device has been

modified to be qualified for such use.

Antenna Warning

To comply with the FCC and ANSI C95.1 RF exposure limits, it is

recommended for Intel® PRO/Wireless Network Connections installed in a

desktop or portable computer, that the antenna for this

device be installed so as to provide a separation distance of al least 20 cm (8 inches) from all persons and that the antenna must not be co-located or operating in conjunction with any other antenna or radio transmitter. It is

recommended that the user limit exposure time if the antenna is positioned closer than 20cm (8 inches).

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne operation of radiofrequency wireless devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices Safety Notices for Other Devices in the Wireless Network: Refer to the

documentation supplied with wireless Ethernet adapters or other devices in the wireless network.

The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Intel could void the user's authority to operate this device.

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are

Writtenby:DarylL. Osden

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interfer en ce wi ll no t occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Regulatory Compliance Statements ix

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualified for use in the United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

x Users Manual

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

FCC Statement for Wireless LAN use:

“While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times. This device can not be colocated with another transmitter and transmitting antenna.”

FCC Part 68

This equipment compiles with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following USOC jacks : RJ11C An FCC compliant telephone cord and modular plug is provided with this equipment.

This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modifications to maintain uninterrupted service.

If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.

No repairs may be done by the customer. This equipment cannot be used on public coin phone service provided by the telephone

company. Connection to party line service is subject to state tariffs. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to

use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and

Regulatory Compliance Statements xi

an identification of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax machine, refer to your communications software user manual.

xii Users Manual

Canada

Unintentional Emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.

Intentional Emitter per RSS 210

Wireless devices that may be in your system are only qualified for use in Canada if an Industry Canada ID number is on the system label.

The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter.

To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Wireless devices are not user serviceable. Do not modify them in any way. Modification to a wireless device will void the authorization to use it. Contact manufacturer for service.

Regulatory Compliance Statements xiii

Telecommunications per DOC notice (for products fitted with an IC-compliant modem)

The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certified connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should make sure, for their own pr otection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

xiv Users Manual

European Union

European Union CE Marking and Compliance Notices

Products intended for sale within the European Union are marked with the Conformité Européene (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identified below. This equipment also carries the Class 2 identifier.

The following information is only applicable to systems labeled with the CE mark .

European Directives

This Information Technology Equipment has been tested and found to comply with the following European directives:

•

EMC Directive 89/336/EEC with amending directives 92/31/EEC & 93/68/ EEC as per

– EN 55022 Class B – EN 61000-3-2 – EN 61000-3-3 – EN 55024

•

Low Voltage Directive (Safety) 73/23/EEC as per EN 60950(A1/A2/A3/A4/ A11)

•

Radio and Telecom Terminal Equipment Directive 199/5/EC as per

– CTR21 (if fitted with a modem device) – ETS 300 328 (if fitted with a 2.4 GHz band embedded wireless device) – ETS 301 489-1 (if fitted with a 2.4 GHz band embedded wireless device) – ETS 301 489-17 (if fitted with a 2.4 GHz band embedded wireless device)

European Radio Approval Information (for products fitted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band, may be present (embedded) in your notebook system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Regulatory Compliance Statements xv

Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark

with a Notified Body Registration Number

and the Alert Symbol is on the system label. The power output of the wireless device or devices that may be embedded in you

notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

See 802.11b and 802.11g restrictions for specific countries or regions within countries under the heading “European Economic Area Restrictions” below.

Translated Statements of Compliance

This product follows the provisions of the European Directive 1999/5/EC.

European Economic Area Restrictions Local Restriction of 802.11b/802.11g Radio Usage

[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the Intel PRO/Wireless 2200BG Network Connection product.]

Due to the fact that the frequencies used by 802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in specific countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.

As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are configured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.

The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.

Belgium

xvi Users Manual

The product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.

This restriction should be indicated in the manual as follows: Dans le cas d'une utilisation privée, à l'extérieur d'un bâtiment, au-dessus d'un espace

public, aucun enregistrement n'est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l'IBPT est requise. Pour une utilisation publique à l'extérieur de bâtiments, un e licence de l'IBPT est requise. Pour les enregistrements et licences, veuillez contacter l'IBPT.

France

For Metropolitan departments:

2.400 - 2.4835 GHz for indoor use.

2.400 -2.454 GHz (channels 1 to 7) for outdoor use.

For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:

2.400 - 2.4835 GHz for indoor and outdoor use.

For Reunion, Guyane:

2.400 - 2.4835 GHz for indoor use.

2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)

European Telecommunication Information (for products fitted with EU-approved modems)

Marking by the symbol indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

CTR 21 – Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone Multi-Frequency (DTMF) signaling.

Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation. It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to

Regulatory Compliance Statements xvii

public or private emergency services. DTMF signaling also provides faster call setup.

This equipment has been approved to Council Decision 98/482/EEC—“CTR 21” for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

xviii Users Manual

WEEE SYMBOL INFORMATION

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

WEEE SYMBOL INFORMATION xix

Using Your Documentation

Congratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a portable computer or are an experienced user, this user’s manual can help you get the most from your computer.

Manual Documentation Conventions

Information Icons

Three icons and their associated messages appear in this manual. The information icons are placed before the step/information they apply to:

Warning:

Indicates the possibility of personal injury.

Caution:

Warns you of possible damage to equipment or data.

Note:

Informs you of special circumstances.

Technical Information:

Informs you of special requirements or limitations for use of item(s).

Keyboard Conventions

Keys that you need to press to perform certain functio ns are displayed in the manual in brackets. For example:

<Ctrl> indicates the control key (Ctrl on the keyboard). If you need to press two keys at the same time, the key names are shown joined by a

plus sign. For example:

<Fn+F8> means that you should press the Fn key and hold it and then press the F8 key.

Using Your Documentation 1

CD-ROM Device Naming Convention

In many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD. For instance, if you have one HDD with two partitions, the HDD is drives C: and D: and the CD-ROM drive is then drive E.

Touchpad Conventions

You may be asked to click or double-click on items on the display screen. As a general note the touchpad actions act much in the same way as a wheel mouse, any differences are explained fully.

The object that needs to be clicked upon will be displayed in Bold text or shown in a small figure such as the “Start Button” shown on the right =>.

Table 1. Touchpad Click Conventions

Action Process

Click Depress the touchpad left button and release Double-click Quickly click the left touchpad button two times

Windows Conventions:

Almost all “Windows” programs will display the name/function of a button or icon if you place the touchpad pointer on the item you want information about.

Software User Documentation

Your computer is shipped from the factory with several software programs installed. The software may include its own online or printed documentation. Refer to the documentation or the Help options in the software for more information.

The figures and illustrations in this manual may not be identical to those on your system.

General Icon Note:

Some of the Icons used in Windows XP may be placed on the taskbar by selecting (ex: Place the volume icon in the taskbar) in the properties dialog box.

2 Users Manual

Getting Started

Introducing Your Computer

This User Manual is common to the X20, X25 and X50 models. The figures and descriptions in this User Manual have been selected for the X25 model.The photographs may be somewhat different in shape and colour from your computer depending on the model.

Front View

LCD Panel

LCD Latch

Status Indicators

(p18)

Touchpad (p13)

Touchpad Button

3D Speaker

Microphone

Jack

Memory Card Slot

Microphone

Jack

(p33)

Status Indicators

(p18)

3D Speaker

Hot Keys (p16) Power Button

Keyboard (p8)

Touch pad On/Off button or Fingerprint Sensor(Optional)

Getting Started 3

About Fingerprint Sensor

Fingerprint sensor is optional. (It is not supported for X20 model.) For products with fingerprint sensor, a Touchpad On/Off button is not provided. For procedures to use fingerprint sensor, refer to fingerprint sensor Manual.

The operating lights of X50 are on the left-hand side of the microphone jack.

Right View

S/PDIF Jack

The S/PDIF jack of X50 model is at the rear of the system.

Left View

Fan Vent

Modem Port

(p65)

LAN Port

(p66)

CD Drive

(option, p25)

Monitor Port

USB Port

(2.0)

PCMCIA Card Slot (p36)

1394 Port (6 Pin)

4 Users Manual

Back View

DC Jack

The S/PDIF jack of X50 model is to the right of the Power-In port.

Bottom View

Battery Latches

Battery

(p113)

USB Port (2.0)

Security Lock Port

(p120)

Docking Connector Memory

Compartment(p118)

HDD

Compartment

Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre.

Getting Started 5

Turning the Computer On and Off

To turn on the computer

1. Insert the battery and connect the AC adapter according to the Installation Guide.

2. Slide the LCD latch to the right and open the LCD panel.

3. Press the power button.

To turn off the computer

1. Click the start button ( ) on the taskbar.

2. Click Turn Off Computer.

3. Click Turn Off.

6 Users Manual

If the computer is not turned off properly due to a system error, press <Ctrl>+<Alt>+<Delete>. When [Windows Task Manager] dialog box appears, click Shut Down > Turn Off to turn off the computer. Your unsaved work may be lost/damaged.

If <Ctrl>+<Alt>+<Delete> keys do not operate either, press the power button for more than 4 seconds to turn off the computer. Your unsaved work may be lost/damaged. When you turn on the computer next time, it will perform a disk checking process.

Getting Started 7

Using the Keyboard

Your computer has an 88-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard.

The keyboard is supplied according to the corresponding country. Refer to the keyboard figure for the corresponding country.

Function

Key

Windows

Key

Function & Special Purpose Keys

Embedded Numeric Keypad

Application Key

Screen Brightness and

Volume Adjustment /

Direction Keys

Although the layout of the keys on your computer’s keyboard is different from that on a desktop computer’s keyboard, the keyboard feels like a full-sized keyboard when you use it.

8 Users Manual

Function & Special Purpose Keys

Function

Key

Windows

Key

Embedded Numeric Keypad

Application Key

Screen Brightness and

Volume Adjustment /

Direction Keys

The keys on the keyboard can be grouped into the following categories:

•

Full-sized Alphanumeric typewriter keys are arranged like a standard typewriter keyboard and are used for text entry. The Windows keys on either side of the spacebar open Windows menus and perform other special functions.

•

Function keys, when pressed together with the <Fn> key, enable special functions.

•

Cursor and Screen control keys move the cursor. They may perform other functions, depending on your software.

To clean the computer keyboard, use slightly damp cotton swabs. Scrub the keys and the surface around the keys.

Do not allow liquid to drip into the keyboard or you may damage the keyboard.

Getting Started 9

Using the Numeric Keypad

Your keyboard includes a numeric keypad, which is a group of keys that you can set to type numbers and mathematical symbols, such as the plus sign. A number or symbol on the corner of each keypad key shows its numeric function.

Num Lock LED

Press <Fn+Num Lock> to turn on the embedded numeric keypad. The numeric functions of the keypad are enabled and the Num Lock LED turns on. (See ”Reading the Status Indicators” on page 18 for the location of the Num Lock LED.)

While the numeric functions are enabled, you can temporarily return a key to its normal function by pressing the key and the <Fn> key. For example to type the letter m, press <Fn+M>, this operation displays the letter m.

To turn the numeric keypad off, press <Fn+Num Lock> again. The Num Lock LED turns off.

10 Users Manual

Using Special Function Keys

The function key activates special functions when it is pressed in combination with another keys.

<Fn> Key Combinations

<Esc/ > Rest Puts the computer into suspended mode. To escape suspended mode,

<F2/ > Gauge Shows the current power source and the remaining battery charge. <F4/ > LCD/CRT Switches the display between the LCD and external display device

<F6/Mute> Mute Turns the audio output on and off. <F7/ > S/PDIF Turns the S/PDIF function on and off.

<F8/ > 3D sound Extends the spatial sound of the stereo speakers so that the listener

<F9/ > Touchpad Turns the touchpad function on and off.

Key Name Key Function

press the power button. (p109).

when an external display device is connected. (p107)

can experience even greater stereophonic sound.

Note. The 3D sound function is only supported through the internal speaker of the computer and the headphones. This function is not supported through the S/PDIF port. Note. When using the 3D function, even if the balance is turned completely to the left or right, some audio may still be heard through the other speaker.

Caution. Some distortion may be experienced when the 3D function is used, depending on the audio source.

Turns S/PDIF on Turns S/PDIF off

Turns 3D sound on Turns 3D sound off

Turns Touchpad on Turns Touchpad off

<F10/ > Low-Noise Mode You can select Low-Noise Mode when you need a tranquil work

<F11/Num Lock> Number Lock Enables the numeric keypad. (p10)

environment.

Getting Started 11

<F12/Scroll> Scroll Lock Scrolls the screen up and down while the cursor position does not

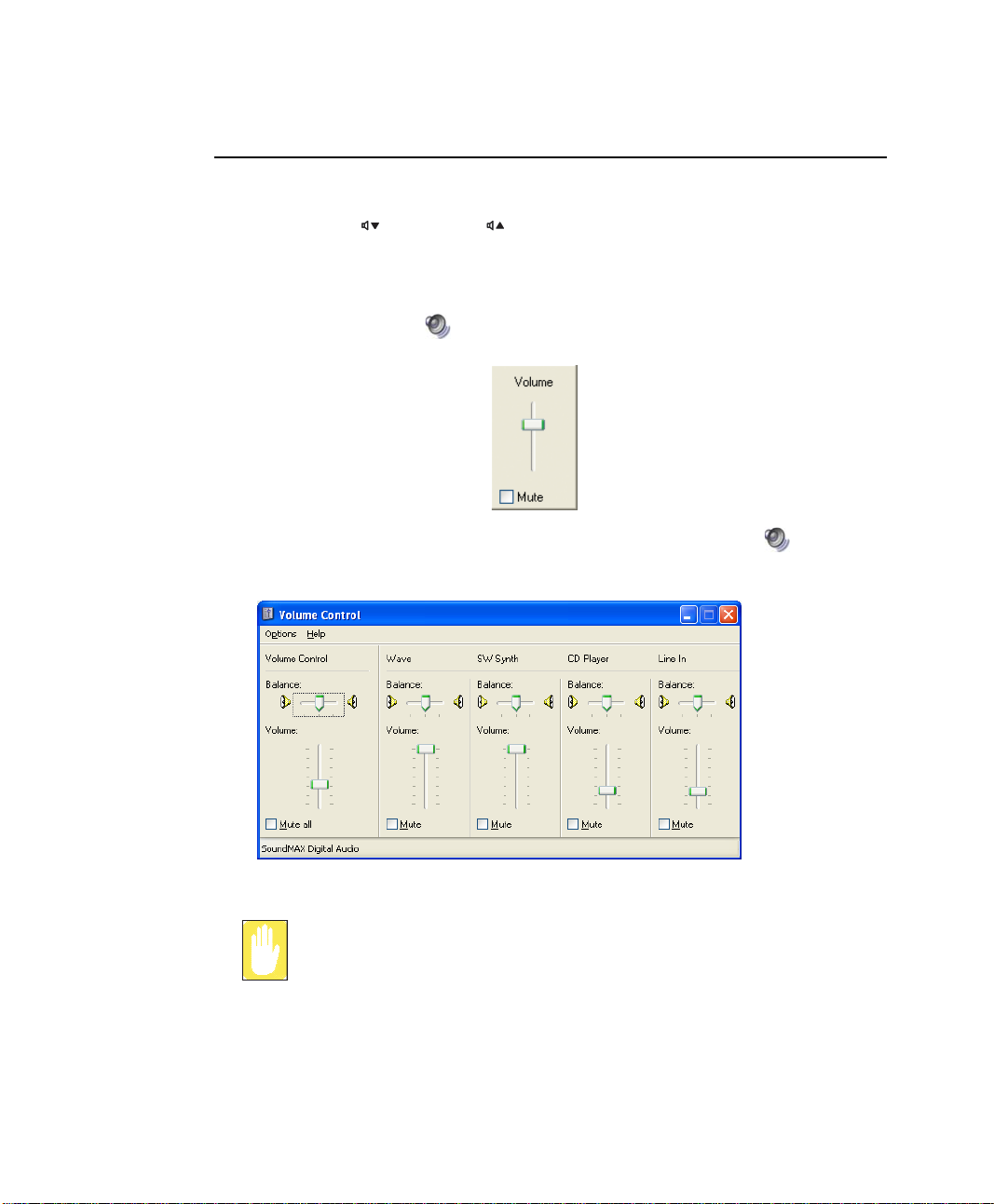

</> Volume Down Decreases the audio volume. </> Volume Up Increases the audio volume. </> Brightness Up Makes the LCD screen brighter. </> Brightness Down Ma kes the LCD screen dimmer.

change in some applications.

When you press a function key combination, the system sound may be temporarily muted.

12 Users Manual

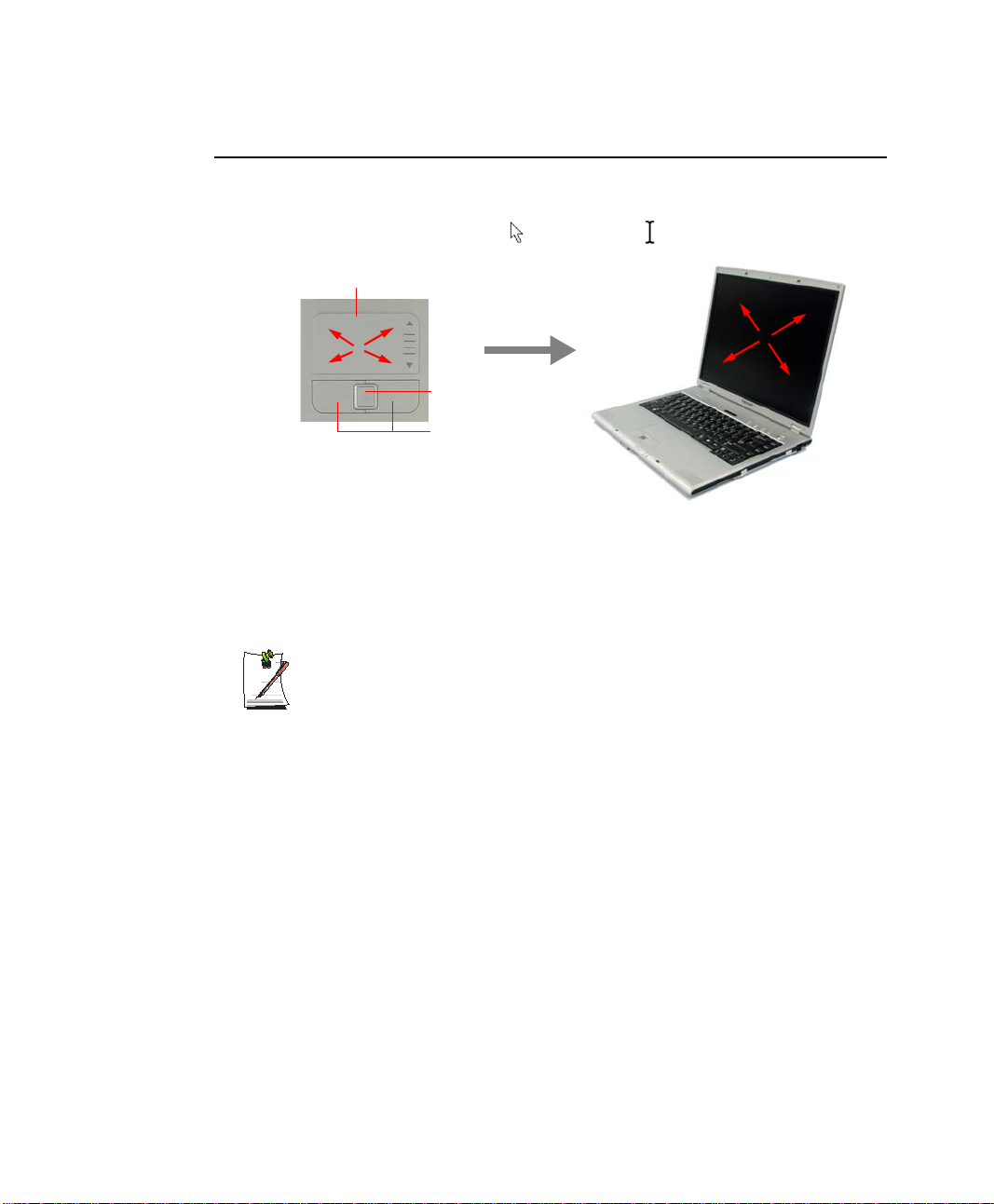

Using the Touchpad

In Windows, you always see a small graphical image on the screen that indicates the location where you can take the next action. This image is called a pointer, and is usually displayed in arrow shape ( ) or ‘I’ shape ( ).

Touchpad

Touchpad On/Off Buttons

Touchpad Buttons

The touchpad on your computer allows you to move the pointer on the LCD screen, just like a mouse that is used with a desktop computer. The touchpad buttons allow you to take actions with the pointer, such as selecting an item or executing a command.

Touchpad On/Off

You can disable the touchpad so that you can use only the keyboard and mouse. To disable the touchpad function, press the Touchpad On/Off button or press the <Fn>+<F9> keys.

A touchpad On/Off button is not provided for systems with fingerprint sensor.

Getting Started 13

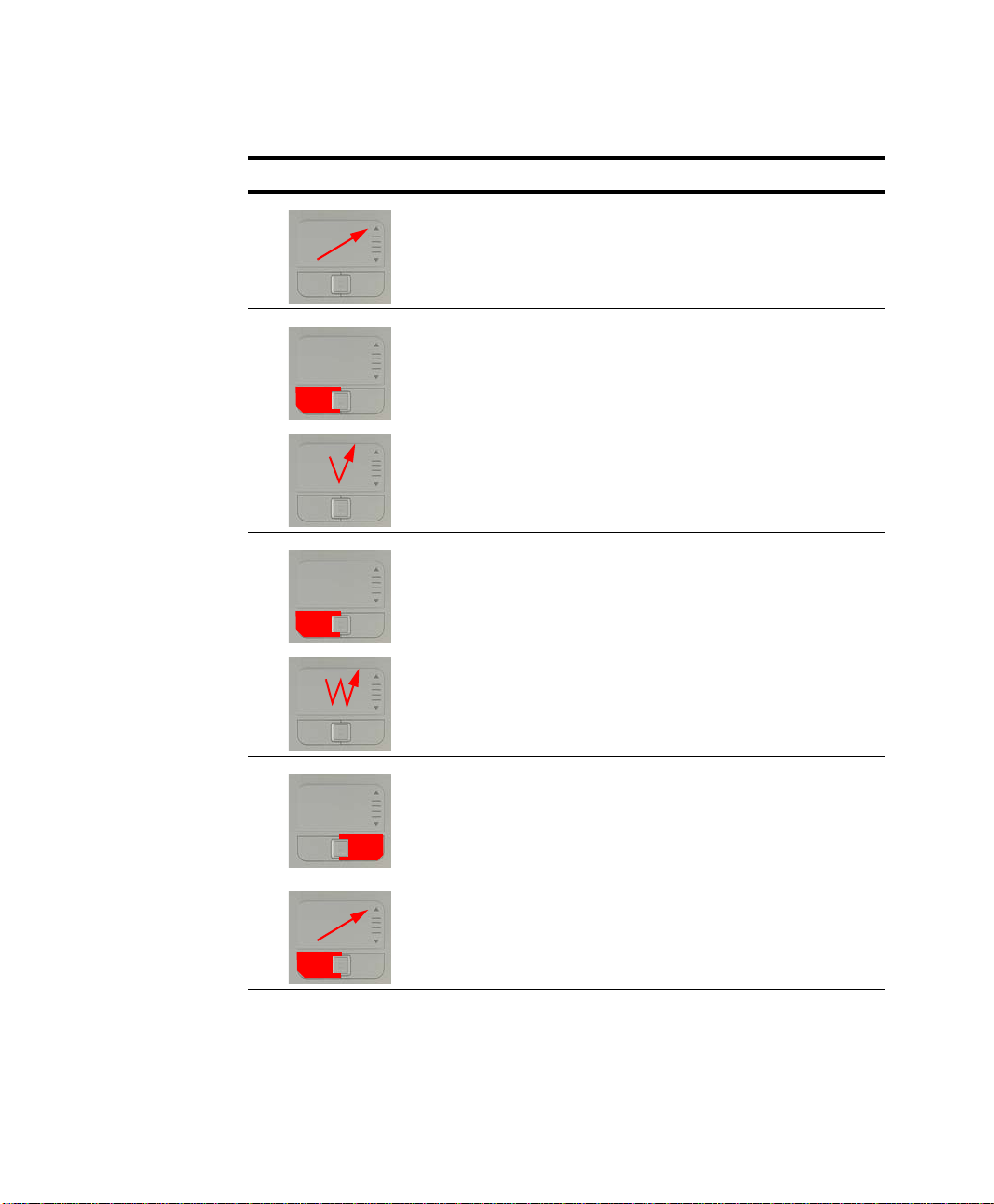

You can perform various actions with your touchpad as described below.

Action Function Process

Move Move the pointer Place your finger on the touchpad

and slide your finger to a destination.

Click Select an object, open a menu, or

Double-Click Launch a program or open a file Place the pointer over an object,

Right-Click Display a short cut menu Place the pointer over an object,

execute a button

Place the pointer over an object, then press left touchpad button once.

Or, place the pointer over an object, then tap the touchpad once with your finger.

then quickly press left touchpad button twice.

Or, place the pointer over an object, then quickly tap the touchpad twice with your finger.

then press right touchpad button once.

Drag

14 Users Manual

Move an object, or select an area or multiple objects

Drag and drop a part to the required place.

Action Function Process

Scroll Display upper/lower/left/right part

of the content within a window (Applicable to certain programs

only)

Place your finger on the right edge or bottom edge of the touchpad and move vertically or horizontally.

Please use the touchpad only with your finger. Using sharp devices may damage the touchpad.

Operating the touchpad or touchpad button while starting your system may increase the time required for starting Windows.

Getting Started 15

Hot Keys

AVStation now/AVStation now DVD button are provided for some models.

Num Name Function

2 AVStation Now

3 User 1 Button Launches a user defined program.

4 WLAN/Bluetooth

AVStation Now / Internet Button

DVD / E-mail Button

or User 2 Button

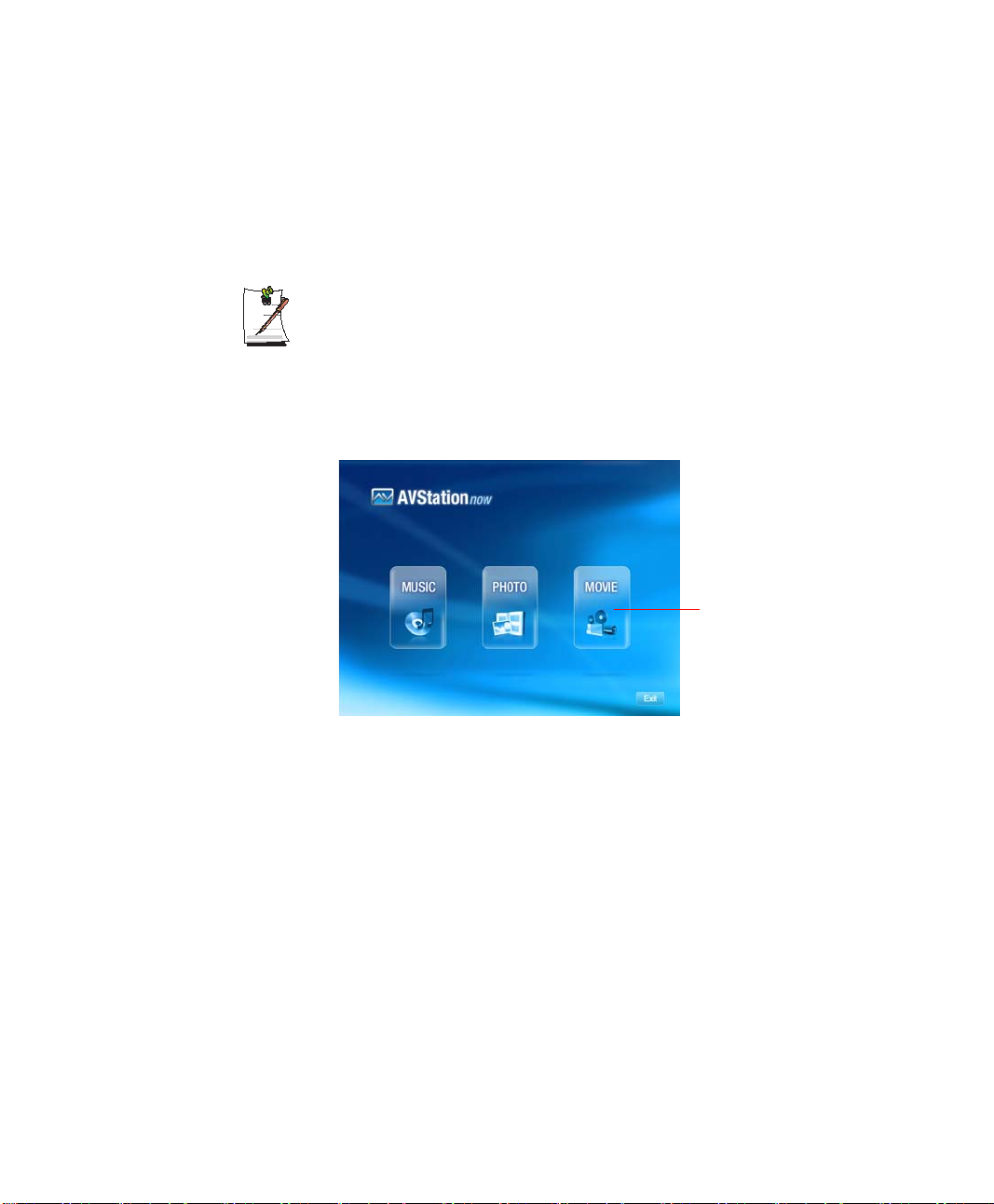

Pressing this button launches AVStation Now when the computer is turned off or is in Power Saving Mode (S4). (”Using AVStation now” (p57)).

Pressing this button launches AVStation Now to play a DVD or VCD in the optical disk drive (if available) when the computer is turned off, or is in Power Saving Mode (S4). (”Using AVStation now” (p57).). This launches Magic Internet Zaigen when the computer is turned on.

Turns on and off the wireless LAN/Bluetooth function for the models with wireless LAN/Bluetooth function. Launches a user defined program for the models without wireless LAN/ Bluetooth function.

About the Wireless LAN Button

Turning the wireless LAN on or off takes about 5 seconds. Pressing this button will not work for approx. 5 seconds after the last time the button was pushed.

16 Users Manual

Changing the Hot Key Setting

You can change the program that will be launched when you press a hot key. As default, Windows Calculator is configured to launch when you press the User 1 button. You can set the program by completing the following procedure.

1. Double-click the Magic Keyboard icon ( ) on the taskbar.

2. Select USER 1 and then click Browse.

3. Select the desired program in [Open] dialog box, and click Open. (Example: Paint)

4. Click OK to save the changes.

Getting Started 17

Reading the Status Indicators

Shows the operating status of the computer.

Num Lock Turns on when the numeric keypad is activated.

18 Users Manual

Caps Lock Turns on when all alphabet characters you type will be in upper case. Scroll Lock Turns on when it is set to scroll the screen up and down while the cursor

Hard disk drive Blinks when the hard disk drive is in operation. Battery Turned blue - when the battery is fully charged, or when the battery is not

Power Turned On - when the computer is turned on.

position does not change in some applications.

installed. Turns amber - when the battery is being charged. Blinks - when the battery is not properly installed.

Blinks - when the computer is in Standby mode.

Adjusting LCD Brightness

There are 8 levels of LCD brightness (1: Dimmest ~ 8: Brightest). Press <Fn>+< > or <Fn>+< > keys from the keyboard to adjust LCD brightness.

When changed, the current LCD brightness is displayed on the top left corner of the LCD screen for a few seconds.

Whenever you turn the system on or change the power source the brightness level changes according to the settings.

•

when operating on AC power: Brightness Level 8

•

when operating on battery power: Brightness Level 1

Maintaining your LCD brightness settings after turning the system off and on

1. Turn the system on. When the Samsung Logo appears, press the <F2> key to enter Setup.

2. In the Boot menu, change the Brightness Control Mode option to User Control.

3. Save the settings and exit Setup.

To save the battery charge

When your computer is operating on battery power, adjusting the LCD brightness level to dimmer diminishes the battery power consumption.

Bad pixels in the LCD

The limits of the LCD manufacturing technology allow a maximum of 10 abnormal or bad pixels, which do not affect system performance. This system may have the same level of abnormal or bad pixels as any other company’s products.

Maintenance Instructions

When cleaning the LCD panel, use only computer specific cleaners on a soft cloth, and lightly wipe in one direction.

Getting Started 19

Adjusting the Volume

To adjust using keyboard

Press <Fn>+< > or <Fn>+< > from the keyboard.

To adjust using volume adjustment program

Click the Volume icon( ) on the taskbar, and move the Volume slider to a desired level.

For advanced volume control options, double-click the Volume icon( ), and adjust the volume level in the volume control program.

20 Users Manual

When you turn the system on, a booting noise may occur.

Introducing Windows

Understanding the Desktop

The desktop is the working area on the computer. It consists of the large workspace and a taskbar at the bottom.

Shortcut

Icons

Start Menu

Start Button

Recycle Bin Language Bar

Start Button

Taskbar

Recycle Bin

Language Bar

Taskbar

Opens the Start menu.

Displays programs that are currently running. Frequently used icons can be placed here.

Deleted files or folders are sent here.

Switches text input language.

System Tray with Clock

Introducing Windows 21

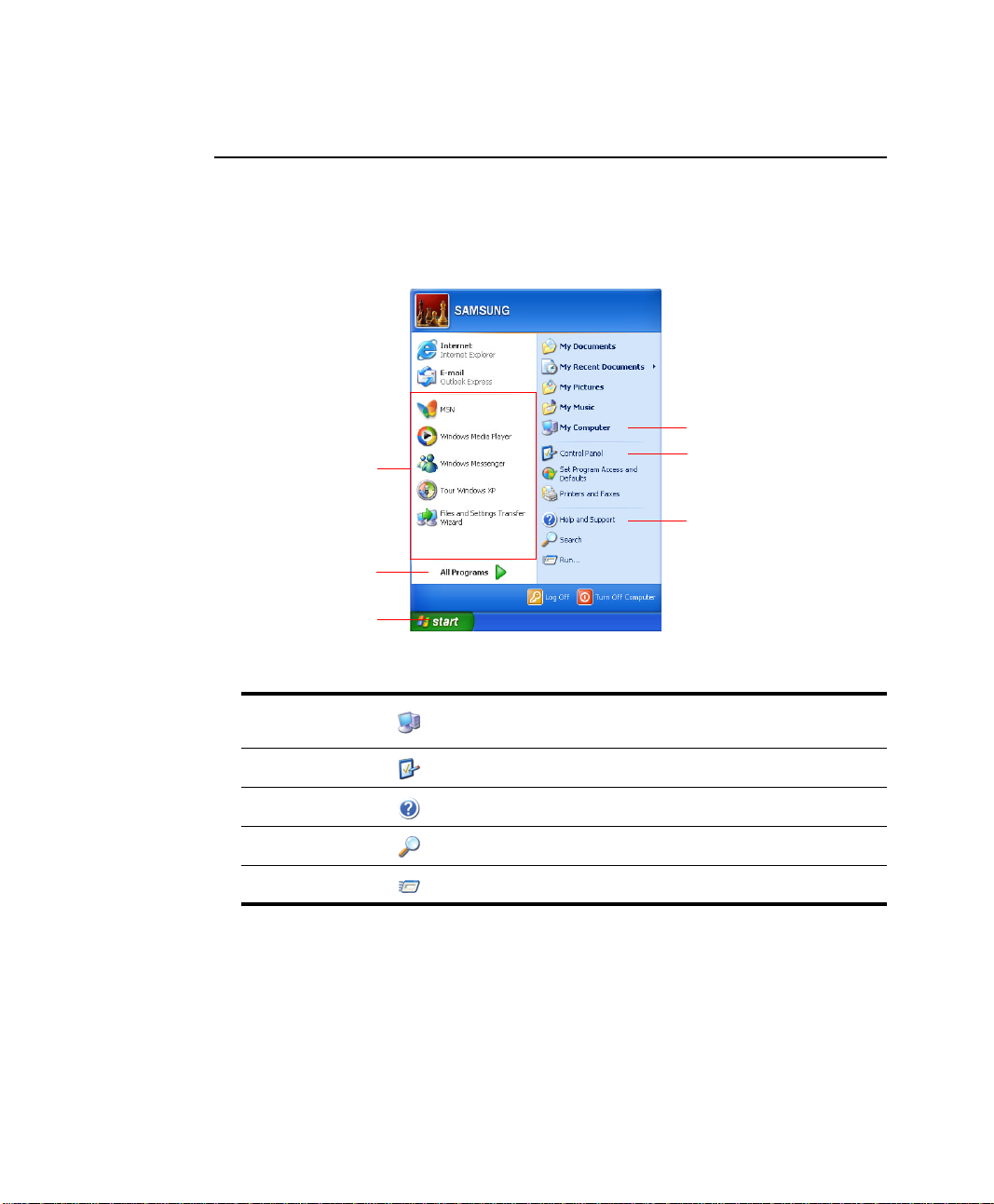

Understanding the Start Menu

The Start menu includes everything that is required to start Windows. From the Start menu it is possible to run a program, open a file, assign system users with Control Panel, receive support by clicking Help and Support, and search desired items from the computer or Internet by clicking Search.

My Computer

Frequently used programs

All Programs

Start Button

Control Panel

Help and Support

My Computer

Control Panel

Help and Support

Run

22 Users Manual

Displays the contents of the hard disk, the CD-ROM drive, the network drive(s), and floppy disks. It can also be used to search and open files and folders.

Enables users to configure settings on the computer.

Provides on-line help, information on Windows and troubleshooting.

Enables users to search for information in files or the Internet.

Run programs or documents.

Understanding a Window

A window is the basic component in working with the computer. The My Computer window, which is a window for the computer's hard drive, will be used as an example here to show the basic composition of a window.

Click Start > My Computer.

Title Bar

Menu Bar

Quick Task

Window

Double-click the hard drive (local disk) to view internal folders and files stored in it. If the contents do not appear, click Show the contents of this folder.

Folder Icon

Close Button Maximize Button

Minimize Button

Folders

Files

Double-click Shared Documents or Local Disk. You can see files and folders.

What is a drive?

A storage device in which files and folders are saved in, and read from.

What is a folder?

A folder is used to group and manage files systematically, and may include files in sub-folders. It is similar to a bookshelf.

What is a file?

A file is a document or various kinds of material that is generated as a result of program operation. It is also called data.

To view the entire structure of the drive

Click the Folder icon in the taskbar to view the entire structure. Click again to return to the Quick Task Window.

Introducing Windows 23

Help and Support Center

Help and Support Center provides references and troubleshooting information regarding computer use.

Click Start > Help and Support.

Windows XP Tour

You can tour elementary functions provided by Windows XP. Click Start > Tour Windows XP. Or click Start > All Programs > Accessories > Tour Windows XP.

Click on the topics to find out about important functions of Windows XP.

24 Users Manual

Using the Computer

Using the CD Drive

You have one of following drives installed in your computer.

DVD-ROM drive Reads a CD/DVD. CD-RW/DVD-ROM Combo drive Reads a CD/DVD and writes a CD. DVD Dual Drive Reads CD/DVD, and writes data to CD/DVD. Supports DVD-R, and

DVD Super Multi Drive Reads CD/DVDs and writes data to CD/DVDs. Supported DVD

A CD-ROM drive is optional. For more detailed product specifications, refer to the product catalog.

To insert a CD

1. Press the eject button on right side of the CD drive.

2. When the tray slides out, place a CD onto the tray with the label facing up, and

push the CD down until it clicks.

DVD-RW only for the DVD recording format.

types include DVD ± R, DVD ± RW and DVD-RAM.

3. Push the tray in gently until it clicks.

Emergency Eject Hole

Eject Button CD Access LED

Using the Computer 25

To eject a CD

1. Stop any process that accesses the CD drive and ensure the CD access LED is

turned off.

2. Press the eject button on right side of the CD drive.

3. When the tray slides out, remove the CD from the tray.

4. Push the tray in gently until it clicks.

If you remove the CD when the CD access LED is on, the disk and the data in it may be damaged.

Emergency Eject Hole

To eject a CD when the CD drive is not working or the computer is turned off, unfold a paperclip, and insert the unfolded end of the clip into the emergency eject hole (located next to the eject button) and press until the CD tray opens.

To clean a CD or DVD title

Clean the disc with a soft clean cloth by wiping from the center outwards.

To play a DVD

You have to install the DVD software provided on a separate CD to view a DVD title.

26 Users Manual

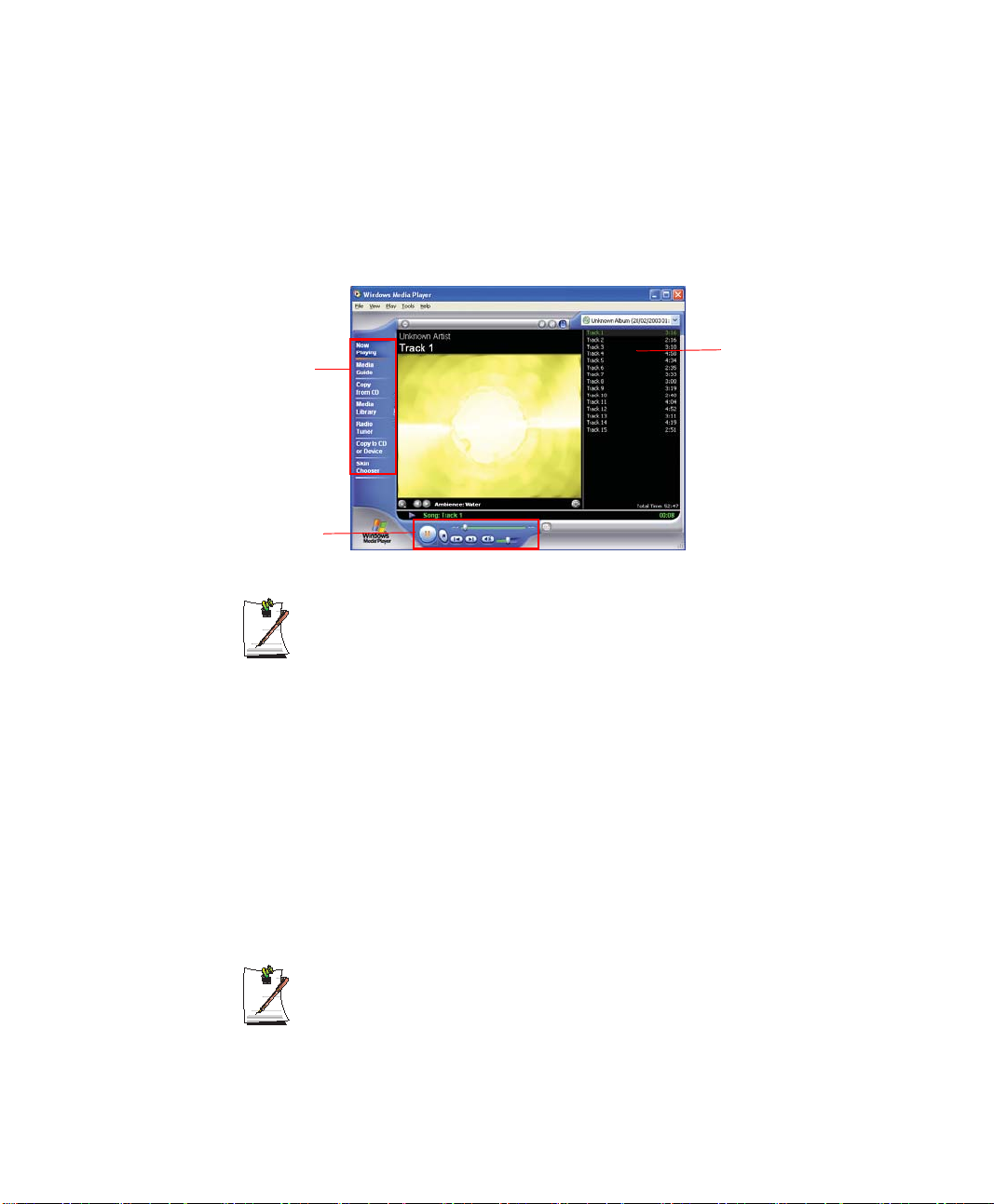

To use the Windows Media Player

The Windows Media Player allows you to play audio and video files from the computer or the Internet.

To launch the Windows Media Player, click Start > All Programs > Accessories > Entertainment > Windows Media Player.

Features

Playback Control Area

Windows Media Player tour

For more information about using the Windows Media Player, run the Windows Media Player and click Help > Help Item.

Playlist

To play a video CD

If a video CD does not run automatically, follow these steps.

1. Insert a video CD into the CD drive.

2. When the CD drive window appears, double-click the MPEGAV folder.

3. Double-click the .dat file.

4. When the [Caution] dialog appears, click Open With.

5. Select “Select the program from a list” and click OK.

6. Select the Windows Media Player, and click OK. The video starts playing.

Above procedure applies only to the video CDs that has a .dat file as the execution file. Playing procedure may be different according to video CDs.

Using the Computer 27

To write data on a CD (Option)

If your computer has CD-RW functionality, you can copy data to a blank CD or create an audio CD.

An additional CD writing program is supplied in an additional CD.

You cannot write to a CD that already has data in it.

1. Insert a blank CD into the CD drive.

2. On the [CD Drive] dialog, select Open Writable CD Folder and click OK. The

CD drive window appears.

3. Click Start > My Computer.

4. In My Computer window, select files and folders to copy, then drag and drop them

onto the CD drive window.

My Computer window

5. Click Write these files to CD in the CD drive window.

28 Users Manual

4. Drag and drop folders or files to copy.

5. Click Write these files to CD.

CD drive window

6. When the CD Writing Wizard appears, enter the CD label, and click Next. The

data begins copying.

7. When copying is completed, a ‘completed’ message appears and the CD drive

window opens automatically.

For more information on writing CDs

Click Start > Help and Support. Type “CD copy” in the search field, and click the Search icon ( ).

For more information on creating an audio CD

Run the Windows Media Player program, click the Help > Help Item. Click Using Windows Media Player > Using CDs > Creating your own CDs > To create your own CD.

Using the Computer 29

Enjoying Home Theater (S/PDIF Port)

Your computer supports 5.1 channel output, which is a basic function for home theater systems, and DVD drives. It provides 3D surrounding sound and vivid screen.

What is a home theater system?

Home theater system usually consists of a TV, DVD, 5.1 channel speaker, and digital amp and provides a high-resolution screen (MPEG2) and 3D surrounding sound (Dolby 5.1 or DTS). With a home theater system, you can enjoy a vivid screen and sound in your home as if you are in a movie theater.

The following devices are required to enjoy a home theater system.

5.1 channel speaker system (amplifier, speakers, connection cables) Purchased separately DVD drive and DVD playing program on the computer Optional DVD title that supports 5.1 channel Purchased separately

To use home theater system, complete the following procedures:

•

Step 1. Connect 5.1 channel speaker system to your computer.

•

Step 2. Configure digital sound output on the computer.

•

Step 3. Enable S/PDIF output on the DVD program.

30 Users Manual

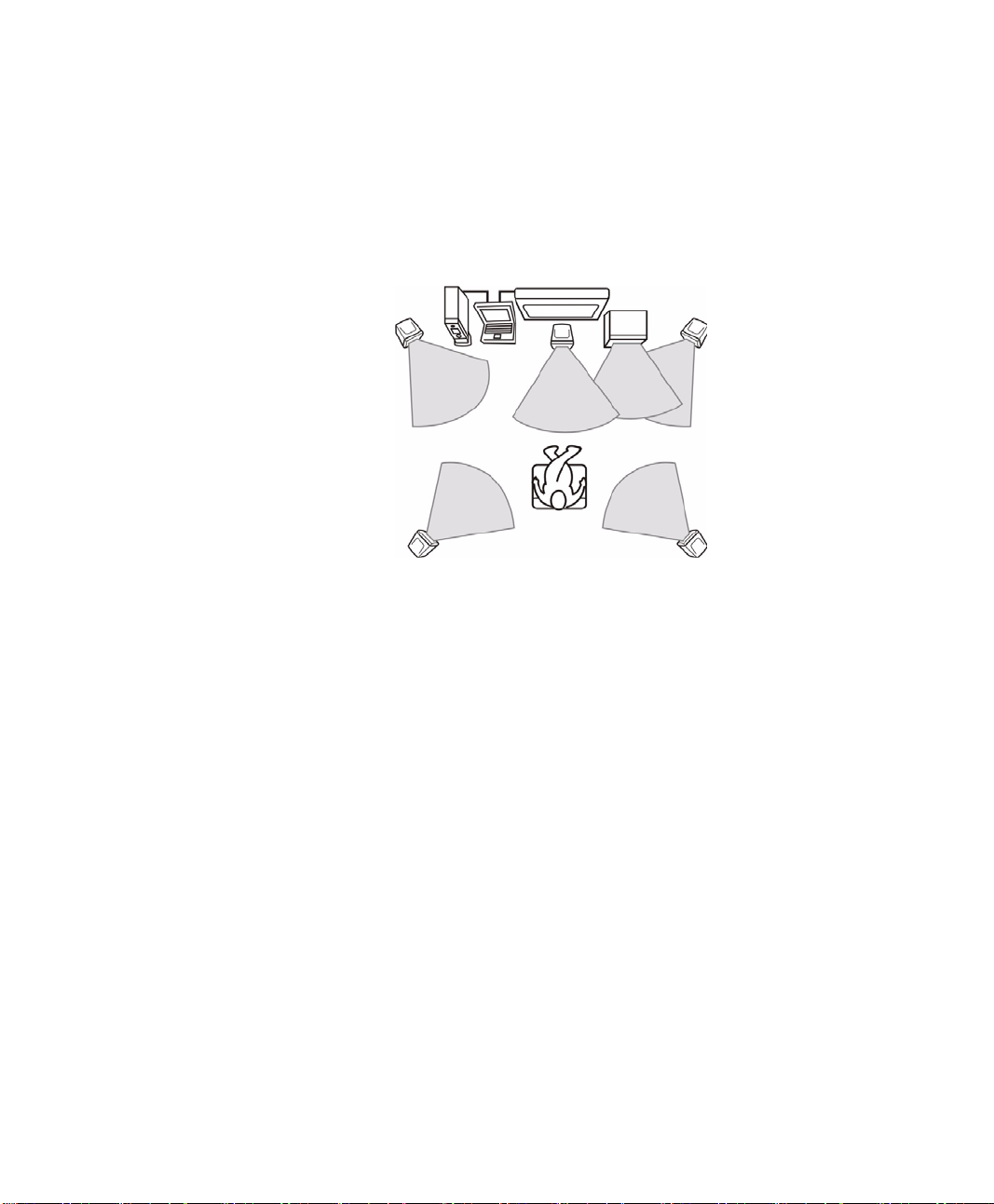

Step 1. Connect 5.1 channel speaker system to your computer

1. Connect the S/PDIF jack of the system and a 5.1 channel amplifier.

2. Connect speakers to the amplifier. (Refer to speaker’s manual.

3. To view through a TV, connect the TV and change the current display device to

TV in the Display Properties. (See ‘P. 6-8 Connecting to a TV’.)

Digital Amplifier

Front Left Speaker

Surround Left Speaker Surround Right Speaker

Computer

Center

Speaker

Sub

Woofer

Front Right Speaker

Step 2. Configure digital sound output on the computer

1. Click Start > Control Panel > Sounds, Speech and Audio Devices > Sounds and Audio Devices.

2. In the Device volume field on the Volume tab, click Advanced.

3. In the [Master Volume] dialog, click Option > Advanced Controls. Then Advanced button is displayed on the bottom of the dialog.

4. Click Advanced, select “AC3 SPDIF”, then click Close.

Using the Computer 31

Step 3. Enable S/PDIF output on the DVD program

To use 5.1 channel speakers, you need to install the Power DVD program from the DVD Installation CD provided with your computer, then change the settings as per the following.

1. Run Power DVD program and click the Settings icon ( ).

2. On the Audio tab, set the Audio Output setting to “Use SPDIF” and click OK.

Now, you can enjoy home theater using DVD titles.

32 Users Manual

To control volume for your 5.1 channel speaker, use the control on the digital amp. (Please refer to the speaker manual.)

Using Memory Card Slot

You can use a Memory Stick (or Memory Stick Pro) and a SD (Secure Digital) card using the memory card slot. You can use the Memory Stick and the SD card as removable disks and can use them to transfer data between your computer and any digital equipment such as a digital camera..

Memory Stick

Restrictions when Using Memory Sticks / SD Cards

You can use Memory Stick, SD Memory Card and Memory Stick Pro for storing data only. Copyright protection function is not supported.

Memory Stick

To insert and use a memory card

You should insert the memory card upside down.

Inserting wrong side up may cause damage in the memory card and the computer.

SD (Secure Digital) Memory Card

Using the Computer 33

1. Insert the memory card into the memory card slot.

2. Click Start > My Computer. The inserted memory card is displayed.

Memory Stick SD Card

3. You can write data to the memory card. If the memory card is not formatted yet, format the memory card before use.

Since the memory card may be easily mislaid when moving your computer, keep the memory card separately.

To remove a memory card

1. Press the end of the memory card softly to pop it outward.

2. Remove the memory card.

34 Users Manual

To format a memory card

You can use a memory card after the format operation. The procedures to format a memory card are described below.

Since format operation deletes all data in the memory card, please make sure that there is no important data in the memory card before formatting.

To protect the data in the memory card

Set the write protection tab of the Memory Stick or SD memory card to the Lock position.

1. Click Start > My computer.

2. Press the right touchpad button on the memory card drive, and select Format from

the pop-up menu.

3. Click Start to start the format operation.

To use a memory card in both the computer and other digital device such as digital camera, it is recommended to format the memory card in the digital device. If you format the memory card in the computer, you may have to format the memory card in other digital device again to use the memory card in the digital device.

To use a Memory Stick Duo

Insert a Memory Stick Duo into the Memory Stick Duo adapter and insert the adapter into the Memory Stick slot of the computer.

Using the Computer 35

Using the PCMCIA Card Slot

Various different functions can be added by inserting PCMCIA cards into the system. This system supports 16/32 bit, type I or II PCMCIA card types.

The PCMCIA card slot does not support a ZV card or a PCMCIA III card.

To insert a PCMCIA card

Before using the PCMCIA slot, remove the slot protector.

Push the eject button of the PCMCIA card slot once to pop it out. Push the button again to eject the slot protector.

1. Insert a PCMCIA card into the PCMCIA card slot on the side of the computer.

Ensure that the PCMCIA card is inserted the correct way, as incorrect insertion will damage the PCMCIA card slot.

2. Windows automatically installs the necessary driver for the card. If there is no

36 Users Manual

Eject Button

available driver found by Windows, you have to install the driver using a disk supplied with the card.

To remove a PCMCIA card

1. Double-click Safely Removes Hardware icon ( ) on the taskbar.

2. On the [Safely Remove Hardware] dialog box, select the appropriate PCMCIA card and click Stop.

3. When [Stop a Hardware Device] dialog box appears, click OK.

4. Click Close to close the [Safely Remove Hardware] dialog box.

5. Push eject button of the PCMCIA card slot once, and the button pops out.

6. Push the button again to eject the PCMCIA card.

Using the Computer 37

Using EasyBox

Use EasyBox program to make use of Windows' complicated function easily and conveniently.

Learn about EasyBox

Double-click the EasyBox( ) icon on the desktop. (Or select Start > All Programs > Samsung > EasyBox > EasyBox.)

38 Users Manual

•

System: System management features are available, including disk defragmenter, removing unnecessary files/folders, computer scheduling and system recovery.

•

BIOS: In windows-based mode, you can recover the BIOS defaults and change the boot sequence.

•

Desktop: Desktop management features include changing the font size, executing a magnifier function, the start menu settings and managing the quick launch icons on the taskbar.

•

Security: Here you can configure the security settings supported by Windows XP SP2. And you can change the configuration of the firewall settings, Windows automatic updates and blocking pop-ups when connected to the Internet.

•

Plus Tip: This is a collection of additional Windows functions that are useful for system management. (Offering shortcut descriptions of Windows, configuring network sharing and opening local folder sharing, etc.)

Using EasyBox

Security management function will be used as an example here to show the function of Easybox

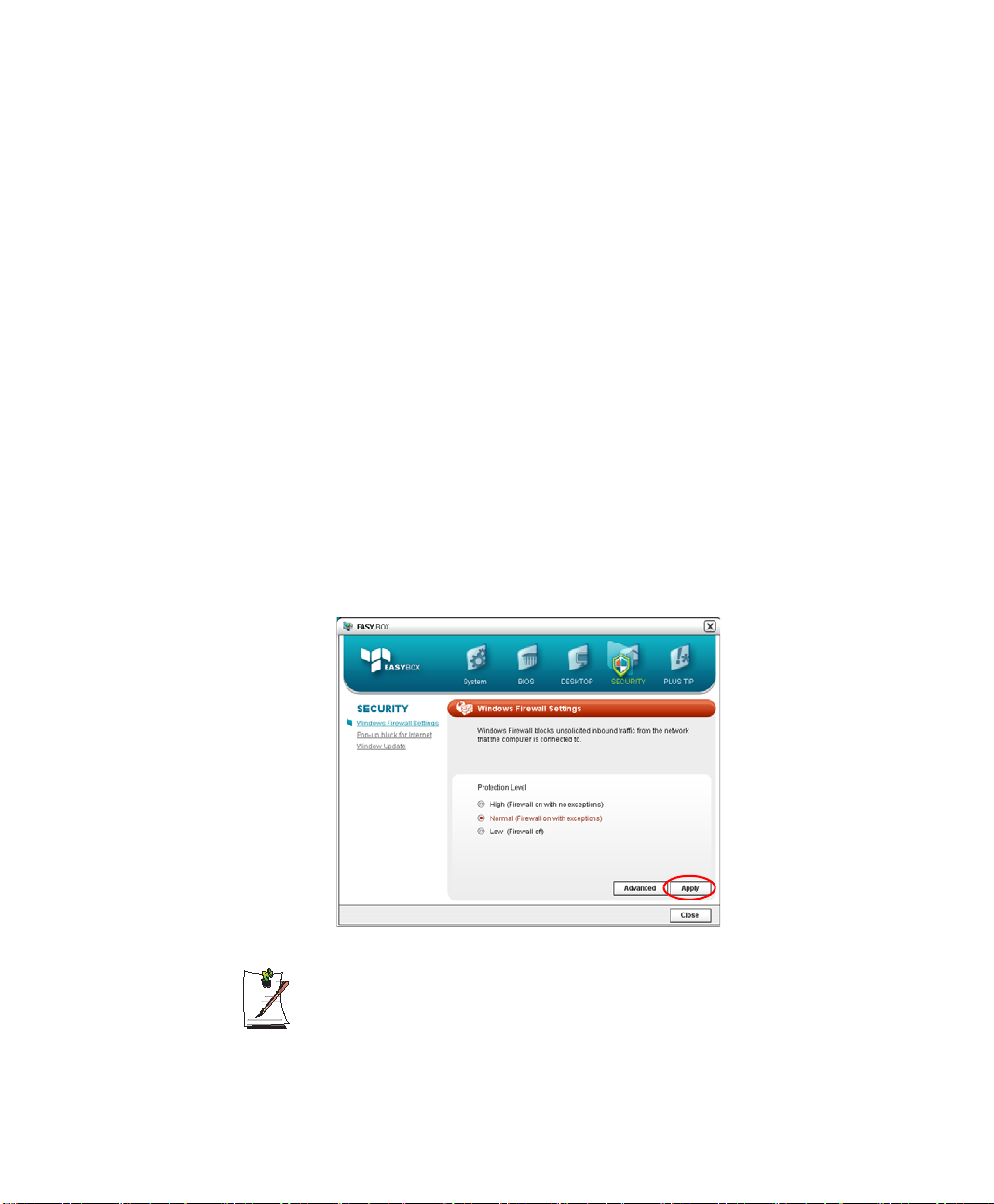

Configuring Firewall

The Windows Firewall prevents unauthorized users from gaining access to your system via the network or the Internet.

1. Click Start > All Programs > Samsung > EasyBox > EasyBox.

2. Click Security from the top menu bar.

3. Select Windows Firewall Settings from the Security menu on the left.

4. Select a firewall level.

5. Click Apply.

Click the User Setting button for advanced features, including exceptions and permissions.

Using the Computer 39

Using Samsung Smart Screen

Use Samsung Smart Screen program to arrange desktop icons as desired and manage them effectively.

1. Click Start > All Programs > Samsung > Samsung Smart Screen.

When you launch Samsung Smart Screen for the first time, a dialog box asking whether to register the program as a start program or not appears. If you select OK, the program is automatically launched when you start your computer.

2. Samsung Smart Screen appears. When you run the program for the first time, water drop image is displayed.

Click a water drop to open and close the group.

3. To move an icon, click a water drop to open it, then drag an icon to another water

40 Users Manual

drop.

To return to Windows desktop

Right-click on Samsung Smart Screen and click Windows desktop. Windows desktop is displayed.

To return to Samsung Smart Screen, double-click ( ) icon on the taskbar.

To change background or skin

Right-click on Samsung Smart Screen and select desired item.

Using Samsung Theme

Samsung Theme is a program that enables a user to easily switch a theme (desktop, logon screen and sound effect).

Double-click the Samsung Theme ( ) icon on the desktop. (Or select Start > All Programs > Samsung > Samsung Theme > Samsung

Theme.)

Close button Help button

Move the mouse pointer over Samsung Theme item, then the Samsung Theme will be disp l a ye d below.

•

Samsung Theme: Switches to Samsung Theme (desktop, logon screen and sound effects on booting).

•

Windows XP Theme: Switches to the Windows XP default Theme.

•

Back: Restores the theme to its previous status.

Using the Computer 41

Using Samsung Update Plus

Samsung Update Plus is software that examines and updates Samsung software and drivers installed on your Samsung computer to the latest version. To use Samsung Update Plus, your computer has to be connected to the Internet.

To Update Samsung Software and Drivers

1. Select Start > All Programs > Samsung > Samsung Update Plus > Samsung Update Plus.

If this is the first time you are running the program, a window will appear asking you if you agree to the agreement in the window. Click Agree to use this software.

2. Click Search for and Install Updates and click the Search for New Updates button.

3. If there are available software or driver updates for your computer, the available

(The update list on the screen may differ depending on the computer model.)

42 Users Manual

updates will be listed. Select the required updates from the list and click Install Update to start the update.

Updates that must be installed separately. If you select Install as an update item that must be installed separately, a

message appears informing you of this. Follow the instruction message to correctly install it.

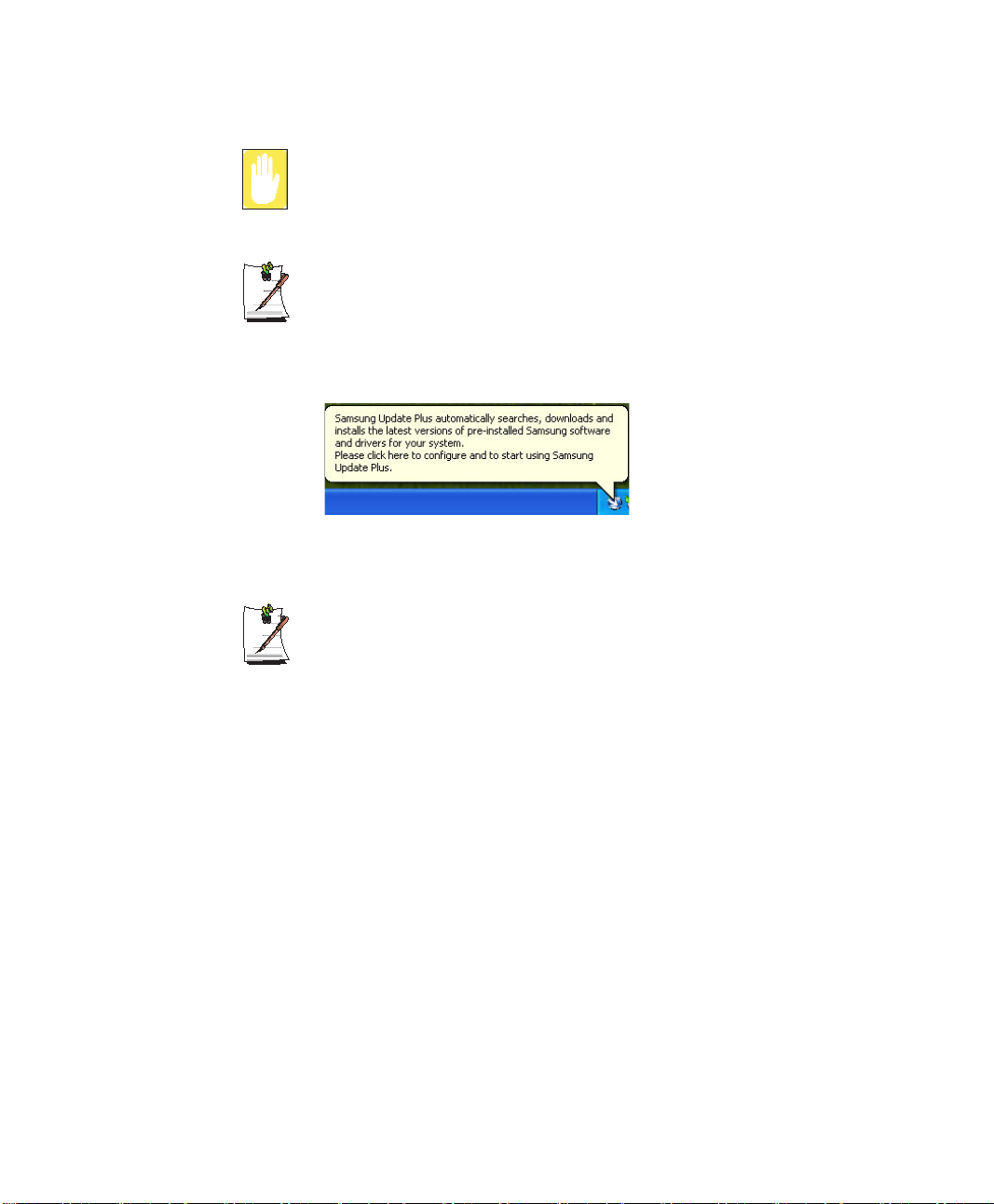

Automatic update items display By default, your computer is configured to automatically search for updates. If

there is a new update available, this is notified in the notification area. Click the balloon help icon in the notification area. Here you will be able to find the latest available updates.

To change the automatic update settings, click the Configuration button in Figure 2 and change the settings.

Samsung Update Plus does not provide updates for additionally installed software and device drivers.

Using the Computer 43

Using AVStation premium

AVStation premium is provided for some models.

AVStation premium is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music.

Select Start > All Programs > Samsung > AVStation premium > AVStation

premium.

(Alternatively, double-click the the Notification Area.)

Using AVStation Premium

AVStation Premium Modes

AVStation premium

( ) icon on the Desktop or in

44 Users Manual

Standard mode Screen

•

Standard Mode : You can use all AVStation premium functions.

•

Play Mode : This provides an easier-to-use user interface than that of Standard mode. In this mode, the Edit/Create function and the MOVIE EDITOR menu are not supported (p 54)

Play Mode Screen

- This Manual mainly describes the procedures for using the Sta ndard mode of AVStation premium.

- The captured program screen shots in this manual may differ slightly from the actual software depending on the version of the program.

- For more detailed use procedures, refer to the on-line Help.

AVStation Premium Screen Layout and Menus

Menu Bar

Category Windowr

AVStation Premium Standard mode consists of the following 4 menus.

•

Menu Selection Bar

Library Window

MUSIC : Using this menu, you can play music files or audio CDs, copy audio CDs to the computer as well as burn audio CDs.

PHOTO : Using this menu, you can view or edit pictures (image), view pictures through a Slide Show, create an album and burn an album onto a CD.

MOVIE : Using this menu, you can play a video (movie) file or a DVD/VCD title. (You can only play a DVD title after installing Power DVD or a DVD player program.)

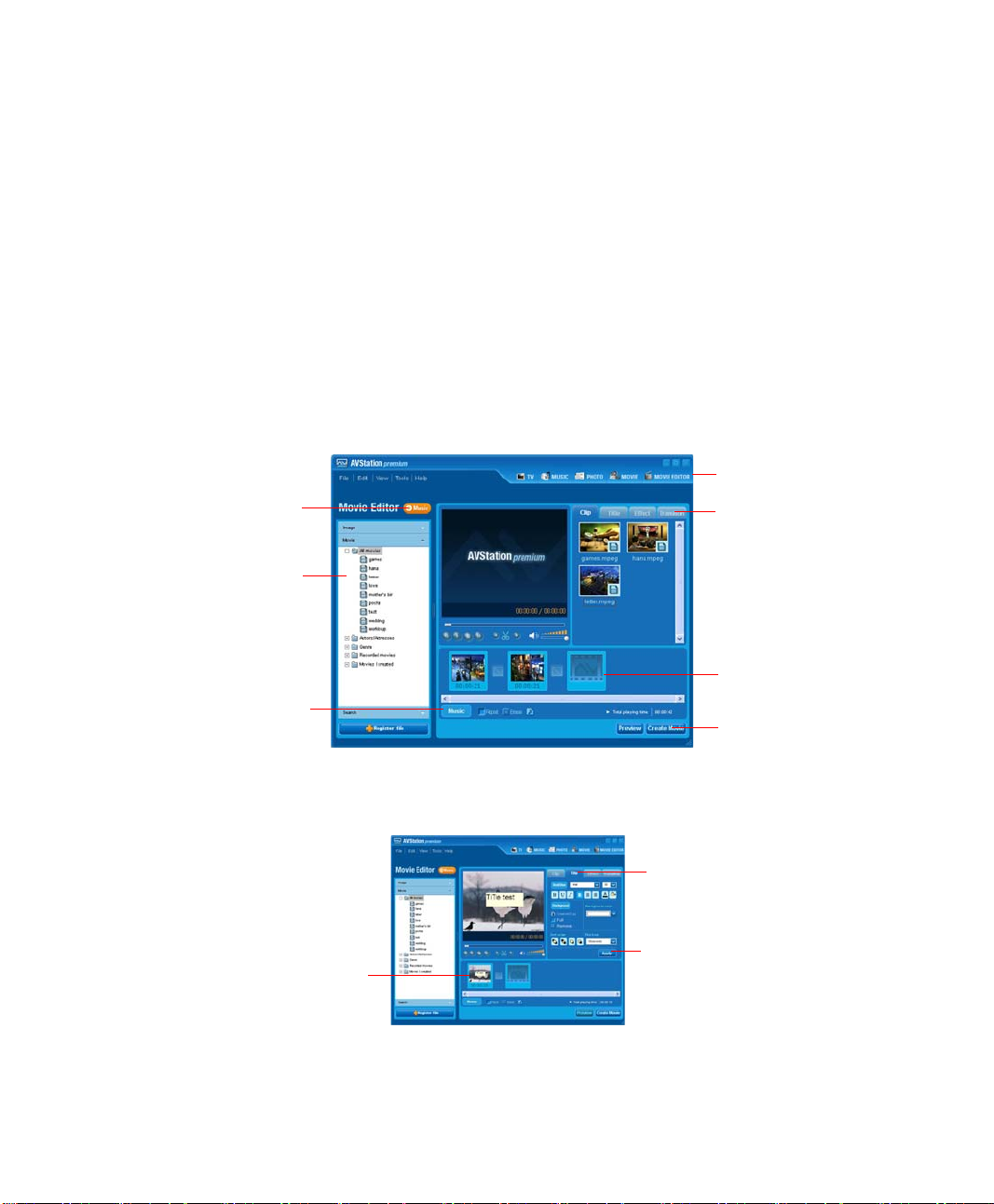

MOVIE EDITOR : Using this menu, you can edit a movie file.

- To handle multimedia files conveniently, register the multimedia files to the library. (”Registering a File” (p53))

- To access a file not registered to the library, select File > Open File and select the file.

Using the Computer 45

Selecting the AVStation Premium Menus

To select a menu, select the required menu from the

Menu Selection Bar

MUSIC

This section describes the procedures to play music files or audio CDs, to copy audio CDs to the computer as well as burn audio CDs.

Select MUSIC from the Menu Selection Bar.

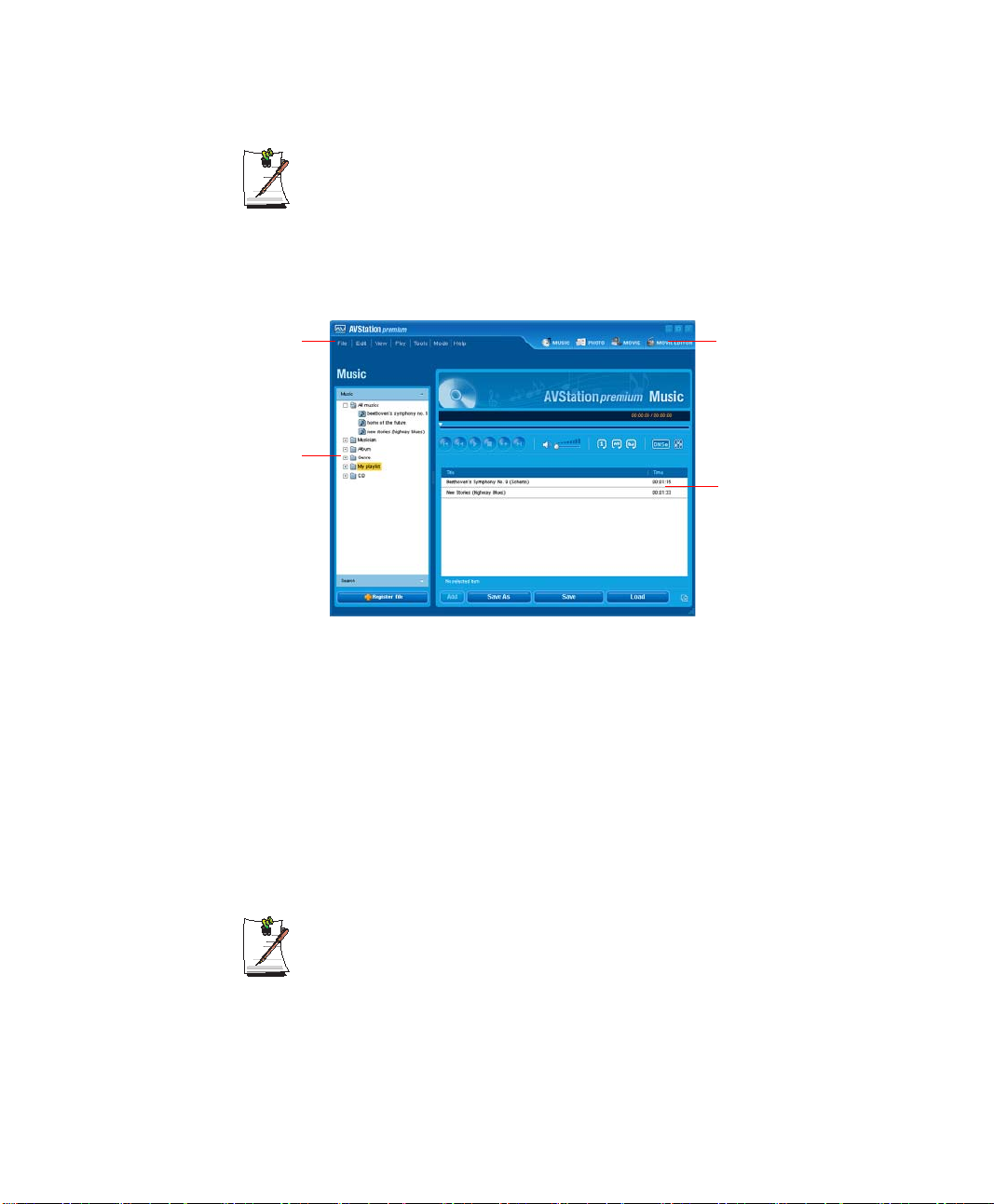

Playing a Music File

MUSIC Menu

Music Category

Media Play Control

Button

Add Music

Double-click Music in the

2. Double-click the music file that appears at the bottom screen to play it.

- To play multiple music files, select the music files and click on Add. The music files will be played in the added order.

Playing an Audio CD

Insert an

When the click OK.

- To play an audio CD in the CD-ROM drive, double-click CD from the Category and double-click on

left category pane and double-click

audio CD into the CD-ROM drive.

Audio CD window appears, select using

Then the audio CD is played.

Audio CD when Audio CD appears in the bottom screen.

Repeat Button

Track, All Tracks, Random

Library Window

on All musics.

Samsung AVStation premium and

46 Users Manual

Audio CD window

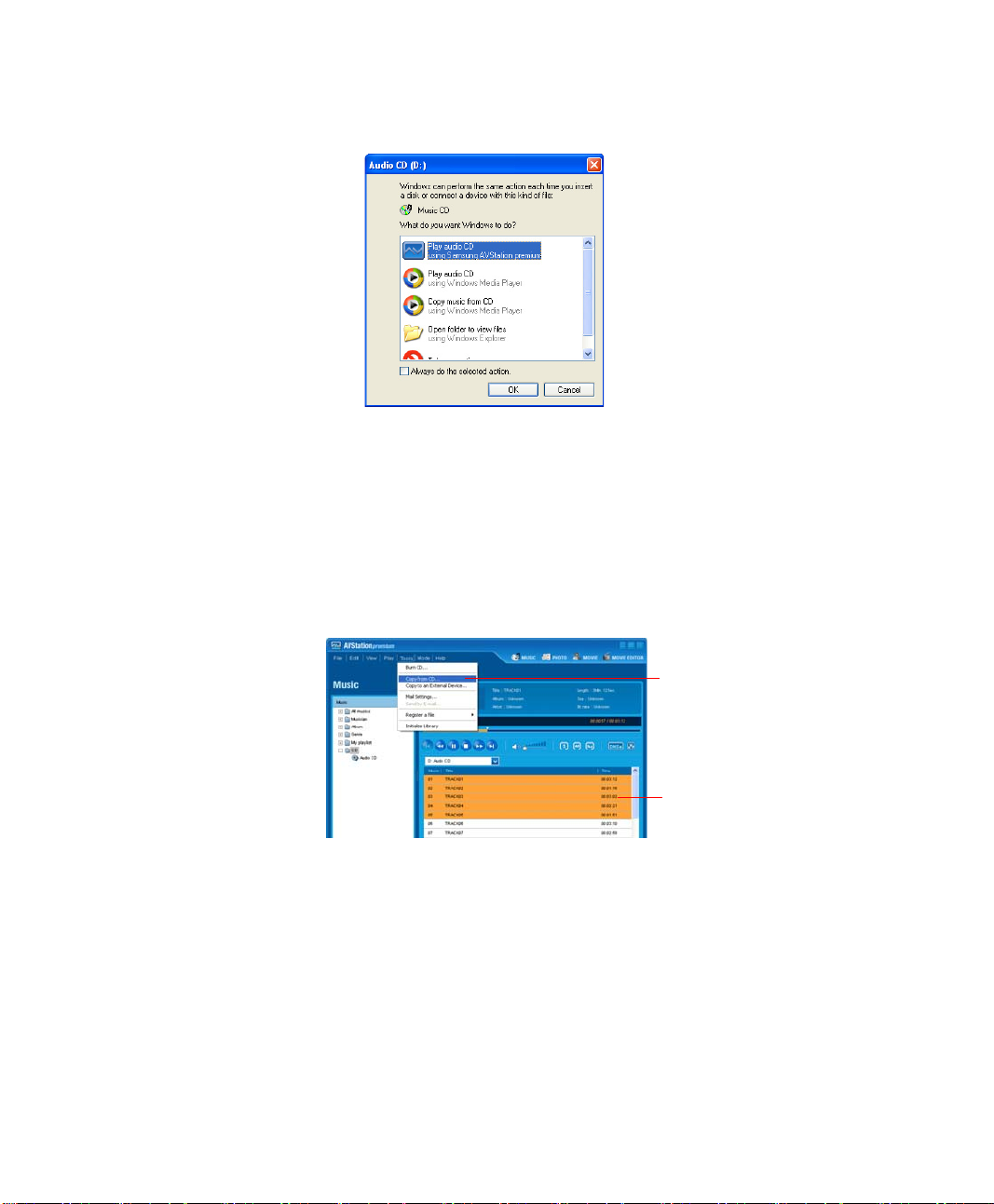

Copying an audio CD to the Computer

Insert an

When the click OK.

Select a track to be copied to the

- To select multiple tracks, select the tracks while pressing the Shift or Ctrl key on the keyboard.

4. The selected tracks are copied from the audio CD. When the copy operation is completed, the Copy Completed message will appear. The copied tracks are saved in the My Documents > AVStation Premium > Music > Music From CD folder.

audio CD into the CD-ROM drive.

Audio CD window appears, select using

library and then select

Samsung AVStation premium and

Tools > Copy from CD.

Select Copy from CD

Select the tracks to be copied.

Using the Computer 47

Burning an Audio CD

Insert a

blank CD into the CD-ROM drive. When the

click C

ancel

CD Drive

window appears,

2. Select Tools > Burn CD.

Select Burn CD

3. Select Burn Audio CD and click Next.

Double-click Music in the

Select

music files from the list and click the A

list ( )

button to move the selected files to the right

left title and double-click

dd files from my PC to the CD burning

All musics.

Burn Audio CD

window.

When you have added all music files, click Next.

Select a

CD Writer and click on

Start. When the

Burn CD window appears, click OK

to create the audio CD.

Creating a Playlist

A Playlist is a list of selected music files that has been created by a user so that the selected files can be played later.

Select the music files to be included in the Playlist from the

Add.

When you have added all the

music files you want, click on Save As Playlist.

3. Register a new playlist name, and click OK.

When the

completion message appears, click OK. The created Playlist is saved in C:\Program Files\Sam s ung\AVStation Premium\My Playlist folder.

music category and click on

48 Users Manual

Playing a Playlist

1. Click on Load Playlist at the bottom of the Library window

2. Select a Playlist and click OK to start the playback.


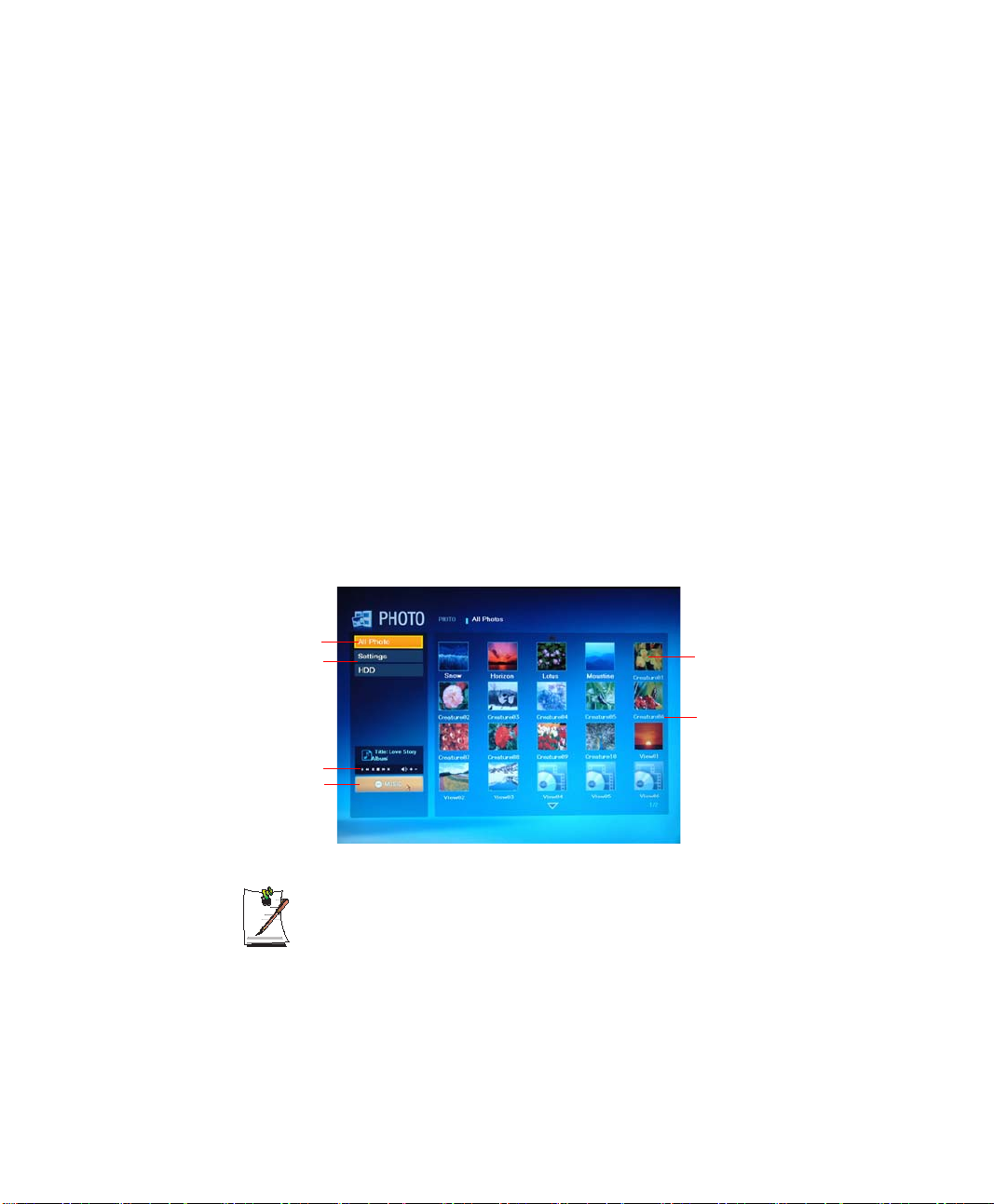

This section describes the procedures to view pictures (images), to view pictures through a Slide Show, to edit a picture, to create an album, and to burn an album onto a CD.

Click

on PHOTO in the

Viewing and Editing a Picture

1. Double-click on Image

The image files are displayed in the

double-click the image file.

Menu Selection Bar.

in the

left category pane and double-click on

right Image window. To zoom-in on an image,

All Images.

You can listen to the

music files in My Playlist

⊕ MUSIC

or All musics while

editing an image.

Image Category

PHOTO Menu

Image Window

Library Window

Viewing the Image List

Select View Image List from the menu at the bottom of the zoomed image screen.

Viewing an Image through the Slide Show or Full Screen

Select Slide Show or Full Scree n from the menu at the bottom of the zoomedin on image screen.

Editing an Image

1. Select an image to edit and select the Edit Image tab.

2. Edit the image using the Shape/Edit/Effect tool and click on Save or Save

Copy.

Using the Computer 49

Creating an Album

1. Select the Create Album tab.

Select an

cover.

Enter the

next page).

- To insert an image, drag and drop a file from the Category into the Image box.

Drag & Drop an

Image File into the

Image Box.

album cover style and click Apply to apply the selected style to the album

title and contents of the album, insert an image and then click (Move to

Create Album Tab

Enter the Title and Contents of the Album

Slide Show Button

Burning an Album onto a CD

1. Double-click on the album to be burnt to CD in the left Album category.

50 Users Manual

Move to next page Button

Save Button

Select an image file from the

All images category on the left and drag and drop the

file to the album on the right of the screen. Enter text to be added.

When creating an

The created album is saved in the

Photo Album

- To view an on Album. Click on

album is complete, click on S

My Documents > AVStation Premium > Photo >

ave to create the

album.

folder and will be displayed in the Album category.

album, double-click on Image in the

Slide Show in the I

mage window to view the images within the

left category pane and double-click

album through the Slide Show.

Insert a blank CD into the

on C

ancel

Select Send > Burn CD from the menu at the bottom of the A Enter the CD title in the

CD-RW drive. When the

CD Drive

Burn a CD window and then click

window appears, click

lbum window.

OK to burn a CD with the

album.

MOVIE

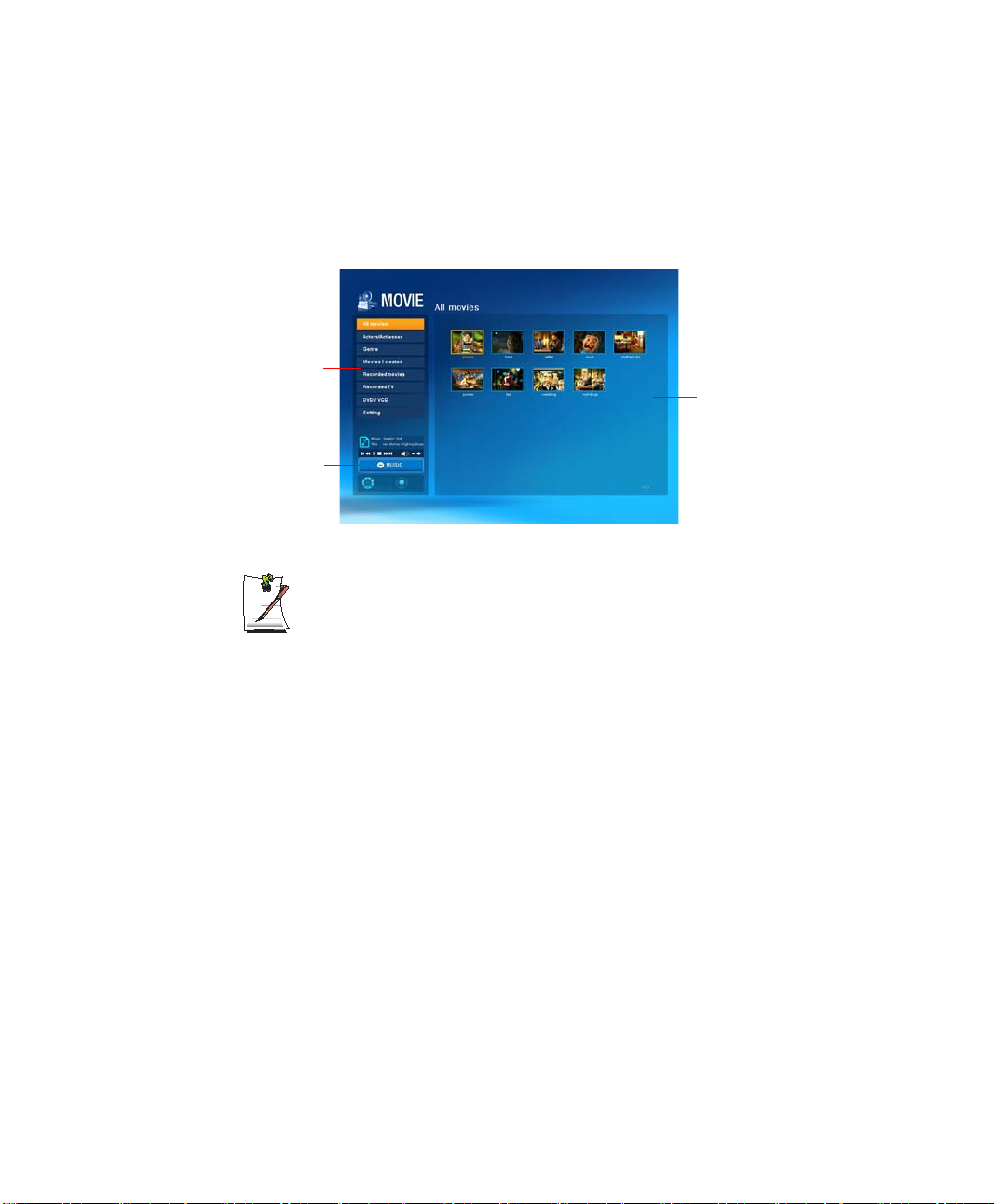

This section describes the procedures to play a movie file or a DVD/VCD title. Click on

Playing a Movie

1. Double-click on Movie in the left category pane and double-click All movies.

Double-click a movie

You can listen to the

music files in My Playlist

⊕ MUSIC

or All musics while

working.

Movie Category

MOVIE in the

Menu Selection Bar

file to play it.

MOVIE Menu

Movie Window

Library Window

You can adjust the screen size in the View menu.

Playing a DVD Title

You can only play a DVD title after installing a DVD player program, Power DVD.

1. Insert a DVD title into the DVD drive.

2. When the Select Work window appears, select using Samsung AVStation premium and click OK to play the DVD title.

If the DVD does not automatically play or the DVD title is in the DVD drive, double-click the Title of the DVD in the DVD / VCD category.

Playing a VCD Title

1. Insert a VCD title into the CD drive.

2. Double-click the Title of the VCD in the DVD / VCD category.

Using the Computer 51

Movie Editor (Editing a Movie)

This section describes the procedures for editing a movie. Click on

Editing a Movie

The procedures for merging two movie files and for inserting transition effects between movies are described below.

Click on MOVIE EDITOR. A

2. Double-click Movie in the left category pane and double-click All movies.

Drag and drop a movie

pane, drag and drop another movie file to the Storyboard.

You can listen to the

music files in My Playlist

⊕ MUSIC

or All musics while

working.

Movie Category

Background Music

MOVIE EDITOR in the

file to the Storyboard. When a Storyboard appears in the right

Menu Selection Bar.

new project will open.

MOVIE EDITOR Menu

Work Tab

Storyboard

Create Movie

52 Users Manual

•

To Enter the T

itle

: Click on Text Box in the T

itle

tab, create a Text Box on the

screen, enter the title and then click Apply. The title is inserted at the beginning of the Storyboard.

Title Tab

Apply

Applied Title

•

Screen Effect :

Select an effect from the E

ffect

tab and drag and drop the selected

effect onto the movie in the Storyboard to apply the effect.

•

Transition :

Select a Transition effect from the

Transition

tab and drag and drop the selected effect onto the movie in the Storyboard to apply the transition effect.

Transition Tab

Select a Transition Effect and drag and drop it onto the position to insert the effect.

Position of the

Transition Effect

•

Background Music :

Click on

Music and select a

music file to apply the

background music to the movie file.

When finishing

editing a movie, click on Create Movie and click OK to create the

edited movie as a movie file. The edited movie is saved in the

Edited Movie

folder and will be displayed in the My Movie category.

My Documents > AVStation Premium > Movie >

Registering a File

By registering multimedia files to the library, you can easily access and manage them since they will be appear in the corresponding category of either the Music, Image, Movie categories on the left-hand side of the screen.

The procedures to register an entire folder to the library will be used as an example below.

1. Click on Register File at the bottom of the screen.

Click on Add by folder

When the

registration is completed, click OK.

, and select the folder to be registered and then click OK.

The registered multimedia folder will be displayed in the music, image, or video categories of the library.

To play a file not registered to a category, select File > Open File and select the file.

Using the Computer 53

Using Play Mode

This section describes how to use the Play Mode of AVStation Premium. To use Play Mode, select Mode > Play Mode in the Standard Mode Menu Bar.

Play Mode Screen Layout

The initial screen of AVStation premium Play Mode has the following layout.

This appears only when

the mouse pointer is over

Move Bar

Move to the Initial

Screen of Play

Mode

Switch to Standard

Mode

MUSIC

The procedures to play a music file or an audio CD will be described below. Double-click

Category Window

it.

MUSIC i

Exit Program

Minimize Screen

n the initial screen of Play Mode.

Library Window

Repeat Button

Track, All Tracks,

Random

Media Play Control Button

54 Users Manual

Operation Display Window

Playing a Music File

1. Double-click a category from the left category window

2. Double-click a music file in the right library window. The music will be played.

Playing an Audio CD

Insert an audio CD into the CD-ROM drive

library window.

. Audio CD will be displayed in the

To play an audio CD in the CD-ROM drive, double-click on CD in the category.

2. Double-click

Audio CD in the

library window. The tracks of the CD will be displayed.

3. Double-click a track to play it.

To Listen to All Tracks

Select Play All Tracks from the Media Play Control button.

PHOTO (Viewing a Picture)

The procedures for viewing pictures (images) and for viewing pictures through the Slide Show will be described.

1. Double-click

Click on All Images in the

the library window to zoom-in on the image.

on PHOTO

in the initial screen of Play Mode.

left category pane, and double-click on an image file in

Category Window

You can listen to the

music files in My Playlist

⊕ MUSIC

or All musics while

working.

Library Window

Viewing an Image through the Slide Show or Full Screen

Select Slide Show or Full Screen from the menu at the bottom of the zoomed image screen.

Using the Computer 55

MOVIE (Playing a Movie)

The procedures to play a movie file or a DVD/VCD title will be described below.

1. Double-click

Click All movies in the

pane. The movie file will be played.

Category Window

MOVIE i

n the initial screen of Play Mode.

left category pane and double-click a movie file in the right

Library Window

You can listen to the

music files in My Playlist

⊕ MUSIC

or All musics while

working.

Playing a DVD Title

1. Insert a DVD title into the DVD drive.

2. When the Select Work window appears, select using Samsung AVStation premium and click OK to play the DVD title.

If the DVD is not automatically played or the DVD title was in the DVD drive, double-click the Title of the DVD in the DVD / VCD category.

Playing a VCD Title

1. Insert a VCD title into the CD drive.

2. Double-click the Title of the VCD in the DVD / VCD category.

56 Users Manual

Using AVStation now

AVStation now is provided for some models.

AVStation now is an integrated multimedia program that allows you to watch video (pictures, video and movies) and listen to music without turning the computer on.

Using AVStation now

How to launch AVStation now and the AVStation features will be described below.

The use procedures of AVStation now are similar to those of Play Mode of AVStation premium.

AVStation now only supports the player and view functions. To register files to the library, use the registration function of AVStation premium.

Launching AVStation now

You can only use AVStation now when your computer is turned off or it is in maximum power saving mode (see P. 5-2)

You can launch AVStation now by completing either one of the following 2 procedures.

AVStation now Button

•

Click

•

Click

the AVStation now

the AVStation now DVD

button.

AVStation now DVD Button

(If DVD/VCD is in the DVD drive, play the movie directly.)

Using the Computer 57

Exiting AVStation now

Press the <Esc

Or Select <

Select <Exit

Booting and using the computer when using AVStation now

Select <Go Window> from the Exit window. Your computer will start.

> key to move to the initial screen of AVStation now. > key in the initial screen.

Exit

> using the direction keys on the keyboard and press <

> in the Exit window and press <

AVStation now Menus

AVStation now consists of the following 3 menus.

Enter

58 Users Manual

•

MUSIC

•


: Using this menu, you can play a music file or an audio CD.

: Using this menu, you can view a picture (image) and view a picture

through the Slide Show.

•

MOVIE

: Using this menu, you can play a video (movie) file or a DVD/VCD

title.

Using AVStation now

The procedures for using AVStation now will be described below.

To Move, Select and Run Menus

You can use AVStation now by using only the keyboard.

•

Moving a M Move a menu or an item by using the

•

Selecting or Running a Move to a menu or item and press <

•

Returning to the P

Press the <

MUSIC

The procedures for playing a music file or an audio CD will be described below.

Select the MUSIC

Music by using the direction keys.

Move to a music file you wish to play in the Library pane using the

and then press the <

enu or an Item

Esc

revious Screen

> or <

Backspace

Direction

menu or an Item

Enter

> keys on the keyboard.

keys on the keyboard.

> key on the keyboard.

menu and select a category. For example, you can select All

right direction key

Enter

> key.

All Music

Category Pane

Repeat Button

Track, All Tracks,

Random

Media Play Control Button

Music File

Library Pane

Media Play Control Button

You can only use the Media Play Control button when a music file is being played.

Using the Computer 59

Playing Multiple Tracks

1. Play a music file.

2. Move the focus to the left Category pane, and select the Play All button.

Playing an Audio CD

1. Insert an audio CD into the CD-ROM drive, and select CD from the Category pane.

2. In the right Library pane, move to a track to be played, and then press the <Enter> key.


The procedures for viewing pictures (images) and for viewing pictures through the Slide Show will be described below.

Select the PHOTO

Move to an image file in the Library pane using the

the <

Enter

The selected image will be zoomed in on.

menu and move to the All Photo category.

right direction key and then press

> key.

All Photo

Category Pane

Media Play Control

You can listen to the

music files in My Playlist

60 Users Manual

⊕ MUSIC

or All musics while

Image Files

Library Pane

Button

working.

Viewing an Image through the Slide Show or Full Screen

Select Slide Show or Full Scree n from the menu at the bottom of the zoomedin on image screen, and then press the <Enter> key.

MOVIE

The procedures for playing a video (movie) file or a DVD/VCD title will be described below.

Select the MOVIE

Movies by using the direction keys.

Move to a movie file in the Library pane using the

Enter

> key.

The selected movie file will be played.

menu and select a category. For example, you can select All

right direction key and then press the

All Movie

Category Pane

Media Play Control

You can listen to the

music files in My Playlist

or All musics while

Button

⊕ MUSIC

working.

Movie Files

Library Pane

Playing a DVD/VCD title

Insert a DVD/VCD title into the DVD-ROM drive and select DVD/VCD from the Category pane.

After a short while, the DVD/VCD title will be played.

Using the DVD/VCD Play Control Button

To use the Play Control button while playing a DVD/VCD title, press the <Space Bar> on the keyboard.

The Play Control display disappears when a VCD is being played, but it does not disappear when a DVD is being played. To hide the Play Control display, press the <Space Bar> again.

Using the Computer 61

Tips

•

Notice

•

Using the Library (File)

AVStation Now can use the library of AVStation Premium. To use the library in AVStation Now, register the library in AVStation Premium. (See ”Registering a File” on page 53)

HDD Category

You can play unregistered files on the hard disk drive in the HDD category of each menu.

Do not remove the Recovery Solution Program. Removing the Recovery Solution Program also removes AVStation Now. Once the program is removed, you cannot reinstall it, therefore take care not to remove the program.

You cannot use an additionally created Playlist.

You cannot use an additionally created Playlist other than the Playlist provided with AVStation premium in AVStation now.

A move file or a movie title not supported by AVStation Now

To play a movie file or a movie title not supported by AVStation Now, please use AVStation Premium after booting your computer.

62 Users Manual

Using Smart Parking (Only For Some Models)

The Smart Parking program helps you to protect the HDD from impact when using your computer while you are on the move or outdoors.

This function is a factory option and supports specific types of hard drives only. For more information about supported models, refer to the detailed model specifications of your product provider.

Although Smart Parking helps protect the HDD against external impacts, it cannot always completely protect your HDD from impact. Please always backup important data.

When turning your computer on, the Smart Parking program is automatically launched. To manually launch the program again when the program has been terminated, Double-click the Smart Parking icon ( ) on the Desktop.

1. Right-click the Smart Parking icon ( ) on the taskbar and select Run.

2. Select a mode to use and click the OK button. Smart Parking will launch.

This figure shows the current operating status.

Using the Computer 63

•

Normal Mode : Parks the HDD in a short time when a slight impact is detected when using the computer in a normal operating environment.

•

Public Transportation Mode : Parks the HDD in a short time when an impact is detected that is heavier than for Normal Mode, for when the computer is being used while moving by public transportation.

•

Stop : Disables Smart Parking.

The figure changes according to the Smart Parking operation as follows:

When Smart Parking is monitoring the HDD

When Smart Parking is parking the HDD

64 Users Manual

When Smart Parking is terminated

Connecting to the Internet

Connecting with a Modem

Before Start:

•

Prepare a telephone line that is not digital.

•

Contact an internet service provider (ISP) for instructions on how to connect to and disconnect from the Internet.

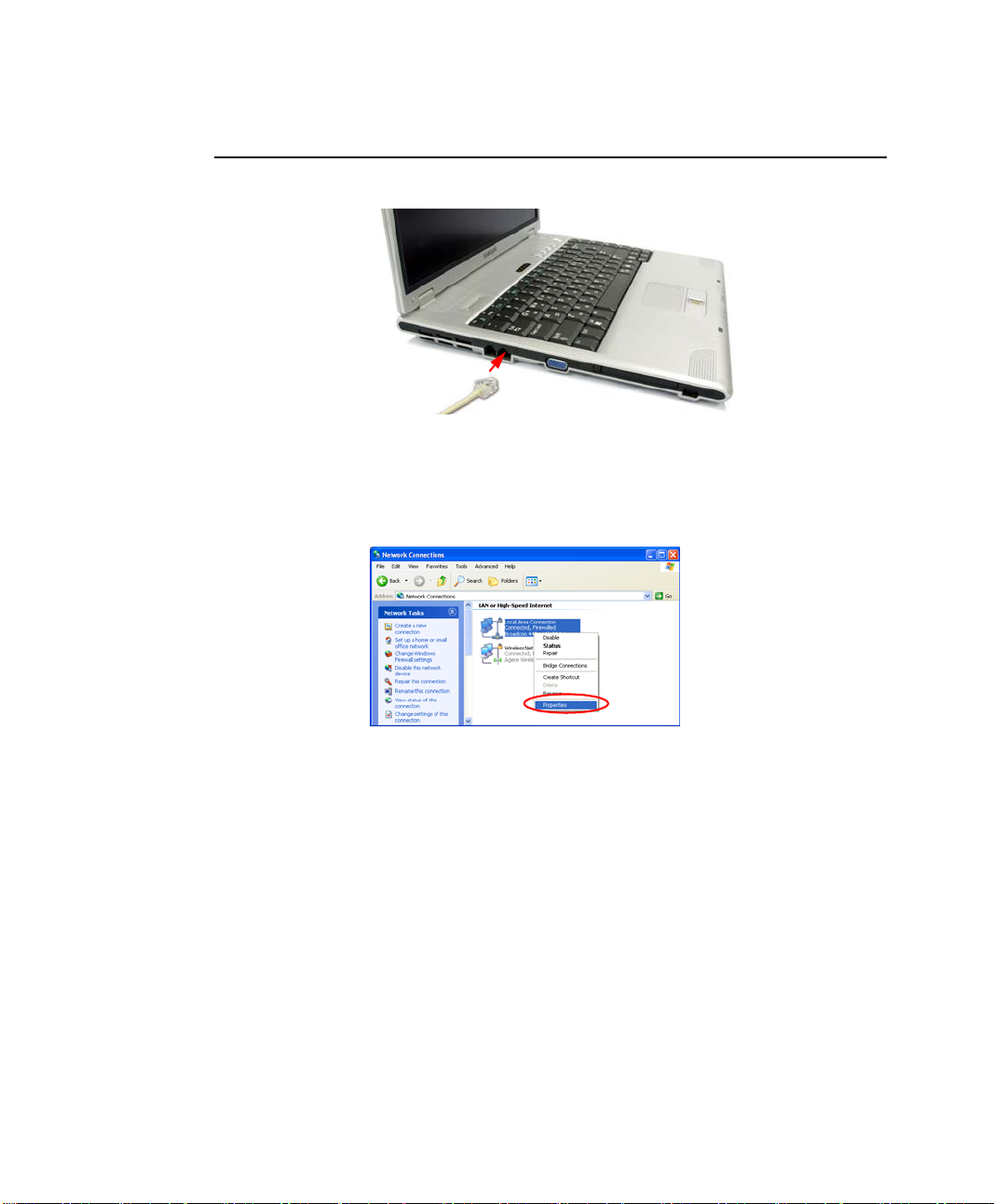

1. Connect a telephone line to the computer’s modem port.

2. Connect to the Internet according to the instructions provided by your ISP.

If the Internet connection is not disconnected properly, additional telephone charges may be imposed.

Connecting to the Internet 65

Connecting Through a Wired LAN

1. Connect a LAN cable to the computer’s LAN port.

2. Click Start > Control Panel.

3. Click Network and Internet Connections in the [Control Panel] window.

4. Click Network Connections in the [Network and Internet Connections] window.

5. Right-click the Local Area Connection icon and click Properties.

66 Users Manual

6. On the General tab, select “Internet Protocol(TCP/IP)” and click Properties.

7. To use DHCP:

On the General tab, select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click OK.

To use a static IP:

On the General tab, select “Use the following IP address” and fill in the IP address, Subnet mask, Default gateway, Preferred DNS server, and Alternative DNS server fields. Click OK.

To use both DHCP and static IP simultaneously:

On the Alternate Configuration tab, click User configured and fill in the fields. Click OK.

Connecting to the Internet 67

Using Samsung Network Manager

Use Samsung Network Manager to configure network setting.

Using the program, you can do the following.

•

You can save network settings (including IP address) according to network places such as office and home. When you change places, simply select a network place and the network settings will be automatically changed accordingly.

•

You can easily find out your current IP.

To configure network setting

1. Connect LAN cable to the computer's LAN port.

2. Double-click Samsung Network Manager icon on the desktop. Or click Start > All Programs > Samsung Network Manager > Samsung Network Manager.

3. When you are using DHCP, available IP's are displayed in the status dialog box. Click Change.

4. Click Add, click Choose Icon and select an icon. Enter a place name in New Name

68 Users Manual

field and click Ok.

5. New place icon is displayed and full dialog box appears. Check your IP and click Close. Network setting is saved.

To configure network setting of some place other than current place, click the place icon and configure each network device. If you are using DHCP, select 'DHCP' check box and click Save.

If you are using a static IP, clear 'DHCP' check box, enter appropriate network setting and click Save.

Ask ISP or network administrator for IP address.

To change network places

You can change network places as below.

1. Connect LAN cable to the computer's LAN port, and double-click Samsung Network Manager icon on the desktop.

If you used static IP in previous place, previous static IP is displayed in the status dialog box.

Connecting to the Internet 69

2. Click Change, select a place icon then click Change.

Example) changing to Office

3. On "Do you want to change the location setting?" dialog box, click Ok.

4. When the network place is changed, corresponding place icon is displayed in color

and full dialog box appears. In the right area of full dialog box, network setting is displayed.

5. Click Close to close the dialog box.

To share an Internet connection

Using Internet Connect Share, you can use the Internet by connecting to a computer connected to the Internet, even if your computer does not have a direct Internet connection. You can setup the server, which is a computer directly connected to the Internet and which provides the Internet Connection Share service, and the client, which is a computer that will use the Internet Connection Share service.

To configure the server

1. Connect the network (LAN) cable and double-click the Samsung Network

2. Click Click here to setup Internet Connection Share.

70 Users Manual

Manager icon on the Desktop.

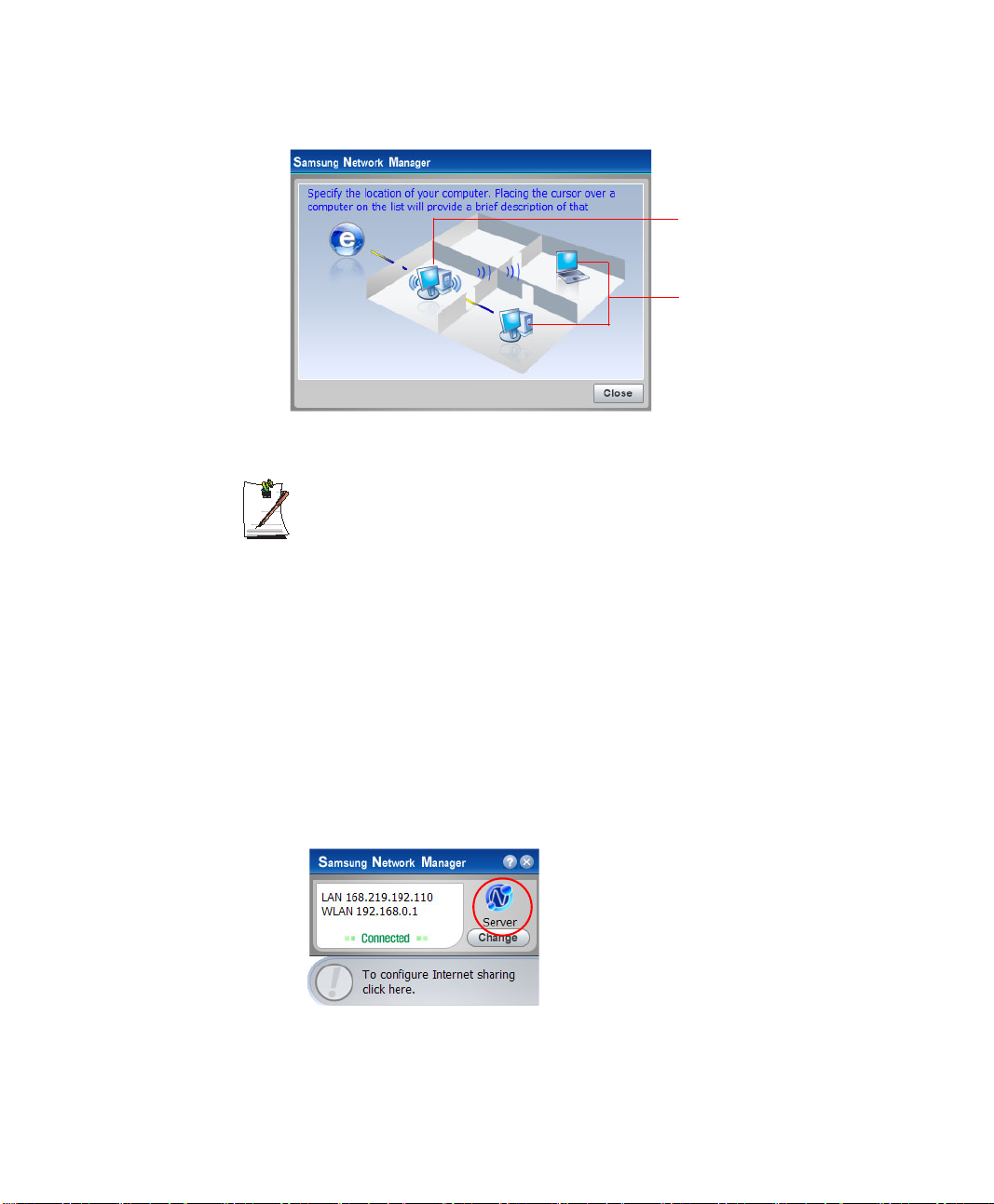

3. The computers are represented by an icon. Click the server computer.

Server

Client

4. In the server, select a device that is directly connected to the Internet.

If you select Use Firewall, you can use the Windows Firewall.If you are using an external modem, select the network card connected to the external modem.

5. The network types connecting to the server and client will be displayed. Select a network type and then click OK.

6. Your configuration is displayed such as the Internet Connection, Use Firewall, Home Network Connection, etc. Confirm your configuration and click OK to begin the Internet Connection Share setup.

7. Configure the connection between the server and the client. If it is a wireless connection, the wireless network connection properties window and the wireless network setup procedure instruction window appear. Setup your wireless network according to the messages of the wireless network setup procedure instruction window.

8. The current location is represented as a server. The server configuration is complete.

Connecting to the Internet 71

To configure the client

1. Connect the network (LAN) cable and double-click the Samsung Network

Manager icon on the Desktop.

2. Click Click here to setup Internet Connection Share.

3. The computers are represented by icons. Click the client computer.

4. Select a network to connect to the server and click OK.

If it is a wireless connection, the wireless network connection properties and the wireless network setup procedure instruction windows will appear. Setup your wireless network according to the messages of the wireless network setup procedure instruction window.

5. The current location is represented as the client. The client configuration is complete.

72 Users Manual

Connecting Through a Wireless LAN (Option)

A wireless network (Wireless LAN) environment is a network environment that enables communication between multiple computers at home or a small-size office through wireless LAN devices.

Using the wireless network connections between the systems, you can use normal network functions such as sharing of files, folders and printers. When a computer-tocomputer network has been constructed, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet. For details, see “To share an Internet connection” on page 70.

The description in this section concerns an Intel(R) PRO/Wireless 2200BG Network Connection (hereafter referred to as Intel 802.11BG card), an Intel(R) PRO/Wireless 2915ABG Network Connection (hereafter referred to as Intel

802.11ABG card), an Airgo Networks True MIMO (tm) Wireless Adapter (hereafter referred to as MIMO card) and Atheros Wireless Network Adapter (hereafter referred to as an Atheros 802.11BG card) devices.

A wireless LAN card is optional. The model of the wireless LAN card is determined by the relevant product.

To view the installed wireless LAN card, click Start > Control Panel > Performance and Maintenance > System > Hardware tab > Device Manager.

The wireless LAN connection settings will be described on the basis of the Windows XP Service Pack 2 installed computer.

It is recommended using the default settings provided by Windows XP for the wireless LAN settings for Windows XP installed computers. To setup using the software supplied by the wireless LAN card manufacturer, refer to ”Wireless Network Setup Using the Wireless LAN Setup Program(For Intel 802.11BG or Intel 802.11ABG cards)” (p82).

A MIMO card does not provide an additional wireless LAN program. To use the wireless network, you have to turn on the w ireless LAN function by

using the Wireless LAN On/Off Button. (p 16)

Wireless network connections can be classified into two categories.

1) Access Point (AP)

You can connect to an AP to use the network. This is possible only in an environment equipped with an AP. For details, see “Connecting to an Access Point (AP)” on page

74.

Connecting to the Internet 73

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.

2) Computer-to-computer (ad hoc)

This is also called a peer-to-peer network. In computer-to-computer wireless networks, you can wirelessly connect 2 or more

computers that have wireless LAN modules. For details, see “Connecting to computerto-computer networks (peer-to-peer or ad hoc)” on page 76.

Connecting to an Access Point (AP)

This section describes how to connect to an AP. You can use the network when you are connected to an AP.

For more detailed information such as the network key (encryption key), ask your network administrator.

1. Right-click on the Wireless Network Connection ( ) icon on the taskbar, and select View Available Wireless Networks.

74 Users Manual

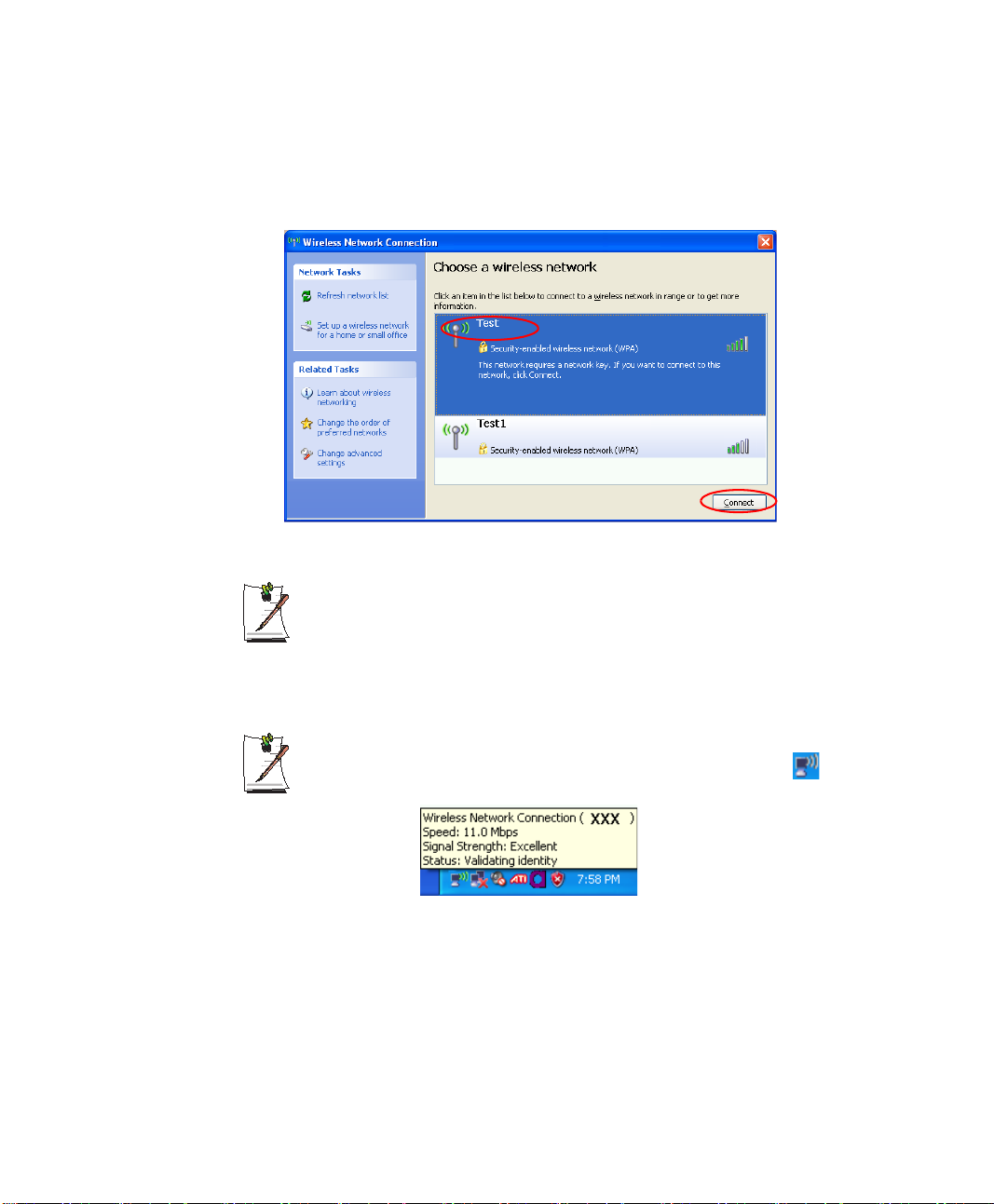

2. Select an AP (E.g. Test) to connect to and click Connect. If there is a configured network key for the AP to connect to, the Enter Network Key window appears. Enter the Network Key in the window and then click the Connect button.

When a network key is not defined for a selected AP, click on Link to display the warning message box. Then click Connect again in the box.

Now when Connected in AP is displayed, and you can access the network.

Checking the connection status

Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection status is displayed.

Connecting to the Internet 75

Connecting to computer-to-computer networks

ad hoc)

In computer-to-computer wireless networks, you can wirelessly connect 2 or more computers that have wireless LAN modules. Using this method, a computer that is not connected to the Internet can share the Internet by accessing another computer connected to the Internet. (Refer to See ”To share an Internet connection” on page 70.)

You can connect by completing the following steps:

•

Step 1. Set up a computer-to-computer network on a computer.

•

Step 2. Connect to the configured computer from other computers.

(peer-to-peer or

Step 1. Setting up a computer-to-computer network

1. Right-click on the Wireless Network Connection ( ) icon on the taskbar, and select View Available Wireless Networks.

76 Users Manual

2. Click Change the order of Preferred Networks.

3. On the Wireless Network tab, click Advanced.

4. Clear 'Automatically connect to non-default network' check box, if it is selected. Select 'Computer-to-computer (ad hoc) networks only', and click Close.

5. In the Wireless Networks tab, click Add.

Connecting to the Internet 77

6. Enter the network name (e.g. samsung), and unselect 'The key is provided for me automatically'. Enter the encryption key in the Network key field, and click OK.

To prevent a network connection from an unauthorized user, it would be better to configure a network key (encryption key). A network key consists of 5 ~ 13 alphanumeric characters (e.g. magic), or of 10 ~ 26 hexadecimal numbers (a hexadecimal number is represented by numbers '0' to '9' or letters 'a' to 'f').

78 Users Manual

7. Check that the configured network name (e.g. samsung) is in the ’Preferred networks’ item, and click OK.

Now your wireless network setup has been completed.

Step 2. Connecting to the configured computer

1. Right-click on the Wireless Network Connection ( ) icon on the taskbar, and select View Available Wireless Networks.

Connecting to the Internet 79

2. Select the wireless network name (e.g. samsung) specified in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 76, and click

Connect.

3. Enter a cryptographic key in the network key box and click Connect.

When connected to the wireless network, the system displays Connected in the selected network of the Network Connection window.

80 Users Manual

If the network key is not configured in ”Connecting to computer-to-computer networks (peer-to-peer or ad hoc)” on page 76, just click Connect, without any keystrokes.

Checking the connection status

Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection status is displayed.

Connecting to the Internet 81
