Samsung WWT-5301L, WRT-5301L, WRT-3301L, WRR-5501L, WRR-5301L Quick Start Guide

Quick Reference Guide

Quick Reference Guide

LICENSE KEY / SERIAL NUMBER

Contents

Thank you for selecting Wisenet WAVE Video Management
System! For assistance or questions regarding the setup of
your WAVE server or client, please contact one of our technical

support specialists, or visit our website.

Technical Support: 877-213-1222

Web: www.hanwhasecurity.com

License Key

Ports and Package Contents

WAVE Video Tutorial Library and Mobile Application

Conguring System Network Settings

Warranty

1

2

3

4

6

Technical Support [phone] www.HanwhaSecurity.com

1

PORTS AND PACKAGE CONTENTS

WRT/WWT Series

9

8

4

*2x USB 2.0 ports in the front panel

1

2

5

10

WRR Series

1

3

*2x USB 3.0 ports in the front panel

1

Power

2

NIC

3

USB 3.0

4

DVI

6

WRR Series

33

7

.

1x WRR appliance

.

2x power cables

.

1x sliding rack rail

.

1x mouse and keyboard

.

1x quick guide

5

HDMI

6

Audio

7

SPDIF

8

PS2

. .

Package Contents

9

10

11

WRT/WWT Series

.
.
.
.
.

11

4

5

Wi-Fi Antenna
USB 3.0 Type C
Display Port

1x WRT or WWT appliance
1x power cable
2x Wi-Fi antennas
1x mouse and keyboard
1x quick guide

2

3

6

7

Technical Support [phone] www.HanwhaSecurity.com

2

WAVE VIDEO TUTORIAL LIBRARY AND MOBILE APPLICATION

Use the QR codes below to visit our extensive video tutorial library and to install your WAVE Mobile app to always stay connected.

Setting up WAVE software

https://wavevms.com/wave_qg_1

by following this QR code or by
visiting the link below:

https://wavevms.com/download/

WAVE software may be downloaded

Adding devices to WAVE

https://wavevms.com/wave_qg_2

Download the WAVE Mobile App for Android

Setting camera recording proles

https://wavevms.com/wave_qg_3

Download the WAVE Mobile App for iOS

Playlist for WAVE tutorial videos

https://wavevms.com/wave_qg_4

Technical Support [phone] www.HanwhaSecurity.com

3

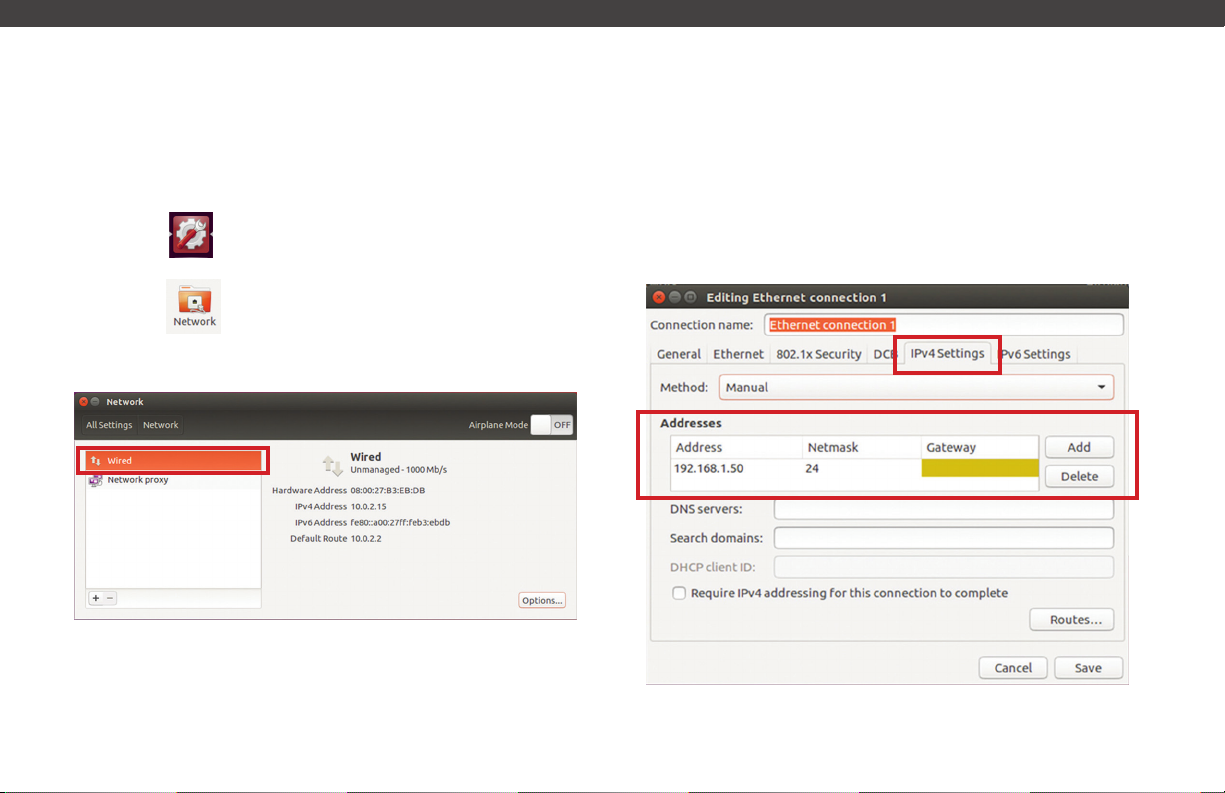

CONFIGURING SYSTEM NETWORK SETTINGS

In certain cases, it may be necessary for your WAVE server to use a static IP address. Follow the steps outlined below to
congure your WAVE server to use a static network IP address.

Ubuntu

1. Click the icon to enter the System Settings window

2. Click the icon to enter the Network Settings window

3. Select “Wired” and click “Options...”

4. Go to the “IPv4 Settings” tab and input the IP conguration
required for your network

Technical Support [phone] www.HanwhaSecurity.com

4

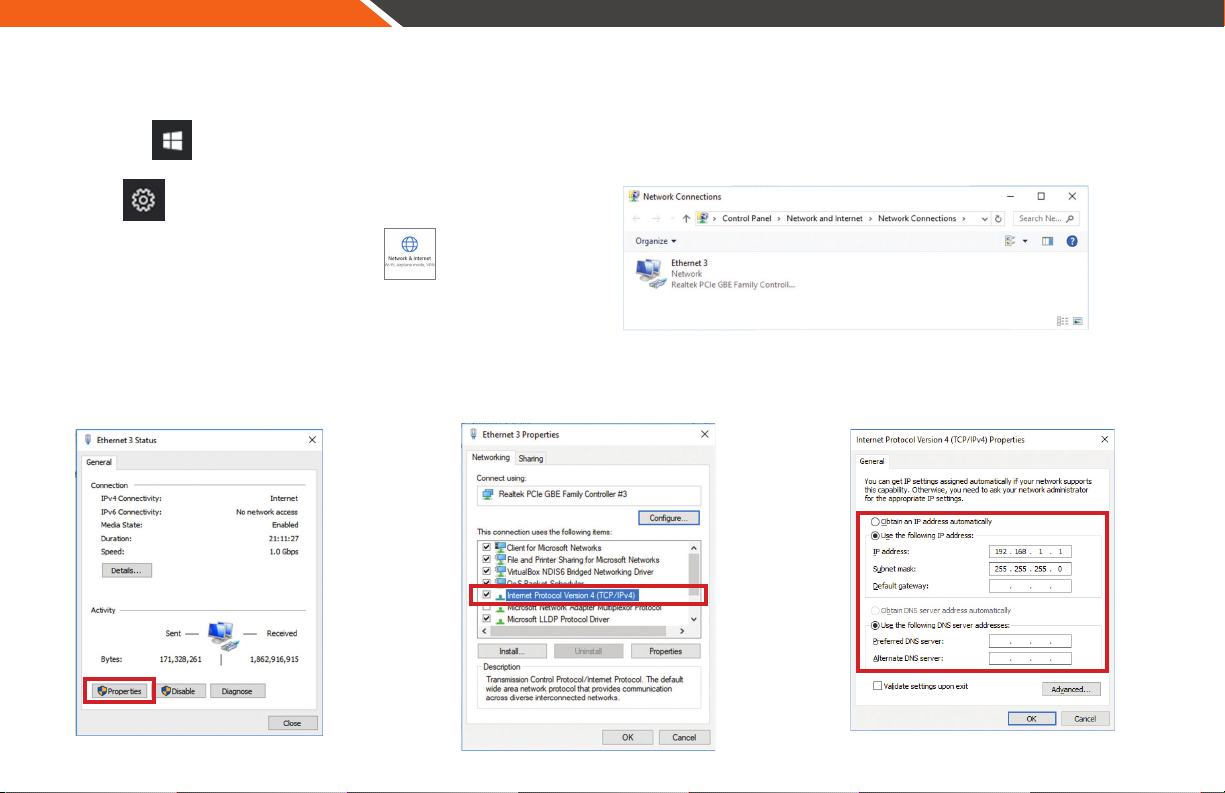

Windows

1. Click the icon to enter the Start menu

5. Double-click the icon for the network card used to connect to
your local network to view its properties window

2. Click to access your system Control Panel

3. Click the “Networking & Internet” icon

4. Click “Change Adapter Options”

6. Click on “Properties” 7. Double-click on the Internet Protocol
Version 4 (TCP/IPv4)

8. Set network properties according
to your requirements

Technical Support [phone] www.HanwhaSecurity.com

5

WARRANTY

All Hanwha Techwin products are guaranteed for a below period from the date
of purchase against defects in workmanship and materials. This warranty is
valid only on Hanwha Techwin Products and it shall be limited to the repair and
/ or adjustment. Exceptions to this warranty are as noted below ;

Product Category Warranty Period Exceptions

Cameras
(Analog/Network)

3 Years

Network Products
(Server/Switch/etc)

3 Years

Monitors
(CRT/LCD/LED)

3 Years

CRT Module (1 Year)
LCD/LED Panel (2 Years)

Recorders
(DVR/NVR/Storage)

3 Years

Accessories
(Housing/Matrix/etc)

3 Years Brackets No Warranty

Lens/Controller 3 Years

Access Control 2 Years

When service is required, the warranty is validated by the submission of a
fully completed warranty card which was marked with Model Name, Serial
No, Date of Purchase & Price, Purchaser's Name & Address, and Place of
purchase & Address. Hanwha Techwin does not warrant the repair of any
product where the serial number has been altered or removed.
The service will be performed by one of the Hanwha Techwin service agents
listed on this card.

This warranty becomes void if there is any malfunction, defect or failure
caused by or resulting from the evidence of impact, mishandling, tampering,
use contrary to the applicable instruction manual, incorrect power line
voltage, fire, flood or other Acts of God, shipping damage or damage resulting
from repairs performed by unauthorized personnel. Routine cleaning, normal
cosmetic and mechanical wear and tear are not covered under the terms of
this warranty.

When returning the product for warranty service, please pack it carefully,
insure the product and enclose your warranty card, original receipt or copy,
brief explanation of the problem.
This warranty card does not cover the postal cost, insurance and any other
incidental charges.

Product Name CCTV Products

Purchaser

Name

Model Name Phone

Serial No.

Address

Warranty
Period

Seller

Name

Purchase

Date Phone

Price

Address

English

Technical Support [phone] www.HanwhaSecurity.com

6

Conventional

© 2018 Hanwha Techwin Co., Ltd. All rights reserved.

DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Under no circumstances, this document shall be reproduced, distributed or changed,
partially or wholly, without formal authorization of Hanwha Techwin Co.,Ltd.

REVISED 02-2018
