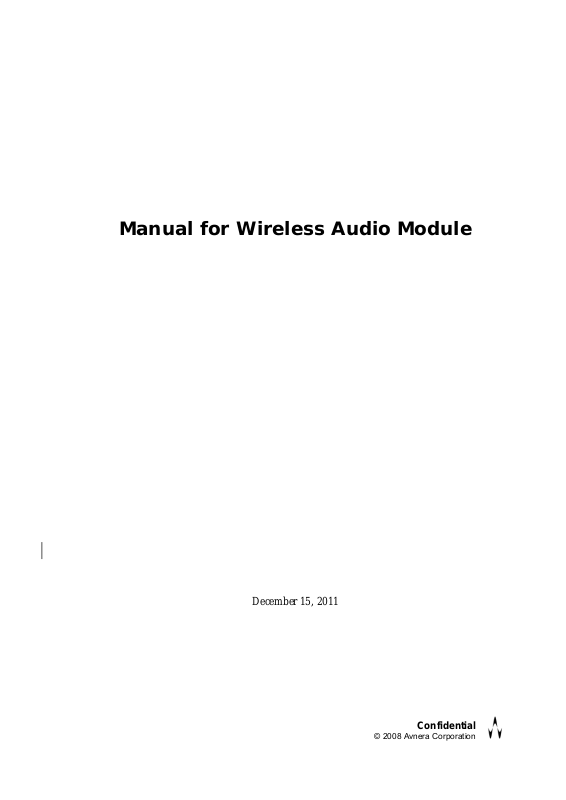

Samsung WISP40A Users Manual

Manual for Wireless Audio Module

December 15, 2011

Confidential

© 2008 Avnera Corporation

Avnera Corporation Samsung Module Manual

REVISION HISTORY

Version Purpose \ Changes Date

1.0 Initial release December 15, 2011

Samsung Module PRD AVNERA CONFIDENTIAL page 2 of 10

Avnera Corporation Samsung Module Manual

1. Introduction

This features is a highly integrated, single-chip, wireless audio solution. This integrates the following: a complete

2.4 GHz RF transceiver, the VMI™ wireless communication system PHY & MAC, advanced power management,
audio DSP, I2S interfaces and a full complement of programmable digital interfaces to support a wide range of
end-product user communication requirements.

2. Hardware Architecture:

2.1 Main Chipset Information

Item Vendor Part Number

BBIC + RFIC AVNERA AV6200

2.2 Circuit Block Diagram

3. Operation Description

Samsung wireless audio module is the 2.4GHz band RF Module that provide users of a wireless audio
system to connect to TV. This enables a wide range of digital wireless audio applications. This
wireless audio technology has been known for its extreme wireless fidelity and audio quality. This module
further extends this offering a high level of integration resulting in a very low-cost complete wireless
system solution, without any sacrifice to the main technology drivers: Audio Quality and Wireless Fidelity.
